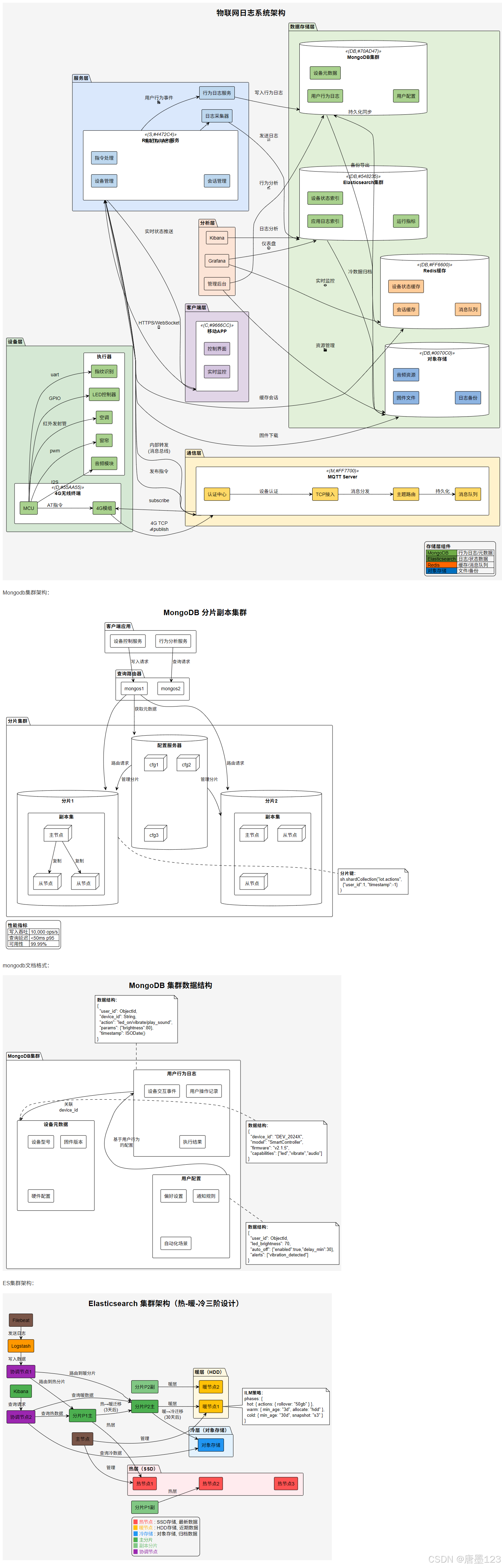

论，物联网日志系统架构如何设计？

使用双引擎：

mongodb存储用户行为日志
Elasticsearch存储设备状态日志、app系统日志（打印调试）。

plantuml 复制代码

@startuml
!theme plain
skinparam componentStyle rectangle
skinparam nodesep 30
skinparam ranksep 30
skinparam defaultFontName Helvetica
skinparam defaultFontSize 14
skinparam classFontSize 14
skinparam BackgroundColor #F5F5F5

title 物联网日志系统架构

left to right direction

' ====== 设备层 ======
package "设备层" #D5E8D4 {
  rectangle "4G无线终端" as device <<(D,#55AA55)>> {
    rectangle "MCU" as mcu #A9D18E
    rectangle "4G模组" as modem #A9D18E
  }

  rectangle "执行器" as actuators {
    rectangle "LED控制器" as led #A9D18E
    rectangle "指纹识别" as finger #A9D18E
    rectangle "音频模块" as audio #A9D18E
    rectangle "窗帘" as curtain #A9D18E
    rectangle "空调" as airConditioning #A9D18E
  }

  mcu --> led : GPIO
  mcu --> finger : uart
  mcu --> audio : I2S
  mcu --> modem : AT指令
  mcu --> airConditioning: 红外发射管
  mcu --> curtain: pwm
}

' ====== 通信层 ======
package "通信层" #FFF2CC {
  rectangle "MQTT Server" as mqtt <<(M,#FF7700)>> {
    rectangle "TCP接入" as tcp #FFD966
    rectangle "主题路由" as router #FFD966
    rectangle "消息队列" as queue #FFD966
    rectangle "认证中心" as auth #FFD966

    tcp --> router : 消息分发
    router --> queue : 持久化
    auth --> tcp : 设备认证
  }
}

' ====== 服务层 ======
package "服务层" #DAE8FC {
  rectangle "RESTful API服务" as api_svc <<(S,#4472C4)>> {
    rectangle "设备管理" as device_mgr #BDD7EE
    rectangle "指令处理" as cmd_handler #BDD7EE
    rectangle "会话管理" as session_mgr #BDD7EE
  }

  rectangle "行为日志服务" as action_svc #BDD7EE
  rectangle "日志采集器" as log_agent #BDD7EE
}

' ====== 数据存储层 ====== [重点补充]
package "数据存储层" #E2F0D9 {
  database "MongoDB集群" as mongo <<(DB,#70AD47)>> {
    rectangle "用户行为日志" as action_logs #A9D18E
    rectangle "设备元数据" as device_meta #A9D18E
    rectangle "用户配置" as user_config #A9D18E
  }

  database "Elasticsearch集群" as es <<(DB,#548235)>> {
    rectangle "应用日志索引" as app_logs #A9D18E
    rectangle "设备状态索引" as device_status #A9D18E
    rectangle "运行指标" as metrics #A9D18E
  }

  database "Redis缓存" as redis <<(DB,#FF6600)>> {
    rectangle "会话缓存" as sessions #FFCC99
    rectangle "设备状态缓存" as device_cache #FFCC99
    rectangle "消息队列" as msg_queue #FFCC99
  }

  database "对象存储" as s3 <<(DB,#0070C0)>> {
    rectangle "固件文件" as firmware #8DB4E2
    rectangle "音频资源" as audio_files #8DB4E2
    rectangle "日志备份" as log_backup #8DB4E2
  }
}

' ====== 客户端层 ======
package "客户端层" #E1D5E7 {
  rectangle "移动APP" as app <<(C,#9666CC)>> {
    rectangle "控制界面" as ctrl_ui #D5C6E0
    rectangle "实时监控" as monitor #D5C6E0
  }
}

' ====== 监控分析层 ======
package "分析层" #FCE4D6 {
  rectangle "Kibana" as kibana <<(V,#339999)>> #FCE4D6
  rectangle "Grafana" as grafana <<(V,#339999)>> #FCE4D6
  rectangle "管理后台" as admin <<(V,#990099)>> #FCE4D6
}

' ====== 完整连接关系 ======
' 设备通信
modem --> mqtt : 4G TCP\n<&signal>publish
mqtt --> modem : subscribe\n<&message>

' 服务间通信
mqtt --> api_svc : 内部转发\n(消息总线)
api_svc --> mqtt : 发布指令\n<&message>

' 数据处理流
api_svc --> action_svc : 用户行为事件\n<&document>
action_svc --> mongo : 写入行为日志\n<&data>
api_svc --> log_agent : 输出应用日志\n<&log>
log_agent --> es : 发送日志\n<&transfer>
api_svc --> redis : 缓存会话\n<&save>
api_svc --> s3 : 固件下载\n<&download>

' 客户端连接
app --> api_svc : HTTPS/WebSocket\n<&phone>
api_svc --> app : 实时状态推送\n<&notification>

' 监控分析
kibana --> es : 日志分析\n<&search>
grafana --> es : 仪表盘\n<&dashboard>
grafana --> redis : 实时监控\n<&eye>
admin --> mongo : 行为分析\n<&graph>
admin --> s3 : 资源管理\n<&folder>

' ====== 数据存储层内部关系 ======
es --> s3 : 冷数据归档\n<&archive>
redis --> mongo : 持久化同步\n<&sync>
mongo --> s3 : 备份导出\n<&export>

' ====== 图例说明 ======
legend right
  <b>存储层组件</b>
  |<#70AD47> MongoDB | 行为日志/元数据 |
  |<#548235> Elasticsearch | 日志/状态数据 |
  |<#FF6600> Redis | 缓存/消息队列 |
  |<#0070C0> 对象存储 | 文件/备份 |
endlegend

@enduml

Mongodb集群架构：

plantuml 复制代码

@startuml
!theme plain
skinparam componentStyle rectangle
skinparam nodesep 30
skinparam ranksep 30
skinparam defaultFontName Helvetica

title MongoDB 分片副本集群

package "分片集群" {
  database "分片1" as shard1 {
    component "副本集" as rs1 {
      node "主节点" as primary1
      node "从节点" as secondary1
      node "从节点" as secondary2

      primary1 --> secondary1 : 复制
      primary1 --> secondary2 : 复制
    }
  }

  database "分片2" as shard2 {
    component "副本集" as rs2 {
      node "主节点" as primary2
      node "从节点" as secondary3
      node "从节点" as secondary4
    }
  }

  database "配置服务器" as config_servers {
    node "cfg1"
    node "cfg2"
    node "cfg3"
  }
}

package "查询路由器" {
  [mongos1] as mongos1
  [mongos2] as mongos2
}

package "客户端应用" {
  [设备控制服务] as api_svc
  [行为分析服务] as analytics_svc
}

' ==== 连接关系 ====
api_svc --> mongos1 : 写入请求
analytics_svc --> mongos2 : 查询请求

mongos1 --> config_servers : 获取元数据
mongos1 --> shard1 : 路由请求
mongos1 --> shard2 : 路由请求

config_servers --> shard1 : 管理分片
config_servers --> shard2 : 管理分片

' ==== 分片策略 ====
note bottom of shard1
  **分片键**：
  sh.shardCollection("iot.actions",
    {"user_id":1, "timestamp":-1}
  )
end note

' ==== 性能指标 ====
legend left
  <b>性能指标</b>
  | 写入吞吐 | 10,000 ops/s |
  | 查询延迟 | <50ms p95 |
  | 可用性 | 99.99% |
end legend
@enduml

mongodb文档格式：

plantuml 复制代码

@startuml
!theme plain
skinparam componentStyle rectangle
skinparam nodesep 20
skinparam ranksep 20
skinparam defaultFontName Helvetica
skinparam BackgroundColor #F5F5F5

title MongoDB 集群数据结构

package "MongoDB集群" {
  component "用户行为日志" as action_logs {
    [用户操作记录]
    [设备交互事件]
    [执行结果]
  }

  component "设备元数据" as device_meta {
    [设备型号]
    [固件版本]
    [硬件配置]
  }

  component "用户配置" as user_config {
    [偏好设置]
    [通知规则]
    [自动化场景]
  }
}

' ==== 数据结构注释 ====
note top of action_logs
  **数据结构**：
  {
    "user_id": ObjectId,
    "device_id": String,
    "action": "led_on/vibrate/play_sound",
    "params": {"brightness":80},
    "timestamp": ISODate()
  }
end note

note right of device_meta
  **数据结构**：
  {
    "device_id": "DEV_2024X",
    "model": "SmartController",
    "firmware": "v2.1.5",
    "capabilities": ["led","vibrate","audio"]
  }
end note

note bottom of user_config
  **数据结构**：
  {
    "user_id": ObjectId,
    "led_brightness": 70,
    "auto_off": {"enabled":true,"delay_min":30},
    "alerts": ["vibration_detected"]
  }
end note

' ==== 关系说明 ====
action_logs --> device_meta : 关联\ndevice_id
user_config --> action_logs : 基于用户行为\n的配置

@enduml

ES集群架构：

plantuml 复制代码

@startuml
!theme plain
skinparam componentStyle rectangle
skinparam nodesep 20
skinparam ranksep 20
skinparam defaultFontName Helvetica
skinparam BackgroundColor #F5F5F5
skinparam rectangle {
  BackgroundColor White
  BorderColor Black
}

title Elasticsearch 集群架构（热-暖-冷三阶设计）

left to right direction

' ====== 节点角色 ======
package "热层（SSD）" #FFEBEE {
  rectangle "热节点1" as hot1 #FF5252
  rectangle "热节点2" as hot2 #FF5252
  rectangle "热节点3" as hot3 #FF5252

  hot1 -[hidden]- hot2
  hot2 -[hidden]- hot3
}

package "暖层（HDD）" #FFF8E1 {
  rectangle "暖节点1" as warm1 #FFC107
  rectangle "暖节点2" as warm2 #FFC107
}

package "冷层（对象存储）" #E3F2FD {
  rectangle "对象存储" as cold #2196F3
}

' ====== 数据分片 ======
rectangle "分片P1主" as shard_p1 #4CAF50
rectangle "分片P1副" as shard_p1r #81C784
rectangle "分片P2主" as shard_p2 #4CAF50
rectangle "分片P2副" as shard_p2r #81C784

' ====== 分片分配 ======
shard_p1 --> hot1 : 热层
shard_p1r --> hot2 : 热层
shard_p2 --> warm1 : 暖层
shard_p2r --> warm2 : 暖层

' ====== 协调层 ======
rectangle "协调节点1" as coord1 #9C27B0
rectangle "协调节点2" as coord2 #9C27B0

' ====== 管理组件 ======
rectangle "Kibana" as kibana #4CAF50
rectangle "Logstash" as logstash #FF9800
rectangle "Filebeat" as filebeat #795548

' ====== 数据流 ======
filebeat -> logstash : 发送日志
logstash -> coord1 : 写入数据
coord1 --> shard_p1 : 路由到热分片
coord1 --> shard_p2 : 路由到暖分片

' ====== 数据迁移流 ======
shard_p1 --> shard_p2 : 热→暖迁移\n(3天后)
shard_p2 --> cold : 暖→冷迁移\n(30天后)

' ====== 查询流 ======
kibana -> coord2 : 查询请求
coord2 --> shard_p1 : 查询热数据
coord2 --> shard_p2 : 查询暖数据
coord2 --> cold : 查询冷数据

' ====== 集群管理 ======
rectangle "主节点" as master #795548
master --> hot1 : 管理
master --> warm1 : 管理

' ====== 索引生命周期 ======
note right of warm1
  **ILM策略**：
  phases: {
    hot: { actions: { rollover: "50gb" } },
    warm: { min_age: "3d", allocate: "hdd" },
    cold: { min_age: "30d", snapshot: "s3" }
  }
end note

' ====== 图例说明 ======
legend bottom
  <color:#FF5252>▉ 热节点</color> : SSD存储, 最新数据
  <color:#FFC107>▉ 暖节点</color> : HDD存储, 近期数据
  <color:#2196F3>▉ 冷存储</color> : 对象存储, 归档数据
  <color:#4CAF50>▉ 主分片</color>
  <color:#81C784>▉ 副本分片</color>
  <color:#9C27B0>▉ 协调节点</color>
end legend

@enduml
