HarmonyOS实现快递APP自动识别地址

随着鸿蒙(HarmonyOS)生态发展,越来越多的APP需要进行鸿蒙适配。本文以快递APP寄件中的收货地址识别功能为例,探讨HarmonyOS鸿蒙版本的开发和适配。

一、需求分析

1、应用场景

随着互联网的发展,网购已成为大家日常生活中不可或缺的一部分。网购涉及到发货和收货操作,为了简化操作、提升APP的使用效率,各大APP都融入了AI能力。在AI赋能下,从传统的文字输入交互方式,逐步拓展到人脸识别、指纹识别、图片识别、语言识别等方式,降低了APP使用门槛的同时极大提高了交互效率。

本文研究以支付宝APP里边的"菜鸟裹裹"寄件场景为例,通过粘贴文字或者图片识别进行收货地址自动识别填充。在鸿蒙操作系统(HarmonyOS)上借助HarmonyOS SDK 提供的AI能力,开发鸿蒙原生应用APP功能,完成上述功能。

ps:相信大家都寄过快递,如果没操作过可以先了解一下。

2、实现效果

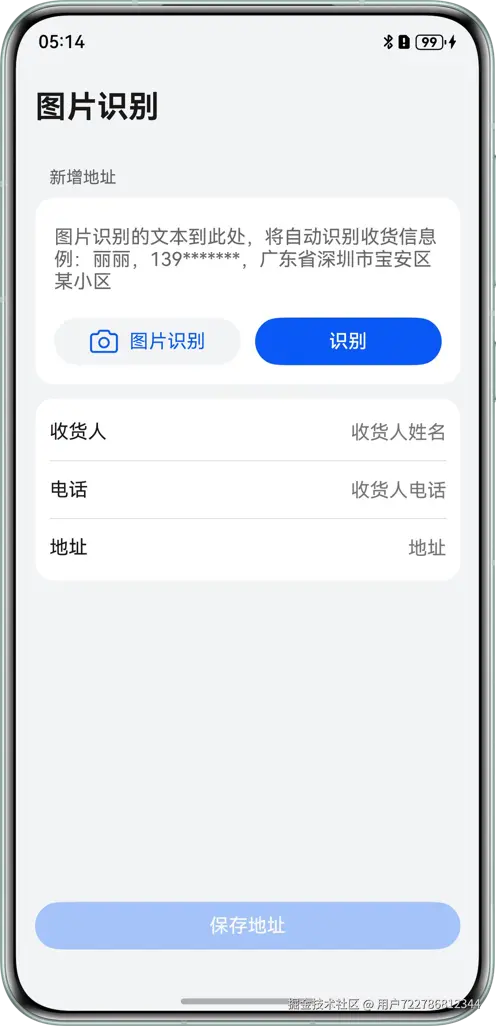

主页 拍照 识别 保存

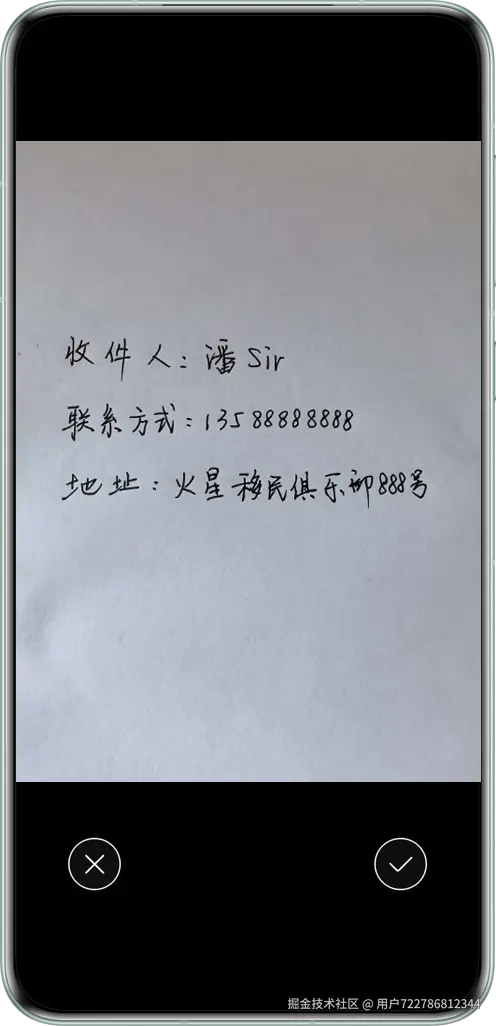

ps:由于编写的提取规则中,名字为2-4个中文,因此上边的名字"潘Sir"包含了1个英文,故未识别正确。如果改为2-4个汉字则可以正确识别。这就是传统的用规则来匹配的弊端,更好的方法是使用AI大模型或NLP工具来提取地址信息。

读者可以直接运行提供的代码查看效果。由于使用了视觉服务,需要真机运行。

使用说明:

  1. 点击图片识别按钮,拉起选择图片获取方式的弹窗,选择拍照方式,通过对要识别的文字进行拍照获得要识别的图片。也可以选择相册方式,在图库中直接选择需要识别的图片。
  2. 识别出图片包含的文本信息后,会自动将文本内容填充到文本输入框。
  3. 点击`地址解析按钮,会将文本框中的信息提取为结构化数据,显示到按钮下方的列表中。
  4. 点击保存地址按钮,提示保存成功,文本框旧的内容会自动清空。

3、技术分析

基于HarmonyOS SDK提供的基础视觉服务(CoreVisionKit),使用@kit.CoreVisionKit提供的通用文字识别能力,通过拍照(CameraPicker)或者相册(PhotoViewPicker)方式,将印刷品文字(如:收货信息)转化为图像信息,再利用文字识别技术将图像信息转化为设备可以使用的文本字符,最后可以根据实际业务规则提取结构化数据。

二、界面制作

1、布局分析

主界面布局分析:

![5主页布局]( www.523it.com/ .juejin.cn/tos-cn-i-73owjymdk6/a5ceaf6ed1224d3a992c7afa144598f1~tplv-73owjymdk6-jj-mark-v1:0:0:0:0:5o6Y6YeR5oqA5pyv56S-5Yy6IEAg55So5oi3NzIyNzg2ODEyMzQ0:q75.awebp?policy=eyJ2bSI6MywidWlkIjoiNDEwMDUxNTczOTIzMzUxMyJ9&rk3s=e9ecf3d6&x-orig-authkey=f32326d3454f2ac7e96d3d06cdbb035152127018&x-orig-expires=1757518035&x-orig-sign=uHcBW62FWfvW2snqUz%2Bw%2BPo5p7s%3D)

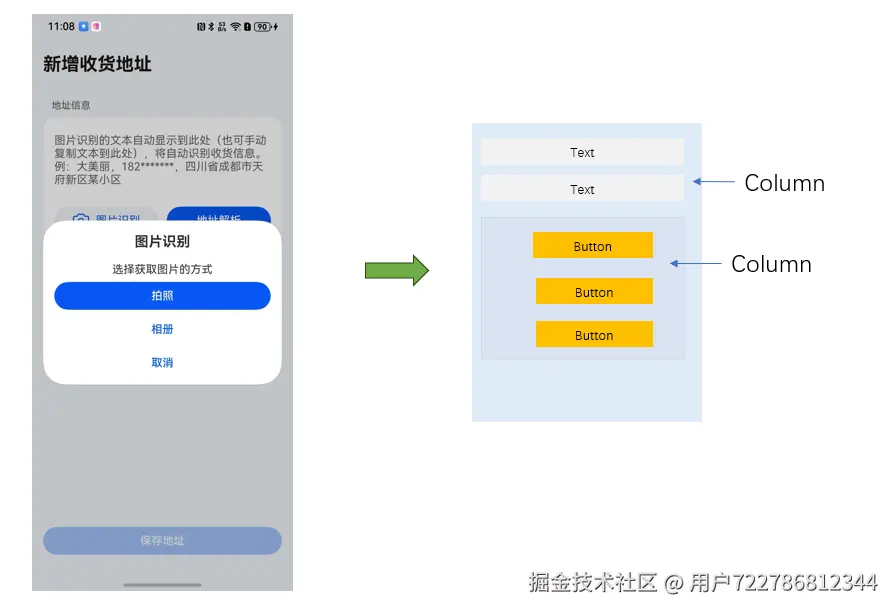

弹窗界面布局分析:

2、界面制作

开发环境说明:DevEco Studio5.0.4 Release、 HarmonyOS5.0.4(API 16)

通过DevEco Studio创建项目,项目名称为:ExtractAddress,删除Index.ets文件中默认的代码。

2.1 制作主界面

为了便于代码复用和程序扩展,将收货人信息的界面上的每一行显示的数据,抽取为一个对象,该对象类型为ConsigneeInfo类。在ets目录下新建viewmodel目录,新建DataModel.ets文件,内容如下:

kotlin 复制代码
// 收货人信息界面视图模型
@ObservedV2
export class ConsigneeInfo {
  label: ResourceStr;       //标签名称
  placeholder: ResourceStr; //提示语
  @Trace value: string;     //输入值

  constructor(label: ResourceStr, placeholder: ResourceStr, value: string) {
    this.label = label;
    this.placeholder = placeholder;
    this.value = value;
  }
}

有了此类,在主界面上就只需要实例化3个对象,通过列表进行循环渲染即可,避免了重复臃肿的代码。接下来制作主界面,Index.ets文件内容如下:

scss 复制代码
import { ConsigneeInfo} from '../viewmodel/DataModel';

@Entry
@Component
struct Index {
  @State consigneeInfos: ConsigneeInfo[] = []; //收货人信息界面视图
  @State saveAvailable: boolean = false; //保存按钮是否可用

  aboutToAppear(): void {
    this.consigneeInfos = [      new ConsigneeInfo('收货人', '收货人姓名', ''),      new ConsigneeInfo('电话', '收货人电话', ''),      new ConsigneeInfo('地址', '地址', ''),    ];
  }

  build() {
    RelativeContainer() {
      // 界面主体内容
      Column() {
        Text('新增收货地址')
          .id('title')
          .width('100%')
          .font({ size: 26, weight: 700 })
          .fontColor('#000000')
          .opacity(0.9)
          .height(64)
          .align(Alignment.TopStart)
        Text('地址信息')
          .width('100%')
          .padding({ left: 12, right: 12 })
          .font({ size: 14, weight: 400 })
          .fontColor('#000000')
          .opacity(0.6)
          .lineHeight(19)
          .margin({ bottom: 8 })

        // 识别或填写区域
        Column() {https://www.523it.com/
          TextArea({
            placeholder: '图片识别的文本自动显示到此处(也可手动复制文本到此处),将自动识别收货信息。例:大美丽,182*******,四川省成都市天府新区某小区',
          })
            .height(100)
            .margin({ bottom: 12 })
            .backgroundColor('#FFFFFF')
          Row({ space: 12 }) {
            Button() {
              Row({ space: 8 }) {
                Text() {
                  SymbolSpan($r('sys.symbol.camera'))
                    .fontSize(26)
                    .fontColor(['#0A59F2'])
                }
                Text('图片识别')
                  .fontSize(16)
                  .fontColor('#0A59F2')
              }
            }
            .height(40)
            .layoutWeight(1)
            .backgroundColor('#F1F3F5')

            Button('地址解析')
              .height(40)
              .layoutWeight(1)
          }
          .width('100%')
          .padding({
            left: 16,
            right: 16,
          })
        }
        .backgroundColor('#FFFFFF')
        .borderRadius(16)
        .padding({
          top: 16,
          bottom: 16
        })

        // 收货人信息
        Column() {
          List() {
            //列表渲染,避免重复代码
            ForEach(this.consigneeInfos, (item: ConsigneeInfo) => {
              ListItem() {
                Row() {
                  Text(item.label)
                    .fontSize(16)
                    .fontWeight(400)
                    .lineHeight(19)
                    .textAlign(TextAlign.Start)
                    .fontColor('#000000')
                    .opacity(0.9)
                    .layoutWeight(1)

                  TextArea({ placeholder: item.placeholder, text: item.value })
                    .type(item.label === '收货人' ? TextAreaType.PHONE_NUMBER : TextAreaType.NORMAL)
                    .fontSize(16)
                    .fontWeight(500)
                    .lineHeight(21)
                    .padding(0)
                    .borderRadius(0)
                    .textAlign(TextAlign.End)
                    .fontColor('#000000')
                    .opacity(0.9)
                    .backgroundColor('#FFFFFF')
                    .heightAdaptivePolicy(TextHeightAdaptivePolicy.MIN_FONT_SIZE_FIRST)
                    .layoutWeight(2)
                    .onChange((value: string) => {
                      item.value = value;
                      //判断保存按钮是否可用(均填写即可保存)
                      if (this.consigneeInfos[0].value && this.consigneeInfos[1].value && this.consigneeInfos[2].value) {
                        this.saveAvailable = true;
                      } else {
                        this.saveAvailable = false;
                      }
                    })
                }
                .width('100%')
                .constraintSize({ minHeight: 48 })
                .justifyContent(FlexAlign.SpaceBetween)
              }
            }, (item: ConsigneeInfo, index: number) => JSON.stringify(item) + index)
          }
          .width('100%')
          .height(LayoutPolicy.matchParent)
          .scrollBar(BarState.Off)
          .divider({ strokeWidth: 0.5, color: '#33000000' })
          .padding({
            left: 12,
            right: 12,
            top: 4,
            bottom: 4
          })
          .borderRadius(16)
          .backgroundColor('#FFFFFF')
        }
        .borderRadius(16)
        .margin({ top: 12 })
        .constraintSize({ minHeight: 150, maxHeight: '50%' })
        .backgroundColor('#FFFFFF')

      }

      // 保存按钮
      if (this.saveAvailable) {
        // 可用状态
        Button("保存地址", { stateEffect: true })
          .width('100%')
          .alignRules({https://www.523it.com/
            bottom: { anchor: '__container__', align: VerticalAlign.Bottom }
          })
      } else {
        // 不可用状态
        Button("保存地址", { stateEffect: false })
          .width('100%')
          .alignRules({
            bottom: { anchor: '__container__', align: VerticalAlign.Bottom }
          })
          .opacity(0.4)
          .backgroundColor('#317AFF')
      }

    }
    .height('100%')
    .width('100%')
    .padding({
      left: 16,
      right: 16,
      top: 24,
      bottom: 24
    })
    .backgroundColor('#F1F3F5')
    .alignRules({
      left: { anchor: '__container__', align: HorizontalAlign.Start }
    })
    .expandSafeArea([SafeAreaType.SYSTEM], [SafeAreaEdge.TOP, SafeAreaEdge.BOTTOM])
  }
}

该界面中通过RelativeContainer进行相对布局,保存按钮通过相对布局定位到界面底部,主要内容区域使用Column布局。在aboutToAppear周期函数中,初始化收货人列表数据,界面中通过List列表渲染完成显示。至此,主界面的静态效果就实现了。

但主界面代码依然较多,可以考虑将List列表渲染部分抽取为单独的组件,提取到单独文件中。在ets目录下新建components目录,在该目录下新建ConsigneeInfoItem.ets文件,将主界面列表渲染部分的内容拷贝进去并进改造。

ConsigneeInfoItem.ets文件内容:

scss 复制代码
import { ConsigneeInfo } from '../viewmodel/DataModel';

@Builder
export function ConsigneeInfoItem(item: ConsigneeInfo, checkAvailable?: () => void) {
  Row() {
    Text(item.label)
      .fontSize(16)
      .fontWeight(400)
      .lineHeight(19)
      .textAlign(TextAlign.Start)
      .fontColor('#000000')
      .opacity(0.9)
      .layoutWeight(1)

    TextArea({ placeholder: item.placeholder, text: item.value })
      .type(item.label === '收货人' ? TextAreaType.PHONE_NUMBER : TextAreaType.NORMAL)
      .fontSize(16)
      .fontWeight(500)
      .lineHeight(21)
      .padding(0)
      .borderRadius(0)
      .textAlign(TextAlign.End)
      .fontColor('#000000')
      .opacity(0.9)
      .backgroundColor('#FFFFFF')
      .heightAdaptivePolicy(TextHeightAdaptivePolicy.MIN_FONT_SIZE_FIRST)
      .layoutWeight(2)
      .onChange((value: string) => {
        item.value = value;
        //判断保存按钮是否可用(均填写即可保存)
        checkAvailable?.();
      })
  }
  .width('100%')
  .constraintSize({ minHeight: 48 })
  .justifyContent(FlexAlign.SpaceBetween)

}

Index.ets改造

kotlin 复制代码
import  {ConsigneeInfoItem} from '../components/ConsigneeInfoItem'
...
ListItem() {
                //抽取为组件
                ConsigneeInfoItem(item,() => {
                  if (this.consigneeInfos[0].value && this.consigneeInfos[1].value && this.consigneeInfos[2].value) {
                    this.saveAvailable = true;
                  } else {
                    this.saveAvailable = false;
                  }
                })
              }
...

主界面效果实现完成

2.2 图片识别弹窗

点击"图片识别"按钮,弹出获取图片方式选择框。接下来完成该界面制作。

为了弹出框管理更加方面,封装弹窗口管理工具类PromptActionManager,在ets目录新建utils目录,新建PromptActionManager.ets文件,内容如下:

javascript 复制代码
import { promptAction } from '@kit.ArkUI';

/**
 * Dialog管理类
 */
export class PromptActionManager {
  static ctx: UIContext;
  static contentNode: ComponentContent<Object>;
  static options: promptAction.BaseDialogOptions;

  static setCtx(ctx: UIContext) {
    PromptActionManager.ctx = ctx;
  }

  static setContentNode(contentNode: ComponentContent<Object>) {
    PromptActionManager.contentNode = contentNode;
  }

  static setOptions(options: promptAction.BaseDialogOptions) {
    PromptActionManager.options = options;
  }

  static openCustomDialog() {
    if (!PromptActionManager.contentNode) {
      return;
    }https://www.523it.com/
    try {
      PromptActionManager.ctx.getPromptAction().openCustomDialog(
        PromptActionManager.contentNode,
        PromptActionManager.options
      )
    } catch (error) {

    }
  }

  static closeCustomDialog() {
    if (!PromptActionManager.contentNode) {
      return;
    }
    try {
      PromptActionManager.ctx.getPromptAction().closeCustomDialog(
        PromptActionManager.contentNode
      )
    } catch (error) {

    }
  }
}

不同的弹出界面可能需要不同的样式控制,因此为弹出框的控制定义参数类型Params。在DataModel.ets文件中新加类Params,代码如下:

ini 复制代码
...
export class Params {
  uiContext: UIContext;
  textAreaController: TextAreaController;     //识别信息的TextArea
  loadingController: CustomDialogController;  //识别过程中的加载提示框

  constructor(uiContext: UIContext, textAreaController: TextAreaController, loadingController: CustomDialogController) {
    this.uiContext = uiContext;
    this.textAreaController = textAreaController;
    this.loadingController = loadingController;
  }
}

接下来制作弹出框组件界面,在components目录新建dialogBuilder.ets文件

scss 复制代码
import { Params } from '../viewmodel/DataModel'
import { PromptActionManager } from '../common/utils/PromptActionManager'

@Builder
export function dialogBuilder(params: Params): void {
  Column() {
    Text('图片识别')
      .font({ size: 20, weight: 700 })
      .lineHeight(27)
      .margin({ bottom: 16 })
    Text('选择获取图片的方式')
      .font({ size: 16, weight: 50 })
      .lineHeight(21)
      .margin({ bottom: 8 })
    Column({ space: 8 }) {
      Button('拍照')
        .width('100%')
        .height(40)
      Button('相册')
        .width('100%')
        .height(40)
        .fontColor('#0A59F2')
        .backgroundColor('#FFFFFF')
      Button('取消')
        .width('100%')
        .height(40)
        .fontColor('#0A59F2')
        .backgroundColor('#FFFFFF')
        .onClick(() => {
          PromptActionManager.closeCustomDialog();
        })
    }
  }
  .size({ width: 'calc(100% - 32vp)', height: 235 })
  .borderRadius(32)
  .backgroundColor('#FFFFFF')
  .padding(16)
}

修改Index.ets文件,为"图片识别"按钮绑定事件,点击时弹出自定义对话框。

typescript 复制代码
...
import { PromptActionManager } from '../common/utils/PromptActionManager';
import { ComponentContent, LoadingDialog } from '@kit.ArkUI';
import { ConsigneeInfo,Params} from '../viewmodel/DataModel';
import { dialogBuilder } from '../components/dialogBuilder';

...
private uiContext: UIContext = this.getUIContext();
private resultController: TextAreaController = new TextAreaController();
private loadingController: CustomDialogController = new CustomDialogController({
    builder: LoadingDialog({https://www.523it.com/
      content: '图片识别中'
    }),
    autoCancel: false
  });
private contentNode: ComponentContent<Object> =
    new ComponentContent(this.uiContext, wrapBuilder(dialogBuilder),
      new Params(this.uiContext, this.resultController, this.loadingController));
...

//图片识别按钮
.onClick(() => {
              PromptActionManager.openCustomDialog();
            })

静态界面制作完成。

三、功能实现

1、通用功能封装

创建OCR识别管理类OCRManager,需要用到HarmonyOS SDK中的AI和媒体两类Kit。在utils目录下新建OCRManager.ets,封装相关方法。

typescript 复制代码
import { textRecognition } from '@kit.CoreVisionKit';
import { camera, cameraPicker } from '@kit.CameraKit';
import { photoAccessHelper } from '@kit.MediaLibraryKit';
import { image } from '@kit.ImageKit';
import { fileIo as fs } from '@kit.CoreFileKit';

export class OCRManager {
  static async recognizeByCamera(ctx: Context, loadingController: CustomDialogController): Promise<string> {
    // The configuration information of cameraPicker
    let pickProfile: cameraPicker.PickerProfile = {
      cameraPosition: camera.CameraPosition.CAMERA_POSITION_UNSPECIFIED
    };
    try {https://www.523it.com/
      let result: cameraPicker.PickerResult =
        await cameraPicker.pick(ctx, [cameraPicker.PickerMediaType.PHOTO], pickProfile);
      if (!result || !result.resultUri) {
        return '';
      }
      loadingController.open();
      return OCRManager.recognizeText(result.resultUri);
    } catch (error) {
      loadingController.close();
      return '';
    }
  }

  static async recognizeByAlbum(loadingController: CustomDialogController): Promise<string> {
    try {
      let photoPicker: photoAccessHelper.PhotoViewPicker = new photoAccessHelper.PhotoViewPicker();
      let photoResult: photoAccessHelper.PhotoSelectResult =
        await photoPicker.select({
          MIMEType: photoAccessHelper.PhotoViewMIMETypes.IMAGE_TYPE,
          maxSelectNumber: 1,
          isPhotoTakingSupported: false
        });
      if (!photoResult || photoResult.photoUris.length === 0) {
        return '';
      }
      loadingController.open();
      return OCRManager.recognizeText(photoResult.photoUris[0]);
    } catch (error) {
      loadingController.close();
       return '';
    }
  }

  static async recognizeText(uri: string): Promise<string> {
    // Visual information to be recognized.
    // Currently, only the visual information of the PixelMap type in color data format RGBA_8888 is supported.
    let visionInfo: textRecognition.VisionInfo = { pixelMap: await OCRManager.getPixelMap(uri) };
    let result: textRecognition.TextRecognitionResult = await textRecognition.recognizeText(visionInfo);
    visionInfo.pixelMap.release();
    return result.value;
  }

  static async getPixelMap(uri: string): Promise<image.PixelMap> {
    // Convert image resources to PixelMap
    let fileSource = await fs.open(uri, fs.OpenMode.READ_ONLY);
    let imgSource: image.ImageSource = image.createImageSource(fileSource.fd);
    let pixelMap: image.PixelMap = await imgSource.createPixelMap();
    fs.close(fileSource);
    imgSource.release();
    return pixelMap;
  }
}

2、拍照识别

弹出框界面,为"拍照"按钮绑定事件

csharp 复制代码
import { common } from '@kit.AbilityKit'
import { OCRManager } from '../common/utils/OCRManager'

//拍照按钮
.onClick(async () => {
          PromptActionManager.closeCustomDialog();
          let text: string =
            await OCRManager.recognizeByCamera(params.uiContext.getHostContext() as common.UIAbilityContext,
              params.loadingController);
          params.loadingController.close();
          if (text) { https://www.523it.com/
            params.textAreaController.deleteText();
            params.textAreaController.addText(text);
          }
        })


主界面,修改TextArea,传入controller并双向绑定识别结果。

kotlin 复制代码
...
@State ocrResult: string = '';
...

//TextArea
controller: this.resultController,
text: $$this.ocrResult

拍照识别功能实现。

3、相册识别

弹出框界面,为"相册"按钮绑定事件

csharp 复制代码
//相册按钮
.onClick(async () => {
          PromptActionManager.closeCustomDialog();
          let text: string =
            await OCRManager.recognizeByAlbum(params.loadingController);
          params.loadingController.close();
          if (text) {
            params.textAreaController.deleteText();
            params.textAreaController.addText(text);
          }
        })

相册识别功能实现。

4、地址解析

主界面的"地址解析"按钮,将通过图片识别或手工输入的地址信息,解析显示到对应的输入框中。

封装地址解析类AddressParse,本案例使用正则表达式进行匹配。后续可以使用大模型或NLP工具进行解析。

在utils目录下新建AddressParse.ets文件

ini 复制代码
import { ConsigneeInfo } from '../../viewmodel/DataModel';
https://www.523it.com/
export class AddressParse {
  static nameBeforeRegex = /([\w\u4e00-\u9fa5]+[\s,\,\。]+|[\s,\,\。]*)([\u4e00-\u9fa5]{2,4})[\s,\,\。]+/;
  static nameAfterRegex = /[\s,\,\。]+([\u4e00-\u9fa5]{2,4})[\s,\,\。]*/;
  static nameTagRegex = /(?:收货人|收件人|姓名|联系人)[::\s]*([\u4e00-\u9fa5]{2,4})/i;
  static namePlainRegex = /[\u4e00-\u9fa5]{2,4}/;
  static phoneRegex =
    /(1[3-9]\d[\s-]?\d{4}[\s-]?\d{4})|(\d{3,4}[\s-]?\d{7,8})|((\d{2,4})[\s-]?\d{4,8})|(+\d{1,4}[\s-]?\d{5,15})/g;
  static phoneHyphenRegex = /[()\s-]/g;
  static addressKeywords =
    ['收货地址', '收件地址', '配送地址', '所在地区', '位置',
      '地址', '寄至', '寄往', '送至', '详细地址'];
  static addressNoiseWords = ['收货人', '收件人', '姓名', '联系人', '电话', '手机', '联系方式', ':', ':', ',', ','];

  static extractInfo(text: string, info: ConsigneeInfo[]): ConsigneeInfo[] {
    const baseText: string = text.replace(/\s+/g, ' ')
    const phoneResult: string = AddressParse.extractPhone(baseText);
    const nameResult: string = AddressParse.extractName(baseText, phoneResult);
    const addressResult: string = AddressParse.extractAddress(baseText, phoneResult, nameResult);
    info[0].value = nameResult;
    info[1].value = phoneResult.replace(AddressParse.phoneHyphenRegex, '');
    info[2].value = addressResult;
    return info;
  }

  static extractPhone(text: string): string {
    const phoneMatch: RegExpMatchArray | null = text.match(AddressParse.phoneRegex);
    return phoneMatch ? phoneMatch[0] : '';
  }

  static extractName(text: string, phone: string): string {
    let name = '';

    // Try to extract from the label
    const nameFromTag = text.match(AddressParse.nameTagRegex);
    if (nameFromTag) {
      name = nameFromTag[1];
    }

    // Try to extract before or after the phone
    if (!name && phone) {
      const phoneIndex = text.indexOf(phone);

      const beforePhone = text.substring(0, phoneIndex);
      const nameBefore = beforePhone.match(AddressParse.nameBeforeRegex);
      if (nameBefore) {
        name = nameBefore[2];
      }

      if (!name) {
        const afterPhone = text.substring(phoneIndex + phone.length);
        const nameAfter = afterPhone.match(AddressParse.nameAfterRegex);
        if (nameAfter) {
          name = nameAfter[1];
        }
      }
    }

    // Try to extract 2-4 Chinese characters directly
    if (!name) {
      const nameMatch = text.match(AddressParse.namePlainRegex);
      if (nameMatch) {
        name = nameMatch[0];
      }
    }
    return name;
  }

  static extractAddress(text: string, phone: string, name: string): string {

    for (const keyword of AddressParse.addressKeywords) {
      const keywordIndex = text.indexOf(keyword);
      if (keywordIndex !== -1) {
        const possibleAddress = text.substring(keywordIndex + keyword.length).trim();

        // Clean up the beginning punctuation
        const cleanedAddress = possibleAddress.replace(/^[::,,。、\s]+/, '');

        if (cleanedAddress.length > 5) {
          return cleanedAddress;
        }
      }
    }

    // Try to remove name and phone number
    let cleanedText = text;
    if (name) {
      cleanedText = cleanedText.replace(name, '');
    }
    if (phone) {
      cleanedText = cleanedText.replace(phone, '');
    }

    // Remove common distracting words
    AddressParse.addressNoiseWords.forEach(word => {
      cleanedText = cleanedText.replace(word, '');
    });

    // Extract the longest text segment that may contain an address
    const segments = cleanedText.split(/[\s,,。;;]+/).filter(seg => seg.length > 4);
    if (segments.length > 0) {

      // The segment containing the address key is preferred
      const addressSegments = segments.filter(seg =>
      seg.includes('省') || seg.includes('市') || seg.includes('区') ||
      seg.includes('县') || seg.includes('路') || seg.includes('街') ||
      seg.includes('号') || seg.includes('栋') || seg.includes('单元')
      );

      if (addressSegments.length > 0) {
        return addressSegments.join(' ');
      }

      // Otherwise select the longest segment
      return segments.reduce((longest, current) =>
      current.length > longest.length ? current : longest, '');
    }

    // Finally, return the entire text
    return cleanedText;
  }
}

在主文件中调用地址解析方法,修改Index.ets文件

kotlin 复制代码
import { AddressParse } from '../common/utils/AddressParse';

...
//地址解析按钮
.onClick(() => {
                if (!this.ocrResult || !this.ocrResult.trim()) {
                  this.uiContext.getPromptAction().showToast({ message: $r('app.string.empty_toast') });
                  return;
                }
                this.consigneeInfos = AddressParse.extractInfo(this.ocrResult, this.consigneeInfos);
              })

5、保存地址

为保存按钮绑定事件,清空界面数据并提示保存结果。

修改Index.ets文件,封装clearConsigneeInfos模拟保存操作后清空数据。

kotlin 复制代码
...
 // 保存地址,清空内容
  clearConsigneeInfos() {
    for (const item of this.consigneeInfos) {
      item.value = '';
    }
    this.ocrResult = '';
  }

...
//保存地址按钮
.onClick(() => {
            if (this.consigneeInfos[0].value && this.consigneeInfos[1].value && this.consigneeInfos[2].value) {
              this.uiContext.getPromptAction().showToast({ message: '保存成功' });
              this.clearConsigneeInfos();
            }
          })

至此,功能完成。

《鸿蒙应用开发从入门到项目实战》系列文章持续更新中,欢迎关注!

相关推荐
nashane7 小时前
HarmonyOS 6学习:CapsLock键失效诊断与长截图完整实现指南
学习·华为·harmonyos
richard_yuu9 小时前
鸿蒙心理测评模块实战|PHQ-9/GAD7双量表答题、实时计分与结果本地化存储
华为·harmonyos
不爱吃糖的程序媛12 小时前
2026年Electron 鸿蒙PC环境搭建指南
人工智能·华为·harmonyos
nashane12 小时前
HarmonyOS 6学习:长截图功能开发中的滚动拼接与权限处理实战
人工智能·华为·harmonyos
大师兄666813 小时前
从零开发一个 HarmonyOS 输入法——KikaInputMethod 完整拆解
harmonyos·服务卡片·harmonyos6·formkit
Python私教18 小时前
鸿蒙 NEXT 也能接 MCP?用 ArkTS 跑通 AI Agent 工具链
人工智能·华为·harmonyos
Swift社区21 小时前
分布式能力在鸿蒙 PC 上到底怎么用?
分布式·华为·harmonyos
nashane1 天前
HarmonyOS 6学习:外接键盘CapsLock与长截图功能的实战调试与完整解决方案
学习·华为·计算机外设·harmonyos
aqi002 天前
一文理清 HarmonyOS 6.0.2 涵盖的十个升级点
android·华为·harmonyos·鸿蒙·harmony
