K8s学习笔记(六) K8s升级与节点管理

能不能别报错2025-09-25 13:52

1 下载k8s二进制包

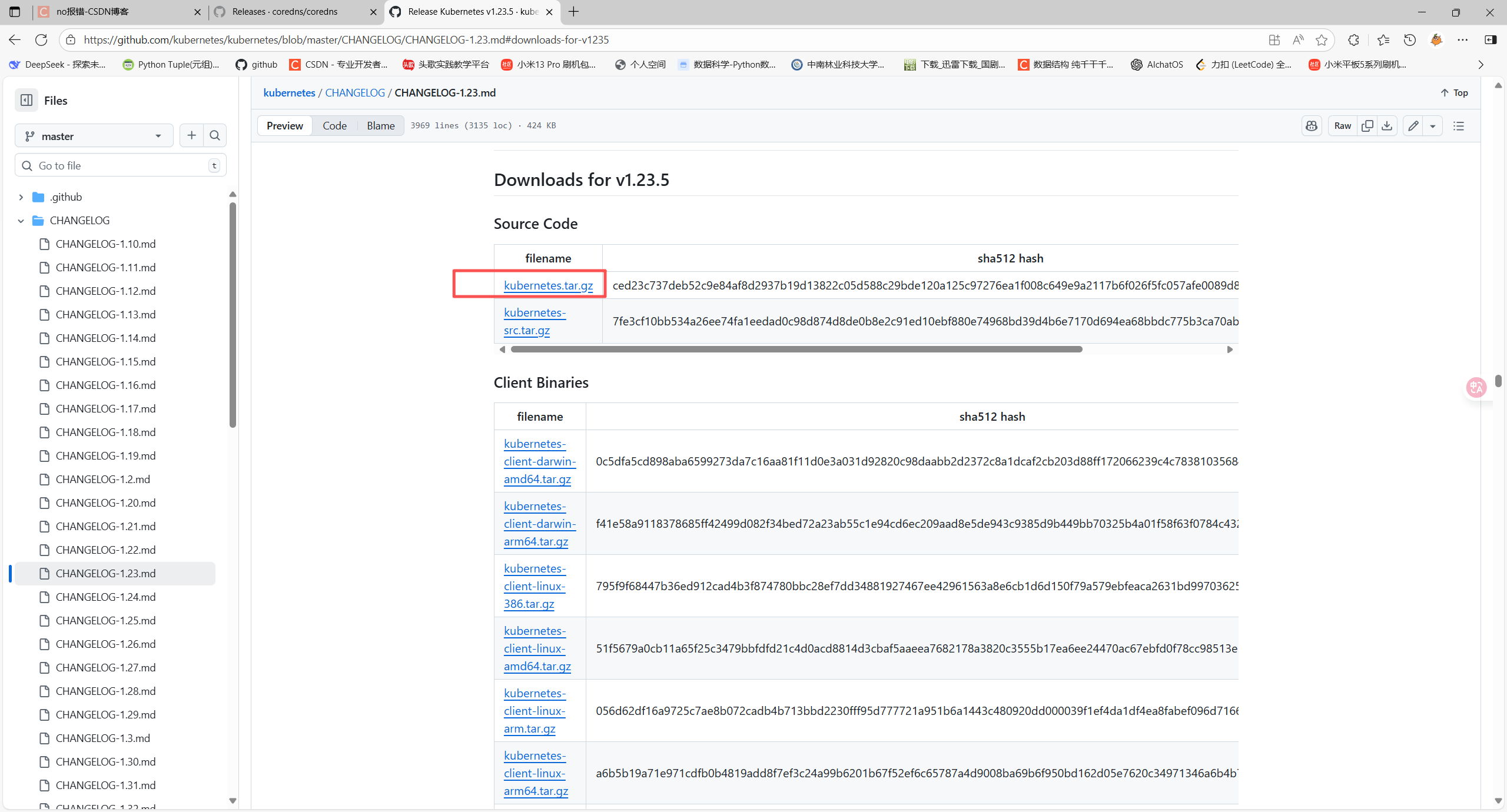

链接：[kubernetes/CHANGELOG/CHANGELOG-1.23.md at master · kubernetes/kubernetes](https://github.com/kubernetes/kubernetes/blob/master/CHANGELOG/CHANGELOG-1.23.md#downloads-for-v1235)(https://github.com/kubernetes/kubernetes/blob/master/CHANGELOG/CHANGELOG-1.23.md)

下载四个二进制文件

客户机二进制文件kubernetes-client-linux-amd64.tar.gz

源代码kubernetes.tar.gz

服务器二进制文件kubernetes-server-linux-amd64.tar.gz

节点二进制文件kubernetes-node-linux-amd64.tar.gz

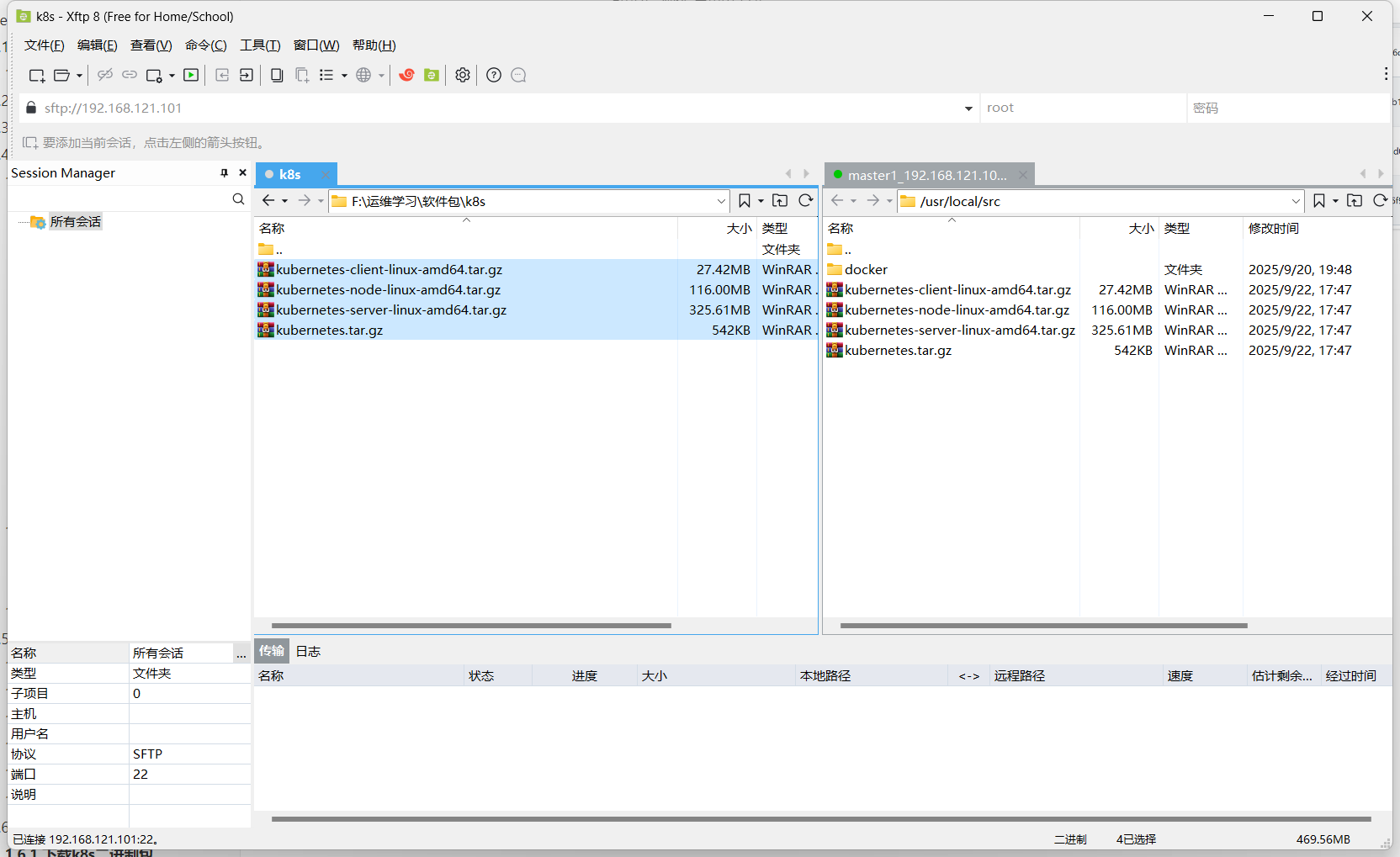

下载完成后上传至master1服务器/usr/local/src/目录下面

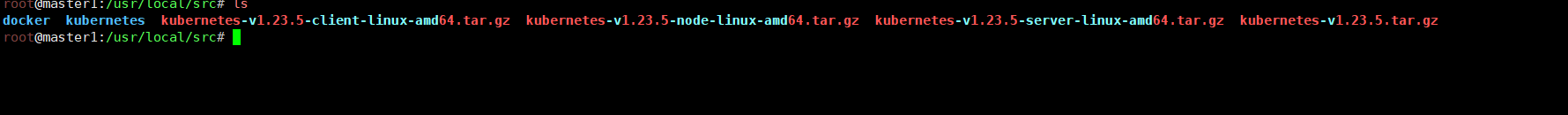

逐个进行解压

bash 复制代码
root@master1:/usr/local/src# tar xf kubernetes-node-linux-amd64.tar.gz
root@master1:/usr/local/src# tar xf kubernetes-server-linux-amd64.tar.gz
root@master1:/usr/local/src# tar xf kubernetes.tar.gz
root@master1:/usr/local/src# tar xf kubernetes-client-linux-amd64.tar.gz

解压完成会出现一个kubernetes文件夹

进入bin目录

bash 复制代码
root@master1:/usr/local/src/kubernetes/server/bin# cd /usr/local/src/kubernetes/server/bin
root@master1:/usr/local/src/kubernetes/server/bin# ls
apiextensions-apiserver  kube-apiserver             kube-apiserver.tar       kube-controller-manager.docker_tag  kube-log-runner  kube-proxy.docker_tag  kube-scheduler             kube-scheduler.tar  kubectl          kubelet
kube-aggregator          kube-apiserver.docker_tag  kube-controller-manager  kube-controller-manager.tar         kube-proxy       kube-proxy.tar         kube-scheduler.docker_tag  kubeadm             kubectl-convert  mounter

2 升级

2.1 master节点升级

master节点逐个进行升级 master1 master2 master3 ，将需要升级的master1节点关闭进行离线升级，剩余两个master节点继续运行不影响服务。

将/usr/local/src/kubernetes/server/bin目录下的kube-apiserver kube-controller-manager kube-scheduler kubelet kube-proxy kubectl 二进制文件升级包替换/usr/local/bin/目录下目前版本的二进制文件

bash 复制代码
root@master1:/usr/local/src/kubernetes/server/bin# cp kube-apiserver kube-controller-manager kube-scheduler kubelet kube-proxy kubectl /etc/kubeasz/bin/
# 查看当前node节点是那些
root@master1:/usr/local/src/kubernetes/server/bin# kubectl get node
NAME              STATUS                     ROLES    AGE     VERSION
192.168.121.101   Ready,SchedulingDisabled   master   2d23h   v1.23.1
192.168.121.102   Ready,SchedulingDisabled   master   2d23h   v1.23.1
192.168.121.111   Ready                      node     2d23h   v1.23.1
192.168.121.112   Ready                      node     2d23h   v1.23.1
# 编辑node1节点上的/etc/kube-lb/conf/kube-lb.conf文件注释掉需要更新的master1的ip信息

root@node1:~# vim /etc/kube-lb/conf/kube-lb.conf
user root;
worker_processes 1;

error_log  /etc/kube-lb/logs/error.log warn;

events {
    worker_connections  3000;
}

stream {
    upstream backend {
        #server 192.168.121.101:6443    max_fails=2 fail_timeout=3s;
        server 192.168.121.102:6443    max_fails=2 fail_timeout=3s;
    }

    server {
        listen 127.0.0.1:6443;
        proxy_connect_timeout 1s;
        proxy_pass backend;
    }
}
# 重启服务更新状态
root@node1:~# systemctl restart kube-lb.service

# 编辑node2节点上的/etc/kube-lb/conf/kube-lb.conf文件注释掉需要更新的master1的ip信息

root@node2:~# vim /etc/kube-lb/conf/kube-lb.conf
user root;
worker_processes 1;

error_log  /etc/kube-lb/logs/error.log warn;

events {
    worker_connections  3000;
}

stream {
    upstream backend {
        #server 192.168.121.101:6443    max_fails=2 fail_timeout=3s;
        server 192.168.121.102:6443    max_fails=2 fail_timeout=3s;
    }

    server {
        listen 127.0.0.1:6443;
        proxy_connect_timeout 1s;
        proxy_pass backend;
    }
}
# 重启服务更新状态
root@node2:~# systemctl restart kube-lb.service

# 停止master1节点的相关服务
root@master1:/usr/local/src/kubernetes/server/bin# systemctl stop kube
kube-apiserver.service           kube-controller-manager.service  kube-lb.service                  kube-proxy.service               kube-scheduler.service           kubelet.service

root@master1:/usr/local/src/kubernetes/server/bin# systemctl stop kube-apiserver.service kube-controller-manager.service kube-proxy.service kube-scheduler.service kubelet.service
# 替换二进制文件
root@master1:/usr/local/src/kubernetes/server/bin# \cp kube-apiserver kube-controller-manager kube-scheduler kubelet kube-proxy kubectl /usr/local/bin/
# 查看版本信息
root@master1:/usr/local/src/kubernetes/server/bin# kube-apiserver --version
Kubernetes v1.23.5
root@master1:/usr/local/src/kubernetes/server/bin# kube-controller-manager --version
Kubernetes v1.23.5
root@master1:/usr/local/src/kubernetes/server/bin# kube-scheduler --version
Kubernetes v1.23.5
# 启动服务
root@master1:/usr/local/src/kubernetes/server/bin# systemctl start kube-apiserver.service kube-controller-manager.service kube-proxy.service kube-scheduler.service kubelet.service
# 查看node节点版本信息
root@master1:/usr/local/src/kubernetes/server/bin# kubectl get node
NAME              STATUS                     ROLES    AGE     VERSION
192.168.121.101   Ready,SchedulingDisabled   master   2d23h   v1.23.5    # 可以看到版本已经升级完成
192.168.121.102   Ready,SchedulingDisabled   master   2d23h   v1.23.1
192.168.121.111   Ready                      node     2d23h   v1.23.1
192.168.121.112   Ready                      node     2d23h   v1.23.1

# 升级master2
# 修改node1节点的负载均衡ip
root@node1:~# vim /etc/kube-lb/conf/kube-lb.conf
# 恢复master1，注释master2
user root;
worker_processes 1;

error_log  /etc/kube-lb/logs/error.log warn;

events {
    worker_connections  3000;
}

stream {
    upstream backend {
        server 192.168.121.101:6443    max_fails=2 fail_timeout=3s;
        #server 192.168.121.102:6443    max_fails=2 fail_timeout=3s;
    }

    server {
        listen 127.0.0.1:6443;
        proxy_connect_timeout 1s;
        proxy_pass backend;
    }
# 重启服务
root@node2:~# systemctl restart kube-lb.service

# 修改node2节点的负载均衡ip
root@node2:~# vim /etc/kube-lb/conf/kube-lb.conf
# 恢复master1，注释master2
user root;
worker_processes 1;

error_log  /etc/kube-lb/logs/error.log warn;

events {
    worker_connections  3000;
}

stream {
    upstream backend {
        server 192.168.121.101:6443    max_fails=2 fail_timeout=3s;
        #server 192.168.121.102:6443    max_fails=2 fail_timeout=3s;
    }

    server {
        listen 127.0.0.1:6443;
        proxy_connect_timeout 1s;
        proxy_pass backend;
    }
# 重启服务
root@node2:~# systemctl restart kube-lb.service

# 停止master2服务
root@master2:~# systemctl stop kube-apiserver.service kube-controller-manager.service kube-proxy.service kube-scheduler.service kubelet.service

# 在master1将二进制包传给master2
root@master1:/usr/local/src/kubernetes/server/bin# scp kube-apiserver kube-controller-manager kube-scheduler kubelet kube-proxy kubectl master2:/usr/local/bin/

# master2启动服务
root@master2:~# systemctl start kube-apiserver.service kube-controller-manager.service kube-proxy.service kube-scheduler.service kubelet.service

# 验证更新
root@master1:/usr/local/src/kubernetes/server/bin# kubectl get node
NAME              STATUS                     ROLES    AGE     VERSION
192.168.121.101   Ready,SchedulingDisabled   master   2d23h   v1.23.5
192.168.121.102   Ready,SchedulingDisabled   master   2d23h   v1.23.5       # master2已经更新为1.23.5
192.168.121.111   Ready                      node     2d23h   v1.23.1
192.168.121.112   Ready                      node     2d23h   v1.23.1

2.2 node节点升级

bash 复制代码
# 驱逐node1上的服务到node2上面
root@master1:/usr/local/src/kubernetes/server/bin# kubectl drain 192.168.121.111 --force --delete-emptydir-data --ignore-daemonsets
node/192.168.121.111 cordoned
WARNING: deleting Pods not managed by ReplicationController, ReplicaSet, Job, DaemonSet or StatefulSet: default/net-test2, default/net-test4; ignoring DaemonSet-managed Pods: kube-system/calico-node-4rnzt
evicting pod velero-system/velero-6755cb8697-b87p9
evicting pod default/net-test2
evicting pod default/net-test4
evicting pod kube-system/coredns-7db6b45f67-xpzmr
evicting pod kubernetes-dashboard/dashboard-metrics-scraper-69d947947b-94c4p
pod/dashboard-metrics-scraper-69d947947b-94c4p evicted
pod/velero-6755cb8697-b87p9 evicted
pod/coredns-7db6b45f67-xpzmr evicted
pod/net-test4 evicted
pod/net-test2 evicted
node/192.168.121.111 drained

# 查看全部pod位置，已经驱逐到了ndoe2上面去了
root@master1:/usr/local/src/kubernetes/server/bin# kubectl get -A pod -o wide
NAMESPACE              NAME                                              READY   STATUS    RESTARTS       AGE     IP                NODE              NOMINATED NODE   READINESS GATES
default                net-test3                                         1/1     Running   3 (18h ago)    2d21h   10.200.104.10     192.168.121.112   <none>           <none>
kube-system            calico-kube-controllers-754966f84c-nb8mt          1/1     Running   8 (18h ago)    3d      192.168.121.112   192.168.121.112   <none>           <none>
kube-system            calico-node-29mld                                 1/1     Running   4 (18h ago)    3d      192.168.121.102   192.168.121.102   <none>           <none>
kube-system            calico-node-4rnzt                                 1/1     Running   6 (18h ago)    3d      192.168.121.111   192.168.121.111   <none>           <none>
kube-system            calico-node-p4ddl                                 1/1     Running   4 (18h ago)    3d      192.168.121.112   192.168.121.112   <none>           <none>
kube-system            calico-node-rn7fk                                 1/1     Running   10 (18h ago)   3d      192.168.121.101   192.168.121.101   <none>           <none>
kube-system            coredns-7db6b45f67-ht47r                          1/1     Running   2 (18h ago)    45h     10.200.104.12     192.168.121.112   <none>           <none>
kube-system            coredns-7db6b45f67-nsrth                          1/1     Running   0              83s     10.200.104.17     192.168.121.112   <none>           <none>
kubernetes-dashboard   dashboard-metrics-scraper-69d947947b-g74lh        1/1     Running   0              83s     10.200.104.18     192.168.121.112   <none>           <none>
kubernetes-dashboard   kubernetes-dashboard-744bdb9f9b-f2zns             1/1     Running   4 (18h ago)    43h     10.200.104.14     192.168.121.112   <none>           <none>
myapp                  linux66-tomcat-app1-deployment-667c9cf879-hz98v   1/1     Running   0              117m    10.200.104.16     192.168.121.112   <none>           <none>
velero-system          velero-6755cb8697-8cv8b                           0/1     Pending   0              83s     <none>            <none>            <none>           <none>

root@master1:/usr/local/src/kubernetes/server/bin# kubectl get node
NAME              STATUS                     ROLES    AGE   VERSION
192.168.121.101   Ready,SchedulingDisabled   master   3d    v1.23.5
192.168.121.102   Ready,SchedulingDisabled   master   3d    v1.23.5
192.168.121.111   Ready,SchedulingDisabled   node     3d    v1.23.1       # node1已经打上了污点禁止调度
192.168.121.112   Ready                      node     3d    v1.23.1

# node1节点停止服务
root@node1:~# systemctl stop kubelet.service kube-proxy.service

# master1将node节点需要的二进制文件传送过去
root@master1:/usr/local/src/kubernetes/server/bin# scp kube-proxy kubelet node1:/usr/local/bin/
The authenticity of host 'node1 (192.168.121.111)' can't be established.
ECDSA key fingerprint is SHA256:e6246AoozwtEjYmPqU/mS4fWncpxKvoXtPgl9ZswNwQ.
Are you sure you want to continue connecting (yes/no/[fingerprint])? yes
Warning: Permanently added 'node1' (ECDSA) to the list of known hosts.
kube-proxy                                                                                                                                                                                                                                          100%   42MB  43.4MB/s   00:00    3
kubelet

# node1节点启动服务
root@node1:/usr/local/bin# systemctl start kubelet.service kube-proxy.service

# master1上查看node状态和版本信息
root@master1:/usr/local/src/kubernetes/server/bin# kubectl get node
NAME              STATUS                     ROLES    AGE   VERSION
192.168.121.101   Ready,SchedulingDisabled   master   3d    v1.23.5
192.168.121.102   Ready,SchedulingDisabled   master   3d    v1.23.5
192.168.121.111   Ready,SchedulingDisabled   node     3d    v1.23.5        # 可以看到node1节点已经升级成功为1.23.5
192.168.121.112   Ready                      node     3d    v1.23.1

# 升级node2
# 停止node2服务
root@node2:~# systemctl stop kubelet.service kube-proxy.service
# 将二进制文件传送到node2进行替换升级
root@master1:/usr/local/src/kubernetes/server/bin# scp kube-proxy kubelet node2:/usr/local/bin/
The authenticity of host 'node2 (192.168.121.112)' can't be established.
ECDSA key fingerprint is SHA256:e6246AoozwtEjYmPqU/mS4fWncpxKvoXtPgl9ZswNwQ.
Are you sure you want to continue connecting (yes/no/[fingerprint])? yes
Warning: Permanently added 'node2' (ECDSA) to the list of known hosts.
kube-proxy                                                                                                                                                                                                                                          100%   42MB  47.3MB/s   00:00
kubelet

# 取消node1的污点，让其允许调度
root@master1:/usr/local/src/kubernetes/server/bin# kubectl get node
NAME              STATUS                     ROLES    AGE   VERSION
192.168.121.101   Ready,SchedulingDisabled   master   3d    v1.23.5
192.168.121.102   Ready,SchedulingDisabled   master   3d    v1.23.5
192.168.121.111   Ready,SchedulingDisabled   node     3d    v1.23.5
192.168.121.112   Ready                      node     3d    v1.23.5
root@master1:/usr/local/src/kubernetes/server/bin# kubectl uncordon 192.168.121.111
node/192.168.121.111 uncordoned
root@master1:/usr/local/src/kubernetes/server/bin# kubectl get node
NAME              STATUS                     ROLES    AGE    VERSION
192.168.121.101   Ready,SchedulingDisabled   master   3d1h   v1.23.5
192.168.121.102   Ready,SchedulingDisabled   master   3d1h   v1.23.5
192.168.121.111   Ready                      node     3d     v1.23.5
192.168.121.112   Ready                      node     3d     v1.23.5

3 管理节点

3.1 添加节点

bash 复制代码
root@master1:/etc/kubeasz# ./ezctl --help
Usage: ezctl COMMAND [args]
-------------------------------------------------------------------------------------
Cluster setups:
    list		             to list all of the managed clusters
    checkout    <cluster>            to switch default kubeconfig of the cluster
    new         <cluster>            to start a new k8s deploy with name 'cluster'
    setup       <cluster>  <step>    to setup a cluster, also supporting a step-by-step way
    start       <cluster>            to start all of the k8s services stopped by 'ezctl stop'
    stop        <cluster>            to stop all of the k8s services temporarily
    upgrade     <cluster>            to upgrade the k8s cluster
    destroy     <cluster>            to destroy the k8s cluster
    backup      <cluster>            to backup the cluster state (etcd snapshot)
    restore     <cluster>            to restore the cluster state from backups
    start-aio		             to quickly setup an all-in-one cluster with 'default' settings

Cluster ops:
    add-etcd    <cluster>  <ip>      to add a etcd-node to the etcd cluster
    add-master  <cluster>  <ip>      to add a master node to the k8s cluster
    add-node    <cluster>  <ip>      to add a work node to the k8s cluster
    del-etcd    <cluster>  <ip>      to delete a etcd-node from the etcd cluster
    del-master  <cluster>  <ip>      to delete a master node from the k8s cluster
    del-node    <cluster>  <ip>      to delete a work node from the k8s cluster

Extra operation:
    kcfg-adm    <cluster>  <args>    to manage client kubeconfig of the k8s cluster

Use "ezctl help <command>" for more information about a given command.

# 添加node节点
root@master1:/etc/kubeasz# ./ezctl add-node k8s-01 192.168.121.113

# 查看node节点
root@master1:/etc/kubeasz# kubectl get node
NAME              STATUS                     ROLES    AGE    VERSION
192.168.121.101   Ready,SchedulingDisabled   master   3d1h   v1.23.5
192.168.121.102   Ready,SchedulingDisabled   master   3d1h   v1.23.5
192.168.121.111   Ready                      node     3d1h   v1.23.5
192.168.121.112   Ready                      node     3d1h   v1.23.5
192.168.121.113   Ready                      node     5m7s   v1.23.5

3.2 添加master节点

bash 复制代码
root@master1:/etc/kubeasz# ./ezctl add-master k8s-01 192.168.121.103
# 查看node状态
root@master1:/etc/kubeasz# kubectl get node
NAME              STATUS                     ROLES    AGE    VERSION
192.168.121.101   Ready,SchedulingDisabled   master   3d2h   v1.23.5
192.168.121.102   Ready,SchedulingDisabled   master   3d2h   v1.23.5
192.168.121.103   Ready,SchedulingDisabled   master   36m    v1.23.5       # 可以看到master已经添加成功
192.168.121.111   Ready                      node     3d2h   v1.23.5
192.168.121.112   Ready                      node     3d2h   v1.23.5
192.168.121.113   Ready                      node     58m    v1.23.5
相关推荐
YYYing.2 小时前
【K8s系列 (一) 】Docker与容器（上篇）
docker·云原生·容器·kubernetes
叼烟扛炮4 小时前
Linux 学习笔记（五十八）：IO 多路复用封神——epoll 底层原理揭秘
linux·运维·服务器·网络·笔记·学习·php
陈布衣5 小时前
MySQL(1)_MySQL 5.7.21 Linux 安装笔记
linux·笔记·mysql
weirong8 小时前
给 Operator 加 Admission Webhook 踩的 4 个坑（其中 3 个本可以不踩）
kubernetes
缘来是你远去是我9 小时前
本地个人笔记exe
笔记
FakeOccupational9 小时前
【电路笔记 STM32】RTC配置：晶振选择+闹钟Configuration+中断设置
笔记·stm32·实时音视频
迪康coolmu9 小时前
企业U盘管控落地实战：基于迪康端点安全一体化管理系统的移动存储安全实践
运维·人工智能·经验分享·笔记·安全·电脑
Goboy10 小时前
夯爆了，我被一个一句话接入的免费可观测平台策反了，那一刻我决定放弃用了3年的Prometheus
后端·docker·kubernetes
吴声子夜歌10 小时前
Kubernetes权威指南——深入掌握Service（一）
云原生·容器·kubernetes
Z21-X12 小时前
云原生运维学习笔记：容器技术的演进、底层原理与 Docker 全生命周期管理
运维·笔记·学习·云原生
热门推荐
01国内可直接用、免费额度/永久免费的大模型API清单（含 SiliconFlow、火山、阿里、智谱、百度、Kimi、DeepSeek、DMXAPI 等）02如何新建文件夹？ 电脑新建文件夹的4种方法03历年考研数学一、数学二、数学三真题试卷及答案PDF04几个好用的ip纯净度检测网站05GitHub 镜像站点06昇腾910B系列芯片完全指南：四款型号对比、服务器选型与大模型部署实战07苹果iPA游戏软件资源下载网站08蜘蛛磁力 搜索引擎大全，如何使用蜘蛛磁力查找磁力链接09Dify：一站式AI应用开发平台全解析与Windows部署指南10微信历史版本含下载地址（ Windows PC | 安卓 | MAC ）及设置微信不更新
