QT（c++）开发自学笔记：2.TCP/IP

一、下载网络调试助手

下载连接:通过网盘分享的文件：网络调试助手.exe

链接: https://pan.baidu.com/s/1A-aQ9oLb3aGdxDT8bl6qjw?pwd=nf1z 提取码: nf1z

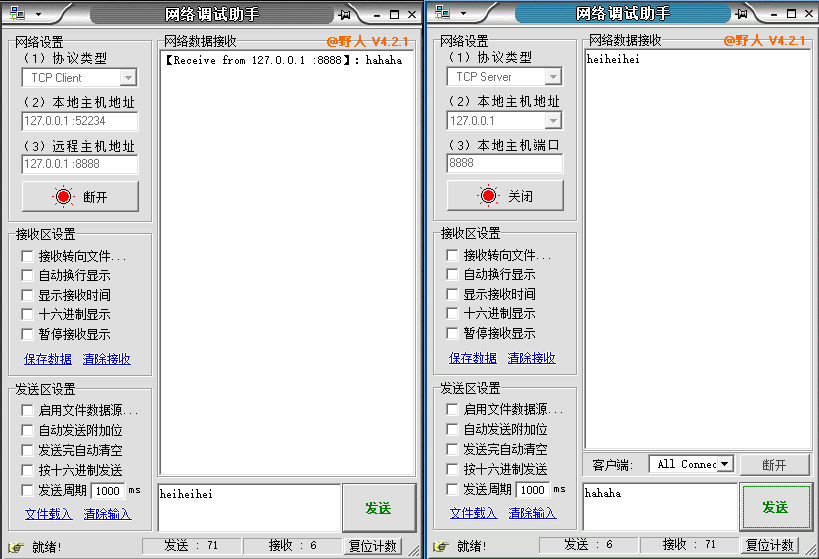

就一个.exe，点两次打开两个，两个配置：

设置一个调试助手为 TCP 服务器

打开第一个网络调试助手，选择 TCP Server 模式。
配置服务器参数 ：
- 本地 IP 地址 ：选择本机 IP（通常为 127.0.0.1 用于本地测试，或局域网 IP 如 192.168.x.x）。
- 监听端口 ：设置一个端口号（如 8888），确保该端口未被其他程序占用。
- 启动服务器：点击"启动"或"监听"按钮，调试助手进入监听状态，等待客户端连接。
记录服务器信息：记下服务器的 IP 地址和端口号，用于客户端配置。

设置另一个调试助手为 TCP 客户端

打开第二个网络调试助手，选择 TCP Client 模式。
配置客户端参数 ：
- 远程主机 IP ：输入服务器的 IP 地址（与服务器端一致，如 127.0.0.1:8888 或局域网 IP）。
- 远程端口 ：输入服务器监听的端口号（如 8888）。
- 连接服务器：点击"连接"按钮，客户端会尝试连接到服务器。
确认连接状态：连接成功后，服务器端会显示客户端已连接。

然后互相发个什么能接收就行

二、PyQt实现

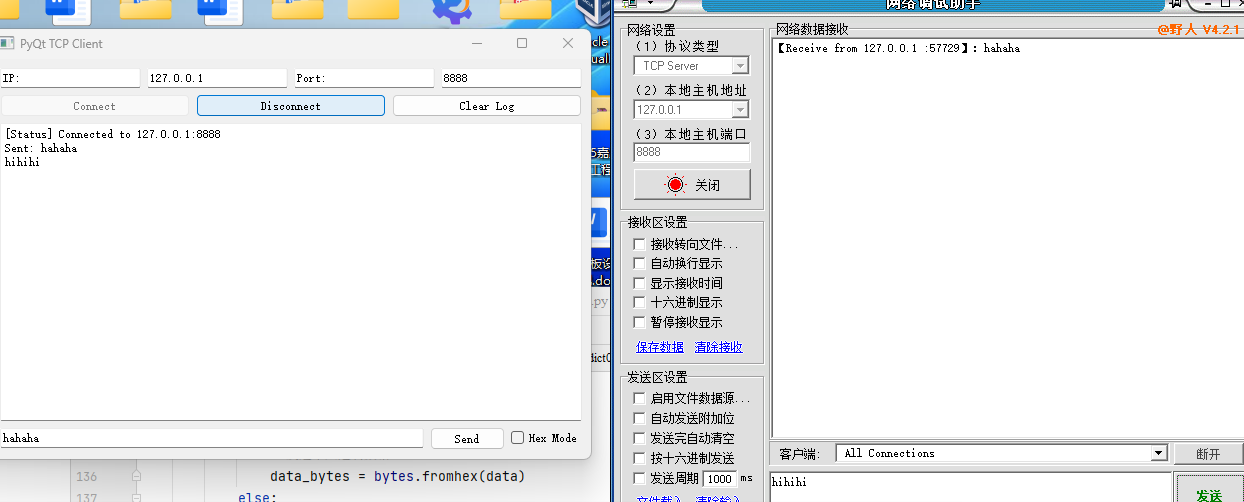

再用PyQt实现并验证功能，充当TCP Client

PyQt代码如下：

python 复制代码

import sys
import socket
import threading
from PyQt5.QtWidgets import QApplication, QMainWindow, QWidget, QVBoxLayout, QHBoxLayout, QLineEdit, QPushButton, QTextEdit, QCheckBox
from PyQt5.QtCore import pyqtSignal, QObject

class Communicate(QObject):
    # 自定义信号，用于线程和主界面通信
    data_received = pyqtSignal(str)
    status_updated = pyqtSignal(str)

class TCPClientWindow(QMainWindow):
    def __init__(self):
        super().__init__()
        self.setWindowTitle("PyQt TCP Client")
        self.resize(600, 400)

        # 初始化通信对象
        self.comm = Communicate()
        self.comm.data_received.connect(self.update_display)
        self.comm.status_updated.connect(self.update_status)

        # 初始化 socket
        self.client_socket = None
        self.running = False

        # 创建界面
        self.init_ui()

    def init_ui(self):
        # 主布局
        main_widget = QWidget()
        self.setCentralWidget(main_widget)
        layout = QVBoxLayout(main_widget)

        # IP 和端口输入
        ip_port_layout = QHBoxLayout()
        self.ip_input = QLineEdit("127.0.0.1")
        self.port_input = QLineEdit("8888")
        ip_port_layout.addWidget(QLineEdit("IP:"))
        ip_port_layout.addWidget(self.ip_input)
        ip_port_layout.addWidget(QLineEdit("Port:"))
        ip_port_layout.addWidget(self.port_input)
        layout.addLayout(ip_port_layout)

        # 连接、断开、清空按钮
        button_layout = QHBoxLayout()
        self.connect_btn = QPushButton("Connect")
        self.disconnect_btn = QPushButton("Disconnect")
        self.clear_btn = QPushButton("Clear Log")
        self.connect_btn.clicked.connect(self.connect_to_server)
        self.disconnect_btn.clicked.connect(self.disconnect)
        self.clear_btn.clicked.connect(self.clear_log)
        self.disconnect_btn.setEnabled(False)
        button_layout.addWidget(self.connect_btn)
        button_layout.addWidget(self.disconnect_btn)
        button_layout.addWidget(self.clear_btn)
        layout.addLayout(button_layout)

        # 接收数据区域
        self.display = QTextEdit()
        self.display.setReadOnly(True)
        layout.addWidget(self.display)

        # 发送数据区域
        send_layout = QHBoxLayout()
        self.send_input = QLineEdit()
        self.send_btn = QPushButton("Send")
        self.hex_check = QCheckBox("Hex Mode")
        self.send_btn.clicked.connect(self.send_data)
        send_layout.addWidget(self.send_input)
        send_layout.addWidget(self.send_btn)
        send_layout.addWidget(self.hex_check)
        layout.addLayout(send_layout)

    def connect_to_server(self):
        ip = self.ip_input.text()
        try:
            port = int(self.port_input.text())
        except ValueError:
            self.comm.status_updated.emit("Invalid port number!")
            return

        try:
            self.client_socket = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
            self.client_socket.connect((ip, port))
            self.running = True
            self.comm.status_updated.emit(f"Connected to {ip}:{port}")
            self.connect_btn.setEnabled(False)
            self.disconnect_btn.setEnabled(True)

            # 启动接收线程
            threading.Thread(target=self.receive_data, daemon=True).start()
        except Exception as e:
            self.comm.status_updated.emit(f"Connection failed: {str(e)}")

    def disconnect(self):
        self.running = False
        if self.client_socket:
            self.client_socket.close()
            self.client_socket = None
        self.comm.status_updated.emit("Disconnected")
        self.connect_btn.setEnabled(True)
        self.disconnect_btn.setEnabled(False)

    def receive_data(self):
        while self.running:
            try:
                data = self.client_socket.recv(1024)
                if not data:
                    self.comm.status_updated.emit("Server closed connection")
                    self.disconnect()
                    break
                if self.hex_check.isChecked():
                    # 十六进制显示
                    data_str = data.hex()
                else:
                    # 文本显示（假设 UTF-8 编码）
                    data_str = data.decode('utf-8', errors='ignore')
                self.comm.data_received.emit(data_str)
            except Exception as e:
                if self.running:
                    self.comm.status_updated.emit(f"Receive error: {str(e)}")
                    self.disconnect()
                break

    def send_data(self):
        if not self.client_socket or not self.running:
            self.comm.status_updated.emit("Not connected to server!")
            return

        data = self.send_input.text()
        try:
            if self.hex_check.isChecked():
                # 发送十六进制数据
                data_bytes = bytes.fromhex(data)
            else:
                # 发送文本数据
                data_bytes = data.encode('utf-8')
            self.client_socket.send(data_bytes)
            self.comm.data_received.emit(f"Sent: {data}")
        except Exception as e:
            self.comm.status_updated.emit(f"Send error: {str(e)}")

    def update_display(self, data):
        self.display.append(data)

    def update_status(self, status):
        self.display.append(f"[Status] {status}")

    def clear_log(self):
        self.display.clear()

    def closeEvent(self, event):
        self.disconnect()
        event.accept()

if __name__ == '__main__':
    app = QApplication(sys.argv)
    window = TCPClientWindow()
    window.show()
    sys.exit(app.exec_())

三、C++实现(进入正题)

因为毕竟是学习C++，下面就一步步的实现，实现网络调试助手与C++版的QT上位机通讯。

main.cpp代码如下：

cpp 复制代码

#include "dialog.h"
#include <QApplication>

int main(int argc, char *argv[])
{
    QApplication a(argc, argv);
    Dialog w;
    w.show();
    return a.exec();
}

dialog.cpp如下：

cpp 复制代码

#include "dialog.h"
#include "ui_dialog.h"
#include <QMessageBox>
#include <QDebug>

Dialog::Dialog(QWidget *parent)
    : QDialog(parent)
    , ui(new Ui::Dialog)
    , tcpSocket(nullptr)
{
    ui->setupUi(this);
    initUI();
    initSocket();
}

Dialog::~Dialog()
{
    if(tcpSocket) {
        tcpSocket->disconnectFromHost();
        delete tcpSocket;
    }
    delete ui;
}

void Dialog::initUI()
{
    // 设置界面默认状态
    ui->connectBtn->setText("连接");
    ui->sendBtn->setEnabled(false);
    ui->ipEdit->setText("127.0.0.1");
    ui->portEdit->setText("8080");
    ui->receiveText->setReadOnly(true);
}

void Dialog::initSocket()
{
    tcpSocket = new QTcpSocket(this);

    // 连接信号槽
    connect(tcpSocket, &QTcpSocket::connected,
            this, &Dialog::on_socket_connected);
    connect(tcpSocket, &QTcpSocket::disconnected,
            this, &Dialog::on_socket_disconnected);
    connect(tcpSocket, &QTcpSocket::readyRead,
            this, &Dialog::on_socket_readyRead);
    // 修改为使用 errorOccurred 信号
    connect(tcpSocket, &QTcpSocket::errorOccurred,
            this, &Dialog::on_socket_error);
}

void Dialog::on_connectBtn_clicked()
{
    if(!tcpSocket->isOpen()) {
        // 连接服务器
        QString ip = ui->ipEdit->text();
        quint16 port = ui->portEdit->text().toUInt();

        tcpSocket->connectToHost(QHostAddress(ip), port);
        ui->connectBtn->setText("连接中...");
        ui->connectBtn->setEnabled(false);
    } else {
        // 断开连接
        tcpSocket->disconnectFromHost();
        ui->connectBtn->setText("断开中...");
    }
}

void Dialog::on_sendBtn_clicked()
{
    if(tcpSocket && tcpSocket->state() == QAbstractSocket::ConnectedState) {
        QString message = ui->sendText->toPlainText();
        if(!message.isEmpty()) {
            tcpSocket->write(message.toUtf8());
            tcpSocket->flush(); // 立即发送

            // 添加到发送记录
            ui->receiveText->append("[发送] " + message);
            ui->sendText->clear();
        }
    } else {
        QMessageBox::warning(this, "警告", "请先连接服务器！");
    }
}

void Dialog::on_socket_connected()
{
    ui->connectBtn->setText("断开");
    ui->connectBtn->setEnabled(true);
    ui->sendBtn->setEnabled(true);
    ui->statusLabel->setText("状态: 已连接");
    ui->receiveText->append("[系统] 连接成功！");

    qDebug() << "TCP连接成功";
}

void Dialog::on_socket_disconnected()
{
    ui->connectBtn->setText("连接");
    ui->connectBtn->setEnabled(true);
    ui->sendBtn->setEnabled(false);
    ui->statusLabel->setText("状态: 已断开");
    ui->receiveText->append("[系统] 连接已断开");

    qDebug() << "TCP连接断开";
}

void Dialog::on_socket_readyRead()
{
    QByteArray data = tcpSocket->readAll();
    QString message = QString::fromUtf8(data);
    ui->receiveText->append("[接收] " + message);

    qDebug() << "接收数据:" << message;
}

void Dialog::on_socket_error(QAbstractSocket::SocketError socketError)
{
    QString errorStr;
    switch(socketError) {
    case QAbstractSocket::RemoteHostClosedError:
        errorStr = "服务器关闭连接";
        break;
    case QAbstractSocket::HostNotFoundError:
        errorStr = "服务器地址错误";
        break;
    case QAbstractSocket::ConnectionRefusedError:
        errorStr = "连接被拒绝";
        break;
    default:
        errorStr = tcpSocket->errorString();
    }

    ui->connectBtn->setText("连接");
    ui->connectBtn->setEnabled(true);
    ui->sendBtn->setEnabled(false);
    ui->statusLabel->setText("状态: 连接失败");
    ui->receiveText->append("[错误] " + errorStr);

    QMessageBox::critical(this, "连接错误", errorStr);
    qDebug() << "TCP错误:" << errorStr;
}

dialog.h代码如下：

cpp 复制代码

#ifndef DIALOG_H
#define DIALOG_H

#include <QDialog>
#include <QTcpSocket>
#include <QHostAddress>

QT_BEGIN_NAMESPACE
namespace Ui { class Dialog; }
QT_END_NAMESPACE

class Dialog : public QDialog
{
    Q_OBJECT

public:
    Dialog(QWidget *parent = nullptr);
    ~Dialog();

private slots:
    void on_connectBtn_clicked();
    void on_sendBtn_clicked();
    void on_socket_connected();
    void on_socket_disconnected();
    void on_socket_readyRead();
    void on_socket_error(QAbstractSocket::SocketError socketError);

private:
    Ui::Dialog *ui;
    QTcpSocket *tcpSocket;
    void initUI();  // 初始化界面
    void initSocket(); // 初始化Socket
};

#endif // DIALOG_H

CMakeLists.txt代码如下：

cpp 复制代码

cmake_minimum_required(VERSION 3.16)

project(TCP_IP_Test VERSION 0.1 LANGUAGES CXX)

set(CMAKE_AUTOUIC ON)
set(CMAKE_AUTOMOC ON)
set(CMAKE_AUTORCC ON)

set(CMAKE_CXX_STANDARD 17)
set(CMAKE_CXX_STANDARD_REQUIRED ON)

# 添加Network组件到find_package中
find_package(QT NAMES Qt6 Qt5 REQUIRED COMPONENTS Widgets Network LinguistTools)
find_package(Qt${QT_VERSION_MAJOR} REQUIRED COMPONENTS Widgets Network LinguistTools)

set(TS_FILES TCP_IP_Test_zh_CN.ts)

set(PROJECT_SOURCES
        main.cpp
        dialog.cpp
        dialog.h
        dialog.ui
        ${TS_FILES}
)

if(${QT_VERSION_MAJOR} GREATER_EQUAL 6)
    qt_add_executable(TCP_IP_Test
        MANUAL_FINALIZATION
        ${PROJECT_SOURCES}
    )
    qt_create_translation(QM_FILES ${CMAKE_SOURCE_DIR} ${TS_FILES})
else()
    if(ANDROID)
        add_library(TCP_IP_Test SHARED
            ${PROJECT_SOURCES}
        )
    else()
        add_executable(TCP_IP_Test
            ${PROJECT_SOURCES}
        )
    endif()
    qt5_create_translation(QM_FILES ${CMAKE_SOURCE_DIR} ${TS_FILES})
endif()

# 添加Network到target_link_libraries
target_link_libraries(TCP_IP_Test PRIVATE
    Qt${QT_VERSION_MAJOR}::Widgets
    Qt${QT_VERSION_MAJOR}::Network  # 添加这一行
)

if(${QT_VERSION} VERSION_LESS 6.1.0)
  set(BUNDLE_ID_OPTION MACOSX_BUNDLE_GUI_IDENTIFIER com.example.TCP_IP_Test)
endif()
set_target_properties(TCP_IP_Test PROPERTIES
    ${BUNDLE_ID_OPTION}
    MACOSX_BUNDLE_BUNDLE_VERSION ${PROJECT_VERSION}
    MACOSX_BUNDLE_SHORT_VERSION_STRING ${PROJECT_VERSION_MAJOR}.${PROJECT_VERSION_MINOR}
    MACOSX_BUNDLE TRUE
    WIN32_EXECUTABLE TRUE
)

include(GNUInstallDirs)
install(TARGETS TCP_IP_Test
    BUNDLE DESTINATION .
    LIBRARY DESTINATION ${CMAKE_INSTALL_LIBDIR}
    RUNTIME DESTINATION ${CMAKE_INSTALL_BINDIR}
)

if(QT_VERSION_MAJOR EQUAL 6)
    qt_finalize_executable(TCP_IP_Test)
endif()

在dialog.ui中要添加如下控件：

控件类型	对象名称	文本/提示
Line Edit	ipEdit	127.0.0.1
Line Edit	portEdit	8080
QPushButton	connectBtn	连接
Text Edit	sendText	发送消息...
QPushButton	sendBtn	发送

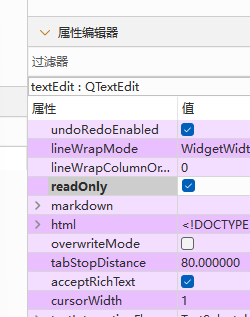

Text Edit	receiveText	(只读)
Label	statusLabel	状态: 未连接

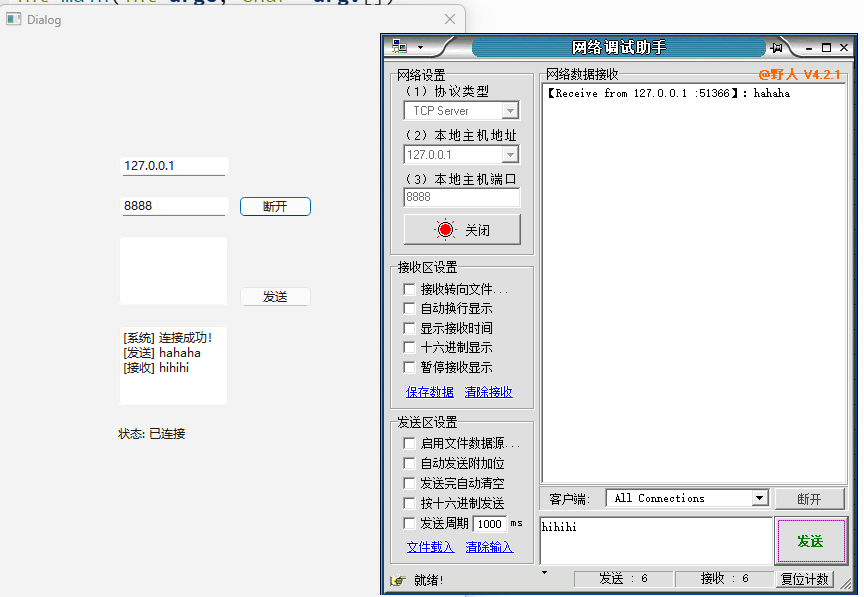

运行结果如下：
