打造你的视频关键帧提取神器
在视频处理、内容分析、剪辑预览等场景中，关键帧提取是一项基础而强大的技术。本文将带你从零构建一个支持三种主流算法、具备完整图形界面的视频关键帧提取工具，并深入解析其核心原理与实现细节。
🎯 为什么需要关键帧提取？
一段视频由成千上万帧图像组成，但其中大量帧是高度相似甚至重复的。关键帧（Keyframe） 指的是那些能够代表视频内容显著变化的"代表性"帧。提取关键帧可以：
- 快速预览视频主要内容
- 减少视频分析的计算量
- 用于视频摘要、缩略图生成、场景分割
- 辅助视频检索与内容理解
然而，市面上大多数工具要么功能单一，要么命令行操作门槛高。于是，我决定开发一个开箱即用、算法可选、结果可视的桌面应用。
🛠️ 技术栈与依赖
本项目基于 Python 构建，核心依赖如下：
- PyQt5：构建跨平台桌面 GUI
- OpenCV (cv2)：视频读取与图像处理
- NumPy / SciPy：数值计算与信号处理
- JSON：元数据存储
安装命令：
bash
pip install opencv-python numpy scipy pyqt5注意：
matplotlib在代码中被注释提及但未实际使用，可不安装。
🧠 三大关键帧提取算法详解
本工具内置三种经典算法，各有优劣，适用于不同场景。
1️⃣ 局部最大值算法（Local Maxima）
原理 ：
计算相邻帧之间的亮度差异（LUV 色彩空间） ，得到帧差序列。对序列进行平滑后，寻找局部极大值点------这些点通常对应场景切换或剧烈运动。
优点：
- 对场景切换敏感
- 算法简单高效
缺点：
- 对缓慢变化不敏感
- 可能漏掉静态场景中的重要内容
代码亮点：
python
diff = cv2.absdiff(curr_frame, prev_frame)
diff_sum_mean = np.sum(diff) / (diff.shape[0] * diff.shape[1])
frame_diffs.append(diff_sum_mean)
# 平滑 + 寻找局部极大值
sm_diff_array = self.smooth(diff_array, len_window)
frame_indexes = argrelextrema(sm_diff_array, np.greater)[0]2️⃣ 帧差统计算法（Frame Difference Statistics）
原理 ：
同样基于帧差，但引入统计学阈值 。计算所有帧差的均值（mean）和标准差（std），设定阈值为 mean + 2.05 * std，高于此值的帧视为关键帧。
优点：
- 自适应阈值，鲁棒性强
- 可保存元数据（
-meta.json）供后续分析
缺点：
- 对光照变化敏感
- 需要遍历两次视频（计算统计量 + 提取帧）
关键逻辑：
python
diff_threshold = data["stats"]["sd"] * 2.05 + data["stats"]["mean"]
if fi["diff_count"] > diff_threshold:
# 保存为关键帧3️⃣ 直方图聚类算法（Histogram Clustering）
原理 ：
将每一帧的 RGB 直方图视为特征向量。通过增量聚类 ，将相似帧归为一类。每类中选择与聚类中心最相似的帧作为关键帧。
优点：
- 能捕捉内容相似性（即使位置变化）
- 适合提取"代表性"画面（如PPT切换、产品展示）
缺点：
- 计算复杂度高（O(n²)）
- 内存占用大（存储所有直方图）
核心思想：
python
# 计算颜色直方图相似度（加权交集）
d = 0.30 * d_r + 0.59 * d_g + 0.11 * d_b
if d > threshold:
# 加入现有聚类
else:
# 创建新聚类💻 GUI 设计亮点
✅ 多任务并行处理
- 每个任务独立线程运行，互不阻塞
- 支持批量添加、批量启动、单任务重试
✅ 算法灵活切换
- 下拉菜单选择算法
- "应用到所有任务" 按钮一键更新全部任务配置
✅ 友好交互体验
- 进度条实时反馈（0-50%：分析阶段，50-100%：保存阶段）
- 状态标签颜色区分（等待/进行中/完成/失败）
- "📂 打开"按钮直达输出文件夹（跨平台支持 Windows/macOS/Linux）
✅ 安全退出机制
- 关闭窗口时自动停止所有后台线程
- 防止资源泄漏
📂 项目结构与输出
- 默认输出目录 ：
~/KeyframesOutput - 每个视频生成独立子文件夹 ，命名格式：
视频名_local_maxima/视频名_frame_diff/视频名_histogram/
- 关键帧命名 ：
keyframe_000123.jpg - 帧差算法额外生成 ：
视频名-meta.json（含帧差统计信息）
🚀 使用指南

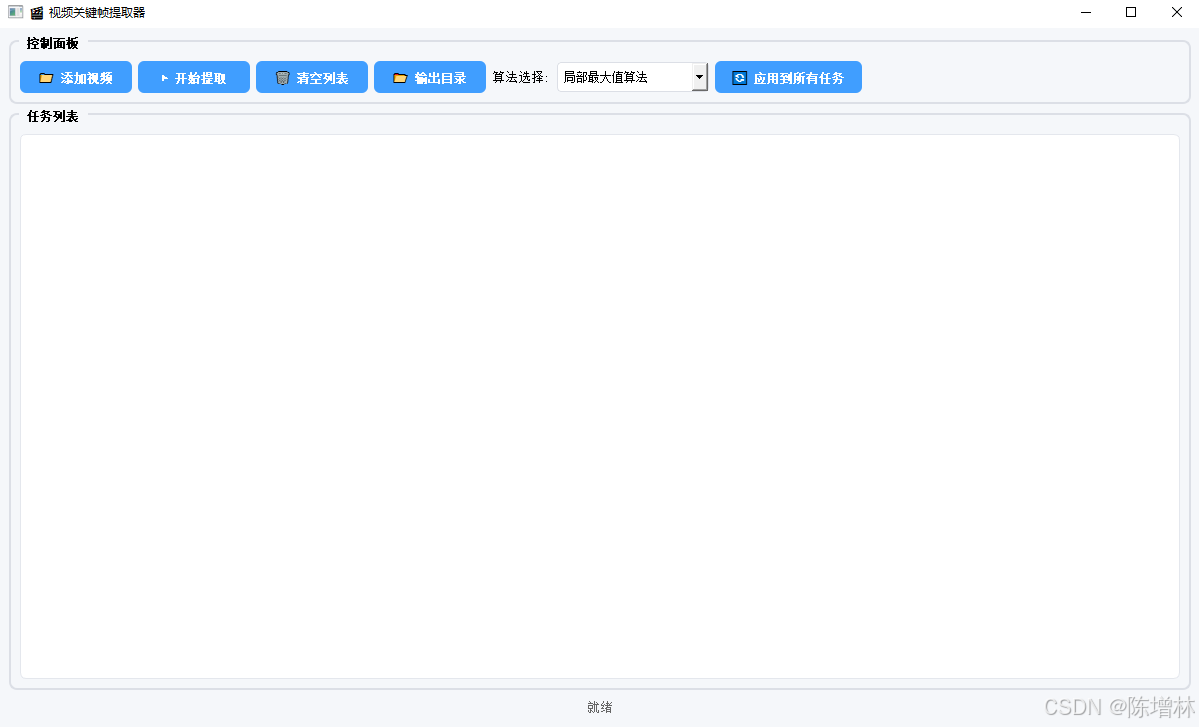

- 启动应用：运行脚本，打开主界面
- 添加视频：点击"📁 添加视频"，支持多选
- 选择算法：从下拉菜单切换（默认"局部最大值"）
- 开始提取 ：
- 点击"▶️ 开始提取"运行所有等待任务
- 或点击单个任务的"▶️ 执行"单独运行
- 查看结果 ：
- 完成后点击"📂 打开"查看关键帧
- 失败任务可点击"🔄 重试"重新执行

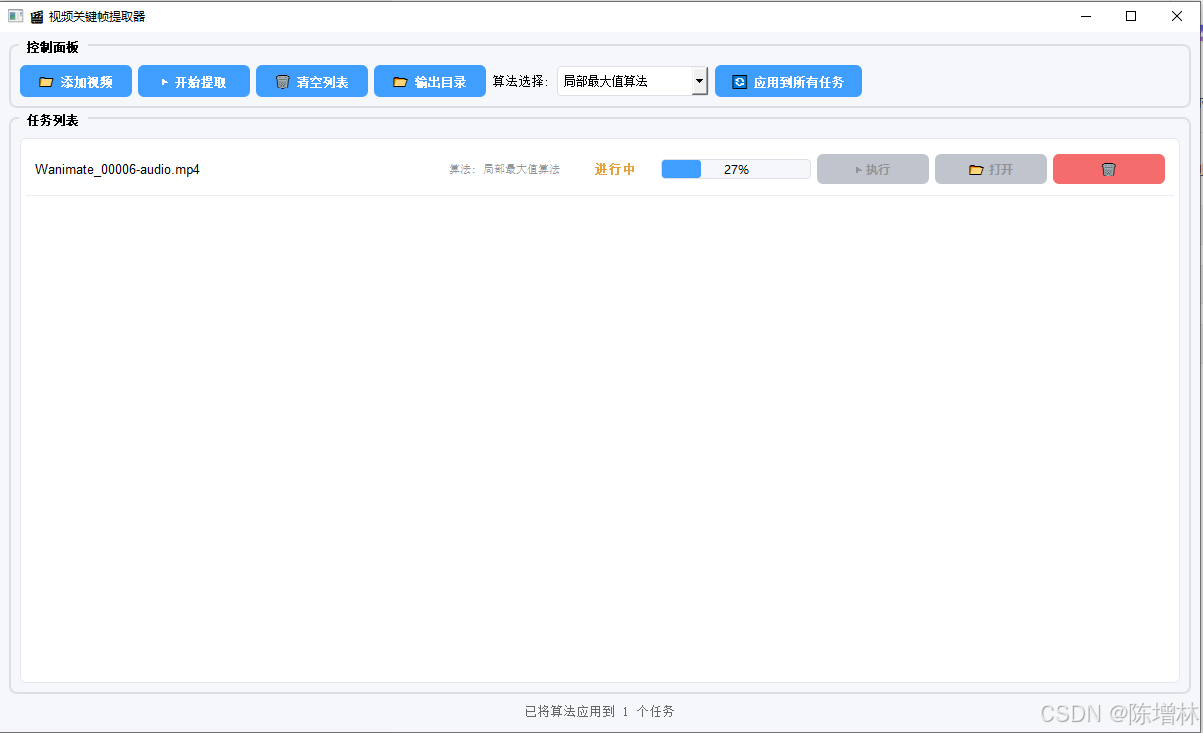

单任务

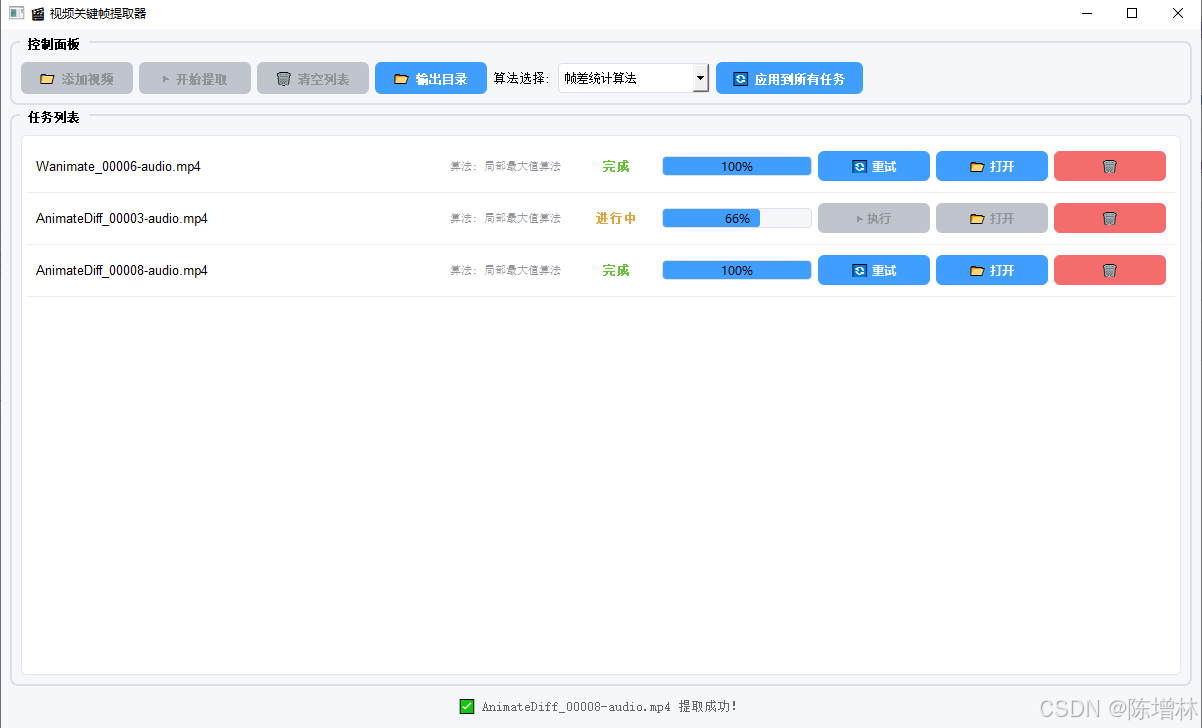

多任务并行

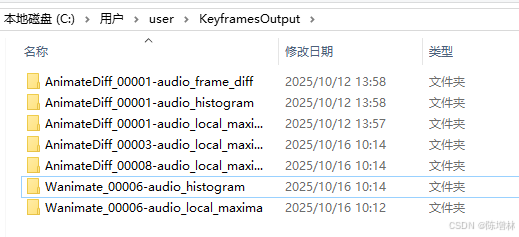

输出结果
📌 结语
这个工具不仅是一个实用程序，更是一个算法实验平台。通过对比三种算法在不同视频上的表现，你可以直观理解计算机视觉中"变化检测"与"内容表征"的核心思想。
源码如下：
python
import sys
import os
import subprocess
import platform
import cv2
import numpy as np
import json
from scipy.signal import argrelextrema
from PyQt5.QtWidgets import (
QApplication, QMainWindow, QWidget, QVBoxLayout, QHBoxLayout,
QPushButton, QListWidget, QListWidgetItem, QLabel, QFileDialog,
QMessageBox, QProgressBar, QComboBox, QGroupBox
)
from PyQt5.QtCore import Qt, pyqtSignal, QObject, QThread, QTimer
from PyQt5.QtGui import QFont, QIcon
def open_file_location(file_path):
try:
system = platform.system()
if system == "Windows":
subprocess.run(['explorer', '/select,', os.path.normpath(file_path)], shell=True)
elif system == "Darwin":
subprocess.run(['open', '-R', file_path])
else:
folder = os.path.dirname(file_path)
subprocess.run(['xdg-open', folder])
except Exception as e:
QMessageBox.warning(None, "提示", f"无法打开文件位置：\n{str(e)}")
class KeyframeAlgorithm(QObject):
"""关键帧提取算法基类"""
progress_updated = pyqtSignal(int, int) # task_id, progress
finished = pyqtSignal(int, bool, str, str) # task_id, success, message, output_path
def __init__(self, task_id, video_path, output_dir):
super().__init__()
self.task_id = task_id
self.video_path = video_path
self.output_dir = output_dir
self._is_running = True
def stop(self):
self._is_running = False
@staticmethod
def smooth(x, window_len=13, window='hanning'):
s = np.r_[2 * x[0] - x[window_len:1:-1],
x, 2 * x[-1] - x[-1:-window_len:-1]]
if window == 'flat': # moving average
w = np.ones(window_len, 'd')
else:
w = getattr(np, window)(window_len)
y = np.convolve(w / w.sum(), s, mode='same')
return y[window_len - 1:-window_len + 1]
class LocalMaximaAlgorithm(KeyframeAlgorithm):
"""基于局部最大值的关键帧提取算法"""
name = "局部最大值算法"
def extract(self):
try:
name = os.path.splitext(os.path.basename(self.video_path))[0]
dir_path = os.path.join(self.output_dir, f"{name}_local_maxima")
os.makedirs(dir_path, exist_ok=True)
USE_LOCAL_MAXIMA = True
len_window = 50
cap = cv2.VideoCapture(self.video_path)
if not cap.isOpened():
self.finished.emit(self.task_id, False, "无法打开视频文件", "")
return
curr_frame = None
prev_frame = None
frame_diffs = []
frames = []
success, frame = cap.read()
i = 0
total_frames = int(cap.get(cv2.CAP_PROP_FRAME_COUNT))
while success and self._is_running:
# 更新进度
progress = int((i / total_frames) * 50) if total_frames > 0 else 0
self.progress_updated.emit(self.task_id, progress)
luv = cv2.cvtColor(frame, cv2.COLOR_BGR2LUV)
curr_frame = luv
if curr_frame is not None and prev_frame is not None:
diff = cv2.absdiff(curr_frame, prev_frame)
diff_sum = np.sum(diff)
diff_sum_mean = diff_sum / (diff.shape[0] * diff.shape[1])
frame_diffs.append(diff_sum_mean)
frames.append(i)
prev_frame = curr_frame
i = i + 1
success, frame = cap.read()
cap.release()
if not self._is_running:
return
keyframe_id_set = set()
if USE_LOCAL_MAXIMA and frame_diffs:
diff_array = np.array(frame_diffs)
sm_diff_array = self.smooth(diff_array, len_window)
frame_indexes = np.asarray(argrelextrema(sm_diff_array, np.greater))[0]
for idx in frame_indexes:
if idx < len(frames):
keyframe_id_set.add(frames[idx])
# 保存关键帧
cap = cv2.VideoCapture(self.video_path)
success, frame = cap.read()
idx = 0
saved_count = 0
total_keyframes = len(keyframe_id_set)
while success and keyframe_id_set and self._is_running:
# 更新进度
progress = 50 + int((saved_count / total_keyframes) * 50) if total_keyframes > 0 else 100
self.progress_updated.emit(self.task_id, progress)
if idx in keyframe_id_set:
name = f"keyframe_{idx:06d}.jpg"
cv2.imwrite(os.path.join(dir_path, name), frame)
saved_count += 1
keyframe_id_set.remove(idx)
idx = idx + 1
success, frame = cap.read()
cap.release()
if self._is_running:
self.finished.emit(self.task_id, True, f"成功提取 {saved_count} 个关键帧", dir_path)
except Exception as e:
self.finished.emit(self.task_id, False, f"算法执行失败: {str(e)}", "")
class FrameDiffAlgorithm(KeyframeAlgorithm):
"""基于帧差的关键帧提取算法"""
name = "帧差统计算法"
@staticmethod
def get_video_info(source_path):
cap = cv2.VideoCapture(source_path)
info = {
"framecount": int(cap.get(cv2.CAP_PROP_FRAME_COUNT)),
"fps": cap.get(cv2.CAP_PROP_FPS),
"width": int(cap.get(cv2.CAP_PROP_FRAME_WIDTH)),
"height": int(cap.get(cv2.CAP_PROP_FRAME_HEIGHT)),
"codec": int(cap.get(cv2.CAP_PROP_FOURCC))
}
cap.release()
return info
@staticmethod
def scale(img, xScale, yScale):
return cv2.resize(img, None, fx=xScale, fy=yScale, interpolation=cv2.INTER_AREA)
def calculate_frame_stats(self):
cap = cv2.VideoCapture(self.video_path)
data = {"frame_info": []}
last_frame = None
total_frames = int(cap.get(cv2.CAP_PROP_FRAME_COUNT))
frame_number = 0
while cap.isOpened() and self._is_running:
ret, frame = cap.read()
if frame is None:
break
frame_number = int(cap.get(cv2.CAP_PROP_POS_FRAMES) - 1)
# 更新进度
progress = int((frame_number / total_frames) * 50) if total_frames > 0 else 0
self.progress_updated.emit(self.task_id, progress)
gray = cv2.cvtColor(frame, cv2.COLOR_BGR2GRAY)
gray = self.scale(gray, 0.25, 0.25)
gray = cv2.GaussianBlur(gray, (9, 9), 0.0)
if frame_number >= 0 and last_frame is not None:
diff = cv2.absdiff(gray, last_frame)
diff_mag = int(cv2.countNonZero(diff))
data["frame_info"].append({"frame_number": frame_number, "diff_count": diff_mag})
last_frame = gray
cap.release()
diff_counts = [fi["diff_count"] for fi in data["frame_info"]]
if diff_counts:
data["stats"] = {
"num": int(len(diff_counts)),
"min": int(np.min(diff_counts)),
"max": int(np.max(diff_counts)),
"mean": float(np.mean(diff_counts)),
"median": float(np.median(diff_counts)),
"sd": float(np.std(diff_counts))
}
return data
def extract(self):
try:
name = os.path.splitext(os.path.basename(self.video_path))[0]
dir_path = os.path.join(self.output_dir, f"{name}_frame_diff")
os.makedirs(dir_path, exist_ok=True)
# 计算帧差统计数据
data = self.calculate_frame_stats()
if not self._is_running:
return
if "stats" not in data:
self.finished.emit(self.task_id, False, "无法计算帧差统计数据", "")
return
diff_threshold = data["stats"]["sd"] * 2.05 + data["stats"]["mean"]
cap = cv2.VideoCapture(self.video_path)
saved_count = 0
total_frames = len(data["frame_info"])
for index, fi in enumerate(data["frame_info"]):
if not self._is_running:
cap.release()
return
# 更新进度
progress = 50 + int((index / total_frames) * 50) if total_frames > 0 else 100
self.progress_updated.emit(self.task_id, progress)
if fi["diff_count"] < diff_threshold:
continue
# 将视频定位到关键帧并读取该帧
cap.set(cv2.CAP_PROP_POS_FRAMES, fi["frame_number"])
ret, frame = cap.read()
if not ret:
continue
# 保存关键帧图像到目标文件夹
frame_filename = os.path.join(dir_path, f"keyframe_{fi['frame_number']:06d}.jpg")
cv2.imwrite(frame_filename, frame)
saved_count += 1
cap.release()
# 保存元数据
data_fp = os.path.join(dir_path, f"{name}-meta.json")
with open(data_fp, 'w') as f:
json.dump(data, f, indent=4)
if self._is_running:
self.finished.emit(self.task_id, True, f"成功提取 {saved_count} 个关键帧", dir_path)
except Exception as e:
self.finished.emit(self.task_id, False, f"算法执行失败: {str(e)}", "")
class HistogramAlgorithm(KeyframeAlgorithm):
"""基于直方图聚类关键帧提取算法"""
name = "直方图聚类算法"
def extract(self):
try:
name = os.path.splitext(os.path.basename(self.video_path))[0]
output_folder = os.path.join(self.output_dir, f"{name}_histogram")
os.makedirs(output_folder, exist_ok=True)
cap = cv2.VideoCapture(self.video_path)
if not cap.isOpened():
self.finished.emit(self.task_id, False, "无法打开视频文件！", "")
return
# 获取视频帧数
num_frames = int(cap.get(cv2.CAP_PROP_FRAME_COUNT))
cluster = np.zeros(num_frames)
cluster_count = np.zeros(num_frames)
cluster_num = 0
threshold = 0.91
centroid_r = np.zeros((num_frames, 256))
centroid_g = np.zeros((num_frames, 256))
centroid_b = np.zeros((num_frames, 256))
# 读取首帧，形成第一个聚类
ret, frame = cap.read()
if not ret:
self.finished.emit(self.task_id, False, "无法读取第一帧！", "")
return
cluster_num += 1
prev_count_r = cv2.calcHist([frame], [0], None, [256], [0, 256]).flatten()
prev_count_g = cv2.calcHist([frame], [1], None, [256], [0, 256]).flatten()
prev_count_b = cv2.calcHist([frame], [2], None, [256], [0, 256]).flatten()
cluster[0] = 1
cluster_count[0] += 1
centroid_r[0] = prev_count_r
centroid_g[0] = prev_count_g
centroid_b[0] = prev_count_b
visit = 1
# 遍历视频的其他帧
for k in range(1, num_frames):
if not self._is_running:
cap.release()
return
ret, frame = cap.read()
if not ret:
break
# 更新进度
progress = int((k / num_frames) * 50)
self.progress_updated.emit(self.task_id, progress)
tmp_count_r = cv2.calcHist([frame], [0], None, [256], [0, 256]).flatten()
tmp_count_g = cv2.calcHist([frame], [1], None, [256], [0, 256]).flatten()
tmp_count_b = cv2.calcHist([frame], [2], None, [256], [0, 256]).flatten()
cluster_group_id = 1
max_similarity = 0
# 计算相似度
for cluster_idx in range(visit, cluster_num + 1):
s_r = np.sum(np.minimum(centroid_r[cluster_idx - 1], tmp_count_r))
s_g = np.sum(np.minimum(centroid_g[cluster_idx - 1], tmp_count_g))
s_b = np.sum(np.minimum(centroid_b[cluster_idx - 1], tmp_count_b))
d_r = s_r / np.sum(tmp_count_r)
d_g = s_g / np.sum(tmp_count_g)
d_b = s_b / np.sum(tmp_count_b)
d = 0.30 * d_r + 0.59 * d_g + 0.11 * d_b
if d > max_similarity:
cluster_group_id = cluster_idx
max_similarity = d
# 判断是否加入现有聚类或形成新聚类
if max_similarity > threshold:
centroid_r[cluster_group_id - 1] = (centroid_r[cluster_group_id - 1] * cluster_count[cluster_group_id - 1] + tmp_count_r) / (cluster_count[cluster_group_id - 1] + 1)
centroid_g[cluster_group_id - 1] = (centroid_g[cluster_group_id - 1] * cluster_count[cluster_group_id - 1] + tmp_count_g) / (cluster_count[cluster_group_id - 1] + 1)
centroid_b[cluster_group_id - 1] = (centroid_b[cluster_group_id - 1] * cluster_count[cluster_group_id - 1] + tmp_count_b) / (cluster_count[cluster_group_id - 1] + 1)
cluster_count[cluster_group_id - 1] += 1
cluster[k] = cluster_group_id
else:
cluster_num += 1
visit += 1
cluster_count[cluster_num - 1] += 1
centroid_r[cluster_num - 1] = tmp_count_r
centroid_g[cluster_num - 1] = tmp_count_g
centroid_b[cluster_num - 1] = tmp_count_b
cluster[k] = cluster_num
cap.release()
if not self._is_running:
return
# 提取每个聚类的关键帧
max_similarity = np.zeros(cluster_num)
frame_indices = np.zeros(cluster_num, dtype=int)
cap = cv2.VideoCapture(self.video_path)
frame_number = 0
while frame_number < num_frames and self._is_running:
ret, frame = cap.read()
if not ret:
break
tmp_count_r = cv2.calcHist([frame], [0], None, [256], [0, 256]).flatten()
tmp_count_g = cv2.calcHist([frame], [1], None, [256], [0, 256]).flatten()
tmp_count_b = cv2.calcHist([frame], [2], None, [256], [0, 256]).flatten()
cluster_id = int(cluster[frame_number])
if cluster_id > 0 and cluster_id <= cluster_num: # 确保聚类ID有效
s_r = np.sum(np.minimum(centroid_r[cluster_id - 1], tmp_count_r))
s_g = np.sum(np.minimum(centroid_g[cluster_id - 1], tmp_count_g))
s_b = np.sum(np.minimum(centroid_b[cluster_id - 1], tmp_count_b))
d_r = s_r / np.sum(tmp_count_r)
d_g = s_g / np.sum(tmp_count_g)
d_b = s_b / np.sum(tmp_count_b)
d = 0.30 * d_r + 0.59 * d_g + 0.11 * d_b
if d > max_similarity[cluster_id - 1]:
max_similarity[cluster_id - 1] = d
frame_indices[cluster_id - 1] = frame_number
frame_number += 1
# 更新进度
progress = 50 + int((frame_number / num_frames) * 25) if num_frames > 0 else 75
self.progress_updated.emit(self.task_id, progress)
cap.release()
if not self._is_running:
return
# 保存关键帧到文件夹
cap = cv2.VideoCapture(self.video_path)
saved_count = 0
total_clusters = len(frame_indices)
for i, idx in enumerate(frame_indices):
if not self._is_running:
cap.release()
return
cap.set(cv2.CAP_PROP_POS_FRAMES, idx)
ret, img = cap.read()
if ret:
frame_filename = os.path.join(output_folder, f'keyframe_{int(idx):06d}.jpg')
cv2.imwrite(frame_filename, img)
saved_count += 1
# 更新进度
progress = 75 + int(((i + 1) / total_clusters) * 25) if total_clusters > 0 else 100
self.progress_updated.emit(self.task_id, progress)
cap.release()
if self._is_running:
self.finished.emit(self.task_id, True, f"成功提取 {saved_count} 个关键帧", output_folder)
except Exception as e:
self.finished.emit(self.task_id, False, f"算法执行失败: {str(e)}", "")
# 算法映射
ALGORITHMS = {
"局部最大值算法": LocalMaximaAlgorithm,
"帧差统计算法": FrameDiffAlgorithm,
"直方图聚类算法": HistogramAlgorithm
}
class KeyframeExtractor(QMainWindow):
def __init__(self):
super().__init__()
self.setWindowTitle("🎬 视频关键帧提取器")
self.resize(1200, 700)
self.tasks = []
self.current_algorithm = "局部最大值算法"
self.output_dir = os.path.expanduser("~/KeyframesOutput")
self.threads = {} # 存储线程引用
# 创建输出目录
os.makedirs(self.output_dir, exist_ok=True)
self.init_ui()
self.check_dependencies()
def init_ui(self):
central = QWidget()
self.setCentralWidget(central)
layout = QVBoxLayout(central)
# 顶部控制区域
top_group = QGroupBox("控制面板")
top_layout = QHBoxLayout(top_group)
self.add_btn = QPushButton("📁 添加视频")
self.add_btn.clicked.connect(self.add_videos)
self.start_btn = QPushButton("▶️ 开始提取")
self.start_btn.clicked.connect(self.start_extraction)
self.clear_btn = QPushButton("🗑️ 清空列表")
self.clear_btn.clicked.connect(self.clear_all_tasks)
self.output_btn = QPushButton("📂 输出目录")
self.output_btn.clicked.connect(self.select_output_dir)
self.algorithm_combo = QComboBox()
self.algorithm_combo.addItems(ALGORITHMS.keys())
self.algorithm_combo.setCurrentText(self.current_algorithm)
self.algorithm_combo.currentTextChanged.connect(self.on_algorithm_changed)
# 添加"应用到所有任务"按钮
self.apply_to_all_btn = QPushButton("🔄 应用到所有任务")
self.apply_to_all_btn.clicked.connect(self.apply_algorithm_to_all_tasks)
top_layout.addWidget(self.add_btn)
top_layout.addWidget(self.start_btn)
top_layout.addWidget(self.clear_btn)
top_layout.addWidget(self.output_btn)
top_layout.addWidget(QLabel("算法选择:"))
top_layout.addWidget(self.algorithm_combo)
top_layout.addWidget(self.apply_to_all_btn)
top_layout.addStretch()
layout.addWidget(top_group)
# 任务列表
list_group = QGroupBox("任务列表")
list_layout = QVBoxLayout(list_group)
self.list_widget = QListWidget()
list_layout.addWidget(self.list_widget)
layout.addWidget(list_group)
# 状态栏
self.status_label = QLabel("就绪")
self.status_label.setAlignment(Qt.AlignCenter)
self.status_label.setStyleSheet("color: #666; padding: 5px; font-size: 13px;")
layout.addWidget(self.status_label)
self.apply_stylesheet()
def apply_stylesheet(self):
self.setStyleSheet("""
QMainWindow {
background-color: #f5f7fa;
}
QGroupBox {
font-weight: bold;
font-size: 12px;
border: 2px solid #dcdfe6;
border-radius: 8px;
margin-top: 1ex;
padding-top: 10px;
}
QGroupBox::title {
subcontrol-origin: margin;
left: 10px;
padding: 0 5px 0 5px;
}
QPushButton {
background-color: #409eff;
color: white;
border: none;
padding: 8px 16px;
border-radius: 6px;
font-weight: bold;
min-width: 80px;
}
QPushButton:hover {
background-color: #66b1ff;
}
QPushButton:disabled {
background-color: #c0c4cc;
color: #909399;
}
QListWidget {
background-color: white;
border: 1px solid #e4e7ed;
border-radius: 6px;
padding: 5px;
}
QListWidget::item {
padding: 0px;
border-bottom: 1px solid #ebeef5;
}
QComboBox {
padding: 6px;
border: 1px solid #dcdfe6;
border-radius: 4px;
min-width: 120px;
}
QLabel {
font-size: 13px;
}
QProgressBar {
border: 1px solid #dcdfe6;
border-radius: 4px;
text-align: center;
background-color: #f5f7fa;
}
QProgressBar::chunk {
background-color: #409eff;
border-radius: 3px;
}
""")
def on_algorithm_changed(self, text):
self.current_algorithm = text
def apply_algorithm_to_all_tasks(self):
"""将当前选择的算法应用到所有任务，并重置任务状态"""
if not self.tasks:
QMessageBox.information(self, "提示", "没有任务可以应用算法")
return
# 检查是否有正在运行的任务
running_tasks = [i for i, t in enumerate(self.tasks) if t['status'] == '进行中']
if running_tasks:
reply = QMessageBox.question(
self, "确认操作",
"有任务正在运行，是否停止这些任务并应用新算法？",
QMessageBox.Yes | QMessageBox.No,
QMessageBox.No
)
if reply == QMessageBox.No:
return
# 停止正在运行的任务
for task_id in running_tasks:
task = self.tasks[task_id]
if task.get('worker'):
task['worker'].stop()
if task.get('thread') and task['thread'].isRunning():
task['thread'].quit()
task['thread'].wait(1000)
if task_id in self.threads:
del self.threads[task_id]
# 应用到所有任务
updated_count = 0
for task in self.tasks:
# 更新算法
task['algorithm'] = self.current_algorithm
# 重置任务状态（除了正在运行的任务）
if task['status'] != '进行中':
task['status'] = '等待'
task['progress'] = 0
task['output_path'] = ''
# 更新UI
if task['status_label']:
task['status_label'].setText("等待")
task['status_label'].setStyleSheet("") # 清除样式
if task['progress_bar']:
task['progress_bar'].setValue(0)
if task['open_btn']:
task['open_btn'].setEnabled(False)
if task['exec_btn']:
task['exec_btn'].setText("▶️ 执行")
task['exec_btn'].setEnabled(True)
if task['algo_info']:
task['algo_info'].setText(f"算法: {self.current_algorithm}")
updated_count += 1
if updated_count > 0:
self.status_label.setText(f"已将算法应用到 {updated_count} 个任务")
# 如果之前有运行中的任务，重新启用按钮
if running_tasks:
self.start_btn.setEnabled(True)
self.add_btn.setEnabled(True)
self.clear_btn.setEnabled(True)
else:
QMessageBox.information(self, "提示", "没有任务可以更新算法")
def select_output_dir(self):
dir_path = QFileDialog.getExistingDirectory(
self, "选择输出目录", self.output_dir
)
if dir_path:
self.output_dir = dir_path
self.status_label.setText(f"输出目录已设置为: {dir_path}")
def add_videos(self):
files, _ = QFileDialog.getOpenFileNames(
self, "选择视频文件", "",
"视频文件 (*.mp4 *.mkv *.avi *.mov *.flv *.wmv *.webm *.m4v *.ts *.mts)"
)
for file in files:
task = {
'video_path': file,
'algorithm': self.current_algorithm,
'status': '等待',
'progress': 0,
'output_path': '',
'widget': None,
'progress_bar': None,
'status_label': None,
'open_btn': None,
'remove_btn': None,
'exec_btn': None,
'thread': None,
'worker': None,
'algo_info': None # 添加算法信息标签引用
}
self.tasks.append(task)
self.add_task_to_list(len(self.tasks) - 1)
def add_task_to_list(self, index):
item = QListWidgetItem()
widget = QWidget()
layout = QHBoxLayout(widget)
# 视频信息
video_info = QLabel(f"{os.path.basename(self.tasks[index]['video_path'])}")
video_info.setWordWrap(True)
video_info.setFont(QFont("Arial", 9))
# 算法信息
algo_info = QLabel(f"算法: {self.tasks[index]['algorithm']}")
algo_info.setStyleSheet("color: #909399; font-size: 11px;")
algo_info.setFixedWidth(120)
# 状态标签
status_label = QLabel("等待")
status_label.setMinimumWidth(80)
status_label.setAlignment(Qt.AlignCenter)
# 进度条
progress_bar = QProgressBar()
progress_bar.setRange(0, 100)
progress_bar.setValue(0)
progress_bar.setFixedHeight(20)
progress_bar.setFixedWidth(150)
# 执行按钮
exec_btn = QPushButton("▶️ 执行")
exec_btn.setFixedWidth(70)
exec_btn.setFixedHeight(30)
exec_btn.clicked.connect(lambda _, idx=index: self.execute_single_task(idx))
# 打开按钮
open_btn = QPushButton("📂 打开")
open_btn.setFixedWidth(70)
open_btn.setFixedHeight(30)
open_btn.setEnabled(False)
open_btn.clicked.connect(lambda _, idx=index: self.open_output_folder(idx))
# 移除按钮
remove_btn = QPushButton("🗑️")
remove_btn.setFixedWidth(40)
remove_btn.setFixedHeight(30)
remove_btn.setStyleSheet("background-color: #f56c6c; color: white;")
remove_btn.clicked.connect(lambda _, idx=index: self.remove_task(idx))
layout.addWidget(video_info)
layout.addWidget(algo_info)
layout.addWidget(status_label)
layout.addWidget(progress_bar)
layout.addWidget(exec_btn)
layout.addWidget(open_btn)
layout.addWidget(remove_btn)
layout.setStretch(0, 1)
layout.setAlignment(Qt.AlignVCenter)
item.setSizeHint(widget.sizeHint())
self.list_widget.addItem(item)
self.list_widget.setItemWidget(item, widget)
self.tasks[index]['widget'] = widget
self.tasks[index]['status_label'] = status_label
self.tasks[index]['progress_bar'] = progress_bar
self.tasks[index]['open_btn'] = open_btn
self.tasks[index]['remove_btn'] = remove_btn
self.tasks[index]['exec_btn'] = exec_btn
self.tasks[index]['algo_info'] = algo_info # 保存算法标签引用
def open_output_folder(self, index):
output_path = self.tasks[index]['output_path']
if output_path and os.path.exists(output_path):
open_file_location(output_path)
else:
QMessageBox.warning(self, "文件夹不存在", "输出文件夹尚未生成或已被删除。")
def remove_task(self, index):
if index >= len(self.tasks):
return
task = self.tasks[index]
if task['status'] == '进行中':
reply = QMessageBox.question(
self, "确认停止",
"任务正在运行，确定要停止并移除吗？",
QMessageBox.Yes | QMessageBox.No,
QMessageBox.No
)
if reply == QMessageBox.Yes:
# 停止工作线程
if task.get('worker'):
task['worker'].stop()
if task.get('thread') and task['thread'].isRunning():
task['thread'].quit()
task['thread'].wait(1000) # 等待1秒
self.finish_task_removal(index)
return
self.finish_task_removal(index)
def finish_task_removal(self, index):
if index < len(self.tasks):
self.list_widget.takeItem(index)
if index in self.threads:
del self.threads[index]
del self.tasks[index]
self.status_label.setText("已移除一个任务")
def clear_all_tasks(self):
if any(t['status'] == '进行中' for t in self.tasks):
QMessageBox.warning(self, "无法清空", "有任务正在运行，请等待完成后再清空！")
return
reply = QMessageBox.question(
self, "确认清空",
"确定要清空所有任务吗？",
QMessageBox.Yes | QMessageBox.No,
QMessageBox.No
)
if reply == QMessageBox.Yes:
# 停止所有工作线程
for task in self.tasks:
if task.get('worker'):
task['worker'].stop()
if task.get('thread') and task['thread'].isRunning():
task['thread'].quit()
task['thread'].wait(500)
self.threads.clear()
self.tasks.clear()
self.list_widget.clear()
self.status_label.setText("任务列表已清空")
def start_extraction(self):
if not self.tasks:
QMessageBox.warning(self, "提示", "请先添加视频文件！")
return
waiting_tasks = [i for i, t in enumerate(self.tasks) if t['status'] == '等待']
if not waiting_tasks:
QMessageBox.information(self, "提示", "没有待处理的任务！")
return
self.start_btn.setEnabled(False)
self.add_btn.setEnabled(False)
self.clear_btn.setEnabled(False)
# 使用定时器延迟启动任务，避免UI阻塞
QTimer.singleShot(100, lambda: self.start_tasks_delayed(waiting_tasks))
def start_tasks_delayed(self, task_indices):
for i in task_indices:
self.run_task(i)
def run_task(self, index):
if index >= len(self.tasks):
return
task = self.tasks[index]
task['status'] = '进行中'
task['status_label'].setText("进行中")
task['status_label'].setStyleSheet("color: #e6a23c; font-weight: bold;")
task['remove_btn'].setEnabled(False)
task['exec_btn'].setEnabled(False)
task['progress_bar'].setValue(0)
# 创建算法实例
algorithm_class = ALGORITHMS.get(task['algorithm'])
if not algorithm_class:
self.status_label.setText(f"未知算法: {task['algorithm']}")
return
worker = algorithm_class(index, task['video_path'], self.output_dir)
# 创建线程
thread = QThread()
worker.moveToThread(thread)
# 连接信号
worker.progress_updated.connect(self.on_progress_updated)
worker.finished.connect(self.on_task_finished)
thread.started.connect(worker.extract)
# 存储引用
task['worker'] = worker
task['thread'] = thread
self.threads[index] = thread
# 启动线程
thread.start()
def on_progress_updated(self, task_id, progress):
if task_id < len(self.tasks):
task = self.tasks[task_id]
task['progress'] = progress
task['progress_bar'].setValue(progress)
def on_task_finished(self, task_id, success, message, output_path):
# 使用定时器延迟UI更新，避免递归重绘
QTimer.singleShot(0, lambda: self.process_task_result(task_id, success, message, output_path))
def process_task_result(self, task_id, success, message, output_path):
if task_id >= len(self.tasks):
return
task = self.tasks[task_id]
task['status'] = '完成' if success else '失败'
color = "#67c23a" if success else "#f56c6c"
task['status_label'].setText("完成" if success else "失败")
task['status_label'].setStyleSheet(f"color: {color}; font-weight: bold;")
task['progress_bar'].setValue(100)
task['remove_btn'].setEnabled(True)
task['exec_btn'].setEnabled(True) # 启用执行按钮，允许重新执行
task['exec_btn'].setText("🔄 重试") # 修改按钮文本为"重试"
# 清理线程
if task.get('thread'):
task['thread'].quit()
task['thread'].wait(500)
if task_id in self.threads:
del self.threads[task_id]
if success:
task['output_path'] = output_path
self.status_label.setText(f"✅ {os.path.basename(task['video_path'])} 提取成功！")
task['open_btn'].setEnabled(True)
else:
self.status_label.setText(f"❌ {message}")
task['open_btn'].setEnabled(False)
# 检查是否所有批量任务完成
if not any(t['status'] == '进行中' for t in self.tasks):
self.start_btn.setEnabled(True)
self.add_btn.setEnabled(True)
self.clear_btn.setEnabled(True)
def execute_single_task(self, index):
task = self.tasks[index]
# 如果任务已完成或失败，重置为等待状态
if task['status'] in ['完成', '失败']:
task['status'] = '等待'
task['progress'] = 0
task['output_path'] = ''
task['status_label'].setText("等待")
task['status_label'].setStyleSheet("") # 清除样式
task['progress_bar'].setValue(0)
task['open_btn'].setEnabled(False)
task['exec_btn'].setText("▶️ 执行") # 恢复执行按钮文本
# 如果任务正在运行，不允许重复执行
if task['status'] == '进行中':
QMessageBox.warning(self, "提示", "任务正在运行，请等待完成！")
return
self.run_task(index)
def check_dependencies(self):
try:
import cv2
import numpy as np
from scipy.signal import argrelextrema
except ImportError as e:
missing = str(e).split(" ")[-1]
msg = (
f"缺少必要的依赖库: {missing}\n\n"
"请安装以下依赖：\n"
"pip install opencv-python numpy scipy matplotlib"
)
QMessageBox.critical(self, "依赖缺失", msg)
sys.exit(1)
def closeEvent(self, event):
"""窗口关闭时停止所有工作线程"""
for task in self.tasks:
if task.get('worker'):
task['worker'].stop()
if task.get('thread') and task['thread'].isRunning():
task['thread'].quit()
task['thread'].wait(1000)
event.accept()
if __name__ == "__main__":
app = QApplication(sys.argv)
# 设置应用程序属性以减少重绘问题
app.setAttribute(Qt.AA_UseHighDpiPixmaps, True)
app.setAttribute(Qt.AA_EnableHighDpiScaling, True)
window = KeyframeExtractor()
window.show()
sys.exit(app.exec_())让每一帧都说话，让视频内容一目了然。
💡 小提示：对于长视频，建议先用"帧差统计算法"快速筛选，再对重点片段用"直方图聚类"精细提取，效率与质量兼得！
