【任务调度】DolphinScheduler钉钉告警消息格式修改

开着拖拉机回家2025-10-21 9:59

目录

[一 、概述](#一 、概述)

二、钉钉告警消息修改

一 、概述

Apache DolphinScheduler 是一个分布式易扩展的可视化 DAG 工作流任务调度开源系统。适用于企业级场景，提供了一个可视化操作任务、工作流和全生命周期数据处理过程的解决方案。

Apache DolphinScheduler 旨在解决复杂的大数据任务依赖关系，并为应用程序提供数据和各种 OPS 编排中的关系。解决数据研发 ETL 依赖错综复杂，无法监控任务健康状态的问题。DolphinScheduler 以 DAG（Directed Acyclic Graph，DAG）流式方式组装任务，可以及时监控任务的执行状态，支持重试、指定节点恢复失败、暂停、恢复、终止任务等操作。

二、钉钉告警消息修改

**使用的DS版本：**dolphinscheduler-3.1.8

修改的类

复制代码
org/apache/dolphinscheduler/plugin/alert/dingtalk/DingTalkSender.java


修改的主要方法 generateMarkdownMsg

完整类代码如下：

java 复制代码
/*
 * Licensed to the Apache Software Foundation (ASF) under one or more
 * contributor license agreements.  See the NOTICE file distributed with
 * this work for additional information regarding copyright ownership.
 * The ASF licenses this file to You under the Apache License, Version 2.0
 * (the "License"); you may not use this file except in compliance with
 * the License.  You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */
package org.apache.dolphinscheduler.plugin.alert.dingtalk;

import org.apache.dolphinscheduler.alert.api.AlertResult;
import org.apache.dolphinscheduler.common.utils.JSONUtils;

import org.apache.commons.codec.binary.Base64;
import org.apache.commons.codec.binary.StringUtils;
import org.apache.http.HttpEntity;
import org.apache.http.HttpHost;
import org.apache.http.auth.AuthScope;
import org.apache.http.auth.UsernamePasswordCredentials;
import org.apache.http.client.CredentialsProvider;
import org.apache.http.client.config.RequestConfig;
import org.apache.http.client.methods.CloseableHttpResponse;
import org.apache.http.client.methods.HttpPost;
import org.apache.http.entity.StringEntity;
import org.apache.http.impl.client.BasicCredentialsProvider;
import org.apache.http.impl.client.CloseableHttpClient;
import org.apache.http.impl.client.HttpClients;
import org.apache.http.util.EntityUtils;

import java.io.IOException;
import java.net.URLEncoder;
import java.nio.charset.StandardCharsets;
import java.text.SimpleDateFormat;
import java.time.LocalDateTime;
import java.time.format.DateTimeFormatter;
import java.util.Arrays;
import java.util.HashMap;
import java.util.Map;
import java.util.Objects;

import javax.crypto.Mac;
import javax.crypto.spec.SecretKeySpec;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

import com.fasterxml.jackson.databind.JsonNode;

/**
 * <p>
 * <a href="https://open.dingtalk.com/document/robots/custom-robot-access">...</a>
 * <a href="https://open.dingtalk.com/document/robots/customize-robot-security-settings">...</a>
 * </p>
 */
public final class DingTalkSender {

    private static final Logger logger = LoggerFactory.getLogger(DingTalkSender.class);
    private final String url;
    private final String keyword;
    private final String secret;
    private String msgType;

    private final String atMobiles;
    private final String atUserIds;
    private final Boolean atAll;

    private final Boolean enableProxy;

    private String proxy;

    private Integer port;

    private String user;

    private String password;

    DingTalkSender(Map<String, String> config) {
        url = config.get(DingTalkParamsConstants.NAME_DING_TALK_WEB_HOOK);
        keyword = config.get(DingTalkParamsConstants.NAME_DING_TALK_KEYWORD);
        secret = config.get(DingTalkParamsConstants.NAME_DING_TALK_SECRET);
        msgType = config.get(DingTalkParamsConstants.NAME_DING_TALK_MSG_TYPE);

        atMobiles = config.get(DingTalkParamsConstants.NAME_DING_TALK_AT_MOBILES);
        atUserIds = config.get(DingTalkParamsConstants.NAME_DING_TALK_AT_USERIDS);
        atAll = Boolean.valueOf(config.get(DingTalkParamsConstants.NAME_DING_TALK_AT_ALL));

        enableProxy = Boolean.valueOf(config.get(DingTalkParamsConstants.NAME_DING_TALK_PROXY_ENABLE));
        if (Boolean.TRUE.equals(enableProxy)) {
            port = Integer.parseInt(config.get(DingTalkParamsConstants.NAME_DING_TALK_PORT));
            proxy = config.get(DingTalkParamsConstants.NAME_DING_TALK_PROXY);
            user = config.get(DingTalkParamsConstants.NAME_DING_TALK_USER);
            password = config.get(DingTalkParamsConstants.NAME_DING_TALK_PASSWORD);
        }
    }

    private static HttpPost constructHttpPost(String url, String msg) {
        HttpPost post = new HttpPost(url);
        StringEntity entity = new StringEntity(msg, StandardCharsets.UTF_8);
        post.setEntity(entity);
        post.addHeader("Content-Type", "application/json; charset=utf-8");
        return post;
    }

    private static CloseableHttpClient getProxyClient(String proxy, int port, String user, String password) {
        HttpHost httpProxy = new HttpHost(proxy, port);
        CredentialsProvider provider = new BasicCredentialsProvider();
        provider.setCredentials(new AuthScope(httpProxy), new UsernamePasswordCredentials(user, password));
        return HttpClients.custom().setDefaultCredentialsProvider(provider).build();
    }

    private static CloseableHttpClient getDefaultClient() {
        return HttpClients.createDefault();
    }

    private static RequestConfig getProxyConfig(String proxy, int port) {
        HttpHost httpProxy = new HttpHost(proxy, port);
        return RequestConfig.custom().setProxy(httpProxy).build();
    }

    private AlertResult checkSendDingTalkSendMsgResult(String result) {
        AlertResult alertResult = new AlertResult();
        alertResult.setStatus("false");

        if (null == result) {
            alertResult.setMessage("send ding talk msg error");
            logger.info("send ding talk msg error,ding talk server resp is null");
            return alertResult;
        }
        DingTalkSendMsgResponse sendMsgResponse = JSONUtils.parseObject(result, DingTalkSendMsgResponse.class);
        if (null == sendMsgResponse) {
            alertResult.setMessage("send ding talk msg fail");
            logger.info("send ding talk msg error,resp error");
            return alertResult;
        }
        if (sendMsgResponse.errcode == 0) {
            alertResult.setStatus("true");
            alertResult.setMessage("send ding talk msg success");
            return alertResult;
        }
        alertResult.setMessage(String.format("alert send ding talk msg error : %s", sendMsgResponse.getErrmsg()));
        logger.info("alert send ding talk msg error : {}", sendMsgResponse.getErrmsg());
        return alertResult;
    }

    /**
     * send dingtalk msg handler
     *
     * @param title   title
     * @param content content
     * @return
     */
    public AlertResult sendDingTalkMsg(String title, String content) {
        AlertResult alertResult;
        try {
            String resp = sendMsg(title, content);
            return checkSendDingTalkSendMsgResult(resp);
        } catch (Exception e) {
            logger.info("send ding talk alert msg  exception : {}", e.getMessage());
            alertResult = new AlertResult();
            alertResult.setStatus("false");
            alertResult.setMessage("send ding talk alert fail.");
        }
        return alertResult;
    }

    private String sendMsg(String title, String content) throws IOException {

        String msg = generateMsgJson(title, content);

        HttpPost httpPost = constructHttpPost(
                org.apache.commons.lang3.StringUtils.isBlank(secret) ? url : generateSignedUrl(), msg);

        CloseableHttpClient httpClient;
        if (Boolean.TRUE.equals(enableProxy)) {
            httpClient = getProxyClient(proxy, port, user, password);
            RequestConfig rcf = getProxyConfig(proxy, port);
            httpPost.setConfig(rcf);
        } else {
            httpClient = getDefaultClient();
        }

        try {
            CloseableHttpResponse response = httpClient.execute(httpPost);
            String resp;
            try {
                HttpEntity entity = response.getEntity();
                resp = EntityUtils.toString(entity, "UTF-8");
                EntityUtils.consume(entity);
            } finally {
                response.close();
            }
            logger.info("Ding Talk send msg :{}, resp: {}", msg, resp);
            return resp;
        } finally {
            httpClient.close();
        }
    }

    /**
     * generate msg json
     *
     * @param title   title
     * @param content content
     * @return msg
     */
    private String generateMsgJson(String title, String content) {
        if (org.apache.commons.lang3.StringUtils.isBlank(msgType)) {
            msgType = DingTalkParamsConstants.DING_TALK_MSG_TYPE_TEXT;
        }
        Map<String, Object> items = new HashMap<>();
        items.put("msgtype", msgType);
        Map<String, Object> text = new HashMap<>();
        items.put(msgType, text);

        if (DingTalkParamsConstants.DING_TALK_MSG_TYPE_MARKDOWN.equals(msgType)) {
            generateMarkdownMsg(title, content, text);
        } else {
            generateTextMsg(title, content, text);
        }

        setMsgAt(items);
        return JSONUtils.toJsonString(items);

    }

    /**
     * generate text msg
     *
     * @param title   title
     * @param content content
     * @param text    text
     */
    private void generateTextMsg(String title, String content, Map<String, Object> text) {
        StringBuilder builder = new StringBuilder(title);
        builder.append("\n");
        builder.append(content);
        if (org.apache.commons.lang3.StringUtils.isNotBlank(keyword)) {
            builder.append(" ");
            builder.append(keyword);
        }
        byte[] byt = StringUtils.getBytesUtf8(builder.toString());
        String txt = StringUtils.newStringUtf8(byt);
        text.put("content", txt);
    }

    /**
     * generate markdown msg
     *
     * @param title   title
     * @param content content
     * @param text    text
     */
    private void generateMarkdownMsg(String title, String content, Map<String, Object> text) {
        logger.info("DingTalk alert content: {}", content);

        StringBuilder builder = new StringBuilder();

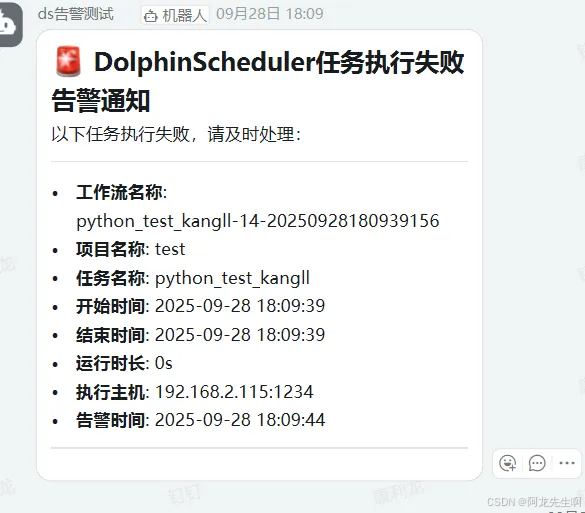

        builder.append("## 🚨 ").append("DolphinScheduler任务执行失败告警通知").append(" ").append("\n\n");
        builder.append("以下任务执行失败，请及时处理：").append("\n\n");
        builder.append("---\n\n");
        builder.append("- **工作流名称**: ").append(extractInfo(content, "工作流名称")).append("\n\n");
        builder.append("- **项目名称**: ").append(extractInfo(content, "项目名称")).append("\n\n");
        builder.append("- **任务名称**: ").append(extractInfo(content, "任务名称")).append("\n\n");
        builder.append("- **开始时间**: ").append(extractInfo(content, "开始时间")).append("\n\n");
        builder.append("- **结束时间**: ").append(extractInfo(content, "结束时间")).append("\n\n");
        builder.append("- **运行时长**: ").append(extractInfo(content, "运行时长")).append("\n\n");
        builder.append("- **执行主机**: ").append(extractInfo(content, "执行主机")).append("\n\n");
        builder.append("- **告警时间**: ")
                .append(LocalDateTime.now().format(DateTimeFormatter.ofPattern("yyyy-MM-dd HH:mm:ss"))).append("\n\n");
        builder.append("---\n\n");

        handleAtMention(builder);

        byte[] byt = StringUtils.getBytesUtf8(builder.toString());
        String txt = StringUtils.newStringUtf8(byt);
        text.put("title", title);
        text.put("text", txt);
    }

    /**
     * 如何配置了艾特的人，告警消息增加信息
     *
     * @param builder 告警信息
     */
    private void handleAtMention(StringBuilder builder) {
        if (org.apache.commons.lang3.StringUtils.isNotBlank(atMobiles) ||
                org.apache.commons.lang3.StringUtils.isNotBlank(atUserIds)) {
            builder.append("### 通知人员\n");
        }

        if (org.apache.commons.lang3.StringUtils.isNotBlank(atMobiles)) {
            Arrays.stream(atMobiles.split(",")).forEach(mobile -> {
                builder.append("@").append(mobile).append(" ");
            });
        }

        if (org.apache.commons.lang3.StringUtils.isNotBlank(atUserIds)) {
            Arrays.stream(atUserIds.split(",")).forEach(userId -> {
                builder.append("@").append(userId).append(" ");
            });
        }

        if (Boolean.TRUE.equals(atAll)) {
            builder.append("\n> **通知全体成员**");
        }
    }


    /**
     * 解析任务消息Context
     *
     * @param content 任务信息JSON对象字符串
     * @param key     JSON对象字符串Key
     * @return 解析JSON后的Value
     */
    private String extractInfo(String content, String key) {
        try {
            JsonNode rootNode = JSONUtils.parseObject(content, JsonNode.class);
            if (rootNode.isArray() && !rootNode.isEmpty()) {
                JsonNode firstNode = rootNode.get(0);

                switch (key) {
                    case "工作流名称":
                        return firstNode.get("processName").asText();
                    case "任务名称":
                        return firstNode.get("taskName").asText();
                    case "项目名称":
                        return firstNode.get("projectName").asText();
                    case "状态":
                        return firstNode.get("taskState").asText();
                    case "开始时间":
                        return firstNode.get("taskStartTime").asText();
                    case "结束时间":
                        return firstNode.get("taskEndTime").asText();
                    case "执行主机":
                        return firstNode.get("taskHost").asText();
                    case "运行时长":
                        String start = firstNode.get("taskStartTime").asText();
                        String end = firstNode.get("taskEndTime").asText();
                        return formatDuration(start, end);
                    default:
                        return "未知";
                }
            }
        } catch (Exception e) {
            logger.error("解析 content JSON 失败", e);
        }
        return "未知";
    }

    /**
     * 任务开始时间和结束时间计算运行时间
     *
     * @param startTime 任务开始时间
     * @param endTime 任务结束时间
     * @return 任务运行时间
     */
    private String formatDuration(String startTime, String endTime) {
        try {
            SimpleDateFormat sdf = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss");
            long startMs = sdf.parse(startTime).getTime();
            long endMs = sdf.parse(endTime).getTime();
            long seconds = (endMs - startMs) / 1000;

            if (seconds < 60) {
                return seconds + "s";
            } else {
                long minutes = seconds / 60;
                long secs = seconds % 60;
                return String.format("%d分%02d秒", minutes, secs);
            }
        } catch (Exception e) {
            return "未知";
        }
    }

    /**
     * configure msg @person
     *
     * @param items items
     */
    private void setMsgAt(Map<String, Object> items) {
        Map<String, Object> at = new HashMap<>();

        String[] atMobileArray =
                org.apache.commons.lang3.StringUtils.isNotBlank(atMobiles) ? atMobiles.split(",")
                        : new String[0];
        String[] atUserArray =
                org.apache.commons.lang3.StringUtils.isNotBlank(atUserIds) ? atUserIds.split(",")
                        : new String[0];
        boolean isAtAll = Objects.isNull(atAll) ? false : atAll;

        at.put("atMobiles", atMobileArray);
        at.put("atUserIds", atUserArray);
        at.put("isAtAll", isAtAll);

        items.put("at", at);
    }

    /**
     * generate sign url
     *
     * @return sign url
     */
    private String generateSignedUrl() {
        Long timestamp = System.currentTimeMillis();
        String stringToSign = timestamp + "\n" + secret;
        String sign = org.apache.commons.lang3.StringUtils.EMPTY;
        try {
            Mac mac = Mac.getInstance("HmacSHA256");
            mac.init(new SecretKeySpec(secret.getBytes("UTF-8"), "HmacSHA256"));
            byte[] signData = mac.doFinal(stringToSign.getBytes("UTF-8"));
            sign = URLEncoder.encode(new String(Base64.encodeBase64(signData)), "UTF-8");
        } catch (Exception e) {
            logger.error("generate sign error, message:{}", e);
        }
        return url + "&timestamp=" + timestamp + "&sign=" + sign;
    }

    static final class DingTalkSendMsgResponse {

        private Integer errcode;
        private String errmsg;

        public DingTalkSendMsgResponse() {
        }

        public Integer getErrcode() {
            return this.errcode;
        }

        public void setErrcode(Integer errcode) {
            this.errcode = errcode;
        }

        public String getErrmsg() {
            return this.errmsg;
        }

        public void setErrmsg(String errmsg) {
            this.errmsg = errmsg;
        }

        @Override
        public boolean equals(final Object o) {
            if (o == this) {
                return true;
            }
            if (!(o instanceof DingTalkSendMsgResponse)) {
                return false;
            }
            final DingTalkSendMsgResponse other = (DingTalkSendMsgResponse) o;
            final Object this$errcode = this.getErrcode();
            final Object other$errcode = other.getErrcode();
            if (this$errcode == null ? other$errcode != null : !this$errcode.equals(other$errcode)) {
                return false;
            }
            final Object this$errmsg = this.getErrmsg();
            final Object other$errmsg = other.getErrmsg();
            if (this$errmsg == null ? other$errmsg != null : !this$errmsg.equals(other$errmsg)) {
                return false;
            }
            return true;
        }

        @Override
        public int hashCode() {
            final int PRIME = 59;
            int result = 1;
            final Object $errcode = this.getErrcode();
            result = result * PRIME + ($errcode == null ? 43 : $errcode.hashCode());
            final Object $errmsg = this.getErrmsg();
            result = result * PRIME + ($errmsg == null ? 43 : $errmsg.hashCode());
            return result;
        }

        @Override
        public String toString() {
            return "DingTalkSender.DingTalkSendMsgResponse(errcode=" + this.getErrcode() + ", errmsg="
                    + this.getErrmsg() + ")";
        }
    }
}

海豚中配置钉钉告警如下文：

【调度器】DolphinScheduler任务钉钉告警_dolphinscheduler告警实例-CSDN博客

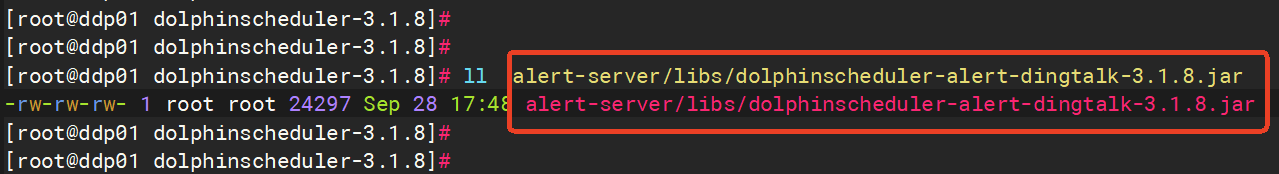

修改完成后的代码 打包更新

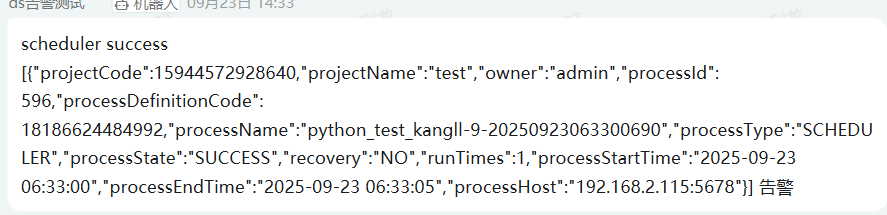

修改前的钉钉告警消息格式：

修改后的钉钉告警消息

相关推荐
没有bug.的程序员6 天前
分布式监控体系：从指标采集到智能告警的完整之道
java·分布式·告警·监控体系·指标采集
开着拖拉机回家8 天前
【调度器】DolphinScheduler任务钉钉告警
钉钉告警·海豚调度·dolphinschedule·任务告警
DolphinScheduler社区10 天前
# 3.1.8＜3.2.0＜3.3.1，Apache DolphinScheduler集群升级避坑指南
java·大数据·开源·apache·任务调度·海豚调度
运维行者_21 天前
OpManager 与 iOS 26：开启 IT 运维新时代
运维·网络·网络协议·网络安全·ios·iphone·告警
海豚调度1 个月前
3.1.9 生产“稳”担当：Master 服务启动源码全方位解析
大数据·开源·任务调度·大数据调度·apache dolphinscheduler
HR Zhou2 个月前
DAG与云计算任务调度优化
算法·云计算·任务调度·调度
xchenhao2 个月前
Elasticsearch 常用任务管理命令及实战应用
elasticsearch·webhook·curl·查询·任务·告警·bot
沈健_算法小生2 个月前
任务调度系统设计与实现：Quartz、XXL-JOB 和 Apache Airflow 对比与实践
任务调度
热门推荐
01GitHub 镜像站点02BongoCat - 跨平台键盘猫动画工具03UV安装并设置国内源04GitLab 零基础入门指南：从安装到项目管理全流程05Linux下V2Ray安装配置指南06NVIDIA显卡驱动、CUDA、cuDNN 和 TensorRT 版本匹配指南07一文了解国产算子编程语言 TileLang，TileLang 对国产开源生态的影响与启示08在VSCode配置Java开发环境的保姆级教程（适配各类AI编程IDE）092025软件测试面试八股文（含答案+文档）10XXE 注入漏洞全解析：从原理到实战
