微信小程序(H5）上传文件到阿里云 OSS（使用 STS 临时凭证）

simon_93492025-10-31 12:46

安全最佳实践 ：通过 RAM 角色 + STS 临时凭证 实现小程序或H5直传 OSS ，完全避免泄露长期密钥 。

本文档所有 敏感配置均已掩码，请勿直接使用示例值。

一、阿里云控制台配置

1. 创建自定义权限策略（最小权限）

json 复制代码
{
  "Version": "1",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": [
        "oss:PutObject",
        "oss:AbortMultipartUpload"
      ],
      "Resource": [
        "acs:oss:*:*:*"
      ]
    }
  ]
}

说明：仅授权上传和取消分片上传操作，遵循最小权限原则。

2. 创建 RAM 角色并授权

步骤：

  1. 创建角色

    • 类型：阿里云服务
    • 受信服务：Object Storage Service (OSS)

  2. 附加策略

    • 选择步骤 1 创建的自定义策略

  3. 编辑信任策略（关键！控制谁可以扮演该角色）

json 复制代码
{
  "Statement": [
    {
      "Action": "sts:AssumeRole",
      "Effect": "Allow",
      "Principal": {
        "RAM": [
          "acs:ram:<YOUR_ACCOUNT_ID>:root"
        ],
        "Service": [
          "oss.aliyuncs.com"
        ]
      }
    }
  ],
  "Version": "1"
}

掩码说明 ：<YOUR_ACCOUNT_ID> → 替换为你的 阿里云主账号 ID （如 188123123xxxxxxx）

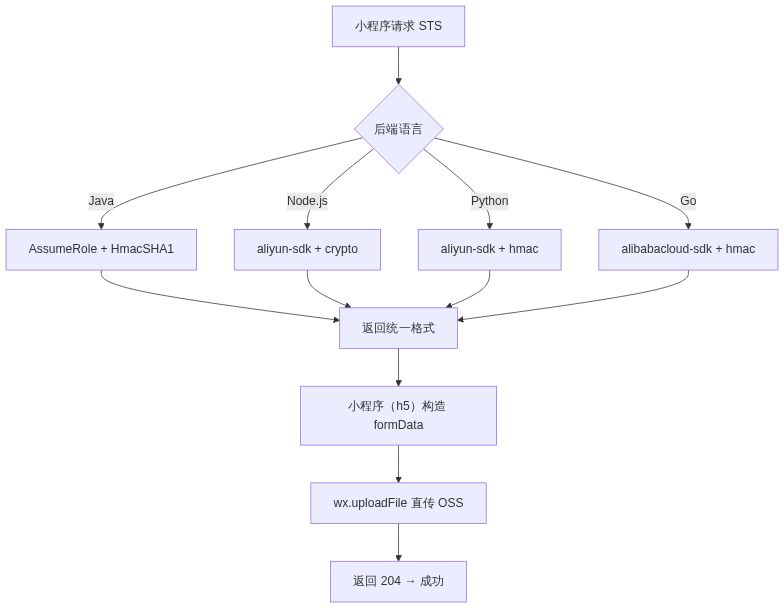

二、后端获取 STS 临时凭证（多语言实现）

统一返回格式（供前端使用）：

json 复制代码
{
  "accessKeyId": "STS.xxxx",
  "securityToken": "xxxx",
  "policy": "eyJl....",
  "signature": "xxxx",
  "bucket": "<YOUR_BUCKET>",
  "host": "https://<bucket>.oss-cn-beijing.aliyuncs.com",
  "dir": "upload_txt/",
  "expiration": "2025-10-30T12:00:00Z"
}

1. Java（完整实现）

java 复制代码
package pattern.config;

import com.alibaba.fastjson.JSON;
import com.aliyuncs.DefaultAcsClient;
import com.aliyuncs.auth.sts.AssumeRoleRequest;
import com.aliyuncs.auth.sts.AssumeRoleResponse;
import com.aliyuncs.exceptions.ClientException;
import com.aliyuncs.http.MethodType;
import com.aliyuncs.http.ProtocolType;
import com.aliyuncs.profile.DefaultProfile;
import com.aliyuncs.profile.IClientProfile;
import lombok.extern.slf4j.Slf4j;
import pattern.exception.PatternException;

import javax.crypto.Mac;
import javax.crypto.spec.SecretKeySpec;
import java.nio.charset.StandardCharsets;
import java.time.Instant;
import java.time.ZoneOffset;
import java.util.Base64;
import java.util.HashMap;
import java.util.Map;

/**
 * @author Simon
 * @date 2025/10/30
 */
@Slf4j
public class AliyunOssObdTool {

    // 关键配置（生产环境请使用配置中心或环境变量）
    private static final String ACCESS_KEY_ID      = "**<YOUR_ACCESS_KEY_ID>**";
    private static final String ACCESS_KEY_SECRET  = "**<YOUR_ACCESS_KEY_SECRET>**";
    private static final String ROLE_ARN           = "acs:ram::**<YOUR_ACCOUNT_ID>**:role/**<ROLE_NAME>**";
    private static final String ROLE_SESSION_NAME  = "sts-upload";
    private static final String STS_API_VERSION    = "2015-04-01";
    private static final String REGION_ID          = "cn-beijing";
    private static final String OSS_REGION_ID      = "oss-cn-beijing"; //需要具体的区域
    private static final String BUCKET             = "**<YOUR_BUCKET_NAME>**";
    private static final String DIR                = "upload_txt/";
    private static final Long   DURATION_SECONDS    = 1800L; // 30 分钟

    public static Map<String, Object> assumeRole() {
        try {
            // 1. 初始化 STS 客户端
            IClientProfile profile = DefaultProfile.getProfile(REGION_ID, ACCESS_KEY_ID, ACCESS_KEY_SECRET);
            DefaultAcsClient client = new DefaultAcsClient(profile);

            // 2. 构造 AssumeRole 请求
            AssumeRoleRequest request = new AssumeRoleRequest();
            request.setVersion(STS_API_VERSION);
            request.setSysMethod(MethodType.POST);
            request.setRoleArn(ROLE_ARN);
            request.setSysProtocol(ProtocolType.HTTPS);
            request.setRoleSessionName(ROLE_SESSION_NAME);
            request.setDurationSeconds(DURATION_SECONDS);

            // 3. 获取临时凭证
            AssumeRoleResponse stsToken = client.getAcsResponse(request);

            // 4. 构造 Policy（限制上传路径、大小）
            long expireTime = Instant.now().plusSeconds(1800).toEpochMilli();
            String expiration = Instant.ofEpochMilli(expireTime)
                    .atOffset(ZoneOffset.UTC)
                    .toString();

            String policyStr = String.format(
                "{\"expiration\":\"%s\",\"conditions\":[[\"content-length-range\",0,1048576],[\"starts-with\",\"$key\",\"%s\"],{\"bucket\":\"%s\"}]}",
                expiration, DIR, BUCKET
            );
            String policyBase64 = Base64.getEncoder().encodeToString(policyStr.getBytes(StandardCharsets.UTF_8));

            // 5. 计算签名
            String signature = calculateSignature(stsToken.getCredentials().getAccessKeySecret(), policyBase64);

            // 6. 返回前端所需参数
            Map<String, Object> result = new HashMap<>();
            result.put("accessKeyId", stsToken.getCredentials().getAccessKeyId());
            result.put("securityToken", stsToken.getCredentials().getSecurityToken());
            result.put("policy", policyBase64);
            result.put("signature", signature);
            result.put("bucket", BUCKET);
            result.put("host", "https://" + BUCKET + "." + OSS_REGION_ID + ".aliyuncs.com");
            result.put("dir", DIR);
            result.put("expiration", expiration);
            return result;

        } catch (ClientException e) {
            log.error("获取sts token error", e);
            throw new PatternException("获取sts token error");
        }
    }

    private static String calculateSignature(String accessKeySecret, String policyBase64) {
        try {
            Mac mac = Mac.getInstance("HmacSHA1");
            SecretKeySpec secretKeySpec = new SecretKeySpec(
                accessKeySecret.getBytes(StandardCharsets.UTF_8), "HmacSHA1"
            );
            mac.init(secretKeySpec);
            byte[] hash = mac.doFinal(policyBase64.getBytes(StandardCharsets.UTF_8));
            return Base64.getEncoder().encodeToString(hash);
        } catch (Exception e) {
            throw new RuntimeException("计算 signature 失败", e);
        }
    }
}

2. Node.js（Express 示例）

js 复制代码
const STS = require('aliyun-sdk').STS;
const crypto = require('crypto');
const express = require('express');
const app = express();

// 掩码配置
const config = {
  accessKeyId: '**<YOUR_ACCESS_KEY_ID>**',
  accessKeySecret: '**<YOUR_ACCESS_KEY_SECRET>**',
  roleArn: 'acs:ram::**<YOUR_ACCOUNT_ID>**:role/**<ROLE_NAME>**',
  bucket: '**<YOUR_BUCKET_NAME>**',
  dir: 'upload_txt/',
  region: 'oss-cn-beijing',
  durationSeconds: 1800
};

const sts = new STS({
  accessKeyId: config.accessKeyId,
  accessKeySecret: config.accessKeySecret
});

app.get('/sts', async (req, res) => {
  try {
    const result = await sts.assumeRole({
      RoleArn: config.roleArn,
      RoleSessionName: 'sts-upload',
      DurationSeconds: config.durationSeconds
    }).promise();

    const credentials = result.Credentials;
    const expiration = new Date(Date.now() + config.durationSeconds * 1000).toISOString();

    const policyStr = JSON.stringify({
      expiration,
      conditions: [
        ['content-length-range', 0, 1048576],
        ['starts-with', '$key', config.dir],
        { bucket: config.bucket }
      ]
    });

    const policyBase64 = Buffer.from(policyStr).toString('base64');
    const signature = crypto.createHmac('sha1', credentials.AccessKeySecret)
                           .update(policyBase64)
                           .digest('base64');

    res.json({
      accessKeyId: credentials.AccessKeyId,
      securityToken: credentials.SecurityToken,
      policy: policyBase64,
      signature,
      bucket: config.bucket,
      host: `https://${config.bucket}.${config.region}.aliyuncs.com`,
      dir: config.dir,
      expiration
    });
  } catch (err) {
    res.status(500).json({ error: err.message });
  }
});

app.listen(3000, () => console.log('STS Server running on port 3000'));

依赖 ：npm install aliyun-sdk express

3. Python（Flask 示例）

python 复制代码
from aliyunsdkcore.client import AcsClient
from aliyunsdksts.request.v20150401 import AssumeRoleRequest
import json
import base64
import hmac
import hashlib
from datetime import datetime, timedelta
from flask import Flask, jsonify

app = Flask(__name__)

# 掩码配置
config = {
    'access_key_id': '**<YOUR_ACCESS_KEY_ID>**',
    'access_key_secret': '**<YOUR_ACCESS_KEY_SECRET>**',
    'role_arn': 'acs:ram::**<YOUR_ACCOUNT_ID>**:role/**<ROLE_NAME>**',
    'bucket': '**<YOUR_BUCKET_NAME>**',
    'dir': 'upload_txt/',
    'region': 'cn-beijing',
    'duration_seconds': 1800
}

client = AcsClient(config['access_key_id'], config['access_key_secret'], config['region'])

@app.route('/sts')
def get_sts():
    try:
        request = AssumeRoleRequest.AssumeRoleRequest()
        request.set_RoleArn(config['role_arn'])
        request.set_RoleSessionName('wx-upload')
        request.set_DurationSeconds(config['duration_seconds'])

        response = client.do_action_with_exception(request)
        result = json.loads(response.decode())

        credentials = result['Credentials']
        expiration = (datetime.utcnow() + timedelta(seconds=config['duration_seconds'])).isoformat() + 'Z'

        policy = {
            "expiration": expiration,
            "conditions": [
                ["content-length-range", 0, 1048576],
                ["starts-with", "$key", config['dir']],
                {"bucket": config['bucket']}
            ]
        }

        policy_str = json.dumps(policy)
        policy_base64 = base64.b64encode(policy_str.encode()).decode()
        signature = base64.b64encode(
            hmac.new(
                credentials['AccessKeySecret'].encode(),
                policy_base64.encode(),
                hashlib.sha1
            ).digest()
        ).decode()

        return jsonify({
            'accessKeyId': credentials['AccessKeyId'],
            'securityToken': credentials['SecurityToken'],
            'policy': policy_base64,
            'signature': signature,
            'bucket': config['bucket'],
            'host': f"https://{config['bucket']}.oss-{config['region']}.aliyuncs.com",
            'dir': config['dir'],
            'expiration': expiration
        })
    except Exception as e:
        return jsonify({'error': str(e)}), 500

if __name__ == '__main__':
    app.run(port=5000)

依赖 ：pip install aliyun-python-sdk-core aliyun-python-sdk-sts flask

4. Go（Gin 示例）

go 复制代码
package main

import (
	"crypto/hmac"
	"crypto/sha1"
	"encoding/base64"
	"encoding/json"
	"net/http"
	"time"

	"github.com/aliyun/alibabacloud-sdk-go/services/sts"
	"github.com/gin-gonic/gin"
)

type Config struct {
	AccessKeyID     string `json:"access_key_id"`
	AccessKeySecret string `json:"access_key_secret"`
	RoleArn         string `json:"role_arn"`
	Bucket          string `json:"bucket"`
	Dir             string `json:"dir"`
	Region          string `json:"region"`
	DurationSeconds int64  `json:"duration_seconds"`
}

var config = Config{
	AccessKeyID:     "**<YOUR_ACCESS_KEY_ID>**",
	AccessKeySecret: "**<YOUR_ACCESS_KEY_SECRET>**",
	RoleArn:         "acs:ram::**<YOUR_ACCOUNT_ID>**:role/**<ROLE_NAME>**",
	Bucket:          "**<YOUR_BUCKET_NAME>**",
	Dir:             "upload_txt/",
	Region:          "cn-beijing",
	DurationSeconds: 1800,
}

func getSTS(c *gin.Context) {
	client, _ := sts.NewClientWithAccessKey(config.Region, config.AccessKeyID, config.AccessKeySecret)

	request := sts.CreateAssumeRoleRequest()
	request.RoleArn = config.RoleArn
	request.RoleSessionName = "sts-upload"
	request.DurationSeconds = config.DurationSeconds

	response, err := client.AssumeRole(request)
	if err != nil {
		c.JSON(500, gin.H{"error": err.Error()})
		return
	}

	expiration := time.Now().Add(time.Duration(config.DurationSeconds) * time.Second).UTC().Format("2006-01-02T15:04:05Z")

	policy := map[string]interface{}{
		"expiration": expiration,
		"conditions": []interface{}{
			[]interface{}{"content-length-range", 0, 1048576},
			[]interface{}{"starts-with", "$key", config.Dir},
			map[string]string{"bucket": config.Bucket},
		},
	}

	policyBytes, _ := json.Marshal(policy)
	policyBase64 := base64.StdEncoding.EncodeToString(policyBytes)

	mac := hmac.New(sha1.New, []byte(response.Credentials.AccessKeySecret))
	mac.Write([]byte(policyBase64))
	signature := base64.StdEncoding.EncodeToString(mac.Sum(nil))

	c.JSON(200, gin.H{
		"accessKeyId":    response.Credentials.AccessKeyId,
		"securityToken":  response.Credentials.SecurityToken,
		"policy":         policyBase64,
		"signature":      signature,
		"bucket":         config.Bucket,
		"host":           "https://" + config.Bucket + ".oss-" + config.Region + ".aliyuncs.com",
		"dir":            config.Dir,
		"expiration":     expiration,
	})
}

func main() {
	r := gin.Default()
	r.GET("/sts", getSTS)
	r.Run(":8080")
}

依赖 ：go get github.com/aliyun/alibabacloud-sdk-go/services/sts github.com/gin-gonic/gin

三、前端微信小程序上传逻辑（通用）

js 复制代码
let cachedSts = null;
const API_STS_TOKEN = '**<YOUR_STS_API_URL>**'; // 例如: https://yourdomain.com/sts

function isExpired(expiration) {
  if (!expiration) return true;
  const expireTime = new Date(expiration).getTime();
  return Date.now() >= expireTime - 60 * 1000; // 提前1分钟刷新
}

async function getUploadParams() {
  if (cachedSts && !isExpired(cachedSts.expiration)) {
    console.log('使用缓存的上传参数');
    return cachedSts;
  }

  return new Promise((resolve, reject) => {
    wx.request({
      url: API_STS_TOKEN,
      method: 'GET',
      success: (res) => {
        if (res.statusCode === 200) {
          cachedSts = res.data;
          console.log('获取新上传参数');
          resolve(cachedSts);
        } else {
          reject(new Error('获取上传参数失败'));
        }
      },
      fail: (err) => reject(new Error('网络错误: ' + err.errMsg))
    });
  });
}

function getFileNameDateTime() {
  const now = new Date();
  const year = now.getFullYear();
  const month = String(now.getMonth() + 1).padStart(2, '0');
  const day = String(now.getDate()).padStart(2, '0');
  const hours = String(now.getHours()).padStart(2, '0');
  const minutes = String(now.getMinutes()).padStart(2, '0');
  const seconds = String(now.getSeconds()).padStart(2, '0');
  const random = Math.random().toString(36).substring(2, 4);
  return {
    year,
    month,
    fileName: `${day}_${hours}${minutes}_${seconds}${random}.txt`
  };
}

function writeStringToTempFile(content, filename) {
  return new Promise((resolve, reject) => {
    const fs = wx.getFileSystemManager();
    const tempPath = `${wx.env.USER_DATA_PATH}/${filename}`;
    fs.writeFile({
      filePath: tempPath,
      data: content,
      encoding: 'utf8',
      success: () => resolve(tempPath),
      fail: reject
    });
  });
}

export async function uploadStringToOss(content) {
  const params = await getUploadParams();
  const { accessKeyId, securityToken, policy, signature, bucket, host, dir } = params;

  const { fileName, year, month } = getFileNameDateTime();
  const key = `${dir}wx_log/${year}${month}/${fileName}`;

  const tempFilePath = await writeStringToTempFile(content, fileName);

  const formData = {
    key,
    OSSAccessKeyId: accessKeyId,
    policy,
    success_action_status: '204',
    signature,
    'x-oss-security-token': securityToken
  };

  return new Promise((resolve, reject) => {
    wx.uploadFile({
      url: host,
      name: 'file',
      filePath: tempFilePath,
      formData,
      header: {
        'x-oss-security-token': securityToken
      },
      success: (res) => {
        if (res.statusCode === 204) {
          const fileUrl = `${host}/${key}`;
          console.log('上传成功:', fileUrl);
          resolve(fileUrl);
        } else {
          reject(new Error(`OSS 上传失败: ${res.statusCode}`));
        }
      },
      fail: reject
    });
  });
}

四、H5 页面上传（完整）

html 复制代码
<!DOCTYPE html>
<html lang="zh-CN">
<head>
  <meta charset="UTF-8">
  <title>H5 上传到 OSS</title>
</head>
<body>
  <input type="file" id="fileInput" />
  <button onclick="upload()">上传</button>
  <div id="result"></div>

  <script>
    const API_STS_TOKEN = '**<YOUR_STS_API_URL>**'; // 与小程序共用

    let cachedSts = null;

    async function getUploadParams() {
      if (cachedSts && !isExpired(cachedSts.expiration)) {
        return cachedSts;
      }
      const res = await fetch(API_STS_TOKEN);
      const data = await res.json();
      cachedSts = data.data || data;
      return cachedSts;
    }

    function isExpired(expiration) {
      return Date.now() >= new Date(expiration).getTime() - 60000;
    }

    function getFileNameDateTime() {
      const now = new Date();
      const year = now.getFullYear();
      const month = String(now.getMonth() + 1).padStart(2, '0');
      const day = String(now.getDate()).padStart(2, '0');
      const hours = String(now.getHours()).padStart(2, '0');
      const minutes = String(now.getMinutes()).padStart(2, '0');
      const seconds = String(now.getSeconds()).padStart(2, '0');
      const random = Math.random().toString(36).substring(2, 4);
      return { year, month, fileName: `${day}_${hours}${minutes}_${seconds}${random}.txt` };
    }

    async function upload() {
      const fileInput = document.getElementById('fileInput');
      const file = fileInput.files[0];
      if (!file) return alert('请选择文件');

      try {
        const params = await getUploadParams();
        const { accessKeyId, securityToken, policy, signature, bucket, host, dir } = params;

        const { year, month, fileName } = getFileNameDateTime();
        const key = `${dir}h5_log/${year}${month}/${fileName}`;

        const formData = new FormData();
        formData.append('key', key);
        formData.append('OSSAccessKeyId', accessKeyId);
        formData.append('policy', policy);
        formData.append('signature', signature);
        formData.append('success_action_status', '204');
        formData.append('x-oss-security-token', securityToken);
        formData.append('file', file);

        const xhr = new XMLHttpRequest();
        xhr.open('POST', host, true);

        xhr.onload = function () {
          if (xhr.status === 204) {
            const fileUrl = `${host}/${key}`;
            document.getElementById('result').innerHTML = `上传成功: <a href="${fileUrl}" target="_blank">${fileUrl}</a>`;
          } else {
            alert('上传失败: ' + xhr.status);
          }
        };

        xhr.onerror = function () {
          alert('网络错误');
        };

        xhr.send(formData);
      } catch (err) {
        alert('上传异常: ' + err.message);
      }
    }
  </script>
</body>
</html>

五、安全总结与建议

项目 建议
密钥管理 后端使用环境变量 / 配置中心
STS 有效期 建议 900~1800 秒
Policy 限制 必须限制 bucket、key 前缀、content-length
CORS 配置 OSS Bucket 开启 CORS，允许 PUT 和必要头
成功状态码 使用 204 No Content 避免返回 XML

六、完整流程图

更新时间 ：2025-10-30
作者：Simon（优化整理）

相关推荐
WebGISer_白茶乌龙桃3 分钟前
Cesium实现“悬浮岛”式，三维立体的行政区划
javascript·vue.js·3d·web3·html5·webgl
CodeCaptain18 分钟前
阿里云ECS上配置Nginx的反向代理
nginx·阿里云·云计算
计算机徐师兄44 分钟前
Java基于微信小程序的食堂线上预约点餐系统【附源码、文档说明】
java·微信小程序·食堂线上预约点餐系统小程序·食堂线上预约点餐微信小程序·java食堂线上预约点餐小程序·食堂线上预约点餐小程序·食堂线上预约点餐系统微信小程序
无我198714 小时前
专业的厌氧池清淤哪家酷
阿里云
说私域17 小时前
短视频私域流量池的变现路径创新：基于AI智能名片链动2+1模式S2B2C商城小程序的实践研究
大数据·人工智能·小程序
毕设源码-邱学长19 小时前
【开题答辩全过程】以 基于微信小程序的松辽律所咨询系统的设计与实现为例，包含答辩的问题和答案
微信小程序·小程序
酒书20 小时前
对接阿里云号码认证实现运营商一键登录
java·阿里云
盛夏52020 小时前
Docker容器化部署SpringBoot+Vue项目：从零到一在阿里云宝塔面板的实践指南
阿里云·docker·云计算
+VX:Fegn089521 小时前
计算机毕业设计|基于springboot + vue物流配送中心信息化管理系统(源码+数据库+文档)
数据库·vue.js·spring boot·后端·小程序·课程设计
说私域21 小时前
B站内容生态下的私域流量运营创新：基于AI智能名片链动2+1模式与S2B2C商城小程序的融合实践
人工智能·小程序·流量运营
热门推荐
01GitHub 镜像站点02Labelme从安装到标注：零基础完整指南03安娜的档案(Anna’s Archive) 镜像网站/国内最新可访问入口（持续更新）04Linux下V2Ray安装配置指南05jdk21下载、安装（Windows、Linux、macOS）06KGG转MP3工具|非KGM文件|解密音频07Claude Code 2.1.2 升级报错？别折腾了，一行命令搞定08【踩坑笔记】50系显卡适配的 PyTorch 安装09Opencode CLI 安装成功,但是启动失败102025-04-03 Latex学习1——本地配置Latex + VScode环境
