rabbitmq-k8s下双架构镜像+手动sts部署完全文档（上）

斯普信专业组2025-11-01 11:02

作者：朱雷

文章目录

  • 1、环境准备
  • 2、双架构镜像
  • 3、sts部署文件
    • [3.1. headless-service.yaml](#3.1. headless-service.yaml)
    • [3.2. svc.yaml（可选）](#3.2. svc.yaml（可选）)
    • [3.3. rbac.yaml](#3.3. rbac.yaml)
    • [3.4. sc.yaml](#3.4. sc.yaml)
    • [3.5. pv.yaml](#3.5. pv.yaml)
    • [3.6. secret.yaml](#3.6. secret.yaml)
    • [3.7. cm.yaml](#3.7. cm.yaml)
    • [3.8. rabbitmq-sts.yaml](#3.8. rabbitmq-sts.yaml)

1、环境准备

组件 架构 版本 备注
Rabbitmq Linux/amd64 V4.0.9 64位架构
Rabbitmq Linux/arm64/v8 V4.0.9 64位架构
K8S Linux v1.23.6

2、双架构镜像

Rabbitmq Linux/amd64下载官方镜像：

复制代码
docker pull --platform Linux/amd64 rabbitmq:4.0.9-management
docker tag rabbitmq:4.0.9-management 192.168.123.240:8011/sdx/rabbitmq:4.0.9-management-amd64-x86
docker push 192.168.123.240:8011/sdx/rabbitmq:4.0.9-management -amd64-x86

Rabbitmq Linux/arm64下载官方镜像：

复制代码
docker pull --platform Linux/arm64/v8 rabbitmq:4.0.9-management
docker tag rabbitmq:4.0.9-management 192.168.123.240:8011/sdx/rabbitmq:4.0.9-management-arm64-v8
docker push 192.168.123.240:8011/sdx/rabbitmq:4.0.9-management-arm64-v8

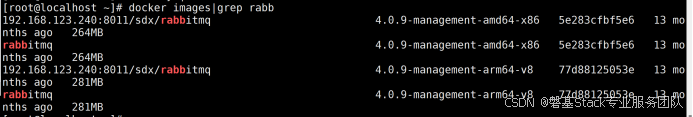

docker inspect 77d88125053e | grep -A5 Architecture

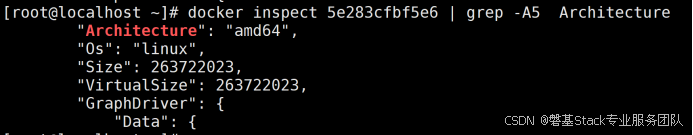

docker inspect 5e283cfbf5e6 | grep -A5 Architecture

创建manifest：

复制代码
docker manifest create --insecure 192.168.123.240:8011/sdx/rabbitmq:4.0.9-management 192.168.123.240:8011/sdx/rabbitmq:4.0.9-management-arm64-v8 192.168.123.240:8011/sdx/rabbitmq:4.0.9-management-amd64-x86

Created manifest list 192.168.123.240:8011/sdx/rabbitmq:4.0.9-management

添加manifest系统、架构等注释：

复制代码
docker manifest annotate --arch arm64 --os linux --variant v8 192.168.123.240:8011/sdx/rabbitmq:4.0.9-management 192.168.123.240:8011/sdx/rabbitmq:4.0.9-management-arm64-v8

docker manifest annotate 192.168.123.240:8011/sdx/rabbitmq:4.0.9-management 192.168.123.240:8011/sdx/rabbitmq:4.0.9-management-amd64-x86 --arch amd64 --os linux

推送manifest到Harbor仓库：

复制代码
docker manifest push --insecure 192.168.123.240:8011/sdx/rabbitmq:4.0.9-management

Manifest清单检查：

复制代码

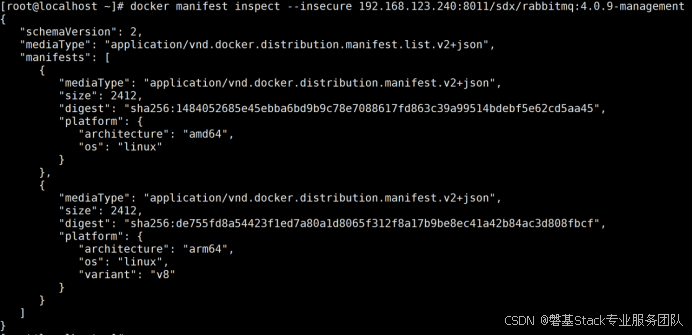

docker manifest inspect --insecure 192.168.123.240:8011/sdx/rabbitmq:4.0.9-management

不同架构系统测试拉取：

复制代码
docker pull 192.168.123.240:8011/sdx/rabbitmq:4.0.9-management

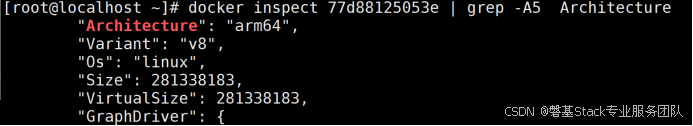

x86 系统下：

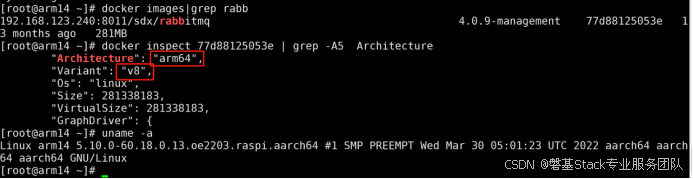

Arm系统下：

3、sts部署文件

以下所有文件内 "{{}}" 包含的内容根据实际需要替换

3.1. headless-service.yaml

复制代码
apiVersion: v1
kind: Service
metadata:
  name: rabbitmq-headless
  namespace: {{rabbitmq-clu-9}}
  labels:
    app: rabbitmq
spec:
  clusterIP: None
  ports:
  - name: amqp
    port: 5672
    targetPort: 5672
  - name: management
    port: 15672
    targetPort: 15672
  - name: epmd
    port: 4369
    targetPort: 4369
  - name: dist
    port: 25672
    targetPort: 25672
  selector:
    app: rabbitmq
  publishNotReadyAddresses: true

3.2. svc.yaml（可选）

复制代码
kind: Service
apiVersion: v1
metadata:
  namespace: {{rabbitmq-clu-9}}
  name: rabbitmq-service
spec:
  ports:
  - name: http
    protocol: TCP
    port: 15672
    nodePort: 30015
  - name: amqp
    protocol: TCP
    port: 5672
    targetPort: 5672
    nodePort: 30016
  selector:
    app: rabbitmq
  type: NodePort

3.3. rbac.yaml

复制代码
apiVersion: v1
kind: ServiceAccount
metadata:
  name: rabbitmq
  namespace: {{rabbitmq-clu-9}}
---
kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: endpoint-reader
  namespace: {{rabbitmq-clu-9}}
rules:
- apiGroups: [""]
  resources: ["endpoints"]
  verbs: ["get"]
---
kind: RoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: endpoint-reader
  namespace: {{rabbitmq-clu-9}}
subjects:
- kind: ServiceAccount
  name: rabbitmq
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: endpoint-reader

3.4. sc.yaml

复制代码
apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
  name: hostpath-storage
provisioner: kubernetes.io/no-provisioner
volumeBindingMode: WaitForFirstConsumer

3.5. pv.yaml

修改 {{node x}} 为kubectl get nodes 输出第一列NAME 的内容

Path路径和存储大小，根据实际业务自定义，本文存储大小只作为测试

复制代码
apiVersion: v1
kind: PersistentVolume
metadata:
  name: rabbitmq-clu-pv-0
spec:
  capacity:
    storage: {{2Gi}}
  accessModes:
    - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  storageClassName: hostpath-storage
  hostPath:
    path: {{/data/rabbitmq-clu-pv-0}}
    type: DirectoryOrCreate
  nodeAffinity:
    required:
      nodeSelectorTerms:
        - matchExpressions:
            - key: kubernetes.io/hostname
              operator: In
              values:
                - {{node01}}
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: rabbitmq-clu-pv-1
spec:
  capacity:
    storage: {{2Gi}}
  accessModes:
    - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  storageClassName: hostpath-storage
  hostPath:
    path: {{/data/rabbitmq-clu-pv-1}}
    type: DirectoryOrCreate
  nodeAffinity:
    required:
      nodeSelectorTerms:
        - matchExpressions:
            - key: kubernetes.io/hostname
              operator: In
              values:
                - {{node02}}
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: rabbitmq-clu-pv-2
spec:
  capacity:
    storage: {{2Gi}}
  accessModes:
    - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  storageClassName: hostpath-storage
  hostPath:
    path: {{/data/rabbitmq-clu-pv-2}}
    type: DirectoryOrCreate
  nodeAffinity:
    required:
      nodeSelectorTerms:
        - matchExpressions:
            - key: kubernetes.io/hostname
              operator: In
              values:
                - {{node03}}

3.6. secret.yaml

账号密码及cookie请自行定义，本文内容只作为测试

复制代码
apiVersion: v1
kind: Secret
metadata:
  name: rabbitmq-secret
  namespace: {{rabbitmq-clu-9}}
type: Opaque
stringData:
  rabbitmq-username: "{{admin}}"
  rabbitmq-password: "{{admin123}}"
  erlang-cookie: "{{ERLANG_COOKIE_VALUE}}"

3.7. cm.yaml

复制代码
apiVersion: v1
kind: ConfigMap
metadata:
  name: rabbitmq-config
  namespace: {{rabbitmq-clu-9}}
data:
  enabled_plugins: |
    [rabbitmq_management,rabbitmq_peer_discovery_k8s].
  rabbitmq.conf: |
    # 基础配置
    listeners.tcp.default = 5672
    # management.listener.port = 15672
# management.listener.ssl = false
# 定义了磁盘空间的绝对最低限制，当剩余空间低于此值时将触发警报并阻止消息生产
disk_free_limit.absolute = {{2GB}}
# 指定在 Kubernetes 环境中使用 RabbitMQ 自带的 K8s 对等发现后端
    # cluster_formation.peer_discovery_backend = k8s
cluster_formation.peer_discovery_backend = rabbit_peer_discovery_k8s
# K8s API 服务器地址
cluster_formation.k8s.host = {{kubernetes.default.svc.cluster.local}}
# 节点地址类型
cluster_formation.k8s.address_type = hostname
# 主机名后缀，格式：svc(headless)名.命令空间名.svc.cluster.local
cluster_formation.k8s.hostname_suffix = {{.rabbitmq-headless.rabbitmq-clu-9.svc.cluster.local}}
# 节点发现重试次数
cluster_formation.discovery_retry_limit = {{10}}
# 发现重试间隔（毫秒）
cluster_formation.discovery_retry_interval = {{3000}}
# 无头服务名称
cluster_formation.k8s.service_name = rabbitmq-headless
# 设定了检查并清理失效集群节点的间隔时间为 30 秒
cluster_formation.node_cleanup.interval = {{30}}
# 当检测到失效集群节点时, 系统会实际执行节点清理操作，从集群中移除失效节点
cluster_formation.node_cleanup.only_log_warning = false
# 该配置用于 ETCD 服务发现的 SSL/TLS 证书验证
# verify_none 表示禁用对 ETCD 服务器证书的验证, 通常用于内部信任的网络中
    # cluster_formation.etcd.ssl_options.verify = verify_none
    ## Mnesia 数据库加载元数据时的超时时间和重试次数
    # wait for 60 seconds instead of 30
    mnesia_table_loading_retry_timeout = {{60000}}
    # retry 15 times instead of 10
    mnesia_table_loading_retry_limit = {{15}}
# 内存配置
# 将内存高水位线设置为总可用内存的 70%，超过此限制将触发流控
vm_memory_high_watermark.relative = {{0.7}}
# 高水位线内存分页比率
vm_memory_high_watermark_paging_ratio = {{0.6}}
# 总内存覆盖值，根据实际物理内存大小调整,参考sts的resources的limit内存配置建议小于等于
    total_memory_available_override_value = {{8GB}}
# 日志配置
# 启用控制台日志
log.console = {{true}}
# 控制台日志级别
log.console.level = info
# 文件日志
    log.file = rabbit.log
    log.file.level = info
log.file.formatter.level_format = uc4
## 文件轮转大小和时间不能同时使用，二选一
# 文件轮转大小: 例: 100MiB, 大小值根据需要调整
# log.file.rotation.size = {{104857600}}
# 保留文件数
# log.file.rotation.count = {{7}}
# 是否压缩
# log.file.rotation.compress = {{true}}
# 文件轮转时间: 例: 下面配置每天0 点执行轮转值根据需要调整
log.file.rotation.date = $D{{0}}
# 保留天数
log.file.rotation.count = {{7}}
# 是否压缩
log.file.rotation.compress = {{true}}
    # 临时启用调试日志，生产环境禁用
    # log.connection.level = debug
    # log.channel.level = debug
    # log.queue.level = debug

3.8. rabbitmq-sts.yaml

镜像地址、资源请求限制大小、存储模板资源请求大小请自行定义。

复制代码
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: rabbitmq
  namespace: {{rabbitmq-clu-9}}
  labels:
    app: rabbitmq
spec:
  serviceName: rabbitmq-headless
  replicas: 3
  podManagementPolicy: "Parallel"
  selector:
    matchLabels:
      app: rabbitmq
  template:
    metadata:
      labels:
        app: rabbitmq
    spec:
      terminationGracePeriodSeconds: 10
      affinity:
        podAntiAffinity:
          preferredDuringSchedulingIgnoredDuringExecution:
          - weight: 100
            podAffinityTerm:
              labelSelector:
                matchExpressions:
                - key: app
                  operator: In
                  values:
                  - rabbitmq
              topologyKey: kubernetes.io/hostname
      serviceAccountName: rabbitmq
      containers:
      - name: rabbitmq
        image: {{rabbitmq:4.0.9-management}}
        imagePullPolicy: IfNotPresent
        ports:
        - containerPort: 5672
          name: amqp
        - containerPort: 15672
          name: http
        resources:
          limits:
            cpu: "{{2}}"
            memory: {{8Gi}}
          requests:
            cpu: "{{1}}"
            memory: {{4Gi}}
        env:
        - name: RABBITMQ_USE_LONGNAME
          value: "true"
        - name: RABBITMQ_ERLANG_COOKIE
          valueFrom:
            secretKeyRef:
              name: rabbitmq-secret
              key: erlang-cookie
        - name: RABBITMQ_DEFAULT_USER
          valueFrom:
            secretKeyRef:
              name: rabbitmq-secret
              key: rabbitmq-username
        - name: RABBITMQ_DEFAULT_PASS
          valueFrom:
            secretKeyRef:
              name: rabbitmq-secret
              key: rabbitmq-password
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              apiVersion: v1
              fieldPath: metadata.namespace
        - name: POD_NAME
          valueFrom:
            fieldRef:
              apiVersion: v1
              fieldPath: metadata.name
        volumeMounts:
        - name: config
          mountPath: /etc/rabbitmq
        - name: data
          mountPath: /var/lib/rabbitmq
          subPathExpr: $(POD_NAMESPACE)/rabbitmq
          readOnly: false
        - name: data
          mountPath: /var/log/rabbitmq
          subPathExpr: $(POD_NAMESPACE)/rabbitmq/logs/$(POD_NAME)
          readOnly: false
        readinessProbe:
          tcpSocket:
            port: 5672
          initialDelaySeconds: 60
          periodSeconds: 60
          timeoutSeconds: 3
          successThreshold: 1
          failureThreshold: 3
        # livenessProbe:
        #   exec:
        #     command: ["rabbitmq-diagnostics", "ping"]
        #   initialDelaySeconds: 60
        #   periodSeconds: 30
      volumes:
      - name: config
        configMap:
          name: rabbitmq-config
          items:
          - key: rabbitmq.conf
            path: rabbitmq.conf
          - key: enabled_plugins
            path: enabled_plugins
  volumeClaimTemplates:
  - metadata:
      name: data
      namespace: {{rabbitmq-clu-9}}
    spec:
      accessModes: [ "ReadWriteOnce" ]
      resources:
        requests:
          storage: {{2000M}}
      storageClassName: hostpath-storage
