Ubuntu OpenCV C++ 获取Astra Pro摄像头图像

qq_271581792025-11-01 23:47

0. 环境

  • ubuntu18台式机

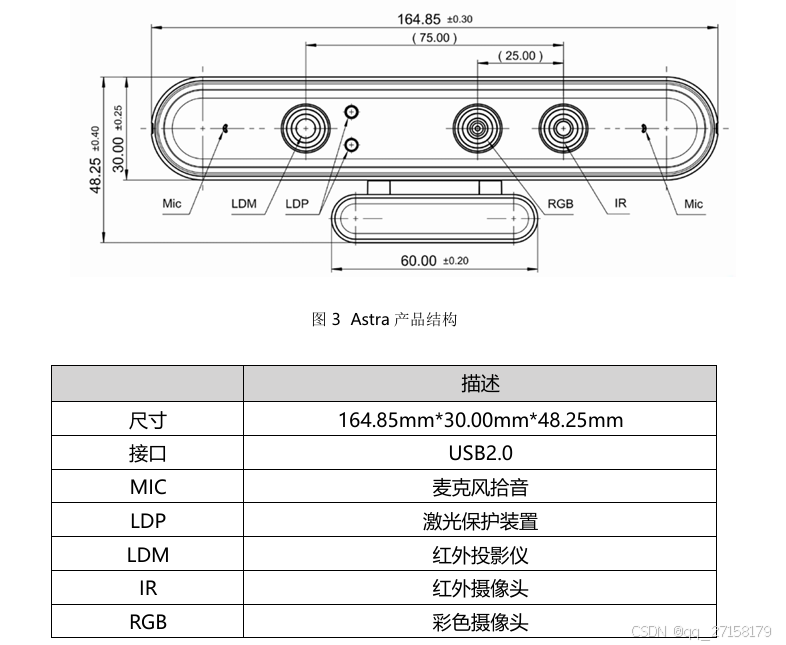

  • 奥比中光 Orbbec Astra Pro 单目结构光摄像头

  • opencv 3.4.20 + OpenNI_2.3.0.66

1. Astra Pro出厂测试

1.1 获取sdk

官网资料

https://www.orbbec.com.cn/index/Download2025/info.html?cate=121\&id=1

链接到

https://github.com/orbbec/OpenNI_SDK/tree/main

sdk

复制代码
https://dl.orbbec3d.com/dist/openni2/OpenNI_2.3.0.66.zip
https://3dclub.orbbec3d.com/t/universal-download-thread-for-astra-series-cameras/622/12

把

OpenNI_2.3.0.66.zip

拷贝到

astrapro_out_of_box\ext

1.2 环境变量

复制代码
cd ~/workspace/astrapro_out_of_box
export WORK_DIR=$PWD
export ARCH="x64"

export C_COMPILER="gcc"
export CXX_COMPILER="g++"
export AR="ar"

echo $WORK_DIR
echo $ARCH
echo $C_COMPILER
echo $CXX_COMPILER
echo $AR

1.3 解压并切换目录

复制代码
cd $WORK_DIR
cd ext/
unzip -d OpenNI_2.3.0.66 OpenNI_2.3.0.66.zip
cd OpenNI_2.3.0.66/Linux/OpenNI-Linux-x64-2.3.0.66

1.4 安装脚本

复制代码
chmod +x install.sh
sudo ./install.sh

1.5 环境变量

复制代码
source OpenNIDevEnvironment

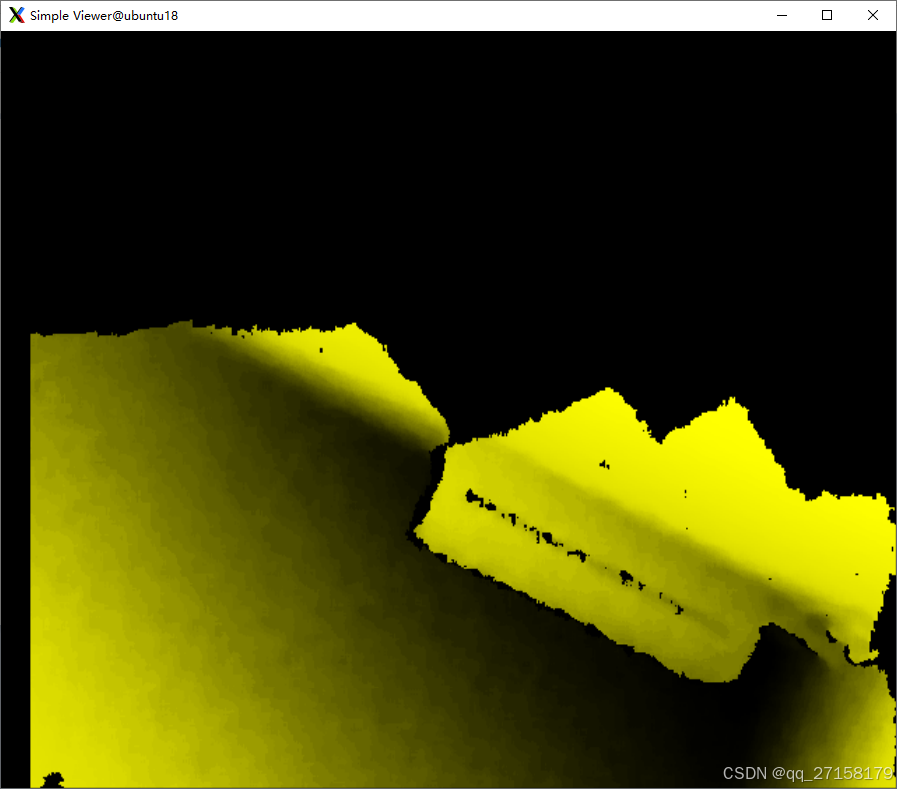

1.6 测试demo：Samples/SimpleViewer

复制代码
cd $WORK_DIR
cd ext/
cd OpenNI_2.3.0.66/Linux/OpenNI-Linux-x64-2.3.0.66
cd  Samples/SimpleViewer

1.6.1 依赖

复制代码
sudo apt-get install freeglut3-dev

1.6.2 编译

复制代码
make -j4

1.6.3 运行测试

复制代码
cd Bin/x64-Release/
sudo ./SimpleViewer

2. opencv与rgb图像

2.0 opencv说明

opencv，不用加openni，opencv4的官网文档说openni可以支持astra，但是测试不通过。打不开IR摄像头。Astra Pro的RGB是UVC协议，不用SDK。

2.1 准备源码

https://opencv.org/releases/

下载了

opencv-3.4.20.tar.gz

放在

~/workspace/astrapro_out_of_box/ext

解压

cd /home/xxjianvm/workspace/astrapro_out_of_box/ext

tar -zvxf opencv-3.4.20.tar.gz

2.2 安装依赖

复制代码
sudo apt-get install -y build-essential
sudo apt-get install -y cmake git libgtk2.0-dev pkg-config libavcodec-dev libavformat-dev libswscale-dev

2.3 环境变量

复制代码
cd ~/workspace/astrapro_out_of_box
export WORK_DIR=$PWD
export ARCH="x64"

export C_COMPILER="gcc"
export CXX_COMPILER="g++"
export AR="ar"

2.4 命令行从源码编译安装

把以下内容粘贴到终端中即可。

复制代码
cd $WORK_DIR
cd ext/
mkdir -p install && mkdir -p install/$ARCH && mkdir -p install/$ARCH/lib && mkdir -p install/$ARCH/include
rm -rf opencv-3.4.20
tar -zvxf opencv-3.4.20.tar.gz  && cd opencv-3.4.20
rm -rf build
mkdir build && cd build
cmake  -DCMAKE_C_COMPILER=$C_COMPILER -DCMAKE_CXX_COMPILER=$CXX_COMPILER \
-DCMAKE_BUILD_TYPE=RELEASE \
-DCMAKE_INSTALL_PREFIX=$WORK_DIR/ext/install/$ARCH \
-DBUILD_DOCS=OFF \
-DBUILD_EXAMPLES=OFF \
-DBUILD_TESTS=OFF \
-DBUILD_PERF_TESTS=OFF \
-DSOFTFP=OFF \
-DCMAKE_C_FLAGS="-L$WORK_DIR/ext/install/$ARCH/lib" ..

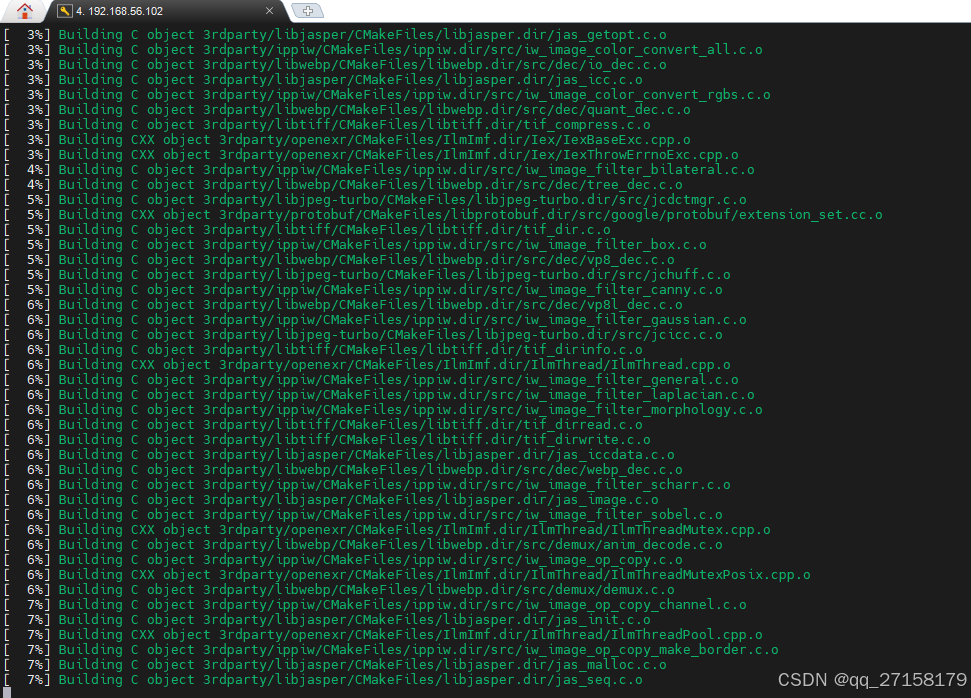

make -j8
make install

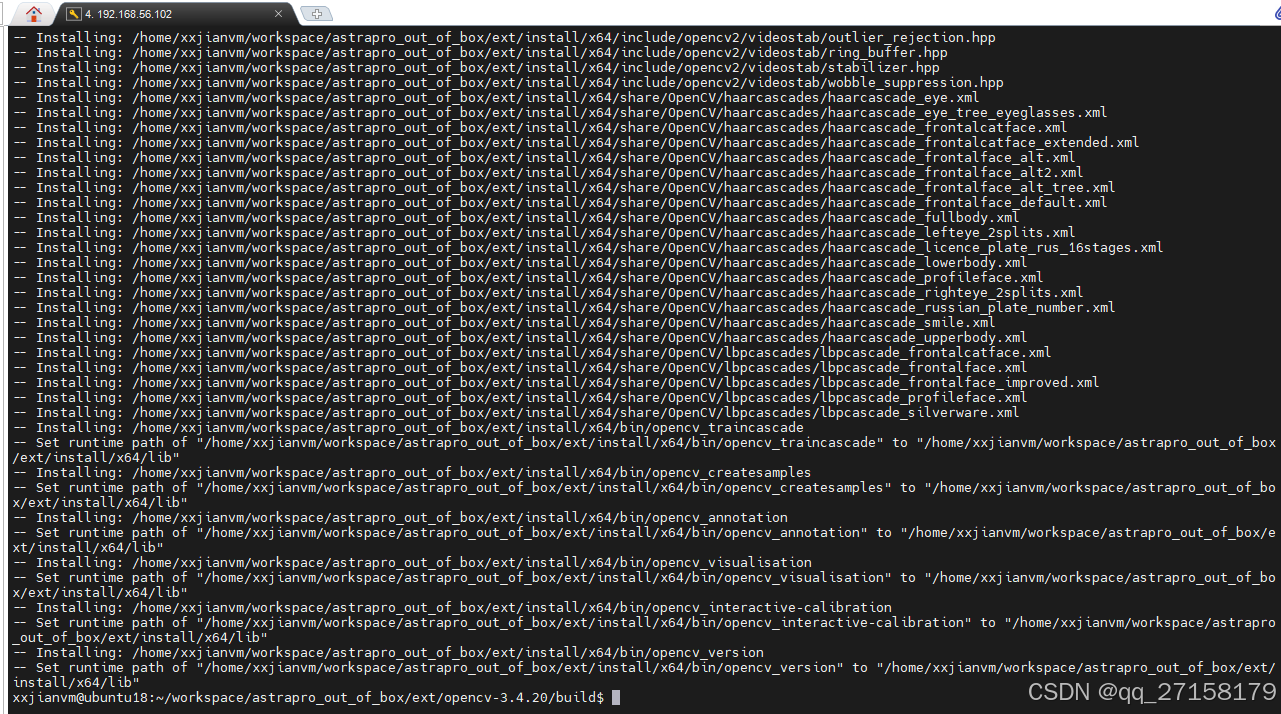

2.5 demo_rgb

把demo_rgb.cpp放到~/workspace/astrapro_out_of_box/demo文件夹中。

2.5.1 demo_rgb.cpp内容

复制代码
#include <opencv2/opencv.hpp>
#include <iostream>
using namespace cv;
using namespace std;
int main() {
   VideoCapture cap(0); // Open default camera
   if (!cap.isOpened()) {
       cout << "Failed to open camera!" << endl;
       return -1;
   }
   namedWindow("Camera", WINDOW_NORMAL);
   while (true) {
       Mat frame;
       cap.read(frame); // Capture a frame
       if (frame.empty()) {
           cout << "Failed to read frame!" << endl;
           break;
       }
       imshow("Camera", frame); // Display the frame
       if (waitKey(1) == 'q') break; // Exit on 'q'
   }
   cap.release();
   destroyAllWindows();
   return 0;
}

2.5.2 编译可执行程序

复制代码
cd ~/workspace/astrapro_out_of_box
export WORK_DIR=$PWD
export ARCH="x64"

export C_COMPILER="gcc"
export CXX_COMPILER="g++"
export AR="ar"

echo $WORK_DIR
echo $ARCH
echo $C_COMPILER
echo $CXX_COMPILER
echo $AR



# 编译可执行程序
$CXX_COMPILER -o demo_rgb demo/demo_rgb.cpp -Iext/install/$ARCH/include -L$WORK_DIR/ext/install/$ARCH/lib  -lopencv_core -lopencv_highgui -lopencv_imgproc -lopencv_imgcodecs -lopencv_photo -lopencv_videoio -lopencv_video

2.5.3 运行

复制代码
cd ~/workspace/astrapro_out_of_box
export WORK_DIR=$PWD
export ARCH="x64"
export LD_LIBRARY_PATH=$WORK_DIR/ext/install/$ARCH/lib:$LD_LIBRARY_PATH
./demo_rgb

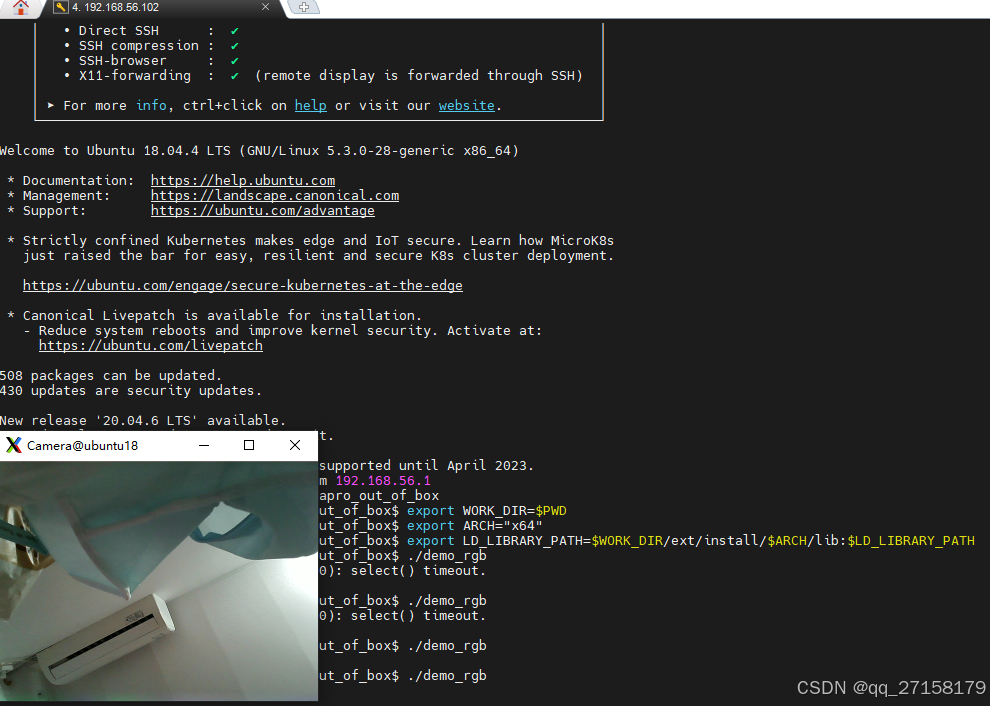

3. openni读取depth图像并转opencv的mat格式

3.1 把sdk安装到自定义目录

复制代码
cd ~/workspace/astrapro_out_of_box
export WORK_DIR=$PWD
export ARCH="x64"

cd $WORK_DIR
cd ext
mkdir -p install && mkdir -p install/$ARCH && mkdir -p install/$ARCH/lib && mkdir -p install/$ARCH/include
rm -rf OpenNI_2.3.0.66
unzip -d OpenNI_2.3.0.66 OpenNI_2.3.0.66.zip
cp OpenNI_2.3.0.66/Linux/OpenNI-Linux-$ARCH-2.3.0.66/Include/* install/$ARCH/include/ -r
cp OpenNI_2.3.0.66/Linux/OpenNI-Linux-$ARCH-2.3.0.66/Redist/* install/$ARCH/lib/ -r
echo "[sdk OK]"

3.2 demo_depth.cpp

复制代码
#include <iostream>
#include <OpenNI.h>
#include <opencv2/opencv.hpp>

openni::VideoStream**		m_streams;

int main(int argc, char** argv)
{
	openni::Status rc = openni::STATUS_OK;

	openni::Device device;
	openni::VideoStream streamDepth;
	const char* deviceURI = openni::ANY_DEVICE;
	if (argc > 1) {
		deviceURI = argv[1];
	}

	rc = openni::OpenNI::initialize();

	printf("After initialization:\n%s\n", openni::OpenNI::getExtendedError());

	rc = device.open(deviceURI);
	if (rc != openni::STATUS_OK) {
		printf("SimpleViewer: Device open failed:\n%s\n", openni::OpenNI::getExtendedError());
		openni::OpenNI::shutdown();
		return 1;
	}

	rc = streamDepth.create(device, openni::SENSOR_DEPTH);
	if (rc == openni::STATUS_OK) {
		rc = streamDepth.start();
		if (rc != openni::STATUS_OK) {
			printf("SimpleViewer: Couldn't start depth stream:\n%s\n", openni::OpenNI::getExtendedError());
			streamDepth.destroy();
		}
	} else {
		printf("SimpleViewer: Couldn't find depth stream:\n%s\n", openni::OpenNI::getExtendedError());
	}

	openni::VideoMode depthVideoMode;
	int			m_width;
	int			m_height;
	if (!streamDepth.isValid()) {
		printf("SimpleViewer: No valid streams. Exiting\n");
		openni::OpenNI::shutdown();
		return 2;
	} else {
		depthVideoMode = streamDepth.getVideoMode();
		m_width = depthVideoMode.getResolutionX();
		m_height = depthVideoMode.getResolutionY();
	}


	m_streams = new openni::VideoStream*[1];
	m_streams[0] = &streamDepth;

	int iMaxDepth = streamDepth.getMaxPixelValue();
	openni::VideoFrameRef frameDepth;
	for( int i = 0; i < 100; ++ i ) {
		int changedIndex;
		openni::Status rc = openni::OpenNI::waitForAnyStream(m_streams, 1, &changedIndex);
		if (rc != openni::STATUS_OK) {
			printf("Wait failed\n");
			continue;
		}
		streamDepth.readFrame( &frameDepth );

		const cv::Mat mImageDepth( frameDepth.getHeight(), frameDepth.getWidth(), CV_16UC1, (void*)frameDepth.getData());
		cv::Mat mScaledDepth;
		mImageDepth.convertTo( mScaledDepth, CV_8U, 255.0 / iMaxDepth );
		cv::imshow("Depth", mScaledDepth);

		if (cv::waitKey(30) == 'q') {
			break;
		}
	}

	streamDepth.destroy();
	device.close();
	openni::OpenNI::shutdown();

}

3.3 编译可执行程序

复制代码
cd ~/workspace/astrapro_out_of_box
export WORK_DIR=$PWD
export ARCH="x64"
$CXX_COMPILER -o demo_depth demo/demo_depth.cpp -Iext/install/$ARCH/include -Lext/install/$ARCH/lib  -lOpenNI2 -lopencv_core -lopencv_highgui -lopencv_imgproc -lopencv_imgcodecs -lopencv_photo -lopencv_videoio -lopencv_video

3.4 运行

复制代码
export WORK_DIR=$PWD
export ARCH="x64"
export LD_LIBRARY_PATH=$OPENNI2_REDIST:$WORK_DIR/ext/install/$ARCH/lib:$LD_LIBRARY_PATH
./demo_depth

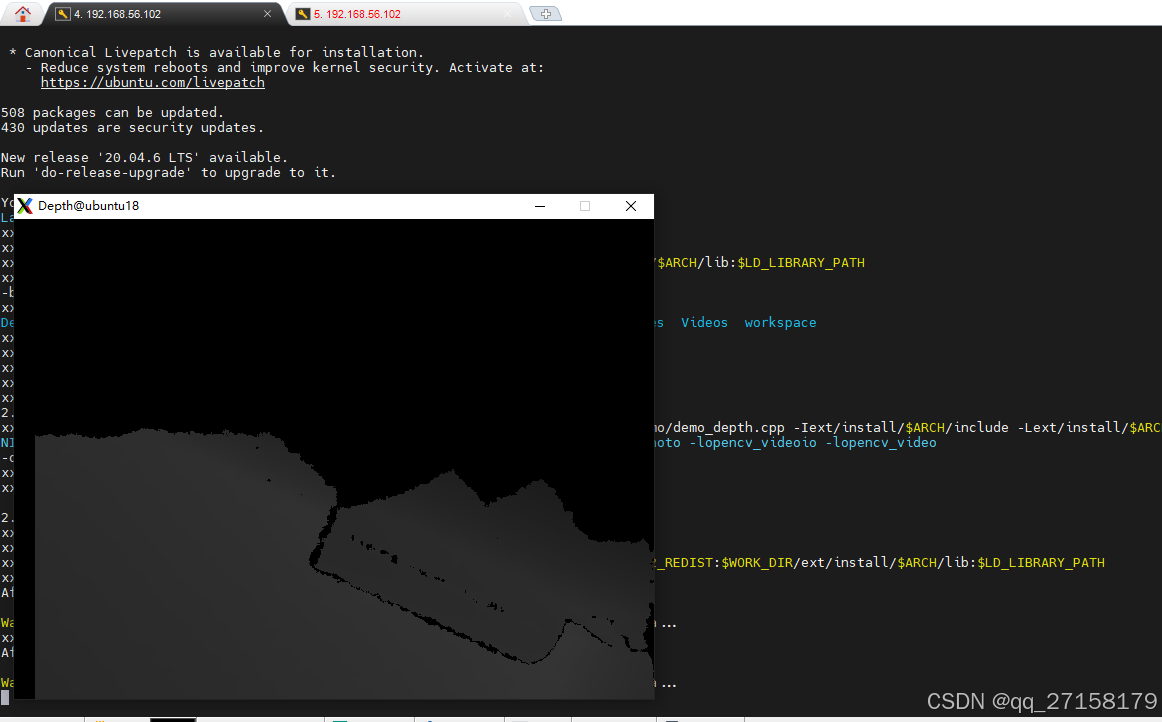

4. 驱动

4.1 m_device.cpp

把m_device.cpp放到 ~/workspace/astrapro_out_of_box/src

复制代码
//
// Created by qjfen on 2024/1/19.
//

#include "stdio.h"
#include <cstring>              // memset
#include <iostream>             // std::cout
#include "m_device.h"

#include <opencv2/opencv.hpp>
#include <OpenNI.h>

int handle;
cv::VideoCapture g_RgbCap;
openni::VideoStream**		m_streams;
openni::Device device;
openni::VideoStream streamDepth;
const char* deviceURI = openni::ANY_DEVICE;

#define SAMPLE_READ_WAIT_TIMEOUT 2000 //2000ms


m_device::m_device()
{
	//ctor
}

m_device::~m_device()
{
	//dtor
}
m_device& m_device::getInstance()
{
	static m_device instance;
	return instance;
}
int m_device::init(int handle_index)
{

	int ret;
	handle = handle_index;

	openni::Status rc = openni::STATUS_OK;
	rc = openni::OpenNI::initialize();
	printf("After initialization:\n%s\n", openni::OpenNI::getExtendedError());

	return 0;
}
int m_device::open()
{

	int ret;
	g_RgbCap = cv::VideoCapture(0);
	if (!g_RgbCap.isOpened()) {
		std::cout << "Failed to open camera!" << std::endl;
		return -1;
	}

	openni::Status rc = openni::STATUS_OK;
	rc = device.open(deviceURI);
	if (rc != openni::STATUS_OK) {
		printf("SimpleViewer: Device open failed:\n%s\n", openni::OpenNI::getExtendedError());
		openni::OpenNI::shutdown();
		return 1;
	}
	rc = streamDepth.create(device, openni::SENSOR_DEPTH);
	if (rc == openni::STATUS_OK) {
		rc = streamDepth.start();
		if (rc != openni::STATUS_OK) {
			printf("SimpleViewer: Couldn't start depth stream:\n%s\n", openni::OpenNI::getExtendedError());
			streamDepth.destroy();
		}
	} else {
		printf("SimpleViewer: Couldn't find depth stream:\n%s\n", openni::OpenNI::getExtendedError());
	}
	openni::VideoMode depthVideoMode;
	int			m_width;
	int			m_height;
	if (!streamDepth.isValid()) {
		printf("SimpleViewer: No valid streams. Exiting\n");
		openni::OpenNI::shutdown();
		return 2;
	} else {
		depthVideoMode = streamDepth.getVideoMode();
		m_width = depthVideoMode.getResolutionX();
		m_height = depthVideoMode.getResolutionY();
	}
	m_streams = new openni::VideoStream*[1];
	m_streams[0] = &streamDepth;

	return 0;
}
int m_device::close()
{
	int ret;

	g_RgbCap.release();

	streamDepth.stop();
	streamDepth.destroy();
	device.close();
	openni::OpenNI::shutdown();
	return 0;
}
int m_device::recvFrame(cv::Mat* mat_rgb, cv::Mat* mat_depth)
{

	cv::Mat frameRgb;
	g_RgbCap.read(frameRgb); // Capture a frame
	if (frameRgb.empty()) {
		std::cout << "Failed to read frame!" << std::endl;
		return -1;
	}
	*mat_rgb = frameRgb.clone();



	openni::VideoFrameRef frameDepth;
	int changedIndex;
	openni::Status rc = openni::OpenNI::waitForAnyStream(m_streams, 1, &changedIndex, SAMPLE_READ_WAIT_TIMEOUT);
	if (rc != openni::STATUS_OK) {
		printf("Wait failed\r\n");
		return -1;
	}
	rc = streamDepth.readFrame( &frameDepth );
	if (rc != openni::STATUS_OK) {
		printf("Read failed!\r\n");
		return -1;
	}

	int iMaxDepth = streamDepth.getMaxPixelValue();
	const cv::Mat mImageDepth( frameDepth.getHeight(), frameDepth.getWidth(), CV_16UC1, (void*)frameDepth.getData());
	cv::Mat mScaledDepth;
	mImageDepth.convertTo( mScaledDepth, CV_8U, 255.0 / iMaxDepth );

	cv::Mat flipped_horizontal;
	cv::flip(mScaledDepth, flipped_horizontal, 1);

	*mat_depth = flipped_horizontal.clone();


	return 0;
}

4.2 m_device.h

把m_device.h放到 ~/workspace/astrapro_out_of_box/include/

复制代码
#ifndef __M_DEVICE_H
#define __M_DEVICE_H

#define device_inst            m_device::getInstance()


#include "stdint.h"                 // uint32_t

#include <opencv2/opencv.hpp>

class m_device {

public:
    m_device();
    virtual ~m_device();
    static m_device& getInstance();

    int init(int handle_index);
	int open();
    int close();
	int recvFrame(cv::Mat* mat_rgb, cv::Mat* mat_depth);

protected:

private:
};


#endif //__M_DEVICE_H

4.3 demo_device.cpp

把demo_device.cpp放到 ~/workspace/astrapro_out_of_box/demo

复制代码
#include <stdio.h>
#include <unistd.h>         // usleep

#include "m_device.h"

int main(void)
{
	printf("[main]device_inst.init...\r\n");
	device_inst.init(0);
	printf("[main]device_inst.open...\r\n");
	device_inst.open();

	printf("[main]device_inst.recvFrame...\r\n");
	cv::Mat mat_rgb, mat_depth;
	int ret;
	while(1) {
		ret = device_inst.recvFrame(&mat_rgb, &mat_depth);
		if (ret>=0) {
			if (mat_rgb.empty()) {
				printf("Failed to read frame! \r\n");
				continue;
			}
			if (mat_depth.empty()) {
				printf("Failed to read frame! \r\n");
				continue;
			}
			imshow("mat_rgb", mat_rgb);
			imshow("mat_depth", mat_depth);
			if (cv::waitKey(1) == 'q') break; // Exit on 'q'
		}

	}
	printf("[main]device_inst.close...\r\n");
	device_inst.close();

//	cv::imwrite("mat_rgb.png", mat_rgb);
//	cv::imwrite("mat_depth.png", mat_depth);

//	cv::imshow("mat_rgb", mat_rgb);
//	cv::imshow("mat_depth", mat_depth);
//	cv::waitKey(0);
	cv::destroyAllWindows();

	return 0;
}

4.4 编译

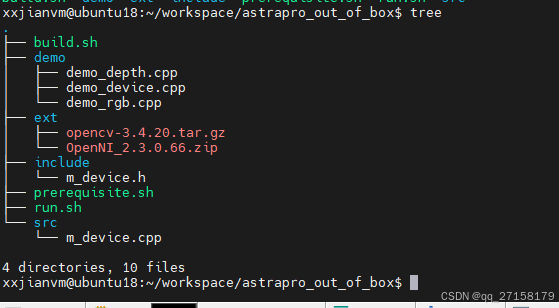

4.4.1 目录结构

4.4.2 环境变量

复制代码
# 环境变量
cd ~/workspace/astrapro_out_of_box
export WORK_DIR=$PWD
export ARCH="x64"

export C_COMPILER="gcc"
export CXX_COMPILER="g++"
export AR="ar"

4.4.3 用户源码编译出库

复制代码
# 用户源码编译出库
$CXX_COMPILER -c src/*.cpp -Iinclude -Iext/install/$ARCH/include -Lext/install/$ARCH/lib
$AR -r libastra.a *.o
rm *.o

4.4.4 编译可执行程序

复制代码
# 编译可执行程序
$CXX_COMPILER -o demo_device demo/demo_device.cpp -Iext/install/$ARCH/include -Iinclude -L. -Lext/install/$ARCH/lib  -lastra -lopencv_core -lopencv_highgui -lopencv_imgproc -lopencv_imgcodecs -lopencv_photo -lopencv_videoio -lopencv_video  -lOpenNI2

4.4.5 运行

复制代码
# 运行
export WORK_DIR=$PWD
export ARCH="x64"
export LD_LIBRARY_PATH=$WORK_DIR/ext/install/$ARCH/lib:$LD_LIBRARY_PATH
./demo_device

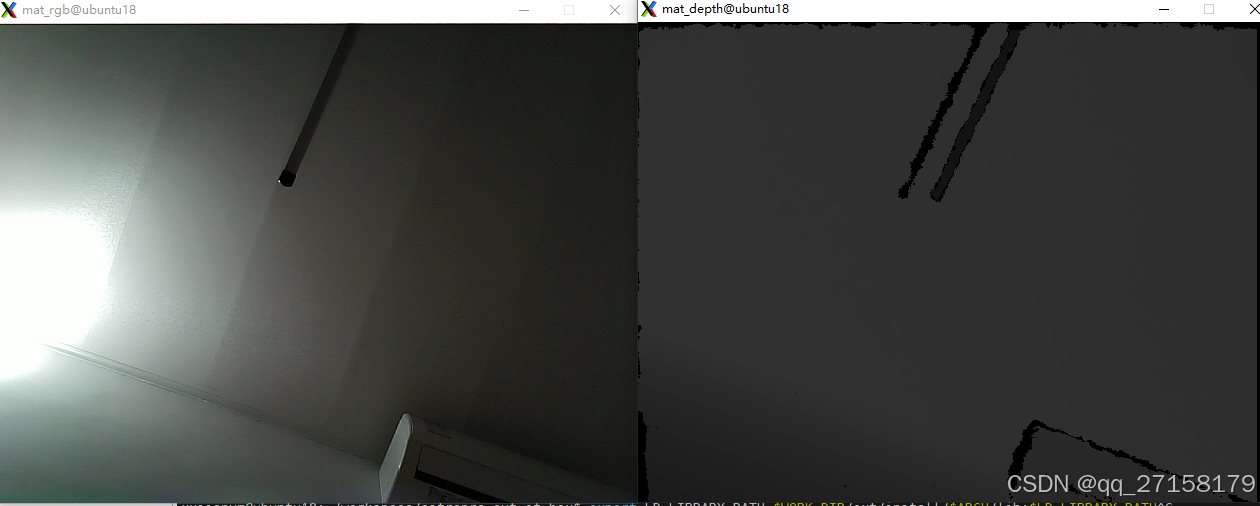

相关推荐
2601_9571909010 小时前
极致裸眼沉浸！飞行影院重塑文旅游玩新体验
大数据·人工智能·旅游
Meinianda10 小时前
我用Agent 使用瑞幸官方MCP下了一单：过程全记录，优缺点分析
人工智能
没事别瞎琢磨11 小时前
七、敏感路径预检——Protected Paths
人工智能·node.js
啦啦啦_999911 小时前
4. Transformer_4_输出部分
人工智能·深度学习·transformer
用户6000718191011 小时前
【翻译】构建 Claude Code 的经验：我们如何使用 Skills
人工智能
没事别瞎琢磨11 小时前
五、进程执行——spawn、超时与进程树清理
人工智能·node.js
没事别瞎琢磨11 小时前
四、命令风险分级与审批策略
人工智能·node.js
阿乔外贸日记11 小时前
埃塞俄比亚出口全流程注意事项
大数据·人工智能·智能手机·云计算·汽车
程序员cxuan11 小时前
Agents.md 是什么
人工智能·后端·程序员
人工小情绪11 小时前
Windows 安装 Codex 桌面版，并用 CC Switch 管理配置
人工智能·windows·codex·cc switch
热门推荐
01《置身钉内》原文-可播放阅读02GitHub 镜像站点03【AI】2026 年具身智能模型和世界模型总结04Codex 下载安装指南：Windows 和 macOS 官方版下载052026 AI 编程工具终极实战指南：Cursor vs Claude Code vs Copilot，开发者该怎么选？062026 年 AI 编程工具终极横评：Cursor vs Claude Code vs Copilot vs Windsurf07【踩坑记录 | 第一篇】微软商店无法使用时，如何手动安装 OpenAI Codex？附`.msix`文件系统错误解决方法08CC-Switch 下载、安装与使用配置指南【2026.5.29】09AI科技热点日报 | 2026年6月1日10CC-Switch & Claude 基于 Linux 服务器安装使用指南
