Ubuntu 22.04 + ROS 2 Humble实现YOLOV5目标检测实时流传输（Jetson NX与远程PC通信）

🎯 将摄像头或图片的 YOLOv5 检测结果，通过 Web 服务提供一个带检测框的实时视频流，前端只需用 <img src="..."> 即可显示。

🧱 第 0 步：系统环境准备

系统要求

Ubuntu 22.04

安装 ROS 2 Humble（如未安装）

复制代码

# 1. 设置 locale
sudo apt update && sudo apt install -y locales
sudo locale-gen en_US en_US.UTF-8
sudo update-locale LC_ALL=en_US.UTF-8 LANG=en_US.UTF-8
export LANG=en_US.UTF-8

# 2. 添加 ROS 2 源
sudo apt install -y software-properties-common
sudo add-apt-repository -y universe
sudo apt install -y curl
sudo curl -sSL https://raw.githubusercontent.com/ros/rosdistro/master/ros.key -o /usr/share/keyrings/ros-archive-keyring.gpg
echo "deb [arch=$(dpkg --print-architecture) signed-by=/usr/share/keyrings/ros-archive-keyring.gpg] http://packages.ros.org/ros2/ubuntu $(. /etc/os-release && echo $UBUNTU_CODENAME) main" | sudo tee /etc/apt/sources.list.d/ros2.list > /dev/null

# 3. 安装 ROS 2 Humble Desktop
sudo apt update
sudo apt install -y ros-humble-desktop python3-colcon-common-extensions python3-rosdep

# 4. 初始化 rosdep
sudo rosdep init
rosdep update

# 5. 配置环境变量（加入 ~/.bashrc）
echo "source /opt/ros/humble/setup.bash" >> ~/.bashrc
source ~/.bashrc

📁 第 1 步：创建工作空间

复制代码

mkdir -p ~/yolov5_ws/src
cd ~/yolov5_ws

🖼️ 第 2 步：准备图像输入源（二选一）

选项 A：用静态图片循环发布（适合测试）

创建 publish_image.py：

复制代码

#!/usr/bin/env python3
import rclpy
from rclpy.node import Node
from sensor_msgs.msg import Image
from cv_bridge import CvBridge
import cv2
import time

class ImagePublisher(Node):
    def __init__(self, image_path):
        super().__init__('image_publisher')
        self.publisher_ = self.create_publisher(Image, '/image', 10)
        self.bridge = CvBridge()
        self.image_path = image_path
        self.timer = self.create_timer(1.0, self.publish_image)  # 每秒发1帧

    def publish_image(self):
        img = cv2.imread(self.image_path)
        if img is not None:
            msg = self.bridge.cv2_to_imgmsg(img, "bgr8")
            self.publisher_.publish(msg)
            self.get_logger().info('Published image')
        else:
            self.get_logger().error('Failed to load image')

def main(args=None):
    rclpy.init(args=args)
    # 替换为你自己的图片路径
    node = ImagePublisher('/home/pon/test.jpg')
    rclpy.spin(node)
    node.destroy_node()
    rclpy.shutdown()

if __name__ == '__main__':
    main()

准备一张测试图，比如：
复制代码
wget -O ~/test.jpg https://raw.githubusercontent.com/ultralytics/yolov5/master/data/images/zidane.jpg

选项 B：用 USB 摄像头（可选）

复制代码

sudo apt install ros-humble-usb-cam
ros2 run usb_cam usb_cam_node_exe --ros-args -p video_device:=/dev/video0 -p image_width:=640 -p image_height:=480
# 默认发布 /image_raw，可 remap 到 /image

🧠 第 3 步：集成 YOLOv5 检测节点

我们使用开源的 yolov5_ros2 包（假设你已编译过）

安装依赖

复制代码

sudo apt update
sudo apt install python3-pip ros-$ROS_DISTRO-vision-msgs
pip3 install -i https://pypi.tuna.tsinghua.edu.cn/simple yolov5

克隆并编译（如未做）

复制代码

cd ~/yolov5_ws/src
git clone https://github.com/whynotai/yolov5_ros2.git
cd ~/yolov5_ws
rosdep install --from-paths src --ignore-src -y
colcon build --packages-select yolov5_ros2
source install/setup.bash

⚠️ 如果你用的是其他 YOLO 包，只要它发布 /yolo_result（类型 vision_msgs/Detection2DArray）即可。

启动 YOLO 节点（CPU 模式）

复制代码

ros2 run yolov5_ros2 yolo_detect_2d --ros-args -p device:=cpu -p image_topic:=/image

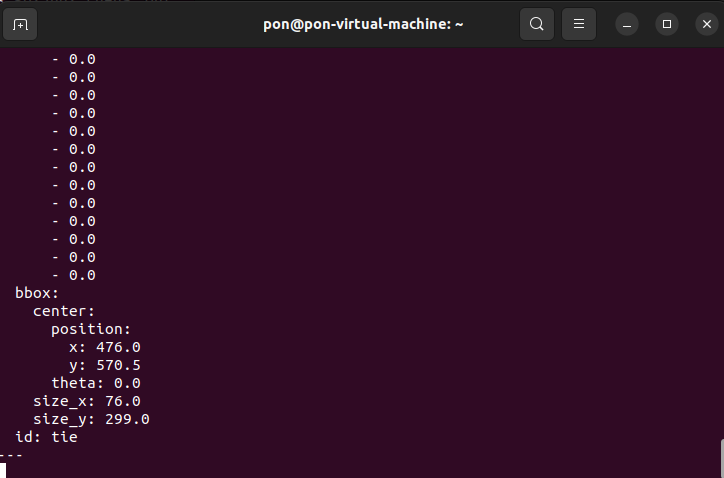

✅ 验证输出：

复制代码

ros2 topic echo /yolo_result
# 应看到 class_id: person, score, bbox 等字段

🌐 第 4 步：创建 Web 桥接服务（核心）

创建 web_server.py（放在 ~/yolov5_ws）：

复制代码

#!/usr/bin/env python3

import rclpy
from rclpy.node import Node
from sensor_msgs.msg import Image
from vision_msgs.msg import Detection2DArray
from cv_bridge import CvBridge
import cv2
import threading
import time
from flask import Flask, Response

latest_frame = None
latest_detections = []
frame_lock = threading.Lock()
detection_lock = threading.Lock()

class WebBridgeNode(Node):
    def __init__(self):
        super().__init__('web_bridge')
        self.bridge = CvBridge()
        self.create_subscription(Image, '/image', self.image_callback, 10)
        self.create_subscription(Detection2DArray, '/yolo_result', self.detection_callback, 10)

    def image_callback(self, msg):
        global latest_frame
        try:
            cv_image = self.bridge.imgmsg_to_cv2(msg, "bgr8")
            with frame_lock:
                latest_frame = cv_image.copy()
        except Exception as e:
            self.get_logger().error(f"CV Bridge error: {e}")

    def detection_callback(self, msg):
        global latest_detections
        detections = []
        for det in msg.detections:
            if det.results:
                h = det.results[0].hypothesis
                detections.append({
                    "x": det.bbox.center.position.x,
                    "y": det.bbox.center.position.y,
                    "w": det.bbox.size_x,
                    "h": det.bbox.size_y,
                    "label": h.class_id,
                    "score": h.score
                })
        with detection_lock:
            latest_detections[:] = detections

app = Flask(__name__)

@app.route('/')
def index():
    return "YOLOv5 Stream at <a href='/video_feed'>/video_feed</a>"

def generate_video():
    global latest_frame
    while True:
        with frame_lock:
            frame = latest_frame.copy() if latest_frame is not None else None
        if frame is not None:
            with detection_lock:
                for det in latest_detections:
                    x1 = int(det["x"] - det["w"] / 2)
                    y1 = int(det["y"] - det["h"] / 2)
                    x2 = int(det["x"] + det["w"] / 2)
                    y2 = int(det["y"] + det["h"] / 2)
                    cv2.rectangle(frame, (x1, y1), (x2, y2), (0, 255, 0), 2)
                    cv2.putText(frame, f'{det["label"]} {det["score"]:.2f}',
                                (x1, y1 - 10), cv2.FONT_HERSHEY_SIMPLEX, 0.6, (0, 255, 0), 2)
            _, buffer = cv2.imencode('.jpg', frame, [int(cv2.IMWRITE_JPEG_QUALITY), 70])
            yield (b'--frame\r\nContent-Type: image/jpeg\r\n\r\n' + buffer.tobytes() + b'\r\n')
        else:
            time.sleep(0.1)

@app.route('/video_feed')
def video_feed():
    return Response(generate_video(), mimetype='multipart/x-mixed-replace; boundary=frame')

def ros_spin():
    rclpy.init()
    node = WebBridgeNode()
    rclpy.spin(node)
    node.destroy_node()
    rclpy.shutdown()

if __name__ == '__main__':
    threading.Thread(target=ros_spin, daemon=True).start()
    app.run(host='0.0.0.0', port=5000, threaded=True)

安装依赖：

复制代码

pip3 install flask opencv-python numpy

▶️ 第 5 步：启动所有组件

打开 三个终端：

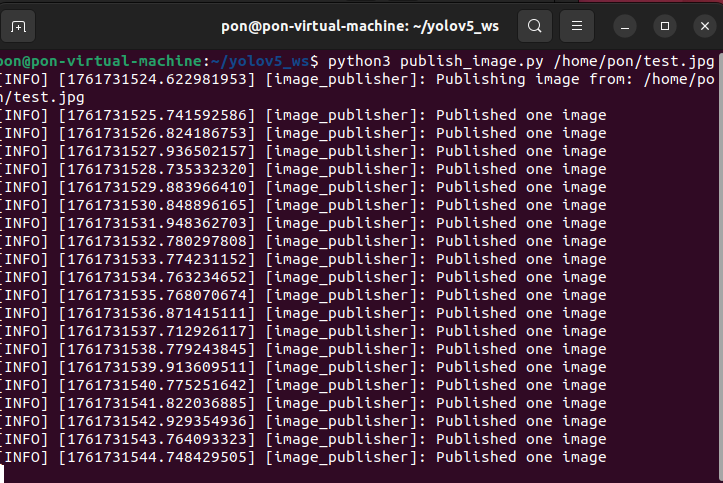

终端 1：发布图像

复制代码

cd ~/yolov5_ws
source /opt/ros/humble/setup.bash
python3 publish_image.py /home/pon/test.jpg

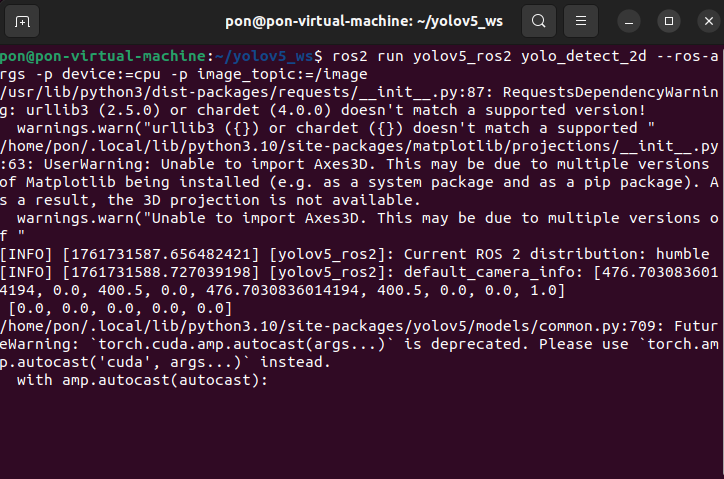

终端 2：运行 YOLO 检测

复制代码

cd ~/yolov5_ws
source install/setup.bash
ros2 run yolov5_ros2 yolo_detect_2d --ros-args -p device:=cpu -p image_topic:=/image

终端 3：启动 Web 服务

复制代码

cd ~/yolov5_ws
source install/setup.bash
python3 web_server.py

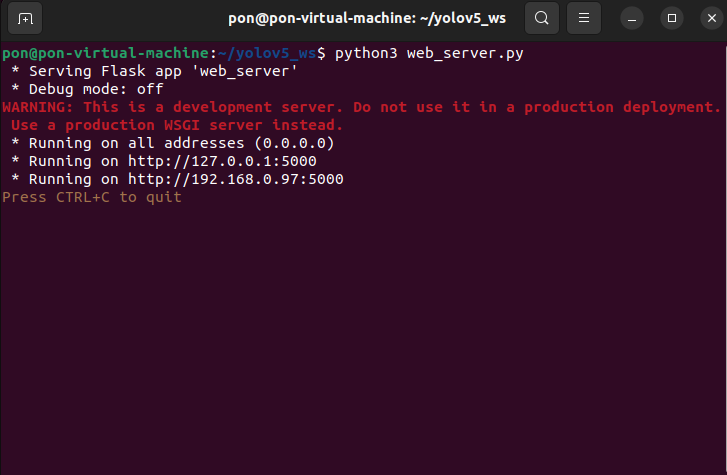

你会看到：

复制代码

Running on http://192.168.x.x:5000

🔍 第 6 步：测试

测试方法

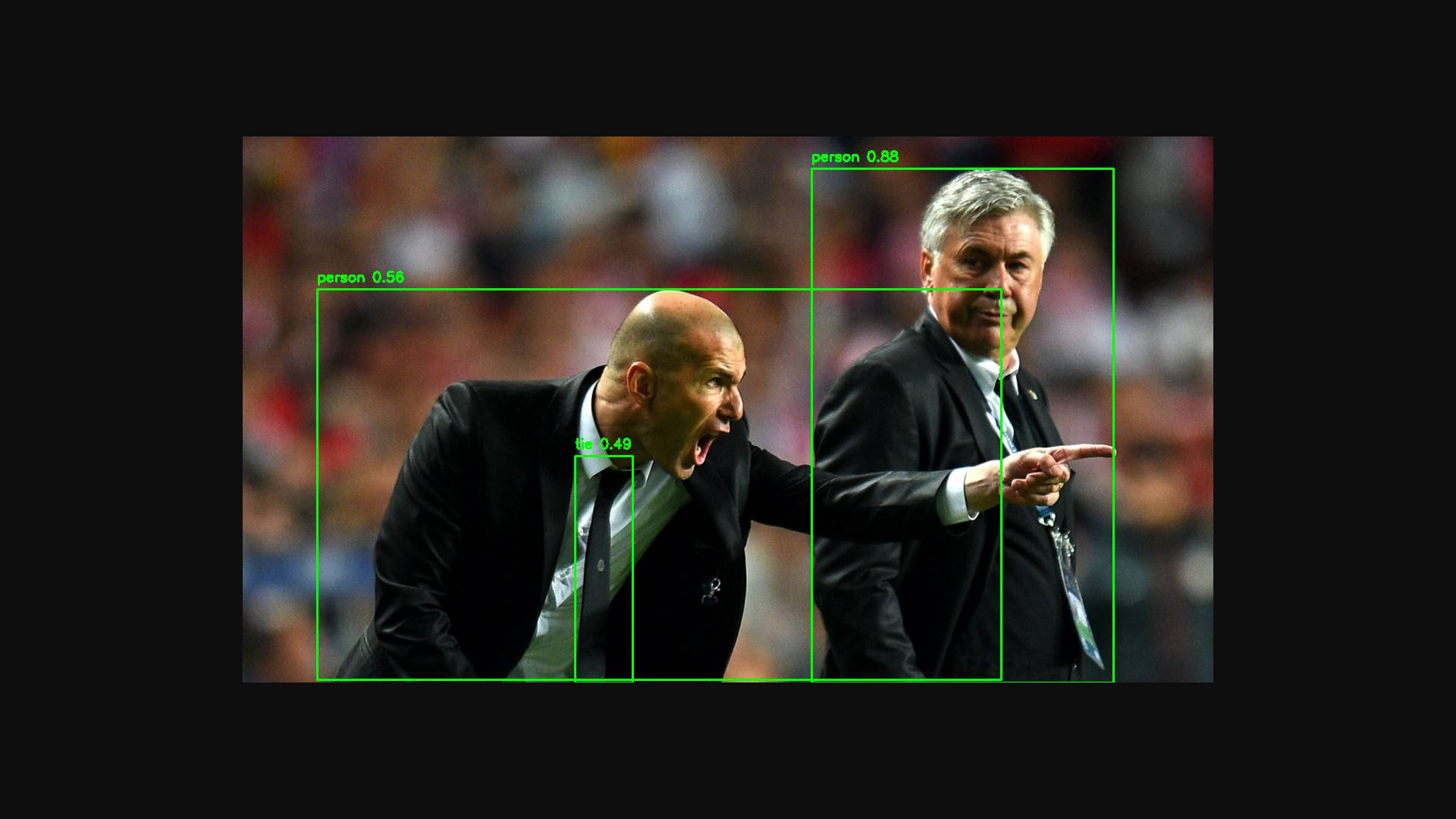

在浏览器打开：http://<你的IP>:5000/video_feed
应看到带绿色框的图像

前端使用

视频流地址：http://192.168.x.x:5000/video_feed

使用方式：
复制代码
<img src="http://192.168.x.x:5000/video_feed" width="960" />

✅ 目录结构

复制代码

~/yolov5_ws/
├── src/
│   └── yolov5_ros2/          # YOLOv5 ROS 2 包
├── publish_image.py          # 图像发布脚本
├── web_server.py             # Web 桥接服务
└── test.jpg                  # 测试图片

🧪 验证清单

步骤	命令	预期结果
图像发布	`ros2 topic hz /image`	~1 Hz
检测输出	`ros2 topic echo /yolo_result`	有 person 检测
Web 服务	`curl -s http://localhost:5000`	返回 HTML 提示
视频流	浏览器打开 `/video_feed`	显示带框图像
