Linux C/C++ 学习日记（42）：dpdk（五）：基于dpdk实现用户态的UDP收发数据、和TCP的三次握手及接收数据

deng-c-f2025-11-03 14:19

注：该文用于个人学习记录和知识交流，如有不足，欢迎指点。

前置知识

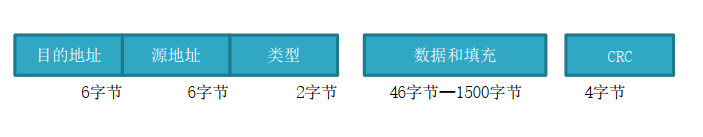

以太网协议头：

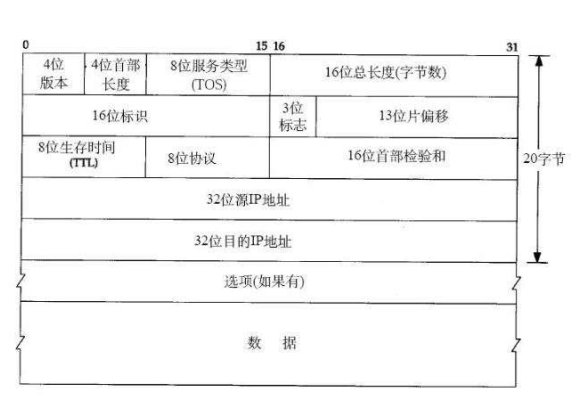

IP协议头

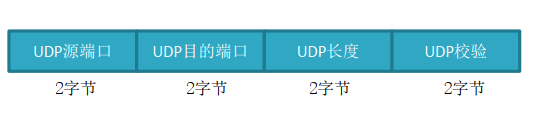

UDP的协议头

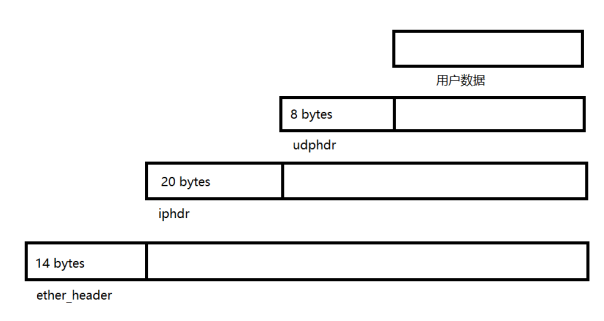

UDP数据帧

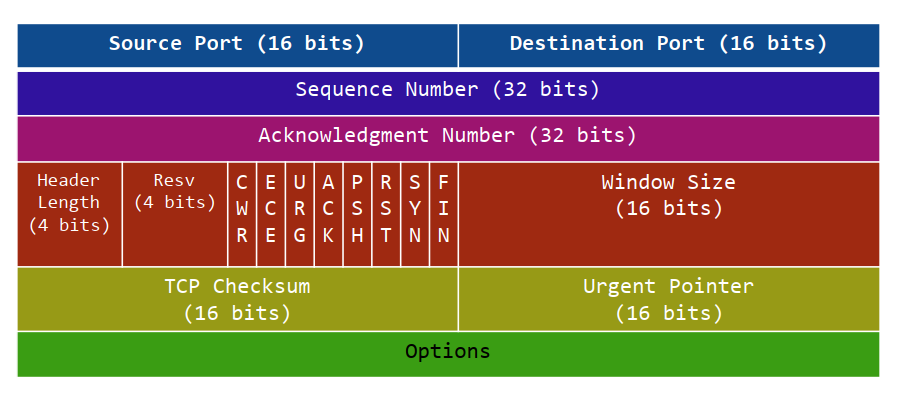

TCP协议头

问题

  1. UDP头里面有UDP的长度，为什么TCP只有TCP头的长度？

答：TCP：下一个包减去当前包的seq得到当前包的data长度

  1. 三次握手，ack包一直持续在发的原因？

答：服务端收到客户端的第三次握手的ack之后，是不用回ack的。如果检测到客户端的ack包一直发，肯定是服务端一直在发SYN和ACK包。

注意：Seqnum的变化条件：

TCP 包类型 是否递增 global_s_seqnum 原因
SYN+ACK（连接建立） 是（+1） SYN 标志占用 1 个序列号
纯 ACK（无数据） 否 仅确认对端数据，无有效负载
带数据的 PSH+ACK 是（+ 数据长度） 需标识已发送的数据字节

一、UDP的收发包测试

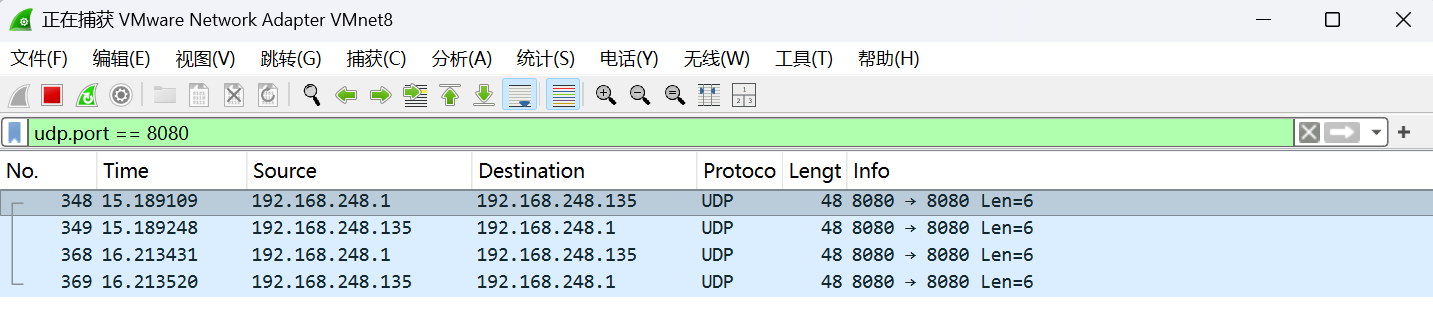

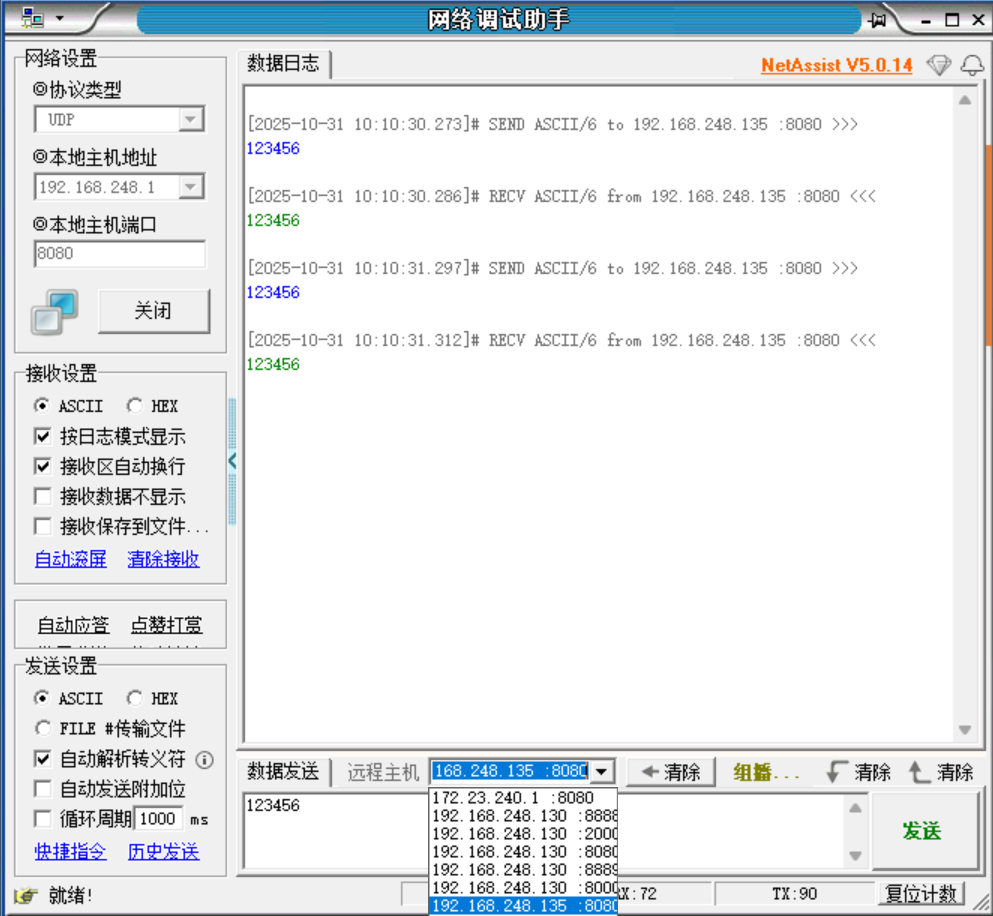

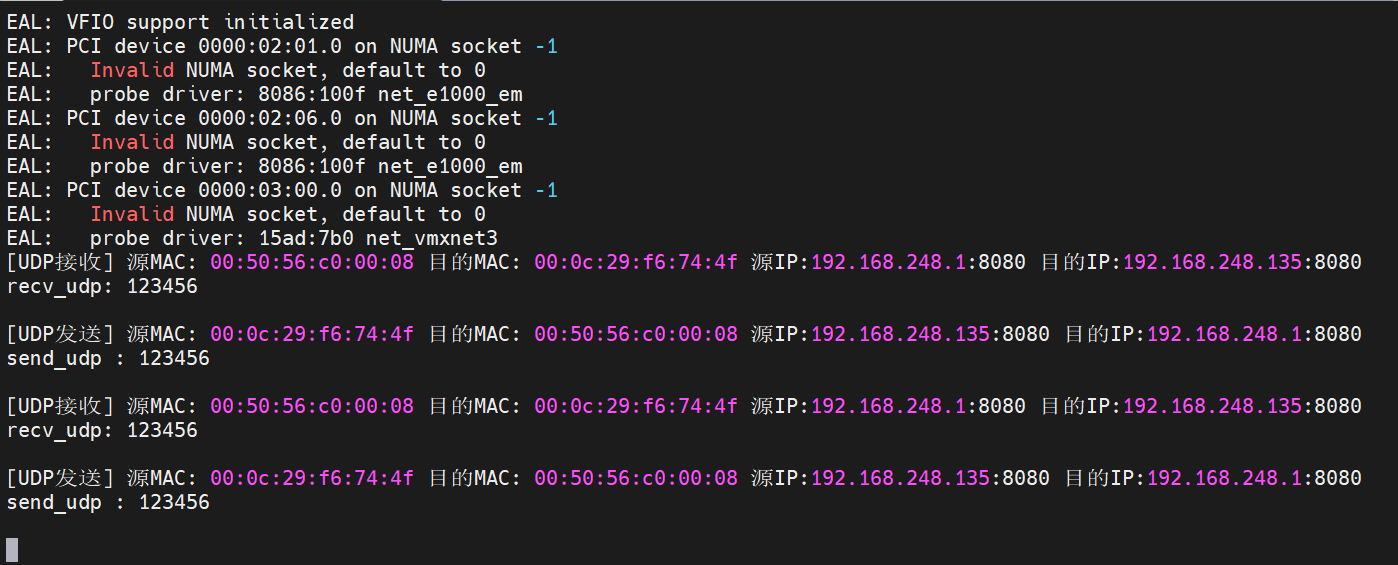

测试成功

二、TCP三次握手+收到客户端data之后只回空的ack包

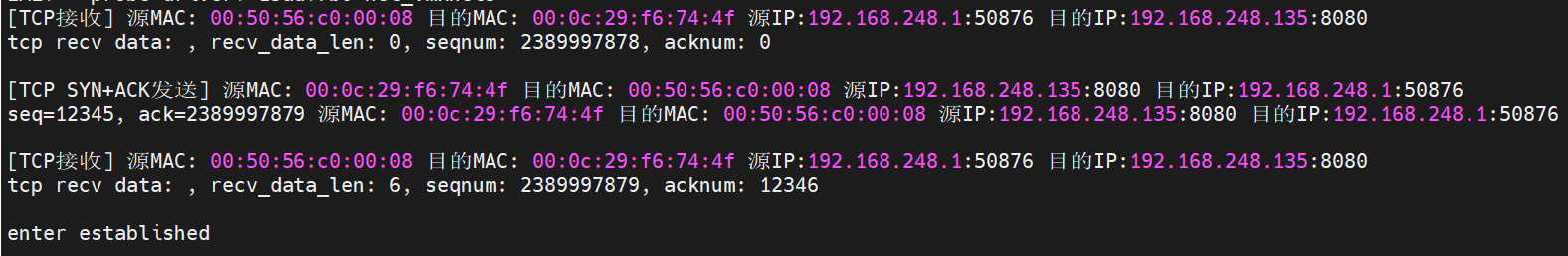

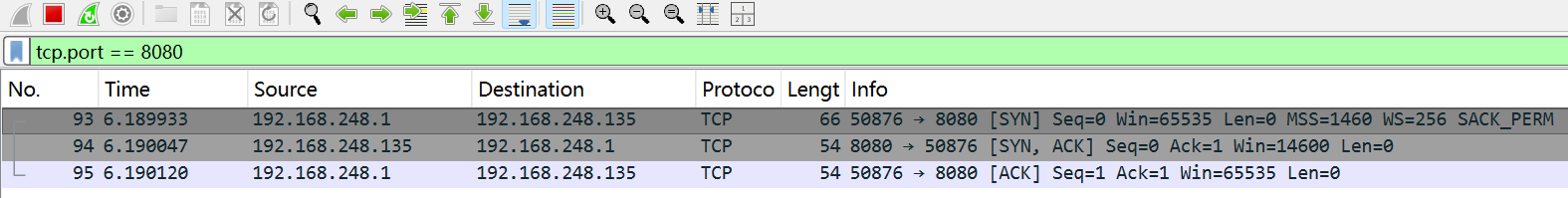

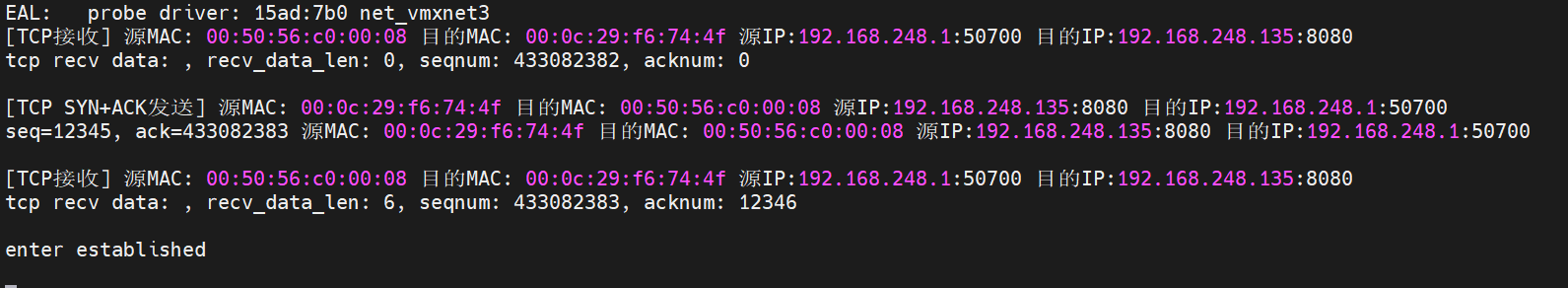

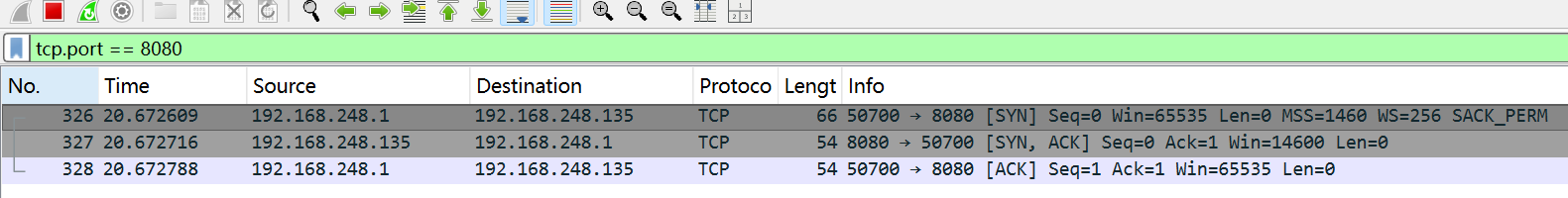

三次握手成功

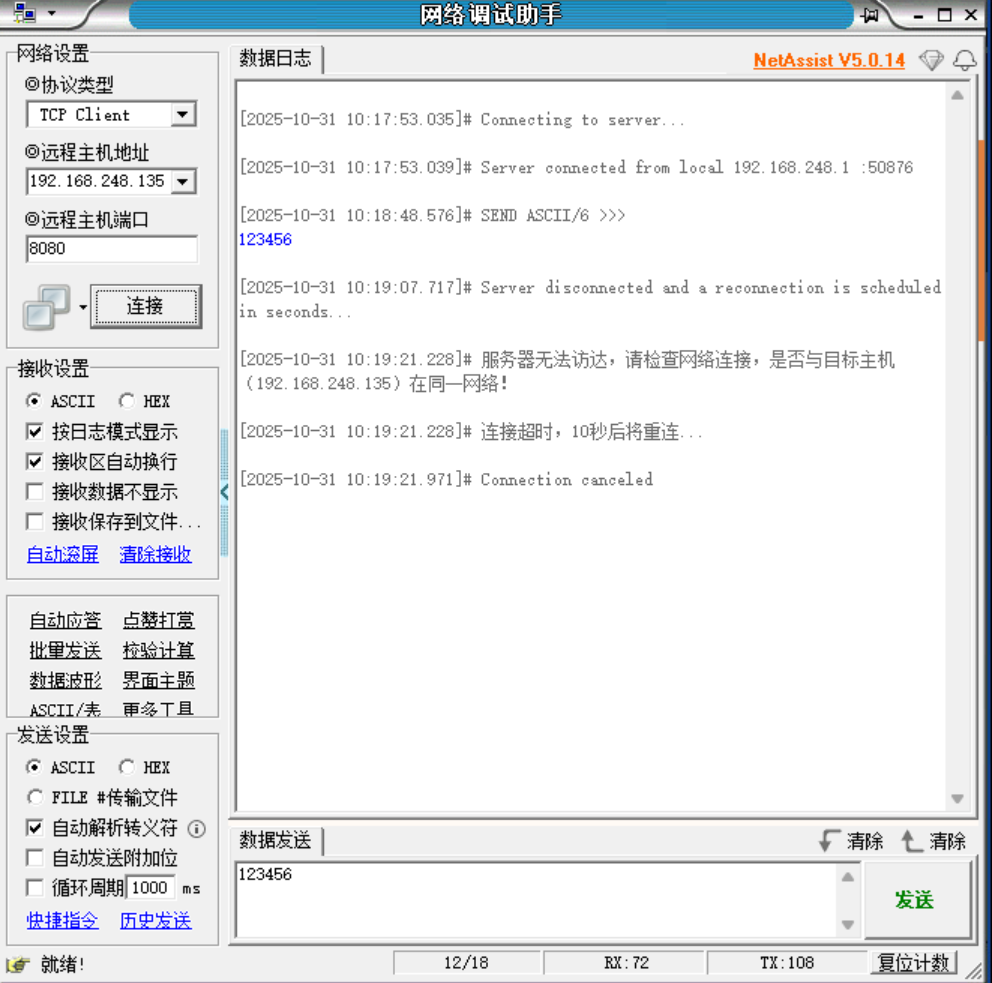

客户端发送数据+服务端回空的ACK包

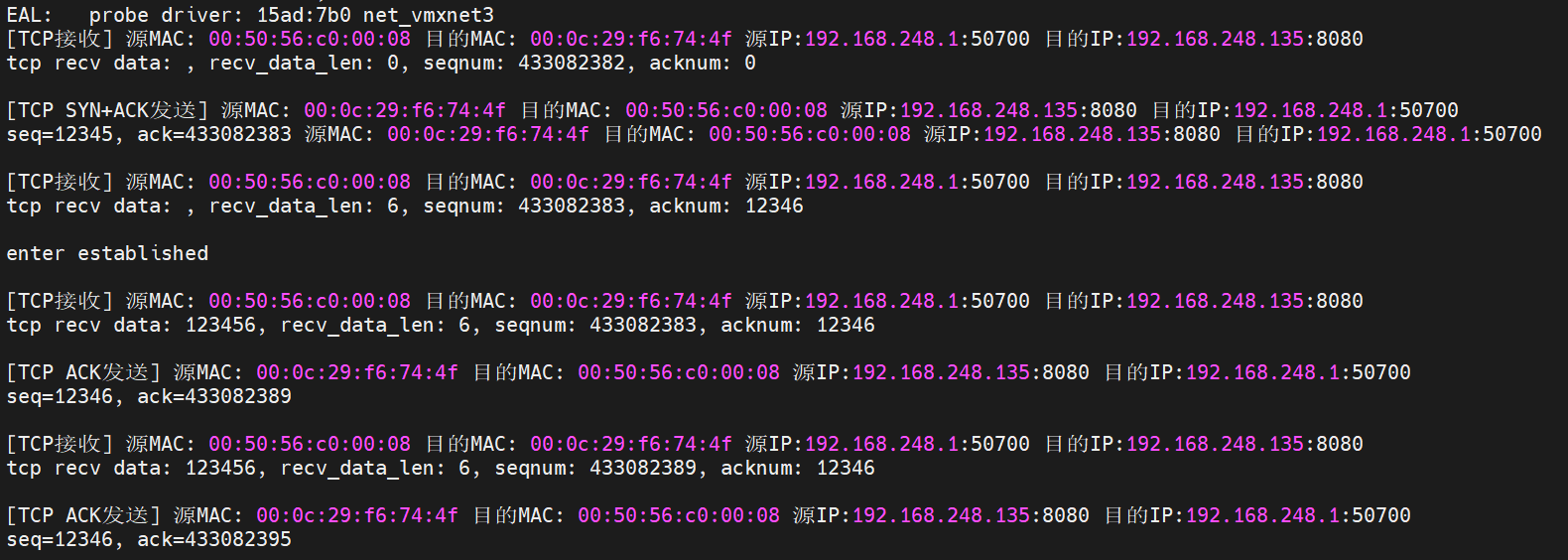

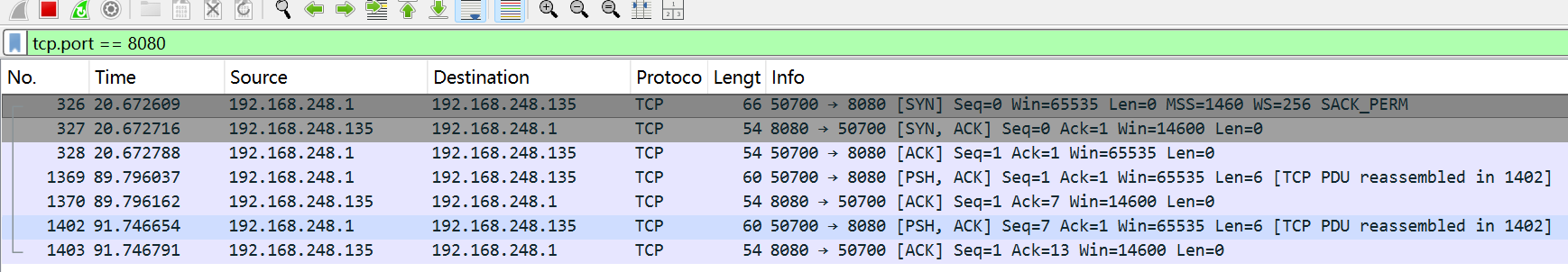

正常响应：客户端收到了对应的空的ACK包

三、TCP三次握手+收到客户端data之后回发data给客户端

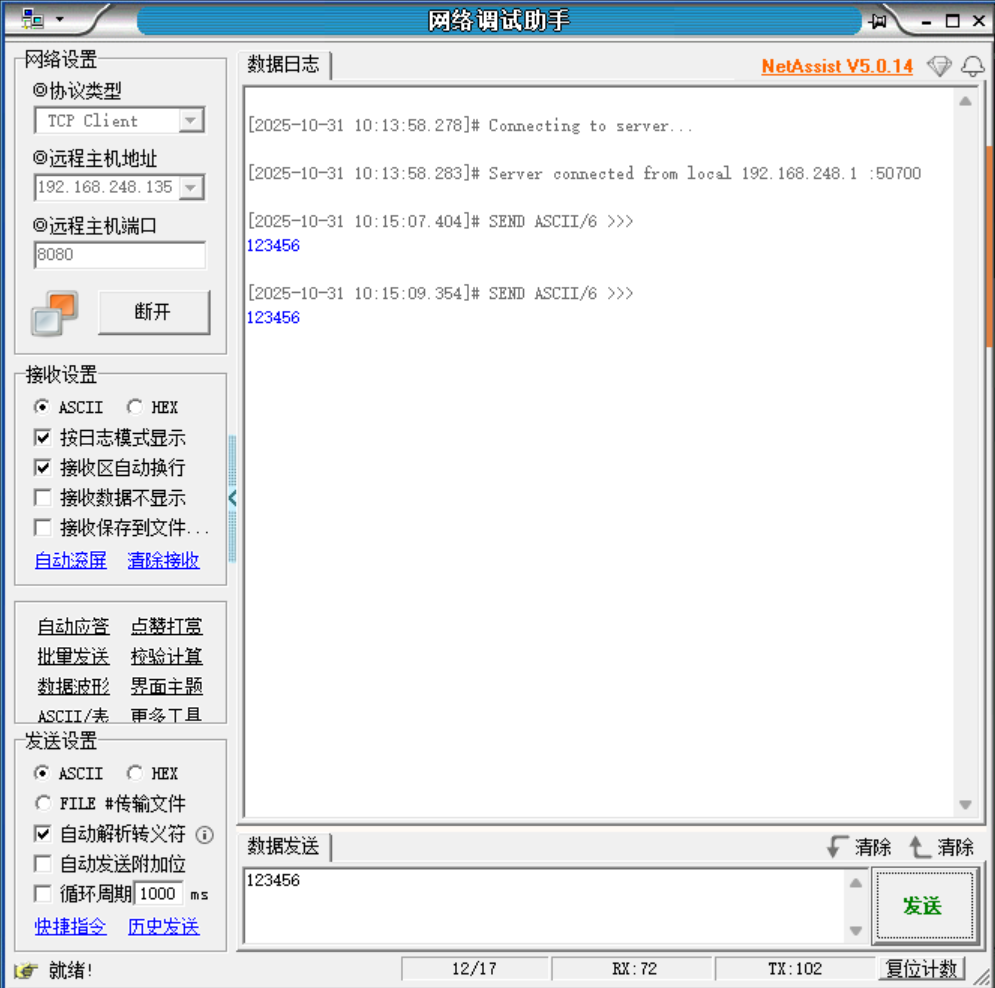

三次握手成功

客户端发送data，服务器回发data

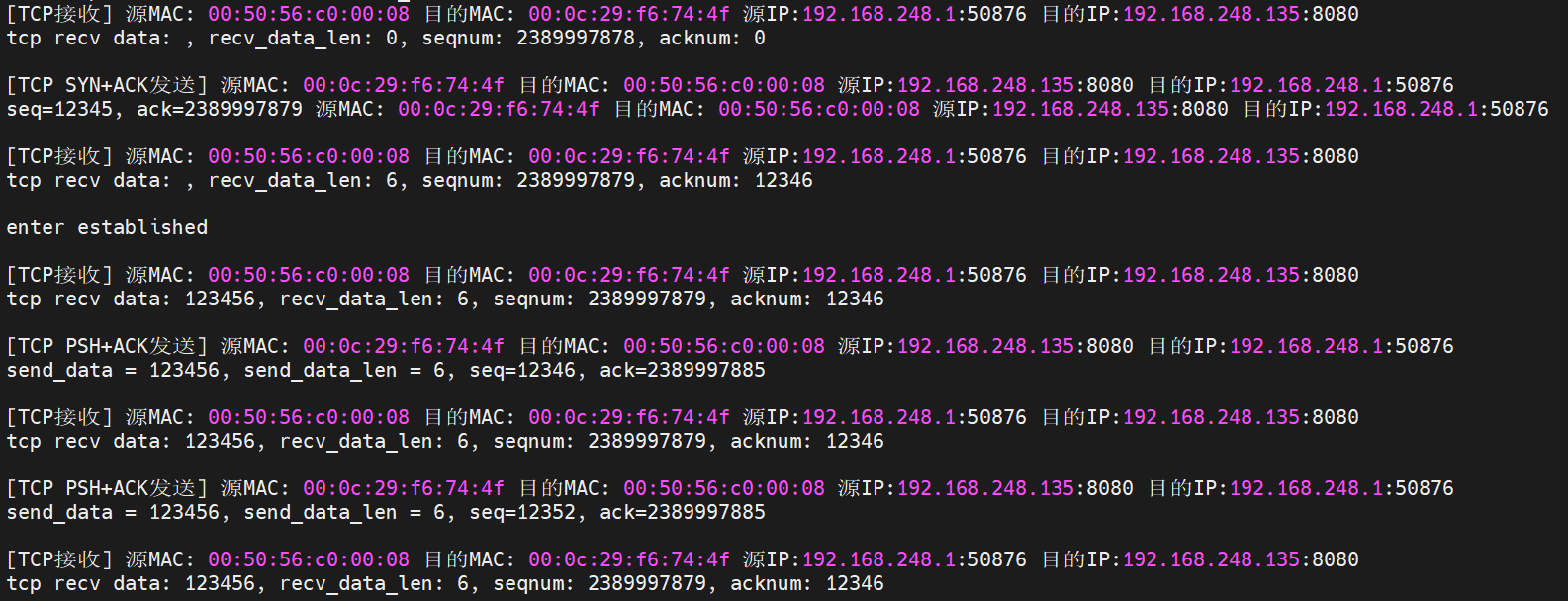

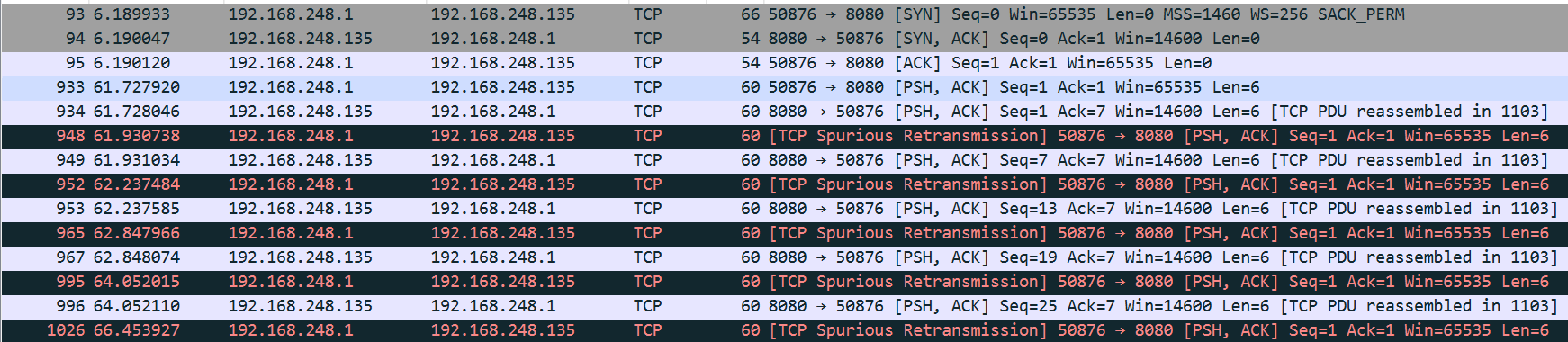

失败了，客户端没有收到服务端的PSH+ACK包，导致一直重发

四、代码

TCP代码的设计：

  • 状态机的思想，在什么状态，收到什么类型的TCP包，变为什么状态，作出什么响应。
  • 根据TCP状态迁移图，就可以设计出简单的三次握手代码了
cpp 复制代码
#include <stdio.h>
#include <rte_eal.h>
#include <rte_ethdev.h>
#include <arpa/inet.h>

int global_portid = 0;

#define NUM_MBUFS 4096
#define BURST_SIZE 128

#define ENABLE_SEND 1
#define ENABLE_TCP 1

#define TCP_INIT_WINDOWS 14600

#define SEND_UDP_HEADER_LENGTH 42
#define SEND_TCP_HEADER_LENGTH 54

#define TCP_SEND_BACK_DATA 0

#define UDP 0

#if ENABLE_SEND
uint8_t global_smac[RTE_ETHER_ADDR_LEN];
uint8_t global_dmac[RTE_ETHER_ADDR_LEN];
uint32_t global_sip;
uint32_t global_dip;
uint16_t global_sport;
uint16_t global_dport;
#endif

#if ENABLE_TCP
uint8_t global_flags;
uint32_t global_d_seqnum;         // 对端发送序列号（无符号）
uint32_t global_d_acknum;         // 对端发送确认号（无符号）
uint32_t global_s_seqnum = 12345; // 本地发送序列号（无符号）
uint32_t global_s_acknum;         // 本地发送确认号（无符号）

typedef enum __USTACK_TCP_STATUS
{
  USTACK_TCP_STATUS_CLOSED = 0,
  USTACK_TCP_STATUS_LISTEN,
  USTACK_TCP_STATUS_SYN_RCVD,
  USTACK_TCP_STATUS_SYN_SENT,
  USTACK_TCP_STATUS_ESTABLISHED,
  USTACK_TCP_STATUS_FIN_WAIT_1,
  USTACK_TCP_STATUS_FIN_WAIT_2,
  USTACK_TCP_STATUS_CLOSING,
  USTACK_TCP_STATUS_TIMEWAIT,
  USTACK_TCP_STATUS_CLOSE_WAIT,
  USTACK_TCP_STATUS_LAST_ACK
} USTACK_TCP_STATUS;

uint8_t tcp_status = USTACK_TCP_STATUS_LISTEN;
#endif

static const struct rte_eth_conf port_conf_default = {
    .rxmode = {.max_rx_pkt_len = RTE_ETHER_MAX_LEN}};

static int ustack_init_port(struct rte_mempool *mbuf_pool)
{
  uint16_t nb_sys_ports = rte_eth_dev_count_avail();
  if (nb_sys_ports == 0)
  {
    rte_exit(EXIT_FAILURE, "No Supported eth found\n");
  }

  struct rte_eth_dev_info dev_info;
  rte_eth_dev_info_get(global_portid, &dev_info);

  const int num_rx_queues = 1;
#if ENABLE_SEND
  const int num_tx_queues = 1;
#else
  const int num_tx_queues = 0;
#endif
  rte_eth_dev_configure(global_portid, num_rx_queues, num_tx_queues, &port_conf_default);

  if (rte_eth_rx_queue_setup(global_portid, 0, 128,
                             rte_eth_dev_socket_id(global_portid), NULL, mbuf_pool) < 0)
  {
    rte_exit(EXIT_FAILURE, "Could not setup RX queue\n");
  }

#if ENABLE_SEND
  struct rte_eth_txconf txq_conf = dev_info.default_txconf;
  txq_conf.offloads = port_conf_default.rxmode.offloads;
  if (rte_eth_tx_queue_setup(global_portid, 0, 512,
                             rte_eth_dev_socket_id(global_portid), &txq_conf) < 0)
  {
    rte_exit(EXIT_FAILURE, "Could not setup TX queue\n");
  }
#endif

  if (rte_eth_dev_start(global_portid) < 0)
  {
    rte_exit(EXIT_FAILURE, "Could not start\n");
  }
  return 0;
}

#if UDP
static int ustack_encode_udp_pkt(uint8_t *msg, uint8_t *data, uint16_t total_len)
{
  struct rte_ether_hdr *eth = (struct rte_ether_hdr *)msg;
  rte_memcpy(eth->d_addr.addr_bytes, global_dmac, RTE_ETHER_ADDR_LEN);
  rte_memcpy(eth->s_addr.addr_bytes, global_smac, RTE_ETHER_ADDR_LEN);
  eth->ether_type = htons(RTE_ETHER_TYPE_IPV4);

  struct rte_ipv4_hdr *ip = (struct rte_ipv4_hdr *)(eth + 1);
  ip->version_ihl = 0x45;
  ip->type_of_service = 0;
  ip->total_length = htons(total_len - sizeof(struct rte_ether_hdr));
  ip->packet_id = 0;
  ip->fragment_offset = 0;
  ip->time_to_live = 64;
  ip->next_proto_id = IPPROTO_UDP;
  ip->src_addr = global_sip;
  ip->dst_addr = global_dip;

  ip->hdr_checksum = 0;
  ip->hdr_checksum = rte_ipv4_cksum(ip);

  struct rte_udp_hdr *udp = (struct rte_udp_hdr *)(ip + 1);
  udp->src_port = global_sport;
  udp->dst_port = global_dport;
  uint16_t udplen = total_len - sizeof(struct rte_ether_hdr) - sizeof(struct rte_ipv4_hdr);
  udp->dgram_len = htons(udplen);

  rte_memcpy((uint8_t *)(udp + 1), data, udplen);
  udp->dgram_cksum = 0;
  udp->dgram_cksum = rte_ipv4_udptcp_cksum(ip, udp);
  return 0;
}
#endif

static int ustack_encode_tcp_pkt(uint8_t *msg, uint16_t total_len, uint8_t *data, uint16_t data_len, unsigned char flag)
{
  struct rte_ether_hdr *eth = (struct rte_ether_hdr *)msg;
  rte_memcpy(eth->d_addr.addr_bytes, global_dmac, RTE_ETHER_ADDR_LEN);
  rte_memcpy(eth->s_addr.addr_bytes, global_smac, RTE_ETHER_ADDR_LEN);
  eth->ether_type = htons(RTE_ETHER_TYPE_IPV4);

  struct rte_ipv4_hdr *ip = (struct rte_ipv4_hdr *)(eth + 1);
  ip->version_ihl = 0x45;
  ip->type_of_service = 0;
  ip->total_length = htons(total_len - sizeof(struct rte_ether_hdr));
  ip->packet_id = 0;
  ip->fragment_offset = 0;
  ip->time_to_live = 64;
  ip->next_proto_id = IPPROTO_TCP;
  ip->src_addr = global_sip;
  ip->dst_addr = global_dip;

  ip->hdr_checksum = 0;
  ip->hdr_checksum = rte_ipv4_cksum(ip);

  struct rte_tcp_hdr *tcp = (struct rte_tcp_hdr *)(ip + 1);
  tcp->src_port = global_sport;
  tcp->dst_port = global_dport;
  tcp->sent_seq = htonl(global_s_seqnum);
  tcp->recv_ack = htonl(global_s_acknum);
  tcp->data_off = 0x50;

  if (flag == 0)
  {
    tcp->tcp_flags = RTE_TCP_ACK_FLAG | RTE_TCP_SYN_FLAG;
  }
  else if (flag == 1)
  {
    tcp->tcp_flags = RTE_TCP_ACK_FLAG;
  }
  else if (flag == 2)
  {
    tcp->tcp_flags = RTE_TCP_ACK_FLAG | RTE_TCP_PSH_FLAG;
  }

  tcp->rx_win = htons(TCP_INIT_WINDOWS);
  tcp->cksum = 0;
  tcp->cksum = rte_ipv4_udptcp_cksum(ip, tcp);

  if (data != NULL && data_len > 0)
  {
    rte_memcpy((uint8_t *)(tcp + 1), data, data_len);
  }


  return 0;
}

// MAC地址格式化打印辅助函数
static void print_mac(const char *name, uint8_t *mac)
{
  printf("%s: %02x:%02x:%02x:%02x:%02x:%02x ",
         name, mac[0], mac[1], mac[2], mac[3], mac[4], mac[5]);
}

int main(int argc, char *argv[])
{
  if (rte_eal_init(argc, argv) < 0)
  {
    rte_exit(EXIT_FAILURE, "Error with EAL init\n");
  }

  struct rte_mempool *mbuf_pool = rte_pktmbuf_pool_create("mbuf pool", NUM_MBUFS, 0, 0, RTE_MBUF_DEFAULT_BUF_SIZE, rte_socket_id());
  if (mbuf_pool == NULL)
  {
    rte_exit(EXIT_FAILURE, "Could not create mbuf pool\n");
  }

  ustack_init_port(mbuf_pool);

  while (1)
  {
    struct rte_mbuf *mbufs[BURST_SIZE] = {0};
    uint16_t num_recvd = rte_eth_rx_burst(global_portid, 0, mbufs, BURST_SIZE);
    if (num_recvd > BURST_SIZE)
    {
      rte_exit(EXIT_FAILURE, "Error receiving from eth\n");
    }

    for (int i = 0; i < num_recvd; i++)
    {
      struct rte_ether_hdr *ethhdr = rte_pktmbuf_mtod(mbufs[i], struct rte_ether_hdr *);
      if (ethhdr->ether_type != rte_cpu_to_be_16(RTE_ETHER_TYPE_IPV4))
      {
        continue;
      }

      struct rte_ipv4_hdr *iphdr = rte_pktmbuf_mtod_offset(mbufs[i], struct rte_ipv4_hdr *, sizeof(struct rte_ether_hdr));
      uint8_t ip_hdr_len = (iphdr->version_ihl & 0x0F) * 4;

      if (iphdr->next_proto_id == IPPROTO_UDP)
      {
#if UDP
        struct rte_udp_hdr *udphdr = (struct rte_udp_hdr *)(iphdr + 1);

        // 新增：UDP接收时打印MAC、IP、端口
        printf("[UDP接收] ");
        print_mac("源MAC", ethhdr->s_addr.addr_bytes);   // 接收包的源MAC是发送端MAC
        print_mac("目的MAC", ethhdr->d_addr.addr_bytes); // 接收包的目的MAC是本地MAC
        struct in_addr addr;
        addr.s_addr = iphdr->src_addr;
        printf("源IP:%s:%d ", inet_ntoa(addr), ntohs(udphdr->src_port));
        addr.s_addr = iphdr->dst_addr;
        printf("目的IP:%s:%d \n", inet_ntoa(addr), ntohs(udphdr->dst_port));
        printf("recv_udp: %s\n\n", (char *)(udphdr + 1));

#if ENABLE_SEND
        rte_memcpy(global_smac, ethhdr->d_addr.addr_bytes, RTE_ETHER_ADDR_LEN);
        rte_memcpy(global_dmac, ethhdr->s_addr.addr_bytes, RTE_ETHER_ADDR_LEN);
        rte_memcpy(&global_sip, &iphdr->dst_addr, sizeof(uint32_t));
        rte_memcpy(&global_dip, &iphdr->src_addr, sizeof(uint32_t));
        rte_memcpy(&global_sport, &udphdr->dst_port, sizeof(uint16_t));
        rte_memcpy(&global_dport, &udphdr->src_port, sizeof(uint16_t));
#if 0
        addr.s_addr = iphdr->src_addr;
        printf("sip %s:%d --> ", inet_ntoa(addr), ntohs(udphdr->src_port));
        addr.s_addr = iphdr->dst_addr;
        printf("dip %s:%d --> ", inet_ntoa(addr), ntohs(udphdr->dst_port));
#endif
        uint16_t length = ntohs(udphdr->dgram_len);
        uint16_t total_len = length + sizeof(struct rte_ipv4_hdr) + sizeof(struct rte_ether_hdr);

        struct rte_mbuf *mbuf = rte_pktmbuf_alloc(mbuf_pool);
        if (!mbuf)
        {
          rte_exit(EXIT_FAILURE, "Error rte_pktmbuf_alloc\n");
        }
        mbuf->pkt_len = total_len;
        mbuf->data_len = total_len;

        uint8_t *msg = rte_pktmbuf_mtod(mbuf, uint8_t *);
        ustack_encode_udp_pkt(msg, (uint8_t *)(udphdr + 1), total_len);

        // UDP发送前打印MAC、IP、端口
        printf("[UDP发送] ");
        print_mac("源MAC", global_smac);
        print_mac("目的MAC", global_dmac);
        addr.s_addr = global_sip;
        printf("源IP:%s:%d ", inet_ntoa(addr), ntohs(global_sport));
        addr.s_addr = global_dip;
        printf("目的IP:%s:%d \n", inet_ntoa(addr), ntohs(global_dport));

        rte_eth_tx_burst(global_portid, 0, &mbuf, 1);
#endif
        printf("send_udp : %s\n\n", (char *)(udphdr + 1));
#endif
      }
      else if (iphdr->next_proto_id == IPPROTO_TCP)
      {
        struct rte_tcp_hdr *tcphdr = (struct rte_tcp_hdr *)(iphdr + 1);
        uint8_t tcp_hdr_len = (tcphdr->data_off >> 4) * 4;
        uint16_t recv_tcp_data_len = rte_pktmbuf_data_len(mbufs[i]) -
                                     sizeof(struct rte_ether_hdr) - ip_hdr_len - tcp_hdr_len;

        rte_memcpy(global_smac, ethhdr->d_addr.addr_bytes, RTE_ETHER_ADDR_LEN);
        rte_memcpy(global_dmac, ethhdr->s_addr.addr_bytes, RTE_ETHER_ADDR_LEN);
        rte_memcpy(&global_sip, &iphdr->dst_addr, sizeof(uint32_t));
        rte_memcpy(&global_dip, &iphdr->src_addr, sizeof(uint32_t));
        rte_memcpy(&global_sport, &tcphdr->dst_port, sizeof(uint16_t));
        rte_memcpy(&global_dport, &tcphdr->src_port, sizeof(uint16_t));

        global_flags = tcphdr->tcp_flags;
        global_d_seqnum = ntohl(tcphdr->sent_seq);
        global_d_acknum = ntohl(tcphdr->recv_ack);

        // 新增：TCP接收时打印MAC、IP、端口
        printf("[TCP接收] ");
        uint8_t *recv_data = ((uint8_t *)tcphdr + tcp_hdr_len);
        print_mac("源MAC", ethhdr->s_addr.addr_bytes);
        print_mac("目的MAC", ethhdr->d_addr.addr_bytes);
        struct in_addr addr;
        addr.s_addr = iphdr->src_addr;
        printf("源IP:%s:%d ", inet_ntoa(addr), ntohs(tcphdr->src_port));
        addr.s_addr = iphdr->dst_addr;
        printf("目的IP:%s:%d \n", inet_ntoa(addr), ntohs(tcphdr->dst_port));
        printf("tcp recv data: %s, recv_data_len: %d, seqnum: %u, acknum: %u\n\n", recv_data, recv_tcp_data_len, global_d_seqnum, global_d_acknum);
#if 0
        addr.s_addr = iphdr->src_addr;
        printf("sip %s:%d --> ", inet_ntoa(addr), ntohs(tcphdr->src_port));
        addr.s_addr = iphdr->dst_addr;
        printf("dip %s:%d , flags: 0x%x, seqnum: %u, acknum: %u\n",
               inet_ntoa(addr), ntohs(tcphdr->dst_port),
               global_flags, global_d_seqnum, global_d_acknum);
#endif
        if (global_flags & RTE_TCP_SYN_FLAG)
        {
          if (tcp_status == USTACK_TCP_STATUS_LISTEN)
          {
            global_s_acknum = global_d_seqnum + 1;

            printf("[TCP SYN+ACK发送] ");
            print_mac("源MAC", global_smac);
            print_mac("目的MAC", global_dmac);
            addr.s_addr = global_sip;
            printf("源IP:%s:%d ", inet_ntoa(addr), ntohs(global_sport));
            addr.s_addr = global_dip;
            printf("目的IP:%s:%d \n", inet_ntoa(addr), ntohs(global_dport));
            printf("seq=%u, ack=%u ", global_s_seqnum, global_s_acknum);

            uint16_t total_len = sizeof(struct rte_tcp_hdr) + sizeof(struct rte_ipv4_hdr) + sizeof(struct rte_ether_hdr);
            struct rte_mbuf *mbuf = rte_pktmbuf_alloc(mbuf_pool);
            if (!mbuf)
            {
              rte_exit(EXIT_FAILURE, "Error rte_pktmbuf_alloc\n");
            }
            mbuf->pkt_len = total_len;
            mbuf->data_len = total_len;

            uint8_t *msg = rte_pktmbuf_mtod(mbuf, uint8_t *);
            ustack_encode_tcp_pkt(msg, total_len, NULL, 0, 0);

            // TCP SYN+ACK发送前打印MAC、IP、端口
            print_mac("源MAC", global_smac);
            print_mac("目的MAC", global_dmac);
            addr.s_addr = global_sip;
            printf("源IP:%s:%d ", inet_ntoa(addr), ntohs(global_sport));
            addr.s_addr = global_dip;
            printf("目的IP:%s:%d\n\n", inet_ntoa(addr), ntohs(global_dport));

            rte_eth_tx_burst(global_portid, 0, &mbuf, 1);

            tcp_status = USTACK_TCP_STATUS_SYN_RCVD;
            global_s_seqnum++; // SYN包改变序列号
          }
        }

        if (global_flags & RTE_TCP_ACK_FLAG)
        {
          if (tcp_status == USTACK_TCP_STATUS_SYN_RCVD)
          {
            printf("enter established\n\n");
            tcp_status = USTACK_TCP_STATUS_ESTABLISHED;
          }
        }

        if (global_flags & RTE_TCP_PSH_FLAG && tcp_status == USTACK_TCP_STATUS_ESTABLISHED)
        {


#if TCP_SEND_BACK_DATA

          uint16_t send_tcp_data_len = recv_tcp_data_len;
          uint8_t *send_data = recv_data;
#else

          uint16_t send_tcp_data_len = 0;
          uint8_t *send_data = NULL;
#endif
          global_s_acknum = global_d_seqnum + recv_tcp_data_len;


          uint16_t total_len = sizeof(struct rte_tcp_hdr) + sizeof(struct rte_ipv4_hdr) + sizeof(struct rte_ether_hdr) + send_tcp_data_len;


          struct rte_mbuf *reply_mbuf = rte_pktmbuf_alloc(mbuf_pool);
          if (!reply_mbuf)
          {
            rte_exit(EXIT_FAILURE, "TCP reply mbuf alloc failed\n");
          }
          reply_mbuf->pkt_len = total_len;
          reply_mbuf->data_len = total_len;

          uint8_t *reply_msg = rte_pktmbuf_mtod(reply_mbuf, uint8_t *);

#if TCP_SEND_BACK_DATA

          ustack_encode_tcp_pkt(reply_msg, total_len, recv_data, send_tcp_data_len, 2);

          // TCP数据回复（无数据）发送前打印MAC、IP、端口
          printf("[TCP PSH+ACK发送] ");
          print_mac("源MAC", global_smac);
          print_mac("目的MAC", global_dmac);
          addr.s_addr = global_sip;
          printf("源IP:%s:%d ", inet_ntoa(addr), ntohs(global_sport));
          addr.s_addr = global_dip;
          printf("目的IP:%s:%d \n", inet_ntoa(addr), ntohs(global_dport));

          rte_eth_tx_burst(global_portid, 0, &reply_mbuf, 1);
          printf("send_data = %s, send_data_len = %d, seq=%u, ack=%u\n\n", send_data, send_tcp_data_len, global_s_seqnum, global_s_acknum);
          global_s_seqnum += send_tcp_data_len;

#else
          ustack_encode_tcp_pkt(reply_msg, total_len, send_data, send_tcp_data_len, 1);

          // TCP数据回复（带数据）发送前打印MAC、IP、端口
          printf("[TCP ACK发送] ");
          print_mac("源MAC", global_smac);
          print_mac("目的MAC", global_dmac);
          addr.s_addr = global_sip;
          printf("源IP:%s:%d ", inet_ntoa(addr), ntohs(global_sport));
          addr.s_addr = global_dip;
          printf("目的IP:%s:%d \n", inet_ntoa(addr), ntohs(global_dport));

          rte_eth_tx_burst(global_portid, 0, &reply_mbuf, 1);
          printf("seq=%u, ack=%u\n\n", global_s_seqnum, global_s_acknum);
          // global_s_acknum++; // ACK包不改变序列号

#endif
        }
      }
      rte_pktmbuf_free(mbufs[i]);
    }
  }
  return 0;
}
相关推荐
西岸行者4 天前
学习笔记：SKILLS 能帮助更好的vibe coding
笔记·学习
悠哉悠哉愿意4 天前
【单片机学习笔记】串口、超声波、NE555的同时使用
笔记·单片机·学习
别催小唐敲代码4 天前
嵌入式学习路线
学习
毛小茛4 天前
计算机系统概论——校验码
学习
babe小鑫4 天前
大专经济信息管理专业学习数据分析的必要性
学习·数据挖掘·数据分析
winfreedoms5 天前
ROS2知识大白话
笔记·学习·ros2
在这habit之下5 天前
Linux Virtual Server（LVS）学习总结
linux·学习·lvs
我想我不够好。5 天前
2026.2.25监控学习
学习
im_AMBER5 天前
Leetcode 127 删除有序数组中的重复项 | 删除有序数组中的重复项 II
数据结构·学习·算法·leetcode
CodeJourney_J5 天前
从“Hello World“ 开始 C++
c语言·c++·学习
热门推荐
01GitHub 镜像站点02OpenClaw + 飞书（Feishu）环境搭建指南03OpenClaw 使用和管理 MCP 完全指南04【OpenClaw 本地实战 Ep.3】突破瓶颈：强制修改 openclaw.json 解锁 32k 上下文记忆05Claude Code + GLM4.7 避坑指南：解决 Unable to connect to Anthropic services06OpenClaw优化飞书API 额度已耗尽问题07小黑课堂计算机二级WPSoffice题库软件下载安装教程（2026年3月最新版）08Clawdbot部署教程：解决‘gateway token missing’授权问题的完整步骤09Window 10部署openclaw报错node.exe : npm error code 12810OpenClaw大龙虾机器人完整安装教程
