记一次Redis连接泄露问题排查

背景

最近由于人员变动，我接手了一个历史较久的内部系统。在一次日常工作中，其他项目的开发和测试环境 Redis 频繁出现以下超时错误：

plain 复制代码

org.springframework.dao.QueryTimeoutException: Redis command timed out; nested exception is io.lettuce.core.RedisCommandTimeoutException: Command timed out after 6 second(s)

运维分析后发现，该系统与 Redis 建立了上万个连接，将连接池完全占满，导致其他服务无法正常使用 Redis。

问题排查

初步猜测

由于该系统是内部系统，并发量很低，因此怀疑是连接泄漏引起的。可能的原因包括：

定时任务频繁执行
Redis 使用不当（如未正确关闭连接）
服务长时间未重启，积累了大量未被释放的连接

初步检查代码发现，业务中使用的 JedisCluster 已配置连接池 JedisPoolConfig，看似没有问题。

java 复制代码

@Bean
public JedisCluster jedisCluster() {
    logger.info("****************************redis开始注入配置************************************************ ");
    try {
        JedisPoolConfig poolConfig = new JedisPoolConfig();
        poolConfig.setMaxIdle(poolMaxIdle);
        poolConfig.setMinIdle(poolMinIdle);
        String[] nodes = clusterNodes.split(",");
        if (nodes.length < 1) {
            throw new IllegalArgumentException("Configure at least one clusterNodes !");
        }

        Set<HostAndPort> list = new HashSet();
        String[] var4 = nodes;
        int var5 = nodes.length;

        for (int var6 = 0; var6 < var5; ++var6) {
            String node = var4[var6];
            String[] urls = node.split(":");
            if (urls.length < 2) {
                throw new IllegalArgumentException("The redis url must contain both host and port !");
            }
            list.add(new HostAndPort(urls[0], Integer.valueOf(urls[1])));
        }
        logger.info("****************************redis成功注入配置************************************************ ");
        return new JedisCluster(list, 10000, 10000, 5, password, poolConfig);
    } catch (Exception var9) {
        logger.error(var9.toString(), var9);
        throw var9;
    }
}

日志分析

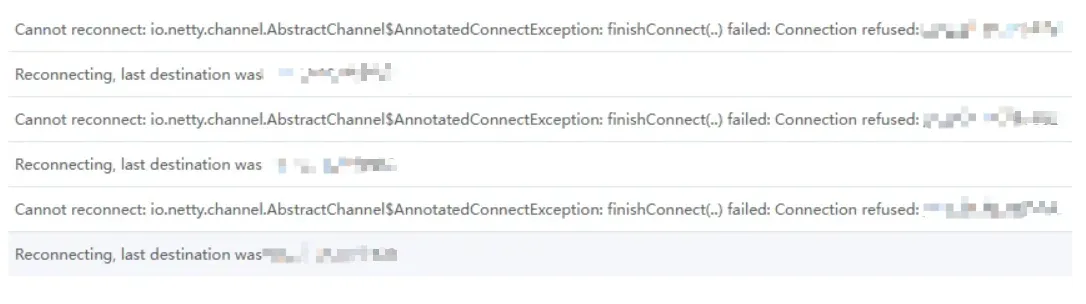

从日志中发现满屏打印的都是连接失败，表明服务在不断尝试重连 Redis。
重启服务后，主要发现两类错误：
- RedisMessageListenerContainer监听 Redis 订阅任务时连接异常，并持续重试。
- Spring Session 定时清理过期 Session 时抛出 Redis 连接异常，且 Lettuce 在解析 Redis 返回结果时出现"不可变集合"错误。

关键错误栈显示，异常最终源于 io.lettuce.core.output.ArrayOutput.set 中调用 AbstractList.add 时抛出 UnsupportedOperationException。

plain 复制代码

ERROR[redisMessageListenerContainer-9] RedisMessageListenerContainer.handleSubscriptionException(651) - Connection failure occurred. Restarting subscription task after 5000 ms
ERROR[redisMessageListenerContainer-10] RedisMessageListenerContainer.handleSubscriptionException(651) - Connection failure occurred. Restarting subscription task after 5000 ms
ERROR[pool-15-thread-1] TaskUtils$LoggingErrorHandler.handleError(96) - Unexpected error occurred in scheduled task.
org.springframework.data.redis.RedisConnectionFailureException: Unable to connect to Redis; nested exception is io.lettuce.core.RedisConnectionException: Unable to connect
   at org.springframework.data.redis.connection.lettuce.LettuceConnectionFactory$SharedConnection.getNativeConnection(LettuceConnectionFactory.java:1112)
   at org.springframework.data.redis.connection.lettuce.LettuceConnectionFactory$SharedConnection.getConnection(LettuceConnectionFactory.java:1091)
   at org.springframework.data.redis.connection.lettuce.LettuceConnectionFactory.getClusterConnection(LettuceConnectionFactory.java:369)
   at org.springframework.data.redis.connection.lettuce.LettuceConnectionFactory.getConnection(LettuceConnectionFactory.java:339)
   at org.springframework.data.redis.core.RedisConnectionUtils.doGetConnection(RedisConnectionUtils.java:134)
   at org.springframework.data.redis.core.RedisConnectionUtils.getConnection(RedisConnectionUtils.java:97)
   at org.springframework.data.redis.core.RedisConnectionUtils.getConnection(RedisConnectionUtils.java:84)
   at org.springframework.data.redis.core.RedisTemplate.execute(RedisTemplate.java:212)
   at org.springframework.data.redis.core.RedisTemplate.execute(RedisTemplate.java:185)
   at org.springframework.data.redis.core.AbstractOperations.execute(AbstractOperations.java:96)
   at org.springframework.data.redis.core.DefaultSetOperations.members(DefaultSetOperations.java:158)
   at org.springframework.data.redis.core.DefaultBoundSetOperations.members(DefaultBoundSetOperations.java:152)
   at org.springframework.session.data.redis.RedisSessionExpirationPolicy.cleanExpiredSessions(RedisSessionExpirationPolicy.java:132)
   at org.springframework.session.data.redis.RedisOperationsSessionRepository.cleanupExpiredSessions(RedisOperationsSessionRepository.java:430)
   at org.springframework.session.data.redis.config.annotation.web.http.RedisHttpSessionConfiguration.lambda$configureTasks$0(RedisHttpSessionConfiguration.java:248)
   at org.springframework.scheduling.support.DelegatingErrorHandlingRunnable.run(DelegatingErrorHandlingRunnable.java:54)
   at org.springframework.scheduling.concurrent.ReschedulingRunnable.run(ReschedulingRunnable.java:93)
   at java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:511)
   at java.util.concurrent.FutureTask.run(FutureTask.java:266)
   at java.util.concurrent.ScheduledThreadPoolExecutor$ScheduledFutureTask.access$201(ScheduledThreadPoolExecutor.java:180)
   at java.util.concurrent.ScheduledThreadPoolExecutor$ScheduledFutureTask.run(ScheduledThreadPoolExecutor.java:293)
   at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
   at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
   at java.lang.Thread.run(Thread.java:750)
Caused by: io.lettuce.core.RedisConnectionException: Unable to connect
   at io.lettuce.core.RedisConnectionException.create(RedisConnectionException.java:94)
   at io.lettuce.core.AbstractRedisClient.getConnection(AbstractRedisClient.java:262)
   at io.lettuce.core.cluster.RedisClusterClient.connect(RedisClusterClient.java:348)
   at org.springframework.data.redis.connection.lettuce.ClusterConnectionProvider.getConnection(ClusterConnectionProvider.java:85)
   at org.springframework.data.redis.connection.lettuce.LettuceConnectionFactory$SharedConnection.getNativeConnection(LettuceConnectionFactory.java:1110)
   ... 23 common frames omitted
Caused by: java.lang.UnsupportedOperationException: null
   at java.util.AbstractList.add(AbstractList.java:148)
   at java.util.AbstractList.add(AbstractList.java:108)
   at io.lettuce.core.output.ArrayOutput.set(ArrayOutput.java:54)
   at io.lettuce.core.protocol.RedisStateMachine.safeSet(RedisStateMachine.java:357)
   at io.lettuce.core.protocol.RedisStateMachine.decode(RedisStateMachine.java:138)
   at io.lettuce.core.protocol.CommandHandler.decode(CommandHandler.java:708)
   at io.lettuce.core.protocol.CommandHandler.decode0(CommandHandler.java:672)
   at io.lettuce.core.protocol.CommandHandler.decode(CommandHandler.java:658)
   at io.lettuce.core.protocol.CommandHandler.decode(CommandHandler.java:587)
   at io.lettuce.core.protocol.CommandHandler.channelRead(CommandHandler.java:556)
   at io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:379)
   at io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:365)
   at io.netty.channel.AbstractChannelHandlerContext.fireChannelRead(AbstractChannelHandlerContext.java:357)
   at io.netty.channel.DefaultChannelPipeline$HeadContext.channelRead(DefaultChannelPipeline.java:1410)
   at io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:379)
   at io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:365)
   at io.netty.channel.DefaultChannelPipeline.fireChannelRead(DefaultChannelPipeline.java:919)
   at io.netty.channel.epoll.AbstractEpollStreamChannel$EpollStreamUnsafe.epollInReady(AbstractEpollStreamChannel.java:795)
   at io.netty.channel.epoll.EpollEventLoop.processReady(EpollEventLoop.java:475)
   at io.netty.channel.epoll.EpollEventLoop.run(EpollEventLoop.java:378)
   at io.netty.util.concurrent.SingleThreadEventExecutor$4.run(SingleThreadEventExecutor.java:989)
   at io.netty.util.internal.ThreadExecutorMap$2.run(ThreadExecutorMap.java:74)
   at io.netty.util.concurrent.FastThreadLocalRunnable.run(FastThreadLocalRunnable.java:30)
   ... 1 common frames omitted

在 Pod 中执行命令统计 Redis 连接数，确认连接数持续增长，验证了"连接泄漏"的猜测。

netstat -anp | grep {redis端口} | wc -l

源码追踪：为什么连接没有正确释放？

在Spring中默认的Redis客户端使用的是Lettuce。为了简化，这里只粘一些主要的代码。

RedisMessageListenerContainer

通过异常信息RedisMessageListenerContainer.handleSubscriptionException找到具体的源码：

订阅任务 (SubscriptionTask) 在异常时会调用 handleSubscriptionException 尝试关闭连接并重试。

java 复制代码

public class RedisMessageListenerContainer implements InitializingBean, DisposableBean, BeanNameAware, SmartLifecycle {
// ...
    private class SubscriptionTask implements SchedulingAwareRunnable {
        // ...
        public void run() {

			synchronized (localMonitor) {
				subscriptionTaskRunning = true;
			}

			try {
                // 重点1：通过connectFactory获取连接
				connection = connectionFactory.getConnection();
				if (connection.isSubscribed()) {
					throw new IllegalStateException("Retrieved connection is already subscribed; aborting listening");
				}

				boolean asyncConnection = ConnectionUtils.isAsync(connectionFactory);

				// NB: sync drivers' Xsubscribe calls block, so we notify the RDMLC before performing the actual subscription.
				if (!asyncConnection) {
					synchronized (monitor) {
						monitor.notify();
					}
				}

				SubscriptionPresentCondition subscriptionPresent = eventuallyPerformSubscription();

				if (asyncConnection) {
					SpinBarrier.waitFor(subscriptionPresent, getMaxSubscriptionRegistrationWaitingTime());

					synchronized (monitor) {
						monitor.notify();
					}
				}
			} catch (Throwable t) {
                // 重点2：出现异常时会执行handleSubscriptionException处理
				handleSubscriptionException(t);
			} finally {
				// this block is executed once the subscription thread has ended, this may or may not mean
				// the connection has been unsubscribed, depending on driver
				synchronized (localMonitor) {
					subscriptionTaskRunning = false;
					localMonitor.notify();
				}
			}
		}
    }
}

handleSubscriptionException源码

handleSubscriptionException中会关闭连接，并且如果异常是RedisConnectionFailureException会sleep5秒后重试。

java 复制代码

protected void handleSubscriptionException(Throwable ex) {
    listening = false;
    // 1. 关闭连接
    subscriptionTask.closeConnection();
    if (ex instanceof RedisConnectionFailureException) {
        if (isRunning()) {
            logger.error("Connection failure occurred. Restarting subscription task after " + recoveryInterval + " ms");
            2. sleep一段时间，默认5s
            sleepBeforeRecoveryAttempt();
            3. 重试
            lazyListen();
        }
    } else {
        logger.error("SubscriptionTask aborted with exception:", ex);
    }
}


void closeConnection() {
    if (connection != null) {
        logger.trace("Closing connection");
        try {
            connection.close();
        } catch (Exception e) {
            logger.warn("Error closing subscription connection", e);
        }
        connection = null;
    }
}

Spring Session 清理任务

cleanExpiredSessions的逻辑：

主要就是读取过期的会话并删除，这里最终会使用的是RedisTemplate中的execute方法。

java 复制代码

public void cleanExpiredSessions() {
		long now = System.currentTimeMillis();
		long prevMin = roundDownMinute(now);

		if (logger.isDebugEnabled()) {
			logger.debug("Cleaning up sessions expiring at " + new Date(prevMin));
		}

		String expirationKey = getExpirationKey(prevMin);
        // 1. 查询过期的会话
		Set<Object> sessionsToExpire = this.redis.boundSetOps(expirationKey).members();
		// 2. 删除
        this.redis.delete(expirationKey);
		for (Object session : sessionsToExpire) {
			String sessionKey = getSessionKey((String) session);
            // 3. 确保过期的会话 Key 被及时清理 （redis惰性删除）
			touch(sessionKey);
		}
	}

execute方法：

清理任务通过 RedisTemplate.execute 执行，最终会调用 RedisConnectionUtils.releaseConnection 释放连接。

java 复制代码

public <T> T execute(RedisCallback<T> action, boolean exposeConnection, boolean pipeline) {

    RedisConnectionFactory factory = getRequiredConnectionFactory();
    RedisConnection conn = null;
    try {

        // 1. 获取连接
        if (enableTransactionSupport) {
            // only bind resources in case of potential transaction synchronization
            conn = RedisConnectionUtils.bindConnection(factory, enableTransactionSupport);
        } else {
            conn = RedisConnectionUtils.getConnection(factory);
        }

        boolean existingConnection = TransactionSynchronizationManager.hasResource(factory);

        RedisConnection connToUse = preProcessConnection(conn, existingConnection);

        boolean pipelineStatus = connToUse.isPipelined();
        if (pipeline && !pipelineStatus) {
            connToUse.openPipeline();
        }

        RedisConnection connToExpose = (exposeConnection ? connToUse : createRedisConnectionProxy(connToUse));
        T result = action.doInRedis(connToExpose);

        // close pipeline
        if (pipeline && !pipelineStatus) {
            connToUse.closePipeline();
        }

        // TODO: any other connection processing?
        return postProcessResult(result, connToUse, existingConnection);
    } finally {
        // 2. 最终会释放连接
        RedisConnectionUtils.releaseConnection(conn, factory, enableTransactionSupport);
    }
}


public static RedisConnection doGetConnection(RedisConnectionFactory factory, boolean allowCreate, boolean bind,
			boolean transactionSupport) {
        // ... 省略其他代码
		RedisConnection conn = factory.getConnection();
        // ... 省略其他代码
		return conn;
}

从源码逻辑上看，两种场景（handleSubscriptionException 和 RedisConnectionUtils.releaseConnection）确实都设计了在异常时关闭或释放连接的流程。那么，为什么实际连接却未被关闭呢？

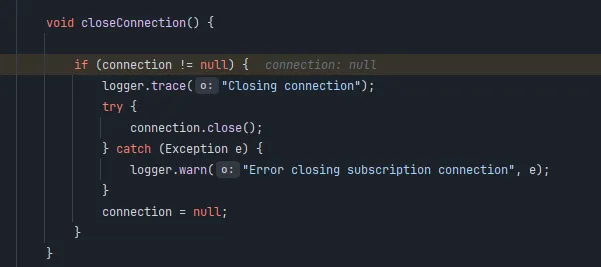

通过 Debug 跟踪，我发现在这两种异常处理流程中，尝试获取到的 connection 对象竟然都是 null。既然连接对象根本不存在，那么后续所有旨在关闭它的代码自然都无从执行。

handleSubscriptionException.closeConnection()

RedisConnectionUtils.releaseConnection()

Spring使用Lettuce连接

Spring 默认使用 Lettuce 作为 Redis 客户端，且采用共享连接模式。
每次获取连接时，会检查是否存在可用连接，若不存在则新建。
调试发现，由于 Lettuce 在创建连接后尝试获取 Redis 命令详情时发生异常（UnsupportedOperationException），该异常向上抛出，导致 connection 未被正确赋值，始终为 null。
因此，每次请求都会触发创建新连接，且异常连接从未被关闭，最终造成泄漏。

java 复制代码

@Override
	public RedisClusterConnection getClusterConnection() {

		if (!isClusterAware()) {
			throw new InvalidDataAccessApiUsageException("Cluster is not configured!");
		}

		RedisClusterClient clusterClient = (RedisClusterClient) client;

		return getShareNativeConnection()
				? new LettuceClusterConnection(
						(StatefulRedisClusterConnection<byte[], byte[]>) getOrCreateSharedConnection().getConnection(),
						connectionProvider, clusterClient, clusterCommandExecutor, clientConfiguration.getCommandTimeout())
				: new LettuceClusterConnection(null, connectionProvider, clusterClient, clusterCommandExecutor,
						clientConfiguration.getCommandTimeout());
	}

@Nullable
StatefulConnection<E, E> getConnection() {

    synchronized (this.connectionMonitor) {

        if (this.connection == null) {
            this.connection = getNativeConnection();
        }

        if (getValidateConnection()) {
            validateConnection();
        }

        return this.connection;
    }
}

private <K, V> CompletableFuture<StatefulRedisClusterConnection<K, V>> connectClusterAsync(RedisCodec<K, V> codec) {
    // ... 省略
        return connectionMono
                .flatMap(c -> c.reactive().command().collectList() // 获取 Redis 服务器支持的命令详情
                        .map(CommandDetailParser::parse) //
                        .doOnNext(detail -> c.setState(new RedisState(detail))) //
                                .doOnError(e -> c.setState(new RedisState(Collections.emptyList()))).then(Mono.just(c))
                                .onErrorResume(RedisCommandExecutionException.class, e -> Mono.just(c)))
                .doOnNext(
                        c -> connection.registerCloseables(closeableResources, clusterWriter, pooledClusterConnectionProvider))
                .map(it -> (StatefulRedisClusterConnection<K, V>) it).toFuture();
    }

结论

根因定位

根本原因是 Lettuce 5.1.8 版本的一个兼容性 Bug：

在该版本中，Lettuce 创建连接后会立即查询 Redis 服务器支持的命令列表，并在解析响应时尝试修改一个不可变集合，从而抛出 UnsupportedOperationException。
该异常导致连接对象未能正常初始化，进而无法被 Spring 正确管理和释放。
近期公司 Redis 集群升级至 7.x，而该服务仍使用较旧的 Spring Boot 2.1.21（内含 Lettuce 5.1.8），两者之间的兼容性问题触发此 Bug。

解决方案

升级 Spring Boot 至 2.3.11.RELEASE（对应的 Lettuce 版本已修复该问题），重新部署后连接数恢复正常。
参考 https://blog.gitcode.com/00e88817cf6867be0a9fce2b1efdfcc8.html

总结与思考

总结

本质问题是Lettuce 5.1.8中的bug：

Lettuce在处理某些Redis命令响应时，尝试修改一个不可变的列表结构，这是设计上的缺陷。

升级后的Lettuce：

解决了ArrayOutput中尝试修改一个不可变的列表结构的问题
不在创建连接时提前获取Redis中的命令

思考

使用框架和中间件的版本需要同步更新
我们在开发基础服务时作为能力的提供方一定要做好善后工作，不能一味的往上抛异常。站在Spring Redis的角度，既然Lettuce抛了连接异常，那确实可以认为连接并没有建立。
在一般场景下最好使用连接池
