Paimon源码解读 -- FULL_COMPACTION_DELTA_COMMITS

前言

本文重点介绍Paimon压缩参数full-compaction.delta-commits的整体调用流程，涉及到CompactTask的详情：Paimon源码解读 -- Compaction-1.MergeTreeCompactTask

一.`full-compaction.delta-commits` 参数源码分析

1️.参数定义（CoreOptions）

java 复制代码

public static final ConfigOption<Integer> FULL_COMPACTION_DELTA_COMMITS =
    key("full-compaction.delta-commits")
        .intType()
        .noDefaultValue()  // 没有默认值
        .withDescription(
            "Full compaction will be constantly triggered after delta commits.");

关键信息：

参数类型 ：Integer
默认值 ：无（noDefaultValue()）
含义：经过指定数量的 delta 提交后，触发一次全量压缩

2.入口`FlinkSink.createWriteProvider()`

CASE-1: write-only = true，后续走专用压缩任务

CASE-2: write-only = false，走自动压缩

优先使用 full-compaction.delta-commits 参数，其次使用 compaction.optimization-interval 参数

deltaCommits参数取值

等于full-compaction.delta-commits

等于(compaction.optimization-interval / cp间隔)取整

先判断是否配置了changelog-producer = full-compaction 或配置了任意上面两个参数，走GlobalFullCompactionSinkWrite
再判断是否配置了force-lookup = true 且 lookup-wait = false才走异步AsyncLookupSinkWrite

最后兜底StoreSinkWriteImpl

java 复制代码

private StoreSinkWrite.Provider createWriteProvider(
        CheckpointConfig checkpointConfig, boolean isStreaming, boolean hasSinkMaterializer) {
    SerializableRunnable assertNoSinkMaterializer =
            () ->
                    Preconditions.checkArgument(
                            !hasSinkMaterializer,
                            String.format(
                                    "Sink materializer must not be used with Paimon sink. "
                                            + "Please set '%s' to '%s' in Flink's config.",
                                    ExecutionConfigOptions.TABLE_EXEC_SINK_UPSERT_MATERIALIZE
                                            .key(),
                                    ExecutionConfigOptions.UpsertMaterialize.NONE.name()));

    Options options = table.coreOptions().toConfiguration();
    ChangelogProducer changelogProducer = table.coreOptions().changelogProducer();
    boolean waitCompaction;
    CoreOptions coreOptions = table.coreOptions();
    // CASE-1: write-only = true，后续走专用压缩任务
    if (coreOptions.writeOnly()) {
        waitCompaction = false;
    }
    // CASE-2: write-only = false，走自动压缩
    else {
        waitCompaction = coreOptions.prepareCommitWaitCompaction();
        int deltaCommits = -1;
        // 优先使用 full-compaction.delta-commits 参数
        if (options.contains(FULL_COMPACTION_DELTA_COMMITS)) {
            deltaCommits = options.get(FULL_COMPACTION_DELTA_COMMITS);
        }
        // 其次使用 compaction.optimization-interval 参数
        else if (options.contains(CHANGELOG_PRODUCER_FULL_COMPACTION_TRIGGER_INTERVAL)) {
            long fullCompactionThresholdMs =
                    options.get(CHANGELOG_PRODUCER_FULL_COMPACTION_TRIGGER_INTERVAL).toMillis();
            // 根据 checkpoint 间隔将时间转换为提交次数 = compaction.optimization-interval / cp间隔
            deltaCommits =
                    (int)
                            (fullCompactionThresholdMs
                                    / checkpointConfig.getCheckpointInterval());
        }
        // (1) 若配置了changelog-producer = full-compaction 或 配置了上面两个参数，走GlobalFullCompactionSinkWrite
        if (changelogProducer == ChangelogProducer.FULL_COMPACTION || deltaCommits >= 0) {
            int finalDeltaCommits = Math.max(deltaCommits, 1);
            return (table, commitUser, state, ioManager, memoryPool, metricGroup) -> {
                assertNoSinkMaterializer.run();
                return new GlobalFullCompactionSinkWrite(
                        table,
                        commitUser,
                        state,
                        ioManager,
                        ignorePreviousFiles,
                        waitCompaction,
                        finalDeltaCommits, // 传递deltaCommits参数
                        isStreaming,
                        memoryPool,
                        metricGroup);
            };
        }
    }

    // (2) 若配置了force-lookup = true 且 lookup-wait = false才走异步AsyncLookupSinkWrite
    if (coreOptions.needLookup() && !coreOptions.prepareCommitWaitCompaction()) {
        return (table, commitUser, state, ioManager, memoryPool, metricGroup) -> {
            assertNoSinkMaterializer.run();
            return new AsyncLookupSinkWrite(
                    table,
                    commitUser,
                    state,
                    ioManager,
                    ignorePreviousFiles,
                    waitCompaction,
                    isStreaming,
                    memoryPool,
                    metricGroup);
        };
    }
    // CASE-1最后走这
    return (table, commitUser, state, ioManager, memoryPool, metricGroup) -> {
        assertNoSinkMaterializer.run();
        return new StoreSinkWriteImpl(
                table,
                commitUser,
                state,
                ioManager,
                ignorePreviousFiles,
                waitCompaction,
                isStreaming,
                memoryPool,
                metricGroup);
    };
}

3.`GlobalFullCompactionSinkWrite`提交全量压缩任务

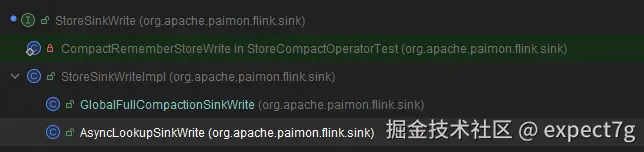

该类的继承关系如下

(1) `prepareCommit()` -- 每次cp都检查是否需要提交全量压缩任务

步骤如下

检查之前提交的全量压缩是否成功
收集当前cp阶段前所有已经写入的buckets -- 赋值给writtenBuckets
判断是否应该触发全量压缩

判断依据: writtenBuckets 不为空，且当前cpid % deltaCommits==0 时提交触发一次全量压缩，例如：deltaCommits=5，则在 checkpointId=5,10,15,20... 时触发

需要触发全量压缩，调submitFullCompaction()去提交全量压缩任务

java 复制代码

@Override
public List<Committable> prepareCommit(boolean waitCompaction, long checkpointId)
        throws IOException {
    // 1.检查之前提交的全量压缩是否成功
    checkuccessfulFullCompaction();

    // 2.收集当前cp阶段写入的buckets
    if (!currentWrittenBuckets.isEmpty()) {
        writtenBuckets
                .computeIfAbsent(checkpointId, k -> new HashSet<>())
                .addAll(currentWrittenBuckets);
        currentWrittenBuckets.clear();
    }

    if (LOG.isDebugEnabled()) {
        for (Map.Entry<Long, Set<Tuple2<BinaryRow, Integer>>> checkpointIdAndBuckets :
                writtenBuckets.entrySet()) {
            LOG.debug(
                    "Written buckets for checkpoint #{} are:", checkpointIdAndBuckets.getKey());
            for (Tuple2<BinaryRow, Integer> bucket : checkpointIdAndBuckets.getValue()) {
                LOG.debug("  * partition {}, bucket {}", bucket.f0, bucket.f1);
            }
        }
    }
    // 3.判断是否应该触发全量压缩
    // 判断依据: 当前writtenBuckets不为null 且 (checkpointId % deltaCommits == 0 || checkpointId == Long.MAX_VALUE)
    // isFullCompactedIdentifier()作用: 每隔 deltaCommits 次提交触发一次全量压缩
    // 例如：deltaCommits=5，则在 checkpointId=5,10,15,20... 时触发
    if (!writtenBuckets.isEmpty() && isFullCompactedIdentifier(checkpointId, deltaCommits)) {
        waitCompaction = true;
    }
    // 4.调`submitFullCompaction()`去提交全量压缩任务
    if (waitCompaction) {
        if (LOG.isDebugEnabled()) {
            LOG.debug("Submit full compaction for checkpoint #{}", checkpointId);
        }
        submitFullCompaction(checkpointId);
        commitIdentifiersToCheck.add(checkpointId);
    }

    return super.prepareCommit(waitCompaction, checkpointId);
}

(2) `submitFullCompaction()`

它其实还是调父类StoreSinkWriteImpl的属性TableWriteImpl对每个bucket桶执行全量压缩操作

java 复制代码

private void submitFullCompaction(long currentCheckpointId) {
    if (LOG.isDebugEnabled()) {
        LOG.debug("Submit full compaction for checkpoint #{}", currentCheckpointId);
    }
    // compactedBuckets存储当次压缩任务要压缩的buckets是哪些
    Set<Tuple2<BinaryRow, Integer>> compactedBuckets = new HashSet<>();
    // 遍历所有历史写入的 buckets
    writtenBuckets.forEach(
            (checkpointId, buckets) -> {
                for (Tuple2<BinaryRow, Integer> bucket : buckets) {
                    if (compactedBuckets.contains(bucket)) {
                        continue; // 避免重复压缩
                    }
                    compactedBuckets.add(bucket);
                    try {
                        // 调父类StoreSinkWriteImpl的属性TableWriteImpl对每个bucket桶执行全量压缩操作
                        write.compact(bucket.f0, bucket.f1, true);// true表示执行fullCompaction
                    } catch (Exception e) {
                        throw new RuntimeException(e);
                    }
                }
            });
}

4.`TableWriteImpl.compact()`

作用：调FileStoreWrite的实现类的compact()

java 复制代码

@Override
public void compact(BinaryRow partition, int bucket, boolean fullCompaction) throws Exception {
    // 这里的write是FileStoreWrite的实现类，如KeyValueFileStoreWrite
    write.compact(partition, bucket, fullCompaction);
}

5.`FileStoreWrite实现类的compact()`

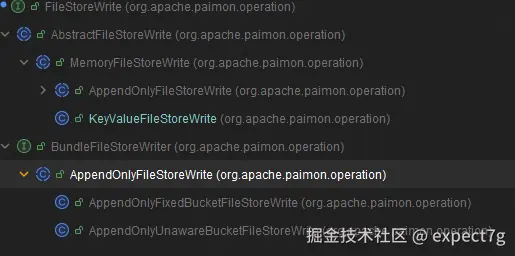

这是个接口，其实现类如下

下面看AbstractFileStoreWrite实现的comapct()，涉及KeyValueFileStoreWrite详情请看Paimon源码解读 -- KeyValueFileStoreWrite

步骤如下:

先调getWriterWrapper()获取对应partition-bucket的WriterContainer(其实就是RecordWriter包装起来)
用其的RecordWriter实现类如MergeTreeWriter的compact()进行压缩，并传入fullCompaction表示是否需要全量压缩

java 复制代码

@Override
public void compact(BinaryRow partition, int bucket, boolean fullCompaction) throws Exception {
    // 1.先调getWriterWrapper()获取对于partition-bucket的WriterContainer
    // 2.用其中的MergeTreeWriter实现类的compact方法进行压缩，并传入fullCompaction是否需要全量压缩
    getWriterWrapper(partition, bucket).writer.compact(fullCompaction);
}

// 调用的getWriterWrapper()
protected WriterContainer<T> getWriterWrapper(BinaryRow partition, int bucket) {
    // 1.获取当前对应partition的buckets
    Map<Integer, WriterContainer<T>> buckets = writers.get(partition);
    if (buckets == null) {
        buckets = new HashMap<>();
        writers.put(partition.copy(), buckets);
    }
    // 2.为每个bucket创建WriterContainer对象(其实就是RecordWriter包装起来)
    return buckets.computeIfAbsent(
            bucket, k -> createWriterContainer(partition.copy(), bucket, ignorePreviousFiles));
}

6.`RecordWriter实现类的compact()`

这是个接口，其实现类如下

下面以MergeTreeWriter为例

(1) `compact()`

java 复制代码

@Override
public void compact(boolean fullCompaction) throws Exception {
    // 调flushWriteBuffer(true, fullCompaction)
    flushWriteBuffer(true, fullCompaction);
}

(2) `flushWriteBuffer()` -- 核心流程

这是触发压缩的核心流程，其步骤如下

检查是否需要等待最近的压缩

如果配置的是write-only=true，则不需要等待；

其他情况，则进一步判断，当前levels的Sorted Run文件数 > num-sorted-run.stop-trigger比较，则需要等待压缩；否则，不需要

用KeyValueFileWriterFactory去创建的Writer(changelog、Merge)
将writeBuffer缓冲区的数据写入到文件中，用创建的writer去写入到L0层
调writer.result()收集写入后的DataFileMeta文件数据并将这些文件添加到 CompactManager实现类，以便后续压缩执行
调trySyncLatestCompaction(waitForLatestCompaction)等待之前的压缩任务完成
调CompactManager实现类的triggerCompaction()去触发新压缩，携带是否全量压缩参数，详情请看Paimon源码解读 -- CompactManager

java 复制代码

/**
 * 压缩的核心触发代码,compact()中调用该方法
 * @param waitForLatestCompaction: 是否等待最近的压缩完成
 * @param forcedFullCompaction: 是否全量压缩
 * @throws Exception
 */
private void flushWriteBuffer(boolean waitForLatestCompaction, boolean forcedFullCompaction)
        throws Exception {
    if (writeBuffer.size() > 0) {
        // 1.检查是否需要等待最近的压缩
        // 如果配置的是write-only=true，则不需要等待；
        // 其他情况，则进一步判断，当前levels的Sorted Run文件数 > num-sorted-run.stop-trigger比较，则需要等待压缩；否则，不需要
        if (compactManager.shouldWaitForLatestCompaction()) {
            waitForLatestCompaction = true;
        }
        // 2.用KeyValueFileWriterFactory去创建的Writer
        // changelog-producer = input 且 并不是只写入+I，则需要changelogWriter去生成changelog
        final RollingFileWriter<KeyValue, DataFileMeta> changelogWriter =
                (changelogProducer == ChangelogProducer.INPUT && !isInsertOnly)
                        ? writerFactory.createRollingChangelogFileWriter(0)
                        : null;
        // 创建dataWriter，以便写入数据
        final RollingFileWriter<KeyValue, DataFileMeta> dataWriter =
                writerFactory.createRollingMergeTreeFileWriter(0, FileSource.APPEND);

        try {
            // 3.将writeBuffer缓冲区的数据写入到文件中，用writer去写入到L0层
            writeBuffer.forEach(
                    keyComparator,
                    mergeFunction,
                    changelogWriter == null ? null : changelogWriter::write,
                    dataWriter::write);
        } finally {
            writeBuffer.clear();
            if (changelogWriter != null) {
                changelogWriter.close();
            }
            dataWriter.close();
        }
        // 4.收集写入后的DataFileMeta文件数据
        List<DataFileMeta> dataMetas = dataWriter.result();
        if (changelogWriter != null) {
            newFilesChangelog.addAll(changelogWriter.result());
        } else if (changelogProducer == ChangelogProducer.INPUT && isInsertOnly) {
            List<DataFileMeta> changelogMetas = new ArrayList<>();
            for (DataFileMeta dataMeta : dataMetas) {
                String newFileName = writerFactory.newChangelogFileName(0);
                DataFileMeta changelogMeta = dataMeta.rename(newFileName);
                writerFactory.copyFile(dataMeta, changelogMeta);
                changelogMetas.add(changelogMeta);
            }
            newFilesChangelog.addAll(changelogMetas);
        }
        // 将新文件添加到 compactManager
        for (DataFileMeta dataMeta : dataMetas) {
            newFiles.add(dataMeta);
            compactManager.addNewFile(dataMeta);
        }
    }
    // 5.等待之前的压缩任务完成
    trySyncLatestCompaction(waitForLatestCompaction);
    // 6.调CompactManager实现类的triggerCompaction()去触发新压缩，携带是否全量压缩参数
    compactManager.triggerCompaction(forcedFullCompaction);
}

二.总结

(1) write-only = true

用NoopCompactManager()，不执行任何压缩操作，而是由后续专用压缩任务去执行相应的压缩操作

(2) write-only = false

write-only = false，走自动压缩，用MergeTreeCompactManager

优先使用 full-compaction.delta-commits 参数，其次使用 compaction.optimization-interval 参数

deltaCommits参数取值

等于full-compaction.delta-commits

等于(compaction.optimization-interval / cp间隔)取整

先判断是否配置了changelog-producer = full-compaction 或配置了任意上面两个参数，走GlobalFullCompactionSinkWrite
在判断是否配置了force-lookup = true 且 lookup-wait = false才走异步AsyncLookupSinkWrite

最后兜底StoreSinkWriteImpl

以GlobalFullCompactionSinkWrite为例

sequenceDiagram participant GFC as GlobalFullCompactionSinkWrite participant TW as TableWriteImpl participant AFW as AbstractFileStoreWrite participant MTW as MergeTreeWriter participant CM as MergeTreeCompactManager participant Executor as CompactExecutor GFC->>TW: compact(partition, bucket, true) TW->>AFW: write.compact(partition, bucket, true) AFW->>AFW: getWriterWrapper(partition, bucket) AFW->>MTW: writer.compact(true) MTW->>MTW: flushWriteBuffer(true, true) Note over MTW: 1. 刷写WriteBuffer到文件 MTW->>MTW: writeBuffer.forEach() -> 写入Level 0文件 MTW->>CM: addNewFile(dataMeta) Note over MTW: 2. 等待之前的压缩完成 MTW->>CM: trySyncLatestCompaction(true) Note over MTW: 3. 触发全量压缩 MTW->>CM: triggerCompaction(true) CM->>CM: pickFullCompaction() - 选择所有文件 CM->>Executor: submit(MergeTreeCompactTask) Executor-->>CM: taskFuture Note over Executor: 异步执行压缩任务
读取所有文件 -> Merge -> 写入新文件

Paimon源码解读 -- FULL_COMPACTION_DELTA_COMMITS

前言

一.full-compaction.delta-commits 参数源码分析

1️.参数定义（CoreOptions）

2.入口FlinkSink.createWriteProvider()

3.GlobalFullCompactionSinkWrite提交全量压缩任务

(1) prepareCommit() -- 每次cp都检查是否需要提交全量压缩任务

(2) submitFullCompaction()

4.TableWriteImpl.compact()

5.FileStoreWrite实现类的compact()

6.RecordWriter实现类的compact()

(1) compact()

(2) flushWriteBuffer() -- 核心流程

二.总结

(1) write-only = true

(2) write-only = false

一.`full-compaction.delta-commits` 参数源码分析

2.入口`FlinkSink.createWriteProvider()`

3.`GlobalFullCompactionSinkWrite`提交全量压缩任务

(1) `prepareCommit()` -- 每次cp都检查是否需要提交全量压缩任务

(2) `submitFullCompaction()`

4.`TableWriteImpl.compact()`

5.`FileStoreWrite实现类的compact()`

6.`RecordWriter实现类的compact()`

(1) `compact()`

(2) `flushWriteBuffer()` -- 核心流程
