文章目录

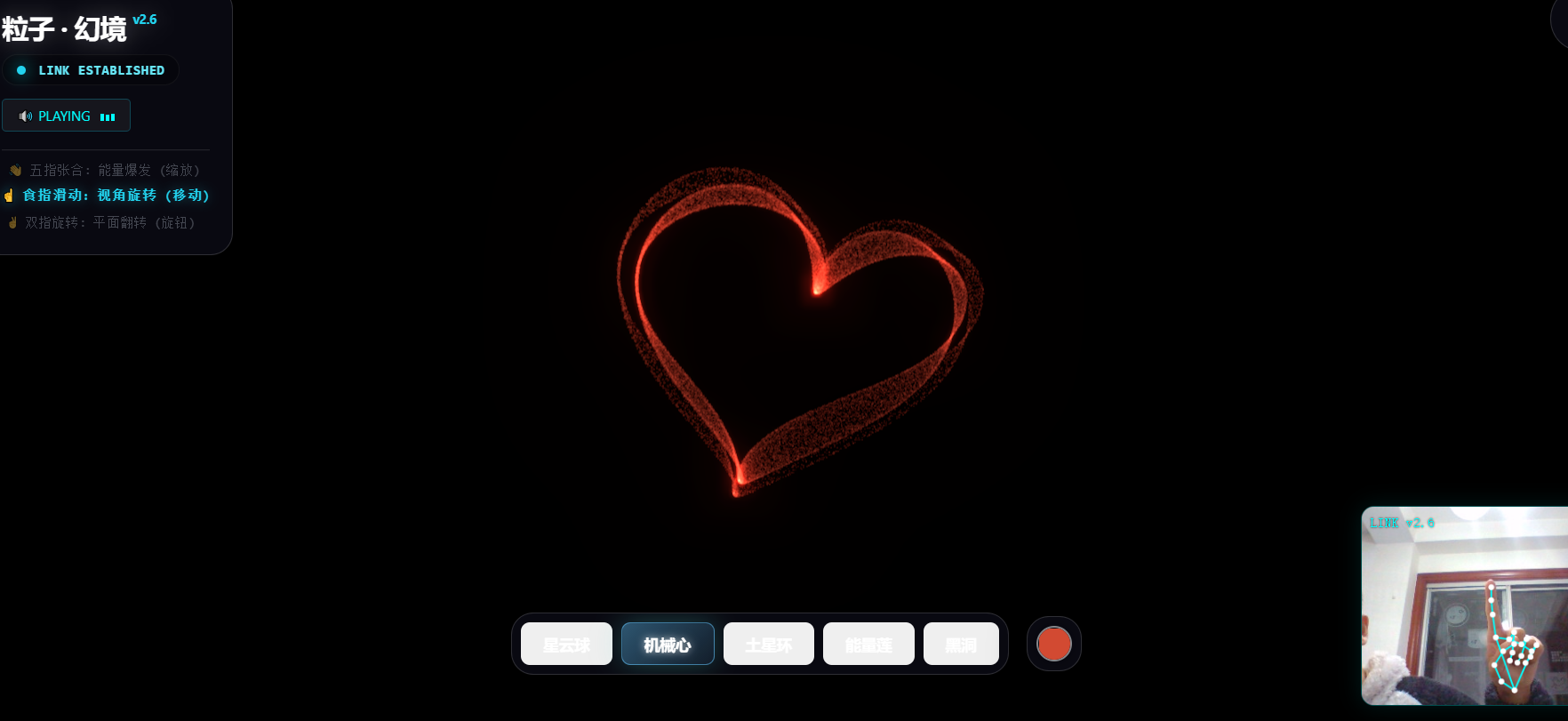

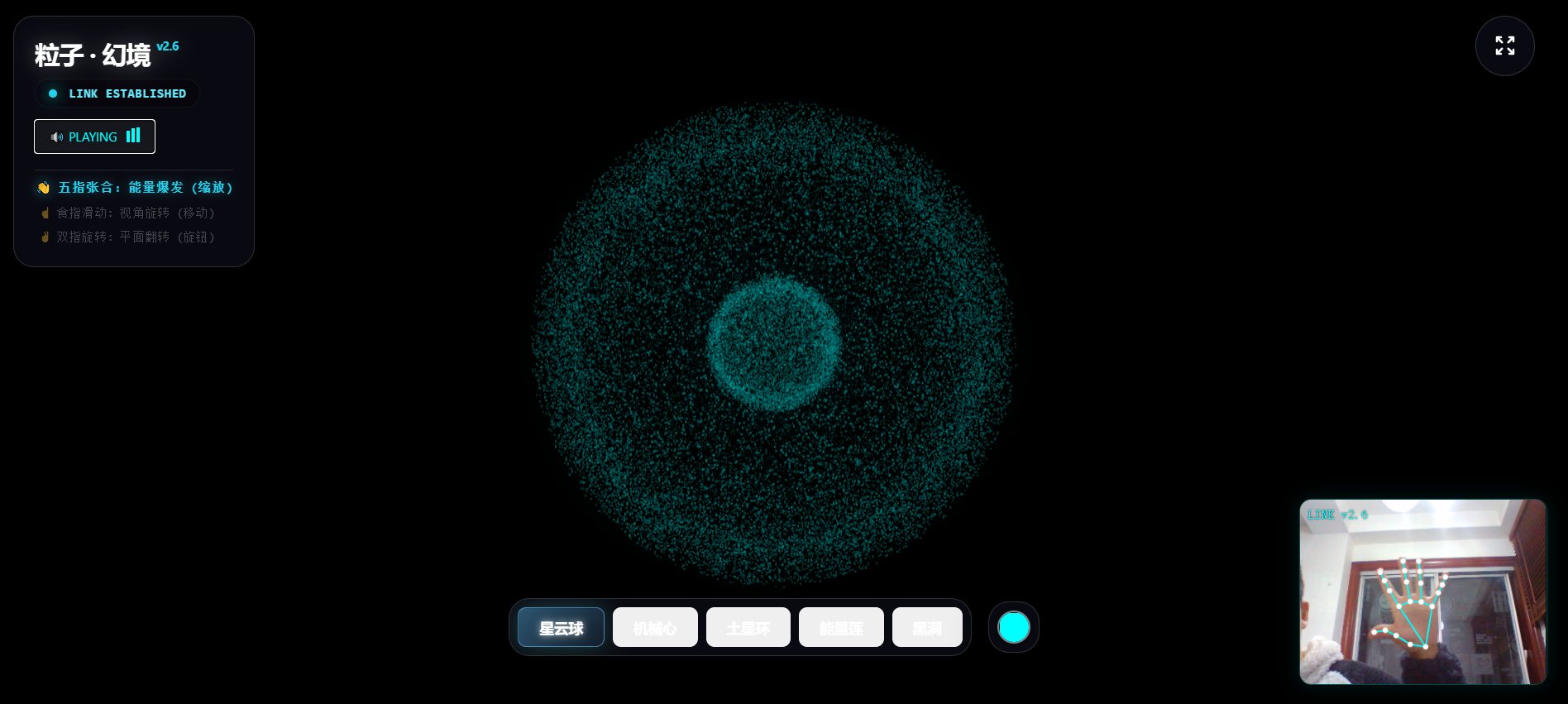

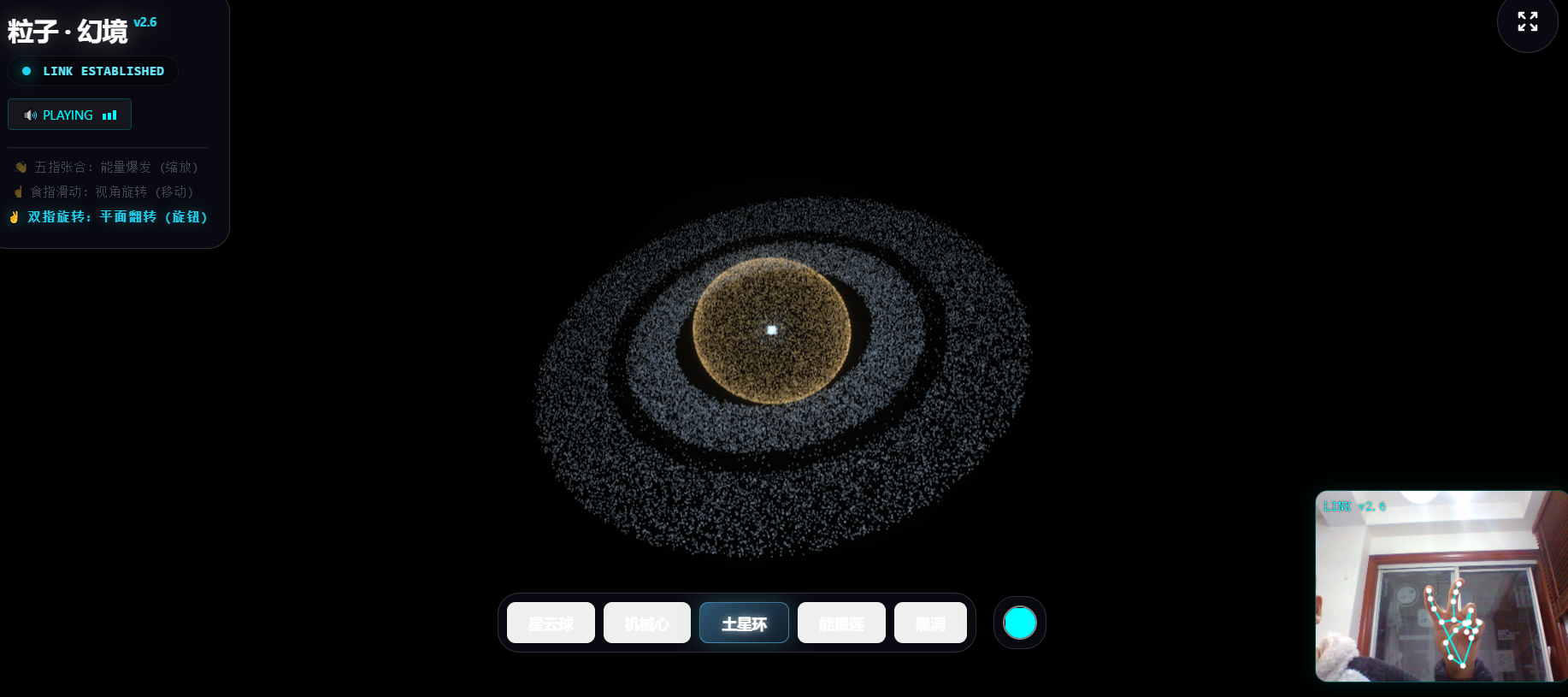

一、效果展示
5种粒子效果+3种手势控制+背景音乐+调色盘+全屏控制
二、源代码
html
<!DOCTYPE html>
<html lang="zh-CN">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>3D 粒子手势交互系统 v2.6 - 完整HUD版</title>
<script src="https://cdn.tailwindcss.com"></script>
<script async src="https://unpkg.com/es-module-shims@1.6.3/dist/es-module-shims.js"></script>
<script type="importmap">
{
"imports": {
"three": "https://cdn.jsdelivr.net/npm/three@0.154.0/build/three.module.js",
"three/addons/": "https://cdn.jsdelivr.net/npm/three@0.154.0/examples/jsm/"
}
}
</script>
<script src="https://cdn.jsdelivr.net/npm/@mediapipe/camera_utils/camera_utils.js" crossorigin="anonymous"></script>
<script src="https://cdn.jsdelivr.net/npm/@mediapipe/control_utils/control_utils.js" crossorigin="anonymous"></script>
<script src="https://cdn.jsdelivr.net/npm/@mediapipe/drawing_utils/drawing_utils.js" crossorigin="anonymous"></script>
<script src="https://cdn.jsdelivr.net/npm/@mediapipe/hands/hands.js" crossorigin="anonymous"></script>
<style>
body { margin: 0; overflow: hidden; background-color: #020205; font-family: 'Segoe UI', sans-serif; }
#canvas-container { position: absolute; top: 0; left: 0; width: 100%; height: 100%; z-index: 1; }
/* --- HUD 摄像头 (右下角) --- */
.cam-container {
position: absolute; bottom: 20px; right: 20px; width: 240px; height: 180px; z-index: 50;
border-radius: 12px; overflow: hidden; border: 1px solid rgba(0, 255, 255, 0.3);
background: rgba(0,0,0,0.8); box-shadow: 0 0 20px rgba(0, 255, 255, 0.1);
transition: opacity 0.3s; pointer-events: none;
}
#video-element, #output-canvas { position: absolute; top: 0; left: 0; width: 100%; height: 100%; transform: scaleX(-1); object-fit: cover; }
#output-canvas { z-index: 2; }
.cam-label { position: absolute; top: 5px; left: 8px; font-family: monospace; font-size: 10px; color: #00ffff; z-index: 3; text-shadow: 0 0 2px black; }
/* --- UI 通用 --- */
.glass-panel {
background: rgba(10, 10, 20, 0.85); backdrop-filter: blur(16px); -webkit-backdrop-filter: blur(16px);
border: 1px solid rgba(255, 255, 255, 0.15); border-radius: 20px; box-shadow: 0 8px 32px rgba(0, 0, 0, 0.6);
pointer-events: auto;
}
.control-btn { transition: all 0.4s cubic-bezier(0.4, 0, 0.2, 1); position: relative; overflow: hidden; cursor: pointer; }
.control-btn:hover { background: rgba(255, 255, 255, 0.2); transform: translateY(-2px); box-shadow: 0 0 20px rgba(255, 255, 255, 0.1); }
.control-btn.active {
background: linear-gradient(135deg, rgba(100, 200, 255, 0.4), rgba(100, 200, 255, 0.1));
border: 1px solid rgba(100, 200, 255, 0.5); box-shadow: 0 0 25px rgba(79, 209, 197, 0.3);
text-shadow: 0 0 8px rgba(255,255,255,0.8);
}
/* 模式提示高亮 */
.mode-item { transition: all 0.2s ease; opacity: 0.4; transform: scale(0.95); font-weight: normal; }
.mode-item.active { opacity: 1; transform: scale(1.0); color: #22d3ee; font-weight: bold; text-shadow: 0 0 10px rgba(34, 211, 238, 0.4); }
/* 音乐按钮动画 */
.playing-anim span {
display: inline-block; width: 3px; height: 10px; background-color: #00ffff; margin: 0 1px;
animation: bounce 1s infinite ease-in-out;
}
.playing-anim span:nth-child(2) { animation-delay: 0.1s; }
.playing-anim span:nth-child(3) { animation-delay: 0.2s; }
@keyframes bounce { 0%, 100% { height: 5px; } 50% { height: 15px; } }
/* 颜色选择器 */
.color-wrapper {
position: relative; width: 32px; height: 32px; border-radius: 50%; overflow: hidden;
border: 2px solid rgba(255,255,255,0.5); cursor: pointer; box-shadow: 0 0 10px rgba(0,0,0,0.3);
}
.color-wrapper:hover { transform: scale(1.1); border-color: #fff; }
input[type="color"] {
position: absolute; top: -50%; left: -50%; width: 200%; height: 200%;
padding: 0; margin: 0; border: none; cursor: pointer; opacity: 0;
}
#color-preview { width: 100%; height: 100%; background-color: #00ffff; }
.loader { border: 3px solid rgba(255, 255, 255, 0.1); border-left-color: #00ffff; border-radius: 50%; width: 50px; height: 50px; animation: spin 0.8s infinite; }
@keyframes spin { 100% { transform: rotate(360deg); } }
.custom-scroll::-webkit-scrollbar { height: 4px; }
.custom-scroll::-webkit-scrollbar-thumb { background: rgba(255,255,255,0.2); border-radius: 4px; }
</style>
</head>
<body>
<div id="canvas-container"></div>
<audio id="bgm" loop>
<source src="https://raw.githubusercontent.com/mrdoob/three.js/master/examples/sounds/376737_Skullbeatz___Bad_Cat_Maste.mp3" type="audio/mp3">
</audio>
<div class="cam-container">
<div class="cam-label">LINK v2.6</div>
<video id="video-element" playsinline></video>
<canvas id="output-canvas"></canvas>
</div>
<div id="loader-overlay" class="fixed inset-0 z-50 flex flex-col items-center justify-center bg-black bg-opacity-95 transition-opacity duration-700">
<div class="loader mb-6 shadow-[0_0_30px_rgba(0,255,255,0.3)]"></div>
<div class="text-transparent bg-clip-text bg-gradient-to-r from-cyan-300 to-blue-500 text-2xl font-bold tracking-widest uppercase">Visual Core</div>
<div class="text-gray-500 text-xs mt-3 tracking-widest">INITIALIZING INTERFACE v2.6...</div>
</div>
<div class="absolute top-0 left-0 w-full h-full pointer-events-none z-40 p-4 md:p-8 flex flex-col justify-between">
<div class="flex justify-between items-start pointer-events-auto">
<div class="glass-panel p-5 animate-fade-in-down">
<h1 class="text-white text-2xl font-bold tracking-tight mb-2 drop-shadow-[0_0_10px_rgba(255,255,255,0.3)]">粒子 · 幻境 <span class="text-xs text-cyan-400 align-top">v2.6</span></h1>
<div class="flex items-center gap-3 bg-black/30 rounded-full px-3 py-1 w-fit border border-white/5">
<div id="status-dot" class="w-2 h-2 rounded-full bg-red-500 transition-all duration-500 shadow-[0_0_10px_red]"></div>
<span id="status-text" class="text-[10px] text-gray-300 font-mono uppercase tracking-wider">Offline</span>
</div>
<button onclick="toggleMusic()" class="mt-3 flex items-center gap-2 px-3 py-1.5 rounded bg-white/5 hover:bg-white/10 text-xs text-cyan-300 border border-cyan-500/30 transition-all">
<div id="music-icon" class="text-xs">🎵 MUSIC OFF</div>
<div id="music-anim" class="playing-anim hidden"><span></span><span></span><span></span></div>
</button>
<div class="text-[10px] text-gray-400 mt-4 font-mono border-t border-white/10 pt-2 flex flex-col gap-1.5">
<div id="mode-scale" class="mode-item active">👋 五指张合: 能量爆发 (缩放)</div>
<div id="mode-rotate" class="mode-item">☝️ 食指滑动: 视角旋转 (移动)</div>
<div id="mode-roll" class="mode-item">✌️ 双指旋转: 平面翻转 (旋钮)</div>
</div>
</div>
<button onclick="toggleFullScreen()" class="glass-panel p-4 text-white hover:text-cyan-300 control-btn rounded-full group">
<svg xmlns="http://www.w3.org/2000/svg" class="h-6 w-6 group-hover:scale-110 transition-transform" fill="none" viewBox="0 0 24 24" stroke="currentColor">
<path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M4 8V4m0 0h4M4 4l5 5m11-1V4m0 0h-4m4 0l-5 5M4 16v4m0 0h4m-4 0l5-5m11 5l-5-5m5 5v-4m0 4h-4" />
</svg>
</button>
</div>
<div class="pointer-events-auto flex flex-col md:flex-row gap-4 items-end md:items-center justify-center w-full pb-4">
<div class="glass-panel p-2 flex gap-2 overflow-x-auto max-w-[70vw] custom-scroll">
<button onclick="changeShape('sphere')" class="control-btn active px-5 py-2 rounded-lg text-sm text-white font-semibold whitespace-nowrap" data-shape="sphere">星云球</button>
<button onclick="changeShape('heart')" class="control-btn px-5 py-2 rounded-lg text-sm text-white font-semibold whitespace-nowrap" data-shape="heart">机械心</button>
<button onclick="changeShape('saturn')" class="control-btn px-5 py-2 rounded-lg text-sm text-white font-semibold whitespace-nowrap" data-shape="saturn">土星环</button>
<button onclick="changeShape('lotus')" class="control-btn px-5 py-2 rounded-lg text-sm text-white font-semibold whitespace-nowrap" data-shape="lotus">能量莲</button>
<button onclick="changeShape('galaxy')" class="control-btn px-5 py-2 rounded-lg text-sm text-white font-semibold whitespace-nowrap" data-shape="galaxy">黑洞</button>
</div>
<div class="glass-panel p-2 flex items-center justify-center">
<div class="color-wrapper" title="Change Color">
<div id="color-preview"></div>
<input type="color" id="color-picker" value="#00ffff" oninput="updateColor(this.value)">
</div>
</div>
</div>
</div>
<script type="module">
import * as THREE from 'three';
import { OrbitControls } from 'three/addons/controls/OrbitControls.js';
import { EffectComposer } from 'three/addons/postprocessing/EffectComposer.js';
import { RenderPass } from 'three/addons/postprocessing/RenderPass.js';
import { UnrealBloomPass } from 'three/addons/postprocessing/UnrealBloomPass.js';
// --- Configuration ---
const PARTICLE_COUNT = 45000;
const PARTICLE_SIZE = 0.18;
const SATURN_BODY_RATIO = 0.3;
// State
let scene, camera, renderer, composer, particles, controls;
let targetPositions = [];
let targetColors = [];
let currentShape = 'sphere';
let handInfluence = 0;
let isHandDetected = false;
let clock = new THREE.Clock();
let userBaseColor = new THREE.Color(0x00ffff);
// Interaction
let rotationVelocity = { x: 0, y: 0, z: 0 };
let isTrackingRoll = false;
let previousRollAngle = 0;
let isTrackingRotate = false;
let lastCursorPos = { x: 0, y: 0 };
let currentStableMode = 'scale';
let modeFrameCounter = 0;
// Music State
let isMusicPlaying = false;
function lerp(start, end, amt) { return (1 - amt) * start + amt * end; }
// --- Music Control ---
window.toggleMusic = function() {
const audio = document.getElementById('bgm');
const icon = document.getElementById('music-icon');
const anim = document.getElementById('music-anim');
if (isMusicPlaying) {
audio.pause();
icon.innerText = "🎵 MUSIC OFF";
icon.style.color = "#a5f3fc";
anim.classList.add('hidden');
isMusicPlaying = false;
} else {
audio.volume = 0.5;
audio.play().then(() => {
icon.innerText = "🔊 PLAYING";
icon.style.color = "#00ffff";
anim.classList.remove('hidden');
isMusicPlaying = true;
}).catch(e => {
console.error("Audio Play Error:", e);
alert("无法播放音频，请检查网络或浏览器权限。");
});
}
}
async function init() {
scene = new THREE.Scene();
scene.fog = new THREE.FogExp2(0x020205, 0.02);
camera = new THREE.PerspectiveCamera(60, window.innerWidth / window.innerHeight, 0.1, 1000);
camera.position.z = 30;
renderer = new THREE.WebGLRenderer({ antialias: false, alpha: true, powerPreference: "high-performance" });
renderer.setSize(window.innerWidth, window.innerHeight);
renderer.setPixelRatio(Math.min(window.devicePixelRatio, 1.5));
document.getElementById('canvas-container').appendChild(renderer.domElement);
const renderScene = new RenderPass(scene, camera);
const bloomPass = new UnrealBloomPass(new THREE.Vector2(window.innerWidth, window.innerHeight), 1.5, 0.4, 0.85);
bloomPass.threshold = 0.05; bloomPass.strength = 1.4; bloomPass.radius = 0.6;
composer = new EffectComposer(renderer);
composer.addPass(renderScene);
composer.addPass(bloomPass);
controls = new OrbitControls(camera, renderer.domElement);
controls.enableDamping = true;
controls.dampingFactor = 0.05;
controls.autoRotate = true;
controls.autoRotateSpeed = 0.5;
createParticles();
await setupMediaPipe();
window.addEventListener('resize', onWindowResize);
animate();
}
function createParticles() {
const geometry = new THREE.BufferGeometry();
const positions = new Float32Array(PARTICLE_COUNT * 3);
const colors = new Float32Array(PARTICLE_COUNT * 3);
const initialPos = getShapePositions('sphere');
const initialColors = getShapeColors('sphere');
for (let i = 0; i < PARTICLE_COUNT; i++) {
positions[i*3] = initialPos[i*3]; positions[i*3+1] = initialPos[i*3+1]; positions[i*3+2] = initialPos[i*3+2];
colors[i*3] = initialColors[i*3]; colors[i*3+1] = initialColors[i*3+1]; colors[i*3+2] = initialColors[i*3+2];
}
geometry.setAttribute('position', new THREE.BufferAttribute(positions, 3));
geometry.setAttribute('color', new THREE.BufferAttribute(colors, 3));
const material = new THREE.PointsMaterial({
size: PARTICLE_SIZE,
map: createParticleTexture(),
color: userBaseColor,
transparent: true, opacity: 0.8,
blending: THREE.AdditiveBlending,
depthWrite: false, vertexColors: true
});
particles = new THREE.Points(geometry, material);
scene.add(particles);
targetPositions = Float32Array.from(initialPos);
targetColors = Float32Array.from(initialColors);
}
// --- 核心数学逻辑 (还原自 v2.1) ---
function getShapePositions(type) {
const pos = new Float32Array(PARTICLE_COUNT * 3);
for (let i = 0; i < PARTICLE_COUNT; i++) {
let x, y, z;
if (type === 'sphere') {
const r = 10 + Math.random() * 2;
const theta = Math.random() * Math.PI * 2;
const phi = Math.acos(2 * Math.random() - 1);
x = r * Math.sin(phi) * Math.cos(theta);
y = r * Math.sin(phi) * Math.sin(theta);
z = r * Math.cos(phi);
if (i < PARTICLE_COUNT * 0.2) { x *= 0.3; y *= 0.3; z *= 0.3; }
}
else if (type === 'heart') {
const t = Math.PI - 2 * Math.PI * Math.random();
const u = 2 * Math.PI * Math.random();
x = 16 * Math.pow(Math.sin(t), 3);
y = 13 * Math.cos(t) - 5 * Math.cos(2*t) - 2 * Math.cos(3*t) - Math.cos(4*t);
z = 6 * Math.cos(t) * Math.sin(u) * Math.sin(t);
const scale = 0.6;
x *= scale; y *= scale; z *= scale;
if (Math.random() > 0.8) { x *= 1.1; y *= 1.1; z *= 1.1; }
}
else if (type === 'saturn') {
if (i < PARTICLE_COUNT * SATURN_BODY_RATIO) {
const r = 5.5;
const theta = Math.random() * Math.PI * 2;
const phi = Math.acos(2 * Math.random() - 1);
x = r * Math.sin(phi) * Math.cos(theta);
y = r * 0.9 * Math.sin(phi) * Math.sin(theta);
z = r * Math.cos(phi);
} else {
const angle = Math.random() * Math.PI * 2;
const ringSelector = Math.random();
let r, thickness;
if (ringSelector < 0.45) {
r = 7 + Math.random() * 3.5; thickness = 0.2;
} else if (ringSelector < 0.5) {
r = 10.5 + Math.random() * 1.5; thickness = 0.1;
if (Math.random() > 0.2) { x=0;y=0;z=0; pos[i*3]=x; pos[i*3+1]=y; pos[i*3+2]=z; continue; }
} else {
r = 12 + Math.random() * 5; thickness = 0.4;
}
r += (Math.random() - 0.5) * 0.3;
x = r * Math.cos(angle);
y = (Math.random() - 0.5) * thickness;
z = r * Math.sin(angle);
const tilt = 0.4;
const y_new = y * Math.cos(tilt) - x * Math.sin(tilt);
const x_new = y * Math.sin(tilt) + x * Math.cos(tilt);
x = x_new; y = y_new;
}
}
else if (type === 'lotus') {
const u = Math.random() * Math.PI * 2;
const v = Math.random();
const petals = 7;
const rBase = 8 * (0.5 + 0.5 * Math.pow(Math.sin(petals * u * 0.5), 2)) * v;
x = rBase * Math.cos(u);
z = rBase * Math.sin(u);
y = 4 * Math.pow(v, 2) - 2;
if (i < PARTICLE_COUNT * 0.15) { x = (Math.random()-0.5); z = (Math.random()-0.5); y = (Math.random()-0.5)*10; }
}
else if (type === 'galaxy') {
const arms = 3;
const spin = i % arms;
const angleOffset = (spin / arms) * Math.PI * 2;
const dist = Math.pow(Math.random(), 0.5);
const r = dist * 20;
const angle = dist * 10 + angleOffset;
x = r * Math.cos(angle);
z = r * Math.sin(angle);
y = (Math.random() - 0.5) * (15 - r) * 0.2;
if (r < 2) y *= 0.2;
}
pos[i * 3] = x;
pos[i * 3 + 1] = y;
pos[i * 3 + 2] = z;
}
return pos;
}
function getShapeColors(type) {
const cols = new Float32Array(PARTICLE_COUNT * 3);
for (let i = 0; i < PARTICLE_COUNT; i++) {
let brightness = 0.2 + Math.random() * 0.8;
let r, g, b;
if (type === 'saturn') {
if (i < PARTICLE_COUNT * SATURN_BODY_RATIO) { r = 1.0; g = 0.7; b = 0.3; }
else { r = 0.6; g = 0.8; b = 1.0; }
r *= brightness; g *= brightness; b *= brightness;
} else {
r = brightness; g = brightness; b = brightness;
}
cols[i * 3] = r; cols[i * 3 + 1] = g; cols[i * 3 + 2] = b;
}
return cols;
}
function createParticleTexture() {
const canvas = document.createElement('canvas'); canvas.width = 32; canvas.height = 32;
const context = canvas.getContext('2d');
const gradient = context.createRadialGradient(16, 16, 0, 16, 16, 16);
gradient.addColorStop(0, 'rgba(255,255,255,1)'); gradient.addColorStop(0.4, 'rgba(255,255,255,0.5)'); gradient.addColorStop(1, 'rgba(0,0,0,0)');
context.fillStyle = gradient; context.fillRect(0, 0, 32, 32);
return new THREE.CanvasTexture(canvas);
}
function animate() {
requestAnimationFrame(animate);
const time = clock.getElapsedTime();
const positions = particles.geometry.attributes.position.array;
const colors = particles.geometry.attributes.color.array;
rotationVelocity.x *= 0.92; rotationVelocity.y *= 0.92; rotationVelocity.z *= 0.94;
if (particles) {
particles.rotation.y += rotationVelocity.y;
particles.rotation.x += rotationVelocity.x;
particles.rotation.z += rotationVelocity.z;
}
const lerpSpeed = 0.06;
let scaleBase = isHandDetected ? (0.2 + handInfluence * 2.3) : (1.0 + Math.sin(time * 1.5) * 0.05);
for (let i = 0; i < PARTICLE_COUNT; i++) {
const idx = i * 3;
let tx = targetPositions[idx]; let ty = targetPositions[idx+1]; let tz = targetPositions[idx+2];
if (currentShape === 'galaxy') {
const angle = time * (0.1 + (1.0 - (Math.sqrt(tx*tx+tz*tz)/20)) * 0.5);
const cos = Math.cos(angle); const sin = Math.sin(angle);
const rx = tx * cos - tz * sin; const rz = tx * sin + tz * cos;
tx = rx; tz = rz;
} else if (currentShape === 'lotus') {
ty += Math.sin(time + tx) * 0.5;
} else {
tx += Math.sin(time * 2 + i) * 0.05;
ty += Math.cos(time * 3 + i) * 0.05;
}
tx *= scaleBase; ty *= scaleBase; tz *= scaleBase;
positions[idx] += (tx - positions[idx]) * lerpSpeed;
positions[idx+1] += (ty - positions[idx+1]) * lerpSpeed;
positions[idx+2] += (tz - positions[idx+2]) * lerpSpeed;
if (targetColors.length > 0) {
colors[idx] += (targetColors[idx] - colors[idx]) * 0.03;
colors[idx+1] += (targetColors[idx+1] - colors[idx+1]) * 0.03;
colors[idx+2] += (targetColors[idx+2] - colors[idx+2]) * 0.03;
}
if (Math.random() > 0.9995) { colors[idx] = 2.0; colors[idx+1] = 2.0; colors[idx+2] = 2.0; }
if (colors[idx] > 1.5) { colors[idx] *= 0.9; colors[idx+1] *= 0.9; colors[idx+2] *= 0.9; }
}
particles.geometry.attributes.position.needsUpdate = true;
particles.geometry.attributes.color.needsUpdate = true;
controls.update();
composer.render();
}
async function setupMediaPipe() {
const videoElement = document.getElementById('video-element');
const canvasElement = document.getElementById('output-canvas');
const canvasCtx = canvasElement.getContext('2d');
const statusDot = document.getElementById('status-dot');
const statusText = document.getElementById('status-text');
// 获取之前被遗漏的手势提示元素
const modeScaleText = document.getElementById('mode-scale');
const modeRotateText = document.getElementById('mode-rotate');
const modeRollText = document.getElementById('mode-roll');
const hands = new Hands({locateFile: (file) => `https://cdn.jsdelivr.net/npm/@mediapipe/hands/${file}`});
hands.setOptions({maxNumHands: 1, modelComplexity: 0, minDetectionConfidence: 0.5, minTrackingConfidence: 0.5});
hands.onResults((results) => {
canvasCtx.save();
canvasCtx.clearRect(0, 0, canvasElement.width, canvasElement.height);
canvasCtx.drawImage(results.image, 0, 0, canvasElement.width, canvasElement.height);
if (results.multiHandLandmarks && results.multiHandLandmarks.length > 0) {
isHandDetected = true;
statusDot.className = "w-2 h-2 rounded-full bg-cyan-400 shadow-[0_0_15px_cyan]";
statusText.innerText = "LINK ESTABLISHED";
statusText.className = "text-[10px] text-cyan-300 font-mono uppercase tracking-wider font-bold";
const landmarks = results.multiHandLandmarks[0];
drawConnectors(canvasCtx, landmarks, HAND_CONNECTIONS, {color: '#00ffff', lineWidth: 2});
drawLandmarks(canvasCtx, landmarks, {color: '#ffffff', lineWidth: 1, radius: 3});
const getDist = (i, j) => Math.sqrt(Math.pow(landmarks[i].x - landmarks[j].x, 2) + Math.pow(landmarks[i].y - landmarks[j].y, 2));
const isIndexOpen = getDist(8, 0) > getDist(5, 0) * 1.5;
const isMiddleOpen = getDist(12, 0) > getDist(9, 0) * 1.5;
const isRingOpen = getDist(16, 0) > getDist(13, 0) * 1.3;
const isPinkyOpen = getDist(20, 0) > getDist(17, 0) * 1.3;
let detectedMode = 'scale';
if (isRingOpen || isPinkyOpen) detectedMode = 'scale';
else if (isIndexOpen && isMiddleOpen) detectedMode = 'roll';
else if (isIndexOpen && !isMiddleOpen) detectedMode = 'rotate';
if (detectedMode === currentStableMode) modeFrameCounter = 0;
else {
modeFrameCounter++;
if (modeFrameCounter > 8) {
currentStableMode = detectedMode; modeFrameCounter = 0;
isTrackingRoll = false; isTrackingRotate = false;
}
}
// 实时高亮当前模式
[modeScaleText, modeRotateText, modeRollText].forEach(el => el.classList.remove('active'));
if (currentStableMode === 'roll') modeRollText.classList.add('active');
else if (currentStableMode === 'rotate') modeRotateText.classList.add('active');
else modeScaleText.classList.add('active');
if (currentStableMode === 'roll') {
const dx = landmarks[8].x - landmarks[12].x; const dy = landmarks[8].y - landmarks[12].y;
const angle = Math.atan2(dy, dx);
if (!isTrackingRoll) { previousRollAngle = angle; isTrackingRoll = true; }
else {
let delta = angle - previousRollAngle;
if (delta > Math.PI) delta -= 2 * Math.PI; if (delta < -Math.PI) delta += 2 * Math.PI;
rotationVelocity.z += -delta * 0.15; previousRollAngle = angle;
}
} else if (currentStableMode === 'rotate') {
const cx = landmarks[8].x; const cy = landmarks[8].y;
if (!isTrackingRotate) { lastCursorPos = { x: cx, y: cy }; isTrackingRotate = true; }
else {
const dx = cx - lastCursorPos.x; const dy = cy - lastCursorPos.y;
rotationVelocity.y -= dx * 0.15; rotationVelocity.x += dy * 0.15;
lastCursorPos = { x: cx, y: cy };
}
} else {
isTrackingRoll = false; isTrackingRotate = false;
let totalDist = 0; [4,8,12,16,20].forEach(i => totalDist += getDist(i, 0));
let openAmt = (totalDist / 5 - 0.1) / (0.4 - 0.1);
handInfluence = lerp(handInfluence, Math.max(0, Math.min(1, openAmt)), 0.1);
}
} else {
isHandDetected = false;
statusDot.className = "w-2 h-2 rounded-full bg-red-500 shadow-[0_0_10px_red]";
statusText.innerText = "SCANNING...";
statusText.className = "text-[10px] text-red-400 font-mono uppercase tracking-wider animate-pulse";
handInfluence = lerp(handInfluence, 0.0, 0.05);
// 默认显示第一个模式
[modeScaleText, modeRotateText, modeRollText].forEach(el => el.classList.remove('active'));
modeScaleText.classList.add('active');
}
canvasCtx.restore();
});
const cameraUtils = new Camera(videoElement, {
onFrame: async () => { await hands.send({image: videoElement}); },
width: 320, height: 240
});
cameraUtils.start();
videoElement.addEventListener('loadeddata', () => {
canvasElement.width = videoElement.videoWidth; canvasElement.height = videoElement.videoHeight;
const loader = document.getElementById('loader-overlay');
loader.style.opacity = '0'; setTimeout(() => loader.remove(), 800);
});
}
window.onWindowResize = () => {
camera.aspect = window.innerWidth / window.innerHeight;
camera.updateProjectionMatrix();
renderer.setSize(window.innerWidth, window.innerHeight);
composer.setSize(window.innerWidth, window.innerHeight);
};
window.changeShape = (shape) => {
currentShape = shape;
targetPositions = getShapePositions(shape);
targetColors = getShapeColors(shape);
if (shape === 'saturn') {
new TWEEN.Tween(particles.material.color).to({ r: 1, g: 1, b: 1 }, 500).start();
} else {
new TWEEN.Tween(particles.material.color).to({ r: userBaseColor.r, g: userBaseColor.g, b: userBaseColor.b }, 500).start();
}
document.querySelectorAll('[data-shape]').forEach(btn => {
btn.classList.remove('active');
if(btn.dataset.shape === shape) btn.classList.add('active');
});
};
window.updateColor = (hex) => {
const c = new THREE.Color(hex);
userBaseColor = c;
document.getElementById('color-preview').style.backgroundColor = hex;
if(particles && currentShape !== 'saturn') {
particles.material.color.set(userBaseColor);
}
};
window.toggleFullScreen = () => {
if (!document.fullscreenElement) document.documentElement.requestFullscreen();
else if (document.exitFullscreen) document.exitFullscreen();
};
const TWEEN = {
Tween: function(obj) {
this.obj = obj; this.target = {}; this.duration = 1000; this.startTime = 0;
this.to = function(target, duration) { this.target = target; this.duration = duration; return this; };
this.start = function() { this.startTime = performance.now(); this.initial = { r: this.obj.r, g: this.obj.g, b: this.obj.b }; requestAnimationFrame(this.update.bind(this)); return this; };
this.update = function(time) {
const elapsed = time - this.startTime; const progress = Math.min(elapsed / this.duration, 1);
const ease = 1 - Math.pow(1 - progress, 3);
if(this.obj.r !== undefined) {
this.obj.r = this.initial.r + (this.target.r - this.initial.r) * ease;
this.obj.g = this.initial.g + (this.target.g - this.initial.g) * ease;
this.obj.b = this.initial.b + (this.target.b - this.initial.b) * ease;
}
if (progress < 1) { requestAnimationFrame(this.update.bind(this)); }
};
}
};
init();
</script>
</body>
</html>三、最初代版本的prompt
bash
用Three.js创建一个实时交互的3D粒子系统。
要求:
1.通过摄像头检测双手张合控制粒子群的缩放与扩散
2.提供UI面板可选择爱心/花朵/土星/佛像/玫瑰花等模型
3.支持颜色选择器调整粒子颜色
4.粒子需实时响应手势变化
5.界面简洁现代，包含全屏控制按钮四、手势控制原理
在这个项目中，手势识别和骨骼追踪的核心技术是由 Google 开发的 MediaPipe Hands 框架实现的。
核心模型架构：MediaPipe Hands。
MediaPipe Hands 的后端其实包含了两个串行工作的深度学习模型：
(1)手掌检测模型 (Palm Detection Model)：
它的任务是分析全图，找到手掌的位置（画出一个框）。因为手掌是刚体，相对容易检测。这个模型只在第一帧，或者系统跟丢手的时候才运行，这大大节省了计算资源。
(2)手部关键点模型 (Hand Landmark Model)：
它的任务是在手掌检测框内，精准回归出 21 个 3D 关键点（即手部的关节坐标）。这些点包含了手腕、指关节、指尖等信息。
