简介
在 MediaTek（MTK）平台的 Android 系统 中，RecoverySystem.installPackage() 是一个用于触发 OTA 升级的关键 API。它通常由系统应用（如"系统更新"App）调用，将 OTA 包路径传递给系统，最终引导设备进入 Recovery 模式并安装该包。
MTK升级代码解析
在原生SDK AOSP 中，该函数位于：
frameworks/base/core/java/android/os/RecoverySystem.java几个关键路径变量：
java
private static final File RECOVERY_DIR = new File("/cache/recovery");
public static final File BLOCK_MAP_FILE = new File(RECOVERY_DIR, "block.map");
public static final File UNCRYPT_PACKAGE_FILE = new File(RECOVERY_DIR, "uncrypt_file");
public static final File UNCRYPT_STATUS_FILE = new File(RECOVERY_DIR, "uncrypt_status");执行ota升级的代码：
java
public static void installPackage(Context context, File packageFile, boolean processed)
throws IOException {
synchronized (sRequestLock) {
LOG_FILE.delete();
// Must delete the file in case it was created by system server.
UNCRYPT_PACKAGE_FILE.delete();
String filename = packageFile.getCanonicalPath();
Log.w(TAG, "!!! REBOOTING TO INSTALL " + filename + " !!!");
// If the package name ends with "_s.zip", it's a security update.
boolean securityUpdate = filename.endsWith("_s.zip");
// If the package is on the /data partition, the package needs to
// be processed (i.e. uncrypt'd). The caller specifies if that has
// been done in 'processed' parameter.
if (filename.startsWith("/data/")) {
if (processed) {
if (!BLOCK_MAP_FILE.exists()) {
Log.e(TAG, "Package claimed to have been processed but failed to find "
+ "the block map file.");
throw new IOException("Failed to find block map file");
}
} else {
FileWriter uncryptFile = new FileWriter(UNCRYPT_PACKAGE_FILE);
try {
uncryptFile.write(filename + "\n");
} finally {
uncryptFile.close();
}
// UNCRYPT_PACKAGE_FILE needs to be readable and writable
// by system server.
if (!UNCRYPT_PACKAGE_FILE.setReadable(true, false)
|| !UNCRYPT_PACKAGE_FILE.setWritable(true, false)) {
Log.e(TAG, "Error setting permission for " + UNCRYPT_PACKAGE_FILE);
}
BLOCK_MAP_FILE.delete();
}
// If the package is on the /data partition, use the block map
// file as the package name instead.
filename = "@/cache/recovery/block.map";
}
final String filenameArg = "--update_package=" + filename + "\n";
final String localeArg = "--locale=" + Locale.getDefault().toLanguageTag() + "\n";
final String securityArg = "--security\n";
String command = filenameArg + localeArg;
if (securityUpdate) {
command += securityArg;
}
RecoverySystem rs = (RecoverySystem) context.getSystemService(
Context.RECOVERY_SERVICE);
if (!rs.setupBcb(command)) {
throw new IOException("Setup BCB failed");
}
// Having set up the BCB (bootloader control block), go ahead and reboot
PowerManager pm = (PowerManager) context.getSystemService(Context.POWER_SERVICE);
String reason = PowerManager.REBOOT_RECOVERY_UPDATE;
// On TV, reboot quiescently if the screen is off
if (context.getPackageManager().hasSystemFeature(PackageManager.FEATURE_LEANBACK)) {
DisplayManager dm = context.getSystemService(DisplayManager.class);
if (dm.getDisplay(DEFAULT_DISPLAY).getState() != Display.STATE_ON) {
reason += ",quiescent";
}
}
pm.reboot(reason);
throw new IOException("Reboot failed (no permissions?)");
}
}APP代码调用升级
java
try {
RecoverySystem.installPackage(MotorActivity.this, new File("/data/ota_package/update.zip"));
// "/data/media/0/update.zip"
// "/storage/emulated/0/update.zip"
} catch (IOException e) {
e.printStackTrace();
}代码需要
需要添加的权限：
xml
<uses-permission android:name="android.permission.DELETE_CACHE_FILES" />
<uses-permission android:name="android.permission.ACCESS_CACHE_FILESYSTEM" />
<uses-permission android:name="android.permission.REBOOT" />OTA升级报错
-
报错

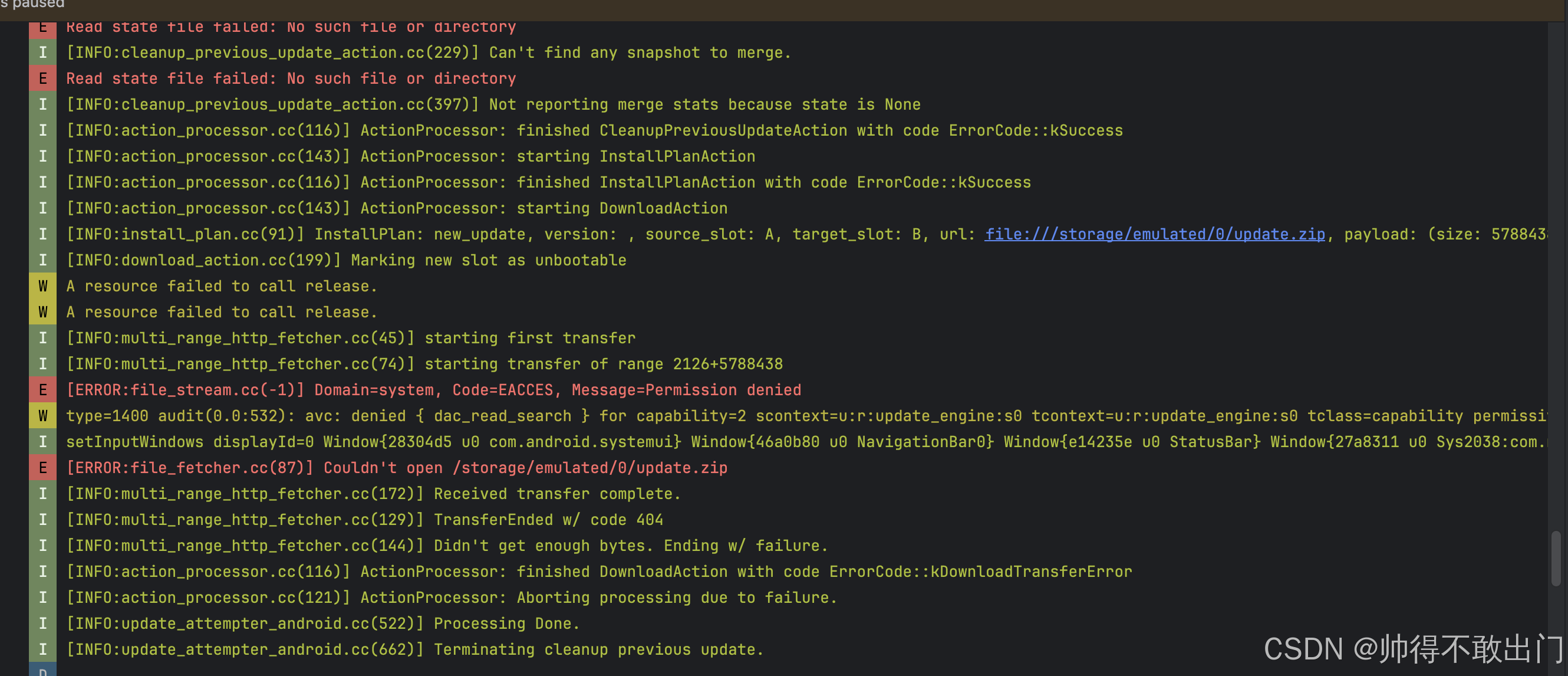

会提示一堆的selinux错误，而且把升级包放/data/下与放/storage/emulated/0/下的错误是不一样的。以下是放/storage/emulated/0/中的报错：
升级应用访问/storage/emulated/0/update.zip失败，关键错误打印：E [ERROR:file_stream.cc(-1)] Domain=system, Code=EACCES, Message=Permission denied
update_engine update_engine W type=1400 audit(0.0:532): avc: denied { dac_read_search } for capability=2 scontext=u:r:update_engine:s0 tcontext=u:r:update_engine:s0 tclass=capability permissive=0
type=1400 audit(0.0:422): avc: denied { search } for name="0" dev="tmpfs" ino=830 scontext=u:r:update_engine:s0 tcontext=u:object_r:mnt_user_file:s0 tclass=dir permissive=0
type=1400 audit(0.0:430): avc: denied { search } for name="/" dev="fuse" ino=263 scontext=u:r:update_engine:s0 tcontext=u:object_r:fuse:s0 tclass=dir permissive=0
E [ERROR:file_fetcher.cc(87)] Couldn't open /storage/emulated/0/update.zip
-
原因分析
Android 的 /storage/emulated/0/ 是普通 App 和用户可访问的外部存储路径，通常 不适用于系统级服务直接读取，尤其在启用了 Scoped Storage 或严格 SELinux 策略的设备上。
update_engine 通常只能安全访问如 /data/ota_package/、/cache/ 或 /mnt/vendor/persist/ 等系统预设路径。
修复报错
-
一种方法是将 update.zip 放到系统可访问的目录
推荐路径：
/data/ota_package/update.zip
-
另外一种还是把升级包放/sdcard路径下，则需要修改selinux
修改
device/mediatek/sepolicy/basic/non_plat/update_engine.te
添加
xml
allow update_engine media_rw_data_file:dir { search getattr };
allow update_engine media_rw_data_file:file { read open getattr };
allow update_engine self:capability dac_read_search;
allow update_engine mnt_user_file:dir { search getattr };
allow update_engine mnt_user_file:file { read open getattr };
allow update_engine fuse:dir { search getattr open read };
allow update_engine fuse:file { read open getattr };修改
system/sepolicy/private/domain.te
system/sepolicy/prebuilts/api/30.0/private/domain.te修改下面的内容：
xml
neverallow ~{
dac_override_allowed
iorap_inode2filename
iorap_prefetcherd
traced_perf
traced_probes
userdebug_or_eng(`heapprofd')
} self:global_capability_class_set dac_read_search;修改后的内容：
xml
neverallow ~{
dac_override_allowed
iorap_inode2filename
iorap_prefetcherd
traced_perf
traced_probes
userdebug_or_eng(`heapprofd')
update_engine
} self:global_capability_class_set dac_read_search;MTK文章
