【Linux运维大神系列】docker详解（三）

Joren的学习记录2025-12-22 11:47

目录

将多个网络加入到同一个容器中案例

1）创建多个网络

2）启动容器加入网络

3）测试c1和c2的连通性

4）将c1的容器添加一个c2容器相同的网络

5）再次测试连通性

6）断开网络

使用自定义网络部署zabbix实战

1）创建自定义网络

2）导入镜像

3）启动MySQL

[4）部署Java gateway组件](#4）部署Java gateway组件)

[5）部署Zabbix server组件](#5）部署Zabbix server组件)

[6）部署Zabbix web组件](#6）部署Zabbix web组件)

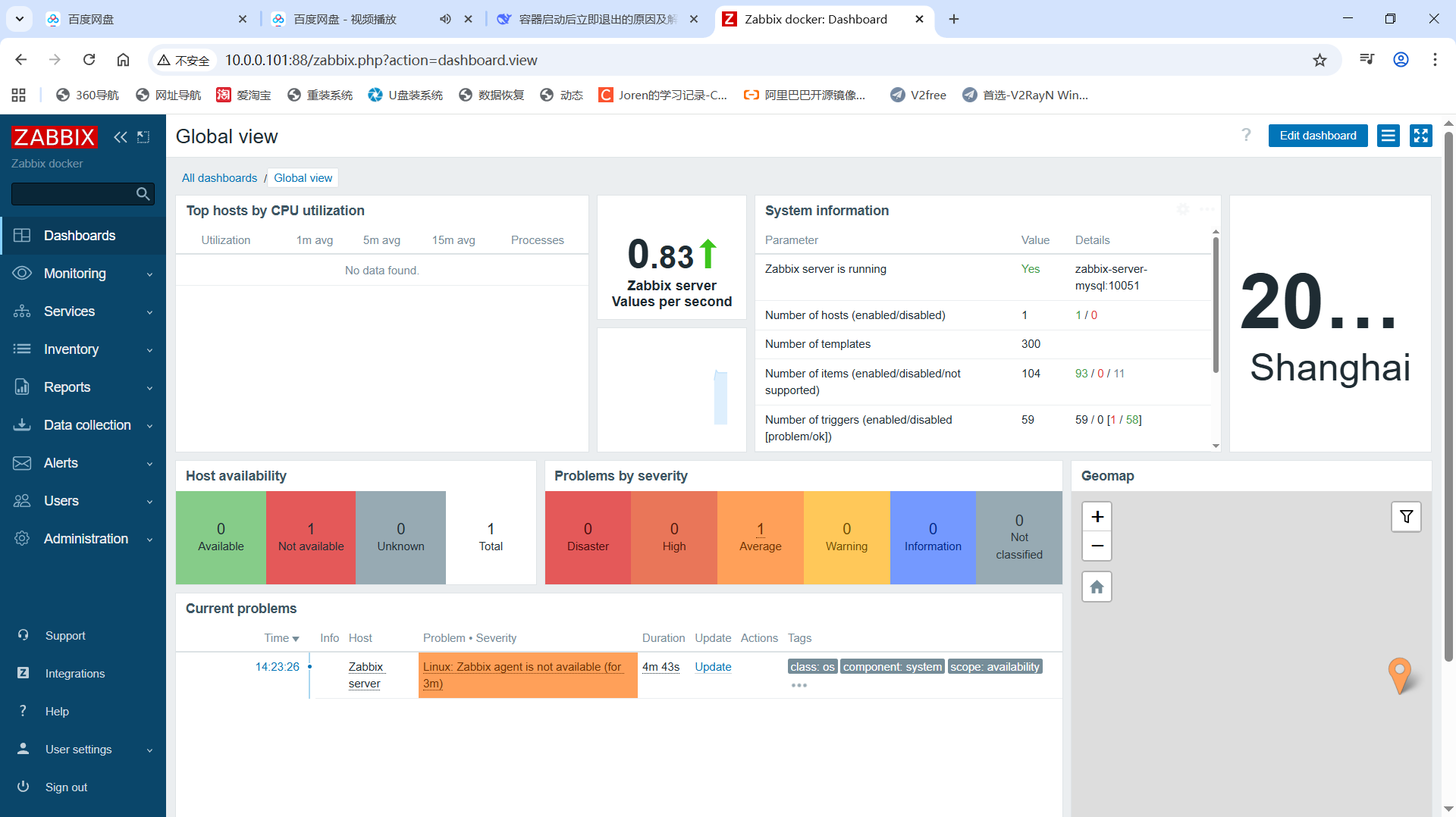

7）访问测试

macvlan实现容器跨主机网络互联

1）判断是否是否支持macvlan模块

2）两个节点创建同网段的自定义网络

3）10.0.0.101节点基于自定义网络启动容器并手动分配ip地址

4）10.0.0.102节点基于自定义网络启动容器并手动分配IP地址

5）测试两个容器的连通性

6）解决macvlan无法访问外网的情况

7）macvlan的优缺点

网络调试小技巧

将多个网络加入到同一个容器中案例

1）创建多个网络

bash 复制代码
[root@docker101 ~]#docker network ls
NETWORK ID     NAME      DRIVER    SCOPE
8ce2d108ce71   bridge    bridge    local
dde83ce0ade1   host      host      local
d2b2e36d8f63   none      null      local

[root@docker101 ~]#docker network create -d bridge --gateway 172.21.0.254 --ip-range 172.21.100.0/24 --subnet 172.21.0.0/16 xixi
fbb92ec665212f96594ca4d2b27dc3d44da7fdeee81f47acbed67fcfa433650a
[root@docker101 ~]#docker network create -d bridge --gateway 172.22.0.254 --ip-range 172.22.100.0/24 --subnet 172.22.0.0/16 haha
cd032cf1d4fd599ac27fca34fd849be078d6e6aa256a9604c9acbbadb347bd59

[root@docker101 ~]#docker network ls
NETWORK ID     NAME      DRIVER    SCOPE
8ce2d108ce71   bridge    bridge    local
cd032cf1d4fd   haha      bridge    local
dde83ce0ade1   host      host      local
d2b2e36d8f63   none      null      local
fbb92ec66521   xixi      bridge    local

[root@docker101 ~]#docker network inspect xixi
[
    {
        "Name": "xixi",
        "Id": "fbb92ec665212f96594ca4d2b27dc3d44da7fdeee81f47acbed67fcfa433650a",
        "Created": "2025-12-20T19:22:47.760009196+08:00",
        "Scope": "local",
        "Driver": "bridge",
        "EnableIPv6": false,
        "IPAM": {
            "Driver": "default",
            "Options": {},
            "Config": [
                {
                    "Subnet": "172.21.0.0/16",
                    "IPRange": "172.21.100.0/24",
                    "Gateway": "172.21.0.254"
                }
            ]
        },
        "Internal": false,
        "Attachable": false,
        "Ingress": false,
        "ConfigFrom": {
            "Network": ""
        },
        "ConfigOnly": false,
        "Containers": {},
        "Options": {},
        "Labels": {}
    }
]
[root@docker101 ~]#docker network inspect haha
[
    {
        "Name": "haha",
        "Id": "cd032cf1d4fd599ac27fca34fd849be078d6e6aa256a9604c9acbbadb347bd59",
        "Created": "2025-12-20T19:23:39.86819877+08:00",
        "Scope": "local",
        "Driver": "bridge",
        "EnableIPv6": false,
        "IPAM": {
            "Driver": "default",
            "Options": {},
            "Config": [
                {
                    "Subnet": "172.22.0.0/16",
                    "IPRange": "172.22.100.0/24",
                    "Gateway": "172.22.0.254"
                }
            ]
        },
        "Internal": false,
        "Attachable": false,
        "Ingress": false,
        "ConfigFrom": {
            "Network": ""
        },
        "ConfigOnly": false,
        "Containers": {},
        "Options": {},
        "Labels": {}
    }
]

2）启动容器加入网络

bash 复制代码
[root@docker101 ~]#docker run -d --name c1 --network xixi registry.cn-hangzhou.aliyuncs.com/yinzhengjie-k8s/apps:v1
05216d220bb0c90f87eb36276142a9c44fd1c19f772b1754950137bfc0ab5c1a
[root@docker101 ~]#docker exec c1 ifconfig
eth0      Link encap:Ethernet  HWaddr 02:42:AC:15:64:00
          inet addr:172.21.100.0  Bcast:172.21.255.255  Mask:255.255.0.0
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:13 errors:0 dropped:0 overruns:0 frame:0
          TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:0
          RX bytes:1102 (1.0 KiB)  TX bytes:0 (0.0 B)

lo        Link encap:Local Loopback
          inet addr:127.0.0.1  Mask:255.0.0.0
          inet6 addr: ::1/128 Scope:Host
          UP LOOPBACK RUNNING  MTU:65536  Metric:1
          RX packets:0 errors:0 dropped:0 overruns:0 frame:0
          TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:0 (0.0 B)  TX bytes:0 (0.0 B)

[root@docker101 ~]#docker run -d --name c2 --network haha registry.cn-hangzhou.aliyuncs.com/yinzhengjie-k8s/apps:v1
90743906755fccd65e66323184d4efb527fdd345180ad394f06a304baf7059d6
[root@docker101 ~]#docker exec c2 ifconfig
eth0      Link encap:Ethernet  HWaddr 02:42:AC:16:64:00
          inet addr:172.22.100.0  Bcast:172.22.255.255  Mask:255.255.0.0
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:13 errors:0 dropped:0 overruns:0 frame:0
          TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:0
          RX bytes:1102 (1.0 KiB)  TX bytes:0 (0.0 B)

lo        Link encap:Local Loopback
          inet addr:127.0.0.1  Mask:255.0.0.0
          inet6 addr: ::1/128 Scope:Host
          UP LOOPBACK RUNNING  MTU:65536  Metric:1
          RX packets:0 errors:0 dropped:0 overruns:0 frame:0
          TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:0 (0.0 B)  TX bytes:0 (0.0 B)

[root@docker101 ~]#docker exec c2 route -n
Kernel IP routing table
Destination     Gateway         Genmask         Flags Metric Ref    Use Iface
0.0.0.0         172.22.0.254    0.0.0.0         UG    0      0        0 eth0
172.22.0.0      0.0.0.0         255.255.0.0     U     0      0        0 eth0

3）测试c1和c2的连通性

bash 复制代码
[root@docker101 ~]#docker exec -it c1 sh
/ # ping -c 3 c2
ping: bad address 'c2'
/ # ping 172.22.100.0 -c 3
PING 172.22.100.0 (172.22.100.0): 56 data bytes

--- 172.22.100.0 ping statistics ---
3 packets transmitted, 0 packets received, 100% packet loss
/ #
/ # route -n
Kernel IP routing table
Destination     Gateway         Genmask         Flags Metric Ref    Use Iface
0.0.0.0         172.21.0.254    0.0.0.0         UG    0      0        0 eth0
172.21.0.0      0.0.0.0         255.255.0.0     U     0      0        0 eth0

4）将c1的容器添加一个c2容器相同的网络

bash 复制代码
[root@docker101 ~]#docker network connect haha c1
[root@docker101 ~]#docker exec c1 ifconfig
eth0      Link encap:Ethernet  HWaddr 02:42:AC:15:64:00
          inet addr:172.21.100.0  Bcast:172.21.255.255  Mask:255.255.0.0
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:17 errors:0 dropped:0 overruns:0 frame:0
          TX packets:7 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:0
          RX bytes:1462 (1.4 KiB)  TX bytes:502 (502.0 B)

eth1      Link encap:Ethernet  HWaddr 02:42:AC:16:64:01
          inet addr:172.22.100.1  Bcast:172.22.255.255  Mask:255.255.0.0
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:8 errors:0 dropped:0 overruns:0 frame:0
          TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:0
          RX bytes:656 (656.0 B)  TX bytes:0 (0.0 B)

lo        Link encap:Local Loopback
          inet addr:127.0.0.1  Mask:255.0.0.0
          inet6 addr: ::1/128 Scope:Host
          UP LOOPBACK RUNNING  MTU:65536  Metric:1
          RX packets:4 errors:0 dropped:0 overruns:0 frame:0
          TX packets:4 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:342 (342.0 B)  TX bytes:342 (342.0 B)

[root@docker101 ~]#docker exec c1 route -n
Kernel IP routing table
Destination     Gateway         Genmask         Flags Metric Ref    Use Iface
0.0.0.0         172.22.0.254    0.0.0.0         UG    0      0        0 eth1
172.21.0.0      0.0.0.0         255.255.0.0     U     0      0        0 eth0
172.22.0.0      0.0.0.0         255.255.0.0     U     0      0        0 eth1

选项参数：
    connect    给容器连接网络

5）再次测试连通性

bash 复制代码
[root@docker101 ~]#docker exec c1 ping -c 3 c2
PING c2 (172.22.100.0): 56 data bytes
64 bytes from 172.22.100.0: seq=0 ttl=64 time=0.094 ms
64 bytes from 172.22.100.0: seq=1 ttl=64 time=0.139 ms
64 bytes from 172.22.100.0: seq=2 ttl=64 time=0.136 ms

--- c2 ping statistics ---
3 packets transmitted, 3 packets received, 0% packet loss
round-trip min/avg/max = 0.094/0.123/0.139 ms

6）断开网络

bash 复制代码
[root@docker101 ~]#docker network disconnect haha c1
[root@docker101 ~]#docker exec c1 ifconfig
eth0      Link encap:Ethernet  HWaddr 02:42:AC:15:64:00
          inet addr:172.21.100.0  Bcast:172.21.255.255  Mask:255.255.0.0
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:17 errors:0 dropped:0 overruns:0 frame:0
          TX packets:7 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:0
          RX bytes:1462 (1.4 KiB)  TX bytes:502 (502.0 B)

lo        Link encap:Local Loopback
          inet addr:127.0.0.1  Mask:255.0.0.0
          inet6 addr: ::1/128 Scope:Host
          UP LOOPBACK RUNNING  MTU:65536  Metric:1
          RX packets:8 errors:0 dropped:0 overruns:0 frame:0
          TX packets:8 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:552 (552.0 B)  TX bytes:552 (552.0 B)

使用自定义网络部署zabbix实战

1）创建自定义网络

bash 复制代码
[root@docker101 ~]#docker network create --subnet 172.20.0.0/16 --ip-range 172.20.240.0/20 zabbix-net
961b7eb6b0d51af5bd6938e337b205f6f3650ea829443af520acb65bf7ae7fa8
[root@docker101 ~]#docker network ls
NETWORK ID     NAME         DRIVER    SCOPE
8ce2d108ce71   bridge       bridge    local
dde83ce0ade1   host         host      local
d2b2e36d8f63   none         null      local
961b7eb6b0d5   zabbix-net   bridge    local

2）导入镜像

镜像地址：

bash 复制代码
[root@docker101 ~]#ll zabbix-*
-rw-r--r-- 1 root root 193296384 Dec 20 19:55 zabbix-java-gateway-alpine-6.4.tar.gz
-rw-r--r-- 1 root root 136943104 Dec 20 19:55 zabbix-server-mysql-alpine-6.4.tar.gz
-rw-r--r-- 1 root root 292524544 Dec 20 19:55 zabbix-web-alpine-6.4.tar.gz

[root@docker101 ~]#for i in `ls zabbix-*`;do docker load -i $i;done
d4fc045c9e3a: Loading layer [==================================================>]  7.667MB/7.667MB
f4529b02c8e0: Loading layer [==================================================>]  40.45kB/40.45kB
db2720f1c08a: Loading layer [==================================================>]  760.8kB/760.8kB
6642e17108b7: Loading layer [==================================================>]  184.8MB/184.8MB
5f70bf18a086: Loading layer [==================================================>]  1.024kB/1.024kB
b136ab711cff: Loading layer [==================================================>]  4.096kB/4.096kB
fd1ad11f4867: Loading layer [==================================================>]  3.584kB/3.584kB
Loaded image: zabbix/zabbix-java-gateway:alpine-6.4-latest
bcbf9ca50797: Loading layer [==================================================>]      5MB/5MB
1a18e0eb96fb: Loading layer [==================================================>]  162.3kB/162.3kB
92c2fb89656e: Loading layer [==================================================>]    299kB/299kB
8a5ec5d65e86: Loading layer [==================================================>]  30.21kB/30.21kB
192c33ef2bd0: Loading layer [==================================================>]  4.063MB/4.063MB
78710a7f5759: Loading layer [==================================================>]  119.7MB/119.7MB
5f70bf18a086: Loading layer [==================================================>]  1.024kB/1.024kB
3c92399c83d5: Loading layer [==================================================>]  24.58kB/24.58kB
Loaded image: zabbix/zabbix-server-mysql:alpine-6.4-latest
58a84e545022: Loading layer [==================================================>]  101.2MB/101.2MB
8af2c5fb054f: Loading layer [==================================================>]  27.65kB/27.65kB
8c49e81e37bf: Loading layer [==================================================>]  183.6MB/183.6MB
5f70bf18a086: Loading layer [==================================================>]  1.024kB/1.024kB
930007238e23: Loading layer [==================================================>]  12.29kB/12.29kB
Loaded image: zabbix/zabbix-web-nginx-mysql:alpine-6.4-latest

3）启动MySQL

bash 复制代码
[root@docker101 ~]#docker run --name mysql-server \
> -e MYSQL_DATABASE="zabbix" \
> -e MYSQL_USER="joren" \
> -e MYSQL_PASSWORD="j.20030704" \
> -e MYSQL_ROOT_PASSWORD="123456" \
> --network zabbix-net \
> --restart unless-stopped \
> -d mysql\:8.3.0-oracle \
> --character-set-server=utf8 --collation-server=utf8_bin \
> --default-authentication-plugin=mysql_native_password
c1b59a73d085bb2621bbde1a7163779abacf38924eeb8e34f26965c1dbc73b86

4）部署Java gateway组件

bash 复制代码
[root@docker101 ~]#docker run --name zabbix-java-gateway \
> --network zabbix-net \
> --restart unless-stopped \
> -d zabbix/zabbix-java-gateway:alpine-6.4-latest
1e2b80a4a92405418419248d1140731cd81694100e4ba286eec6904092ed0761

5）部署Zabbix server组件

bash 复制代码
[root@docker101 ~]#docker run --name zabbix-server-mysql \
> -e DB_SERVER_HOST="mysql-server" \
> -e MYSQL_DATABASE="zabbix" \
> -e MYSQL_USER="joren" \
> -e MYSQL_PASSWORD="j.20030704" \
> -e MYSQL_ROOT_PASSWORD="123456" \
> -e ZBX_JAVAGATEWAY="zabbix-java-gateway" \
> --network=zabbix-net \
> -p 10051:10051 \
> --restart unless-stopped \
> -d zabbix/zabbix-server-mysql:alpine-6.4-latest
d7d28d96937651532e12071460d80c0aef6fc2cbf5e9f1ca82edb1ab39d82c16

6）部署Zabbix web组件

bash 复制代码
[root@docker101 ~]#docker run --name zabbix-web-nginx-mysql \
> -e ZBX_SERVER_HOST="zabbix-server-mysql" \
> -e DB_SERVER_HOST="mysql-server" \
> -e MYSQL_DATABASE="zabbix" \
> -e MYSQL_USER="joren" \
> -e MYSQL_PASSWORD="j.20030704" \
> -e MYSQL_ROOT_PASSWORD="123456" \
> --network=zabbix-net \
> -p 88:8080 \
> --restart unless-stopped \
> -d zabbix/zabbix-web-nginx-mysql:alpine-6.4-latest
39e09818258ecd801f516af2c40ae9431fc4409cddd88d989bb73ecec72d49ef

7）访问测试

macvlan实现容器跨主机网络互联

1）判断是否是否支持macvlan模块

bash 复制代码
[root@docker101 ~]#lsmod |grep macvlan
[root@docker101 ~]#modprobe macvlan
[root@docker101 ~]#lsmod |grep macvlan
macvlan                19239  0


[root@docker102 ~]#lsmod |grep macvlan
[root@docker102 ~]#modprobe macvlan
[root@docker102 ~]#lsmod |grep macvlan
macvlan                19239  0

2）两个节点创建同网段的自定义网络

bash 复制代码
[root@docker101 ~]#docker network create -d macvlan --subnet 172.29.0.0/16 --gateway 172.29.0.254 -o parent=eth0 joren-macvlan
be61df1b7436c5af0fafe17c3779cd55f3aa746bbf6f91c985969a76924d1b36
[root@docker101 ~]#docker network ls
NETWORK ID     NAME            DRIVER    SCOPE
8ce2d108ce71   bridge          bridge    local
dde83ce0ade1   host            host      local
be61df1b7436   joren-macvlan   macvlan   local
d2b2e36d8f63   none            null      local

3）10.0.0.101节点基于自定义网络启动容器并手动分配ip地址

bash 复制代码
[root@docker101 ~]#docker run -d --name c1 -it --network joren-macvlan --ip 172.29.0.101 registry.cn-hangzhou.aliyuncs.com/yinzhengjie-k8s/apps:v1
6a905f33f4a282298ac432aee23c23094d51180a8d64a5745b33764c4b5f853f
[root@docker101 ~]#docker exec c1 ifconfig
eth0      Link encap:Ethernet  HWaddr 02:42:AC:1D:00:65
          inet addr:172.29.0.101  Bcast:172.29.255.255  Mask:255.255.0.0
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:0 errors:0 dropped:0 overruns:0 frame:0
          TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:0
          RX bytes:0 (0.0 B)  TX bytes:0 (0.0 B)

lo        Link encap:Local Loopback
          inet addr:127.0.0.1  Mask:255.0.0.0
          inet6 addr: ::1/128 Scope:Host
          UP LOOPBACK RUNNING  MTU:65536  Metric:1
          RX packets:0 errors:0 dropped:0 overruns:0 frame:0
          TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:0 (0.0 B)  TX bytes:0 (0.0 B)

4）10.0.0.102节点基于自定义网络启动容器并手动分配IP地址

bash 复制代码
[root@docker102 ~]#docker run -d --name c2 -it --network joren-macvlan --ip 172.29.0.102 registry.cn-hangzhou.aliyuncs.com/yinzhengjie-k8s/apps:v1
1af9d7357b6ca8d976c6c530365b5753ac4c8c67b5c1d43a8d4d0328a5077b77
[root@docker102 ~]#docker exec c2 ifconfig
eth0      Link encap:Ethernet  HWaddr 02:42:AC:1D:00:66
          inet addr:172.29.0.102  Bcast:172.29.255.255  Mask:255.255.0.0
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:0 errors:0 dropped:0 overruns:0 frame:0
          TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:0
          RX bytes:0 (0.0 B)  TX bytes:0 (0.0 B)

lo        Link encap:Local Loopback
          inet addr:127.0.0.1  Mask:255.0.0.0
          inet6 addr: ::1/128 Scope:Host
          UP LOOPBACK RUNNING  MTU:65536  Metric:1
          RX packets:0 errors:0 dropped:0 overruns:0 frame:0
          TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:0 (0.0 B)  TX bytes:0 (0.0 B)

5）测试两个容器的连通性

bash 复制代码
[root@docker101 ~]#docker exec c1 ping -c3 172.29.0.102    #连通成功
PING 172.29.0.102 (172.29.0.102): 56 data bytes
64 bytes from 172.29.0.102: seq=0 ttl=64 time=0.907 ms
64 bytes from 172.29.0.102: seq=1 ttl=64 time=0.488 ms
64 bytes from 172.29.0.102: seq=2 ttl=64 time=0.576 ms

--- 172.29.0.102 ping statistics ---
3 packets transmitted, 3 packets received, 0% packet loss
round-trip min/avg/max = 0.488/0.657/0.907 ms
[root@docker101 ~]#docker exec c1 ping -c3 www.baidu.com    #无法访问外网
ping: bad address 'www.baidu.com'

6）解决macvlan无法访问外网的情况

bash 复制代码
[root@docker102 ~]#docker network connect bridge c2    #添加一个能够访问外网的网络类型
[root@docker102 ~]#docker exec c2 ifconfig
eth0      Link encap:Ethernet  HWaddr 02:42:AC:1D:00:66
          inet addr:172.29.0.102  Bcast:172.29.255.255  Mask:255.255.0.0
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:12 errors:0 dropped:0 overruns:0 frame:0
          TX packets:5 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:0
          RX bytes:1017 (1017.0 B)  TX bytes:378 (378.0 B)

eth1      Link encap:Ethernet  HWaddr 02:42:AC:11:00:02
          inet addr:172.17.0.2  Bcast:172.17.255.255  Mask:255.255.0.0
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:8 errors:0 dropped:0 overruns:0 frame:0
          TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:0
          RX bytes:656 (656.0 B)  TX bytes:0 (0.0 B)

lo        Link encap:Local Loopback
          inet addr:127.0.0.1  Mask:255.0.0.0
          inet6 addr: ::1/128 Scope:Host
          UP LOOPBACK RUNNING  MTU:65536  Metric:1
          RX packets:0 errors:0 dropped:0 overruns:0 frame:0
          TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:0 (0.0 B)  TX bytes:0 (0.0 B)


[root@docker102 ~]#docker exec c2 ping -c3 baidu.com    #访问外网成功
PING baidu.com (111.63.65.247): 56 data bytes
64 bytes from 111.63.65.247: seq=0 ttl=127 time=50.940 ms
64 bytes from 111.63.65.247: seq=1 ttl=127 time=49.047 ms
64 bytes from 111.63.65.247: seq=2 ttl=127 time=49.289 ms

--- baidu.com ping statistics ---
3 packets transmitted, 3 packets received, 0% packet loss
round-trip min/avg/max = 49.047/49.758/50.940 ms

7）macvlan的优缺点

优点：

1.docker原生支持，无需安装额外插件，配置起来相对简单

2.适合小规模docker环境，例如只有1-3台，如果服务器过多，手动分配ip地址可能会增加工作量

缺点：

1.需要手动分配IP地址，如果让其自动分配IP地址可能会存在多个主机自动分配的IP地址冲突的情况，到时候还需要人工介入

2.本机相同网络的容器之间相互通信没问题，但是容器无法访问宿主机也无法访问外网

3.macvlan需要绑定一块物理网卡，若网卡已经被绑定，则无法创建

网络调试小技巧

bash 复制代码
假如我们的wp容器没有ping命令，无法查看是否连通，可以使用container:wp方法
root@docker101:~# docker container inspect -f "{{range .NetworkSettings.Networks}} {{ .IPAddress }} {{end}}" `docker container ps -lq`
 172.17.0.2  172.22.100.37
root@docker101:~#
root@docker101:~# docker run -it --rm --network container:wp registry.cn-hangzhou.aliyuncs.com/yinzhengjie-k8s/apps:v1 sh
/ #
/ # ifconfig
eth0      Link encap:Ethernet  HWaddr 02:42:AC:16:64:25
          inet addr:172.22.100.37  Bcast:172.22.255.255  Mask:255.255.0.0
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:2637 errors:0 dropped:0 overruns:0 frame:0
          TX packets:2991 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:0
          RX bytes:1089580 (1.0 MiB)  TX bytes:1984963 (1.8 MiB)

eth1      Link encap:Ethernet  HWaddr 02:42:AC:11:00:02
          inet addr:172.17.0.2  Bcast:172.17.255.255  Mask:255.255.0.0
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:4126 errors:0 dropped:0 overruns:0 frame:0
          TX packets:3682 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:0
          RX bytes:28867794 (27.5 MiB)  TX bytes:1343468 (1.2 MiB)

lo        Link encap:Local Loopback
          inet addr:127.0.0.1  Mask:255.0.0.0
          UP LOOPBACK RUNNING  MTU:65536  Metric:1
          RX packets:228 errors:0 dropped:0 overruns:0 frame:0
          TX packets:228 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:18635 (18.1 KiB)  TX bytes:18635 (18.1 KiB)

/ #
/ #
/ # ping 172.22.100.36 -c 3
PING 172.22.100.36 (172.22.100.36): 56 data bytes
64 bytes from 172.22.100.36: seq=0 ttl=64 time=0.448 ms
64 bytes from 172.22.100.36: seq=1 ttl=64 time=0.389 ms
64 bytes from 172.22.100.36: seq=2 ttl=64 time=0.298 ms

--- 172.22.100.36 ping statistics ---
3 packets transmitted, 3 packets received, 0% packet loss
round-trip min/avg/max = 0.298/0.378/0.448 ms
/ #
相关推荐
UP_Continue13 分钟前
Linux--进程控制
linux·运维·服务器
请输入蚊子13 分钟前
«操作系统真像还原» 第二章 编写MBR主引导记录
linux·汇编·操作系统·bochs·操作系统真像还原
等什么君！31 分钟前
docker -数据卷技术
运维·docker·容器
188号安全攻城狮1 小时前
【PWN】HappyNewYearCTF_8_ret2csu
linux·汇编·安全·网络安全·系统安全
上天_去_做颗惺星 EVE_BLUE1 小时前
Docker高效使用指南：从基础到实战模板
开发语言·ubuntu·docker·容器·mac·虚拟环境
Yana.nice2 小时前
openssl将证书从p7b转换为crt格式
java·linux
AI逐月2 小时前
tmux 常用命令总结：从入门到稳定使用的一篇实战博客
linux·服务器·ssh·php
小白跃升坊3 小时前
基于1Panel的AI运维
linux·运维·人工智能·ai大模型·教学·ai agent
跃渊Yuey3 小时前
【Linux】线程同步与互斥
linux·笔记
杨江3 小时前
seafile docker安装说明
运维
热门推荐
01GitHub 镜像站点02Clawdbot 中文汉化版 接入微信、飞书03OpenCode 入门教程：介绍 · 安装 · 配置第三方 API (如 Claude)042026美赛A题智能手机电池续航时间预测的连续时间数学模型052025 年大语言模型发展回顾：关键突破、意外转折与 2026 年展望06【Milvus】向量数据库pymilvus使用教程072026数学建模美赛题目特点与选题建议，常用四大模型汇总08Claude Code + GLM4.7 避坑指南：解决 Unable to connect to Anthropic services09Claude Code Skills 实用使用手册10Linux下V2Ray安装配置指南
