LTC2662高精度电流源 HAL库驱动

本文目录

• 1、引言
• 2、配置
• 3、代码
• 4、使用
• 5、手册指令

---

文章对应视频教程：

点击图片或链接访问我的B站主页~~~

---

1、引言

这是一个的 LTC2662-16 驱动代码，专门适配 STM32的 HAL 库。

---

2、配置

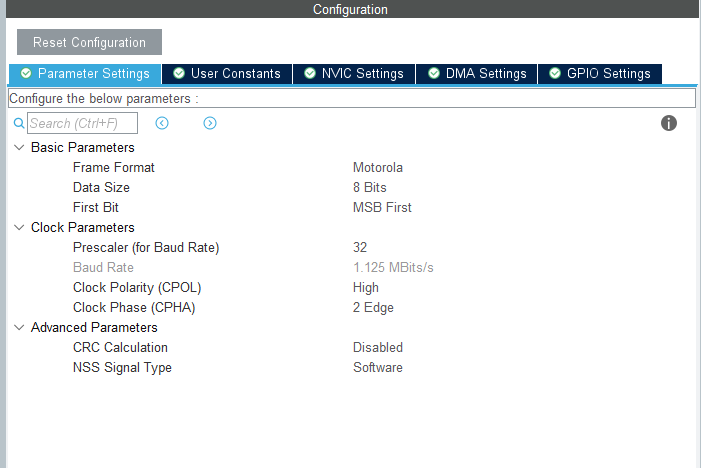

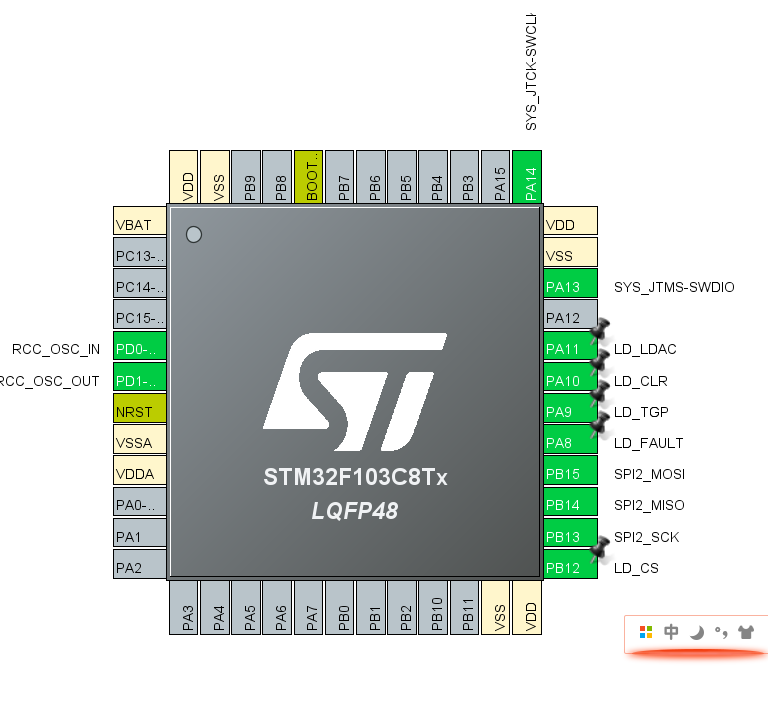

cube配置界面

这里spi的速度可以往上调 最高50Mhz，我用不到 所以给了一个低值

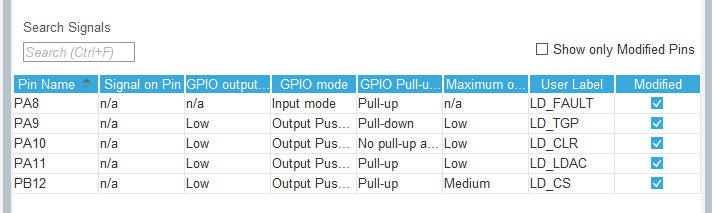

其他IO的默认电平

实用的spi驱动配置如下

/* USER CODE BEGIN Header */
/**
  ******************************************************************************
  * @file    spi.c
  * @brief   This file provides code for the configuration
  *          of the SPI instances.
  ******************************************************************************
  * @attention
  *
  * Copyright (c) 2025 STMicroelectronics.
  * All rights reserved.
  *
  * This software is licensed under terms that can be found in the LICENSE file
  * in the root directory of this software component.
  * If no LICENSE file comes with this software, it is provided AS-IS.
  *
  ******************************************************************************
  */
/* USER CODE END Header */
/* Includes ------------------------------------------------------------------*/
#include "spi.h"

/* USER CODE BEGIN 0 */

/* USER CODE END 0 */

SPI_HandleTypeDef hspi2;

/* SPI2 init function */
void MX_SPI2_Init(void)
{

  /* USER CODE BEGIN SPI2_Init 0 */

  /* USER CODE END SPI2_Init 0 */

  /* USER CODE BEGIN SPI2_Init 1 */

  /* USER CODE END SPI2_Init 1 */
  hspi2.Instance = SPI2;
  hspi2.Init.Mode = SPI_MODE_MASTER;
  hspi2.Init.Direction = SPI_DIRECTION_2LINES;
  hspi2.Init.DataSize = SPI_DATASIZE_8BIT;
  hspi2.Init.CLKPolarity = SPI_POLARITY_HIGH;
  hspi2.Init.CLKPhase = SPI_PHASE_2EDGE;
  hspi2.Init.NSS = SPI_NSS_SOFT;
  hspi2.Init.BaudRatePrescaler = SPI_BAUDRATEPRESCALER_32;
  hspi2.Init.FirstBit = SPI_FIRSTBIT_MSB;
  hspi2.Init.TIMode = SPI_TIMODE_DISABLE;
  hspi2.Init.CRCCalculation = SPI_CRCCALCULATION_DISABLE;
  hspi2.Init.CRCPolynomial = 10;
  if (HAL_SPI_Init(&hspi2) != HAL_OK)
  {
    Error_Handler();
  }
  /* USER CODE BEGIN SPI2_Init 2 */

  /* USER CODE END SPI2_Init 2 */

}

void HAL_SPI_MspInit(SPI_HandleTypeDef* spiHandle)
{

  GPIO_InitTypeDef GPIO_InitStruct = {0};
  if(spiHandle->Instance==SPI2)
  {
  /* USER CODE BEGIN SPI2_MspInit 0 */

  /* USER CODE END SPI2_MspInit 0 */
    /* SPI2 clock enable */
    __HAL_RCC_SPI2_CLK_ENABLE();

    __HAL_RCC_GPIOB_CLK_ENABLE();
    /**SPI2 GPIO Configuration
    PB13     ------> SPI2_SCK
    PB14     ------> SPI2_MISO
    PB15     ------> SPI2_MOSI
    */
    GPIO_InitStruct.Pin = GPIO_PIN_13|GPIO_PIN_15;
    GPIO_InitStruct.Mode = GPIO_MODE_AF_PP;
    GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_HIGH;
    HAL_GPIO_Init(GPIOB, &GPIO_InitStruct);

    GPIO_InitStruct.Pin = GPIO_PIN_14;
    GPIO_InitStruct.Mode = GPIO_MODE_INPUT;
    GPIO_InitStruct.Pull = GPIO_NOPULL;
    HAL_GPIO_Init(GPIOB, &GPIO_InitStruct);

  /* USER CODE BEGIN SPI2_MspInit 1 */

  /* USER CODE END SPI2_MspInit 1 */
  }
}

void HAL_SPI_MspDeInit(SPI_HandleTypeDef* spiHandle)
{

  if(spiHandle->Instance==SPI2)
  {
  /* USER CODE BEGIN SPI2_MspDeInit 0 */

  /* USER CODE END SPI2_MspDeInit 0 */
    /* Peripheral clock disable */
    __HAL_RCC_SPI2_CLK_DISABLE();

    /**SPI2 GPIO Configuration
    PB13     ------> SPI2_SCK
    PB14     ------> SPI2_MISO
    PB15     ------> SPI2_MOSI
    */
    HAL_GPIO_DeInit(GPIOB, GPIO_PIN_13|GPIO_PIN_14|GPIO_PIN_15);

  /* USER CODE BEGIN SPI2_MspDeInit 1 */

  /* USER CODE END SPI2_MspDeInit 1 */
  }
}

/* USER CODE BEGIN 1 */

/* USER CODE END 1 */

3、代码

ltc2662.h

#ifndef LTC2662_H
#define LTC2662_H

#include "main.h"

/* ------------------- 命令定义 (Table 1) ------------------- */
#define LTC2662_CMD_WRITE_N              0x0  // 写入输入寄存器 n
#define LTC2662_CMD_UPDATE_N             0x1  // 更新 DAC 寄存器 n
#define LTC2662_CMD_WRITE_UPDATE_N       0x3  // 写入输入寄存器 n 并更新 DAC n (常用)
#define LTC2662_CMD_POWER_DOWN_N         0x4  // 关闭通道 n
#define LTC2662_CMD_POWER_DOWN_CHIP      0x5  // 关闭整个芯片
#define LTC2662_CMD_WRITE_SPAN_N         0x6  // 设置通道 n 的量程 (必须配置)
#define LTC2662_CMD_CONFIG               0x7  // 配置命令
#define LTC2662_CMD_WRITE_ALL_UPDATE_ALL 0xA  // 写入所有并更新所有
#define LTC2662_CMD_NOOP                 0xF  // 空操作 (用于回读故障位)
#define LTC2662_CMD_WRITE_ALL            0x8  // 写入所有通道的输入寄存器 (不更新输出)
#define LTC2662_CMD_UPDATE_ALL           0x9  // 更新所有通道 DAC 寄存器 (所有通道同时变化)
#define LTC2662_CMD_WRITE_ALL_UPDATE_ALL 0xA  // 写入并更新所有通道 (所有通道变成同一个值)
#define LTC2662_CMD_WRITE_SPAN_ALL       0xE  // 设置所有通道的量程

/* ------------------- 地址定义 (Table 2) ------------------- */
#define LTC2662_ADDR_DAC0                0x0
#define LTC2662_ADDR_DAC1                0x1
#define LTC2662_ADDR_DAC2                0x2
#define LTC2662_ADDR_DAC3                0x3
#define LTC2662_ADDR_DAC4                0x4
#define LTC2662_ADDR_ALL                 0x0 // 配合 All 命令使用时地址通常忽略，但在某些命令中用于占位

/* ------------------- 量程代码 (Table 3) ------------------- */
// 注意：上电默认为 Hi-Z，必须设置 Span 才有输出
#define LTC2662_SPAN_HI_Z                0x0 // 高阻态 (默认)
#define LTC2662_SPAN_3_125mA             0x1 // 0 to 3.125mA
#define LTC2662_SPAN_6_25mA              0x2 // 0 to 6.25mA
#define LTC2662_SPAN_12_5mA              0x3 // 0 to 12.5mA
#define LTC2662_SPAN_25mA                0x4 // 0 to 25mA
#define LTC2662_SPAN_50mA                0x5 // 0 to 50mA
#define LTC2662_SPAN_100mA               0x6 // 0 to 100mA
#define LTC2662_SPAN_200mA               0x7 // 0 to 200mA
#define LTC2662_SPAN_300mA               0xF // 0 to 300mA (注意是 0xF)
#define LTC2662_SPAN_V_NEG               0x8 // 切换到负电源 (Switch to V-)



/* ------------------- 结构体定义 ------------------- */
typedef struct {
    SPI_HandleTypeDef *hspi;     // SPI 句柄

    // CS 引脚
    GPIO_TypeDef *CsPort;
    uint16_t CsPin;

    // LDAC 引脚 (异步更新，如果不使用则保持高电平)
    GPIO_TypeDef *LdacPort;
    uint16_t LdacPin;

    // CLR 引脚 (异步清除，低电平有效)
    GPIO_TypeDef *ClrPort;
    uint16_t ClrPin;

} LTC2662_HandleTypeDef;

/* ------------------- 函数声明 ------------------- */
void LTC2662_Init(LTC2662_HandleTypeDef *dev);
void LTC2662_Reset(LTC2662_HandleTypeDef *dev);
HAL_StatusTypeDef LTC2662_Write(LTC2662_HandleTypeDef *dev, uint8_t cmd, uint8_t addr, uint16_t data);
HAL_StatusTypeDef LTC2662_SetChannelSpan(LTC2662_HandleTypeDef *dev, uint8_t channel, uint8_t spanCode);
HAL_StatusTypeDef LTC2662_SetChannelValue(LTC2662_HandleTypeDef *dev, uint8_t channel, uint16_t value);
uint8_t LTC2662_ReadFault(LTC2662_HandleTypeDef *dev);

/* 函数声明新增 */
HAL_StatusTypeDef LTC2662_SetAllSpans(LTC2662_HandleTypeDef *dev, uint8_t spanCode);
HAL_StatusTypeDef LTC2662_SetAllValues(LTC2662_HandleTypeDef *dev, uint16_t value);
HAL_StatusTypeDef LTC2662_UpdateAll(LTC2662_HandleTypeDef *dev);

#endif

ltc2662.c

#include "ltc2662.h"

/**
  * @brief  初始化 LTC2662 控制引脚状态
  * @param  dev: 设备结构体指针
  */
void LTC2662_Init(LTC2662_HandleTypeDef *dev) {
    // 1. 设置 CS 为高 (空闲状态)
    HAL_GPIO_WritePin(dev->CsPort, dev->CsPin, GPIO_PIN_SET);

    // 2. 设置 LDAC 为高 (禁止异步更新，改用软件命令更新)
    if (dev->LdacPort != NULL) {
        HAL_GPIO_WritePin(dev->LdacPort, dev->LdacPin, GPIO_PIN_SET);
    }

    // 3. 设置 CLR 为高 (正常工作模式，低电平会复位芯片)
    if (dev->ClrPort != NULL) {
        HAL_GPIO_WritePin(dev->ClrPort, dev->ClrPin, GPIO_PIN_SET);
    }

    // TGP 引脚在主函数 MX_GPIO_Init 中应配置为低电平（如果不使用 Toggle 功能）
}

/**
  * @brief  硬件复位芯片 (拉低 CLR 引脚)
  */
void LTC2662_Reset(LTC2662_HandleTypeDef *dev) {
    if (dev->ClrPort != NULL) {
        HAL_GPIO_WritePin(dev->ClrPort, dev->ClrPin, GPIO_PIN_RESET);
        HAL_Delay(1); // 脉宽至少 20ns，1ms 绰绰有余
        HAL_GPIO_WritePin(dev->ClrPort, dev->ClrPin, GPIO_PIN_SET);
    }
}

/**
  * @brief  底层 SPI 发送函数 (24-bit)
  * @param  cmd:  4-bit 命令
  * @param  addr: 4-bit 地址
  * @param  data: 16-bit 数据 (对于 Span 命令，数据位于低位)
  */
HAL_StatusTypeDef LTC2662_Write(LTC2662_HandleTypeDef *dev, uint8_t cmd, uint8_t addr, uint16_t data) {
    uint8_t txData[3];
    HAL_StatusTypeDef status;

    // 组装 24-bit 数据帧
    // Byte 1: [C3 C2 C1 C0 A3 A2 A1 A0]
    txData[0] = ((cmd & 0x0F) << 4) | (addr & 0x0F);

    // Byte 2: Data MSB [D15 ... D8]
    txData[1] = (data >> 8) & 0xFF;

    // Byte 3: Data LSB [D7 ... D0]
    txData[2] = data & 0xFF;

    // 拉低 CS 开始传输
    HAL_GPIO_WritePin(dev->CsPort, dev->CsPin, GPIO_PIN_RESET);

    // 发送 3 字节
    status = HAL_SPI_Transmit(dev->hspi, txData, 3, 100);

    // 拉高 CS 结束传输，上升沿触发 DAC 执行命令
    HAL_GPIO_WritePin(dev->CsPort, dev->CsPin, GPIO_PIN_SET);

    return status;
}

/**
  * @brief  设置通道量程 (必须在设置电流值之前调用)
  * @param  channel: 通道地址 (LTC2662_ADDR_DACx)
  * @param  spanCode: 量程代码 (LTC2662_SPAN_xxx)
  */
HAL_StatusTypeDef LTC2662_SetChannelSpan(LTC2662_HandleTypeDef *dev, uint8_t channel, uint8_t spanCode) {
    // 使用 "Write Span to n" 命令 (0110)
    // Span Code 位于数据字的低 4 位 (S3 S2 S1 S0)
    // 根据数据手册 Table 3 和 Figure 4，数据字的高 12 位是 Don't Care
    return LTC2662_Write(dev, LTC2662_CMD_WRITE_SPAN_N, channel, (uint16_t)spanCode);
}

/**
  * @brief  设置单通道电流输出值
  * @param  channel: 通道地址 (LTC2662_ADDR_DACx)
  * @param  value: 16-bit DAC 数值 (0 - 65535)
  */
HAL_StatusTypeDef LTC2662_SetChannelValue(LTC2662_HandleTypeDef *dev, uint8_t channel, uint16_t value) {
    // 使用 "Write Code to n, Update n" 命令 (0011)
    // 这将直接改变输出电流
    return LTC2662_Write(dev, LTC2662_CMD_WRITE_UPDATE_N, channel, value);
}

/**
  * @brief  读取故障寄存器 (Fault Register)
  * @return 返回 8-bit 故障状态字节 (FR0-FR7)
  * Bit 0-4: 通道 0-4 开路故障
  * Bit 5:   过温
  * Bit 6:   功率限制
  * Bit 7:   无效 SPI 长度
  */
uint8_t LTC2662_ReadFault(LTC2662_HandleTypeDef *dev) {
    uint8_t txData[3] = {LTC2662_CMD_NOOP << 4, 0x00, 0x00}; // 发送 NOOP
    uint8_t rxData[3] = {0};

    // SPI 机制：SDO 会在这一帧传输时，移出上一帧产生的故障状态
    // Fault Register 位于 24-bit 回读数据的第一个字节

    HAL_GPIO_WritePin(dev->CsPort, dev->CsPin, GPIO_PIN_RESET);
    HAL_SPI_TransmitReceive(dev->hspi, txData, rxData, 3, 100);
    HAL_GPIO_WritePin(dev->CsPort, dev->CsPin, GPIO_PIN_SET);

    // 返回第一个字节 (Fault Register)
    return rxData[0];
}

/**
  * @brief  同时设置所有 5 个通道的量程 (Span)
  * @param  spanCode: 统一的量程代码 (例如 LTC2662_SPAN_200mA)
  */
HAL_StatusTypeDef LTC2662_SetAllSpans(LTC2662_HandleTypeDef *dev, uint8_t spanCode) {
    // 使用命令 0xE: Write Span to All
    // 地址位 (A3-A0) 在此命令下会被忽略，填 0 即可
    return LTC2662_Write(dev, LTC2662_CMD_WRITE_SPAN_ALL, 0, (uint16_t)spanCode);
}

/**
  * @brief  同时将所有 5 个通道设置为同一个数值，并立即输出
  * @param  value: 16-bit DAC 数值
  */
HAL_StatusTypeDef LTC2662_SetAllValues(LTC2662_HandleTypeDef *dev, uint16_t value) {
    // 使用命令 0xA: Write Code to All, Update All
    // 所有通道会立即变成这个值
    return LTC2662_Write(dev, LTC2662_CMD_WRITE_ALL_UPDATE_ALL, 0, value);
}

/**
  * @brief  同步更新所有通道 (触发之前写入的数据)
  * @note   配合 "Write Code to n" (cmd 0x0) 使用
  */
HAL_StatusTypeDef LTC2662_UpdateAll(LTC2662_HandleTypeDef *dev) {
    // 使用命令 0x9: Update All
    // 数据位被忽略，填 0
    return LTC2662_Write(dev, LTC2662_CMD_UPDATE_ALL, 0, 0);
}

---

4、使用

main.c

/* USER CODE BEGIN Header */
/**
  ******************************************************************************
  * @file           : main.c
  * @brief          : Main program body
  ******************************************************************************
  * @attention
  *
  * Copyright (c) 2025 STMicroelectronics.
  * All rights reserved.
  *
  * This software is licensed under terms that can be found in the LICENSE file
  * in the root directory of this software component.
  * If no LICENSE file comes with this software, it is provided AS-IS.
  *
  ******************************************************************************
  */
/* USER CODE END Header */
/* Includes ------------------------------------------------------------------*/
#include "main.h"
#include "spi.h"
#include "gpio.h"

/* Private includes ----------------------------------------------------------*/
/* USER CODE BEGIN Includes */
#include "ltc2662.h"
/* USER CODE END Includes */

/* Private typedef -----------------------------------------------------------*/
/* USER CODE BEGIN PTD */

/* USER CODE END PTD */

/* Private define ------------------------------------------------------------*/
/* USER CODE BEGIN PD */

/* USER CODE END PD */

/* Private macro -------------------------------------------------------------*/
/* USER CODE BEGIN PM */

/* USER CODE END PM */

/* Private variables ---------------------------------------------------------*/

/* USER CODE BEGIN PV */

/* USER CODE END PV */

/* Private function prototypes -----------------------------------------------*/
void SystemClock_Config(void);
/* USER CODE BEGIN PFP */

/* USER CODE END PFP */

/* Private user code ---------------------------------------------------------*/
/* USER CODE BEGIN 0 */

void Ltc_test(void)
{

  LTC2662_HandleTypeDef ltc2662;

  // 1. 初始化结构体
  ltc2662.hspi = &hspi2;
  ltc2662.CsPort = LD_CS_GPIO_Port;
  ltc2662.CsPin = LD_CS_Pin;
  ltc2662.LdacPort = LD_LDAC_GPIO_Port;
  ltc2662.LdacPin = LD_LDAC_Pin;
  ltc2662.ClrPort = LD_CLR_GPIO_Port;
  ltc2662.ClrPin = LD_CLR_Pin;

  // 2. 初始化引脚电平
  LTC2662_Init(&ltc2662);

  // 3. 复位芯片 (可选)
  LTC2662_Reset(&ltc2662);

  // 4. 配置通道量程 (关键步骤，否则没有输出)
  // // 例如：将 DAC0 配置为 0-200mA 范围
  // LTC2662_SetChannelSpan(&ltc2662, LTC2662_ADDR_DAC0, LTC2662_SPAN_100mA);
  // // 例如：将 DAC1 配置为 0-300mA 范围
  // LTC2662_SetChannelSpan(&ltc2662, LTC2662_ADDR_DAC1, LTC2662_SPAN_100mA);

	// 将所有 5 个通道一次性都配置为 0-200mA 范围
	LTC2662_SetAllSpans(&ltc2662, LTC2662_SPAN_200mA);

  // 5. 输出电流
  // // DAC0 输出半量程 (100mA, 因为量程是 200mA) -> 32768
  // LTC2662_SetChannelValue(&ltc2662, LTC2662_ADDR_DAC0, 65535);

  // // DAC1 输出满量程 (300mA) -> 65535
  // LTC2662_SetChannelValue(&ltc2662, LTC2662_ADDR_DAC1, 65535);

	// 所有通道立即输出满量程 (65535)
	LTC2662_SetAllValues(&ltc2662, 65535);

}

/* USER CODE END 0 */

/**
  * @brief  The application entry point.
  * @retval int
  */
int main(void)
{

  /* USER CODE BEGIN 1 */

  /* USER CODE END 1 */

  /* MCU Configuration--------------------------------------------------------*/

  /* Reset of all peripherals, Initializes the Flash interface and the Systick. */
  HAL_Init();

  /* USER CODE BEGIN Init */

  /* USER CODE END Init */

  /* Configure the system clock */
  SystemClock_Config();

  /* USER CODE BEGIN SysInit */

  /* USER CODE END SysInit */

  /* Initialize all configured peripherals */
  MX_GPIO_Init();
  MX_SPI2_Init();
  /* USER CODE BEGIN 2 */
  Ltc_test();
  // LTC1622_Initialize();

	// Ld_Current_Out(200);
  /* USER CODE END 2 */

  /* Infinite loop */
  /* USER CODE BEGIN WHILE */
  while (1)
  {
    /* USER CODE END WHILE */

    /* USER CODE BEGIN 3 */
  }
  /* USER CODE END 3 */
}

/**
  * @brief System Clock Configuration
  * @retval None
  */
void SystemClock_Config(void)
{
  RCC_OscInitTypeDef RCC_OscInitStruct = {0};
  RCC_ClkInitTypeDef RCC_ClkInitStruct = {0};

  /** Initializes the RCC Oscillators according to the specified parameters
  * in the RCC_OscInitTypeDef structure.
  */
  RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSE;
  RCC_OscInitStruct.HSEState = RCC_HSE_ON;
  RCC_OscInitStruct.HSEPredivValue = RCC_HSE_PREDIV_DIV1;
  RCC_OscInitStruct.HSIState = RCC_HSI_ON;
  RCC_OscInitStruct.PLL.PLLState = RCC_PLL_ON;
  RCC_OscInitStruct.PLL.PLLSource = RCC_PLLSOURCE_HSE;
  RCC_OscInitStruct.PLL.PLLMUL = RCC_PLL_MUL9;
  if (HAL_RCC_OscConfig(&RCC_OscInitStruct) != HAL_OK)
  {
    Error_Handler();
  }

  /** Initializes the CPU, AHB and APB buses clocks
  */
  RCC_ClkInitStruct.ClockType = RCC_CLOCKTYPE_HCLK|RCC_CLOCKTYPE_SYSCLK
                              |RCC_CLOCKTYPE_PCLK1|RCC_CLOCKTYPE_PCLK2;
  RCC_ClkInitStruct.SYSCLKSource = RCC_SYSCLKSOURCE_PLLCLK;
  RCC_ClkInitStruct.AHBCLKDivider = RCC_SYSCLK_DIV1;
  RCC_ClkInitStruct.APB1CLKDivider = RCC_HCLK_DIV2;
  RCC_ClkInitStruct.APB2CLKDivider = RCC_HCLK_DIV1;

  if (HAL_RCC_ClockConfig(&RCC_ClkInitStruct, FLASH_LATENCY_2) != HAL_OK)
  {
    Error_Handler();
  }
}

/* USER CODE BEGIN 4 */

/* USER CODE END 4 */

/**
  * @brief  This function is executed in case of error occurrence.
  * @retval None
  */
void Error_Handler(void)
{
  /* USER CODE BEGIN Error_Handler_Debug */
  /* User can add his own implementation to report the HAL error return state */
  __disable_irq();
  while (1)
  {
  }
  /* USER CODE END Error_Handler_Debug */
}
#ifdef USE_FULL_ASSERT
/**
  * @brief  Reports the name of the source file and the source line number
  *         where the assert_param error has occurred.
  * @param  file: pointer to the source file name
  * @param  line: assert_param error line source number
  * @retval None
  */
void assert_failed(uint8_t *file, uint32_t line)
{
  /* USER CODE BEGIN 6 */
  /* User can add his own implementation to report the file name and line number,
     ex: printf("Wrong parameters value: file %s on line %d\r\n", file, line) */
  /* USER CODE END 6 */
}
#endif /* USE_FULL_ASSERT */

5、手册指令

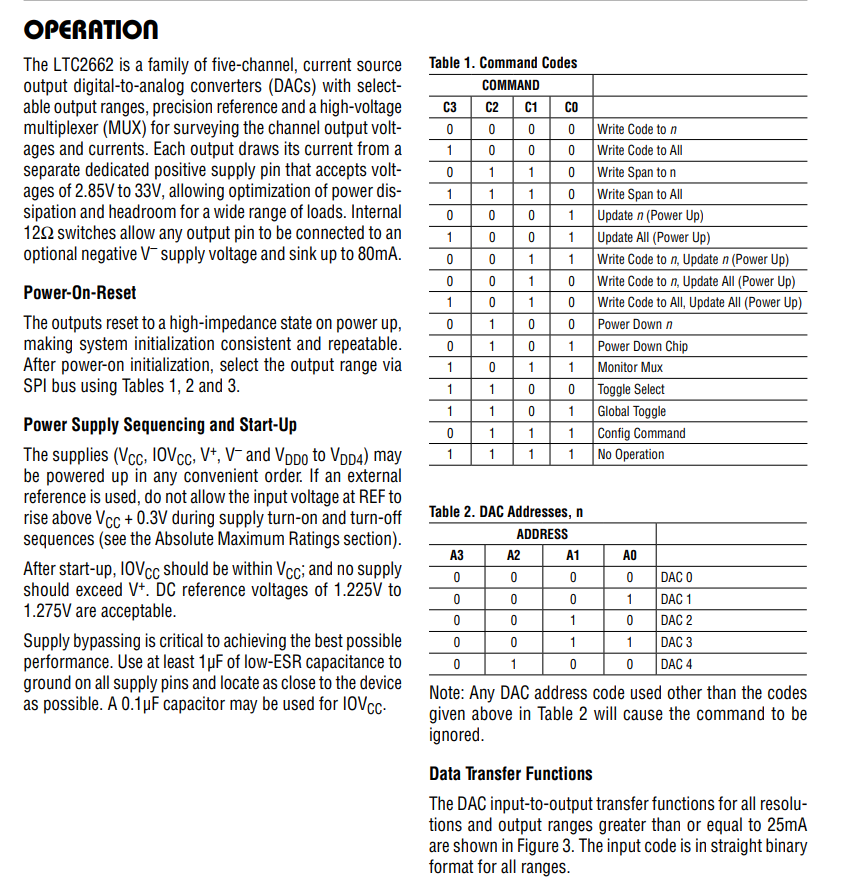

P15页

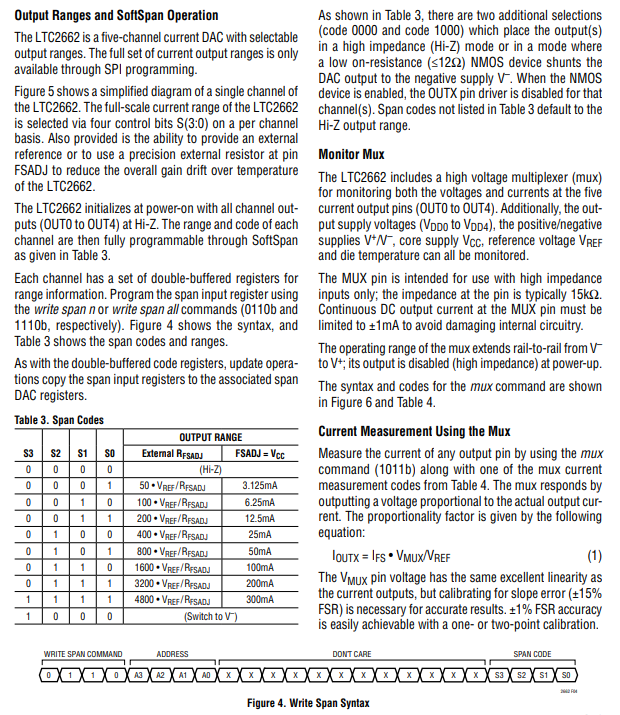

P17页

附件有ltc2662的手册

---

时间流逝、年龄增长，是自己的磨炼、对知识技术的应用，还有那不变的一颗对嵌入式热爱的心！

到这里就结束了！希望大家给我的文章和B站视频
点赞o(￣▽￣)ｄ、关注(o)/~、评论(▽)！
