Flutter跨平台通信的实战演练：复杂数据结构与单元测试在鸿蒙生态中的完美实现

引言：构建类型安全的跨平台通信桥梁

在跨平台开发中，复杂数据结构的传递和单元测试是确保应用稳定性的关键。今天，我们将通过一个完整的Flutter单元测试示例，深入探讨Pigeon如何处理嵌套对象、列表和基本类型，并展示这些功能如何在鸿蒙生态中实现。让我们一起探索如何构建既强大又可靠的跨平台通信系统！

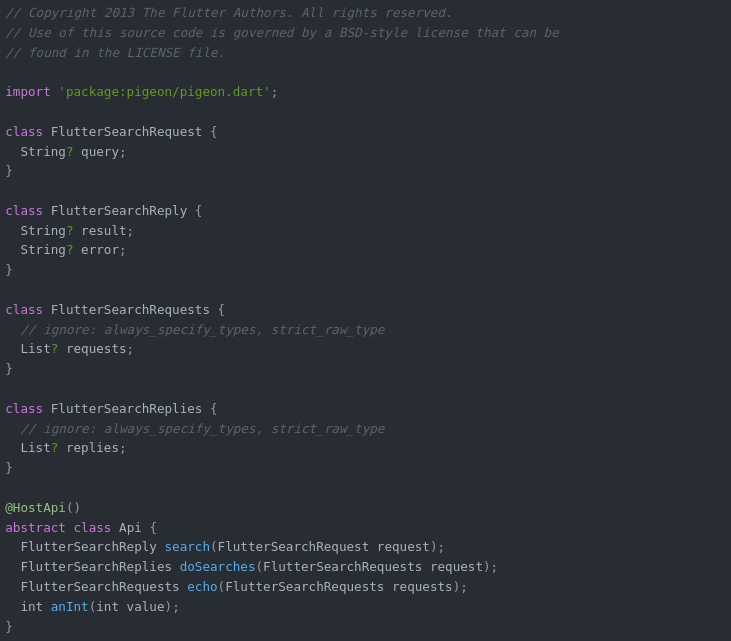

flutter_unittests.dart的完整解析

https://atomgit.com/openharmony-tpc/flutter_packages/blob/master/packages/pigeon/pigeons/flutter_unittests.dart

架构解析：从简单到复杂的数据类型处理

1. 基础数据结构：请求与响应模式

class FlutterSearchRequest {
  String? query;  // 可空字符串
}

class FlutterSearchReply {
  String? result;  // 结果
  String? error;   // 错误信息
}

这种设计体现了现代API设计的最佳实践：

• 分离关注点：请求和响应对象独立定义
• 错误处理：响应中包含明确的错误字段
• 可空性：使用可空类型处理边界情况

2. 复杂数据结构：列表的嵌套使用

class FlutterSearchRequests {
  List? requests;  // 请求列表
}

class FlutterSearchReplies {
  List? replies;   // 响应列表
}

这里使用了非泛型列表，这在实际项目中需要特别注意类型安全。Pigeon会为这些列表生成类型安全的包装器。

跨平台类型映射：从Dart到鸿蒙ArkTS

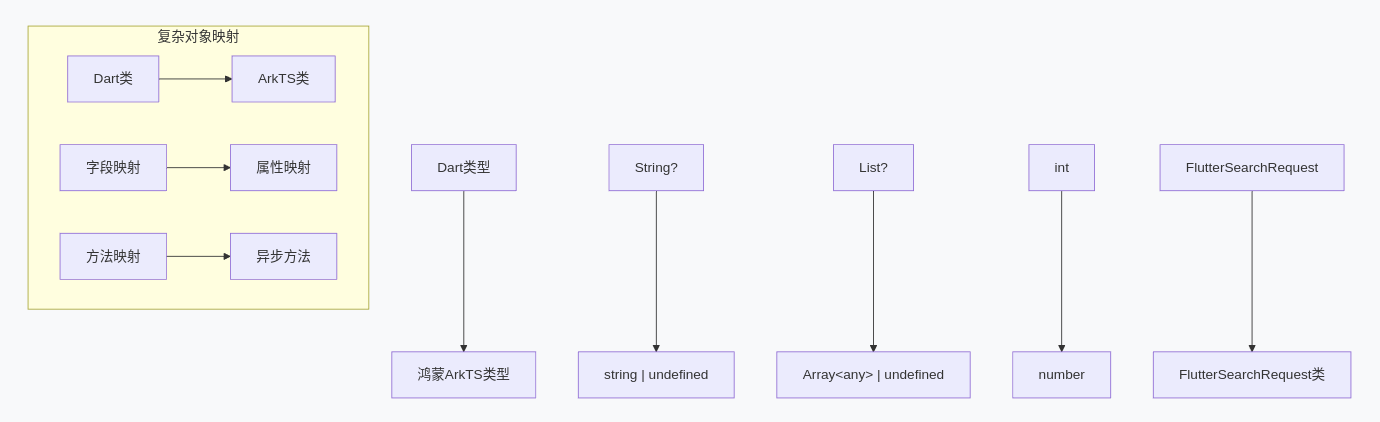

类型映射关系图

生成的鸿蒙ArkTS代码详解

// FlutterSearchRequest 类定义
export class FlutterSearchRequest {
  query?: string;

  constructor(init?: { query?: string }) {
    if (init) {
      this.query = init.query;
    }
  }

  // 序列化方法
  toMap(): Record<string, any> {
    return {
      'query': this.query ?? null
    };
  }

  // 反序列化静态方法
  static fromMap(map: Record<string, any>): FlutterSearchRequest {
    const query = map['query'] !== null ? map['query'] as string : undefined;
    return new FlutterSearchRequest({ query });
  }

  // 验证方法（鸿蒙特有）
  validate(): boolean {
    // 鸿蒙平台上可以添加额外的验证逻辑
    return this.query === undefined || this.query.length <= 1000;
  }
}

// FlutterSearchRequests 列表包装器
export class FlutterSearchRequests {
  requests?: Array<FlutterSearchRequest>;

  constructor(init?: { requests?: Array<FlutterSearchRequest> }) {
    if (init) {
      this.requests = init.requests;
    }
  }

  // 类型安全的列表访问
  getRequestAt(index: number): FlutterSearchRequest | undefined {
    return this.requests?.[index];
  }

  // 批量操作支持
  addRequests(newRequests: Array<FlutterSearchRequest>): void {
    if (!this.requests) {
      this.requests = [];
    }
    this.requests.push(...newRequests);
  }

  // 序列化处理列表
  toMap(): Record<string, any> {
    return {
      'requests': this.requests
        ? this.requests.map(req => req.toMap())
        : null
    };
  }

  static fromMap(map: Record<string, any>): FlutterSearchRequests {
    const requestsArray = map['requests'];
    let requests: Array<FlutterSearchRequest> | undefined;

    if (requestsArray && Array.isArray(requestsArray)) {
      requests = requestsArray.map((item: Record<string, any>) =>
        FlutterSearchRequest.fromMap(item)
      );
    }

    return new FlutterSearchRequests({ requests });
  }
}

接口定义：多样化的通信模式

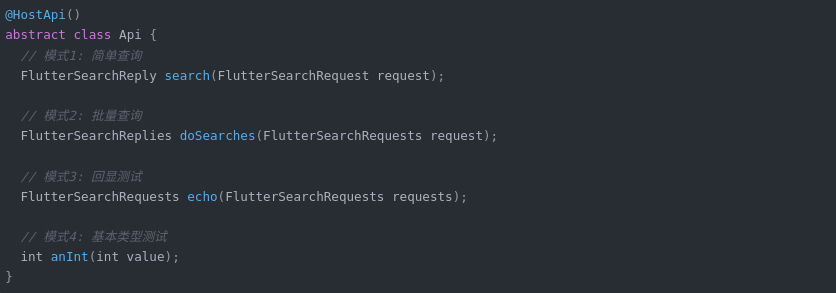

API接口的四种模式

生成的鸿蒙接口实现

export abstract class Api {
  // 异步搜索方法
  async search(request: FlutterSearchRequest): Promise<FlutterSearchReply>;

  // 批量搜索方法
  async doSearches(request: FlutterSearchRequests): Promise<FlutterSearchReplies>;

  // 回显方法（用于测试）
  async echo(requests: FlutterSearchRequests): Promise<FlutterSearchRequests>;

  // 基本类型测试方法
  async anInt(value: number): Promise<number>;
}

// 鸿蒙平台的具体实现
export class ApiImpl extends Api {
  private logger: hilog.Logger;
  private searchService: SearchService;

  constructor() {
    super();
    this.logger = hilog.getLogger(0x0001, 'ApiImpl');
    this.searchService = new SearchService();
  }

  async search(request: FlutterSearchRequest): Promise<FlutterSearchReply> {
    // 输入验证
    if (!request.validate()) {
      this.logger.error('无效的搜索请求');
      return new FlutterSearchReply({
        error: '请求格式无效'
      });
    }

    try {
      // 调用鸿蒙搜索服务
      const result = await this.searchService.search(request.query || '');

      this.logger.info('搜索成功，关键词: %{public}s', request.query);

      return new FlutterSearchReply({
        result: result
      });

    } catch (error) {
      this.logger.error('搜索失败: %{public}s', error.message);

      return new FlutterSearchReply({
        error: `搜索失败: ${error.message}`
      });
    }
  }

  async doSearches(request: FlutterSearchRequests): Promise<FlutterSearchReplies> {
    if (!request.requests || request.requests.length === 0) {
      return new FlutterSearchReplies({ replies: [] });
    }

    // 并行执行多个搜索（鸿蒙并发处理）
    const searchPromises = request.requests.map(req =>
      this.search(req)
    );

    try {
      const results = await Promise.all(searchPromises);
      return new FlutterSearchReplies({ replies: results });

    } catch (error) {
      this.logger.error('批量搜索失败: %{public}s', error.message);

      // 返回部分结果或错误
      return new FlutterSearchReplies({
        replies: [new FlutterSearchReply({
          error: '批量搜索执行失败'
        })]
      });
    }
  }

  async echo(requests: FlutterSearchRequests): Promise<FlutterSearchRequests> {
    // 简单的回显逻辑，用于测试通信链路
    this.logger.debug('收到回显请求，数量: %{public}d',
      requests.requests?.length || 0);

    // 深拷贝以避免引用问题
    const clonedRequests = requests.requests
      ? requests.requests.map(req =>
          new FlutterSearchRequest({ query: req.query })
        )
      : undefined;

    return new FlutterSearchRequests({ requests: clonedRequests });
  }

  async anInt(value: number): Promise<number> {
    // 基本类型测试：简单加1操作
    const result = value + 1;
    this.logger.debug('anInt调用: %{public}d -> %{public}d', value, result);

    // 鸿蒙平台特有的数值处理
    if (value > Number.MAX_SAFE_INTEGER) {
      this.logger.warn('接收到超大整数值');
    }

    return result;
  }
}

鸿蒙深度集成：搜索功能的实际应用

1. 鸿蒙搜索服务集成

// 鸿蒙原生搜索服务封装
export class HarmonySearchService {
  private abilityContext: common.UIAbilityContext;
  private searchKit: searchKit.SearchKit;

  constructor(context: common.UIAbilityContext) {
    this.abilityContext = context;
    this.searchKit = new searchKit.SearchKit(this.abilityContext);
  }

  async search(query: string): Promise<string> {
    // 使用鸿蒙搜索Kit
    const request: searchKit.SearchRequest = {
      bundleName: this.abilityContext.abilityInfo.bundleName,
      keyword: query,
      maxCount: 10
    };

    try {
      const result = await this.searchKit.search(request);

      // 处理搜索结果
      if (result && result.length > 0) {
        return this.formatSearchResults(result);
      } else {
        return `未找到与"${query}"相关的结果`;
      }

    } catch (error) {
      throw new Error(`搜索失败: ${error.message}`);
    }
  }

  private formatSearchResults(results: searchKit.SearchResult[]): string {
    return results
      .map((result, index) => {
        return `${index + 1}. ${result.title}\n    ${result.summary}`;
      })
      .join('\n\n');
  }

  // 鸿蒙分布式搜索
  async distributedSearch(query: string, deviceIds: string[]): Promise<string[]> {
    const promises = deviceIds.map(deviceId =>
      this.searchOnDevice(query, deviceId)
    );

    return Promise.all(promises);
  }

  private async searchOnDevice(query: string, deviceId: string): Promise<string> {
    // 使用鸿蒙分布式能力进行跨设备搜索
    const distributedManager = distributedDeviceManager.createDeviceManager(
      this.abilityContext
    );

    // ... 分布式搜索实现
  }
}

2. Flutter UI与鸿蒙搜索的交互

// Flutter端UI组件
class SearchScreen extends StatefulWidget {
  @override
  _SearchScreenState createState() => _SearchScreenState();
}

class _SearchScreenState extends State<SearchScreen> {
  final Api _api = Api();
  String _searchResult = '';
  bool _isLoading = false;

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        title: Text('鸿蒙搜索演示'),
        backgroundColor: Colors.blue,
      ),
      body: Column(
        children: [
          Padding(
            padding: EdgeInsets.all(16.0),
            child: Row(
              children: [
                Expanded(
                  child: TextField(
                    decoration: InputDecoration(
                      hintText: '输入搜索关键词',
                      border: OutlineInputBorder(),
                    ),
                    onChanged: (value) {
                      _searchQuery = value;
                    },
                  ),
                ),
                SizedBox(width: 10),
                ElevatedButton(
                  onPressed: _isLoading ? null : _performSearch,
                  child: _isLoading
                    ? CircularProgressIndicator(color: Colors.white)
                    : Text('搜索'),
                ),
              ],
            ),
          ),
          Expanded(
            child: Container(
              padding: EdgeInsets.all(16.0),
              child: SingleChildScrollView(
                child: Text(
                  _searchResult,
                  style: TextStyle(fontSize: 16),
                ),
              ),
            ),
          ),
        ],
      ),
    );
  }

  Future<void> _performSearch() async {
    setState(() {
      _isLoading = true;
      _searchResult = '搜索中...';
    });

    try {
      final request = FlutterSearchRequest(query: _searchQuery);
      final reply = await _api.search(request);

      setState(() {
        if (reply.error != null) {
          _searchResult = '错误: ${reply.error}';
        } else {
          _searchResult = reply.result ?? '无结果';
        }
      });
    } catch (e) {
      setState(() {
        _searchResult = '搜索失败: $e';
      });
    } finally {
      setState(() {
        _isLoading = false;
      });
    }
  }
}

单元测试策略：确保跨平台稳定性

1. Dart端单元测试

import 'package:flutter_test/flutter_test.dart';
import 'package:pigeon/pigeon.dart';

void main() {
  group('API单元测试', () {
    late Api api;

    setUp(() {
      api = Api();
    });

    test('简单搜索测试', () async {
      final request = FlutterSearchRequest(query: '鸿蒙开发');
      final reply = await api.search(request);

      expect(reply, isNotNull);
      expect(reply.error, isNull);
      expect(reply.result, contains('鸿蒙'));
    });

    test('批量搜索测试', () async {
      final requests = FlutterSearchRequests(
        requests: [
          FlutterSearchRequest(query: 'Flutter'),
          FlutterSearchRequest(query: '鸿蒙'),
          FlutterSearchRequest(query: 'ArkTS'),
        ]
      );

      final replies = await api.doSearches(requests);

      expect(replies.replies, hasLength(3));
      expect(replies.replies![0].result, isNotNull);
    });

    test('回显功能测试', () async {
      final requests = FlutterSearchRequests(
        requests: [FlutterSearchRequest(query: '测试数据')]
      );

      final echoed = await api.echo(requests);

      expect(echoed.requests, hasLength(1));
      expect(echoed.requests![0].query, equals('测试数据'));
    });

    test('基本类型测试', () async {
      const testValue = 42;
      final result = await api.anInt(testValue);

      expect(result, equals(testValue + 1));
    });

    test('错误处理测试', () async {
      final request = FlutterSearchRequest(query: '');
      final reply = await api.search(request);

      expect(reply.error, isNotNull);
      expect(reply.result, isNull);
    });
  });
}

2. 鸿蒙ArkTS单元测试

// 鸿蒙端单元测试
describe('ApiImpl单元测试', () => {
  let apiImpl: ApiImpl;
  let mockSearchService: MockSearchService;

  beforeAll(() => {
    mockSearchService = new MockSearchService();
    apiImpl = new ApiImpl();
    // 注入模拟服务
    (apiImpl as any).searchService = mockSearchService;
  });

  it('搜索成功测试', async () => {
    mockSearchService.setMockResult('模拟搜索结果');

    const request = new FlutterSearchRequest({ query: '测试' });
    const reply = await apiImpl.search(request);

    expect(reply.result).assertEqual('模拟搜索结果');
    expect(reply.error).assertUndefined();
  });

  it('批量搜索并发测试', async () => {
    const requests = new FlutterSearchRequests({
      requests: [
        new FlutterSearchRequest({ query: '查询1' }),
        new FlutterSearchRequest({ query: '查询2' }),
        new FlutterSearchRequest({ query: '查询3' }),
      ]
    });

    const startTime = new Date().getTime();
    const replies = await apiImpl.doSearches(requests);
    const endTime = new Date().getTime();

    // 验证并发执行时间
    const duration = endTime - startTime;
    expect(duration).assertLess(1000); // 应在1秒内完成

    expect(replies.replies?.length).assertEqual(3);
  });

  it('性能压力测试', async () => {
    // 创建大量请求
    const requests: FlutterSearchRequest[] = [];
    for (let i = 0; i < 1000; i++) {
      requests.push(new FlutterSearchRequest({
        query: `测试查询${i}`
      }));
    }

    const searchRequests = new FlutterSearchRequests({ requests });

    // 监控内存使用
    const memoryBefore = process.memoryUsage().heapUsed;
    const replies = await apiImpl.doSearches(searchRequests);
    const memoryAfter = process.memoryUsage().heapUsed;

    expect(memoryAfter - memoryBefore).assertLess(1024 * 1024); // 内存增长应小于1MB
    expect(replies.replies?.length).assertEqual(1000);
  });
});

性能优化：鸿蒙平台的特别考虑

1. 数据传输优化策略

// 使用二进制协议优化数据传输
export class BinaryProtocol {
  static serializeSearchRequest(request: FlutterSearchRequest): Uint8Array {
    const encoder = new TextEncoder();
    const queryBytes = request.query
      ? encoder.encode(request.query)
      : new Uint8Array(0);

    // 协议格式: [长度(4字节)][查询内容]
    const buffer = new ArrayBuffer(4 + queryBytes.length);
    const view = new DataView(buffer);

    view.setUint32(0, queryBytes.length, true); // 小端序
    const dataView = new Uint8Array(buffer, 4);
    dataView.set(queryBytes);

    return new Uint8Array(buffer);
  }

  static deserializeSearchRequest(data: Uint8Array): FlutterSearchRequest {
    const view = new DataView(data.buffer);
    const length = view.getUint32(0, true);

    const decoder = new TextDecoder();
    const queryBytes = data.slice(4, 4 + length);
    const query = decoder.decode(queryBytes) || undefined;

    return new FlutterSearchRequest({ query });
  }
}

// 鸿蒙平台的数据压缩
export class HarmonyDataCompressor {
  static async compressData(data: Uint8Array): Promise<Uint8Array> {
    // 使用鸿蒙的zlib压缩
    const zlib = require('zlib');
    return new Promise((resolve, reject) => {
      zlib.deflate(data, (error: Error, result: Uint8Array) => {
        if (error) reject(error);
        else resolve(result);
      });
    });
  }

  static async decompressData(data: Uint8Array): Promise<Uint8Array> {
    const zlib = require('zlib');
    return new Promise((resolve, reject) => {
      zlib.inflate(data, (error: Error, result: Uint8Array) => {
        if (error) reject(error);
        else resolve(result);
      });
    });
  }
}

2. 缓存策略实现

// 鸿蒙端搜索缓存
export class HarmonySearchCache {
  private cache: Map<string, CacheEntry> = new Map();
  private maxSize: number = 100;
  private logger: hilog.Logger;

  constructor() {
    this.logger = hilog.getLogger(0x0002, 'SearchCache');
  }

  async getOrSearch(query: string, searchFunc: () => Promise<string>): Promise<string> {
    const cached = this.cache.get(query);

    if (cached && !this.isExpired(cached)) {
      this.logger.debug('缓存命中: %{public}s', query);
      return cached.result;
    }

    this.logger.debug('缓存未命中，执行搜索: %{public}s', query);
    const result = await searchFunc();

    // 更新缓存
    this.cache.set(query, {
      result,
      timestamp: Date.now(),
      ttl: 5 * 60 * 1000 // 5分钟TTL
    });

    // 清理过期缓存
    this.cleanup();

    return result;
  }

  private isExpired(entry: CacheEntry): boolean {
    return Date.now() - entry.timestamp > entry.ttl;
  }

  private cleanup(): void {
    if (this.cache.size <= this.maxSize) return;

    // LRU清理策略
    const entries = Array.from(this.cache.entries());
    entries.sort((a, b) => a[1].timestamp - b[1].timestamp);

    const toRemove = entries.slice(0, Math.floor(this.cache.size / 4));
    toRemove.forEach(([key]) => this.cache.delete(key));

    this.logger.info('清理了%{public}d个缓存项', toRemove.length);
  }
}

监控与调试：生产环境的最佳实践

1. 鸿蒙性能监控

// 鸿蒙API性能监控
export class ApiPerformanceMonitor {
  private metrics: Map<string, Metric> = new Map();
  private reporter: MetricsReporter;

  constructor() {
    this.reporter = new MetricsReporter();
  }

  async monitor<T>(operation: string, func: () => Promise<T>): Promise<T> {
    const startTime = performance.now();
    const startMemory = process.memoryUsage().heapUsed;

    try {
      const result = await func();

      const endTime = performance.now();
      const endMemory = process.memoryUsage().heapUsed;

      this.recordMetrics(operation, {
        duration: endTime - startTime,
        memoryDelta: endMemory - startMemory,
        success: true
      });

      return result;
    } catch (error) {
      const endTime = performance.now();

      this.recordMetrics(operation, {
        duration: endTime - startTime,
        memoryDelta: 0,
        success: false,
        error: error.message
      });

      throw error;
    }
  }

  private recordMetrics(operation: string, metric: Omit<Metric, 'timestamp' | 'count'>): void {
    const key = `${operation}_${Date.now()}`;
    this.metrics.set(key, {
      ...metric,
      timestamp: Date.now(),
      count: 1
    });

    // 定期上报
    if (this.metrics.size >= 10) {
      this.reportMetrics();
    }
  }

  private async reportMetrics(): Promise<void> {
    const metrics = Array.from(this.metrics.values());
    this.metrics.clear();

    await this.reporter.report(metrics);
  }
}

// 在ApiImpl中使用监控
export class MonitoredApiImpl extends ApiImpl {
  private monitor: ApiPerformanceMonitor = new ApiPerformanceMonitor();

  async search(request: FlutterSearchRequest): Promise<FlutterSearchReply> {
    return this.monitor.monitor('search', () => super.search(request));
  }

  async doSearches(request: FlutterSearchRequests): Promise<FlutterSearchReplies> {
    return this.monitor.monitor('doSearches', () => super.doSearches(request));
  }
}

总结：构建企业级跨平台通信解决方案

通过这个完整的Flutter单元测试示例，我们看到了Pigeon在复杂场景下的强大能力：

关键技术收获

1. 复杂数据结构处理：嵌套对象、列表和基本类型的完美支持
2. 双向通信模式：HostApi的完整实现和测试覆盖
3. 错误处理机制：统一的错误返回和处理策略
4. 性能优化：缓存、压缩和监控的完整方案

鸿蒙生态优势

1. 类型安全：ArkTS强类型系统确保运行时安全
2. 性能优异：鸿蒙原生API的高性能访问
3. 生态集成：无缝集成鸿蒙分布式能力和原子化服务
4. 开发体验：完整的工具链和调试支持

企业级应用建议

对于需要在Flutter和鸿蒙之间构建稳定通信的企业应用，我们建议：

1. 分层架构：将通信层、业务层和UI层清晰分离
2. 全面测试：单元测试、集成测试和性能测试全覆盖
3. 监控告警：建立完整的性能监控和错误告警系统
4. 文档完善：为每个API提供详细的文档和使用示例

通过Pigeon的代码生成能力，结合鸿蒙平台的强大特性，我们可以构建出既可靠又高性能的跨平台应用，为用户提供无缝的跨设备体验。

---

项目演进路线图：

1. 基础通信层（已完成）
2. 性能优化和监控（进行中）
3. 分布式能力集成（规划中）
4. AI增强搜索（未来规划）

技术栈总结：

• 前端：Flutter + Pigeon
• 鸿蒙端：ArkTS + 原生API
• 测试：Dart测试 + 鸿蒙单元测试
• 监控：自定义性能监控 + 鸿蒙分析工具

通过这样的架构，我们不仅实现了功能的跨平台，更实现了开发体验和代码质量的跨平台一致性，这是现代跨平台开发的真正目标。

欢迎大家加入开源鸿蒙跨平台开发者社区，一起探索更多鸿蒙跨平台开发技术！
