文章目录
概要
某些情况下我们可能需要手动开启事务，比如由多个业务组合的功能，其中某一段业务报错我们需要进行回滚操作，或者是使用数据库事务实现分布式锁。那么该如何开启事务呢。
开启事务
方式一 ：使用@Transactional注解，Spring会自动帮我们管理事务，包括开启事务、提交事务、回滚事务。
方式二 ：从数据源DataSource中获取一个Connection，DataSource是自动装配的，SpringBoot默认使用的是HikariDataSource。将Connection自动提交设置为false，用此Connection执行业务SQL，然后提交事务、回滚事务。
方式三 ：借助Spring中的事务管理器PlatformTransactionManager来开启事务。
方式四：使用TransactionTemplate，调用其execute方法来执行业务逻辑。
PlatformTransactionManager
方式一是自动管理事务。方式二虽然能手动管理事务，但实际操作起来不太优雅。方式四本质上还是方式三只不过把开启事务、提交事务、回滚事务做了封装，通过lambda函数回调执行我们的业务，可以认为还是帮我们自动管理了事务，这里重点介绍方式三。
先看一段代码和运行效果
java
@Resource
private UserMapper userMapper;
@Resource
private PlatformTransactionManager transactionManager;
@GetMapping(value = "/transaction", produces = MediaType.APPLICATION_JSON_VALUE)
public ResponseEntity<String> transaction() throws InterruptedException {
TransactionStatus transaction = null;
try {
//开启事务
transaction = transactionManager.getTransaction(new DefaultTransactionDefinition());
User user = userMapper.findById(1L);
System.out.println("更新前：" + user);
user.setAge(28);
userMapper.updateById(user);
//事物未提交前其他线程读取数据
Thread otherThread = new Thread(() -> {
User newUser = userMapper.findById(1L);
System.out.println("新线程获取更新后的值：" + newUser);
});
otherThread.start();
otherThread.join();
User newUser = userMapper.findById(1L);
System.out.println("更新后：" + newUser);
} finally {
if (transaction != null) {
//提交事务
transactionManager.commit(transaction);
//其他线程读取事务提交后的值
Thread otherThread = new Thread(() -> {
User user = userMapper.findById(1L);
System.out.println("新线程获取事务提交后的值：" + user);
});
otherThread.start();
otherThread.join();
}
}
return ResponseEntity.ok("transaction");
}

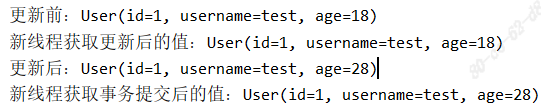

这里使用mybatis来作为持久层框架，PlatformTransactionManager系统已经自动装配，这里直接注入就可以使用。从运行效果来看手动开启的事务是生效的
上面的测试代码是开启了一个新线程来观察事务开启后的效果，由于是新线程必然和当前线程是不会共享事务。但是这种写法需要额外的线程来操作，下面是用mybatis的SqlSessionFactory来开启一个新的SqlSession和当前线程不共享事务。
java
@Resource
private UserMapper userMapper;
@Resource
private PlatformTransactionManager transactionManager;
@Resource
private SqlSessionFactory sqlSessionFactory;
@GetMapping(value = "/transaction2", produces = MediaType.APPLICATION_JSON_VALUE)
public ResponseEntity<String> transaction2() {
TransactionStatus transaction = null;
DefaultSqlSession sqlSession = null;
try {
//开启事务
transaction = transactionManager.getTransaction(new DefaultTransactionDefinition());
User user = userMapper.findById(1L);
System.out.println("更新前：" + user);
user.setAge(28);
userMapper.updateById(user);
//重新开启一个连接
Configuration configuration = sqlSessionFactory.getConfiguration();
sqlSession = new DefaultSqlSession(
configuration,
configuration.newExecutor(
new JdbcTransaction(configuration.getEnvironment().getDataSource().getConnection()),
ExecutorType.SIMPLE),
true);
User user2 = sqlSession.getMapper(UserMapper.class).findById(1L);
System.out.println("新SqlSession获取更新后的值：" + user2);
User newUser = userMapper.findById(1L);
System.out.println("更新后：" + newUser);
} catch (SQLException e) {
throw new RuntimeException(e);
} finally {
if (transaction != null) {
//提交事务
transactionManager.commit(transaction);
if (sqlSession != null) {
User newUser = sqlSession.getMapper(UserMapper.class).findById(1L);
System.out.println("新SqlSession获取事务提交后的值：" + newUser);
sqlSession.close();
}
}
}
return ResponseEntity.ok("transaction2");
}

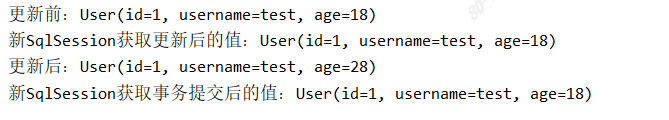

从运行结果来看，事务提交后新sqlSession获取的age应该为28，但仍然是18。这是因为同一个sqlSession执行了相同的查询sql语句时，后续的查询会从缓存中拿值，我们需要在相应的mapper方法上加上@Options注解每次查询前会清空缓然后走数据库查询。
java
@Options(flushCache = Options.FlushCachePolicy.TRUE)
@Select("select * from user where id = #{id}")
User findById(Long id);技术细节
PlatformTransactionManager是如何实现手动管理事务的

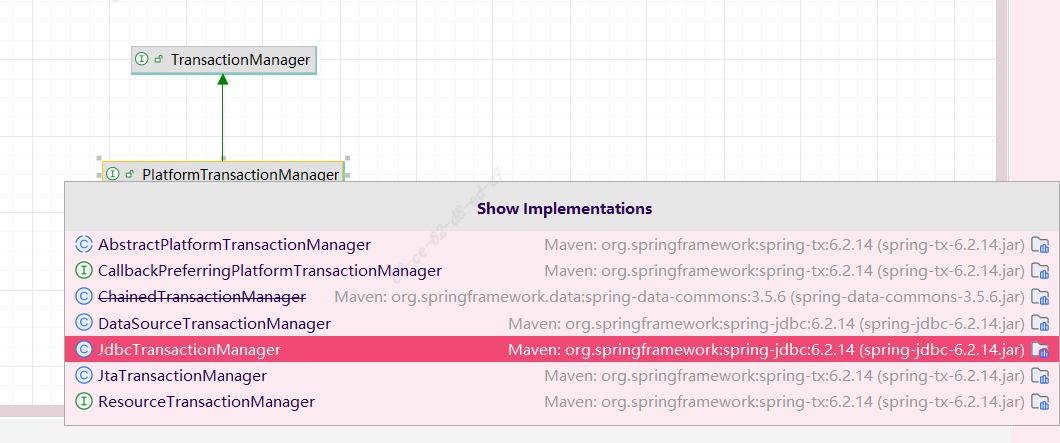

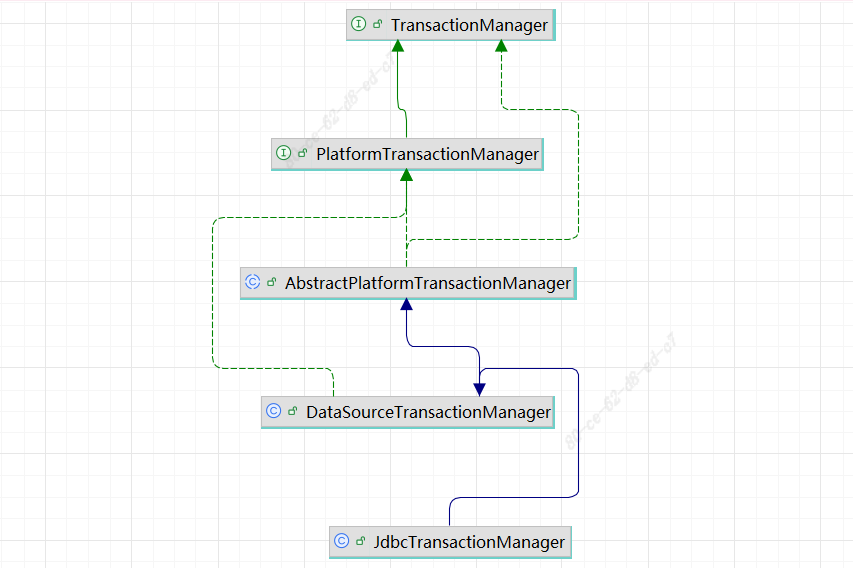

PlatformTransactionManager的实现是JdbcTransactionManager，参考DataSourceTransactionManagerAutoConfiguration自动装配类。如果引入了其他事务框架，如spring-boot-starter-data-jpa，那么PlatformTransactionManager实现会是JpaTransactionManager，可以参考HibernateJpaAutoConfiguration自动装配类。不管是JdbcTransactionManager还是JpaTransactionManager在开启事务时做的相关操作都是类似的，都是从数据源中获取到一个新的Connection后将其自动提交设置为false。
当我们在代码中执行
java
transaction = transactionManager.getTransaction(new DefaultTransactionDefinition());getTransaction方法在其抽象类AbstractPlatformTransactionManager中，源码如下
java
public final TransactionStatus getTransaction(@Nullable TransactionDefinition definition)
throws TransactionException {
// 省略相关代码。。。
// No existing transaction found -> check propagation behavior to find out how to proceed.
if (def.getPropagationBehavior() == TransactionDefinition.PROPAGATION_MANDATORY) {
throw new IllegalTransactionStateException(
"No existing transaction found for transaction marked with propagation 'mandatory'");
}
else if (def.getPropagationBehavior() == TransactionDefinition.PROPAGATION_REQUIRED ||
def.getPropagationBehavior() == TransactionDefinition.PROPAGATION_REQUIRES_NEW ||
def.getPropagationBehavior() == TransactionDefinition.PROPAGATION_NESTED) {
SuspendedResourcesHolder suspendedResources = suspend(null);
if (debugEnabled) {
logger.debug("Creating new transaction with name [" + def.getName() + "]: " + def);
}
try {
//开启新的事务
return startTransaction(def, transaction, false, debugEnabled, suspendedResources);
}
catch (RuntimeException | Error ex) {
resume(null, suspendedResources);
throw ex;
}
}
else {
// Create "empty" transaction: no actual transaction, but potentially synchronization.
// 省略相关代码。。。
}
}
private TransactionStatus startTransaction(TransactionDefinition definition, Object transaction,
boolean nested, boolean debugEnabled, @Nullable SuspendedResourcesHolder suspendedResources) {
boolean newSynchronization = (getTransactionSynchronization() != SYNCHRONIZATION_NEVER);
DefaultTransactionStatus status = newTransactionStatus(
definition, transaction, true, newSynchronization, nested, debugEnabled, suspendedResources);
this.transactionExecutionListeners.forEach(listener -> listener.beforeBegin(status));
try {
//此处由实现类实现
doBegin(transaction, definition);
}
catch (RuntimeException | Error ex) {
this.transactionExecutionListeners.forEach(listener -> listener.afterBegin(status, ex));
throw ex;
}
prepareSynchronization(status, definition);
this.transactionExecutionListeners.forEach(listener -> listener.afterBegin(status, null));
return status;
}doBegin是抽象方法，其实现在JdbcTransactionManager的父类DataSourceTransactionManager中实现。
java
protected void doBegin(Object transaction, TransactionDefinition definition) {
DataSourceTransactionObject txObject = (DataSourceTransactionObject) transaction;
Connection con = null;
try {
if (!txObject.hasConnectionHolder() ||
txObject.getConnectionHolder().isSynchronizedWithTransaction()) {
//从数据源中获取一个新的连接
Connection newCon = obtainDataSource().getConnection();
if (logger.isDebugEnabled()) {
logger.debug("Acquired Connection [" + newCon + "] for JDBC transaction");
}
if (definition.isReadOnly()) {
checkDefaultReadOnly(newCon);
}
// 把新的数据库连接绑定到ConnectionHolder中
txObject.setConnectionHolder(new ConnectionHolder(newCon), true);
}
txObject.getConnectionHolder().setSynchronizedWithTransaction(true);
con = txObject.getConnectionHolder().getConnection();
// 省略部分代码。。。
// Switch to manual commit if necessary. This is very expensive in some JDBC drivers,
// so we don't want to do it unnecessarily (for example if we've explicitly
// configured the connection pool to set it already).
// 正常情况下新获取的连接都是自动提交
if (con.getAutoCommit()) {
txObject.setMustRestoreAutoCommit(true);
if (logger.isDebugEnabled()) {
logger.debug("Switching JDBC Connection [" + con + "] to manual commit");
}
//将数据库连接改为手动提交
con.setAutoCommit(false);
}
// 省略部分代码。。。
// Bind the connection holder to the thread.
if (txObject.isNewConnectionHolder()) {
//给当前线程的数据源绑定一个ConnectionHolder
TransactionSynchronizationManager.bindResource(obtainDataSource(), txObject.getConnectionHolder());
}
}
catch (Throwable ex) {
// 省略部分代码。。。
}
}源码中可以看到新获取的连接其自动提交被设置为false这样就能实现手动提交事务了。且新的连接被TransactionSynchronizationManager（事务同步器）绑定到当前线程中，事务同步器在绑定数据时是用ThreadLocal来实现的，方便后续线程能直接拿到绑定的数据库连接。
当使用mybatis的mapper接口或者sqlSession查询以及更新数据时，是如何共享事务的。

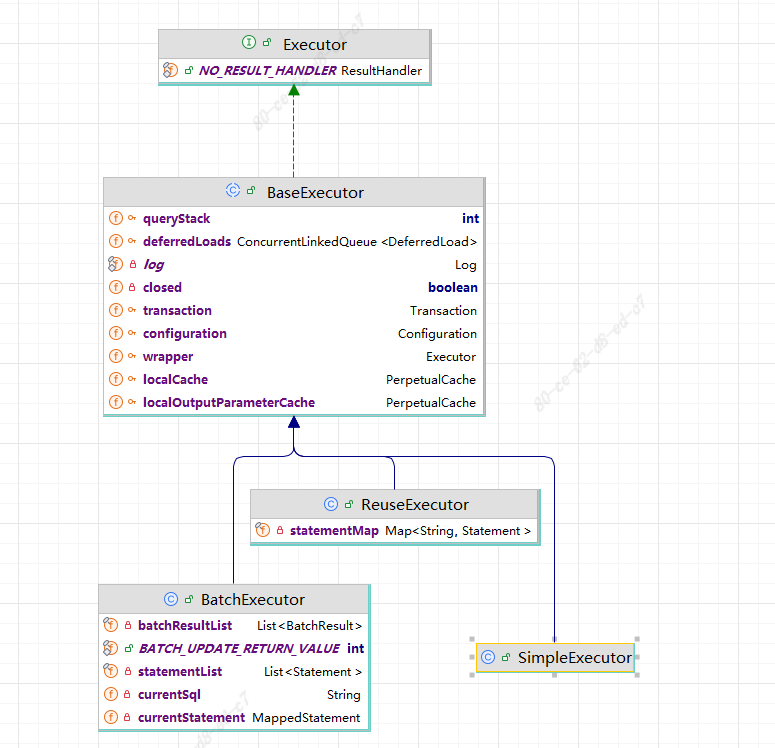

mapper接口会变成一个代理对象（是一个MapperFactoryBean属于工厂Bean），sql的执行是交给代理对象中封装的sqlSession来完成操作。sqlSession在执行sql语句时最终会交给Executor。

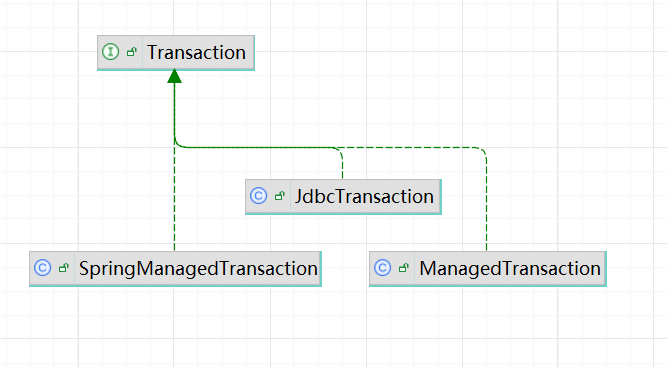

Executor中会有个事务字段transaction是一个接口。在Spring环境下它的实现是SpringManagedTransaction。Executor执行sql语句时会从transaction中获取一个数据连接。
java
public Connection getConnection() throws SQLException {
if (this.connection == null) {
openConnection();
}
return this.connection;
}
private void openConnection() throws SQLException {
this.connection = DataSourceUtils.getConnection(this.dataSource);
this.autoCommit = this.connection.getAutoCommit();
this.isConnectionTransactional = DataSourceUtils.isConnectionTransactional(this.connection, this.dataSource);
LOGGER.debug(() -> "JDBC Connection [" + this.connection + "] will"
+ (this.isConnectionTransactional ? " " : " not ") + "be managed by Spring");
}可以看到连接的获取是通过工具类DataSourceUtils来操作完成的，这个是spring jdbc中所提供的工具类。
java
public static Connection getConnection(DataSource dataSource) throws CannotGetJdbcConnectionException {
try {
return doGetConnection(dataSource);
}
catch (SQLException ex) {
throw new CannotGetJdbcConnectionException("Failed to obtain JDBC Connection", ex);
}
catch (IllegalStateException ex) {
throw new CannotGetJdbcConnectionException("Failed to obtain JDBC Connection", ex);
}
}
public static Connection doGetConnection(DataSource dataSource) throws SQLException {
Assert.notNull(dataSource, "No DataSource specified");
//这里能看到连接是从事务同步器中拿的
ConnectionHolder conHolder = (ConnectionHolder) TransactionSynchronizationManager.getResource(dataSource);
if (conHolder != null && (conHolder.hasConnection() || conHolder.isSynchronizedWithTransaction())) {
conHolder.requested();
if (!conHolder.hasConnection()) {
logger.debug("Fetching resumed JDBC Connection from DataSource");
conHolder.setConnection(fetchConnection(dataSource));
}
return conHolder.getConnection();
}
// Else we either got no holder or an empty thread-bound holder here.
// 省略相关代码。。。
return con;
}由于前面开启事务时已经给当前线程绑定了一个ConnectionHolder，这里就直接接能获取到，这样就实现了同一个线程中数据库连接的共享。最后提交事务时是交给doCommit方法完成的。
java
protected void doCommit(DefaultTransactionStatus status) {
DataSourceTransactionObject txObject = (DataSourceTransactionObject) status.getTransaction();
// 最开始创建一个新的事务时txObject中已经绑定了ConnectionHolder
Connection con = txObject.getConnectionHolder().getConnection();
if (status.isDebug()) {
logger.debug("Committing JDBC transaction on Connection [" + con + "]");
}
try {
con.commit();
}
catch (SQLException ex) {
throw translateException("JDBC commit", ex);
}
}事务提交之后从数据源中拿到的Connection自动提交要恢复为true。JdbcTransactionManager的操作是在父类DataSourceTransactionManager的doCleanupAfterCompletion方法中完成的。
java
protected void doCleanupAfterCompletion(Object transaction) {
DataSourceTransactionObject txObject = (DataSourceTransactionObject) transaction;
// Remove the connection holder from the thread, if exposed.
if (txObject.isNewConnectionHolder()) {
TransactionSynchronizationManager.unbindResource(obtainDataSource());
}
// Reset connection.
Connection con = txObject.getConnectionHolder().getConnection();
try {
if (txObject.isMustRestoreAutoCommit()) {
// 恢复为自动提交
con.setAutoCommit(true);
}
DataSourceUtils.resetConnectionAfterTransaction(con,
txObject.getPreviousIsolationLevel(),
(txObject.isReadOnly() && !isDefaultReadOnly()));
}
catch (Throwable ex) {
logger.debug("Could not reset JDBC Connection after transaction", ex);
}
// 省略部分代码。。。
}总结
为何mybatis的sqlSession在执行同一个查询sql语句时后续会从缓存中拿值。前面说到sql语句的执行会交给Executor，其查询方法如下。
java
public <E> List<E> query(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler,
CacheKey key, BoundSql boundSql) throws SQLException {
ErrorContext.instance().resource(ms.getResource()).activity("executing a query").object(ms.getId());
if (closed) {
throw new ExecutorException("Executor was closed.");
}
// 如果设置了强制刷新缓存，每次执行查询时都会清空一遍缓存
if (queryStack == 0 && ms.isFlushCacheRequired()) {
clearLocalCache();
}
List<E> list;
try {
queryStack++;
// 如果从缓存中拿到了值就不从数据库中查询了
list = resultHandler == null ? (List<E>) localCache.getObject(key) : null;
if (list != null) {
handleLocallyCachedOutputParameters(ms, key, parameter, boundSql);
} else {
list = queryFromDatabase(ms, parameter, rowBounds, resultHandler, key, boundSql);
}
} finally {
queryStack--;
}
if (queryStack == 0) {
for (DeferredLoad deferredLoad : deferredLoads) {
deferredLoad.load();
}
// issue #601
deferredLoads.clear();
if (configuration.getLocalCacheScope() == LocalCacheScope.STATEMENT) {
// issue #482
clearLocalCache();
}
}
return list;
}mybatis在扫描mapper接口时会默认让查询语句的刷新缓存为都为false，这里其实就是mybatis的一级缓存，属于会话级别。当指定Options注解且其flushCache为true时会设置查询语句要刷新缓存，如果是使用xml写sql语句，相应的select标签上指定flushCache属性为true。
