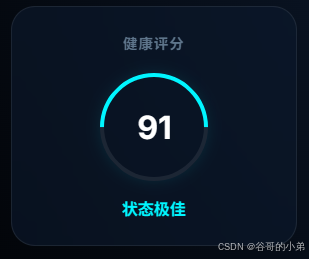

效果展示
项目源码
html
<!DOCTYPE html>
<html lang="zh-CN">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>生命体征监测仪表盘</title>
<link href="https://fonts.googleapis.com/css2?family=Inter:wght@300;400;600;700&family=JetBrains+Mono:wght@400;700&display=swap" rel="stylesheet">
<style>
:root {
/* 医疗科技色盘 */
--color-primary: #00f2ff; /* 青色 - 正常/氧气 */
--color-danger: #ff2a6d; /* 红色 - 心率/警告 */
--color-bg-dark: #050a14;
--color-bg-panel: rgba(16, 24, 45, 0.6);
/* 背景渐变 */
--bg-gradient: radial-gradient(circle at top right, #1a2a6c, #0f172a, #000000);
--glass-border: rgba(255, 255, 255, 0.08);
--text-main: #e2e8f0;
--text-muted: #64748b;
--shadow-glow: 0 0 20px rgba(0, 242, 255, 0.15);
}
body {
font-family: 'Inter', sans-serif;
background: var(--bg-gradient);
background-attachment: fixed;
color: var(--text-main);
min-height: 100vh;
display: flex;
justify-content: center;
align-items: center;
padding: 20px;
margin: 0;
}
.dashboard {
width: 100%;
max-width: 900px;
display: grid;
grid-template-columns: repeat(3, 1fr);
grid-template-rows: auto auto;
gap: 20px;
animation: fadeIn 1s ease-out;
}
@keyframes fadeIn {
from { opacity: 0; transform: scale(0.98); }
to { opacity: 1; transform: scale(1); }
}
/* 通用卡片样式 */
.card {
background: var(--color-bg-panel);
backdrop-filter: blur(20px);
-webkit-backdrop-filter: blur(20px);
border: 1px solid var(--glass-border);
border-radius: 24px;
padding: 25px;
position: relative;
overflow: hidden;
transition: transform 0.3s ease, box-shadow 0.3s ease;
}
.card:hover {
box-shadow: 0 10px 30px rgba(0,0,0,0.3);
border-color: rgba(255,255,255,0.15);
}
.card-header {
display: flex;
justify-content: space-between;
align-items: center;
margin-bottom: 20px;
}
.card-title {
font-size: 0.9em;
color: var(--text-muted);
text-transform: uppercase;
letter-spacing: 1px;
font-weight: 600;
display: flex;
align-items: center;
gap: 8px;
}
.card-icon {
width: 32px;
height: 32px;
border-radius: 8px;
background: rgba(255,255,255,0.05);
display: flex;
align-items: center;
justify-content: center;
color: var(--color-primary);
}
/* 数值显示 */
.value-display {
font-family: 'JetBrains Mono', monospace;
font-size: 2.5em;
font-weight: 700;
margin-bottom: 5px;
text-shadow: 0 0 10px rgba(0,0,0,0.5);
}
.unit {
font-size: 0.4em;
color: var(--text-muted);
margin-left: 5px;
}
.status-badge {
display: inline-block;
padding: 4px 12px;
border-radius: 20px;
font-size: 0.75em;
font-weight: 600;
background: rgba(0, 242, 255, 0.1);
color: var(--color-primary);
border: 1px solid rgba(0, 242, 255, 0.2);
}
.status-badge.warning {
background: rgba(255, 42, 109, 0.1);
color: var(--color-danger);
border-color: rgba(255, 42, 109, 0.2);
}
/* 1. 心率卡片 (跨两列) */
.card-heart-rate {
grid-column: span 2;
display: flex;
flex-direction: column;
justify-content: space-between;
}
.heart-value { color: var(--color-danger); text-shadow: 0 0 15px rgba(255, 42, 109, 0.4); }
.heart-icon { color: var(--color-danger); animation: pulse 1s infinite; }
@keyframes pulse {
0% { transform: scale(1); }
50% { transform: scale(1.1); }
100% { transform: scale(1); }
}
/* 心电图 SVG */
.ecg-container {
width: 100%;
height: 80px;
position: relative;
overflow: hidden;
margin-top: 10px;
background: rgba(0,0,0,0.2);
border-radius: 12px;
border: 1px solid rgba(255,255,255,0.05);
}
.ecg-line {
fill: none;
stroke: var(--color-danger);
stroke-width: 2;
stroke-linecap: round;
stroke-linejoin: round;
filter: drop-shadow(0 0 4px var(--color-danger));
stroke-dasharray: 1000;
stroke-dashoffset: 1000;
animation: drawLine 2s linear infinite;
}
@keyframes drawLine {
to { stroke-dashoffset: 0; }
}
/* 2. 血氧卡片 */
.card-oxygen .oxygen-value { color: var(--color-primary); text-shadow: 0 0 15px rgba(0, 242, 255, 0.4); }
/* 3. 呼吸引导 (全宽) */
.card-breathing {
grid-column: span 3;
display: flex;
flex-direction: column;
align-items: center;
justify-content: center;
min-height: 200px;
text-align: center;
}
.breathing-circle-container {
position: relative;
width: 120px;
height: 120px;
display: flex;
align-items: center;
justify-content: center;
margin-bottom: 20px;
}
.breathing-circle {
position: absolute;
width: 100%;
height: 100%;
border-radius: 50%;
background: radial-gradient(circle, rgba(0, 242, 255, 0.2) 0%, rgba(0,0,0,0) 70%);
border: 1px solid rgba(0, 242, 255, 0.3);
box-shadow: 0 0 20px rgba(0, 242, 255, 0.1);
animation: breathe 8s ease-in-out infinite;
}
.breathing-text {
font-size: 1.2em;
font-weight: 300;
color: var(--color-primary);
z-index: 2;
letter-spacing: 2px;
}
@keyframes breathe {
0%, 100% { transform: scale(0.8); opacity: 0.5; } /* 呼气 */
50% { transform: scale(1.4); opacity: 1; } /* 吸气 */
}
.breathing-instruction {
font-size: 0.9em;
color: var(--text-muted);
margin-top: 10px;
}
/* 4. 综合评分 */
.card-score {
grid-column: span 1;
display: flex;
flex-direction: column;
align-items: center;
justify-content: center;
}
.score-circle {
width: 100px;
height: 100px;
border-radius: 50%;
border: 4px solid var(--glass-border);
border-top-color: var(--color-primary);
border-right-color: var(--color-primary);
display: flex;
align-items: center;
justify-content: center;
margin-bottom: 15px;
transform: rotate(-45deg);
box-shadow: 0 0 15px rgba(0, 242, 255, 0.1);
}
.score-number {
transform: rotate(45deg);
font-size: 2em;
font-weight: 700;
color: #fff;
}
/* 响应式调整 */
@media (max-width: 768px) {
.dashboard {
grid-template-columns: 1fr;
}
.card-heart-rate, .card-breathing, .card-score {
grid-column: span 1;
}
}
</style>
</head>
<body>
<div class="dashboard">
<!-- 心率卡片 -->
<div class="card card-heart-rate">
<div class="card-header">
<div class="card-title">
<div class="card-icon heart-icon"><i class="fas fa-heartbeat"></i></div>
实时心率
</div>
<div class="status-badge">监测中</div>
</div>
<div>
<div class="value-display heart-value" id="bpmValue">72 <span class="unit">BPM</span></div>
<div class="ecg-container">
<!-- 模拟心电图波形 -->
<svg width="100%" height="100%" viewBox="0 0 500 100" preserveAspectRatio="none">
<path class="ecg-line" d="M0,50 L50,50 L60,20 L70,80 L80,50 L150,50 L160,20 L170,80 L180,50 L250,50 L260,20 L270,80 L280,50 L350,50 L360,20 L370,80 L380,50 L450,50 L460,20 L470,80 L480,50 L500,50" />
</svg>
</div>
</div>
</div>
<!-- 血氧卡片 -->
<div class="card card-oxygen">
<div class="card-header">
<div class="card-title">
<div class="card-icon"><i class="fas fa-lungs"></i></div>
血氧饱和度
</div>
</div>
<div class="value-display oxygen-value" id="spo2Value">98 <span class="unit">%</span></div>
<div style="font-size: 0.8em; color: var(--text-muted); margin-top: 5px;">SpO2 Level</div>
</div>
<!-- 呼吸引导卡片 -->
<div class="card card-breathing">
<div class="card-title" style="margin-bottom: 30px;">呼吸冥想引导</div>
<div class="breathing-circle-container">
<div class="breathing-circle"></div>
<div class="breathing-text" id="breathText">吸气</div>
</div>
<div class="breathing-instruction">跟随光圈节奏，调整呼吸频率</div>
</div>
<!-- 综合评分卡片 -->
<div class="card card-score">
<div class="card-title" style="margin-bottom: 20px;">健康评分</div>
<div class="score-circle">
<div class="score-number" id="healthScore">92</div>
</div>
<div style="color: var(--color-primary); font-weight: 600;">状态极佳</div>
</div>
</div>
<!-- 引入 FontAwesome 图标库 -->
<link rel="stylesheet" href="https://cdnjs.cloudflare.com/ajax/libs/font-awesome/6.4.0/css/all.min.css">
<script>
// 模拟数据波动逻辑
function fluctuate(base, variance) {
const change = (Math.random() - 0.5) * variance;
return Math.round(base + change);
}
// 1. 心率模拟
const bpmElement = document.getElementById('bpmValue');
let baseBpm = 72;
setInterval(() => {
// 偶尔改变基准心率，模拟运动或休息
if (Math.random() > 0.9) baseBpm = fluctuate(75, 10);
const currentBpm = fluctuate(baseBpm, 4);
bpmElement.innerHTML = `${currentBpm} <span class="unit">BPM</span>`;
// 简单的阈值颜色变化
if (currentBpm > 100) {
bpmElement.style.color = '#ff2a6d'; // 红色警告
bpmElement.style.textShadow = '0 0 20px rgba(255, 42, 109, 0.6)';
} else {
bpmElement.style.color = '#ff2a6d'; // 正常红
bpmElement.style.textShadow = '0 0 15px rgba(255, 42, 109, 0.4)';
}
}, 2000);
// 2. 血氧模拟
const spo2Element = document.getElementById('spo2Value');
setInterval(() => {
const spo2 = fluctuate(98, 1.5); // 96-99 之间波动
spo2Element.innerHTML = `${spo2} <span class="unit">%</span>`;
}, 3000);
// 3. 呼吸文字同步 (8秒一个周期: 4秒吸气, 4秒呼气)
const breathText = document.getElementById('breathText');
let isInhaling = true;
setInterval(() => {
isInhaling = !isInhaling;
breathText.innerText = isInhaling ? "吸气" : "呼气";
breathText.style.opacity = isInhaling ? "1" : "0.7";
}, 4000);
// 4. 健康评分动态计算
const scoreElement = document.getElementById('healthScore');
setInterval(() => {
// 随机微调分数，让界面看起来是"活"的
const score = 90 + Math.floor(Math.random() * 5); // 90-94
scoreElement.innerText = score;
}, 5000);
</script>
</body>
</html>
