Nginx端到端反向代理https配置

bash 复制代码

客户端(用户) --HTTPS--> Nginx --HTTPS--> 上游服务器

bash 复制代码

# 上游服务器定义
upstream https_backend {
    server backend1.example.com:443 weight=3;
    server backend2.example.com:443 weight=2;
    keepalive 32;
}

# HTTPS 服务器块
server {
    listen 443 ssl http2;
    server_name proxy.example.com;

    # 前端 SSL 配置
    ssl_certificate /etc/ssl/certs/proxy.example.com.crt;
    ssl_certificate_key /etc/ssl/private/proxy.example.com.key;
    ssl_protocols TLSv1.2 TLSv1.3;
    ssl_ciphers ECDHE-RSA-AES128-GCM-SHA256:ECDHE-RSA-AES256-GCM-SHA384;

    # 安全头
    add_header Strict-Transport-Security "max-age=31536000" always;

    location / {
        # 基本代理设置
        proxy_pass https://https_backend;

        # SSL 端到端配置
        proxy_ssl_verify on;
        proxy_ssl_trusted_certificate /etc/ssl/certs/ca-bundle.crt;
        proxy_ssl_verify_depth 2;
        proxy_ssl_server_name on;
        proxy_ssl_name 后端服务域名;
        proxy_ssl_session_reuse on;

        # 请求头设置
        proxy_set_header Host $proxy_host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;

        # 超时设置
        proxy_connect_timeout 5s;
        proxy_send_timeout 60s;
        proxy_read_timeout 60s;

        # 缓冲设置
        proxy_buffering on;
        proxy_buffer_size 4k;
        proxy_buffers 8 4k;

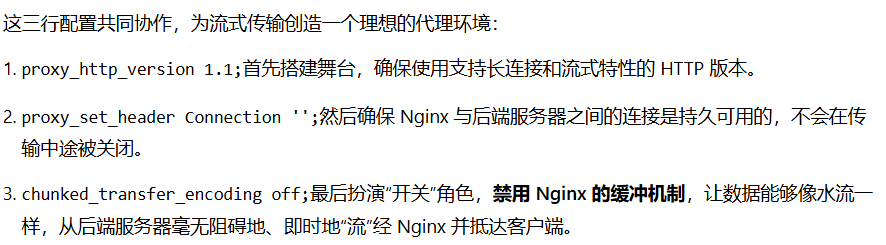

        # HTTP 1.1 保持连接SSE流式传输
        proxy_http_version 1.1;
        proxy_set_header Connection "";
        chunked_transfer_encoding off;

        # 错误处理
        proxy_next_upstream error timeout invalid_header;
        proxy_next_upstream_tries 2;
    }

    # 健康检查
    location /health {
        access_log off;
        proxy_pass https://https_backend/health;
        proxy_ssl_verify off;
    }
}

bash 复制代码

proxy_ssl_trusted_certificate /etc/ssl/certs/ca-bundle.crt;   #证书为服务器自带
