Flutter 混合模式下：saveLayer 混合注意点

火柴就是我2026-01-09 11:38

直接Paint 绘制混合

js 复制代码

    canvas.saveLayer(Rect.fromLTWH(0, 0, width, height), Paint());
    Paint dstPaint = Paint()..color = Colors.red;
    dstPaint.strokeWidth = 20;
    dstPaint.style = PaintingStyle.stroke;
    canvas.drawImageRect(image!, Rect.fromLTWH(0, 0, image!.width.toDouble(), image!.height.toDouble()), Rect.fromLTWH(0, 0, width, height), dstPaint);

    var srcPaint = Paint()
      ..color = Colors.yellowAccent // 源颜色：蓝色
      ..style = PaintingStyle.fill // 填充模式
      ..blendMode = ui.BlendMode.clear
      ..strokeWidth = 70; // 混合模式
    canvas.drawRect(Rect.fromLTWH(0, 0, width, height).deflate(100), srcPaint);

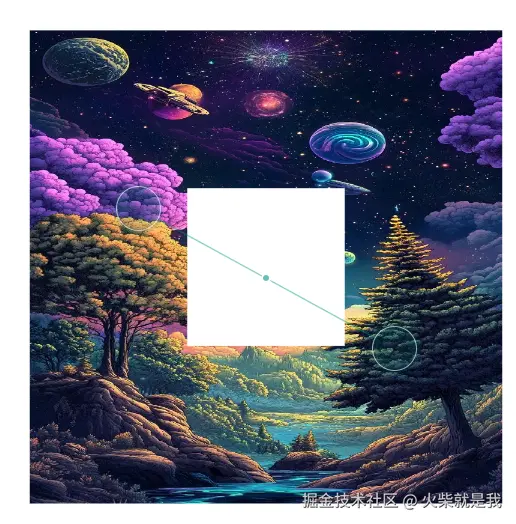

效果图：

但是如果改成如下：

js 复制代码

    canvas.saveLayer(Rect.fromLTWH(0, 0, width, height), Paint());
    Paint dstPaint = Paint()..color = Colors.red;
    dstPaint.strokeWidth = 20;
    dstPaint.style = PaintingStyle.stroke;
    canvas.drawImageRect(image!, Rect.fromLTWH(0, 0, image!.width.toDouble(), image!.height.toDouble()), Rect.fromLTWH(0, 0, width, height), dstPaint);

    canvas.saveLayer(Rect.fromLTWH(0, 0, width/2, height/2), ui.Paint()
    ..blendMode = ui.BlendMode.clear);

    var srcPaint = Paint()
      ..color = Colors.yellowAccent // 源颜色：蓝色
      ..style = PaintingStyle.fill // 填充模式
      ..strokeWidth = 70; // 混合模式
    canvas.drawRect(Rect.fromLTWH(0, 0, width, height).deflate(100), srcPaint);

目测代码逻辑是一样的只是把混合模式设置给了Layer。但是最终效果就是界面上啥页没有全部被清空了。这是因为设置了混合模式之后,整个图层都会被当作src 进行混合。并且第一个设置范围的参数也不生效。

如果想限制到指定范围可以在saveLayer前加如下内容:

js 复制代码

  canvas.clipRect(Rect.fromLTWH(0, 0, width/2, height/2));

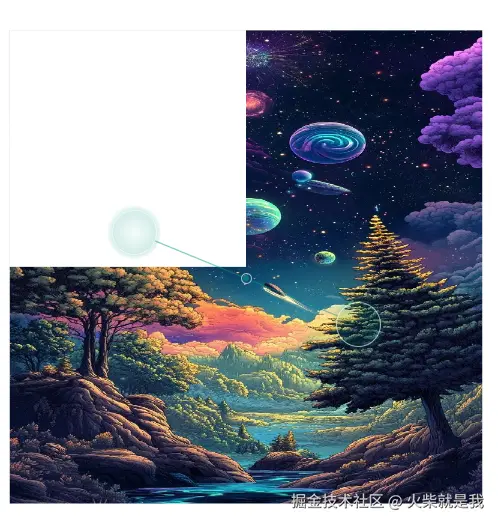

那么加完之后的效果图如下:
