1. 源码及框架分析
SGI-STL30 版本源代码中没有 unordered_map 和 unordered_set ,SGI-STL30 版本是 C++11 之前的STL版本,
这两个容器是 C++11 之后才更新的。但是 SGI-STL30 实现了哈希表,只是容器的名字是 hash_map 和 hash_set ,
他是作为非标准的容器出现的,非标准是指非 C++ 标准规定必须实现的,
源代码在hash_map/hash_set/stl_hash_map/stl_hash_set/stl_hashtable.h 中
hash_map 和 hash_set 的实现结构框架核心部分截取出来如下:
cpp
// stl_hash_set
template <class Value, class HashFcn = hash<Value>,
class EqualKey = equal_to<Value>,
class Alloc = alloc>
class hash_set
{
private:
typedef hashtable<Value, Value, HashFcn, identity<Value>,
EqualKey, Alloc> ht;
ht rep;
public:
typedef typename ht::key_type key_type;
typedef typename ht::value_type value_type;
typedef typename ht::hasher hasher;
typedef typename ht::key_equal key_equal;
typedef typename ht::const_iterator iterator;
typedef typename ht::const_iterator const_iterator;
hasher hash_funct() const { return rep.hash_funct(); }
key_equal key_eq() const { return rep.key_eq(); }
};
// stl_hash_map
template <class Key, class T, class HashFcn = hash<Key>,
class EqualKey = equal_to<Key>,
class Alloc = alloc>
class hash_map
{
private:
typedef hashtable<pair<const Key, T>, Key, HashFcn,
select1st<pair<const Key, T> >, EqualKey, Alloc> ht;
ht rep;
public:
typedef typename ht::key_type key_type;
typedef T data_type;
typedef T mapped_type;
typedef typename ht::value_type value_type;
typedef typename ht::hasher hasher;
typedef typename ht::key_equal key_equal;
typedef typename ht::iterator iterator;
typedef typename ht::const_iterator const_iterator;
};
// stl_hashtable.h
template <class Value, class Key, class HashFcn,
class ExtractKey, class EqualKey,
class Alloc>
class hashtable {
public:
typedef Key key_type;
typedef Value value_type;
typedef HashFcn hasher;
typedef EqualKey key_equal;
private:
hasher hash;
key_equal equals;
ExtractKey get_key;
typedef __hashtable_node<Value> node;
vector<node*,Alloc> buckets;
size_type num_elements;
public:
typedef __hashtable_iterator<Value, Key, HashFcn, ExtractKey, EqualKey,
Alloc> iterator;
pair<iterator, bool> insert_unique(const value_type& obj);
const_iterator find(const key_type& key) const;
};
template <class Value>
struct __hashtable_node
{
__hashtable_node* next;
Value val;
};
-
这里我们就不再画图分析了,通过源码可以看到,结构上
hash_map和hash_set跟map和set的完全类似,复用同⼀个hashtable实现key和key/value结构,hash_set传给hash_table的是两个key,hash_map传给hash_table的是pair<const key, value> -
需要注意的是源码里面跟
map / set源码类似,命名风格比较乱,这里比map和set还乱,hash_set模板参数居然用的Value命名,hash_map用的是Key和T命名,可见大佬有时写代码也不规范。下面我们模拟⼀份自己的出来,就按自己的风格走了。
2. 模拟实现 unordered_map 和 unordered_set
2.1 实现出复用哈希表的框架,并支持 insert
-
参考源码框架,
unordered_map和unordered_set复用之前我们实现的哈希表。 -
我们这里相比源码调整⼀下,
key参数就用K,value参数就用V,哈希表中的数据类型,我们使用T。 -
其次跟
map和set相比而言unordered_map和unordered_set的模拟实现类结构更复杂⼀点,但是大框架和思路是完全类似的。因为HashTable实现了泛型不知道T参数导致是K,还是pair<K, V>,那么insert内部进行插入时要用K对象转换成整形取模和K比较相等,因为pair的value不参与计算取模,且默认支持的是key和value⼀起比较相等,我们需要时的任何时候只需要比较K对象,所以我们在unordered_map和unordered_set层分别实现⼀个MapKeyOfT和SetKeyOfT的仿函数传给HashTable的KeyOfT,然后HashTable中通过KeyOfT仿函数取出T类型对象中的K对象,再转换成整形取模和K比较相等,具体细节参考如下代码实现。
cpp
// MyUnorderedSet.h
namespace My_UnorderedSet
{
template<class K, class Hash = HashFunc<K>>
class unordered_set
{
struct SetKeyOfT
{
const K& operator()(const K& key)
{
return key;
}
};
public:
bool insert(const K& key)
{
return _ht.Insert(key);
}
private:
hash_bucket::HashTable<K, K, SetKeyOfT, Hash> _ht;
};
}
// MyUnorderedMap.h
namespace My_UnorderedMap
{
template<class K, class V, class Hash = HashFunc<K>>
class unordered_map
{
struct MapKeyOfT
{
const K& operator()(const pair<K, V>& kv)
{
return kv.first;
}
};
public:
bool insert(const pair<K, V>& kv)
{
return _ht.Insert(kv);
}
private:
hash_bucket::HashTable<K, pair<K, V>, MapKeyOfT, Hash> _ht;
};
}
// HashTable.h
template<class K>
struct HashFunc
{
size_t operator()(const K& key)
{
return (size_t)key;
}
};
namespace hash_bucket
{
template<class T>
struct HashNode
{
T _data;
HashNode<T>* _next;
HashNode(const T& data)
:_data(data)
,_next(nullptr)
{}
};
// 实现步骤:
// 1、实现哈希表
// 2、封装unordered_map和unordered_set的框架 解决KeyOfT
// 3、iterator
// 4、const_iterator
// 5、key不⽀持修改的问题
// 6、operator[]
template<class K, class T, class KeyOfT, class Hash>
class HashTable
{
typedef HashNode<T> Node;
inline unsigned long __stl_next_prime(unsigned long n)
{
static const int __stl_num_primes = 28;
static const unsigned long __stl_prime_list[__stl_num_primes] =
{
53, 97, 193, 389, 769,
1543, 3079, 6151, 12289, 24593,
49157, 98317, 196613, 393241, 786433,
1572869, 3145739, 6291469, 12582917, 25165843,
50331653, 100663319, 201326611, 402653189, 805306457,
1610612741, 3221225473, 4294967291
};
const unsigned long* first = __stl_prime_list;
const unsigned long* last = __stl_prime_list + __stl_num_primes;
const unsigned long* pos = lower_bound(first, last, n);
return pos == last ? *(last - 1) : *pos;
}
public:
HashTable()
{
_tables.resize(__stl_next_prime(_tables.size()), nullptr);
}
~HashTable()
{
// 依次把每个桶释放
for (size_t i = 0; i < _tables.size(); i++)
{
Node* cur = _tables[i];
while (cur)
{
Node* next = cur->_next;
delete cur;
cur = next;
}
_tables[i] = nullptr;
}
}
bool Insert(const T& data)
{
KeyOfT kot;
if (Find(kot(data)))
return false;
Hash hs;
size_t hashi = hs(kot(data)) % _tables.size();
// 负载因⼦==1扩容
if (_n == _tables.size())
{
vector<Node*> newtables(__stl_next_prime(_tables.size()),
nullptr);
for (size_t i = 0; i < _tables.size(); i++)
{
Node* cur = _tables[i];
while (cur)
{
Node* next = cur->_next;
// 旧表中结点,挪动新表重新映射的位置
size_t hashi = hs(kot(cur->_data)) % newtables.size();
// 头插到新表
cur->_next = newtables[hashi];
newtables[hashi] = cur;
cur = next;
}
_tables[i] = nullptr;
}
_tables.swap(newtables);
}
// 头插
Node* newnode = new Node(data);
newnode->_next = _tables[hashi];
_tables[hashi] = newnode;
++_n;
return true;
}
private:
vector<Node*> _tables; // 指针数组
size_t _n = 0; // 表中存储数据个数
};
}
2.2 支持 iterator 的实现
iterator 核心源代码:
cpp
template <class Value, class Key, class HashFcn,
class ExtractKey, class EqualKey, class Alloc>
struct __hashtable_iterator {
typedef hashtable<Value, Key, HashFcn, ExtractKey, EqualKey, Alloc>
hashtable;
typedef __hashtable_iterator<Value, Key, HashFcn,
ExtractKey, EqualKey, Alloc>
iterator;
typedef __hashtable_const_iterator<Value, Key, HashFcn,
ExtractKey, EqualKey, Alloc>
const_iterator;
typedef __hashtable_node<Value> node;
typedef forward_iterator_tag iterator_category;
typedef Value value_type;
node* cur;
hashtable* ht;
__hashtable_iterator(node* n, hashtable* tab) : cur(n), ht(tab) {}
__hashtable_iterator() {}
reference operator*() const { return cur->val; }
#ifndef __SGI_STL_NO_ARROW_OPERATOR
pointer operator->() const { return &(operator*()); }
#endif /* __SGI_STL_NO_ARROW_OPERATOR */
iterator& operator++();
iterator operator++(int);
bool operator==(const iterator& it) const { return cur == it.cur; }
bool operator!=(const iterator& it) const { return cur != it.cur; }
};
template <class V, class K, class HF, class ExK, class EqK, class A>
__hashtable_iterator<V, K, HF, ExK, EqK, A>&
__hashtable_iterator<V, K, HF, ExK, EqK, A>::operator++()
{
const node* old = cur;
cur = cur->next;
if (!cur) {
size_type bucket = ht->bkt_num(old->val);
while (!cur && ++bucket < ht->buckets.size())
cur = ht->buckets[bucket];
}
return *this;
}

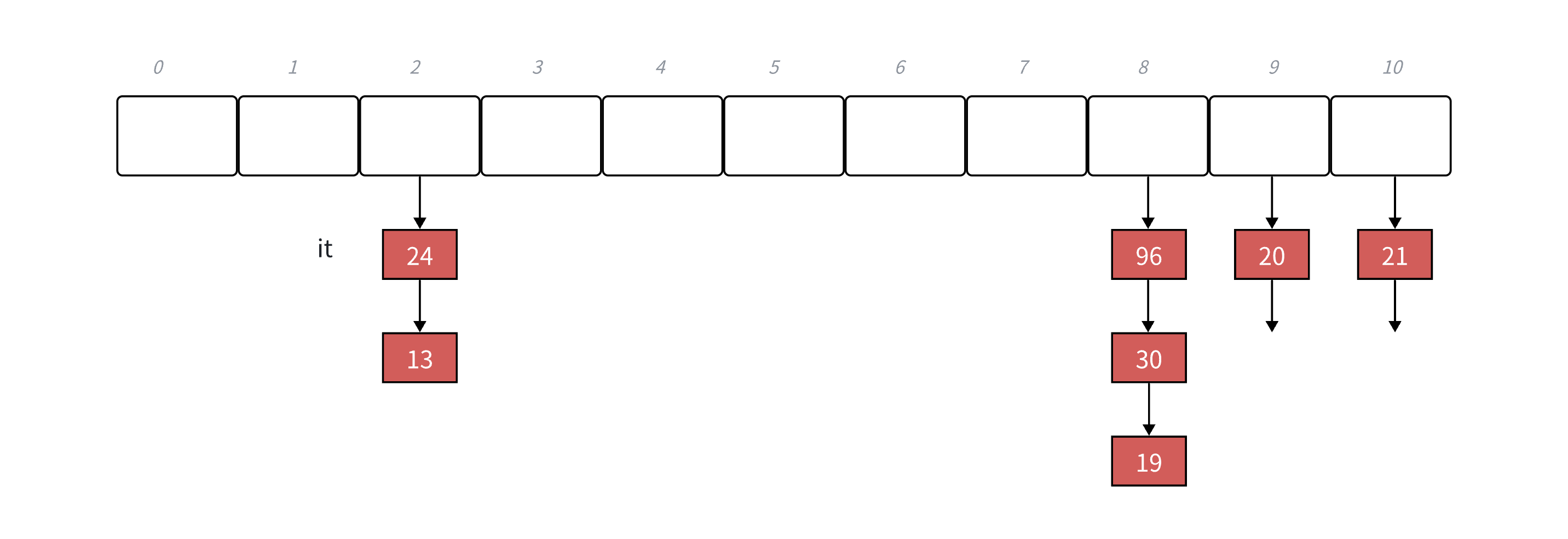

iterator 实现思路分析:
-
iterator实现的大框架跟list的iterator思路是一致的,用一个类型封装结点的指针,再通过重载运算符实现,迭代器像指针一样访问的行为,要注意的是哈希表的迭代器是单向迭代器。 -
这里的难点是
operator++的实现。iterator中有一个指向结点的指针,如果当前桶下面还有结点,则结点的指针指向下一个结点即可。如果当前桶走完了,则需要想办法计算找到下一个桶。这里的难点是反而是结构设计的问题,参考上面的源码,我们可以看到iterator中除了有结点的指针,还有哈希表对象的指针,这样当前桶走完了,要计算下⼀个桶就相对容易多了,用key值计算出当前桶位置,依次往后找下一个不为空的桶即可。 -
begin()返回第一个桶中第一个节点指针构造的迭代器,这里end()返回迭代器可以用空表示。 -
unordered_set的iterator也不支持修改,我们把unordered_set的第⼆个模板参数改成const K即可,
HashTable<K, const K, SetKeyOfT, Hash> _ht; -
unordered_map的iterator不支持修改key但是可以修改value,我们把unordered_map的第二个模板参数pair的第一个参数改成const K即可,HashTable<K, pair<const K, V>, MapKeyOfT, Hash> _ht; -
支持完整的迭代器还有很多细节需要修改,具体参考下面题的代码。

2.3 map 支持 []
-
unordered_map要支持[]主要需要修改insert返回值支持,修改HashTable中的insert返回值为
pair<Iterator, bool> Insert(const T& data) -
有了
insert支持[]实现就很简单了,具体参考下面代码实现
2.4 unordered_map 和 unordered_set 代码实现
cpp
//HashTable.h
#pragma once
#include<iostream>
#include<vector>
using namespace std;
inline unsigned long __stl_next_prime(unsigned long n)
{
// Note: assumes long is at least 32 bits.
static const int __stl_num_primes = 28;
static const unsigned long __stl_prime_list[__stl_num_primes] =
{
53, 97, 193, 389, 769,
1543, 3079, 6151, 12289, 24593,
49157, 98317, 196613, 393241, 786433,
1572869, 3145739, 6291469, 12582917, 25165843,
50331653, 100663319, 201326611, 402653189, 805306457,
1610612741, 3221225473, 4294967291
};
const unsigned long* first = __stl_prime_list;
const unsigned long* last = __stl_prime_list + __stl_num_primes;
// >=
const unsigned long* pos = lower_bound(first, last, n);
return pos == last ? *(last - 1) : *pos;
}
template<class K>
struct HashFunc
{
size_t operator()(const K& key) const
{
return (size_t)key;
}
};
// 特化
template<>
struct HashFunc<string>
{
size_t operator()(const string& key) const
{
size_t hash = 0;
for (auto ch : key)
{
hash += ch;
hash *= 131;
}
return hash;
}
};
namespace open_adrress
{
enum State
{
EXIST,
EMPTY,
DELETE
};
template<class K, class V>
struct HashData
{
pair<K, V> _kv;
State _state = EMPTY;
};
//struct StringHashFunc
//{
// size_t operator()(const string& key) const
// {
// size_t hash = 0;
// for (auto ch : key)
// {
// hash += ch;
// hash *= 131;
// }
//
// return hash;
// }
//};
template<class K, class V, class Hash = HashFunc<K>>
class HashTable
{
public:
HashTable(size_t n = __stl_next_prime(0))
:_tables(n)
, _n(0)
{}
bool Insert(const pair<K, V>& kv)
{
if (Find(kv.first))
return false;
// 扩容,负载因子==0.7就扩容
if ((double)_n / (double)_tables.size() >= 0.7)
{
//vector<HashData<K, V>> newtables;
//newtables.resize(_tables.size() * 2);
//// 遍历旧表,将旧表的数据全部重新映射到新表
//for (size_t i = 0; i < _tables.size(); i++)
//{
// if (_tables[i]._state == EXIST)
// {
// //...
// }
//}
//_tables.swap(newtables);
//HashTable<K, V> newht(_tables.size() * 2);
HashTable<K, V, Hash> newht(__stl_next_prime(_tables.size() + 1));
// 遍历旧表,将旧表的数据全部重新映射到新表
for (size_t i = 0; i < _tables.size(); i++)
{
if (_tables[i]._state == EXIST)
{
newht.Insert(_tables[i]._kv);
}
}
_tables.swap(newht._tables);
}
Hash hs;
size_t hash0 = hs(kv.first) % _tables.size();
size_t hashi = hash0;
size_t i = 1;
// 线性探测
while (_tables[hashi]._state == EXIST)
{
hashi += i * i;
i++;
hashi %= _tables.size();
}
_tables[hashi]._kv = kv;
_tables[hashi]._state = EXIST;
++_n;
return true;
}
HashData<K, V>* Find(const K& key)
{
Hash hs;
size_t hash0 = hs(key) % _tables.size();
size_t hashi = hash0;
size_t i = 1;
while (_tables[hashi]._state != EMPTY)
{
if (_tables[hashi]._state == EXIST
&& _tables[hashi]._kv.first == key)
{
return &_tables[hashi];
}
// 线性探测
hashi += i;
i++;
hashi %= _tables.size();
}
return nullptr;
}
bool Erase(const K& key)
{
HashData<K, V>* ret = Find(key);
if (ret)
{
ret->_state = DELETE;
--_n;
return true;
}
else
{
return false;
}
}
private:
vector<HashData<K, V>> _tables;
size_t _n; // 实际存储的数据个数
};
void TestHashTable1()
{
int a[] = { 19, 30, 5, 36, 13, 20, 21, 12 };
HashTable<int, int> ht;
for (auto e : a)
{
ht.Insert({ e, e });
}
cout << ht.Find(20) << endl;
cout << ht.Find(30) << endl;
ht.Erase(30);
cout << ht.Find(20) << endl;
cout << ht.Find(30) << endl;
ht.Insert({ -3,3 });
ht.Insert({ 13,3 });
ht.Insert({ 33,3 });
ht.Insert({ 323,3 });
ht.Insert({ 23,3 });
for (size_t i = 0; i < 100; i++)
{
ht.Insert({ rand(),i });
}
}
struct pairHash
{
size_t operator()(const pair<int, int>& kv) const
{
size_t hash = 0;
hash += kv.first;
hash *= 131;
hash += kv.second;
hash *= 131;
cout << hash << endl;
return hash;
}
};
// 21:07
void TestHashTable2()
{
//HashTable<string, string, StringHashFunc> dict;
HashTable<string, string> dict;
dict.Insert({ "sort", "排序" });
dict.Insert({ "left", "左边" });
dict.Insert({ "sort", "xxx" });
unordered_map<pair<int, int>, int, pairHash> um;
um.insert({ {1,3},3 });
um.insert({ {3,1},3 });
/*StringHashFunc hf;
cout << hf("abcd") <<endl;
cout << hf("bcad") << endl;
cout << hf("aadd") << endl;*/
}
}
namespace hash_bucket
{
template<class T>
struct HashNode
{
T _data;
HashNode<T>* _next;
HashNode(const T& data)
:_data(data)
, _next(nullptr)
{}
};
// 前置声明
template<class K, class T, class KeyOfT, class Hash>
class HashTable;
template<class K, class T, class Ref, class Ptr, class KeyOfT, class Hash>
struct HTIterator
{
typedef HashNode<T> Node;
typedef HashTable<K, T, KeyOfT, Hash> HT;
typedef HTIterator<K, T, Ref, Ptr, KeyOfT, Hash> Self;
Node* _node;
const HT* _pht;
HTIterator(Node* node, const HT* pht)
:_node(node)
,_pht(pht)
{}
Self& operator++()
{
if (_node->_next)
{
// 当前桶还没走完
_node = _node->_next;
}
else // 21:05
{
// 当前桶走完了,需要找下一个不为空的桶里面的第一个节点
KeyOfT kot;
Hash hs;
size_t hashi = hs(kot(_node->_data)) % _pht->_tables.size();
hashi++;
while (hashi < _pht->_tables.size())
{
if (_pht->_tables[hashi])
{
_node = _pht->_tables[hashi];
break;
}
++hashi;
}
if (hashi == _pht->_tables.size())
{
// 所有桶都走完了,置为end()
_node = nullptr;
}
}
return *this;
}
Ref operator*()
{
return _node->_data;
}
Ptr operator->()
{
return &_node->_data;
}
bool operator!=(const Self& s) const
{
return _node != s._node;
}
bool operator==(const Self& s) const
{
return _node == s._node;
}
};
template<class K, class T, class KeyOfT, class Hash>
class HashTable
{
// 友元声明
template<class K, class T, class Ref, class Ptr, class KeyOfT, class Hash>
friend struct HTIterator;
typedef HashNode<T> Node;
public:
typedef HTIterator<K, T, T&, T*, KeyOfT, Hash> Iterator;
typedef HTIterator<K, T, const T&, const T*, KeyOfT, Hash> ConstIterator;
Iterator Begin()
{
if (_n == 0)
return End();
for (size_t i = 0; i < _tables.size(); i++)
{
if (_tables[i])
{
return Iterator(_tables[i], this);
}
}
return End();
}
Iterator End()
{
return Iterator(nullptr, this);
}
ConstIterator Begin() const
{
if (_n == 0)
return End();
for (size_t i = 0; i < _tables.size(); i++)
{
if (_tables[i])
{
return ConstIterator(_tables[i], this);
}
}
return End();
}
ConstIterator End() const
{
return ConstIterator(nullptr, this);
}
HashTable(size_t n = __stl_next_prime(0))
:_tables(n, nullptr)
,_n(0)
{}
~HashTable()
{
for (size_t i = 0; i < _tables.size(); i++)
{
Node* cur = _tables[i];
while (cur)
{
Node* next = cur->_next;
delete cur;
cur = next;
}
_tables[i] = nullptr;
}
}
pair<Iterator, bool> Insert(const T& data)
{
KeyOfT kot;
Iterator it = Find(kot(data));
if (it != End())
return { it, false };
Hash hs;
// 负载因子到1扩容
if (_n == _tables.size())
{
//HashTable<K, V> newht(__stl_next_prime(_tables.size() + 1));
//// 遍历旧表,将旧表的数据全部重新映射到新表
//for (size_t i = 0; i < _tables.size(); i++)
//{
// Node* cur = _tables[i];
// while (cur)
// {
// newht.Insert(cur->_kv);
// cur = cur->_next;
// }
//}
//_tables.swap(newht._tables);
// 扩容
vector<Node*> newtables(__stl_next_prime(_tables.size() + 1), nullptr);
// 遍历旧表,将旧表的数据全部重新映射到新表
for (size_t i = 0; i < _tables.size(); i++)
{
Node* cur = _tables[i];
while (cur)
{
Node* next = cur->_next;
// cur头插到新表
size_t hashi = hs(kot(cur->_data)) % newtables.size();
cur->_next = newtables[hashi];
newtables[hashi] = cur;
cur = next;
}
_tables[i] = nullptr;
}
_tables.swap(newtables);
}
size_t hashi = hs(kot(data)) % _tables.size();
// 头插
Node* newnode = new Node(data);
newnode->_next = _tables[hashi];
_tables[hashi] = newnode;
++_n;
return { Iterator(newnode, this), true };
}
Iterator Find(const K& key)
{
Hash hs;
KeyOfT kot;
size_t hashi = hs(key) % _tables.size();
Node* cur = _tables[hashi];
while (cur)
{
if (kot(cur->_data) == key)
return Iterator(cur, this);
cur = cur->_next;
}
return End();
}
bool Erase(const K& key)
{
Hash hs;
size_t hashi = hs(key) % _tables.size();
KeyOfT kot;
Node* prev = nullptr;
Node* cur = _tables[hashi];
while (cur)
{
if (kot(cur->_data) == key)
{
if (prev == nullptr)
{
_tables[hashi] = cur->_next;
}
else
{
prev->_next = cur->_next;
}
--_n;
delete cur;
return true;
}
prev = cur;
cur = cur->_next;
}
return false;
}
private:
vector<Node*> _tables;
size_t _n; // 实际存储有效数据个数
};
//unordered_set.h
#include"HashTable.h"
namespace My_UnorderedSet
{
template<class K, class Hash = HashFunc<K>>
class unordered_set
{
struct SetKeyOfT
{
const K& operator()(const K& key)
{
return key;
}
};
public:
typedef typename hash_bucket::HashTable<K, const K, SetKeyOfT, Hash>::Iterator iterator;
typedef typename hash_bucket::HashTable<K, const K, SetKeyOfT, Hash>::ConstIterator const_iterator;
iterator begin()
{
return _ht.Begin();
}
iterator end()
{
return _ht.End();
}
const_iterator begin() const
{
return _ht.Begin();
}
const_iterator end() const
{
return _ht.End();
}
pair<iterator, bool> insert(const K& key)
{
return _ht.Insert(key);
}
iterator find(const K& key)
{
return _ht.Find(key);
}
bool erase(const K& key)
{
return _ht.Erase(key);
}
private:
hash_bucket::HashTable<K, const K, SetKeyOfT, Hash> _ht;
};
}
//unordered_map.h
#include"HashTable.h"
namespace My_UnorderedMap
{
template<class K, class V, class Hash = HashFunc<K>>
class unordered_map
{
struct MapKeyOfT
{
const K& operator()(const pair<K, V>& kv)
{
return kv.first;
}
};
public:
typedef typename hash_bucket::HashTable<K, pair<const K, V>, MapKeyOfT, Hash>::Iterator iterator;
typedef typename hash_bucket::HashTable<K, pair<const K, V>, MapKeyOfT, Hash>::ConstIterator const_iterator;
iterator begin()
{
return _ht.Begin();
}
iterator end()
{
return _ht.End();
}
const_iterator begin() const
{
return _ht.Begin();
}
const_iterator end() const
{
return _ht.End();
}
pair<iterator, bool> insert(const pair<K, V>& kv)
{
return _ht.Insert(kv);
}
iterator find(const K& key)
{
return _ht.Find(key);
}
bool erase(const K& key)
{
return _ht.Erase(key);
}
V& operator[](const K& key)
{
pair<iterator, bool> ret = insert({ key, V() });
return ret.first->second;
}
private:
hash_bucket::HashTable<K, pair<const K, V>, MapKeyOfT, Hash> _ht;
};
}
