Cesium 深入浅出《一》WGS84、ECEF、经纬高：Cesium 世界坐标到底是什么?

在cesium中存在多种坐标系，因为cesium作为一个空间地理的渲染引擎，需要处理从地理坐标到3D渲染的转换，理解这些坐标之间的联系，是cesium的基础。也是任何一个地理渲染引擎的基础。

这篇文章带大家理解cesium中的坐标系，顺便对比一下three.js的区别。

1、WGS84

WGS 84是全球定位系统（GPS）的基准坐标系统，广泛应用于全球定位和导航。它采用十进制度表示经度和纬度。（这句话是摘录维基百科的介绍）

简而言之这个坐标系统用的是用经纬度来表示位置

2、经纬高

用经纬度和高程来表示空间位置

经度（longitude）：范围 [-π, π]，单位弧度
纬度（latitude）：范围 [-π/2, π/2]，单位弧度
高度（height）：相对于椭球面的高度，单位米

在 Cesium 中用 Cartographic 表示，注意角度单位为弧度。

3、ECEF（Earth-Centered, Earth-Fixed）

地心地固坐标系，也称为三维笛卡尔坐标

原点：地心
X 轴：指向本初子午线与赤道交点
Z 轴：指向北极
Y 轴：与 X、Z 构成右手系

在 Cesium 中用 Cartesian3 表示，单位为米。这是 Cesium 场景中的世界坐标。

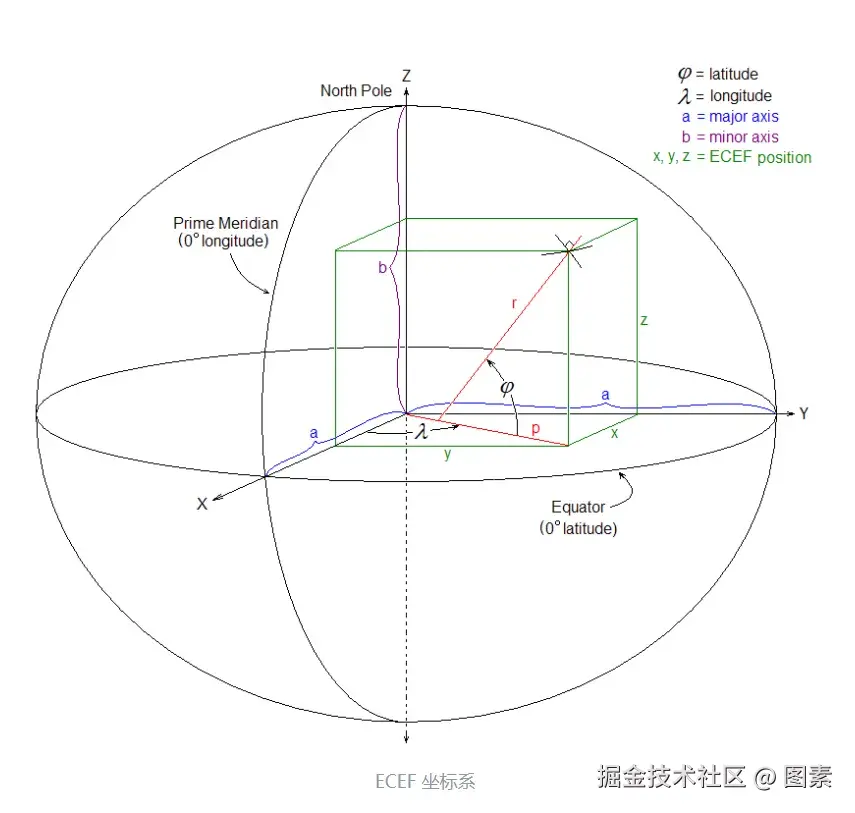

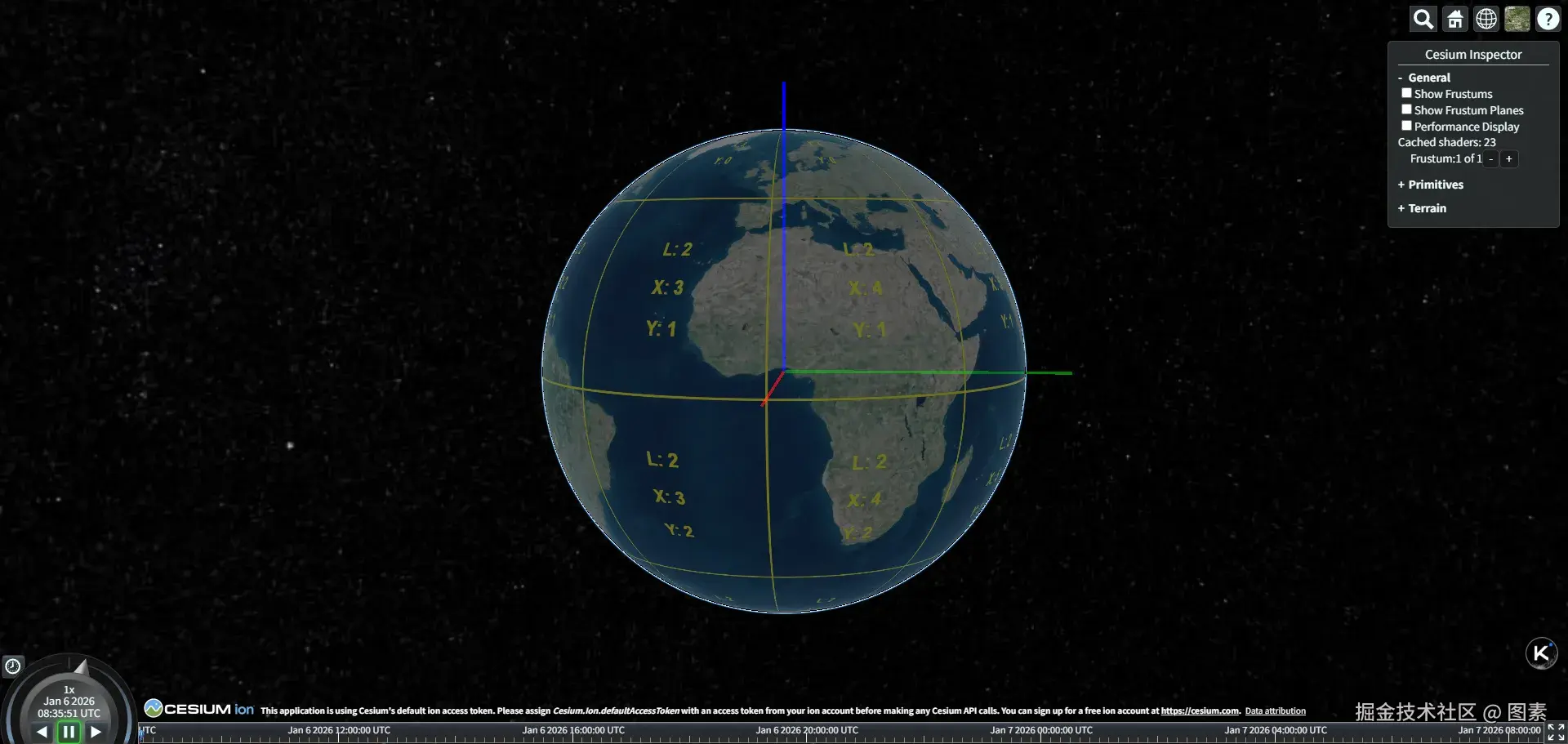

上图为ECEF坐标系

结论：Cesium的世界坐标系就是ECEF坐标系。所有三维物体都是基于这个坐标系进行摆放，三维物体通过 modelMatrix会把局部坐标系转化为世界坐标系

cesium中常用的坐标转换方法

经纬度->笛卡尔

scss 复制代码

// 经纬度是角度值时候转为笛卡尔
Cesium.Cartesian3.fromDegrees(lonDeg, latDeg, height, ellipsoid?, result?)
// 弧度制时转为笛卡尔
Cesium.Cartesian3.fromRadians(lonRad, latRad, height, ellipsoid?, result?)
// 通过球体转为笛卡尔
ellipsoid.cartographicToCartesian(cartographic, result?)

我们来根据源码来看看经纬度是如何计算出笛卡尔坐标的：

ini 复制代码

/**
 * Returns a Cartesian3 position from longitude and latitude values given in radians.
 *
 * @param {number} longitude The longitude, in radians
 * @param {number} latitude The latitude, in radians
 * @param {number} [height=0.0] The height, in meters, above the ellipsoid.
 * @param {Ellipsoid} [ellipsoid=Ellipsoid.default] The ellipsoid on which the position lies.
 * @param {Cartesian3} [result] The object onto which to store the result.
 * @returns {Cartesian3} The position
 *
 * @example
 * const position = Cesium.Cartesian3.fromRadians(-2.007, 0.645);
 */
Cartesian3.fromRadians = function (
  longitude,
  latitude,
  height,
  ellipsoid,
  result,
) {
  //>>includeStart('debug', pragmas.debug);
  Check.typeOf.number("longitude", longitude);
  Check.typeOf.number("latitude", latitude);
  //>>includeEnd('debug');

  height = height ?? 0.0;

  const radiiSquared = !defined(ellipsoid)
    ? Cartesian3._ellipsoidRadiiSquared
    : ellipsoid.radiiSquared;

  const cosLatitude = Math.cos(latitude);
  // 如上图可以求得 从原点指向目标点的向量 scratchN
  scratchN.x = cosLatitude * Math.cos(longitude);
  scratchN.y = cosLatitude * Math.sin(longitude);
  scratchN.z = Math.sin(latitude);
  // 得到球心指向椭球面的向量
  scratchN = Cartesian3.normalize(scratchN, scratchN);

  // 这个地方cesium 用的计算方法我也没有推导过，数学好的可以自己推导一下
  // 最简单的使用解析几何的椭圆公式和向量的交点，可以求出椭圆上的点
  // cesium这里的方法计算方式更简洁一点，通过计算缩放因子把向量缩放到椭圆上
  Cartesian3.multiplyComponents(radiiSquared, scratchN, scratchK);
  const gamma = Math.sqrt(Cartesian3.dot(scratchN, scratchK));
  // 得到椭圆上的点坐标
  scratchK = Cartesian3.divideByScalar(scratchK, gamma, scratchK);
  // 得到长度为height的地心方向向量的向量
  scratchN = Cartesian3.multiplyByScalar(scratchN, height, scratchN);

  if (!defined(result)) {
    result = new Cartesian3();
  }
  // 最后把椭圆上的点再验证地心法线平移height，得到ecef坐标
  return Cartesian3.add(scratchK, scratchN, result);
};

笛卡尔->经纬度

scss 复制代码

Cesium.Cartographic.fromCartesian(cartesian, ellipsoid?, result?)
ellipsoid.cartesianToCartographic(cartesian, result?)

源码的计算过程：还挺复杂的，用的牛顿迭代法，数学好的朋友可以自行去推导。

ini 复制代码

/**
 * Creates a new Cartographic instance from a Cartesian position. The values in the
 * resulting object will be in radians.
 *
 * @param {Cartesian3} cartesian The Cartesian position to convert to cartographic representation.
 * @param {Ellipsoid} [ellipsoid=Ellipsoid.default] The ellipsoid on which the position lies.
 * @param {Cartographic} [result] The object onto which to store the result.
 * @returns {Cartographic} The modified result parameter, new Cartographic instance if none was provided, or undefined if the cartesian is at the center of the ellipsoid.
 */
Cartographic.fromCartesian = function (cartesian, ellipsoid, result) {
  const oneOverRadii = defined(ellipsoid)
    ? ellipsoid.oneOverRadii
    : Cartographic._ellipsoidOneOverRadii;
  const oneOverRadiiSquared = defined(ellipsoid)
    ? ellipsoid.oneOverRadiiSquared
    : Cartographic._ellipsoidOneOverRadiiSquared;
  const centerToleranceSquared = defined(ellipsoid)
    ? ellipsoid._centerToleranceSquared
    : Cartographic._ellipsoidCenterToleranceSquared;

  //`cartesian is required.` is thrown from scaleToGeodeticSurface
  const p = scaleToGeodeticSurface(
    cartesian,
    oneOverRadii,
    oneOverRadiiSquared,
    centerToleranceSquared,
    cartesianToCartographicP,
  );

  if (!defined(p)) {
    return undefined;
  }

  let n = Cartesian3.multiplyComponents(
    p,
    oneOverRadiiSquared,
    cartesianToCartographicN,
  );
  n = Cartesian3.normalize(n, n);

  const h = Cartesian3.subtract(cartesian, p, cartesianToCartographicH);

  const longitude = Math.atan2(n.y, n.x);
  const latitude = Math.asin(n.z);
  const height =
    CesiumMath.sign(Cartesian3.dot(h, cartesian)) * Cartesian3.magnitude(h);

  if (!defined(result)) {
    return new Cartographic(longitude, latitude, height);
  }
  result.longitude = longitude;
  result.latitude = latitude;
  result.height = height;
  return result;
};

/**
 * Scales the provided Cartesian position along the geodetic surface normal
 * so that it is on the surface of this ellipsoid.  If the position is
 * at the center of the ellipsoid, this function returns undefined.
 *
 * @param {Cartesian3} cartesian The Cartesian position to scale.
 * @param {Cartesian3} oneOverRadii One over radii of the ellipsoid.
 * @param {Cartesian3} oneOverRadiiSquared One over radii squared of the ellipsoid.
 * @param {number} centerToleranceSquared Tolerance for closeness to the center.
 * @param {Cartesian3} [result] The object onto which to store the result.
 * @returns {Cartesian3} The modified result parameter, a new Cartesian3 instance if none was provided, or undefined if the position is at the center.
 *
 * @function scaleToGeodeticSurface
 *
 * @private
 */
function scaleToGeodeticSurface(
  cartesian,
  oneOverRadii,
  oneOverRadiiSquared,
  centerToleranceSquared,
  result,
) {
  //>>includeStart('debug', pragmas.debug);
  if (!defined(cartesian)) {
    throw new DeveloperError("cartesian is required.");
  }
  if (!defined(oneOverRadii)) {
    throw new DeveloperError("oneOverRadii is required.");
  }
  if (!defined(oneOverRadiiSquared)) {
    throw new DeveloperError("oneOverRadiiSquared is required.");
  }
  if (!defined(centerToleranceSquared)) {
    throw new DeveloperError("centerToleranceSquared is required.");
  }
  //>>includeEnd('debug');

  const positionX = cartesian.x;
  const positionY = cartesian.y;
  const positionZ = cartesian.z;

  const oneOverRadiiX = oneOverRadii.x;
  const oneOverRadiiY = oneOverRadii.y;
  const oneOverRadiiZ = oneOverRadii.z;

  const x2 = positionX * positionX * oneOverRadiiX * oneOverRadiiX;
  const y2 = positionY * positionY * oneOverRadiiY * oneOverRadiiY;
  const z2 = positionZ * positionZ * oneOverRadiiZ * oneOverRadiiZ;

  // Compute the squared ellipsoid norm.
  const squaredNorm = x2 + y2 + z2;
  const ratio = Math.sqrt(1.0 / squaredNorm);

  // As an initial approximation, assume that the radial intersection is the projection point.
  const intersection = Cartesian3.multiplyByScalar(
    cartesian,
    ratio,
    scaleToGeodeticSurfaceIntersection,
  );

  // If the position is near the center, the iteration will not converge.
  if (squaredNorm < centerToleranceSquared) {
    return !isFinite(ratio)
      ? undefined
      : Cartesian3.clone(intersection, result);
  }

  const oneOverRadiiSquaredX = oneOverRadiiSquared.x;
  const oneOverRadiiSquaredY = oneOverRadiiSquared.y;
  const oneOverRadiiSquaredZ = oneOverRadiiSquared.z;

  // Use the gradient at the intersection point in place of the true unit normal.
  // The difference in magnitude will be absorbed in the multiplier.
  const gradient = scaleToGeodeticSurfaceGradient;
  gradient.x = intersection.x * oneOverRadiiSquaredX * 2.0;
  gradient.y = intersection.y * oneOverRadiiSquaredY * 2.0;
  gradient.z = intersection.z * oneOverRadiiSquaredZ * 2.0;

  // Compute the initial guess at the normal vector multiplier, lambda.
  let lambda =
    ((1.0 - ratio) * Cartesian3.magnitude(cartesian)) /
    (0.5 * Cartesian3.magnitude(gradient));
  let correction = 0.0;

  let func;
  let denominator;
  let xMultiplier;
  let yMultiplier;
  let zMultiplier;
  let xMultiplier2;
  let yMultiplier2;
  let zMultiplier2;
  let xMultiplier3;
  let yMultiplier3;
  let zMultiplier3;

  do {
    lambda -= correction;

    xMultiplier = 1.0 / (1.0 + lambda * oneOverRadiiSquaredX);
    yMultiplier = 1.0 / (1.0 + lambda * oneOverRadiiSquaredY);
    zMultiplier = 1.0 / (1.0 + lambda * oneOverRadiiSquaredZ);

    xMultiplier2 = xMultiplier * xMultiplier;
    yMultiplier2 = yMultiplier * yMultiplier;
    zMultiplier2 = zMultiplier * zMultiplier;

    xMultiplier3 = xMultiplier2 * xMultiplier;
    yMultiplier3 = yMultiplier2 * yMultiplier;
    zMultiplier3 = zMultiplier2 * zMultiplier;

    func = x2 * xMultiplier2 + y2 * yMultiplier2 + z2 * zMultiplier2 - 1.0;

    // "denominator" here refers to the use of this expression in the velocity and acceleration
    // computations in the sections to follow.
    denominator =
      x2 * xMultiplier3 * oneOverRadiiSquaredX +
      y2 * yMultiplier3 * oneOverRadiiSquaredY +
      z2 * zMultiplier3 * oneOverRadiiSquaredZ;

    const derivative = -2.0 * denominator;

    correction = func / derivative;
  } while (Math.abs(func) > CesiumMath.EPSILON12);

  if (!defined(result)) {
    return new Cartesian3(
      positionX * xMultiplier,
      positionY * yMultiplier,
      positionZ * zMultiplier,
    );
  }
  result.x = positionX * xMultiplier;
  result.y = positionY * yMultiplier;
  result.z = positionZ * zMultiplier;
  return result;
}

弧度/角度换算

Cesium.Math.toRadians(deg)
Cesium.Math.toDegrees(rad)

Three.js 中的世界坐标系

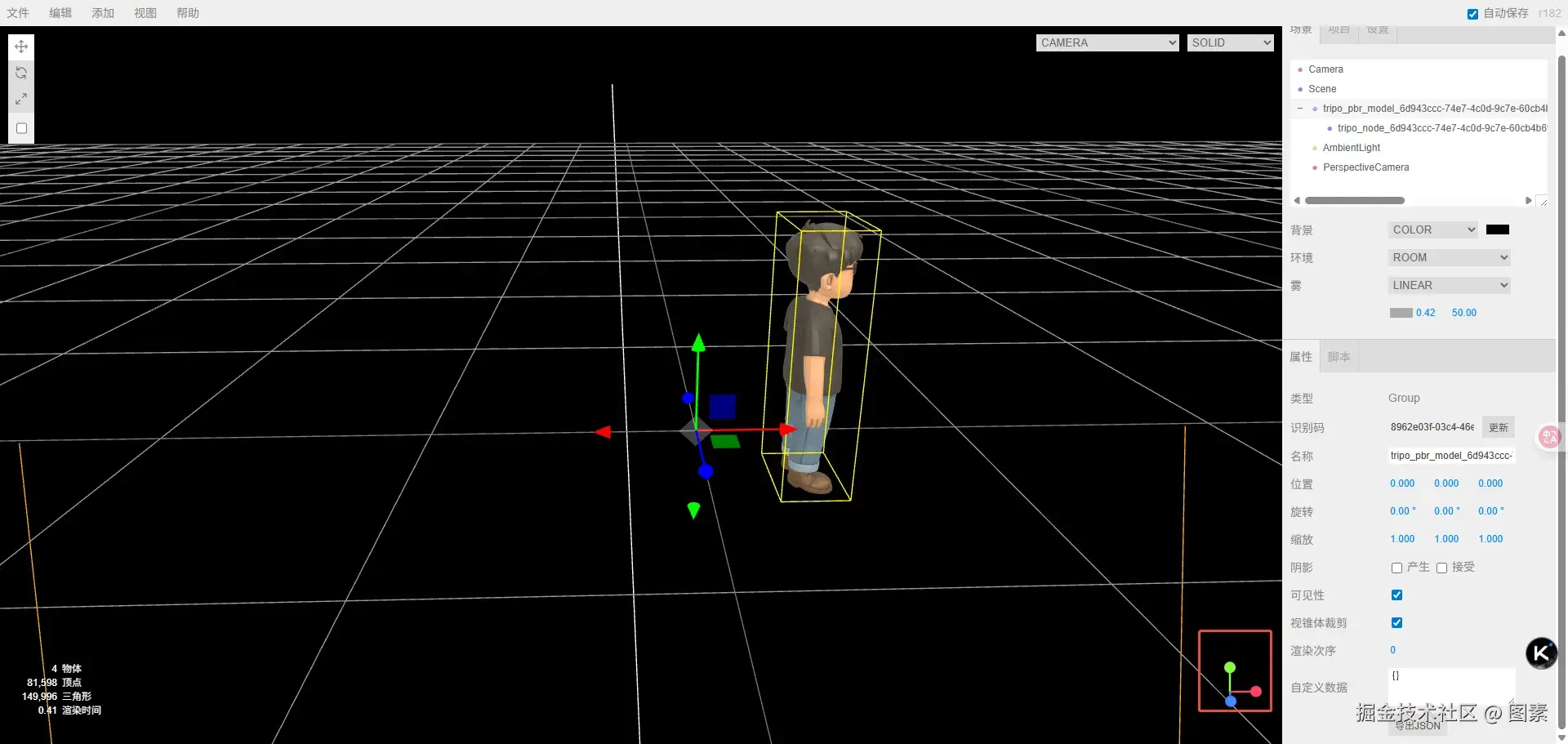

最后我们来对比一下Three.js 中的世界坐标系，看下图，

Three.js 世界坐标中心点可以是任意点，通常放在内容的中心。默认右手坐标系，并且约定+Y向上，相机默认朝 -Z 方向看（所以"前方"常被理解为 -Z）向后（+Z）

three.js 世界坐标系
