图片标注框选组件

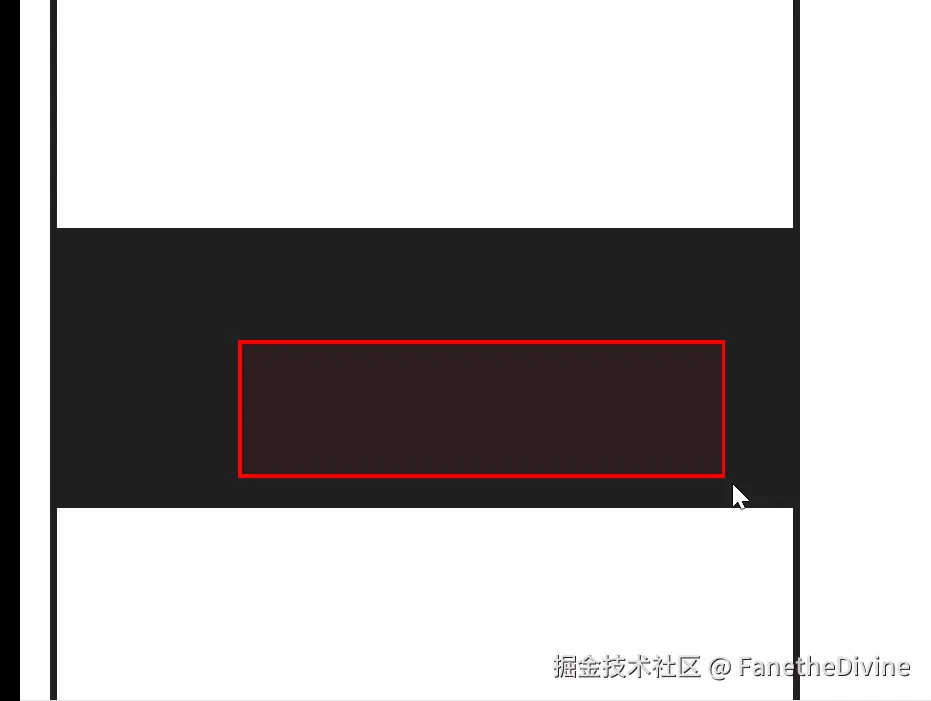

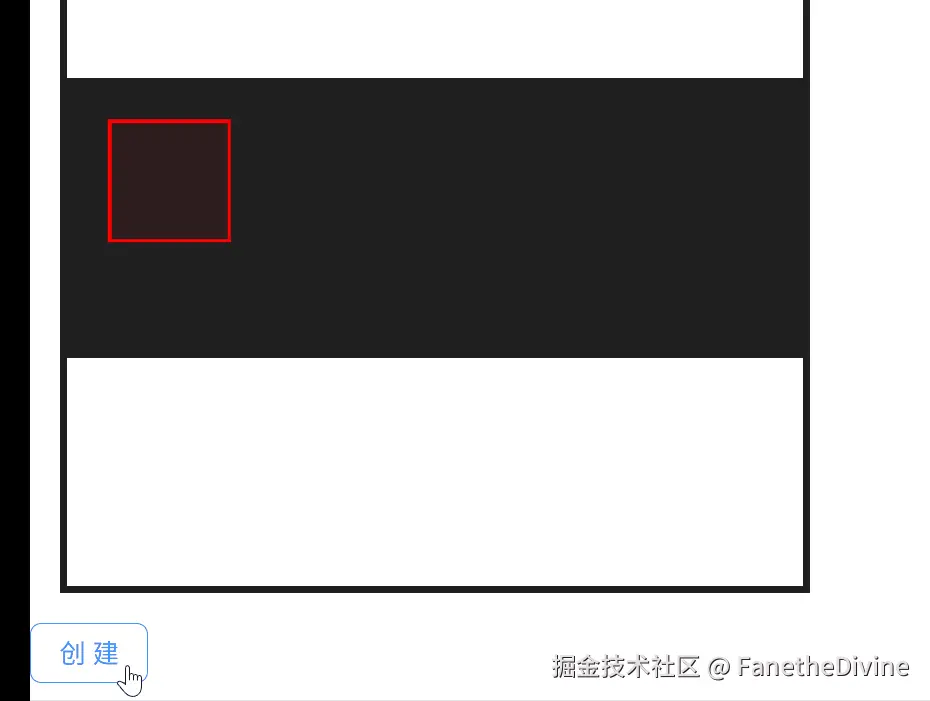

实际效果

主要思路

从img标签获取图片原始尺寸获取图片容器尺寸
计算图片实际展示的宽高将基于原始尺寸的坐标转化为基于展示尺寸的并设置相应的拖拽区
选择框框使用motion.div构建用x/y/width/height四个motion value描述
选择框框整体拖拽使用motion自带功能即可但四边、四角的拖拽逻辑要手写
选择框按照左上角的位置进行排序设置zindex 越靠上越靠左z越小尽可能避免某个拖拽框被完全遮盖

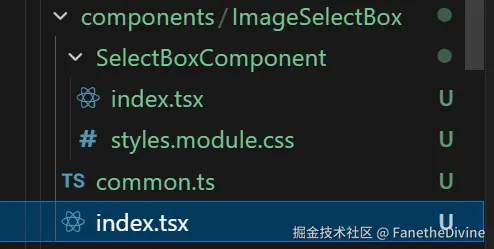

代码结构

实际代码

common.ts

ts 复制代码

import { match } from 'ts-pattern'

/** 选择框 */
export type SelectBox = {
  key: string | number
  /** 左上角坐标和右下角坐标 */
  position: [x1: number, y1: number, x2: number, y2: number]
  style?: {
    fill?: string
    border?: string
    borderWidth?: number
  }
}

/** 区域或图片的大小 */
export type Size = {
  width: number
  height: number
}

/** 获取图片的原始尺寸 */
export async function getImageNaturalSize(src: string) {
  const img = new Image()
  img.src = src
  const { promise, resolve, reject } = Promise.withResolvers<Size>()
  img.addEventListener('load', () => {
    resolve({ width: img.naturalWidth, height: img.naturalHeight })
  })
  img.addEventListener('error', reject)
  return promise
}

/** 计算图片的展示尺寸 */
export function getDisplaySize(naturalSize: Size, containerSize: Size) {
  const scaleX = containerSize.width / naturalSize.width
  const scaleY = containerSize.height / naturalSize.height
  const scale = Math.min(scaleX, scaleY)
  return {
    width: naturalSize.width * scale,
    height: naturalSize.height * scale,
  }
}

/** 计算选择框的z-index 使所有选择框都可以点击 */
export function getBoxZIndexs(boxs: SelectBox[]) {
  const keyMap = new Map<SelectBox['key'], number>()
  // 矩形靠上、靠左的 z较低
  const sorted = [...boxs].sort((A, B) => {
    const {
      position: [Ax1, Ay1],
    } = A
    const {
      position: [Bx1, By1],
    } = B
    return Ay1 !== By1 ? Ay1 - By1 : Ax1 - Bx1
  })
  sorted.forEach((item, i) => {
    keyMap.set(item.key, i)
  })
  return boxs.map((item) => keyMap.get(item.key))
}

/**
 * 将基于原始尺寸的坐标转化为基于展示尺寸的坐标 或者反过来/
 * 转化后的坐标不小于0 不大于目标尺寸的最大值
 */
export function convertPosition(
  position: SelectBox['position'],
  naturalSize: Size,
  displaySize: Size,
  to: 'natural' | 'display',
) {
  const [originSize, resultSize] = match(to)
    .with('display', () => [naturalSize, displaySize])
    .with('natural', () => [displaySize, naturalSize])
    .exhaustive()
  const scaleX = resultSize.width / originSize.width
  const scaleY = resultSize.height / originSize.height
  const maxX = resultSize.width
  const maxY = resultSize.height
  const [x1, y1, x2, y2] = position
  return [
    Math.max(0, Math.min(x1 * scaleX, maxX)),
    Math.max(0, Math.min(y1 * scaleY, maxY)),
    Math.max(0, Math.min(x2 * scaleX, maxX)),
    Math.max(0, Math.min(y2 * scaleY, maxY)),
  ] as SelectBox['position']
}

/** 获取符合左上右下顺序的position */
export function getLegalPosition(position: SelectBox['position']) {
  const [_x1, _y1, _x2, _y2] = position
  const [x1, x2] = _x1 <= _x2 ? [_x1, _x2] : [_x2, _x1]
  const [y1, y2] = _y1 <= _y2 ? [_y1, _y2] : [_y2, _y1]
  return [x1, y1, x2, y2] as SelectBox['position']
}

/** 拖拽方向类型 */
export type DragDirection =
  | 'top'
  | 'top-left'
  | 'top-right'
  | 'left'
  | 'right'
  | 'bottom'
  | 'bottom-left'
  | 'bottom-right'

export const DirectionCursorMap: Record<DragDirection, string> = {
  top: 'ns-resize',
  bottom: 'ns-resize',
  left: 'ew-resize',
  right: 'ew-resize',
  'top-left': 'nwse-resize',
  'bottom-right': 'nwse-resize',
  'top-right': 'nesw-resize',
  'bottom-left': 'nesw-resize',
}

/** 根据拖拽方向获取鼠标指针样式 */
export function getCursorStyle(dir: DragDirection) {
  return DirectionCursorMap[dir]
}

index.tsx

tsx 复制代码

import {
  useRef,
  forwardRef,
  useImperativeHandle,
  useState,
  useMemo,
} from 'react'
import { Skeleton } from 'antd'
import { useMemoizedFn, useSize } from 'ahooks'
import useSWR from 'swr'
import { match, P } from 'ts-pattern'
import { cn } from '@/utils'
import { SelectBoxComponent } from './SelectBoxComponent'
import {
  type SelectBox,
  convertPosition,
  getImageNaturalSize,
  getDisplaySize,
  getBoxZIndexs,
} from './common'

export { type SelectBox } from './common'

export type ImageSelectBoxProps = Style & {
  src: string
  boxs: SelectBox[]
  onPositionChange: (key: SelectBox['key'], position: SelectBox['position']) => void
  onCreateBox?: (position: SelectBox['position']) => void
  onClick?: (boxKey: SelectBox['key'] | undefined, e: React.MouseEvent) => void
}

export type ImageSelectBoxInstance = {
  /** 调用此函数后 在拖拽区点击 便可创建一个新的区域并开启其拖拽 */
  createBox: () => void
}

export const ImageSelectBox = forwardRef<ImageSelectBoxInstance, ImageSelectBoxProps>(
  (props, ref) => {
    const { src, boxs, onPositionChange, onCreateBox, onClick, className, style } = props

    // 图片和拖拽区的尺寸
    const { data: naturalSize, isValidating, error } = useSWR(src, getImageNaturalSize)
    const containerRef = useRef<HTMLDivElement>(null)
    const containerSize = useSize(containerRef)
    // 计算展示尺寸
    const displaySize = useMemo(() => {
      if (!naturalSize || !containerSize) return undefined
      const size = getDisplaySize(naturalSize, containerSize)
      return size
    }, [containerSize, naturalSize])
    const dragRange = useRef<HTMLDivElement>(null)

    // 为选择框设置zindex 避免重叠遮挡
    const zIndexList = useMemo(() => {
      const zList = getBoxZIndexs(boxs)
      return zList
    }, [boxs])

    // 用于点击选择框事件 如果指针移动 则不触发此事件
    const pointerMoved = useRef(false)

    // 创建选择框
    const isCreating = useRef(false)
    const [creatingInitPosition, setInitPosition] = useState<SelectBox['position']>()
    const createBox = useMemoizedFn(() => {
      isCreating.current = true
    })
    useImperativeHandle(
      ref,
      () => ({
        createBox,
      }),
      [createBox],
    )
    return (
      <div
        className={cn(
          'relative flex h-full w-full items-center justify-center overflow-hidden',
          className,
        )}
        style={style}
        onClick={(e) => {
          if (e.target === e.currentTarget) {
            onClick?.(undefined, e)
          }
        }}
        ref={containerRef}
      >
        {match({ isValidating, error: error as Error | null, naturalSize, displaySize })
          .with({ isValidating: false, error: P.nonNullable }, () => '图片加载失败')
          .with(
            { isValidating: false, naturalSize: P.nonNullable, displaySize: P.nonNullable },
            ({ naturalSize, displaySize }) => (
              <>
                <img src={src} className='h-full w-full object-contain' />
                <div
                  className='absolute top-1/2 left-1/2 z-10 -translate-x-1/2 -translate-y-1/2'
                  style={displaySize}
                  ref={dragRange}
                  onPointerDownCapture={(e) => {
                    pointerMoved.current = false
                    if (!isCreating.current) return
                    if (!dragRange.current) return
                    e.stopPropagation()
                    const { clientX, clientY } = e
                    const { x = 0, y = 0 } = dragRange.current.getBoundingClientRect()
                    const x1 = clientX - x
                    const y1 = clientY - y
                    setInitPosition([x1, y1, x1, y1])
                  }}
                  onPointerMoveCapture={()=>{
                    pointerMoved.current = true
                  }}
                >
                  {boxs.map((b, i) => (
                    <SelectBoxComponent
                      key={b.key}
                      position={convertPosition(b.position, naturalSize, displaySize, 'display')}
                      dragRange={dragRange}
                      onPositionChange={(val) =>
                        onPositionChange?.(
                          b.key,
                          convertPosition(val, naturalSize, displaySize, 'natural'),
                        )
                      }
                      onClick={(e) => {
                        // 如果鼠标移动了 不触发点击
                        if (pointerMoved.current) return
                        onClick?.(b.key, e)
                      }}
                      style={{ zIndex: zIndexList[i] }}
                    />
                  ))}
                  {creatingInitPosition ? (
                    <SelectBoxComponent
                      position={creatingInitPosition}
                      defaultDragDirection='bottom-right'
                      dragRange={dragRange}
                      onPositionChange={(val) => {
                        onCreateBox?.(convertPosition(val, naturalSize, displaySize, 'natural'))
                        setInitPosition(undefined)
                      }}
                      style={{ zIndex: 9999 }}
                    />
                  ) : null}
                </div>
              </>
            ),
          )
          .otherwise(() => (
            <Skeleton active className='p-4' />
          ))}
      </div>
    )
  },
)

SelectBoxComponent/index.tsx

这个文件包含了拖拽逻辑包括溢出和翻转等

tsx 复制代码

import React, { useLayoutEffect, FC } from 'react'
import { useMemoizedFn, useMount } from 'ahooks'
import { motion, useMotionValue } from 'motion/react'
import { cn } from '@/utils'
import {
  type SelectBox,
  getLegalPosition,
  getCursorStyle,
  DirectionCursorMap,
  DragDirection,
} from '../common'
import styles from './styles.module.css'

export type SelectBoxComponentProps = Style & {
  position: SelectBox['position']
  dragRange: { current: HTMLElement | null }
  onPositionChange?: (val: SelectBox['position']) => void
  onClick?: (e: React.MouseEvent) => void
  boxStyle?: SelectBox['style']
  /** 传入此项 则选择框初始可拖拽 */
  defaultDragDirection?: DragDirection
}

export const SelectBoxComponent: FC<SelectBoxComponentProps> = (props) => {
  const {
    position,
    dragRange,
    boxStyle,
    onPositionChange,
    onClick,
    defaultDragDirection,
    className,
    style,
  } = props
  const { fill = '#ff000010', border = '#ff0000', borderWidth = 2 } = boxStyle ?? {}

  const x = useMotionValue(0)
  const y = useMotionValue(0)
  const width = useMotionValue(0)
  const height = useMotionValue(0)
  useLayoutEffect(() => {
    const [x1, y1, x2, y2] = getLegalPosition(position)
    x.set(x1)
    y.set(y1)
    width.set(x2 - x1)
    height.set(y2 - y1)
  }, [height, position, width, x, y])
  const onDragEnd = useMemoizedFn(() => {
    const x1 = x.get()
    const y1 = y.get()
    const x2 = x1 + width.get()
    const y2 = y1 + height.get()
    onPositionChange?.([x1, y1, x2, y2])
  })

  /**
   * 拖拽区应当跟随鼠标移动 因此可以根据鼠标位置设置矩形四点的位置
   */
  const startHandlerDrag = useMemoizedFn((dir: DragDirection) => {
    document.body.classList.add(styles.dragging)
    document.body.style.setProperty('--cursor-style', getCursorStyle(dir))
    document.addEventListener('pointermove', onHandlerDrag)
    document.addEventListener('pointerup', stopHandlerDrag)

    function stopHandlerDrag() {
      document.body.classList.remove(styles.dragging)
      document.body.style.removeProperty('--cursor-style')
      document.removeEventListener('pointermove', onHandlerDrag)
      document.removeEventListener('pointerup', stopHandlerDrag)
      onDragEnd()
    }

    let currentDirection = dir
    function onHandlerDrag(e: PointerEvent) {
      if (!dragRange.current) return
      const { clientX, clientY } = e
      const {
        x: rangeX,
        y: rangeY,
        width: maxWidth,
        height: maxHeight,
      } = dragRange.current.getBoundingClientRect()

      // 在允许水平拖拽时计算x/width
      // 注意矩形翻转的问题
      if (currentDirection.includes('left') || currentDirection.includes('right')) {
        const currentX1 = x.get()
        const currentX2 = currentX1 + width.get()
        const isLeft = currentDirection.includes('left')
        let [newCurrentX1, newCurrentX2] = isLeft
          ? [clientX - rangeX, currentX2]
          : [currentX1, clientX - rangeX]
        // newCurrentX1 > newCurrentX2 说明之前的左上点变为了右上点 矩形翻转了
        // 翻转后 拖拽防线同样需要更改
        if (newCurrentX1 > newCurrentX2) {
          ;[newCurrentX1, newCurrentX2] = [newCurrentX2, newCurrentX1]
          currentDirection = (
            isLeft
              ? currentDirection.replace('left', 'right')
              : currentDirection.replace('right', 'left')
          ) as DragDirection
        }
        // 矩形大小溢出
        if (newCurrentX1 < 0) {
          newCurrentX1 = 0
        }
        if (newCurrentX2 > maxWidth) {
          newCurrentX2 = maxWidth
        }
        x.set(newCurrentX1)
        width.set(newCurrentX2 - newCurrentX1)
      }
      // 在允许竖直拖拽时计算y/height 逻辑类似
      if (currentDirection.includes('top') || currentDirection.includes('bottom')) {
        const currentY1 = y.get()
        const currentY2 = currentY1 + height.get()
        const isTop = currentDirection.includes('top')
        let [newCurrentY1, newCurrentY2] = isTop
          ? [clientY - rangeY, currentY2]
          : [currentY1, clientY - rangeY]
        if (newCurrentY1 > newCurrentY2) {
          ;[newCurrentY1, newCurrentY2] = [newCurrentY2, newCurrentY1]
          currentDirection = (
            isTop
              ? currentDirection.replace('top', 'bottom')
              : currentDirection.replace('bottom', 'top')
          ) as DragDirection
        }
        if (newCurrentY1 < 0) {
          newCurrentY1 = 0
        }
        if (newCurrentY2 > maxHeight) {
          newCurrentY2 = maxHeight
        }
        y.set(newCurrentY1)
        height.set(newCurrentY2 - newCurrentY1)
      }
    }
  })

  useMount(() => {
    if (defaultDragDirection) {
      startHandlerDrag(defaultDragDirection)
    }
  })
  return (
    <motion.div
      className={cn('absolute top-0 left-0', styles.selectBox, className)}
      style={{
        // @ts-expect-error 为拖拽手柄提供css变量
        '--handler-width': `${borderWidth}px`,
        '--handler-background-color': border,
        backgroundColor: fill,
        x,
        y,
        width,
        height,
        ...style,
      }}
      drag
      dragElastic={0}
      dragMomentum={false}
      dragConstraints={dragRange}
      onDragEnd={onDragEnd}
      onClick={onClick}
    >
      {Object.keys(DirectionCursorMap).map((dir) => (
        <div
          key={dir}
          className={cn(styles.handler, styles[dir])}
          onPointerDownCapture={(e) => {
            e.stopPropagation()
            startHandlerDrag(dir as DragDirection)
          }}
        ></div>
      ))}
    </motion.div>
  )
}

SelectBoxComponent/styles.module.css

css 复制代码

body.dragging {

  &,
  & * {
    cursor: var(--cursor-style) !important;
  }
}

.selectBox {
  .handler {
    position: absolute;
    width: var(--handler-width);
    height: var(--handler-width);
    background-color: var(--handler-background-color);

    /* 角落手柄 - 正方形 */
    &.top-left {
      top: 0;
      left: 0;
      cursor: nwse-resize;
    }

    &.top-right {
      top: 0;
      right: 0;
      cursor: nesw-resize;
    }

    &.bottom-left {
      bottom: 0;
      left: 0;
      cursor: nesw-resize;
    }

    &.bottom-right {
      bottom: 0;
      right: 0;
      cursor: nwse-resize;
    }

    /* 边缘手柄 - 矩形 */
    &.top {
      top: 0;
      left: var(--handler-width);
      right: var(--handler-width);
      width: auto;
      cursor: ns-resize;
    }

    &.bottom {
      bottom: 0;
      left: var(--handler-width);
      right: var(--handler-width);
      width: auto;
      cursor: ns-resize;
    }

    &.left {
      left: 0;
      top: var(--handler-width);
      bottom: var(--handler-width);
      height: auto;
      cursor: ew-resize;
    }

    &.right {
      right: 0;
      top: var(--handler-width);
      bottom: var(--handler-width);
      height: auto;
      cursor: ew-resize;
    }
  }
}
