TensorFlow学习系列02 | 实现彩色图片分类

一、前置知识

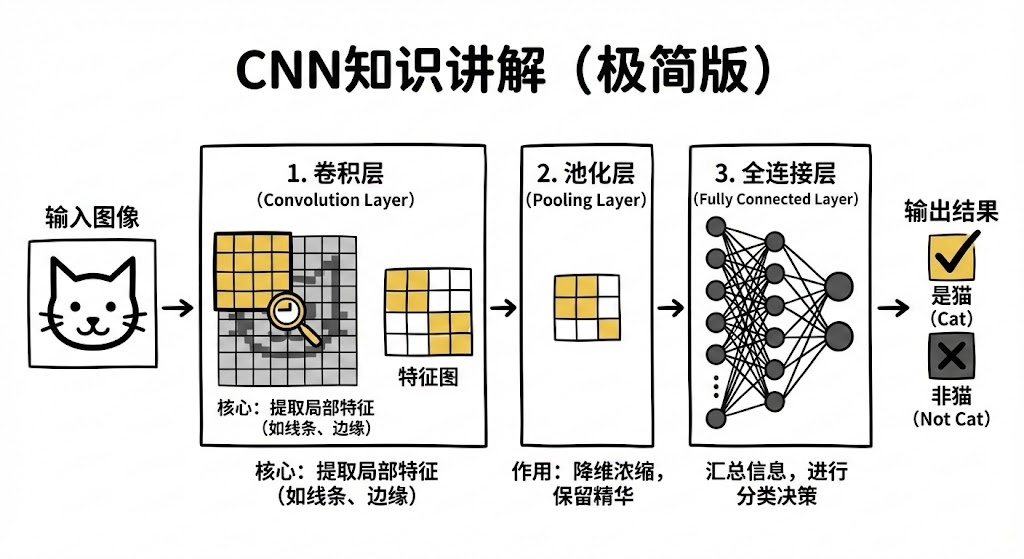

1、CNN知识扫盲

1.1. 卷积（Convolution）

怎么做 ？用一个叫 卷积核（Kernel） 或 滤波器（Filter） 的小矩阵（如 3×3）在图像上滑动。
每滑一步 ，和底下像素做"点乘 + 求和"，得到一个新值 → 构成 特征图（Feature Map）。
不同卷积核 = 不同"滤镜"：

- 一个核专门检测竖直边缘
- 一个核专门检测45度斜线
- 一个核专门检测亮斑

🌟 关键优势 ：

局部连接 ：每个神经元只看图像一小块（感受野），符合生物视觉
参数共享 ：同一个卷积核在整个图像上复用 → 参数量暴减！（普通神经网络需百万参数，CNN 只需几千）

1.2. 池化（Pooling）

作用：降低特征图尺寸，减少计算量，同时让网络对微小位移"不敏感"（鲁棒性）。
最常用：最大池化（Max Pooling）

- 把特征图切成 2×2 小块
- 每块只保留最大值
- 结果：尺寸减半，但最显著的特征（如最强边缘）被保留

🎯 举例：即使猫头稍微偏左/偏右，最大池化后"耳朵区域"依然高亮 → 不影响识别

1.3. 堆叠与全连接（Stacking + FC）

浅层卷积：检测简单模式（边缘、角点）
中层卷积：组合简单模式 → 复杂模式（眼睛、耳朵）
深层卷积：组合部件 → 完整物体（猫、狗、车）
最后接全连接层（FC）：把高级特征"拍平"，送入分类器输出概率

🔁 整个过程： 原始图像 → 卷积 → 激活（ReLU）→ 池化 → 卷积 → ... → 全连接 → 分类结果

2、图片分类流程

二、代码实现

1、准备工作

1.1.设置GPU

复制代码

import tensorflow as tf
gpus = tf.config.list_physical_devices("GPU")

if gpus:
    gpu0 = gpus[0] #如果有多个GPU，仅使用第0个GPU
    tf.config.experimental.set_memory_growth(gpu0, True) #设置GPU显存用量按需使用
    tf.config.set_visible_devices([gpu0],"GPU")

print(gpus)

2026-01-14 13:03:21.672196: I tensorflow/core/util/util.cc:169] oneDNN custom operations are on. You may see slightly different numerical results due to floating-point round-off errors from different computation orders. To turn them off, set the environment variable `TF_ENABLE_ONEDNN_OPTS=0`.

[PhysicalDevice(name='/physical_device:GPU:0', device_type='GPU')]

1.2.导入数据

复制代码

import tensorflow as tf
from tensorflow.keras import datasets, layers, models
import matplotlib.pyplot as plt

(train_images, train_labels), (test_images, test_labels) = datasets.cifar10.load_data()

Downloading data from https://www.cs.toronto.edu/~kriz/cifar-10-python.tar.gz
170498071/170498071 [==============================] - 947s 6us/step

1.3.归一化

复制代码

# 将像素的值标准化至0到1的区间内。(对于灰度图片来说，每个像素最大值是255，每个像素最小值是0，也就是直接除以255就可以完成归一化。)
train_images, test_images = train_images / 255.0, test_images / 255.0
# 查看数据维数信息
train_images.shape,test_images.shape,train_labels.shape,test_labels.shape

((50000, 32, 32, 3), (10000, 32, 32, 3), (50000, 1), (10000, 1))

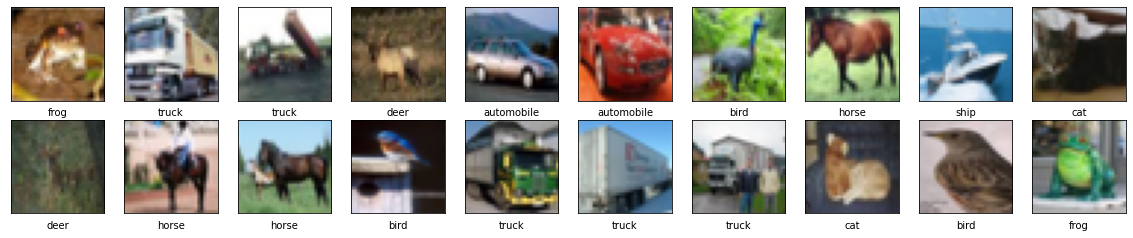

1.4.可视化图片

复制代码

class_names = ['airplane', 'automobile', 'bird', 'cat', 'deer','dog', 'frog', 'horse', 'ship', 'truck']

plt.figure(figsize=(20,10))
for i in range(20):
    plt.subplot(5,10,i+1)
    plt.xticks([])
    plt.yticks([])
    plt.grid(False)
    plt.imshow(train_images[i], cmap=plt.cm.binary)
    plt.xlabel(class_names[train_labels[i][0]])
plt.show()

2、训练模型

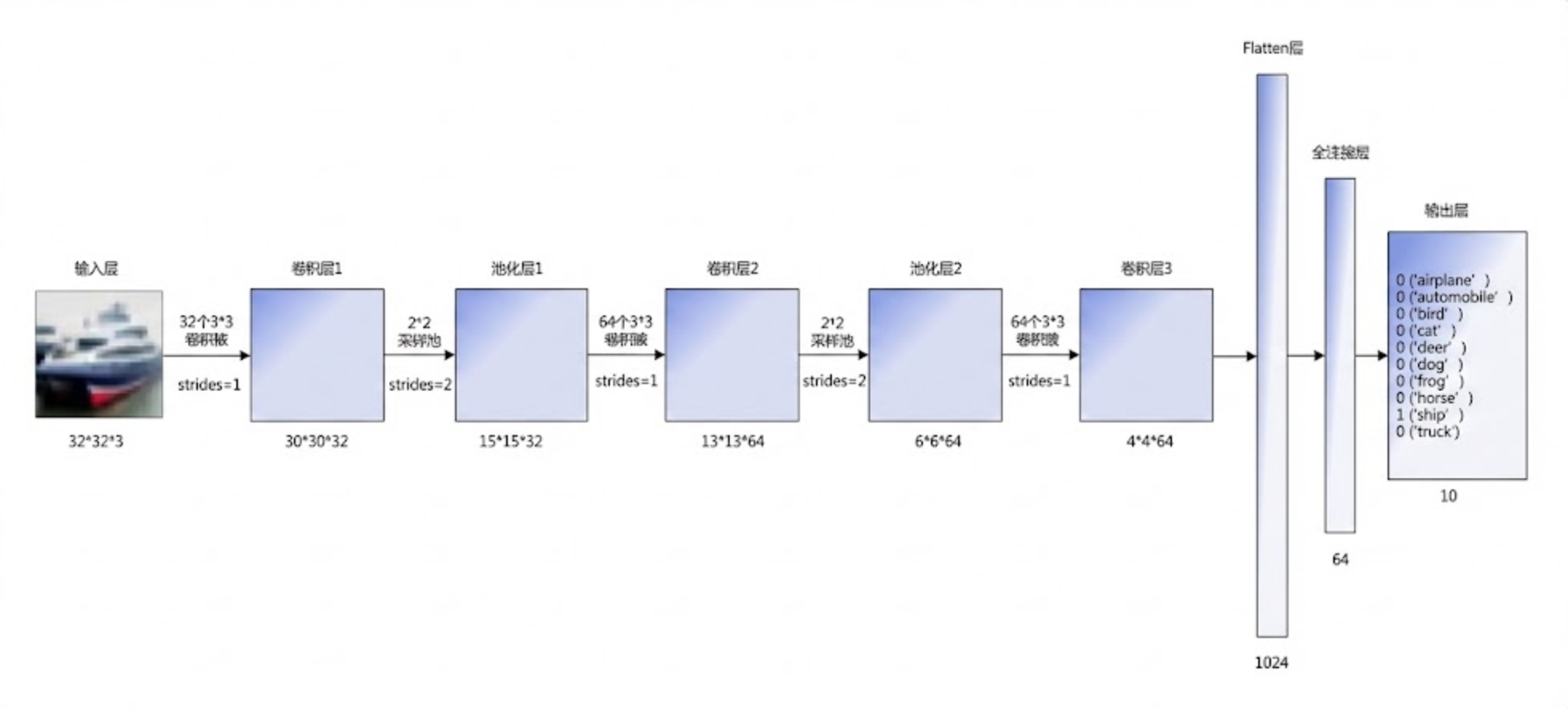

2.1.构建CNN网络

复制代码

model = models.Sequential([
    layers.Conv2D(32, (3, 3), activation='relu', input_shape=(32, 32, 3)), #卷积层1，卷积核3*3
    layers.MaxPooling2D((2, 2)),                   #池化层1，2*2采样
    layers.Conv2D(64, (3, 3), activation='relu'),  #卷积层2，卷积核3*3
    layers.MaxPooling2D((2, 2)),                   #池化层2，2*2采样
    layers.Conv2D(64, (3, 3), activation='relu'),  #卷积层3，卷积核3*3

    layers.Flatten(),                      #Flatten层，连接卷积层与全连接层
    layers.Dense(64, activation='relu'),   #全连接层，特征进一步提取
    layers.Dense(10)                       #输出层，输出预期结果
])

model.summary()  # 打印网络结构

2026-01-14 13:25:51.622783: I tensorflow/core/platform/cpu_feature_guard.cc:193] This TensorFlow binary is optimized with oneAPI Deep Neural Network Library (oneDNN) to use the following CPU instructions in performance-critical operations:  AVX2 AVX512F AVX512_VNNI FMA
To enable them in other operations, rebuild TensorFlow with the appropriate compiler flags.
2026-01-14 13:25:52.805568: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1532] Created device /job:localhost/replica:0/task:0/device:GPU:0 with 10099 MB memory:  -> device: 0, name: NVIDIA GeForce RTX 3080 Ti, pci bus id: 0000:5e:00.0, compute capability: 8.6


Model: "sequential"
_________________________________________________________________
 Layer (type)                Output Shape              Param #
=================================================================
 conv2d (Conv2D)             (None, 30, 30, 32)        896

 max_pooling2d (MaxPooling2D  (None, 15, 15, 32)       0
 )

 conv2d_1 (Conv2D)           (None, 13, 13, 64)        18496

 max_pooling2d_1 (MaxPooling  (None, 6, 6, 64)         0
 2D)

 conv2d_2 (Conv2D)           (None, 4, 4, 64)          36928

 flatten (Flatten)           (None, 1024)              0

 dense (Dense)               (None, 64)                65600

 dense_1 (Dense)             (None, 10)                650

=================================================================
Total params: 122,570
Trainable params: 122,570
Non-trainable params: 0
_________________________________________________________________

2.2.编译模型

复制代码

model.compile(optimizer='adam',
              loss=tf.keras.losses.SparseCategoricalCrossentropy(from_logits=True),
              metrics=['accuracy'])

2.3.训练模型

复制代码

history = model.fit(train_images, train_labels, epochs=10,
                    validation_data=(test_images, test_labels))

Epoch 1/10
2026-01-14 13:26:28.595628: I tensorflow/stream_executor/cuda/cuda_dnn.cc:384] Loaded cuDNN version 8101
2026-01-14 13:26:31.971672: I tensorflow/stream_executor/cuda/cuda_blas.cc:1786] TensorFloat-32 will be used for the matrix multiplication. This will only be logged once.
1563/1563 [==============================] - 15s 6ms/step - loss: 1.5071 - accuracy: 0.4519 - val_loss: 1.2221 - val_accuracy: 0.5586
Epoch 2/10
1563/1563 [==============================] - 9s 6ms/step - loss: 1.1403 - accuracy: 0.5940 - val_loss: 1.0596 - val_accuracy: 0.6186
Epoch 3/10
1563/1563 [==============================] - 9s 6ms/step - loss: 0.9880 - accuracy: 0.6537 - val_loss: 0.9577 - val_accuracy: 0.6648
Epoch 4/10
1563/1563 [==============================] - 9s 6ms/step - loss: 0.8843 - accuracy: 0.6883 - val_loss: 0.9154 - val_accuracy: 0.6849
Epoch 5/10
1563/1563 [==============================] - 9s 6ms/step - loss: 0.8077 - accuracy: 0.7143 - val_loss: 0.8642 - val_accuracy: 0.6990
Epoch 6/10
1563/1563 [==============================] - 9s 6ms/step - loss: 0.7459 - accuracy: 0.7385 - val_loss: 0.9030 - val_accuracy: 0.6912
Epoch 7/10
1563/1563 [==============================] - 9s 6ms/step - loss: 0.6906 - accuracy: 0.7584 - val_loss: 0.8798 - val_accuracy: 0.7117
Epoch 8/10
1563/1563 [==============================] - 9s 6ms/step - loss: 0.6560 - accuracy: 0.7673 - val_loss: 0.8750 - val_accuracy: 0.7042
Epoch 9/10
1563/1563 [==============================] - 9s 6ms/step - loss: 0.6054 - accuracy: 0.7874 - val_loss: 0.9065 - val_accuracy: 0.7002
Epoch 10/10
1563/1563 [==============================] - 9s 6ms/step - loss: 0.5748 - accuracy: 0.7987 - val_loss: 0.9055 - val_accuracy: 0.7049

3、模型预测

复制代码

plt.imshow(test_images[1])

<matplotlib.image.AxesImage at 0x7f3e28442b80>

复制代码

import numpy as np

pre = model.predict(test_images)
print(class_names[np.argmax(pre[1])])

313/313 [==============================] - 1s 2ms/step
ship

4、模型评估

复制代码

import matplotlib.pyplot as plt

plt.plot(history.history['accuracy'], label='accuracy')
plt.plot(history.history['val_accuracy'], label = 'val_accuracy')
plt.xlabel('Epoch')
plt.ylabel('Accuracy')
plt.ylim([0.5, 1])
plt.legend(loc='lower right')
plt.show()

test_loss, test_acc = model.evaluate(test_images,  test_labels, verbose=2)

复制代码

313/313 - 1s - loss: 0.9055 - accuracy: 0.7049 - 874ms/epoch - 3ms/step

print(test_acc)

0.7049000263214111
