高性能Java缓存框架实战，让你秒懂缓存优化
前言
在当今高并发的互联网应用中，缓存已经成为提升系统性能的关键技术之一。本文将带你从零开始，深入浅出地学习Caffeine这款高性能的Java缓存框架，并通过实际案例让你掌握缓存技术的精髓。
1. Caffeine简介

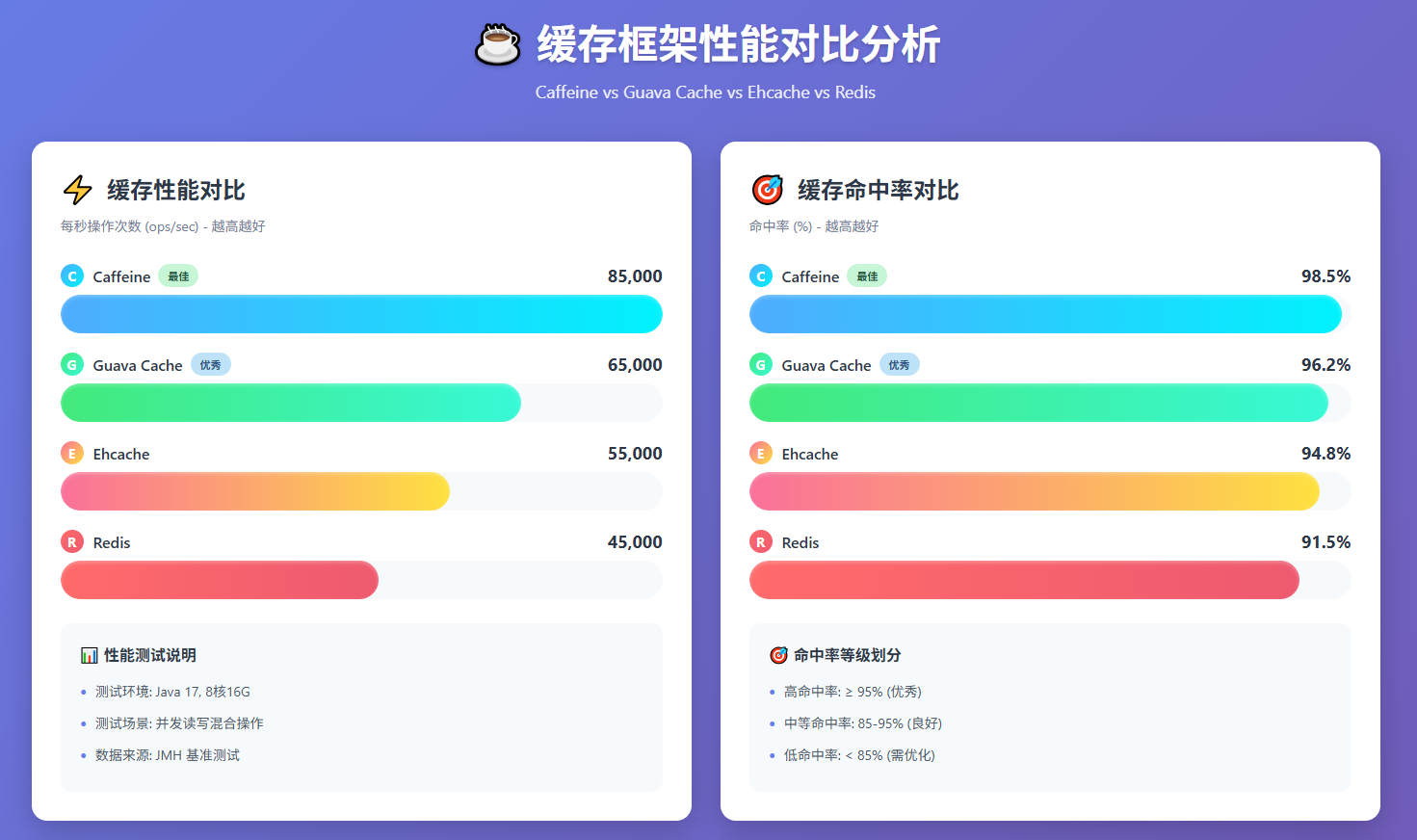

Caffeine是一个基于Java的高性能缓存库，由Google开发并开源。它被认为是Java缓存领域的王者，在性能测试中表现优异。
为什么选择Caffeine？
- 高性能：采用先进的算法，读写性能卓越
- 功能丰富：支持多种过期策略、异步加载、统计信息等
- 线程安全：并发性能优秀
- 易于使用：API设计简洁直观
- 活跃社区：持续维护和更新

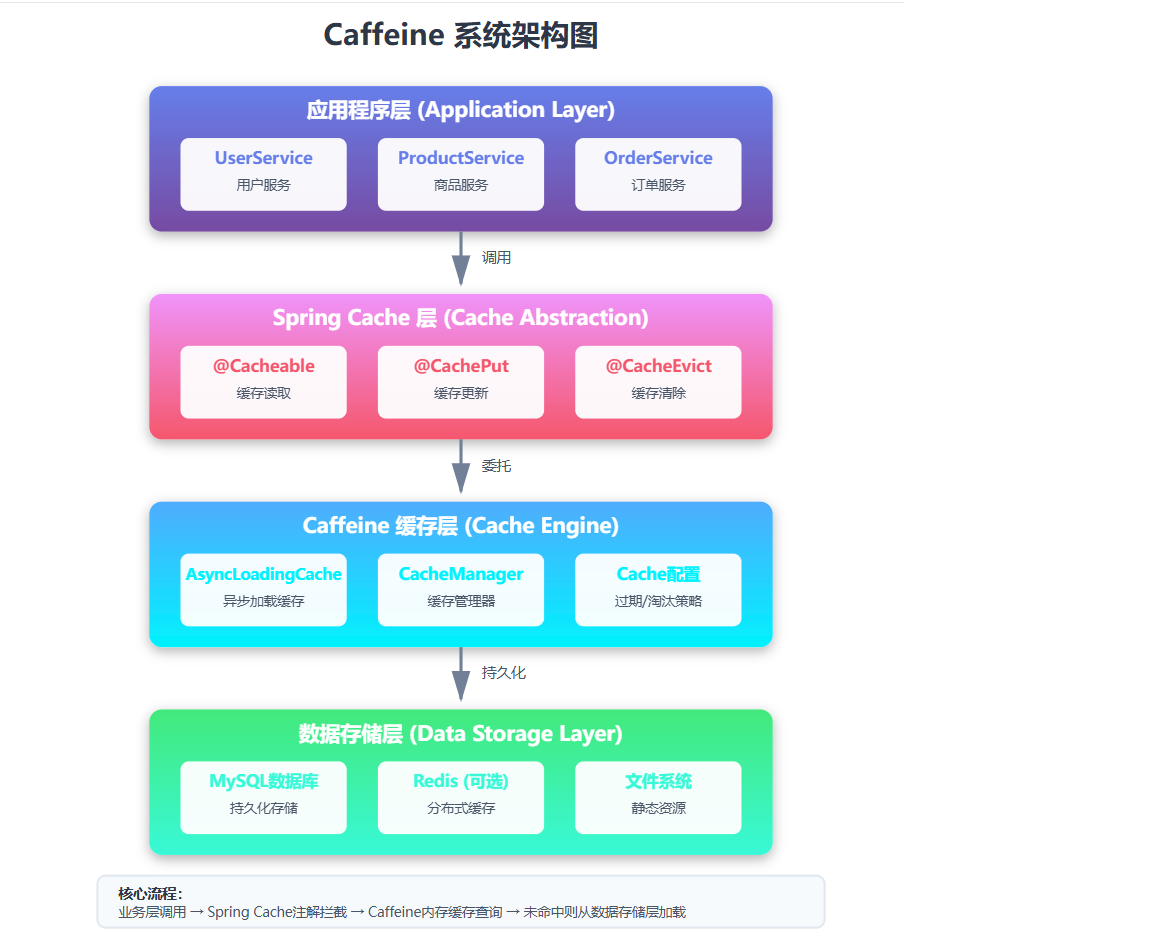

架构设计
Caffeine的核心架构包括：
- 缓存容器：使用ConcurrentHashMap作为底层数据结构
- 访问策略：采用Window TinyLFU算法进行频率统计
- 淘汰策略：基于时间窗口和频率的混合淘汰策略
- 事件机制：支持监听缓存的各种事件
2. 快速入门
Maven依赖
<dependency>
<groupId>com.github.ben-manes.caffeine</groupId>
<artifactId>caffeine</artifactId>
<version>3.1.8</version>
</dependency>基础使用示例
import com.github.benmanes.caffeine.cache.Cache;
import com.github.benmanes.caffeine.cache.Caffeine;
import java.util.concurrent.TimeUnit;
public class BasicCacheExample {
public static void main(String[] args) {
// 创建缓存
Cache<String, String> cache = Caffeine.newBuilder()
.maximumSize(1000) // 最大缓存数量
.expireAfterWrite(10, TimeUnit.MINUTES) // 写入后10分钟过期
.build();
// 存储数据
cache.put("key1", "value1");
// 获取数据
String value = cache.getIfPresent("key1");
System.out.println("缓存值: " + value);
// 获取或计算
String value2 = cache.get("key2", k -> "defaultValue");
System.out.println("缓存值: " + value2);
// 移除数据
cache.invalidate("key1");
}
}3. 核心概念

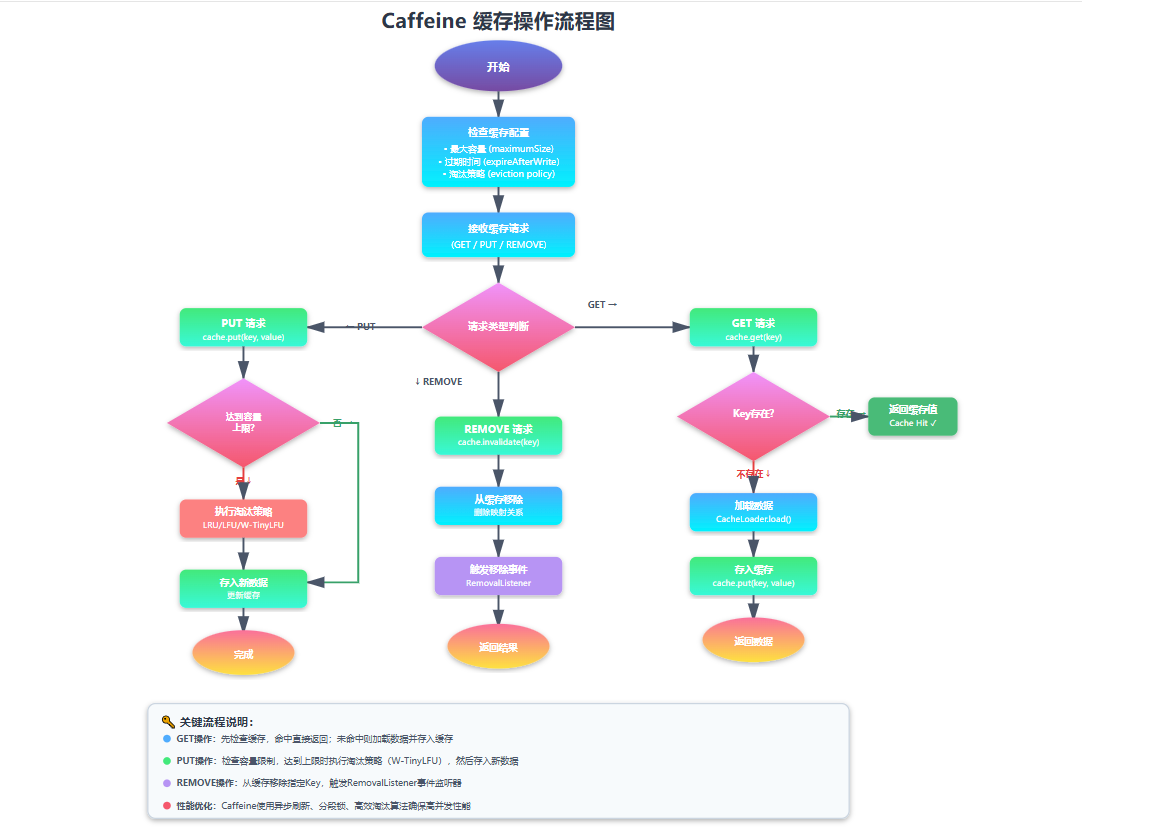

3.1 Cache vs LoadingCache vs AsyncLoadingCache
Caffeine提供了三种缓存类型：
- Cache：基础缓存，需要手动管理数据
- LoadingCache：自动加载数据的缓存
- AsyncLoadingCache：异步加载数据的缓存
3.2 过期策略
Caffeine提供了三种过期策略：
Caffeine.newBuilder()
.expireAfterWrite(10, TimeUnit.MINUTES) // 写入后过期
.expireAfterAccess(5, TimeUnit.MINUTES) // 最后访问后过期
.expireAfter(30, TimeUnit.MINUTES); // 自定义过期逻辑3.3 淘汰策略
Caffeine.newBuilder()
.maximumSize(1000) // 基于数量
.maximumWeight(10000) // 基于权重
.weakKeys() // 弱引用键
.weakValues() // 弱引用值
.softValues(); // 软引用值4. 高级特性
4.1 异步加载
AsyncLoadingCache<String, User> asyncCache = Caffeine.newBuilder()
.maximumSize(1000)
.expireAfterWrite(10, TimeUnit.MINUTES)
.buildAsync(key -> loadUserFromDatabase(key));
// 异步获取
CompletableFuture<User> userFuture = asyncCache.get("user1");
userFuture.thenAccept(user -> {
System.out.println("获取用户: " + user.getName());
});4.2 事件监听
Cache<String, String> cache = Caffeine.newBuilder()
.maximumSize(1000)
.removalListener((key, value, cause) -> {
System.out.println("缓存移除: " + key + " -> " + value + ", 原因: " + cause);
})
.build();4.3 统计信息

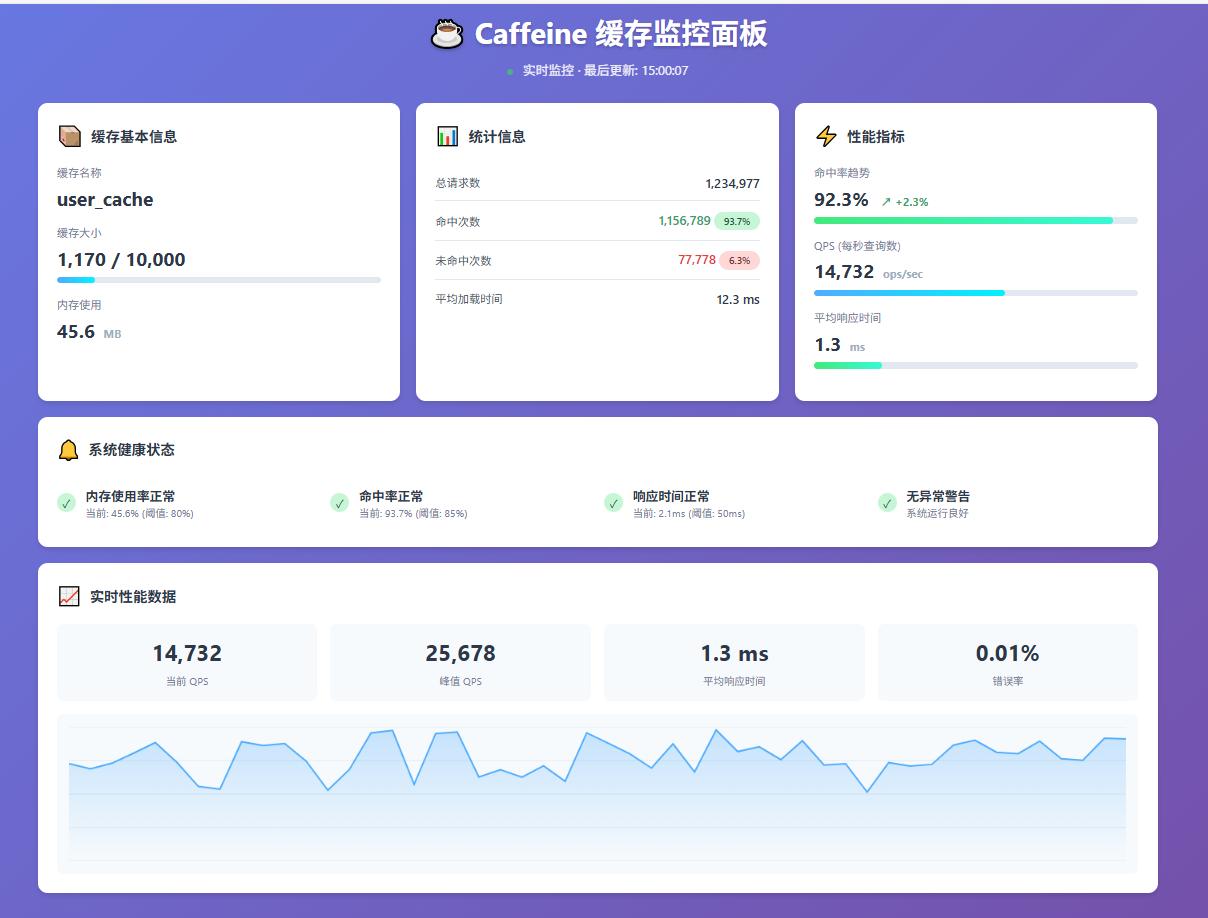

Cache<String, String> cache = Caffeine.newBuilder()
.maximumSize(1000)
.recordStats() // 启用统计
.build();
// 使用缓存...
cache.put("key1", "value1");
cache.getIfPresent("key1");
// 获取统计信息
CacheStats stats = cache.stats();
System.out.println("命中率: " + stats.hitRate());
System.out.println("加载时间: " + stats.averageLoadPenalty());
System.out.println("请求数: " + stats.requestCount());5. Spring Boot集成
5.1 添加依赖
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-cache</artifactId>
</dependency>
<dependency>
<groupId>com.github.ben-manes.caffeine</groupId>
<artifactId>caffeine</artifactId>
</dependency>5.2 配置类
import com.github.benmanes.caffeine.cache.Caffeine;
import org.springframework.cache.CacheManager;
import org.springframework.cache.annotation.EnableCaching;
import org.springframework.cache.caffeine.CaffeineCacheManager;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import java.util.concurrent.TimeUnit;
@Configuration
@EnableCaching
public class CacheConfig {
@Bean
public CacheManager cacheManager() {
CaffeineCacheManager cacheManager = new CaffeineCacheManager();
cacheManager.setCaffeine(caffeineCacheBuilder());
return cacheManager;
}
private Caffeine<Object, Object> caffeineCacheBuilder() {
return Caffeine.newBuilder()
.initialCapacity(100)
.maximumSize(1000)
.expireAfterWrite(10, TimeUnit.MINUTES)
.recordStats();
}
}5.3 使用注解
package com.example.caffeine.demo.service;
import com.example.caffeine.demo.model.User;
import org.springframework.cache.annotation.CacheEvict;
import org.springframework.cache.annotation.CachePut;
import org.springframework.cache.annotation.Cacheable;
import org.springframework.stereotype.Service;
import java.util.*;
import java.util.concurrent.ConcurrentHashMap;
import java.util.concurrent.TimeUnit;
@Service
public class UserService {
// 模拟数据库存储
private final Map<Long, User> userMap = new ConcurrentHashMap<>();
public UserService() {
// 初始化一些测试数据
userMap.put(1L, new User(1L, "张三", "zhangsan@example.com", "13800138000"));
userMap.put(2L, new User(2L, "李四", "lisi@example.com", "13900139000"));
userMap.put(3L, new User(3L, "王五", "wangwu@example.com", "13700137000"));
}
/**
* 获取用户信息（带缓存）
* @param userId 用户ID
* @return 用户信息
*/
@Cacheable(value = "users", key = "#userId")
public User getUserById(Long userId) {
// 模拟数据库查询耗时
try {
TimeUnit.MILLISECONDS.sleep(100);
} catch (InterruptedException e) {
Thread.currentThread().interrupt();
}
User user = userMap.get(userId);
if (user == null) {
throw new RuntimeException("用户不存在: " + userId);
}
return user;
}
/**
* 获取用户信息（异步）
*/
public CompletableFuture<User> getUserByIdAsync(Long userId) {
return CompletableFuture.supplyAsync(() -> getUserById(userId));
}
/**
* 获取所有用户信息
*/
@Cacheable(value = "users", key = "'all'")
public List<User> getAllUsers() {
// 模拟数据库查询耗时
try {
TimeUnit.MILLISECONDS.sleep(200);
} catch (InterruptedException e) {
Thread.currentThread().interrupt();
}
return new ArrayList<>(userMap.values());
}
/**
* 创建用户
*/
@CachePut(value = "users", key = "#user.id")
public User createUser(User user) {
userMap.put(user.getId(), user);
return user;
}
/**
* 更新用户信息
*/
@CachePut(value = "users", key = "#user.id")
public User updateUser(User user) {
if (!userMap.containsKey(user.getId())) {
throw new RuntimeException("用户不存在: " + user.getId());
}
user.setUpdateTime(LocalDateTime.now());
userMap.put(user.getId(), user);
return user;
}
/**
* 删除用户
*/
@CacheEvict(value = "users", key = "#userId")
public void deleteUser(Long userId) {
User removed = userMap.remove(userId);
if (removed == null) {
throw new RuntimeException("用户不存在: " + userId);
}
}
/**
* 批量获取用户信息
*/
@Cacheable(value = "users", key = "'batch:' + #userIds.hashCode()")
public Map<Long, User> batchGetUsers(Set<Long> userIds) {
// 模拟批量查询耗时
try {
TimeUnit.MILLISECONDS.sleep(150);
} catch (InterruptedException e) {
Thread.currentThread().interrupt();
}
Map<Long, User> result = new HashMap<>();
for (Long userId : userIds) {
User user = userMap.get(userId);
if (user != null) {
result.put(userId, user);
}
}
return result;
}
/**
* 根据用户名模糊查询
*/
public List<User> searchUsersByUsername(String keyword) {
List<User> result = new ArrayList<>();
for (User user : userMap.values()) {
if (user.getUsername().contains(keyword)) {
result.add(user);
}
}
return result;
}
/**
* 清空所有缓存
*/
@CacheEvict(value = "users", allEntries = true)
public void clearAllCache() {
System.out.println("清空所有用户缓存");
}
/**
* 获取用户总数
*/
public long getUserCount() {
return userMap.size();
}
}6. 生产环境最佳实践

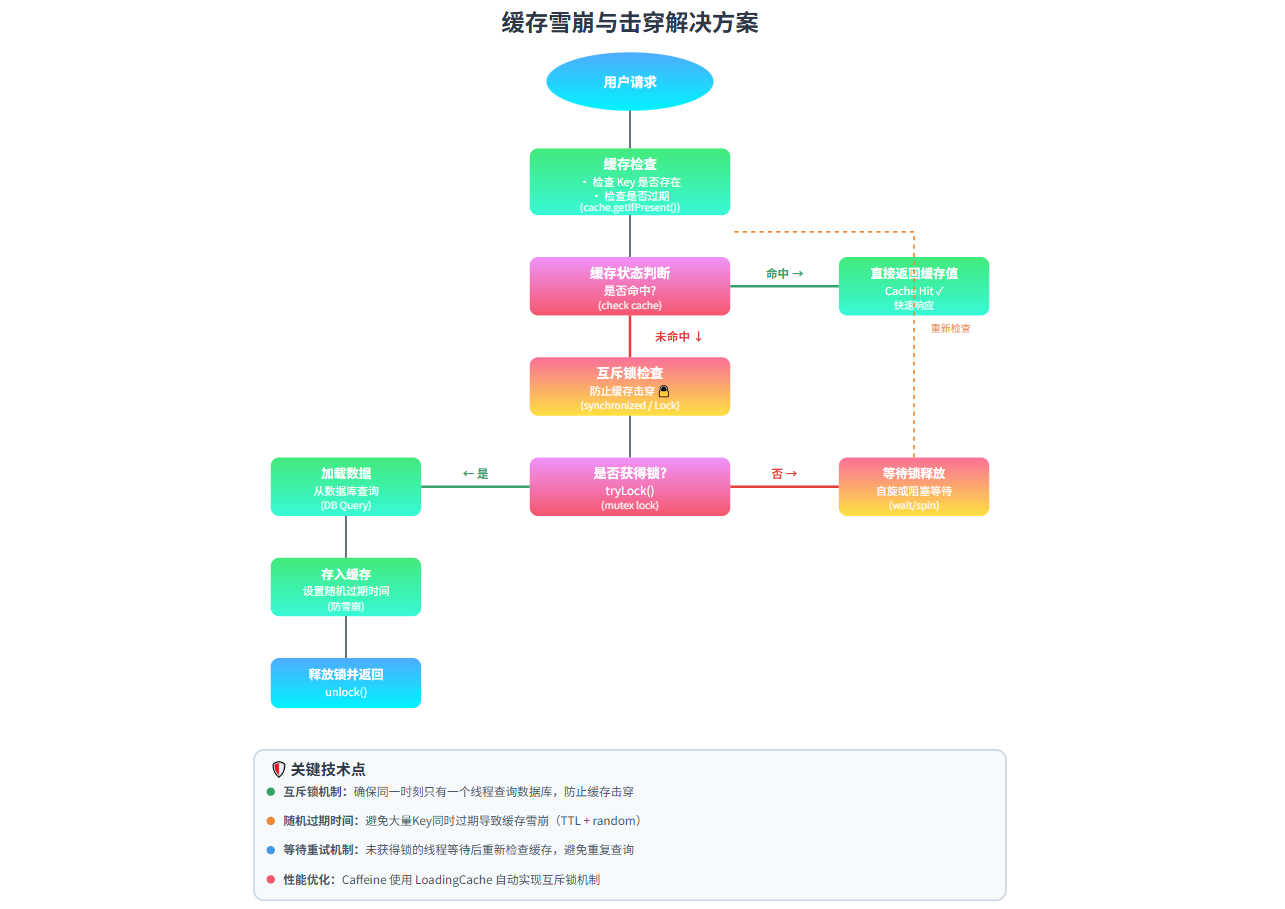

6.1 缓存雪崩与击穿
缓存雪崩解决方案
// 1. 设置随机过期时间
Caffeine.newBuilder()
.expireAfterWrite(10 + new Random().nextInt(5), TimeUnit.MINUTES);
// 2. 使用互斥锁
private final Lock lock = new ReentrantLock();
public User getUserWithLock(Long id) {
User user = cache.getIfPresent(id);
if (user != null) {
return user;
}
lock.lock();
try {
// 双重检查
user = cache.getIfPresent(id);
if (user != null) {
return user;
}
user = userRepository.findById(id);
cache.put(id, user);
return user;
} finally {
lock.unlock();
}
}缓存击穿解决方案
// 使用Caffeine的异步加载
AsyncLoadingCache<Long, User> asyncCache = Caffeine.newBuilder()
.maximumSize(1000)
.expireAfterWrite(10, TimeUnit.MINUTES)
.buildAsync(key -> loadUserFromDatabase(key));
public User getUser(Long id) {
return asyncCache.get(id).join();
}6.2 缓存预热
package com.example.caffeine.demo.cache;
import com.example.caffeine.demo.model.User;
import com.example.caffeine.demo.service.UserService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.CommandLineRunner;
import org.springframework.stereotype.Component;
import java.util.Arrays;
import java.util.List;
import java.util.concurrent.CompletableFuture;
import java.util.concurrent.ExecutorService;
import java.util.concurrent.Executors;
import java.util.concurrent.TimeUnit;
import java.util.stream.Collectors;
/**
* 缓存预热启动器
*
* 功能：
* 1. 在应用启动时自动预热热点数据到缓存
* 2. 支持同步和异步预热方式
* 3. 支持批量预热
* 4. 提供预热进度监控
* 5. 异常处理和重试机制
*/
@Slf4j
@Component
public class CacheWarmupRunner implements CommandLineRunner {
@Autowired
private UserService userService;
/**
* 预热配置
*/
private static class WarmupConfig {
// 预热用户ID列表（可以根据业务需求配置）
private static final List<Long> HOT_USER_IDS = Arrays.asList(1L, 2L, 3L, 4L, 5L);
// 预热批次大小
private static final int BATCH_SIZE = 3;
// 线程池大小
private static final int THREAD_POOL_SIZE = 2;
// 是否启用异步预热
private static final boolean ASYNC_WARMUP = true;
// 最大重试次数
private static final int MAX_RETRY_TIMES = 3;
// 重试间隔（毫秒）
private static final long RETRY_INTERVAL = 1000L;
}
@Override
public void run(String... args) throws Exception {
log.info("开始执行缓存预热...");
long startTime = System.currentTimeMillis();
try {
if (WarmupConfig.ASYNC_WARMUP) {
// 异步预热
asyncWarmup();
} else {
// 同步预热
syncWarmup();
}
long endTime = System.currentTimeMillis();
log.info("缓存预热完成！耗时: {} ms", endTime - startTime);
} catch (Exception e) {
log.error("缓存预热失败！错误信息: {}", e.getMessage(), e);
}
}
/**
* 同步预热方式
*/
private void syncWarmup() {
log.info("使用同步方式预热缓存...");
// 方法1：逐个预热
log.info("逐个预热用户数据...");
for (Long userId : WarmupConfig.HOT_USER_IDS) {
warmupSingleUser(userId);
}
// 方法2：批量预热
log.info("批量预热用户数据...");
batchWarmupUsers(WarmupConfig.HOT_USER_IDS);
// 方法3：预热所有用户
log.info("预热所有用户数据...");
warmupAllUsers();
}
/**
* 异步预热方式
*/
private void asyncWarmup() {
log.info("使用异步方式预热缓存...");
ExecutorService executor = Executors.newFixedThreadPool(WarmupConfig.THREAD_POOL_SIZE);
// 创建异步预热任务
List<CompletableFuture<Void>> futures = WarmupConfig.HOT_USER_IDS.stream()
.map(userId -> CompletableFuture.runAsync(() -> {
try {
warmupSingleUserWithRetry(userId);
} catch (Exception e) {
log.error("预热用户 {} 失败: {}", userId, e.getMessage());
}
}, executor))
.collect(Collectors.toList());
// 等待所有任务完成
CompletableFuture.allOf(futures.toArray(new CompletableFuture[0]))
.whenComplete((result, ex) -> {
if (ex != null) {
log.error("部分预热任务失败", ex);
} else {
log.info("所有预热任务完成");
}
executor.shutdown();
})
.join();
}
/**
* 预热单个用户数据（带重试机制）
*/
private void warmupSingleUserWithRetry(Long userId) {
int retryCount = 0;
boolean success = false;
while (retryCount < WarmupConfig.MAX_RETRY_TIMES && !success) {
try {
warmupSingleUser(userId);
success = true;
log.debug("用户 {} 预热成功，尝试次数: {}", userId, retryCount + 1);
} catch (Exception e) {
retryCount++;
if (retryCount >= WarmupConfig.MAX_RETRY_TIMES) {
log.error("用户 {} 预热失败，已达到最大重试次数: {}", userId, e.getMessage());
throw new RuntimeException("预热用户 " + userId + " 失败", e);
}
log.warn("用户 {} 预热失败，第{}次重试。错误: {}", userId, retryCount, e.getMessage());
try {
Thread.sleep(WarmupConfig.RETRY_INTERVAL);
} catch (InterruptedException ie) {
Thread.currentThread().interrupt();
throw new RuntimeException("预热被中断", ie);
}
}
}
}
/**
* 预热单个用户
*/
private void warmupSingleUser(Long userId) {
log.info("预热用户: {}", userId);
try {
// 预热用户基本信息
User user = userService.getUserById(userId);
log.debug("用户 {} 基本信息预热完成", userId);
// 预热相关数据（如果有）
warmupRelatedData(user);
} catch (Exception e) {
log.error("预热用户 {} 失败: {}", userId, e.getMessage());
throw e;
}
}
/**
* 批量预热用户数据
*/
private void batchWarmupUsers(List<Long> userIds) {
log.info("批量预热用户: {}", userIds);
// 按批次处理
for (int i = 0; i < userIds.size(); i += WarmupConfig.BATCH_SIZE) {
int end = Math.min(i + WarmupConfig.BATCH_SIZE, userIds.size());
List<Long> batch = userIds.subList(i, end);
log.info("预热第 {} 批，用户ID: {}", (i / WarmupConfig.BATCH_SIZE) + 1, batch);
try {
// 批量查询
Map<Long, User> users = userService.batchGetUsers(new HashSet<>(batch));
log.info("批量预热完成，成功预热 {} 个用户", users.size());
// 添加批次间间隔，避免压力过大
if (end < userIds.size()) {
Thread.sleep(500);
}
} catch (Exception e) {
log.error("批量预热失败: {}", e.getMessage());
// 单个预热降级
for (Long userId : batch) {
try {
warmupSingleUser(userId);
} catch (Exception ex) {
log.error("降级预热用户 {} 失败: {}", userId, ex.getMessage());
}
}
}
}
}
/**
* 预热所有用户
*/
private void warmupAllUsers() {
log.info("开始预热所有用户数据...");
try {
List<User> allUsers = userService.getAllUsers();
log.info("预热所有用户完成，共 {} 个用户", allUsers.size());
// 预热用户的其他关联数据
for (User user : allUsers) {
warmupRelatedData(user);
// 添加间隔，避免一次性加载过多数据
Thread.sleep(100);
}
} catch (Exception e) {
log.error("预热所有用户失败: {}", e.getMessage());
throw e;
}
}
/**
* 预热相关数据
*/
private void warmupRelatedData(User user) {
// 预热用户的行为数据
warmupUserActivities(user.getId());
}
/**
* 预热用户行为数据
*/
private void warmupUserActivities(Long userId) {
try {
// 调用行为服务预热
// activityService.warmupUserActivities(userId);
log.debug("预热用户 {} 的行为数据", userId);
} catch (Exception e) {
log.warn("预热用户 {} 的行为数据失败: {}", userId, e.getMessage());
}
}
/**
* 验证预热结果
*/
public void verifyWarmupResult() {
log.info("验证预热结果...");
int successCount = 0;
int totalCount = WarmupConfig.HOT_USER_IDS.size();
for (Long userId : WarmupConfig.HOT_USER_IDS) {
try {
// 测试缓存是否命中
long startTime = System.nanoTime();
User user = userService.getUserById(userId);
long endTime = System.nanoTime();
long duration = TimeUnit.NANOSECONDS.toMillis(endTime - startTime);
if (duration < 10) { // 如果响应时间小于10ms，说明命中了缓存
successCount++;
log.debug("用户 {} 缓存预热验证成功，响应时间: {} ms", userId, duration);
} else {
log.warn("用户 {} 缓存预热验证失败，响应时间: {} ms", userId, duration);
}
} catch (Exception e) {
log.error("验证用户 {} 失败: {}", userId, e.getMessage());
}
}
log.info("预热结果验证完成，成功率: {} / {} ({:.2f}%)",
successCount, totalCount, (double) successCount / totalCount * 100);
}
}6.3 缓存监控
@Autowired
private CacheManager cacheManager;
// 预警阈值配置
private static class AlertThreshold {
// 命中率阈值（低于此值发出警告）
private static final double MIN_HIT_RATE = 0.8;
// 平均加载时间阈值（超过此值发出警告）
private static final long MAX_AVG_LOAD_TIME_MS = 100;
// 内存使用率阈值
private static final double MAX_MEMORY_USAGE_PERCENT = 80.0;
// 错误率阈值
private static final double MAX_ERROR_RATE = 0.01;
// 缓存大小阈值
private static final long MAX_CACHE_SIZE = 10000;
}
/**
* 获取所有缓存的统计信息
*/
@GetMapping("/stats")
public ResponseEntity<Map<String, Object>> getAllCacheStats() {
Map<String, Object> result = new LinkedHashMap<>();
// 获取所有缓存名称
List<String> cacheNames = cacheManager.getCacheNames();
result.put("timestamp", LocalDateTime.now());
result.put("cacheNames", cacheNames);
result.put("cacheCount", cacheNames.size());
// 统计汇总
CacheSummary summary = new CacheSummary();
for (String cacheName : cacheNames) {
try {
Map<String, Object> cacheStat = getCacheStat(cacheName);
result.put(cacheName, cacheStat);
// 汇总统计
summary.aggregate(cacheStat);
} catch (Exception e) {
log.error("获取缓存 {} 的统计信息失败: {}", cacheName, e.getMessage());
result.put(cacheName, "获取统计信息失败: " + e.getMessage());
}
}
result.put("summary", summary);
result.put("health", getCacheHealthStatus(summary));
return ResponseEntity.ok(result);
}
/**
* 获取指定缓存的统计信息
*/
@GetMapping("/stats/{cacheName}")
public ResponseEntity<Map<String, Object>> getCacheStat(@PathVariable String cacheName) {
log.info("获取缓存 {} 的统计信息", cacheName);
Map<String, Object> result = new HashMap<>();
try {
org.springframework.cache.Cache springCache = cacheManager.getCache(cacheName);
if (springCache == null) {
return ResponseEntity.notFound().build();
}
Object nativeCache = springCache.getNativeCache();
if (nativeCache instanceof Cache) {
Cache<?, ?> cache = (Cache<?, ?>) nativeCache;
CacheStats stats = cache.stats();
// 基本信息
result.put("name", cacheName);
result.put("size", estimateCacheSize(cache));
result.put("estimatedMemoryUsage", estimateMemoryUsage(cache));
// 统计数据
result.put("requestCount", stats.requestCount());
result.put("hitCount", stats.hitCount());
result.put("missCount", stats.missCount());
result.put("hitRate", stats.hitRate());
result.put("missRate", stats.missRate());
// 加载统计
result.put("loadSuccessCount", stats.loadSuccessCount());
result.put("loadFailureCount", stats.loadFailureCount());
result.put("loadFailureRate", calculateLoadFailureRate(stats));
result.put("totalLoadTime", stats.totalLoadTime());
result.put("averageLoadPenalty", stats.averageLoadPenalty());
// 淘汰统计
result.put("evictionCount", stats.evictionCount());
result.put("evictionWeight", stats.evictionWeight());
// 其他统计
result.put("rejectionCount", stats.rejectionCount());
// 计算衍生指标
result.put("errorRate", calculateErrorRate(stats));
result.put("loadSuccessRate", calculateLoadSuccessRate(stats));
// 预警信息
result.put("alerts", checkCacheAlerts(cacheName, stats, cache.estimatedSize()));
} else {
result.put("error", "不支持的缓存类型: " + nativeCache.getClass().getName());
}
} catch (Exception e) {
log.error("获取缓存 {} 统计信息失败: {}", cacheName, e.getMessage());
result.put("error", e.getMessage());
}
result.put("timestamp", LocalDateTime.now());
return ResponseEntity.ok(result);
}7. 性能优化技巧
7.1 批量加载优化
// 批量加载优化
public class BatchUserService {
private final AsyncLoadingCache<Long, User> userCache;
public BatchUserService() {
this.userCache = Caffeine.newBuilder()
.maximumSize(1000)
.expireAfterWrite(10, TimeUnit.MINUTES)
.buildAsync(this::batchLoadUsers);
}
private Map<Long, User> batchLoadUsers(Set<Long> userIds) {
if (userIds.isEmpty()) {
return Collections.emptyMap();
}
// 批量查询数据库
List<User> users = userRepository.findAllById(userIds);
// 转换为Map
return users.stream()
.collect(Collectors.toMap(User::getId, user -> user));
}
public Map<Long, User> getUsers(Set<Long> userIds) {
return userCache.getAll(userIds).join();
}
}8. 实战案例
8.1 用户信息缓存服务
import com.github.benmanes.caffeine.cache.Cache;
import com.github.benmanes.caffeine.cache.Caffeine;
import org.springframework.stereotype.Service;
import java.util.concurrent.TimeUnit;
@Service
public class UserInfoCacheService {
private final Cache<Long, UserInfo> userInfoCache;
public UserInfoCacheService() {
this.userInfoCache = Caffeine.newBuilder()
.maximumSize(10000)
.expireAfterWrite(30, TimeUnit.MINUTES)
.expireAfterAccess(10, TimeUnit.MINUTES)
.recordStats()
.build();
}
/**
* 获取用户信息
*/
public UserInfo getUserInfo(Long userId) {
return userInfoCache.get(userId, this::loadUserInfoFromDB);
}
/**
* 批量获取用户信息
*/
public Map<Long, UserInfo> batchGetUserInfo(Set<Long> userIds) {
return userInfoCache.getAll(userIds, this::batchLoadUserInfoFromDB);
}
/**
* 更新用户信息
*/
public void updateUserInfo(Long userId, UserInfo userInfo) {
userInfoCache.put(userId, userInfo);
}
/**
* 删除用户信息
*/
public void removeUserInfo(Long userId) {
userInfoCache.invalidate(userId);
}
/**
* 获取缓存统计
*/
public CacheStats getCacheStats() {
return userInfoCache.stats();
}
/**
* 从数据库加载用户信息
*/
private UserInfo loadUserInfoFromDB(Long userId) {
// 模拟数据库查询
try {
Thread.sleep(100); // 模拟数据库查询耗时
} catch (InterruptedException e) {
Thread.currentThread().interrupt();
}
return userRepository.findById(userId);
}
/**
* 批量从数据库加载用户信息
*/
private Map<Long, UserInfo> batchLoadUserInfoFromDB(Set<Long> userIds) {
return userRepository.findAllById(userIds).stream()
.collect(Collectors.toMap(UserInfo::getId, Function.identity()));
}
}9. 总结
Caffeine作为Java缓存领域的佼佼者，凭借其出色的性能和丰富的功能，已经成为许多项目的首选缓存方案。
