Spring AI 工具调用回调与流式前端展示的完整落地方案

那些坑

用 SpringAI 重写 零代码生成 时，前端展示工具调用这件事把我卡住了。

Langchain4j 写回调多舒服啊

public interface StreamingChatResponseHandler {
    default void onPartialToolCall(PartialToolCall partialToolCall) {}
    default void onPartialToolCall(PartialToolCall partialToolCall, PartialToolCallContext context) {}
    default void onCompleteToolCall(CompleteToolCall completeToolCall) {}
    void onCompleteResponse(ChatResponse completeResponse);
    void onError(Throwable error);
}

再看看 @ToolMemoryId，直接往方法参数里一扔，conversationId 就到手了，多省心：

class Tools {
    @Tool
    String addCalendarEvent(CalendarEvent event, @ToolMemoryId memoryId) {
        // memoryId 直接能用
    }
}

SpringAI 呢？这些它都没有（也有可能是我没找到）。adviseStream 工具调用的时候也感知不到

---

为什么一定要 conversationId？

主要有下面几点

1. 生成的代码需要区分目录，方便管理
2. 隔离每个单独 APP 生成的路径
3. 记录工具调用次数（后续分析用）

---

整体思路

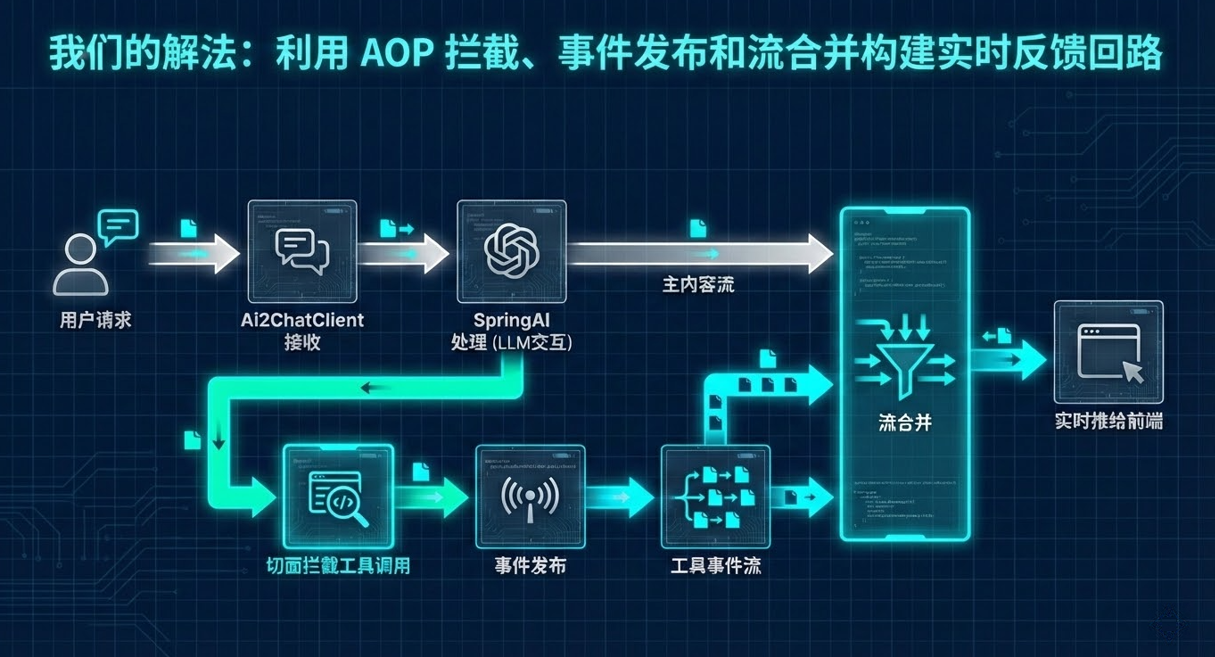

用户发请求 → Ai2ChatClient 接收 → SpringAI 处理 → 切面拦截工具调用 → 事件发布 → 实时推给前端

就这么几条线。核心其实就三件事：切面拦截、事件发布、流合并。

---

AOP 依赖

<dependency>
	<groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-aop
    </artifactId>
</dependency>

---

举个例子：TodoList 工具

这是我们项目里实际在用的工具类：

具体提示词参考的是 OpenCode 的 https://github.com/anomalyco/opencode/blob/dev/packages/opencode/src/tool/todoread.txt

@Component  public class TodolistTools extends BaseTools {
    private static final Cache<String, String> TODOLIST_CACHE = Caffeine.newBuilder()
            .maximumSize(10_00)
            .expireAfterWrite(Duration.ofMinutes(30))
            .build();

	@Tool(description = "Write or update the todo list for current task.")
	public String todoWrite(
	@ToolParam(description = "The todo list content to save.")
	String todoContent,
	ToolContext toolContext
	) {
        String conversationId = ConversationIdUtils.getConversationId(toolContext);
if (StringUtils.isBlank(todoContent)) {
TODOLIST_CACHE.invalidate(conversationId);
            return "Todo list cleared.";
}
TODOLIST_CACHE.put(conversationId, todoContent);
        return "Todo list saved successfully.";
}

@Tool(description = "Read the current todo list for this conversation.")
public String todoRead(ToolContext toolContext) {
        String conversationId = ConversationIdUtils.getConversationId(toolContext);
String todoContent = TODOLIST_CACHE.getIfPresent(conversationId);
if (StringUtils.isBlank(todoContent)) {
            return "No todo list for this conversation.";
}
        return "Current todo list:\n" + todoContent;
}

	@Override
	String getToolName() { return "Todo List Tool"; }

	@Override
	String getToolDes() { return "Read and write task todo lists"; }
 }

---

切面是怎么工作的

SpringAI 没给我们留回调接口，那就自己造一个。切面这东西好就好在不改动原代码，加个注解就能生效。

我们用 @Before 抓工具调用开始的那一刻，用 @AfterReturning 抓调用结束的那一刻。工具类丢给 Spring 容器，切面自己就找上门来了。

@Aspect
@Component
@Slf4j
public class ToolContextAspect {

private final ToolEventPublisher toolEventPublisher;

public ToolContextAspect(ToolEventPublisher toolEventPublisher) {
        this.toolEventPublisher = toolEventPublisher;
}

@Pointcut("execution(* com.leikooo.codemother.ai.tools..*.*(..)) && @annotation(org.springframework.ai.tool.annotation.Tool)")
public void anyToolExecution() {}

@Before("anyToolExecution()")
public void beforeToolCall(JoinPoint joinPoint) {
ToolContext toolContext = getToolContext(joinPoint);
if (toolContext == null) return;handleToolContext(toolContext, joinPoint, null, true);
}

@AfterReturning(pointcut = "anyToolExecution()", returning = "result")
public void afterToolCall(JoinPoint joinPoint, Object result) {
	ToolContext toolContext = getToolContext(joinPoint);
	if (toolContext != null) {
		handleToolContext(toolContext, joinPoint, result, false);
	}
}

private void handleToolContext(ToolContext context, JoinPoint joinPoint, Object result, boolean isBefore) {
	String className = joinPoint.getTarget().getClass().getSimpleName();
	String methodName = joinPoint.getSignature().getName();
	Message message = context.getToolCallHistory().getLast();
	AssistantMessage.ToolCall toolCallInfo = ((AssistantMessage) message).getToolCalls().getLast();
	String toolCallId = toolCallInfo.id();
	String sessionId = ConversationIdUtils.getConversationId(context);
	if (isBefore) {
		toolEventPublisher.publishToolCall(sessionId, className, methodName, toolCallId);
	} else {
		toolEventPublisher.publishToolResult(sessionId, className, methodName, toolCallId, result);
	}
}

private ToolContext getToolContext(JoinPoint joinPoint) {
	for (Object arg : joinPoint.getArgs()) {
		if (arg instanceof ToolContext)
			return (ToolContext) arg;
		}
	    return null;
	}
}

---

事件发布：把消息送出去

这里用到了 Project Reactor 的 Sinks。每个会话一个 Sink，多线程环境下也能正常工作。

@Component
public class ToolEventPublisher {
    private final Map<String, Sinks.Many<ToolEvent>> sinks = new ConcurrentHashMap<>();

    private Sinks.Many<ToolEvent> getSink(String sessionId) {
return sinks.computeIfAbsent(sessionId, k -> Sinks.many().multicast().onBackpressureBuffer());
}

public void publishToolCall(String sessionId, String toolName, String methodName, String toolCallId) {
	getSink(sessionId).tryEmitNext(new ToolEvent(sessionId, "tool_call", toolName, methodName, toolCallId, null));
}

public void publishToolResult(String sessionId, String toolName, String methodName, String toolCallId, Object result) {
	getSink(sessionId).tryEmitNext(new ToolEvent(sessionId, "tool_result", toolName, methodName, toolCallId, result));
}

    public Flux<ToolEvent> events(String sessionId) {
return getSink(sessionId).asFlux();
}

public void complete(String sessionId) {
        Sinks.Many<ToolEvent> sink = sinks.remove(sessionId);
if (sink != null) sink.tryEmitComplete();
}

public record ToolEvent(String sessionId, String type, String toolName, String methodName, String toolCallId, Object result) {}
 }

---

流怎么合并到主响应里

这里有两种玩法

玩法一：自己动手丰衣足食

直接在业务方法里把两个流 merge 起来。好处是代码都在明面上，坏处是每个方法都得写一遍。

一个小细节 ：mainFlux 结束时会触发 doFinally，但 toolEventFlux 不会。所以必须在 doFinally 里手动调用 complete 关掉事件流。否则这个流会一直挂在那儿，等不到终点。

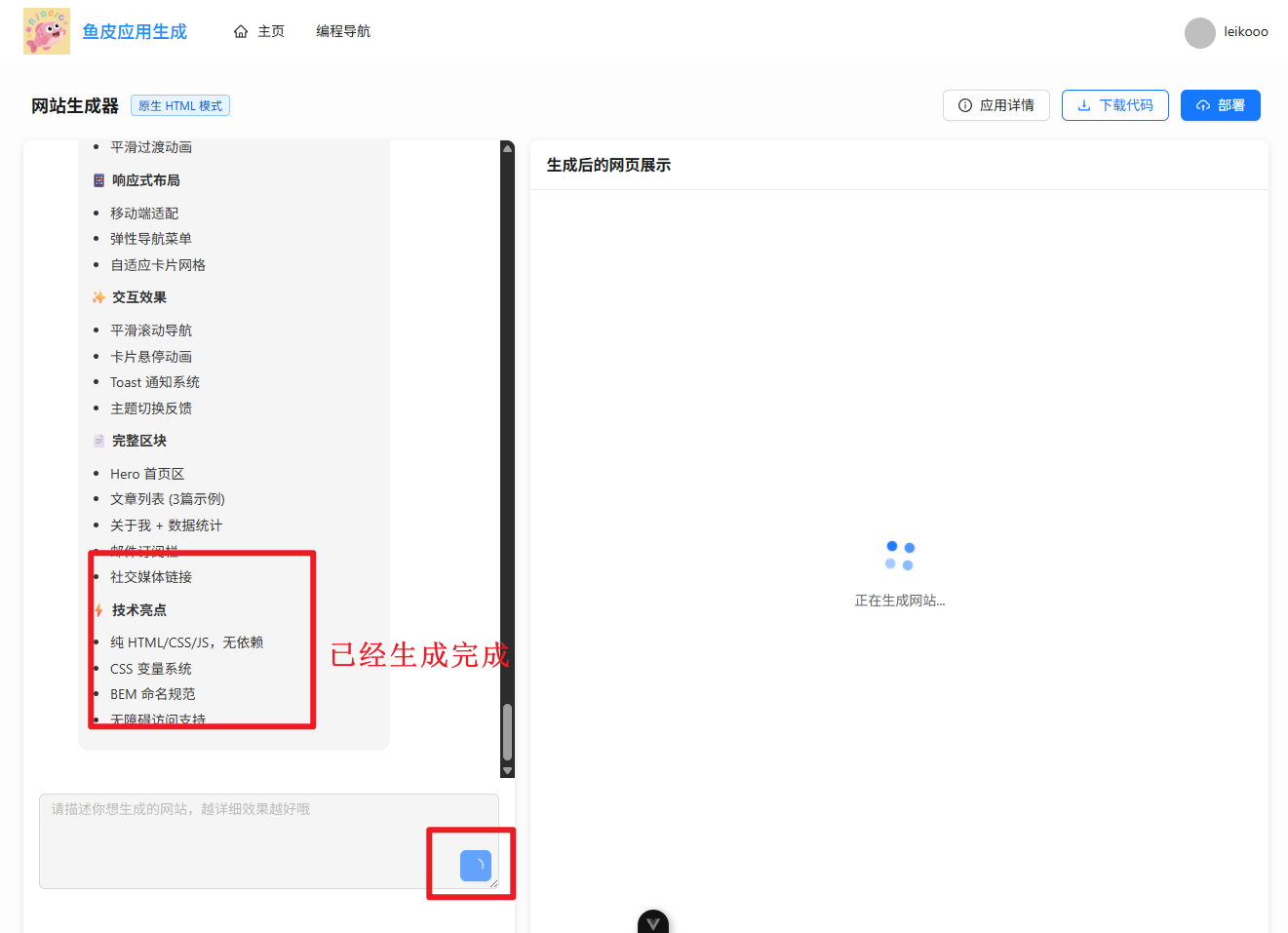

前端就会一直这样

@Component
public class Ai2ChatClient {
	private final ChatClient chatClient;
	private final ToolEventPublisher toolEventPublisher;

public Ai2ChatClient(ChatModel openAiChatModel, FileTools fileTools,
ToolEventPublisher toolEventPublisher) {
        this.toolEventPublisher = toolEventPublisher;
        this.chatClient = ChatClient.builder(openAiChatModel)
                .defaultTools(fileTools)
                .build();
}

    public Flux<String> chat2Ai(String msg, String appId) {
        Flux<String> mainFlux = chatClient.prompt()
                 .system("""
                        You are a helpful, precise, and reliable AI assistant.                        Respond clearly and concisely.                        Prioritize correctness, safety, and practicality.                        If information is uncertain, state the uncertainty explicitly.                                                """)
                .user(msg)
                .advisors(spec -> spec.param(CONVERSATION_ID, appId))
                .toolContext(Map.of(CONVERSATION_ID, appId))
                .stream().content()
                .doFinally(s -> toolEventPublisher.complete(appId));

        Flux<String> toolEventFlux = toolEventPublisher.events(appId)
                .map(event -> {
                    Object result = Optional.ofNullable(event.result()).orElse("");
String message = switch (event.type()) {
                        case "tool_call" -> String.format("正在进行工具调用: %s", event.methodName());
                        case "tool_result" -> String.format("工具调用完成: %s", event.methodName());
                        default -> "";
};
                    return String.format("\n\n[选择工具] %s \n\n", message);
});

        return Flux.merge(mainFlux, toolEventFlux);
}  }

玩法二：把脏活累活扔给 Advisor

写个 StreamAdvisor，让它自己处理流合并。业务代码瞬间清爽了。

@Slf4j
@Component
public class ToolAdvisor implements CallAdvisor, StreamAdvisor {
private final ToolEventPublisher toolEventPublisher;

    @Override
    public ChatClientResponse adviseCall(ChatClientRequest request, CallAdvisorChain chain) {
return chain.nextCall(request);
}
    @Override
     public Flux<ChatClientResponse> adviseStream(ChatClientRequest request, StreamAdvisorChain chain) {
        String appId = ConversationIdUtils.getConversationId(request.context());
        Flux<ChatClientResponse> mainFlux = chain.nextStream(request)
					// 这里一定要 complete
					.doFinally(s -> toolEventPublisher.complete(appId));
        Flux<ChatClientResponse> toolEventFlux = getToolEventFlux(appId);
        return Flux.merge(mainFlux, toolEventFlux);
}
    private Flux<ChatClientResponse> getToolEventFlux(String sessionId) {
		return toolEventPublisher.events(sessionId)
                .map(event -> {
String message = switch (event.type()) {
                        case "tool_call" -> String.format("正在进行工具调用: %s", event.methodName());
                        case "tool_result" -> String.format("工具调用完成: %s", event.methodName());
                        default -> "";
};
                    AssistantMessage msg = new AssistantMessage(String.format("\n\n[选择工具] %s \n\n", message));
                    return ChatClientResponse.builder()
                            .chatResponse(ChatResponse.builder().generations(List.of(new Generation(msg))).build())
                            .build();
});
}
    @Override
    public String getName() { return "ToolAdvisor"; }

	@Override
	public int getOrder() { return Integer.MIN_VALUE + 100;
	}
}

注册一下，全局生效：

@Component
public class Ai2ChatClient {
	private final ChatClient chatClient;
	public Ai2ChatClient(ChatModel openAiChatModel, FileTools fileTools, ToolAdvisor toolAdvisor) {
		this.chatClient = ChatClient.builder(openAiChatModel)
				.defaultTools(fileTools)
				.defaultAdvisors(toolAdvisor)
				.build();
	}
    public Flux<String> chat(String msg, String appId) {
	return chatClient.prompt()
	                 .system("""
	                        You are a helpful, precise, and reliable AI assistant.                        Respond clearly and concisely.                        Prioritize correctness, safety, and practicality.                        If information is uncertain, state the uncertainty explicitly.                                                """)
	                .user(msg)
	                .advisors(spec -> spec.param(CONVERSATION_ID, appId))
	                .toolContext(Map.of(CONVERSATION_ID, appId))
	                .stream().content();
	}
}

---

两种方案怎么选

看什么	方案一自己写	方案二用 Advisor
代码位置	业务方法里	单独一个类
复用性	惨不忍睹	一次编写到处使用
代码量	挺长	业务方法就几行

我的建议是使用 advisor

---

怎么拿到 conversationId

Langchain4j 那个 @ToolMemoryId 是真方便。SpringAI 不给咱们就自己想办法。

在工具方法里加个 ToolContext 参数，从里面把 id 拽出来：

@Slf4j
@Component
public class FileWriteTool {
	@Tool("写入文件到指定路径")
	public String writeFile(
	@P("文件的相对路径") String relativeFilePath,
	@P("要写入文件的内容") String content,
	ToolContext toolContext
	) {
		String conversationId = toolContext.getContext()
		        .get(ChatMemory.CONVERSATION_ID).toString();
		// 接下来就能使用了
    }
}

这个 id 是在调用链上通过 toolContext 传进来的：

public Flux<String> chat2AiAdvisor(String msg, String appId) {
    return chatClient.prompt()
            .system("你是有用的小助手")
            .user(msg)
            .advisors(advisorSpec -> advisorSpec.param(CONVERSATION_ID, appId))
            // 这里设置到 ToolContext            .toolContext(Map.of(CONVERSATION_ID, appId))
            .stream().content();
}

---

跑一下看看

写个测试用例，验证整个链路通不通：

@SpringBootTest
class Ai2ChatClientTest {
	@Resource
	private Ai2ChatClient ai2ChatClient;

	@Test
	void chat2Ai() throws InterruptedException {
        Flux<String> flux = ai2ChatClient.chat("帮我生成一个企业级别的后端，帮我生成 todolist", "12345");
        flux.doOnNext(System.out::println).subscribe();
        Thread.sleep(10000);
	}
}

跑起来，控制台陆陆续续打出日志，工具调用的事件也正常推送。整个链路是通的。
