Uptime Kuma 接入 SkyWalking 完整文档

目录

1. 架构概述
2. 环境准备
3. [配置 OTel Collector](#配置 OTel Collector)
4. [配置 OAL 规则](#配置 OAL 规则)
5. 服务管理
6. 常见问题

---

架构概述

• 基于skywalking:10.2

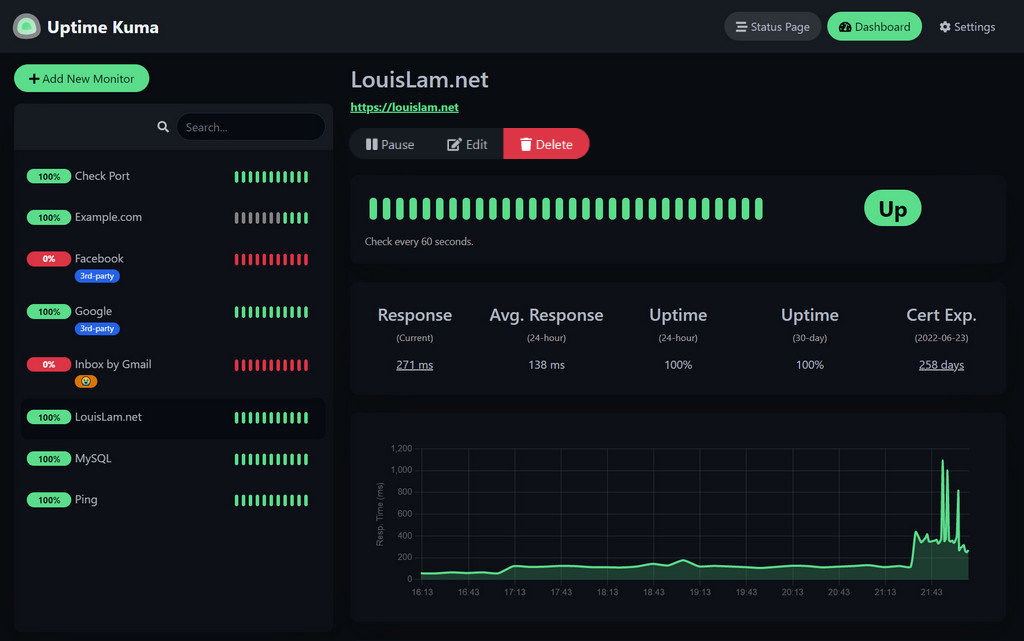

• uptime地址

  ┌─────────────┐ ┌──────────────┐ ┌─────────────┐ ┌─────────────┐
  │ Uptime │ │ OTel │ │ SkyWalking │ │Elasticsearch│
  │ Kuma │────▶│ Collector │────▶│ OAP │────▶│ │
  │ :3001 │ │ :4317/4318 │ │ :11800/ │ │ :9200 │
  └─────────────┘ └──────────────┘ │ 12800 │ └─────────────┘
  └─────────────┘

数据流向：

1. Uptime Kuma 暴露 /metrics 端点
2. OTel Collector 通过 Prometheus receiver 采集指标
3. OTel Collector 通过 OTLP 协议发送到 OAP
4. OAP 处理指标并存储到 Elasticsearch

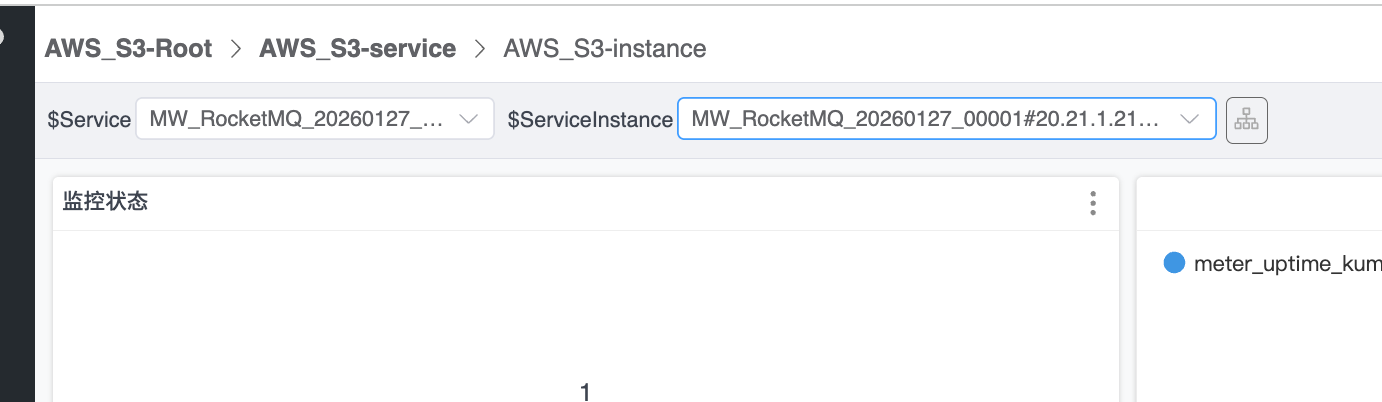

5. 解决问题：同一uptime任务分组展示：service-instance


---

环境准备

1. 启动服务

docker-compose -f docker-compose-m1.yml up -d

compose文件

version: '3.8'
services:
  elasticsearch:
    image: docker.elastic.co/elasticsearch/elasticsearch:7.16.3
    container_name: elasticsearch
    environment:
      - discovery.type=single-node
      - xpack.security.enabled=false
      - "ES_JAVA_OPTS=-Xms256m -Xmx256m"
      - TZ=Asia/Shanghai
      - LANG=C.UTF-8
    ulimits:
      memlock:
        soft: -1
        hard: -1
    ports:
      - "9200:9200"
      - "9300:9300"
    volumes:
      - esdata:/usr/share/elasticsearch/data
    networks:
      - skywalking-net
    restart: unless-stopped
    platform: linux/arm64

  oap:
    image: swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/apache/skywalking-oap-server:10.1.0-java17-linuxarm64
    container_name: skywalking-oap-server
    depends_on:
      - elasticsearch
    ports:
      - "11800:11800"
      - "12800:12800"
    volumes:
      - ./application.yml:/skywalking/config/application.yml:ro
      - ../otel-rules:/skywalking/config/otel-rules:ro
    environment:
      - SW_STORAGE=elasticsearch
      - SW_STORAGE_ES_CLUSTER_NODES=elasticsearch:9200
      - JAVA_OPTS=-Xms512m -Xmx768m
      - TZ=Asia/Shanghai
      - LANG=C.UTF-8
    networks:
      - skywalking-net
    restart: unless-stopped
    platform: linux/arm64

  ui:
    image: swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/apache/skywalking-ui:10.1.0-java17-linuxarm64
    container_name: skywalking-ui
    depends_on:
      - oap
    ports:
      - "8080:8080"
    environment:
      - SW_OAP_ADDRESS=http://oap:12800
      - SW_HEALTH_CHECKER=default
      - TZ=Asia/Shanghai
      - LANG=C.UTF-8
    networks:
      - skywalking-net
    restart: unless-stopped
    platform: linux/arm64


  # Elasticsearch Exporter - 收集Elasticsearch指标
  elasticsearch-exporter:
    image: prometheuscommunity/elasticsearch-exporter:v1.5.0
    container_name: elasticsearch-exporter
    depends_on:
      - elasticsearch
    command:
      - '--es.uri=http://elasticsearch:9200'
      - '--es.all'
    environment:
      - TZ=Asia/Shanghai
      - LANG=C.UTF-8
    ports:
      - "9114:9114"
    networks:
      - skywalking-net
    restart: unless-stopped
    platform: linux/arm64

  # OTel Collector - 收集 PostgreSQL、Elasticsearch、MySQL、Redis 和 Blackbox 指标并发送到 SkyWalking
  otel-collector:
    image: otel/opentelemetry-collector-contrib:0.94.0
    container_name: skywalking-otel-collector
    depends_on:
      - postgresql
      - postgresql-exporter
      - elasticsearch
      - elasticsearch-exporter
      - oap
      - mysql-exporter
      - redis-exporter
      - blackbox-exporter
    command: ["--config=/etc/otel-collector-config.yaml"]
    environment:
      - TZ=Asia/Shanghai
      - LANG=C.UTF-8
    volumes:
      - ./otel-collector-config.yaml:/etc/otel-collector-config.yaml:ro
    extra_hosts:
      - "host.docker.internal:host-gateway"
    ports:
      - "13133:13133"  # health_check
      - "1777:1777"    # pprof
      - "55679:55679"  # zpages
      - "4317:4317"    # OTLP gRPC
      - "4318:4318"    # OTLP HTTP
    networks:
      - skywalking-net
    restart: unless-stopped
    platform: linux/arm64


  # Uptime Kuma - 统一监控仪表盘和告警系统
  uptime-kuma:
    image: louislam/uptime-kuma:latest
    container_name: uptime-kuma
    ports:
      - "3001:3001"
    volumes:
      - uptime_kuma_data:/app/data
    environment:
      - TZ=Asia/Shanghai
      - LANG=C.UTF-8
    networks:
      - skywalking-net
    restart: unless-stopped
    platform: linux/arm64

networks:
  skywalking-net:
    driver: bridge

volumes:
  esdata:
    driver: local
  postgres_data:
    driver: local
  uptime_kuma_data:
    driver: local

2. 验证服务状态

# 检查所有容器
docker-compose -f docker-compose-m1.yml ps

# 检查 Uptime Kuma
curl http://localhost:3001

# 检查 OTel Collector
curl http://localhost:13133/healthz

# 检查 OAP
curl http://localhost:12800/health

# 检查 SkyWalking UI
curl http://localhost:8080

---

配置 OTel Collector

配置文件位置

skywalking：10.2配置文件 /otel-collector-config.yaml

receivers:
  prometheus:
    config:
      scrape_configs:
        # - xxx 其他的收集器

        # uptime 指标收集
        - job_name: 'uptime-monitoring'
          scrape_interval: 15s  # 采集间隔
          scrape_timeout: 10s   # 超时时间
          static_configs:
            - targets: ['127.0.0.1:3001'] #uptime部署地址
              labels:
                job_name: 'uptime-monitoring'
          metrics_path: '/metrics'
          scheme: 'http'
          honor_labels: true
          metric_relabel_configs:
          # skywalking 10.2 ，在otel不支持新增标签，需要在此处定义一个 cluster 标签
            - source_labels: [monitor_name]
              regex: '^([^#]+)#.*'
              target_label: cluster
              action: replace
              replacement: '$1'
          # 基础认证鉴权 uptime账号
          basic_auth:
            username: 'admin'
            password: 'password@'

processors:
  batch:
  resource/cleanup:
    attributes:
      - key: service.name
        action: delete

exporters:
  otlp:
    endpoint: "127.0.0.1:11800"  # 替换为你的 SkyWalking OAP 地址
    tls:
      insecure: true  # 如果没有 TLS

service:
  telemetry:
    metrics: null
  pipelines:
    metrics:
      receivers: [prometheus]
      processors: [batch]
      exporters: [otlp]

配置 OAL 规则

规则文件位置

• 完整配置示例： /otel-rules/uptime-kuma.yaml

metricPrefix: meter_uptime_kuma
filter: "{ tags -> tags.job_name == 'uptime-monitoring' }"

# 【核心修改点】：10.2 必须在 expSuffix 处先执行 tag 拆分
# 10.2对于不存在的标签：cluster 不会自动创建默认值，10.1 会自动创建默认值
# 否则系统无法感知 cluster 标签，导致 Service 实体名为空白
expSuffix: instance(['cluster'], ['monitor_name'], Layer.AWS_S3)

metricsRules:
  # 可用性比率 - 1天
  - name: uptime_ratio_1d
    exp: |
      monitor_uptime_ratio.tagEqual('window','1d').tag({ tags ->
        if (tags.monitor_name != null && tags.monitor_name.contains("#")) {
            tags.cluster = tags.monitor_name.split("#")[0]
        } else {
            tags.cluster = "General-Uptime-Service"
        }
      }).avg(['cluster', 'monitor_name']) * 100

  # 可用性比率 - 30天
  - name: uptime_ratio_30d
    exp: |
      monitor_uptime_ratio.tagEqual('window','30d').tag({ tags ->
        if (tags.monitor_name != null && tags.monitor_name.contains("#")) {
            tags.cluster = tags.monitor_name.split("#")[0]
        } else {
            tags.cluster = "General-Uptime-Service"
        }
      }).avg(['cluster', 'monitor_name']) * 100

  # 可用性比率 - 365天
  - name: uptime_ratio_365d
    exp: |
      monitor_uptime_ratio.tagEqual('window','365d').tag({ tags ->
        if (tags.monitor_name != null && tags.monitor_name.contains("#")) {
            tags.cluster = tags.monitor_name.split("#")[0]
        } else {
            tags.cluster = "General-Uptime-Service"
        }
      }).avg(['cluster', 'monitor_name']) * 100

  # 平均响应时间
  - name: response_time
    exp: |
      monitor_response_time.tag({ tags ->
        if (tags.monitor_name != null && tags.monitor_name.contains("#")) {
            tags.cluster = tags.monitor_name.split("#")[0]
        } else {
            tags.cluster = "General-Uptime-Service"
        }
      }).avg(['cluster', 'monitor_name'])

  # 监控状态
  - name: monitor_status
    exp: |
      monitor_status.tag({ tags ->
        if (tags.monitor_name != null && tags.monitor_name.contains("#")) {
            tags.cluster = tags.monitor_name.split("#")[0]
        } else {
            tags.cluster = "General-Uptime-Service"
        }
      }).avg(['cluster', 'monitor_name'])

  # 证书剩余天数
  - name: cert_days_remaining
    exp: |
      monitor_cert_days_remaining.tag({ tags ->
        if (tags.monitor_name != null && tags.monitor_name.contains("#")) {
            tags.cluster = tags.monitor_name.split("#")[0]
        } else {
            tags.cluster = "General-Uptime-Service"
        }
      }).avg(['cluster', 'monitor_name'])

  # 证书是否有效
  - name: cert_is_valid
    exp: |
      monitor_cert_is_valid.tag({ tags ->
        if (tags.monitor_name != null && tags.monitor_name.contains("#")) {
            tags.cluster = tags.monitor_name.split("#")[0]
        } else {
            tags.cluster = "General-Uptime-Service"
        }
      }).avg(['cluster', 'monitor_name'])

OAL 语法说明

表达式	说明
filter: "{ tags -> tags.job_name == 'uptime-monitoring' }"	只处理 uptime-kuma 的指标
metricPrefix: meter_uptime_kuma	指标前缀
expSuffix: service(['monitor_name'], Layer.GENERAL)	按 monitor_name 创建服务
avg(['monitor_name'])	按 monitor_name 分组求平均值

---

服务管理

重启 OAP 服务

方法 1：使用 docker-compose 命令（推荐）

# 快速重启 OAP（适用于修改 OAL 规则）
docker-compose -f docker-compose-m1.yml restart oap

# 停止并重新创建 OAP
docker-compose -f docker-compose-m1.yml stop oap
docker-compose -f docker-compose-m1.yml up -d oap

方法 2：使用重启脚本

cd /Users/jinyu/WorkSpace/java-notes/docker-compose
./restart-oap.sh

重启 OTel Collector

docker-compose -f docker-compose-m1.yml restart otel-collector

查看日志

# 查看 OAP 日志
docker-compose -f docker-compose-m1.yml logs -f oap

# 查看 OTel Collector 日志
docker-compose -f docker-compose-m1.yml logs -f otel-collector

# 查看调试输出（debug exporter）
docker-compose -f docker-compose-m1.yml logs -f otel-collector | grep "Metrics"

---

数据验证

1. 检查原始指标

访问 Uptime Kuma metrics 端点：

curl http://localhost:3001/metrics

2. 检查 OTel Collector 导出

查看 debug exporter 输出：

docker-compose -f docker-compose-m1.yml logs otel-collector --tail 100

3. 检查 OAP 接收

查看 OAP 指标端点：

curl -s http://localhost:12800/metrics | grep uptime

4. 检查 SkyWalking UI

访问：http://localhost:8080

查看服务列表：

curl -s 'http://localhost:12800/graphql' \
  -H 'Content-Type: application/json' \
  -d '{"query":"{ getAllServices(duration: { start: \"2024-01-01 000000\", end: \"2026-12-31 235959\", step: MINUTE }) { name } }"}' \
  | python3 -m json.tool

---

常见问题

Q1: OAP 启动失败

检查日志：

docker-compose -f docker-compose-m1.yml logs oap

常见原因：

• Elasticsearch 未启动
• OAL 规则语法错误
• 端口冲突（11800, 12800）

Q2: 指标未显示

排查步骤：

1. 检查 Uptime Kuma 是否暴露 metrics：

   curl http://localhost:3001/metrics

2. 检查 OTel Collector 是否正常采集：

   docker-compose -f docker-compose-m1.yml logs otel-collector | grep uptime

3. 检查 OAP 是否正常接收：

   docker-compose -f docker-compose-m1.yml logs oap | grep receive

4. 检查 OAL 规则是否正确加载：

   docker-compose -f docker-compose-m1.yml logs oap | grep OAL

Q3: 服务名称不正确

问题： monitor_name 格式为 dev_xxx_00002#10-tcp，服务名过长

解决方案：

在 OAL 中使用 tag() 进行转换：

expSuffix: tag({tags -> tags.service_name = substring(tags.monitor_name, 0, indexOf(tags.monitor_name, ':'))}).service(['service_name'], Layer.GENERAL)

Q4: 如何添加认证

修改 OTel Collector 配置：

- job_name: 'uptime-monitoring'
  ...
  basic_auth:
    username: 'admin'
    password: 'admin@'

或使用环境变量：

  basic_auth:
    username: '${UPTIME_USERNAME}'
    password: '${UPTIME_PASSWORD}'

Q5: 如何过滤标签

使用 metricstransform 处理器：

processors:
  metricstransform/uptime_kuma:
    transforms:
      - include: "monitor_.*"
        action: update
        operations:
          - action: remove_label
            label: monitor_hostname
          - action: remove_label
            label: monitor_port

Q6: 对标签进行拆分-按自定义规则分组展示

对已有的标签在mal中重新拆分-赋值：，不存在的标签可以在metric_relabel_configs，relabel_configs中配置，【新增、删除、过滤标签等】

# 平均响应时间
  - name: response_time
    exp: |
      monitor_response_time.tag({ tags ->
        if (tags.monitor_name != null && tags.monitor_name.contains("#")) {
            tags.cluster = tags.monitor_name.split("#")[0]
        } else {
            tags.cluster = "General-Uptime-Service"
        }
      }).avg(['cluster', 'monitor_name'])

---

配置文件清单

文件	路径	用途
docker-compose	docker-compose-m1.yml	容器编排
OTel 配置	otel-collector-config.yaml	指标采集配置
OAP 配置	application.yml	SkyWalking OAP 配置
OAL 规则	集约化平台/otel-rules/uptime-kuma.yaml	指标转换规则
重启脚本	restart-oap.sh	OAP 重启脚本

---

端口说明

服务	端口	用途
Uptime Kuma	3001	Web UI + Metrics
OTel Collector	4317/4318	OTLP gRPC/HTTP
OTel Collector	13133	Health Check
OAP	11800	gRPC 接收
OAP	12800	HTTP API
SkyWalking UI	8080	Web UI
Elasticsearch	9200/9300	HTTP API / Transport

---

参考资料

• relabel_configs用法示例
• Uptime Kuma 官方文档
• OpenTelemetry Collector 文档
• SkyWalking OAL 文档
• SkyWalking 文档
