【Android关键流程】Configuration变更时更新应用程序配置

基于Android U，只保留了关键调用步骤，略去了细节。

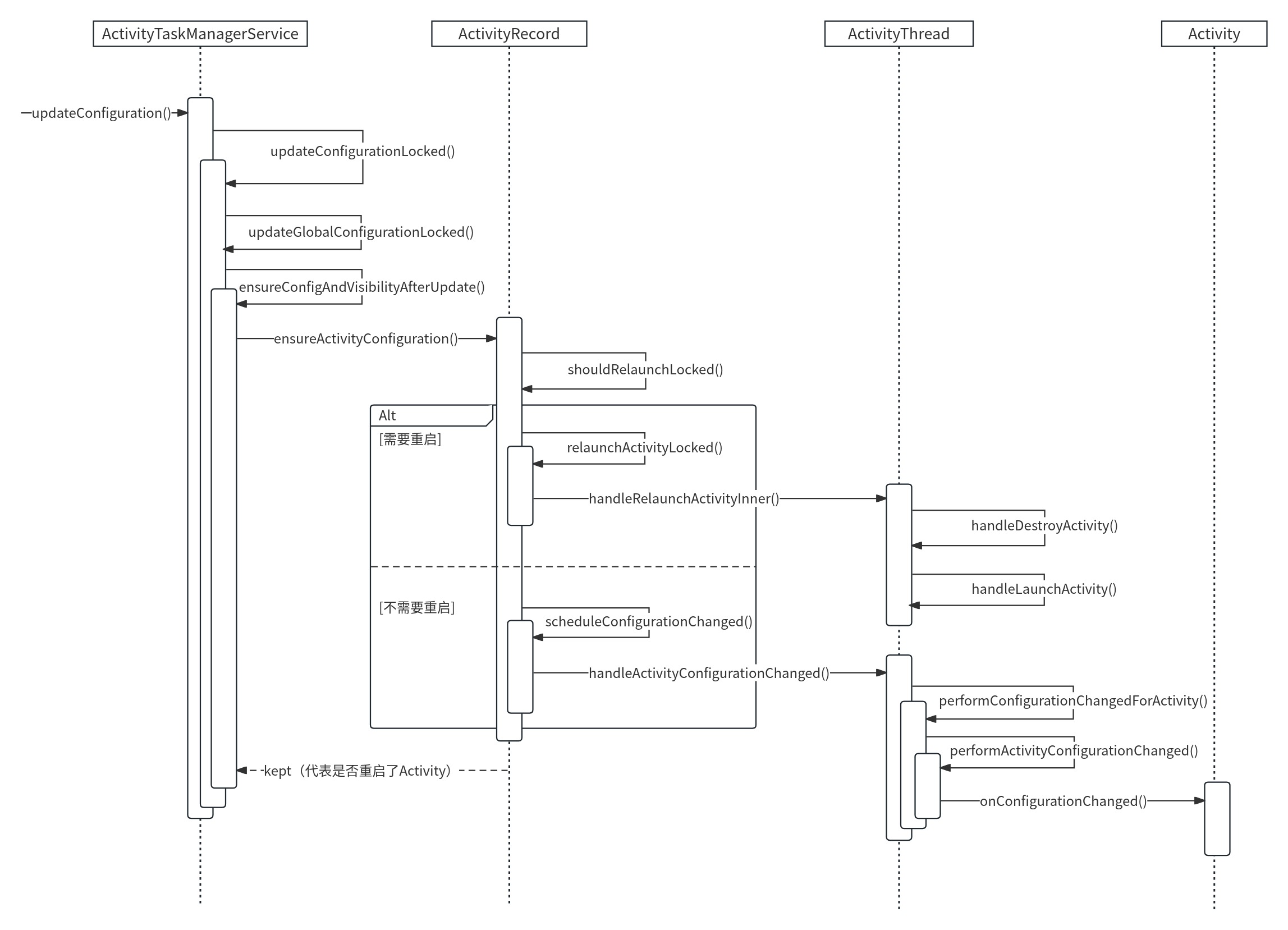

当设备配置发生变更时，系统会调用 ATMS 的 updateConfiguration() 方法，来通知 ATMS 处理 configuration change 事件。时序图如下。

frameworks/base/services/core/java/com/android/server/wm/ActivityTaskManagerService.java
public boolean updateConfiguration(Configuration values) {
    ...
    synchronized (mGlobalLock) {
        ...
        try {
            ...
            updateConfigurationLocked(values, null, false, false /* persistent */,
                    UserHandle.USER_NULL, false /* deferResume */,
                    mTmpUpdateConfigurationResult);  // 1
            return mTmpUpdateConfigurationResult.changes != 0;
        } finally {
            ...
        }
    }
}

注释1处调用 updateConfigurationLocked()。

frameworks/base/services/core/java/com/android/server/wm/ActivityTaskManagerService.java
boolean updateConfigurationLocked(Configuration values, ActivityRecord starting,
        boolean initLocale, boolean persistent, int userId, boolean deferResume,
        ActivityTaskManagerService.UpdateConfigurationResult result) {
    ...
    try {
        if (values != null) {
            changes = updateGlobalConfigurationLocked(values, initLocale, persistent, userId);  // 1
        }

        if (!deferResume) {
            kept = ensureConfigAndVisibilityAfterUpdate(starting, changes);  // 2
        }
    } finally {
        ...
    }
    ...
    return kept;
}

注释1处更新当前配置；

注释2处确保给定的 Activity 使用的是当前配置，如果返回 true 表示 Activity 未被重启，否则让该 Activity destroyed 以适配当前配置。

frameworks/base/services/core/java/com/android/server/wm/ActivityTaskManagerService.java
boolean ensureConfigAndVisibilityAfterUpdate(ActivityRecord starting, int changes) {
    ...
    if (mainRootTask != null) {
        ...
        if (starting != null) {
            kept = starting.ensureActivityConfiguration(changes,
                    false /* preserveWindow */);  // 1
            ...
        }
    }

    return kept;
}

注释1处调用 ActivityRecord#ensureActivityConfiguration() 真正完成 Activity 配置更新。

frameworks/base/services/core/java/com/android/server/wm/ActivityRecord.java
boolean ensureActivityConfiguration(int globalChanges, boolean preserveWindow) {
    return ensureActivityConfiguration(globalChanges, preserveWindow,
            false /* ignoreVisibility */, false /* isRequestedOrientationChanged */);
}

boolean ensureActivityConfiguration(int globalChanges, boolean preserveWindow,
        boolean ignoreVisibility, boolean isRequestedOrientationChanged) {
    // 这里省略了一些return ture的分支
    // 如果马上会再次调用updateConfiguration()，则忽略本次修改，交由下次处理，节省时间
    // 如果当前Activity已经finish，则忽略
    // 如果Activity的状态是DESTROYED，则忽略
    // 如果Activity不可见。则忽略
    ...
    // 如果新旧配置相同，则忽略
    mTmpConfig.setTo(mLastReportedConfiguration.getMergedConfiguration());
    if (getConfiguration().equals(mTmpConfig) && !forceNewConfig && !displayChanged) {
        ProtoLog.v(WM_DEBUG_CONFIGURATION, "Configuration & display "
                + "unchanged in %s", this);
        return true;
    }

    // 计算哪些配置值发生了改变
    final int changes = getConfigurationChanges(mTmpConfig);

    // Update last reported values.
    final Configuration newMergedOverrideConfig = getMergedOverrideConfiguration();

    setLastReportedConfiguration(getProcessGlobalConfiguration(), newMergedOverrideConfig);

    // Activity状态是INITIALIZING，则忽略
    ...

    if (changes == 0 && !forceNewConfig) {
        ...
        if (displayChanged) {
            scheduleActivityMovedToDisplay(newDisplayId, newMergedOverrideConfig);
        } else {
            scheduleConfigurationChanged(newMergedOverrideConfig);
        }
        notifyDisplayCompatPolicyAboutConfigurationChange(
                mLastReportedConfiguration.getMergedConfiguration(), mTmpConfig);
        return true;
    }
    ...
    boolean shouldRelaunchLocked = shouldRelaunchLocked(changes, mTmpConfig);  // 1
    ...
    if (shouldRelaunchLocked || forceNewConfig) {  // 重启Activity
        ...
        if (mState == PAUSING) {
            ...
            // 如果当前Activity处于PAUSING状态，则标记其需要重启，等到PAUSING后reLaunch
            deferRelaunchUntilPaused = true;
            preserveWindowOnDeferredRelaunch = preserveWindow;
            return true;
        } else {
            ...
            relaunchActivityLocked(preserveWindow);
        }

        // All done...  tell the caller we weren't able to keep this activity around.
        return false;
    }

    // Activity可以自己处理配置变更走这里
    if (displayChanged) {
        scheduleActivityMovedToDisplay(newDisplayId, newMergedOverrideConfig);
    } else {
        scheduleConfigurationChanged(newMergedOverrideConfig);
    }
    ...
    return true;
}

决定是否需要 reLaunch 的关键参数是 shouldRelaunchLocked 和 forceNewConfig，任一值为 true，就会重启 Activity，而不会调用 Activity#onConfigurationChanged()。

注释1处 shouldRelaunchLocked() 会通过对比事件是否在 Activity 自己可以处理的范围内来决定是否 reLaunch，其中包括 AndroidManifest.xml 中配置的 android:configChanges 属性。

1. 重启 Activity 分支

   执行 ActivityRecord#relaunchActivityLocked()，经过层层调用，最终调用到 ActivityThread#handleRelaunchActivityInner()。

   frameworks/base/core/java/android/app/ActivityThread.java
   private void handleRelaunchActivityInner(ActivityClientRecord r, int configChanges,
           List<ResultInfo> pendingResults, List<ReferrerIntent> pendingIntents,
           PendingTransactionActions pendingActions, boolean startsNotResumed,
           Configuration overrideConfig, String reason) {
       ...
       handleDestroyActivity(r, false, configChanges, true, reason);
       ...
       handleLaunchActivity(r, pendingActions, mLastReportedDeviceId, customIntent);
   }

   在 handleRelaunchActivityInner() 中，先调用 handleDestroyActivity() 销毁当前 Activity，然后调用 handleLaunchActivity() 重启 Activity。Activity 有一个回调方法 onRetainNonConfigurationInstance()，当设备信息变更时，会保存该方法返回的 Object，之后可以在重启的 Activity 中通过 getLastNonConfigurationInstance() 获取该 Object。

2. 不重启 Activity 分支

   frameworks/base/services/core/java/com/android/server/wm/ActivityRecord.java
   boolean ensureActivityConfiguration(int globalChanges, boolean preserveWindow,
           boolean ignoreVisibility, boolean isRequestedOrientationChanged) {
       ...
       // Activity可以自己处理配置变更走这里
       if (displayChanged) {
           scheduleActivityMovedToDisplay(newDisplayId, newMergedOverrideConfig);
       } else {
           scheduleConfigurationChanged(newMergedOverrideConfig);
       }
       ...
   }

   这两个分支最终都会调用 ActivityThread#handleActivityConfigurationChanged() 方法。

   frameworks/base/core/java/android/app/ActivityThread.java
   void handleActivityConfigurationChanged(ActivityClientRecord r,
           @NonNull Configuration overrideConfig, int displayId, boolean alwaysReportChange) {
       ...
       final Configuration reportedConfig = performConfigurationChangedForActivity(r,
               mConfigurationController.getCompatConfiguration(),
               movedToDifferentDisplay ? displayId : r.activity.getDisplayId(),
               alwaysReportChange);
       ...
   }

   调用 performConfigurationChangedForActivity()。

   frameworks/base/core/java/android/app/ActivityThread.java
   private Configuration performConfigurationChangedForActivity(ActivityClientRecord r,
           Configuration newBaseConfig, int displayId, boolean alwaysReportChange) {
       r.tmpConfig.setTo(newBaseConfig);
       if (r.overrideConfig != null) {
           r.tmpConfig.updateFrom(r.overrideConfig);
       }
       final Configuration reportedConfig = performActivityConfigurationChanged(r,
               r.tmpConfig, r.overrideConfig, displayId, alwaysReportChange);
       freeTextLayoutCachesIfNeeded(r.activity.mCurrentConfig.diff(r.tmpConfig));
       return reportedConfig;
   }

   调用 performActivityConfigurationChanged()。

   private Configuration performActivityConfigurationChanged(ActivityClientRecord r,
           Configuration newConfig, Configuration amOverrideConfig, int displayId,
           boolean alwaysReportChange) {
       final Activity activity = r.activity;
       ...
       final Configuration currentResConfig = activity.getResources().getConfiguration();
       final int diff = currentResConfig.diffPublicOnly(newConfig);
       final boolean hasPublicResConfigChange = diff != 0;
       // TODO(b/173090263): Use diff instead after the improvement of AssetManager and
       // ResourcesImpl constructions.
       final boolean shouldUpdateResources = hasPublicResConfigChange
               || shouldUpdateResources(activityToken, currentResConfig, newConfig,
               amOverrideConfig, movedToDifferentDisplay, hasPublicResConfigChange);
       final boolean shouldReportChange = shouldReportChange(
               activity.mCurrentConfig, newConfig, r.mSizeConfigurations,
               activity.mActivityInfo.getRealConfigChanged(), alwaysReportChange);
       // Nothing significant, don't proceed with updating and reporting.
       if (!shouldUpdateResources && !shouldReportChange) {
           return null;
       }
       ...
       final Configuration configToReport = createNewConfigAndUpdateIfNotNull(newConfig,
               contextThemeWrapperOverrideConfig);
       ...
       activity.mConfigChangeFlags = 0;
       if (shouldReportChange) {
           activity.mCalled = false;
           activity.mCurrentConfig = new Configuration(newConfig);
           activity.onConfigurationChanged(configToReport);  // 1
           if (!activity.mCalled) {
               throw new SuperNotCalledException("Activity " + activity.getLocalClassName() +
                               " did not call through to super.onConfigurationChanged()");
           }
       }

       return configToReport;
   }

   注释1处调用 Activity.onConfigurationChanged()。

总结：设备配置发生变更时，系统会根据一系列条件决定是重启 Activity，还是调用 Activity.onConfigurationChanged()。
