Redis: Thread limit exceeded replacing blocked worker
最近系统在运行过程中出现了这样的一个错误，外层是：RedisSystemException: Unknown redis exception，内层是：RejectedExecutionException: Thread limit exceeded replacing blocked worker。系统的情况是这样的，使用 .parallel() 在并行流中执行任务，任务需要根据 redis 中是否存在某个 key 进行查数据库还是直接组织数据。
java
org.springframework.data.redis.RedisSystemException: Unknown redis exception
at org.springframework.data.redis.FallbackExceptionTranslationStrategy.getFallback(FallbackExceptionTranslationStrategy.java:49) ~[spring-data-redis-3.0.6.jar!/:3.0.6]
at org.springframework.data.redis.FallbackExceptionTranslationStrategy.translate(FallbackExceptionTranslationStrategy.java:39) ~[spring-data-redis-3.0.6.jar!/:3.0.6]
at org.springframework.data.redis.connection.lettuce.LettuceConnection.convertLettuceAccessException(LettuceConnection.java:248) ~[spring-data-redis-3.0.6.jar!/:3.0.6]
at org.springframework.data.redis.connection.lettuce.LettuceConnection.await(LettuceConnection.java:961) ~[spring-data-redis-3.0.6.jar!/:3.0.6]
at org.springframework.data.redis.connection.lettuce.LettuceConnection.lambda$doInvoke$4(LettuceConnection.java:818) ~[spring-data-redis-3.0.6.jar!/:3.0.6]
at org.springframework.data.redis.connection.lettuce.LettuceInvoker$Synchronizer.invoke(LettuceInvoker.java:665) ~[spring-data-redis-3.0.6.jar!/:3.0.6]
at org.springframework.data.redis.connection.lettuce.LettuceInvoker.just(LettuceInvoker.java:94) ~[spring-data-redis-3.0.6.jar!/:3.0.6]
at org.springframework.data.redis.connection.lettuce.LettuceStringCommands.get(LettuceStringCommands.java:52) ~[spring-data-redis-3.0.6.jar!/:3.0.6]
at org.springframework.data.redis.connection.DefaultedRedisConnection.get(DefaultedRedisConnection.java:284) ~[spring-data-redis-3.0.6.jar!/:3.0.6]
at org.springframework.data.redis.cache.DefaultRedisCacheWriter.lambda$get$1(DefaultRedisCacheWriter.java:122) ~[spring-data-redis-3.0.6.jar!/:3.0.6]
at org.springframework.data.redis.cache.DefaultRedisCacheWriter.execute(DefaultRedisCacheWriter.java:276) ~[spring-data-redis-3.0.6.jar!/:3.0.6]
at org.springframework.data.redis.cache.DefaultRedisCacheWriter.get(DefaultRedisCacheWriter.java:122) ~[spring-data-redis-3.0.6.jar!/:3.0.6]
at org.springframework.data.redis.cache.RedisCache.lookup(RedisCache.java:86) ~[spring-data-redis-3.0.6.jar!/:3.0.6]
at org.springframework.cache.support.AbstractValueAdaptingCache.get(AbstractValueAdaptingCache.java:58) ~[spring-context-6.0.9.jar!/:6.0.9]
at org.springframework.cache.interceptor.AbstractCacheInvoker.doGet(AbstractCacheInvoker.java:73) ~[spring-context-6.0.9.jar!/:6.0.9]
at org.springframework.cache.interceptor.CacheAspectSupport.findInCaches(CacheAspectSupport.java:571) ~[spring-context-6.0.9.jar!/:6.0.9]
at org.springframework.cache.interceptor.CacheAspectSupport.findCachedItem(CacheAspectSupport.java:536) ~[spring-context-6.0.9.jar!/:6.0.9]
at org.springframework.cache.interceptor.CacheAspectSupport.execute(CacheAspectSupport.java:402) ~[spring-context-6.0.9.jar!/:6.0.9]
at org.springframework.cache.interceptor.CacheAspectSupport.execute(CacheAspectSupport.java:345) ~[spring-context-6.0.9.jar!/:6.0.9]
at org.springframework.cache.interceptor.CacheInterceptor.invoke(CacheInterceptor.java:64) ~[spring-context-6.0.9.jar!/:6.0.9]
at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:184) ~[spring-aop-6.0.9.jar!/:6.0.9]
at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.proceed(CglibAopProxy.java:750) ~[spring-aop-6.0.9.jar!/:6.0.9]
at org.springframework.aop.interceptor.ExposeInvocationInterceptor.invoke(ExposeInvocationInterceptor.java:97) ~[spring-aop-6.0.9.jar!/:6.0.9]
at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:184) ~[spring-aop-6.0.9.jar!/:6.0.9]
at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.proceed(CglibAopProxy.java:750) ~[spring-aop-6.0.9.jar!/:6.0.9]
at org.springframework.aop.framework.CglibAopProxy$DynamicAdvisedInterceptor.intercept(CglibAopProxy.java:702) ~[spring-aop-6.0.9.jar!/:6.0.9]
at //=====================业务相关====================================
at java.base/java.util.stream.ReferencePipeline$3$1.accept(ReferencePipeline.java:197) ~[na:na]
at java.base/java.util.ArrayList$ArrayListSpliterator.forEachRemaining(ArrayList.java:1625) ~[na:na]
at java.base/java.util.stream.AbstractPipeline.copyInto(AbstractPipeline.java:509) ~[na:na]
at java.base/java.util.stream.AbstractPipeline.wrapAndCopyInto(AbstractPipeline.java:499) ~[na:na]
at java.base/java.util.stream.ReduceOps$ReduceTask.doLeaf(ReduceOps.java:960) ~[na:na]
at java.base/java.util.stream.ReduceOps$ReduceTask.doLeaf(ReduceOps.java:934) ~[na:na]
at java.base/java.util.stream.AbstractTask.compute(AbstractTask.java:327) ~[na:na]
at java.base/java.util.concurrent.CountedCompleter.exec(CountedCompleter.java:754) ~[na:na]
at java.base/java.util.concurrent.ForkJoinTask.doExec(ForkJoinTask.java:373) ~[na:na]
at java.base/java.util.concurrent.ForkJoinPool$WorkQueue.topLevelExec(ForkJoinPool.java:1182) ~[na:na]
at java.base/java.util.concurrent.ForkJoinPool.scan(ForkJoinPool.java:1655) ~[na:na]
at java.base/java.util.concurrent.ForkJoinPool.runWorker(ForkJoinPool.java:1622) ~[na:na]
at java.base/java.util.concurrent.ForkJoinWorkerThread.run(ForkJoinWorkerThread.java:165) ~[na:na]
Caused by: java.util.concurrent.RejectedExecutionException: Thread limit exceeded replacing blocked worker
at java.base/java.util.concurrent.ForkJoinPool.tryCompensate(ForkJoinPool.java:1819) ~[na:na]
at java.base/java.util.concurrent.ForkJoinPool.compensatedBlock(ForkJoinPool.java:3446) ~[na:na]
at java.base/java.util.concurrent.ForkJoinPool.managedBlock(ForkJoinPool.java:3432) ~[na:na]
at java.base/java.util.concurrent.CompletableFuture.timedGet(CompletableFuture.java:1939) ~[na:na]
at java.base/java.util.concurrent.CompletableFuture.get(CompletableFuture.java:2095) ~[na:na]
at io.lettuce.core.protocol.AsyncCommand.await(AsyncCommand.java:83) ~[lettuce-core-6.2.4.RELEASE.jar!/:6.2.4.RELEASE]
at io.lettuce.core.internal.Futures.awaitOrCancel(Futures.java:244) ~[lettuce-core-6.2.4.RELEASE.jar!/:6.2.4.RELEASE]
at io.lettuce.core.LettuceFutures.awaitOrCancel(LettuceFutures.java:74) ~[lettuce-core-6.2.4.RELEASE.jar!/:6.2.4.RELEASE]
at org.springframework.data.redis.connection.lettuce.LettuceConnection.await(LettuceConnection.java:959) ~[spring-data-redis-3.0.6.jar!/:3.0.6]
... 38 common frames omitted我先说是怎么解决的：Java 9 开始，可以通过系统属性配置启动服务时指定参数 -Djava.util.concurrent.ForkJoinPool.common.maximumSpares=1024 来避免这个问题，参数值具体修改为多少与业务有关系，这个参数的作用随后解释
ForkJoinPool是基于工作窃取(Work-Stealing)算法实现的线程池，每个线程都有自己的工作队列，用于存储待执行的任务。当一个线程执行完自己的任务之后，会从其他线程的工作队列中窃取任务执行，以此来实现任务的动态均衡和线程的利用率最大化。
一般我们都会说 ForkJoinPool 适合做 CPU 密集型的工作，而不是做 IO 密集型的工作，为什么呢？看下 JDK 17 中的源码
java
private int tryCompensate(long c, boolean canSaturate) {
Predicate<? super ForkJoinPool> sat;
long b = bounds; // unpack fields
int pc = parallelism;
int minActive = (short)(b & SMASK),
maxTotal = (short)(b >>> SWIDTH) + pc,
active = (short)(c >>> RC_SHIFT),
total = (short)(c >>> TC_SHIFT),
sp = (int)c & ~INACTIVE;
if (sp != 0 && active <= pc) { // activate idle worker
WorkQueue[] qs; WorkQueue v; int i;
if (ctl == c && (qs = queues) != null &&
qs.length > (i = sp & SMASK) && (v = qs[i]) != null) {
long nc = (v.stackPred & SP_MASK) | (UC_MASK & c);
if (compareAndSetCtl(c, nc)) {
v.phase = sp;
LockSupport.unpark(v.owner);
return UNCOMPENSATE;
}
}
return -1; // retry
}
else if (active > minActive && total >= pc) { // reduce active workers
long nc = ((RC_MASK & (c - RC_UNIT)) | (~RC_MASK & c));
return compareAndSetCtl(c, nc) ? UNCOMPENSATE : -1;
}
else if (total < maxTotal && total < MAX_CAP) { // expand pool
long nc = ((c + TC_UNIT) & TC_MASK) | (c & ~TC_MASK);
return (!compareAndSetCtl(c, nc) ? -1 :
!createWorker() ? 0 : UNCOMPENSATE);
}
else if (!compareAndSetCtl(c, c)) // validate
return -1;
else if (canSaturate || ((sat = saturate) != null && sat.test(this)))
return 0;
else
throw new RejectedExecutionException(
"Thread limit exceeded replacing blocked worker");
}注意代码段第 30 行 createWorker() 即创建新线程，37 行丢出我们看到的异常 Thread limit exceeded replacing blocked worker，也就是丢出这个异常前没有满足创建新线程的条件，理所当然我们会思考这个线程数最大是多少，线程最大值为：pallstream 并行度 + maximumSpares（默认256），对于 16 核 cpu 来讲也就是 271（256+16-1）。

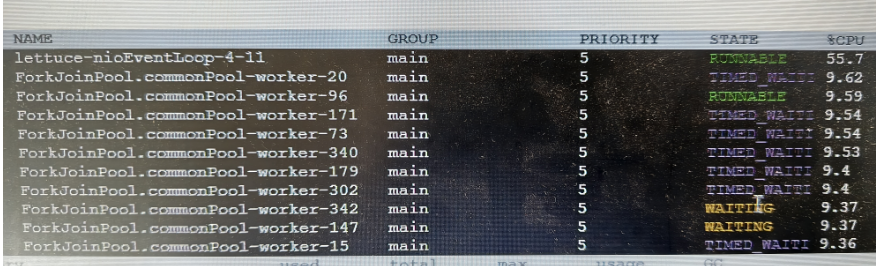

这其实涉及到 ForkJoinPool 的工作机制，当一个比较复杂的判断满足时（补偿阻塞线程时），会创建新的线程，当线程数达到最大值就可能抛出这个异常，我的使用情况就是在 ForkJoinPool 中（大概几十万任务）并发调用 redis 导致线程阻塞，因此修改了 maximumSpares ，那么我是怎么确定是这个问题的呢，我在项目中部署了 arthas，使用 dashboard 和 thread 指令查看了系统的运行情况（如下图所示），可以看出我的线程池中线程数已经数百了，并且依然会处于 TIMED_WAITING 状态~
最开始看到 Unknown redis exception 以为是 redis 的连接池配置有问题，还修改了 redis 的 maxclients 和 spring.redis.timeout 参数，不过也确实是起了点作用的，并发访问 redis 时给 spring.redis.timeout 配置一个比较长的值也有必要。
其实还是自己平时经验太少了，看到 RejectedExecutionException 就应该想到这是 java 线程池的一种拒绝策略~
