一、问题现象与触发点
1、页面报错

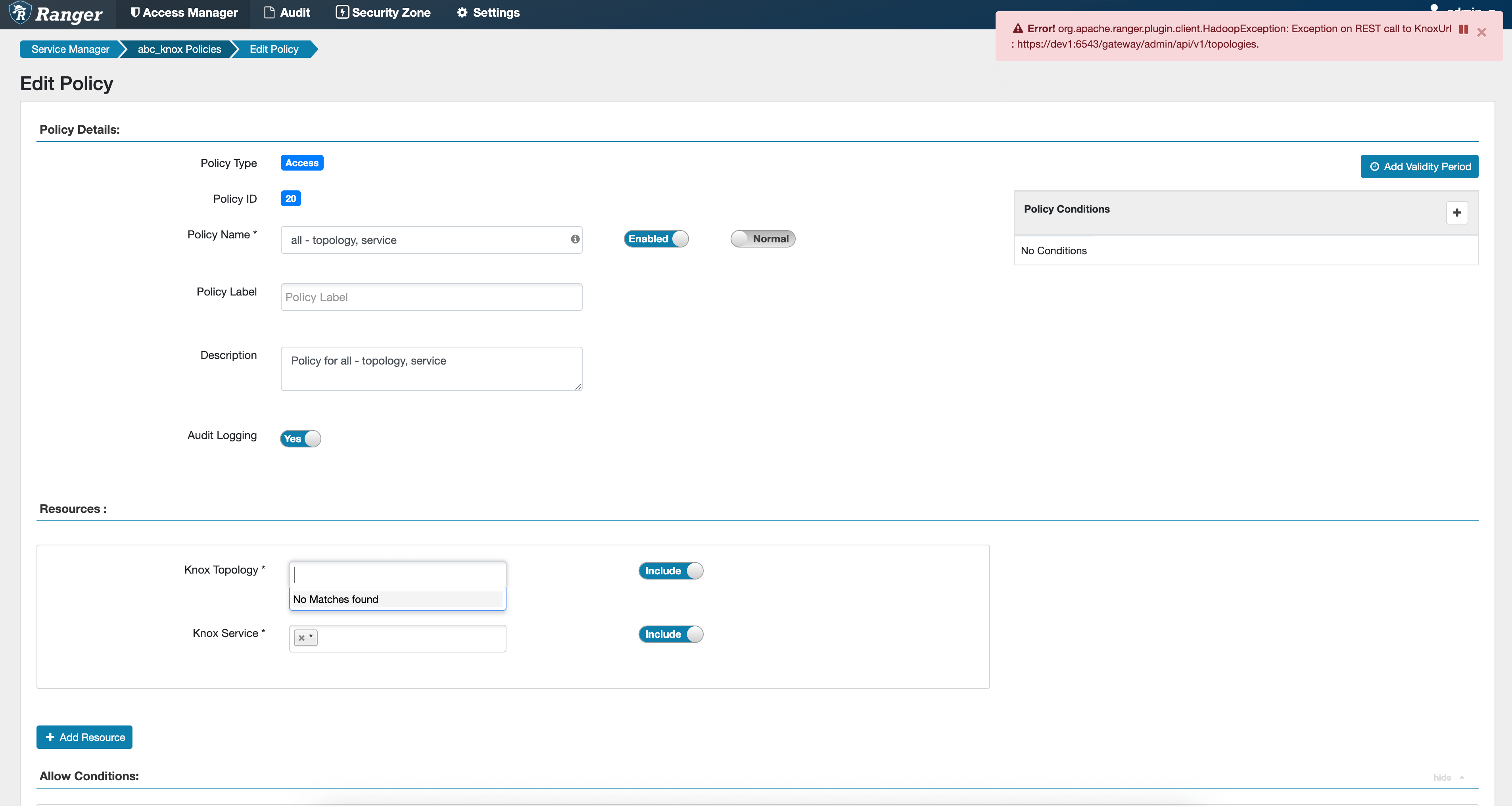

页面级别报错信息（核心关键词：KnoxUrl / topologies）：
Error! org.apache.ranger.plugin.client.HadoopException: Exception on REST call to
KnoxUrl : https://dev1:6543/gateway/admin/api/v1/topologies.
这个报错通常出现在哪里？
常见于 Ranger Admin → Service → Knox Service → Resource Lookup（例如选择 topology / service / path 时的下拉与联想查询），Ranger
会定时或按需调用 Knox Admin API 拉取拓扑列表。

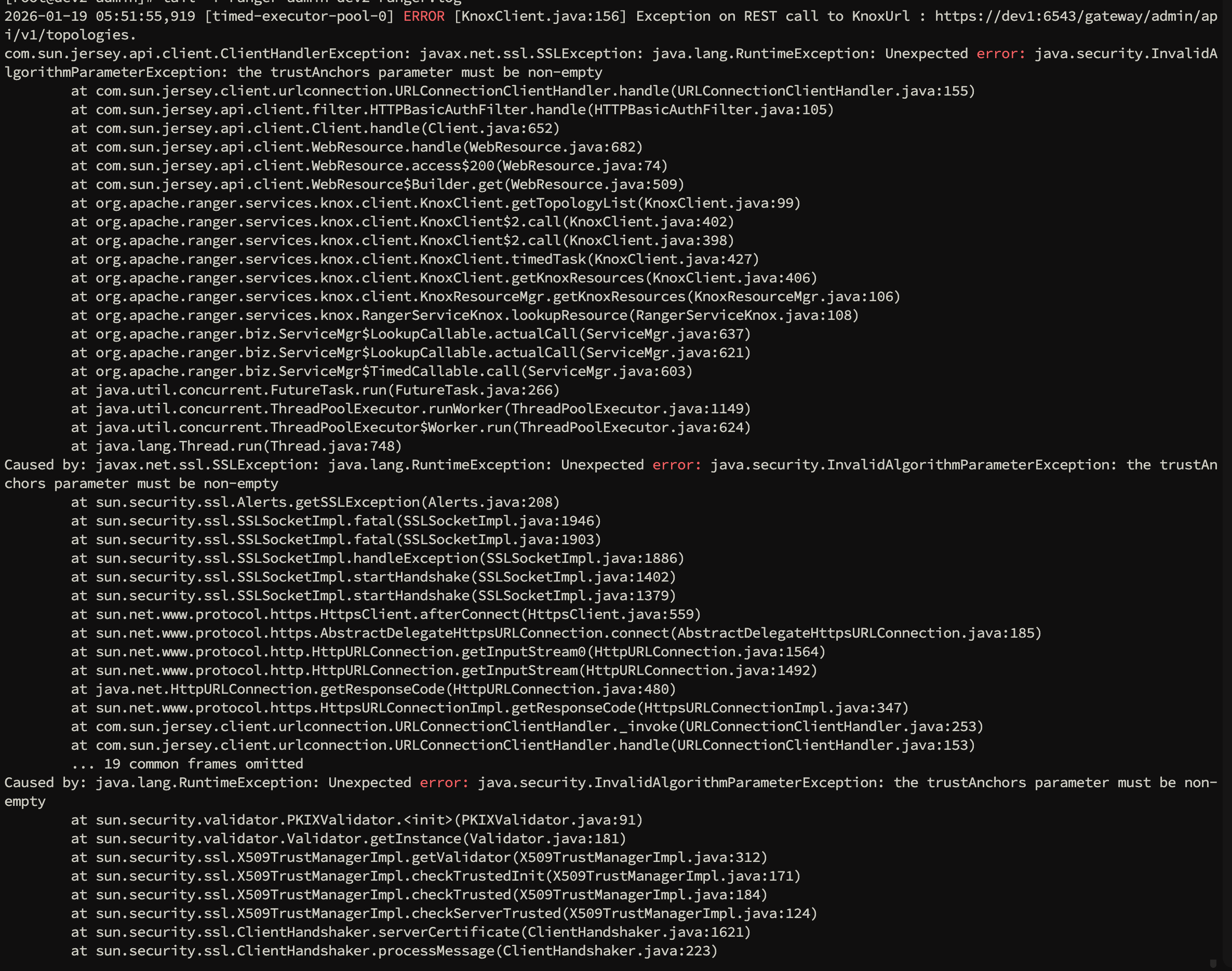

2、后台日志（关键链路）
bash
[root@dev2 admin]# tail -f ranger-admin-dev2-ranger.log
2026-01-19 05:51:55,919 [timed-executor-pool-0] ERROR [KnoxClient.java:156] Exception on REST call to KnoxUrl : https://dev1:6543/gateway/admin/api/v1/topologies.
com.sun.jersey.api.client.ClientHandlerException: javax.net.ssl.SSLException: java.lang.RuntimeException: Unexpected error: java.security.InvalidAlgorithmParameterException: the trustAnchors parameter must be non-empty
...
Caused by: java.security.InvalidAlgorithmParameterException: the trustAnchors parameter must be non-empty
...
2026-01-19 05:51:55,922 [http-nio-6080-exec-7] ERROR [ServiceREST.java:1196] lookupResource(abc_knox, ResourceLookupContext={resourceName=topology,userInput=,resources={topology=[]}}) failed完整的报错日志
bash
[root@dev2 admin]# tail -f ranger-admin-dev2-ranger.log
2026-01-19 05:51:55,919 [timed-executor-pool-0] ERROR [KnoxClient.java:156] Exception on REST call to KnoxUrl : https://dev1:6543/gateway/admin/api/v1/topologies.
com.sun.jersey.api.client.ClientHandlerException: javax.net.ssl.SSLException: java.lang.RuntimeException: Unexpected error: java.security.InvalidAlgorithmParameterException: the trustAnchors parameter must be non-empty
at com.sun.jersey.client.urlconnection.URLConnectionClientHandler.handle(URLConnectionClientHandler.java:155)
at com.sun.jersey.api.client.filter.HTTPBasicAuthFilter.handle(HTTPBasicAuthFilter.java:105)
at com.sun.jersey.api.client.Client.handle(Client.java:652)
at com.sun.jersey.api.client.WebResource.handle(WebResource.java:682)
at com.sun.jersey.api.client.WebResource.access$200(WebResource.java:74)
at com.sun.jersey.api.client.WebResource$Builder.get(WebResource.java:509)
at org.apache.ranger.services.knox.client.KnoxClient.getTopologyList(KnoxClient.java:99)
at org.apache.ranger.services.knox.client.KnoxClient$2.call(KnoxClient.java:402)
at org.apache.ranger.services.knox.client.KnoxClient$2.call(KnoxClient.java:398)
at org.apache.ranger.services.knox.client.KnoxClient.timedTask(KnoxClient.java:427)
at org.apache.ranger.services.knox.client.KnoxClient.getKnoxResources(KnoxClient.java:406)
at org.apache.ranger.services.knox.client.KnoxResourceMgr.getKnoxResources(KnoxResourceMgr.java:106)
at org.apache.ranger.services.knox.RangerServiceKnox.lookupResource(RangerServiceKnox.java:108)
at org.apache.ranger.biz.ServiceMgr$LookupCallable.actualCall(ServiceMgr.java:637)
at org.apache.ranger.biz.ServiceMgr$LookupCallable.actualCall(ServiceMgr.java:621)
at org.apache.ranger.biz.ServiceMgr$TimedCallable.call(ServiceMgr.java:603)
at java.util.concurrent.FutureTask.run(FutureTask.java:266)
at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
at java.lang.Thread.run(Thread.java:748)
Caused by: javax.net.ssl.SSLException: java.lang.RuntimeException: Unexpected error: java.security.InvalidAlgorithmParameterException: the trustAnchors parameter must be non-empty
at sun.security.ssl.Alerts.getSSLException(Alerts.java:208)
at sun.security.ssl.SSLSocketImpl.fatal(SSLSocketImpl.java:1946)
at sun.security.ssl.SSLSocketImpl.fatal(SSLSocketImpl.java:1903)
at sun.security.ssl.SSLSocketImpl.handleException(SSLSocketImpl.java:1886)
at sun.security.ssl.SSLSocketImpl.startHandshake(SSLSocketImpl.java:1402)
at sun.security.ssl.SSLSocketImpl.startHandshake(SSLSocketImpl.java:1379)
at sun.net.www.protocol.https.HttpsClient.afterConnect(HttpsClient.java:559)
at sun.net.www.protocol.https.AbstractDelegateHttpsURLConnection.connect(AbstractDelegateHttpsURLConnection.java:185)
at sun.net.www.protocol.http.HttpURLConnection.getInputStream0(HttpURLConnection.java:1564)
at sun.net.www.protocol.http.HttpURLConnection.getInputStream(HttpURLConnection.java:1492)
at java.net.HttpURLConnection.getResponseCode(HttpURLConnection.java:480)
at sun.net.www.protocol.https.HttpsURLConnectionImpl.getResponseCode(HttpsURLConnectionImpl.java:347)
at com.sun.jersey.client.urlconnection.URLConnectionClientHandler._invoke(URLConnectionClientHandler.java:253)
at com.sun.jersey.client.urlconnection.URLConnectionClientHandler.handle(URLConnectionClientHandler.java:153)
... 19 common frames omitted
Caused by: java.lang.RuntimeException: Unexpected error: java.security.InvalidAlgorithmParameterException: the trustAnchors parameter must be non-empty
at sun.security.validator.PKIXValidator.<init>(PKIXValidator.java:91)
at sun.security.validator.Validator.getInstance(Validator.java:181)
at sun.security.ssl.X509TrustManagerImpl.getValidator(X509TrustManagerImpl.java:312)
at sun.security.ssl.X509TrustManagerImpl.checkTrustedInit(X509TrustManagerImpl.java:171)
at sun.security.ssl.X509TrustManagerImpl.checkTrusted(X509TrustManagerImpl.java:184)
at sun.security.ssl.X509TrustManagerImpl.checkServerTrusted(X509TrustManagerImpl.java:124)
at sun.security.ssl.ClientHandshaker.serverCertificate(ClientHandshaker.java:1621)
at sun.security.ssl.ClientHandshaker.processMessage(ClientHandshaker.java:223)
at sun.security.ssl.Handshaker.processLoop(Handshaker.java:1037)
at sun.security.ssl.Handshaker.process_record(Handshaker.java:965)
at sun.security.ssl.SSLSocketImpl.readRecord(SSLSocketImpl.java:1064)
at sun.security.ssl.SSLSocketImpl.performInitialHandshake(SSLSocketImpl.java:1367)
at sun.security.ssl.SSLSocketImpl.startHandshake(SSLSocketImpl.java:1395)
... 28 common frames omitted
Caused by: java.security.InvalidAlgorithmParameterException: the trustAnchors parameter must be non-empty
at java.security.cert.PKIXParameters.setTrustAnchors(PKIXParameters.java:200)
at java.security.cert.PKIXParameters.<init>(PKIXParameters.java:120)
at java.security.cert.PKIXBuilderParameters.<init>(PKIXBuilderParameters.java:104)
at sun.security.validator.PKIXValidator.<init>(PKIXValidator.java:89)
... 40 common frames omitted
2026-01-19 05:51:55,920 [timed-executor-pool-0] ERROR [RangerServiceKnox.java:111] <== RangerServiceKnox.lookupResource Error : org.apache.ranger.plugin.client.HadoopException: Exception on REST call to KnoxUrl : https://dev1:6543/gateway/admin/api/v1/topologies.
2026-01-19 05:51:55,920 [timed-executor-pool-0] ERROR [ServiceMgr.java:605] TimedCallable.call: Error:org.apache.ranger.plugin.client.HadoopException: Exception on REST call to KnoxUrl : https://dev1:6543/gateway/admin/api/v1/topologies.
2026-01-19 05:51:55,922 [http-nio-6080-exec-7] ERROR [ServiceREST.java:1196] lookupResource(abc_knox, ResourceLookupContext={resourceName=topology,userInput=,resources={topology=[]}}) failed
org.apache.ranger.plugin.client.HadoopException: org.apache.ranger.plugin.client.HadoopException: Exception on REST call to KnoxUrl : https://dev1:6543/gateway/admin/api/v1/topologies.
at org.apache.ranger.common.TimedExecutor.generateHadoopException(TimedExecutor.java:126)
at org.apache.ranger.common.TimedExecutor.timedTask(TimedExecutor.java:96)
at org.apache.ranger.biz.ServiceMgr.lookupResource(ServiceMgr.java:139)
at org.apache.ranger.rest.ServiceREST.lookupResource(ServiceREST.java:1192)
at org.apache.ranger.rest.ServiceREST$$FastClassBySpringCGLIB$$92dab672.invoke(<generated>)
at org.springframework.cglib.proxy.MethodProxy.invoke(MethodProxy.java:218)
at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.invokeJoinpoint(CglibAopProxy.java:793)
at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:163)
at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.proceed(CglibAopProxy.java:763)
at org.springframework.security.access.intercept.aopalliance.MethodSecurityInterceptor.invoke(MethodSecurityInterceptor.java:61)
at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:186)
at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.proceed(CglibAopProxy.java:763)
at org.springframework.transaction.interceptor.TransactionInterceptor$1.proceedWithInvocation(TransactionInterceptor.java:123)
at org.springframework.transaction.interceptor.TransactionAspectSupport.invokeWithinTransaction(TransactionAspectSupport.java:388)
at org.springframework.transaction.interceptor.TransactionInterceptor.invoke(TransactionInterceptor.java:119)
at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:186)
at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.proceed(CglibAopProxy.java:763)
at org.springframework.aop.framework.CglibAopProxy$DynamicAdvisedInterceptor.intercept(CglibAopProxy.java:708)
at org.apache.ranger.rest.ServiceREST$$EnhancerBySpringCGLIB$$8d4320d0.lookupResource(<generated>)
at sun.reflect.GeneratedMethodAccessor255.invoke(Unknown Source)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:498)
at com.sun.jersey.spi.container.JavaMethodInvokerFactory$1.invoke(JavaMethodInvokerFactory.java:60)
at com.sun.jersey.server.impl.model.method.dispatch.AbstractResourceMethodDispatchProvider$TypeOutInvoker._dispatch(AbstractResourceMethodDispatchProvider.java:185)
at com.sun.jersey.server.impl.model.method.dispatch.ResourceJavaMethodDispatcher.dispatch(ResourceJavaMethodDispatcher.java:75)
at com.sun.jersey.server.impl.uri.rules.HttpMethodRule.accept(HttpMethodRule.java:302)
at com.sun.jersey.server.impl.uri.rules.RightHandPathRule.accept(RightHandPathRule.java:147)
at com.sun.jersey.server.impl.uri.rules.ResourceClassRule.accept(ResourceClassRule.java:108)
at com.sun.jersey.server.impl.uri.rules.RightHandPathRule.accept(RightHandPathRule.java:147)
at com.sun.jersey.server.impl.uri.rules.RootResourceClassesRule.accept(RootResourceClassesRule.java:84)
at com.sun.jersey.server.impl.application.WebApplicationImpl._handleRequest(WebApplicationImpl.java:1542)
at com.sun.jersey.server.impl.application.WebApplicationImpl._handleRequest(WebApplicationImpl.java:1473)
at com.sun.jersey.server.impl.application.WebApplicationImpl.handleRequest(WebApplicationImpl.java:1419)
at com.sun.jersey.server.impl.application.WebApplicationImpl.handleRequest(WebApplicationImpl.java:1409)
at com.sun.jersey.spi.container.servlet.WebComponent.service(WebComponent.java:409)
at com.sun.jersey.spi.container.servlet.ServletContainer.service(ServletContainer.java:558)
at com.sun.jersey.spi.container.servlet.ServletContainer.service(ServletContainer.java:733)
at javax.servlet.http.HttpServlet.service(HttpServlet.java:582)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:212)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:156)
at org.apache.tomcat.websocket.server.WsFilter.doFilter(WsFilter.java:52)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:181)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:156)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:337)
at org.apache.ranger.security.web.filter.RangerSecurityContextFormationFilter.doFilter(RangerSecurityContextFormationFilter.java:142)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.access.intercept.FilterSecurityInterceptor.invoke(FilterSecurityInterceptor.java:115)
at org.springframework.security.web.access.intercept.FilterSecurityInterceptor.doFilter(FilterSecurityInterceptor.java:81)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.access.ExceptionTranslationFilter.doFilter(ExceptionTranslationFilter.java:122)
at org.springframework.security.web.access.ExceptionTranslationFilter.doFilter(ExceptionTranslationFilter.java:116)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.session.SessionManagementFilter.doFilter(SessionManagementFilter.java:126)
at org.springframework.security.web.session.SessionManagementFilter.doFilter(SessionManagementFilter.java:81)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.authentication.AnonymousAuthenticationFilter.doFilter(AnonymousAuthenticationFilter.java:109)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.apache.ranger.security.web.filter.RangerCSRFPreventionFilter$ServletFilterHttpInteraction.proceed(RangerCSRFPreventionFilter.java:237)
at org.apache.ranger.security.web.filter.RangerCSRFPreventionFilter.handleHttpInteraction(RangerCSRFPreventionFilter.java:179)
at org.apache.ranger.security.web.filter.RangerCSRFPreventionFilter.doFilter(RangerCSRFPreventionFilter.java:192)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.apache.ranger.security.web.filter.RangerKRBAuthenticationFilter.doFilter(RangerKRBAuthenticationFilter.java:384)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.servletapi.SecurityContextHolderAwareRequestFilter.doFilter(SecurityContextHolderAwareRequestFilter.java:149)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.savedrequest.RequestCacheAwareFilter.doFilter(RequestCacheAwareFilter.java:63)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.apache.ranger.security.web.filter.RangerSSOAuthenticationFilter.doFilter(RangerSSOAuthenticationFilter.java:283)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.authentication.www.BasicAuthenticationFilter.doFilterInternal(BasicAuthenticationFilter.java:166)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:117)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.authentication.AbstractAuthenticationProcessingFilter.doFilter(AbstractAuthenticationProcessingFilter.java:223)
at org.springframework.security.web.authentication.AbstractAuthenticationProcessingFilter.doFilter(AbstractAuthenticationProcessingFilter.java:217)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.authentication.logout.LogoutFilter.doFilter(LogoutFilter.java:103)
at org.springframework.security.web.authentication.logout.LogoutFilter.doFilter(LogoutFilter.java:89)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.header.HeaderWriterFilter.doHeadersAfter(HeaderWriterFilter.java:90)
at org.springframework.security.web.header.HeaderWriterFilter.doFilterInternal(HeaderWriterFilter.java:75)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:117)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.context.request.async.WebAsyncManagerIntegrationFilter.doFilterInternal(WebAsyncManagerIntegrationFilter.java:55)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:117)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.context.SecurityContextPersistenceFilter.doFilter(SecurityContextPersistenceFilter.java:112)
at org.springframework.security.web.context.SecurityContextPersistenceFilter.doFilter(SecurityContextPersistenceFilter.java:82)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.session.ForceEagerSessionCreationFilter.doFilterInternal(ForceEagerSessionCreationFilter.java:45)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:117)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.session.DisableEncodeUrlFilter.doFilterInternal(DisableEncodeUrlFilter.java:42)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:117)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.FilterChainProxy.doFilterInternal(FilterChainProxy.java:221)
at org.springframework.security.web.FilterChainProxy.doFilter(FilterChainProxy.java:186)
at org.springframework.web.filter.DelegatingFilterProxy.invokeDelegate(DelegatingFilterProxy.java:354)
at org.springframework.web.filter.DelegatingFilterProxy.doFilter(DelegatingFilterProxy.java:267)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:181)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:156)
at org.apache.catalina.core.StandardWrapperValve.invoke(StandardWrapperValve.java:167)
at org.apache.catalina.core.StandardContextValve.invoke(StandardContextValve.java:90)
at org.apache.catalina.authenticator.AuthenticatorBase.invoke(AuthenticatorBase.java:494)
at org.apache.catalina.core.StandardHostValve.invoke(StandardHostValve.java:130)
at org.apache.catalina.valves.ErrorReportValve.invoke(ErrorReportValve.java:93)
at org.apache.catalina.valves.AbstractAccessLogValve.invoke(AbstractAccessLogValve.java:682)
at org.apache.catalina.core.StandardEngineValve.invoke(StandardEngineValve.java:74)
at org.apache.catalina.connector.CoyoteAdapter.service(CoyoteAdapter.java:367)
at org.apache.coyote.http11.Http11Processor.service(Http11Processor.java:639)
at org.apache.coyote.AbstractProcessorLight.process(AbstractProcessorLight.java:63)
at org.apache.coyote.AbstractProtocol$ConnectionHandler.process(AbstractProtocol.java:932)
at org.apache.tomcat.util.net.NioEndpoint$SocketProcessor.doRun(NioEndpoint.java:1695)
at org.apache.tomcat.util.net.SocketProcessorBase.run(SocketProcessorBase.java:49)
at org.apache.tomcat.util.threads.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1191)
at org.apache.tomcat.util.threads.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:659)
at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
at java.lang.Thread.run(Thread.java:748)
Caused by: java.util.concurrent.ExecutionException: org.apache.ranger.plugin.client.HadoopException: Exception on REST call to KnoxUrl : https://dev1:6543/gateway/admin/api/v1/topologies.
at java.util.concurrent.FutureTask.report(FutureTask.java:122)
at java.util.concurrent.FutureTask.get(FutureTask.java:206)
at org.apache.ranger.common.TimedExecutor.timedTask(TimedExecutor.java:90)
... 115 common frames omitted
Caused by: org.apache.ranger.plugin.client.HadoopException: Exception on REST call to KnoxUrl : https://dev1:6543/gateway/admin/api/v1/topologies.
at org.apache.ranger.services.knox.client.KnoxClient.getTopologyList(KnoxClient.java:155)
at org.apache.ranger.services.knox.client.KnoxClient$2.call(KnoxClient.java:402)
at org.apache.ranger.services.knox.client.KnoxClient$2.call(KnoxClient.java:398)
at org.apache.ranger.services.knox.client.KnoxClient.timedTask(KnoxClient.java:427)
at org.apache.ranger.services.knox.client.KnoxClient.getKnoxResources(KnoxClient.java:406)
at org.apache.ranger.services.knox.client.KnoxResourceMgr.getKnoxResources(KnoxResourceMgr.java:106)
at org.apache.ranger.services.knox.RangerServiceKnox.lookupResource(RangerServiceKnox.java:108)
at org.apache.ranger.biz.ServiceMgr$LookupCallable.actualCall(ServiceMgr.java:637)
at org.apache.ranger.biz.ServiceMgr$LookupCallable.actualCall(ServiceMgr.java:621)
at org.apache.ranger.biz.ServiceMgr$TimedCallable.call(ServiceMgr.java:603)
at java.util.concurrent.FutureTask.run(FutureTask.java:266)
at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
... 1 common frames omitted
Caused by: com.sun.jersey.api.client.ClientHandlerException: javax.net.ssl.SSLException: java.lang.RuntimeException: Unexpected error: java.security.InvalidAlgorithmParameterException: the trustAnchors parameter must be non-empty
at com.sun.jersey.client.urlconnection.URLConnectionClientHandler.handle(URLConnectionClientHandler.java:155)
at com.sun.jersey.api.client.filter.HTTPBasicAuthFilter.handle(HTTPBasicAuthFilter.java:105)
at com.sun.jersey.api.client.Client.handle(Client.java:652)
at com.sun.jersey.api.client.WebResource.handle(WebResource.java:682)
at com.sun.jersey.api.client.WebResource.access$200(WebResource.java:74)
at com.sun.jersey.api.client.WebResource$Builder.get(WebResource.java:509)
at org.apache.ranger.services.knox.client.KnoxClient.getTopologyList(KnoxClient.java:99)
... 13 common frames omitted
Caused by: javax.net.ssl.SSLException: java.lang.RuntimeException: Unexpected error: java.security.InvalidAlgorithmParameterException: the trustAnchors parameter must be non-empty
at sun.security.ssl.Alerts.getSSLException(Alerts.java:208)
at sun.security.ssl.SSLSocketImpl.fatal(SSLSocketImpl.java:1946)
at sun.security.ssl.SSLSocketImpl.fatal(SSLSocketImpl.java:1903)
at sun.security.ssl.SSLSocketImpl.handleException(SSLSocketImpl.java:1886)
at sun.security.ssl.SSLSocketImpl.startHandshake(SSLSocketImpl.java:1402)
at sun.security.ssl.SSLSocketImpl.startHandshake(SSLSocketImpl.java:1379)
at sun.net.www.protocol.https.HttpsClient.afterConnect(HttpsClient.java:559)
at sun.net.www.protocol.https.AbstractDelegateHttpsURLConnection.connect(AbstractDelegateHttpsURLConnection.java:185)
at sun.net.www.protocol.http.HttpURLConnection.getInputStream0(HttpURLConnection.java:1564)
at sun.net.www.protocol.http.HttpURLConnection.getInputStream(HttpURLConnection.java:1492)
at java.net.HttpURLConnection.getResponseCode(HttpURLConnection.java:480)
at sun.net.www.protocol.https.HttpsURLConnectionImpl.getResponseCode(HttpsURLConnectionImpl.java:347)
at com.sun.jersey.client.urlconnection.URLConnectionClientHandler._invoke(URLConnectionClientHandler.java:253)
at com.sun.jersey.client.urlconnection.URLConnectionClientHandler.handle(URLConnectionClientHandler.java:153)
... 19 common frames omitted
Caused by: java.lang.RuntimeException: Unexpected error: java.security.InvalidAlgorithmParameterException: the trustAnchors parameter must be non-empty
at sun.security.validator.PKIXValidator.<init>(PKIXValidator.java:91)
at sun.security.validator.Validator.getInstance(Validator.java:181)
at sun.security.ssl.X509TrustManagerImpl.getValidator(X509TrustManagerImpl.java:312)
at sun.security.ssl.X509TrustManagerImpl.checkTrustedInit(X509TrustManagerImpl.java:171)
at sun.security.ssl.X509TrustManagerImpl.checkTrusted(X509TrustManagerImpl.java:184)
at sun.security.ssl.X509TrustManagerImpl.checkServerTrusted(X509TrustManagerImpl.java:124)
at sun.security.ssl.ClientHandshaker.serverCertificate(ClientHandshaker.java:1621)
at sun.security.ssl.ClientHandshaker.processMessage(ClientHandshaker.java:223)
at sun.security.ssl.Handshaker.processLoop(Handshaker.java:1037)
at sun.security.ssl.Handshaker.process_record(Handshaker.java:965)
at sun.security.ssl.SSLSocketImpl.readRecord(SSLSocketImpl.java:1064)
at sun.security.ssl.SSLSocketImpl.performInitialHandshake(SSLSocketImpl.java:1367)
at sun.security.ssl.SSLSocketImpl.startHandshake(SSLSocketImpl.java:1395)
... 28 common frames omitted
Caused by: java.security.InvalidAlgorithmParameterException: the trustAnchors parameter must be non-empty
at java.security.cert.PKIXParameters.setTrustAnchors(PKIXParameters.java:200)
at java.security.cert.PKIXParameters.<init>(PKIXParameters.java:120)
at java.security.cert.PKIXBuilderParameters.<init>(PKIXBuilderParameters.java:104)
at sun.security.validator.PKIXValidator.<init>(PKIXValidator.java:89)
... 40 common frames omitted
2026-01-19 05:51:55,923 [http-nio-6080-exec-7] INFO [RESTErrorUtil.java:64] Request failed. loginId=admin, logMessage=org.apache.ranger.plugin.client.HadoopException: Exception on REST call to KnoxUrl : https://dev1:6543/gateway/admin/api/v1/topologies.
javax.ws.rs.WebApplicationException: null
at org.apache.ranger.common.RESTErrorUtil.createRESTException(RESTErrorUtil.java:57)
at org.apache.ranger.common.RESTErrorUtil.createRESTException(RESTErrorUtil.java:312)
at org.apache.ranger.rest.ServiceREST.lookupResource(ServiceREST.java:1198)
at org.apache.ranger.rest.ServiceREST$$FastClassBySpringCGLIB$$92dab672.invoke(<generated>)
at org.springframework.cglib.proxy.MethodProxy.invoke(MethodProxy.java:218)
at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.invokeJoinpoint(CglibAopProxy.java:793)
at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:163)
at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.proceed(CglibAopProxy.java:763)
at org.springframework.security.access.intercept.aopalliance.MethodSecurityInterceptor.invoke(MethodSecurityInterceptor.java:61)
at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:186)
at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.proceed(CglibAopProxy.java:763)
at org.springframework.transaction.interceptor.TransactionInterceptor$1.proceedWithInvocation(TransactionInterceptor.java:123)
at org.springframework.transaction.interceptor.TransactionAspectSupport.invokeWithinTransaction(TransactionAspectSupport.java:388)
at org.springframework.transaction.interceptor.TransactionInterceptor.invoke(TransactionInterceptor.java:119)
at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:186)
at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.proceed(CglibAopProxy.java:763)
at org.springframework.aop.framework.CglibAopProxy$DynamicAdvisedInterceptor.intercept(CglibAopProxy.java:708)
at org.apache.ranger.rest.ServiceREST$$EnhancerBySpringCGLIB$$8d4320d0.lookupResource(<generated>)
at sun.reflect.GeneratedMethodAccessor255.invoke(Unknown Source)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:498)
at com.sun.jersey.spi.container.JavaMethodInvokerFactory$1.invoke(JavaMethodInvokerFactory.java:60)
at com.sun.jersey.server.impl.model.method.dispatch.AbstractResourceMethodDispatchProvider$TypeOutInvoker._dispatch(AbstractResourceMethodDispatchProvider.java:185)
at com.sun.jersey.server.impl.model.method.dispatch.ResourceJavaMethodDispatcher.dispatch(ResourceJavaMethodDispatcher.java:75)
at com.sun.jersey.server.impl.uri.rules.HttpMethodRule.accept(HttpMethodRule.java:302)
at com.sun.jersey.server.impl.uri.rules.RightHandPathRule.accept(RightHandPathRule.java:147)
at com.sun.jersey.server.impl.uri.rules.ResourceClassRule.accept(ResourceClassRule.java:108)
at com.sun.jersey.server.impl.uri.rules.RightHandPathRule.accept(RightHandPathRule.java:147)
at com.sun.jersey.server.impl.uri.rules.RootResourceClassesRule.accept(RootResourceClassesRule.java:84)
at com.sun.jersey.server.impl.application.WebApplicationImpl._handleRequest(WebApplicationImpl.java:1542)
at com.sun.jersey.server.impl.application.WebApplicationImpl._handleRequest(WebApplicationImpl.java:1473)
at com.sun.jersey.server.impl.application.WebApplicationImpl.handleRequest(WebApplicationImpl.java:1419)
at com.sun.jersey.server.impl.application.WebApplicationImpl.handleRequest(WebApplicationImpl.java:1409)
at com.sun.jersey.spi.container.servlet.WebComponent.service(WebComponent.java:409)
at com.sun.jersey.spi.container.servlet.ServletContainer.service(ServletContainer.java:558)
at com.sun.jersey.spi.container.servlet.ServletContainer.service(ServletContainer.java:733)
at javax.servlet.http.HttpServlet.service(HttpServlet.java:582)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:212)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:156)
at org.apache.tomcat.websocket.server.WsFilter.doFilter(WsFilter.java:52)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:181)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:156)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:337)
at org.apache.ranger.security.web.filter.RangerSecurityContextFormationFilter.doFilter(RangerSecurityContextFormationFilter.java:142)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.access.intercept.FilterSecurityInterceptor.invoke(FilterSecurityInterceptor.java:115)
at org.springframework.security.web.access.intercept.FilterSecurityInterceptor.doFilter(FilterSecurityInterceptor.java:81)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.access.ExceptionTranslationFilter.doFilter(ExceptionTranslationFilter.java:122)
at org.springframework.security.web.access.ExceptionTranslationFilter.doFilter(ExceptionTranslationFilter.java:116)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.session.SessionManagementFilter.doFilter(SessionManagementFilter.java:126)
at org.springframework.security.web.session.SessionManagementFilter.doFilter(SessionManagementFilter.java:81)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.authentication.AnonymousAuthenticationFilter.doFilter(AnonymousAuthenticationFilter.java:109)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.apache.ranger.security.web.filter.RangerCSRFPreventionFilter$ServletFilterHttpInteraction.proceed(RangerCSRFPreventionFilter.java:237)
at org.apache.ranger.security.web.filter.RangerCSRFPreventionFilter.handleHttpInteraction(RangerCSRFPreventionFilter.java:179)
at org.apache.ranger.security.web.filter.RangerCSRFPreventionFilter.doFilter(RangerCSRFPreventionFilter.java:192)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.apache.ranger.security.web.filter.RangerKRBAuthenticationFilter.doFilter(RangerKRBAuthenticationFilter.java:384)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.servletapi.SecurityContextHolderAwareRequestFilter.doFilter(SecurityContextHolderAwareRequestFilter.java:149)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.savedrequest.RequestCacheAwareFilter.doFilter(RequestCacheAwareFilter.java:63)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.apache.ranger.security.web.filter.RangerSSOAuthenticationFilter.doFilter(RangerSSOAuthenticationFilter.java:283)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.authentication.www.BasicAuthenticationFilter.doFilterInternal(BasicAuthenticationFilter.java:166)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:117)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.authentication.AbstractAuthenticationProcessingFilter.doFilter(AbstractAuthenticationProcessingFilter.java:223)
at org.springframework.security.web.authentication.AbstractAuthenticationProcessingFilter.doFilter(AbstractAuthenticationProcessingFilter.java:217)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.authentication.logout.LogoutFilter.doFilter(LogoutFilter.java:103)
at org.springframework.security.web.authentication.logout.LogoutFilter.doFilter(LogoutFilter.java:89)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.header.HeaderWriterFilter.doHeadersAfter(HeaderWriterFilter.java:90)
at org.springframework.security.web.header.HeaderWriterFilter.doFilterInternal(HeaderWriterFilter.java:75)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:117)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.context.request.async.WebAsyncManagerIntegrationFilter.doFilterInternal(WebAsyncManagerIntegrationFilter.java:55)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:117)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.context.SecurityContextPersistenceFilter.doFilter(SecurityContextPersistenceFilter.java:112)
at org.springframework.security.web.context.SecurityContextPersistenceFilter.doFilter(SecurityContextPersistenceFilter.java:82)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.session.ForceEagerSessionCreationFilter.doFilterInternal(ForceEagerSessionCreationFilter.java:45)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:117)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.session.DisableEncodeUrlFilter.doFilterInternal(DisableEncodeUrlFilter.java:42)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:117)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.FilterChainProxy.doFilterInternal(FilterChainProxy.java:221)
at org.springframework.security.web.FilterChainProxy.doFilter(FilterChainProxy.java:186)
at org.springframework.web.filter.DelegatingFilterProxy.invokeDelegate(DelegatingFilterProxy.java:354)
at org.springframework.web.filter.DelegatingFilterProxy.doFilter(DelegatingFilterProxy.java:267)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:181)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:156)
at org.apache.catalina.core.StandardWrapperValve.invoke(StandardWrapperValve.java:167)
at org.apache.catalina.core.StandardContextValve.invoke(StandardContextValve.java:90)
at org.apache.catalina.authenticator.AuthenticatorBase.invoke(AuthenticatorBase.java:494)
at org.apache.catalina.core.StandardHostValve.invoke(StandardHostValve.java:130)
at org.apache.catalina.valves.ErrorReportValve.invoke(ErrorReportValve.java:93)
at org.apache.catalina.valves.AbstractAccessLogValve.invoke(AbstractAccessLogValve.java:682)
at org.apache.catalina.core.StandardEngineValve.invoke(StandardEngineValve.java:74)
at org.apache.catalina.connector.CoyoteAdapter.service(CoyoteAdapter.java:367)
at org.apache.coyote.http11.Http11Processor.service(Http11Processor.java:639)
at org.apache.coyote.AbstractProcessorLight.process(AbstractProcessorLight.java:63)
at org.apache.coyote.AbstractProtocol$ConnectionHandler.process(AbstractProtocol.java:932)
at org.apache.tomcat.util.net.NioEndpoint$SocketProcessor.doRun(NioEndpoint.java:1695)
at org.apache.tomcat.util.net.SocketProcessorBase.run(SocketProcessorBase.java:49)
at org.apache.tomcat.util.threads.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1191)
at org.apache.tomcat.util.threads.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:659)
at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
at java.lang.Thread.run(Thread.java:748)
2026-01-19 05:51:55,924 [http-nio-6080-exec-7] INFO [RESTErrorUtil.java:313] Operation error. response=VXResponse={org.apache.ranger.view.VXResponse@3f798632statusCode={1} msgDesc={org.apache.ranger.plugin.client.HadoopException: Exception on REST call to KnoxUrl : https://dev1:6543/gateway/admin/api/v1/topologies.} messageList={null} }
javax.ws.rs.WebApplicationException: null
at org.apache.ranger.common.RESTErrorUtil.createRESTException(RESTErrorUtil.java:57)
at org.apache.ranger.common.RESTErrorUtil.createRESTException(RESTErrorUtil.java:312)
at org.apache.ranger.rest.ServiceREST.lookupResource(ServiceREST.java:1198)
at org.apache.ranger.rest.ServiceREST$$FastClassBySpringCGLIB$$92dab672.invoke(<generated>)
at org.springframework.cglib.proxy.MethodProxy.invoke(MethodProxy.java:218)
at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.invokeJoinpoint(CglibAopProxy.java:793)
at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:163)
at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.proceed(CglibAopProxy.java:763)
at org.springframework.security.access.intercept.aopalliance.MethodSecurityInterceptor.invoke(MethodSecurityInterceptor.java:61)
at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:186)
at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.proceed(CglibAopProxy.java:763)
at org.springframework.transaction.interceptor.TransactionInterceptor$1.proceedWithInvocation(TransactionInterceptor.java:123)
at org.springframework.transaction.interceptor.TransactionAspectSupport.invokeWithinTransaction(TransactionAspectSupport.java:388)
at org.springframework.transaction.interceptor.TransactionInterceptor.invoke(TransactionInterceptor.java:119)
at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:186)
at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.proceed(CglibAopProxy.java:763)
at org.springframework.aop.framework.CglibAopProxy$DynamicAdvisedInterceptor.intercept(CglibAopProxy.java:708)
at org.apache.ranger.rest.ServiceREST$$EnhancerBySpringCGLIB$$8d4320d0.lookupResource(<generated>)
at sun.reflect.GeneratedMethodAccessor255.invoke(Unknown Source)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:498)
at com.sun.jersey.spi.container.JavaMethodInvokerFactory$1.invoke(JavaMethodInvokerFactory.java:60)
at com.sun.jersey.server.impl.model.method.dispatch.AbstractResourceMethodDispatchProvider$TypeOutInvoker._dispatch(AbstractResourceMethodDispatchProvider.java:185)
at com.sun.jersey.server.impl.model.method.dispatch.ResourceJavaMethodDispatcher.dispatch(ResourceJavaMethodDispatcher.java:75)
at com.sun.jersey.server.impl.uri.rules.HttpMethodRule.accept(HttpMethodRule.java:302)
at com.sun.jersey.server.impl.uri.rules.RightHandPathRule.accept(RightHandPathRule.java:147)
at com.sun.jersey.server.impl.uri.rules.ResourceClassRule.accept(ResourceClassRule.java:108)
at com.sun.jersey.server.impl.uri.rules.RightHandPathRule.accept(RightHandPathRule.java:147)
at com.sun.jersey.server.impl.uri.rules.RootResourceClassesRule.accept(RootResourceClassesRule.java:84)
at com.sun.jersey.server.impl.application.WebApplicationImpl._handleRequest(WebApplicationImpl.java:1542)
at com.sun.jersey.server.impl.application.WebApplicationImpl._handleRequest(WebApplicationImpl.java:1473)
at com.sun.jersey.server.impl.application.WebApplicationImpl.handleRequest(WebApplicationImpl.java:1419)
at com.sun.jersey.server.impl.application.WebApplicationImpl.handleRequest(WebApplicationImpl.java:1409)
at com.sun.jersey.spi.container.servlet.WebComponent.service(WebComponent.java:409)
at com.sun.jersey.spi.container.servlet.ServletContainer.service(ServletContainer.java:558)
at com.sun.jersey.spi.container.servlet.ServletContainer.service(ServletContainer.java:733)
at javax.servlet.http.HttpServlet.service(HttpServlet.java:582)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:212)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:156)
at org.apache.tomcat.websocket.server.WsFilter.doFilter(WsFilter.java:52)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:181)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:156)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:337)
at org.apache.ranger.security.web.filter.RangerSecurityContextFormationFilter.doFilter(RangerSecurityContextFormationFilter.java:142)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.access.intercept.FilterSecurityInterceptor.invoke(FilterSecurityInterceptor.java:115)
at org.springframework.security.web.access.intercept.FilterSecurityInterceptor.doFilter(FilterSecurityInterceptor.java:81)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.access.ExceptionTranslationFilter.doFilter(ExceptionTranslationFilter.java:122)
at org.springframework.security.web.access.ExceptionTranslationFilter.doFilter(ExceptionTranslationFilter.java:116)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.session.SessionManagementFilter.doFilter(SessionManagementFilter.java:126)
at org.springframework.security.web.session.SessionManagementFilter.doFilter(SessionManagementFilter.java:81)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.authentication.AnonymousAuthenticationFilter.doFilter(AnonymousAuthenticationFilter.java:109)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.apache.ranger.security.web.filter.RangerCSRFPreventionFilter$ServletFilterHttpInteraction.proceed(RangerCSRFPreventionFilter.java:237)
at org.apache.ranger.security.web.filter.RangerCSRFPreventionFilter.handleHttpInteraction(RangerCSRFPreventionFilter.java:179)
at org.apache.ranger.security.web.filter.RangerCSRFPreventionFilter.doFilter(RangerCSRFPreventionFilter.java:192)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.apache.ranger.security.web.filter.RangerKRBAuthenticationFilter.doFilter(RangerKRBAuthenticationFilter.java:384)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.servletapi.SecurityContextHolderAwareRequestFilter.doFilter(SecurityContextHolderAwareRequestFilter.java:149)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.savedrequest.RequestCacheAwareFilter.doFilter(RequestCacheAwareFilter.java:63)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.apache.ranger.security.web.filter.RangerSSOAuthenticationFilter.doFilter(RangerSSOAuthenticationFilter.java:283)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.authentication.www.BasicAuthenticationFilter.doFilterInternal(BasicAuthenticationFilter.java:166)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:117)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.authentication.AbstractAuthenticationProcessingFilter.doFilter(AbstractAuthenticationProcessingFilter.java:223)
at org.springframework.security.web.authentication.AbstractAuthenticationProcessingFilter.doFilter(AbstractAuthenticationProcessingFilter.java:217)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.authentication.logout.LogoutFilter.doFilter(LogoutFilter.java:103)
at org.springframework.security.web.authentication.logout.LogoutFilter.doFilter(LogoutFilter.java:89)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.header.HeaderWriterFilter.doHeadersAfter(HeaderWriterFilter.java:90)
at org.springframework.security.web.header.HeaderWriterFilter.doFilterInternal(HeaderWriterFilter.java:75)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:117)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.context.request.async.WebAsyncManagerIntegrationFilter.doFilterInternal(WebAsyncManagerIntegrationFilter.java:55)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:117)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.context.SecurityContextPersistenceFilter.doFilter(SecurityContextPersistenceFilter.java:112)
at org.springframework.security.web.context.SecurityContextPersistenceFilter.doFilter(SecurityContextPersistenceFilter.java:82)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.session.ForceEagerSessionCreationFilter.doFilterInternal(ForceEagerSessionCreationFilter.java:45)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:117)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.session.DisableEncodeUrlFilter.doFilterInternal(DisableEncodeUrlFilter.java:42)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:117)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)
at org.springframework.security.web.FilterChainProxy.doFilterInternal(FilterChainProxy.java:221)
at org.springframework.security.web.FilterChainProxy.doFilter(FilterChainProxy.java:186)
at org.springframework.web.filter.DelegatingFilterProxy.invokeDelegate(DelegatingFilterProxy.java:354)
at org.springframework.web.filter.DelegatingFilterProxy.doFilter(DelegatingFilterProxy.java:267)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:181)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:156)
at org.apache.catalina.core.StandardWrapperValve.invoke(StandardWrapperValve.java:167)
at org.apache.catalina.core.StandardContextValve.invoke(StandardContextValve.java:90)
at org.apache.catalina.authenticator.AuthenticatorBase.invoke(AuthenticatorBase.java:494)
at org.apache.catalina.core.StandardHostValve.invoke(StandardHostValve.java:130)
at org.apache.catalina.valves.ErrorReportValve.invoke(ErrorReportValve.java:93)
at org.apache.catalina.valves.AbstractAccessLogValve.invoke(AbstractAccessLogValve.java:682)
at org.apache.catalina.core.StandardEngineValve.invoke(StandardEngineValve.java:74)
at org.apache.catalina.connector.CoyoteAdapter.service(CoyoteAdapter.java:367)
at org.apache.coyote.http11.Http11Processor.service(Http11Processor.java:639)
at org.apache.coyote.AbstractProcessorLight.process(AbstractProcessorLight.java:63)
at org.apache.coyote.AbstractProtocol$ConnectionHandler.process(AbstractProtocol.java:932)
at org.apache.tomcat.util.net.NioEndpoint$SocketProcessor.doRun(NioEndpoint.java:1695)
at org.apache.tomcat.util.net.SocketProcessorBase.run(SocketProcessorBase.java:49)
at org.apache.tomcat.util.threads.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1191)
at org.apache.tomcat.util.threads.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:659)
at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
at java.lang.Thread.run(Thread.java:748)
2026-01-19 05:51:56,693 [timed-executor-pool-0] ERROR [KnoxClient.java:156] Exception on REST call to KnoxUrl : https://dev1:6543/gateway/admin/api/v1/topologies.
com.sun.jersey.api.client.ClientHandlerException: javax.net.ssl.SSLException: java.lang.RuntimeException: Unexpected error: java.security.InvalidAlgorithmParameterException: the trustAnchors parameter must be non-empty
at com.sun.jersey.client.urlconnection.URLConnectionClientHandler.handle(URLConnectionClientHandler.java:155)
at com.sun.jersey.api.client.filter.HTTPBasicAuthFilter.handle(HTTPBasicAuthFilter.java:105)
at com.sun.jersey.api.client.Client.handle(Client.java:652)
at com.sun.jersey.api.client.WebResource.handle(WebResource.java:682)
at com.sun.jersey.api.client.WebResource.access$200(WebResource.java:74)
at com.sun.jersey.api.client.WebResource$Builder.get(WebResource.java:509)
at org.apache.ranger.services.knox.client.KnoxClient.getTopologyList(KnoxClient.java:99)
at org.apache.ranger.services.knox.client.KnoxClient$2.call(KnoxClient.java:402)
at org.apache.ranger.services.knox.client.KnoxClient$2.call(KnoxClient.java:398)
at org.apache.ranger.services.knox.client.KnoxClient.timedTask(KnoxClient.java:427)
at org.apache.ranger.services.knox.client.KnoxClient.getKnoxResources(KnoxClient.java:406)
at org.apache.ranger.services.knox.client.KnoxResourceMgr.getKnoxResources(KnoxResourceMgr.java:106)
at org.apache.ranger.services.knox.RangerServiceKnox.lookupResource(RangerServiceKnox.java:108)
at org.apache.ranger.biz.ServiceMgr$LookupCallable.actualCall(ServiceMgr.java:637)
at org.apache.ranger.biz.ServiceMgr$LookupCallable.actualCall(ServiceMgr.java:621)
at org.apache.ranger.biz.ServiceMgr$TimedCallable.call(ServiceMgr.java:603)
at java.util.concurrent.FutureTask.run(FutureTask.java:266)
at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
at java.lang.Thread.run(Thread.java:748)
Caused by: javax.net.ssl.SSLException: java.lang.RuntimeException: Unexpected error: java.security.InvalidAlgorithmParameterException: the trustAnchors parameter must be non-empty
at sun.security.ssl.Alerts.getSSLException(Alerts.java:208)
at sun.security.ssl.SSLSocketImpl.fatal(SSLSocketImpl.java:1946)
at sun.security.ssl.SSLSocketImpl.fatal(SSLSocketImpl.java:1903)
at sun.security.ssl.SSLSocketImpl.handleException(SSLSocketImpl.java:1886)
at sun.security.ssl.SSLSocketImpl.startHandshake(SSLSocketImpl.java:1402)
at sun.security.ssl.SSLSocketImpl.startHandshake(SSLSocketImpl.java:1379)
at sun.net.www.protocol.https.HttpsClient.afterConnect(HttpsClient.java:559)
at sun.net.www.protocol.https.AbstractDelegateHttpsURLConnection.connect(AbstractDelegateHttpsURLConnection.java:185)
at sun.net.www.protocol.http.HttpURLConnection.getInputStream0(HttpURLConnection.java:1564)
at sun.net.www.protocol.http.HttpURLConnection.getInputStream(HttpURLConnection.java:1492)
at java.net.HttpURLConnection.getResponseCode(HttpURLConnection.java:480)
at sun.net.www.protocol.https.HttpsURLConnectionImpl.getResponseCode(HttpsURLConnectionImpl.java:347)
at com.sun.jersey.client.urlconnection.URLConnectionClientHandler._invoke(URLConnectionClientHandler.java:253)
at com.sun.jersey.client.urlconnection.URLConnectionClientHandler.handle(URLConnectionClientHandler.java:153)
... 19 common frames omitted
Caused by: java.lang.RuntimeException: Unexpected error: java.security.InvalidAlgorithmParameterException: the trustAnchors parameter must be non-empty
at sun.security.validator.PKIXValidator.<init>(PKIXValidator.java:91)
at sun.security.validator.Validator.getInstance(Validator.java:181)
at sun.security.ssl.X509TrustManagerImpl.getValidator(X509TrustManagerImpl.java:312)
at sun.security.ssl.X509TrustManagerImpl.checkTrustedInit(X509TrustManagerImpl.java:171)
at sun.security.ssl.X509TrustManagerImpl.checkTrusted(X509TrustManagerImpl.java:184)
at sun.security.ssl.X509TrustManagerImpl.checkServerTrusted(X509TrustManagerImpl.java:124)
at sun.security.ssl.ClientHandshaker.serverCertificate(ClientHandshaker.java:1621)
at sun.security.ssl.ClientHandshaker.processMessage(ClientHandshaker.java:223)
at sun.security.ssl.Handshaker.processLoop(Handshaker.java:1037)
at sun.security.ssl.Handshaker.process_record(Handshaker.java:965)
at sun.security.ssl.SSLSocketImpl.readRecord(SSLSocketImpl.java:1064)
at sun.security.ssl.SSLSocketImpl.performInitialHandshake(SSLSocketImpl.java:1367)
at sun.security.ssl.SSLSocketImpl.startHandshake(SSLSocketImpl.java:1395)
... 28 common frames omitted
Caused by: java.security.InvalidAlgorithmParameterException: the trustAnchors parameter must be non-empty
at java.security.cert.PKIXParameters.setTrustAnchors(PKIXParameters.java:200)
at java.security.cert.PKIXParameters.<init>(PKIXParameters.java:120)
at java.security.cert.PKIXBuilderParameters.<init>(PKIXBuilderParameters.java:104)
at sun.security.validator.PKIXValidator.<init>(PKIXValidator.java:89)
... 40 common frames omitted
2026-01-19 05:51:56,693 [timed-executor-pool-0] ERROR [RangerServiceKnox.java:111] <== RangerServiceKnox.lookupResource Error : org.apache.ranger.plugin.client.HadoopException: Exception on REST call to KnoxUrl : https://dev1:6543/gateway/admin/api/v1/topologies.
2026-01-19 05:51:56,694 [timed-executor-pool-0] ERROR [ServiceMgr.java:605] TimedCallable.call: Error:org.apache.ranger.plugin.client.HadoopException: Exception on REST call to KnoxUrl : https://dev1:6543/gateway/admin/api/v1/topologies.
2026-01-19 05:51:56,696 [http-nio-6080-exec-10] ERROR [ServiceREST.java:1196] lookupResource(abc_knox, ResourceLookupContext={resourceName=topology,userInput=,resources={topology=[]}}) failed
org.apache.ranger.plugin.client.HadoopException: org.apache.ranger.plugin.client.HadoopException: Exception on REST call to KnoxUrl : https://dev1:6543/gateway/admin/api/v1/topologies.结论先落地
这类
trustAnchors must be non-empty基本可以直接归到一类：JVM 在 TLS 握手时加载到的 trustStore 为空 / 未配置 /
指向了错误文件 / 文件不可读，导致 PKIX 校验初始化失败。
这是报错截图：
二、根因拆解：为什么是 trustAnchors must be non-empty
1、异常来自哪里
异常栈里最关键的一段是：
PKIXValidator.<init>PKIXParameters.setTrustAnchorsInvalidAlgorithmParameterException: the trustAnchors parameter must be non-empty
这句话翻译成人话
做证书链验证时，信任根证书列表是空的。换句话说：要么 trustStore 没有任何条目，要么 Ranger 进程根本没加载到该 trustStore。
2、为什么会在 Knox Topologies 请求上触发
Ranger Knox 插件在拉取资源（topologies）时走 HTTPS：
- 目标地址：
https://dev1:6543/gateway/admin/api/v1/topologies - 客户端：Ranger Admin（
org.apache.ranger.services.knox.client.KnoxClient）
只要 Knox 使用了自签或内网 CA，而 Ranger JVM 没把对应证书链加入信任库，就会在握手阶段失败。
一个很容易踩到的点
即使已经生成了
ranger-admin-truststore.jks，如果启动参数里没有带-Djavax.net.ssl.trustStore=...，效果等价于"没有配置"。
三、解决方案：导入 Knox 证书到 Ranger trustStore
::: danger 处理办法可参考
22206:解决办法
:::
六、验证结果：topologies 可访问 + Knox 权限联动正常

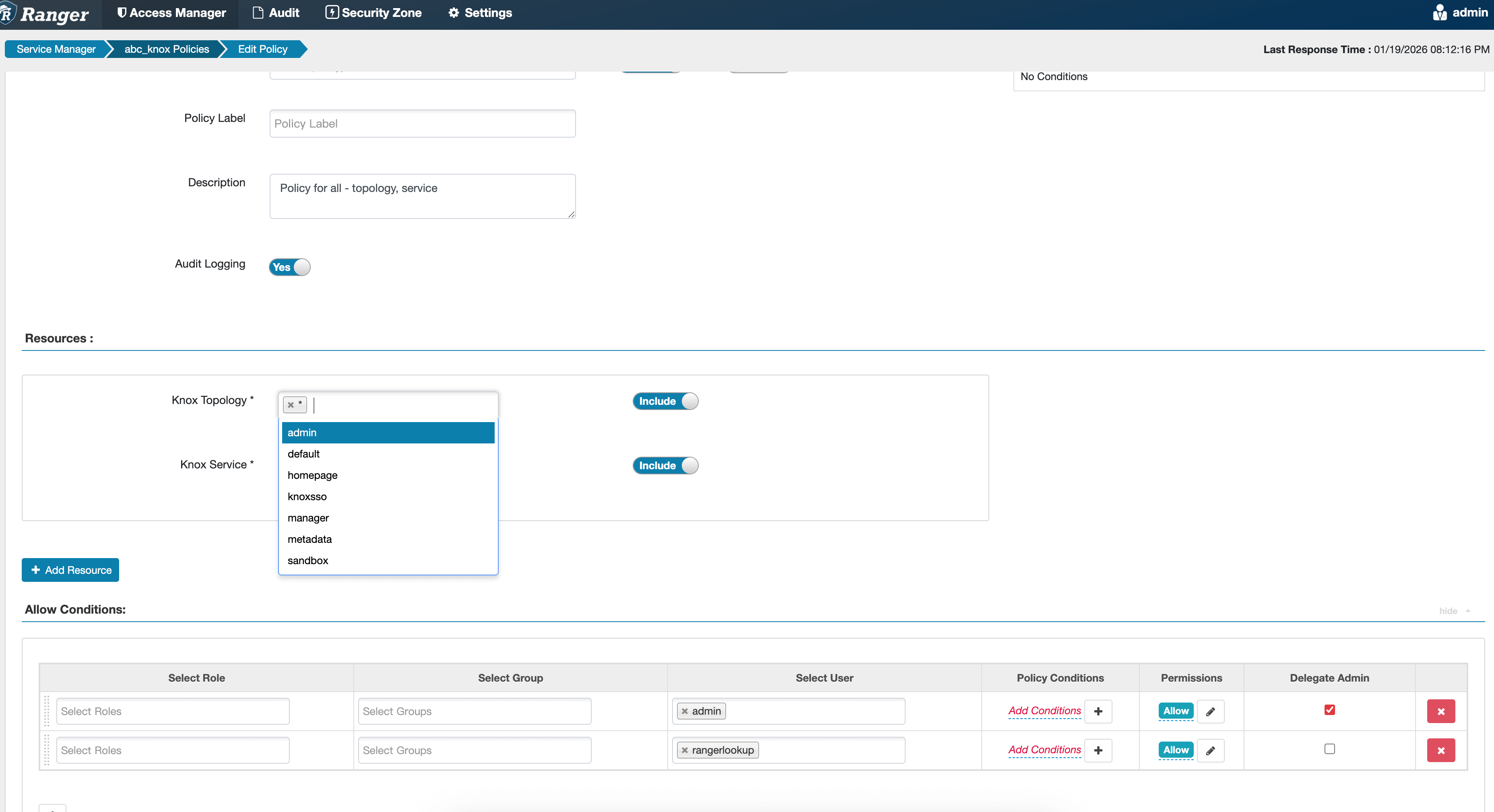

1、Ranger 侧 Resource Lookup 恢复
2、策略验证：只允许访问 HDFS，其它全部拒绝

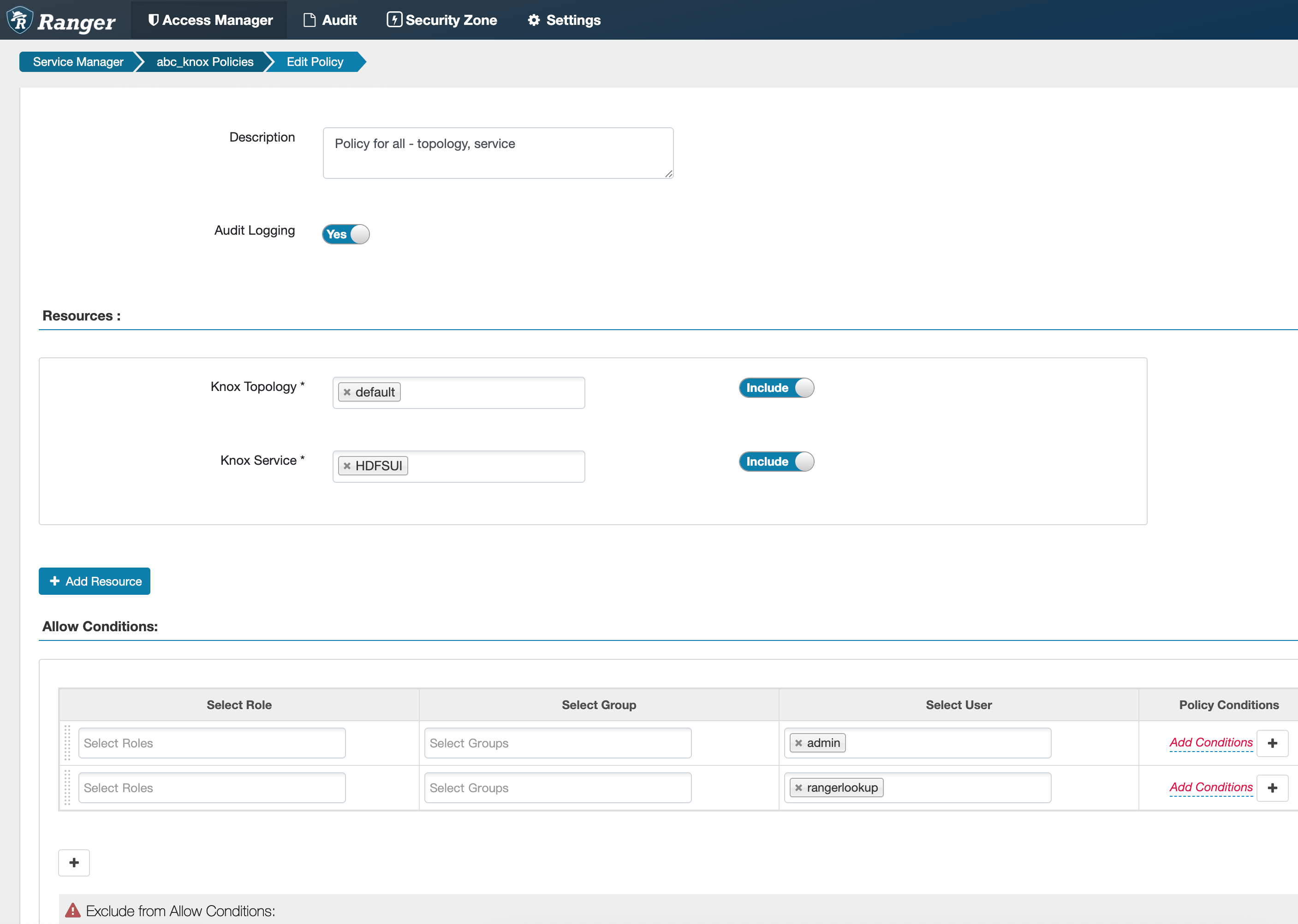

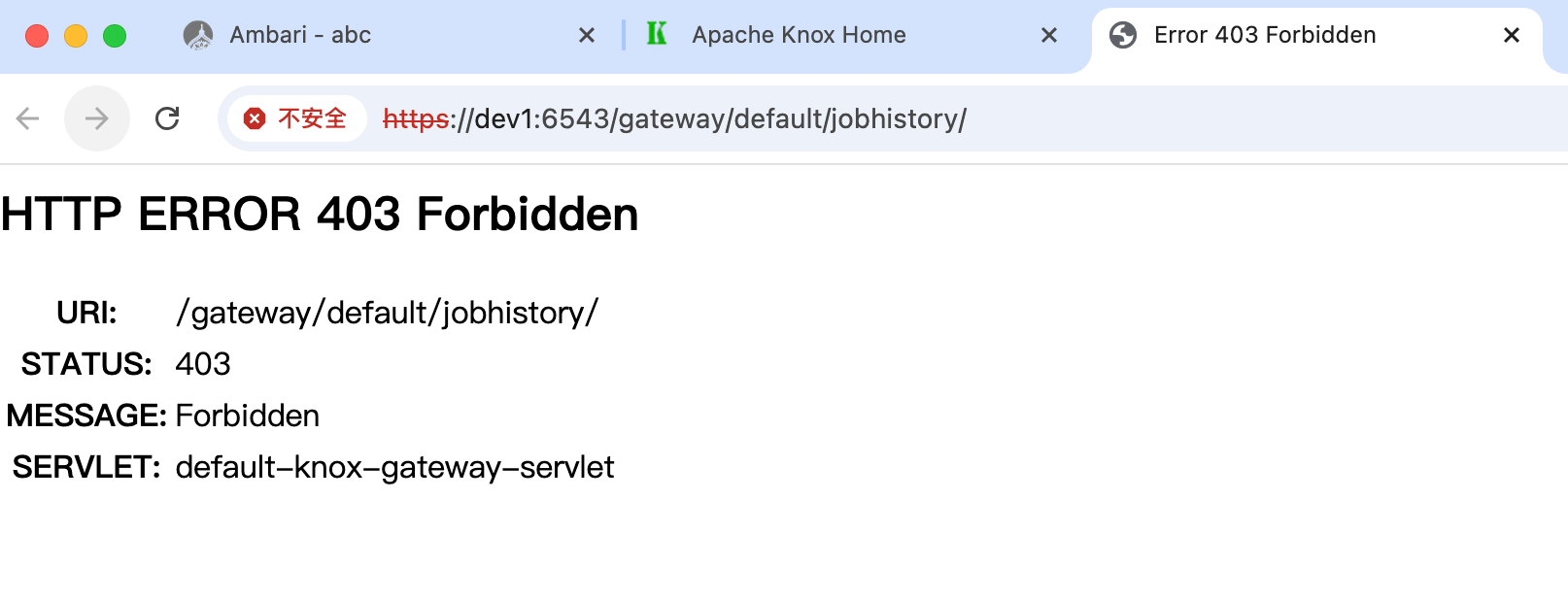

当配置为"只能访问 hdfs"后，其它就访问不了了：

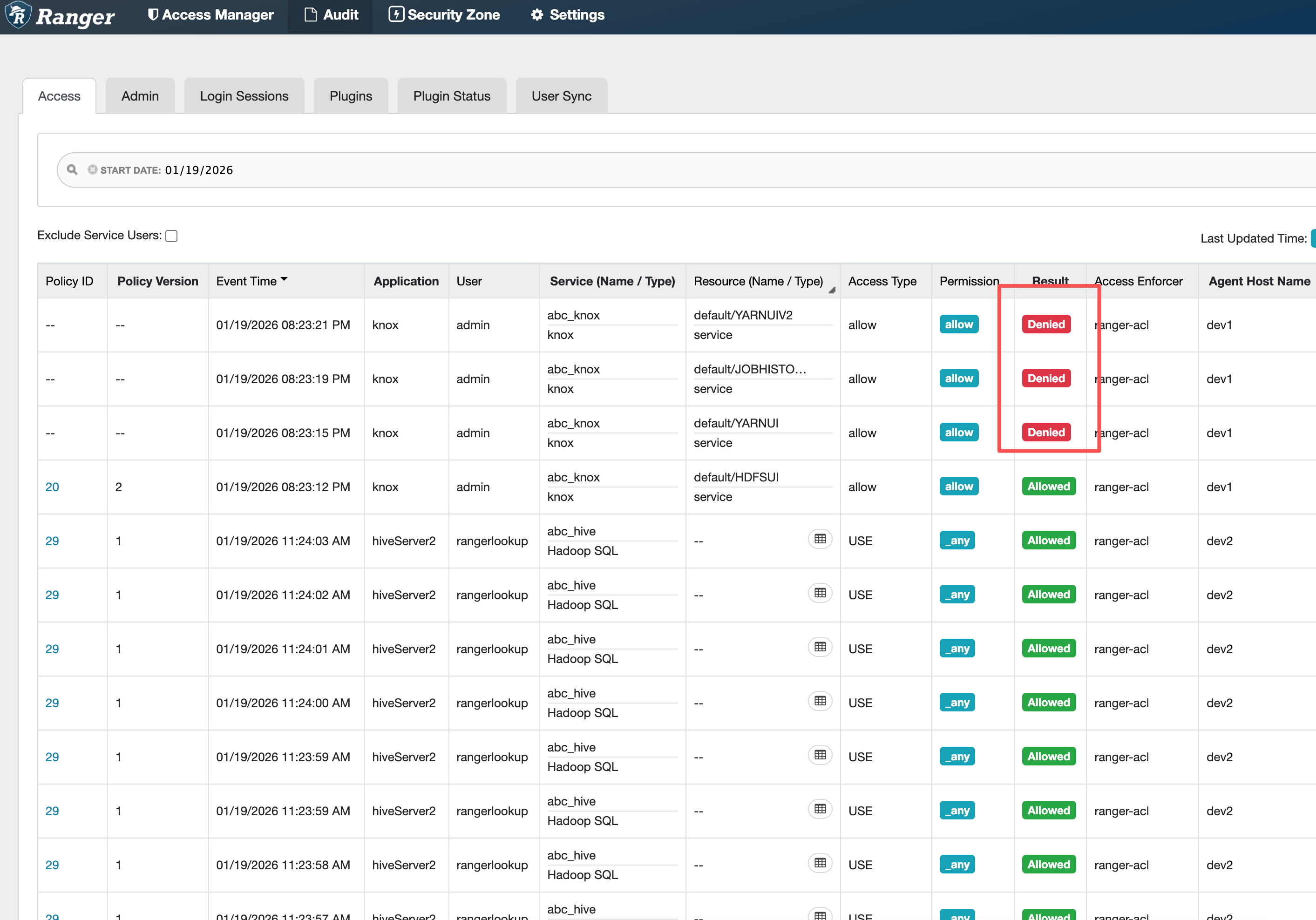

被拒绝时，日志会显示拒绝记录：
这一步的意义
证书问题解决后，Ranger ↔ Knox 的联动就回到"正常的权限治理问题"，后续只需要按策略与审计来验证访问边界即可。
