进阶实战 Flutter for OpenHarmony:ClipPath 自定义裁剪系统 - 高级视觉效果实现

欢迎加入开源鸿蒙跨平台社区:https://openharmonycrossplatform.csdn.net


一、ClipPath 系统架构深度解析

在现代移动应用开发中,裁剪效果是创建独特视觉形状和提升用户界面美观度的重要手段。Flutter 提供了强大的 ClipPath 组件,通过自定义路径实现各种复杂的裁剪效果。理解路径裁剪的底层原理,是掌握高级视觉效果的关键。

📱 1.1 ClipPath 核心概念

ClipPath 是 Flutter 中用于对子组件进行路径裁剪的 Widget。它通过 CustomClipper 定义裁剪路径,将子组件裁剪成任意形状,而不影响子组件的实际布局。

ClipPath 与其他裁剪组件的关系:

复制代码
┌─────────────────────────────────────────────────────────────────┐
│                    Flutter 裁剪组件体系                          │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  ┌─────────────────────────────────────────────────────────┐    │
│  │                    ClipPath (路径裁剪)                   │    │
│  │  最灵活的裁剪方式,支持任意形状                           │    │
│  └─────────────────────────────────────────────────────────┘    │
│                              │                                   │
│              ┌───────────────┼───────────────┐                  │
│              ▼               ▼               ▼                  │
│  ┌───────────────┐ ┌───────────────┐ ┌───────────────┐          │
│  │  ClipRect     │ │  ClipRRect    │ │  ClipOval     │          │
│  │  矩形裁剪     │ │  圆角矩形裁剪 │ │  椭圆裁剪     │          │
│  └───────────────┘ └───────────────┘ └───────────────┘          │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

ClipPath 核心属性:

属性 类型 说明 应用场景
clipper CustomClipper 裁剪器 定义裁剪路径
clipBehavior Clip 裁剪行为 控制裁剪方式
child Widget 子组件 被裁剪的内容

🔬 1.2 Path 路径绘制原理

Path 是 Flutter 中定义几何路径的核心类,通过一系列绘图命令(移动、连线、曲线等)构建复杂的形状。

Path 常用方法:

dart 复制代码
// 创建路径
final path = Path();

// 移动到指定点
path.moveTo(x, y);

// 绘制直线
path.lineTo(x, y);

// 绘制相对直线
path.relativeLineTo(dx, dy);

// 绘制二次贝塞尔曲线
path.quadraticBezierTo(x1, y1, x2, y2);

// 绘制三次贝塞尔曲线
path.cubicTo(x1, y1, x2, y2, x3, y3);

// 绘制圆弧
path.arcTo(rect, startAngle, sweepAngle, forceMoveTo);

// 绘制圆
path.addOval(rect);

// 绘制矩形
path.addRect(rect);

// 绘制圆角矩形
path.addRRect(rrect);

// 绘制多边形
path.addPolygon(points, close);

// 闭合路径
path.close();

路径组合操作:

dart 复制代码
// 路径相加(并集)
Path.combine(PathOperation.union, path1, path2);

// 路径相减(差集)
Path.combine(PathOperation.difference, path1, path2);

// 路径交集
Path.combine(PathOperation.intersect, path1, path2);

// 路径异或
Path.combine(PathOperation.xor, path1, path2);

// 反转路径
Path.combine(PathOperation.reverseDifference, path1, path2);

🎯 1.3 CustomClipper 工作原理

CustomClipper 是定义裁剪逻辑的核心抽象类,通过重写 getClip 和 shouldReclip 方法实现自定义裁剪。

dart 复制代码
abstract class CustomClipper<T> {
  T getClip(Size size);           // 返回裁剪区域
  bool shouldReclip(covariant CustomClipper<T> oldClipper);  // 是否重新裁剪
}

CustomClipper 工作流程:

复制代码
┌─────────────────────────────────────────────────────────────────┐
│                  CustomClipper 工作流程                          │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  1. 组件构建                                                    │
│     │                                                          │
│     ▼                                                          │
│  2. 调用 getClip(size) 获取裁剪路径                             │
│     │                                                          │
│     ▼                                                          │
│  3. 应用裁剪路径到子组件                                        │
│     │                                                          │
│     ▼                                                          │
│  4. 状态更新时调用 shouldReclip() 判断是否重新裁剪              │
│     │                                                          │
│     ├── true  -> 重新调用 getClip()                            │
│     └── false -> 保持现有裁剪                                   │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

二、基础裁剪形状实现

掌握了 ClipPath 的基本原理后,让我们通过实际的代码示例来学习各种裁剪效果的实现方法。

👆 2.1 三角形裁剪

三角形是最基础的裁剪形状,通过三个点连线闭合形成。

dart 复制代码
import 'dart:math';
import 'package:flutter/material.dart';

/// 三角形裁剪器
class TriangleClipper extends CustomClipper<Path> {
  final bool isUpward;

  TriangleClipper({this.isUpward = true});

  @override
  Path getClip(Size size) {
    final path = Path();

    if (isUpward) {
      path.moveTo(size.width / 2, 0);
      path.lineTo(size.width, size.height);
      path.lineTo(0, size.height);
    } else {
      path.moveTo(0, 0);
      path.lineTo(size.width, 0);
      path.lineTo(size.width / 2, size.height);
    }

    path.close();
    return path;
  }

  @override
  bool shouldReclip(TriangleClipper oldClipper) => isUpward != oldClipper.isUpward;
}

/// 三角形裁剪示例
class TriangleClipDemo extends StatelessWidget {
  const TriangleClipDemo({super.key});

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('三角形裁剪')),
      body: Center(
        child: Column(
          mainAxisAlignment: MainAxisAlignment.center,
          children: [
            ClipPath(
              clipper: TriangleClipper(isUpward: true),
              child: Container(
                width: 200,
                height: 200,
                decoration: const BoxDecoration(
                  gradient: LinearGradient(
                    colors: [Colors.blue, Colors.cyan],
                    begin: Alignment.topCenter,
                    end: Alignment.bottomCenter,
                  ),
                ),
                child: const Center(
                  child: Text(
                    '向上三角形',
                    style: TextStyle(color: Colors.white, fontSize: 18, fontWeight: FontWeight.bold),
                  ),
                ),
              ),
            ),
            const SizedBox(height: 40),
            ClipPath(
              clipper: TriangleClipper(isUpward: false),
              child: Container(
                width: 200,
                height: 200,
                decoration: const BoxDecoration(
                  gradient: LinearGradient(
                    colors: [Colors.purple, Colors.pink],
                    begin: Alignment.topCenter,
                    end: Alignment.bottomCenter,
                  ),
                ),
                child: const Center(
                  child: Padding(
                    padding: EdgeInsets.only(top: 80),
                    child: Text(
                      '向下三角形',
                      style: TextStyle(color: Colors.white, fontSize: 18, fontWeight: FontWeight.bold),
                    ),
                  ),
                ),
              ),
            ),
          ],
        ),
      ),
    );
  }
}

🔧 2.2 多边形裁剪

多边形裁剪通过连接多个顶点形成封闭区域,可以创建各种正多边形效果。

dart 复制代码
/// 多边形裁剪器
class PolygonClipper extends CustomClipper<Path> {
  final int sides;

  PolygonClipper({required this.sides});

  @override
  Path getClip(Size size) {
    final path = Path();
    final center = Offset(size.width / 2, size.height / 2);
    final radius = min(size.width, size.height) / 2;

    for (int i = 0; i < sides; i++) {
      final angle = (2 * pi * i / sides) - pi / 2;
      final x = center.dx + radius * cos(angle);
      final y = center.dy + radius * sin(angle);

      if (i == 0) {
        path.moveTo(x, y);
      } else {
        path.lineTo(x, y);
      }
    }

    path.close();
    return path;
  }

  @override
  bool shouldReclip(PolygonClipper oldClipper) => sides != oldClipper.sides;
}

/// 多边形裁剪示例
class PolygonClipDemo extends StatefulWidget {
  const PolygonClipDemo({super.key});

  @override
  State<PolygonClipDemo> createState() => _PolygonClipDemoState();
}

class _PolygonClipDemoState extends State<PolygonClipDemo> {
  int _sides = 6;

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('多边形裁剪')),
      body: Column(
        children: [
          Expanded(
            child: Center(
              child: ClipPath(
                clipper: PolygonClipper(sides: _sides),
                child: Container(
                  width: 200,
                  height: 200,
                  decoration: BoxDecoration(
                    gradient: LinearGradient(
                      colors: [
                        Colors.primaries[_sides % Colors.primaries.length],
                        Colors.primaries[(_sides + 1) % Colors.primaries.length],
                      ],
                      begin: Alignment.topLeft,
                      end: Alignment.bottomRight,
                    ),
                  ),
                  child: Center(
                    child: Text(
                      '$_sides边形',
                      style: const TextStyle(
                        color: Colors.white,
                        fontSize: 24,
                        fontWeight: FontWeight.bold,
                      ),
                    ),
                  ),
                ),
              ),
            ),
          ),
          Container(
            padding: const EdgeInsets.all(16),
            decoration: BoxDecoration(
              color: Colors.grey[100],
              borderRadius: const BorderRadius.vertical(top: Radius.circular(20)),
            ),
            child: Column(
              children: [
                Row(
                  children: [
                    const SizedBox(width: 80, child: Text('边数:')),
                    Expanded(
                      child: Slider(
                        value: _sides.toDouble(),
                        min: 3,
                        max: 12,
                        divisions: 9,
                        activeColor: Colors.teal,
                        onChanged: (value) => setState(() => _sides = value.round()),
                      ),
                    ),
                    SizedBox(width: 60, child: Text('$_sides边形')),
                  ],
                ),
              ],
            ),
          ),
        ],
      ),
    );
  }
}

🎨 2.3 星形裁剪

星形裁剪通过交替内外半径的点连接形成,可以创建各种星形效果。

dart 复制代码
/// 星形裁剪器
class StarClipper extends CustomClipper<Path> {
  final int points;
  final double innerRadiusRatio;

  StarClipper({required this.points, this.innerRadiusRatio = 0.5});

  @override
  Path getClip(Size size) {
    final path = Path();
    final center = Offset(size.width / 2, size.height / 2);
    final outerRadius = min(size.width, size.height) / 2;
    final innerRadius = outerRadius * innerRadiusRatio;

    for (int i = 0; i < points * 2; i++) {
      final radius = i.isEven ? outerRadius : innerRadius;
      final angle = (pi * i / points) - pi / 2;
      final x = center.dx + radius * cos(angle);
      final y = center.dy + radius * sin(angle);

      if (i == 0) {
        path.moveTo(x, y);
      } else {
        path.lineTo(x, y);
      }
    }

    path.close();
    return path;
  }

  @override
  bool shouldReclip(StarClipper oldClipper) =>
      points != oldClipper.points || innerRadiusRatio != oldClipper.innerRadiusRatio;
}

/// 星形裁剪示例
class StarClipDemo extends StatefulWidget {
  const StarClipDemo({super.key});

  @override
  State<StarClipDemo> createState() => _StarClipDemoState();
}

class _StarClipDemoState extends State<StarClipDemo> {
  int _points = 5;
  double _innerRadius = 0.5;

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('星形裁剪')),
      body: Column(
        children: [
          Expanded(
            child: Center(
              child: ClipPath(
                clipper: StarClipper(points: _points, innerRadiusRatio: _innerRadius),
                child: Container(
                  width: 200,
                  height: 200,
                  decoration: const BoxDecoration(
                    gradient: LinearGradient(
                      colors: [Colors.amber, Colors.orange],
                      begin: Alignment.topLeft,
                      end: Alignment.bottomRight,
                    ),
                  ),
                  child: Center(
                    child: Text(
                      '$_points角星',
                      style: const TextStyle(
                        color: Colors.white,
                        fontSize: 24,
                        fontWeight: FontWeight.bold,
                      ),
                    ),
                  ),
                ),
              ),
            ),
          ),
          Container(
            padding: const EdgeInsets.all(16),
            decoration: BoxDecoration(
              color: Colors.grey[100],
              borderRadius: const BorderRadius.vertical(top: Radius.circular(20)),
            ),
            child: Column(
              children: [
                Row(
                  children: [
                    const SizedBox(width: 80, child: Text('角数:')),
                    Expanded(
                      child: Slider(
                        value: _points.toDouble(),
                        min: 3,
                        max: 12,
                        divisions: 9,
                        activeColor: Colors.amber,
                        onChanged: (value) => setState(() => _points = value.round()),
                      ),
                    ),
                    SizedBox(width: 60, child: Text('$_points角')),
                  ],
                ),
                Row(
                  children: [
                    const SizedBox(width: 80, child: Text('内径比:')),
                    Expanded(
                      child: Slider(
                        value: _innerRadius,
                        min: 0.1,
                        max: 0.9,
                        divisions: 16,
                        activeColor: Colors.orange,
                        onChanged: (value) => setState(() => _innerRadius = value),
                      ),
                    ),
                    SizedBox(width: 60, child: Text(_innerRadius.toStringAsFixed(2))),
                  ],
                ),
              ],
            ),
          ),
        ],
      ),
    );
  }
}

三、波浪形裁剪效果

波浪形裁剪是常见的装饰效果,可以创建优美的曲线边界。

🌊 3.1 正弦波浪裁剪

使用正弦函数创建平滑的波浪边界。

dart 复制代码
/// 波浪裁剪器
class WaveClipper extends CustomClipper<Path> {
  final double waveHeight;
  final double waveFrequency;
  final bool isTop;

  WaveClipper({
    this.waveHeight = 20,
    this.waveFrequency = 2,
    this.isTop = true,
  });

  @override
  Path getClip(Size size) {
    final path = Path();

    if (isTop) {
      path.moveTo(0, waveHeight);
      for (double i = 0; i <= size.width; i++) {
        final y = waveHeight + sin(i * waveFrequency * 2 * pi / size.width) * waveHeight;
        path.lineTo(i, y);
      }
      path.lineTo(size.width, size.height);
      path.lineTo(0, size.height);
    } else {
      path.moveTo(0, 0);
      path.lineTo(size.width, 0);
      for (double i = size.width; i >= 0; i--) {
        final y = size.height - waveHeight - sin(i * waveFrequency * 2 * pi / size.width) * waveHeight;
        path.lineTo(i, y);
      }
    }

    path.close();
    return path;
  }

  @override
  bool shouldReclip(WaveClipper oldClipper) =>
      waveHeight != oldClipper.waveHeight ||
      waveFrequency != oldClipper.waveFrequency ||
      isTop != oldClipper.isTop;
}

/// 波浪裁剪示例
class WaveClipDemo extends StatefulWidget {
  const WaveClipDemo({super.key});

  @override
  State<WaveClipDemo> createState() => _WaveClipDemoState();
}

class _WaveClipDemoState extends State<WaveClipDemo> {
  double _waveHeight = 20;
  double _waveFrequency = 2;

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('波浪裁剪')),
      body: Column(
        children: [
          ClipPath(
            clipper: WaveClipper(waveHeight: _waveHeight, waveFrequency: _waveFrequency, isTop: true),
            child: Container(
              height: 200,
              decoration: const BoxDecoration(
                gradient: LinearGradient(
                  colors: [Colors.blue, Colors.cyan],
                  begin: Alignment.topLeft,
                  end: Alignment.bottomRight,
                ),
              ),
              child: const Center(
                child: Text(
                  '顶部波浪',
                  style: TextStyle(color: Colors.white, fontSize: 24, fontWeight: FontWeight.bold),
                ),
              ),
            ),
          ),
          Expanded(
            child: Container(
              color: Colors.grey[100],
              child: Center(
                child: Column(
                  mainAxisAlignment: MainAxisAlignment.center,
                  children: [
                    const Text('内容区域', style: TextStyle(fontSize: 18, color: Colors.grey)),
                    const SizedBox(height: 20),
                    Container(
                      padding: const EdgeInsets.symmetric(horizontal: 20, vertical: 10),
                      decoration: BoxDecoration(
                        color: Colors.blue.withOpacity(0.1),
                        borderRadius: BorderRadius.circular(20),
                      ),
                      child: const Text('波浪高度和频率可通过下方滑块调整'),
                    ),
                  ],
                ),
              ),
            ),
          ),
          ClipPath(
            clipper: WaveClipper(waveHeight: _waveHeight, waveFrequency: _waveFrequency, isTop: false),
            child: Container(
              height: 100,
              decoration: const BoxDecoration(
                gradient: LinearGradient(
                  colors: [Colors.teal, Colors.green],
                  begin: Alignment.topLeft,
                  end: Alignment.bottomRight,
                ),
              ),
            ),
          ),
          Container(
            padding: const EdgeInsets.all(16),
            decoration: BoxDecoration(
              color: Colors.grey[100],
              borderRadius: const BorderRadius.vertical(top: Radius.circular(20)),
            ),
            child: Column(
              children: [
                Row(
                  children: [
                    const SizedBox(width: 80, child: Text('波浪高度:')),
                    Expanded(
                      child: Slider(
                        value: _waveHeight,
                        min: 5,
                        max: 50,
                        divisions: 18,
                        activeColor: Colors.blue,
                        onChanged: (value) => setState(() => _waveHeight = value),
                      ),
                    ),
                    SizedBox(width: 60, child: Text('${_waveHeight.toStringAsFixed(0)}px')),
                  ],
                ),
                Row(
                  children: [
                    const SizedBox(width: 80, child: Text('波浪频率:')),
                    Expanded(
                      child: Slider(
                        value: _waveFrequency,
                        min: 1,
                        max: 5,
                        divisions: 8,
                        activeColor: Colors.teal,
                        onChanged: (value) => setState(() => _waveFrequency = value),
                      ),
                    ),
                    SizedBox(width: 60, child: Text('${_waveFrequency.toStringAsFixed(1)}')),
                  ],
                ),
              ],
            ),
          ),
        ],
      ),
    );
  }
}

💬 3.2 贝塞尔曲线波浪

使用贝塞尔曲线创建更平滑的波浪效果。

dart 复制代码
/// 贝塞尔波浪裁剪器
class BezierWaveClipper extends CustomClipper<Path> {
  final double waveHeight;
  final int waveCount;

  BezierWaveClipper({this.waveHeight = 30, this.waveCount = 2});

  @override
  Path getClip(Size size) {
    final path = Path();
    final waveWidth = size.width / waveCount;

    path.moveTo(0, size.height);
    path.lineTo(0, size.height - waveHeight);

    for (int i = 0; i < waveCount; i++) {
      final startX = i * waveWidth;
      final midX = startX + waveWidth / 2;
      final endX = startX + waveWidth;

      path.quadraticBezierTo(
        midX, size.height - waveHeight * 2,
        endX, size.height - waveHeight,
      );
    }

    path.lineTo(size.width, size.height);
    path.close();

    return path;
  }

  @override
  bool shouldReclip(BezierWaveClipper oldClipper) =>
      waveHeight != oldClipper.waveHeight || waveCount != oldClipper.waveCount;
}

四、复杂裁剪效果实现

🔐 4.1 圆角缺口裁剪

创建带有圆角缺口的形状,常用于优惠券、卡片等设计。

dart 复制代码
/// 圆角缺口裁剪器
class NotchedClipper extends CustomClipper<Path> {
  final double notchRadius;
  final double notchPosition;
  final bool isLeft;

  NotchedClipper({
    this.notchRadius = 20,
    this.notchPosition = 0.5,
    this.isLeft = true,
  });

  @override
  Path getClip(Size size) {
    final path = Path();
    final notchY = size.height * notchPosition;

    if (isLeft) {
      path.moveTo(0, 0);
      path.lineTo(0, notchY - notchRadius);
      path.arcToPoint(
        Offset(0, notchY + notchRadius),
        radius: Radius.circular(notchRadius),
        clockwise: false,
      );
      path.lineTo(0, size.height);
      path.lineTo(size.width, size.height);
      path.lineTo(size.width, 0);
    } else {
      path.moveTo(0, 0);
      path.lineTo(size.width, 0);
      path.lineTo(size.width, notchY - notchRadius);
      path.arcToPoint(
        Offset(size.width, notchY + notchRadius),
        radius: Radius.circular(notchRadius),
        clockwise: true,
      );
      path.lineTo(size.width, size.height);
      path.lineTo(0, size.height);
    }

    path.close();
    return path;
  }

  @override
  bool shouldReclip(NotchedClipper oldClipper) =>
      notchRadius != oldClipper.notchRadius ||
      notchPosition != oldClipper.notchPosition ||
      isLeft != oldClipper.isLeft;
}

/// 优惠券样式裁剪示例
class CouponClipDemo extends StatelessWidget {
  const CouponClipDemo({super.key});

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('优惠券裁剪')),
      body: Center(
        child: Column(
          mainAxisAlignment: MainAxisAlignment.center,
          children: [
            ClipPath(
              clipper: NotchedClipper(isLeft: true, notchRadius: 25),
              child: Container(
                width: 320,
                height: 120,
                decoration: const BoxDecoration(
                  gradient: LinearGradient(
                    colors: [Colors.orange, Colors.deepOrange],
                    begin: Alignment.centerLeft,
                    end: Alignment.centerRight,
                  ),
                ),
                child: Row(
                  children: [
                    Container(
                      width: 100,
                      alignment: Alignment.center,
                      child: const Column(
                        mainAxisAlignment: MainAxisAlignment.center,
                        children: [
                          Text('¥50', style: TextStyle(color: Colors.white, fontSize: 28, fontWeight: FontWeight.bold)),
                          Text('优惠券', style: TextStyle(color: Colors.white70, fontSize: 12)),
                        ],
                      ),
                    ),
                    Container(
                      width: 1,
                      height: 60,
                      color: Colors.white.withOpacity(0.3),
                    ),
                    Expanded(
                      child: Padding(
                        padding: const EdgeInsets.all(16),
                        child: Column(
                          mainAxisAlignment: MainAxisAlignment.center,
                          crossAxisAlignment: CrossAxisAlignment.start,
                          children: [
                            const Text('满100元可用', style: TextStyle(color: Colors.white, fontSize: 16, fontWeight: FontWeight.bold)),
                            const SizedBox(height: 4),
                            Text('有效期至 2024-12-31', style: TextStyle(color: Colors.white.withOpacity(0.8), fontSize: 12)),
                          ],
                        ),
                      ),
                    ),
                  ],
                ),
              ),
            ),
            const SizedBox(height: 30),
            ClipPath(
              clipper: DoubleNotchedClipper(notchRadius: 20),
              child: Container(
                width: 320,
                height: 120,
                decoration: const BoxDecoration(
                  gradient: LinearGradient(
                    colors: [Colors.purple, Colors.pink],
                    begin: Alignment.centerLeft,
                    end: Alignment.centerRight,
                  ),
                ),
                child: Row(
                  children: [
                    Container(
                      width: 100,
                      alignment: Alignment.center,
                      child: const Column(
                        mainAxisAlignment: MainAxisAlignment.center,
                        children: [
                          Text('¥100', style: TextStyle(color: Colors.white, fontSize: 28, fontWeight: FontWeight.bold)),
                          Text('折扣券', style: TextStyle(color: Colors.white70, fontSize: 12)),
                        ],
                      ),
                    ),
                    Container(
                      width: 1,
                      height: 60,
                      color: Colors.white.withOpacity(0.3),
                    ),
                    Expanded(
                      child: Padding(
                        padding: const EdgeInsets.all(16),
                        child: Column(
                          mainAxisAlignment: MainAxisAlignment.center,
                          crossAxisAlignment: CrossAxisAlignment.start,
                          children: [
                            const Text('全场通用', style: TextStyle(color: Colors.white, fontSize: 16, fontWeight: FontWeight.bold)),
                            const SizedBox(height: 4),
                            Text('有效期至 2024-12-31', style: TextStyle(color: Colors.white.withOpacity(0.8), fontSize: 12)),
                          ],
                        ),
                      ),
                    ),
                  ],
                ),
              ),
            ),
          ],
        ),
      ),
    );
  }
}

/// 双缺口裁剪器
class DoubleNotchedClipper extends CustomClipper<Path> {
  final double notchRadius;

  DoubleNotchedClipper({this.notchRadius = 20});

  @override
  Path getClip(Size size) {
    final path = Path();
    final centerY = size.height / 2;

    path.moveTo(0, 0);
    path.lineTo(0, centerY - notchRadius);
    path.arcToPoint(
      Offset(0, centerY + notchRadius),
      radius: Radius.circular(notchRadius),
      clockwise: false,
    );
    path.lineTo(0, size.height);
    path.lineTo(size.width, size.height);
    path.lineTo(size.width, centerY + notchRadius);
    path.arcToPoint(
      Offset(size.width, centerY - notchRadius),
      radius: Radius.circular(notchRadius),
      clockwise: false,
    );
    path.lineTo(size.width, 0);

    path.close();
    return path;
  }

  @override
  bool shouldReclip(DoubleNotchedClipper oldClipper) =>
      notchRadius != oldClipper.notchRadius;
}

🎵 4.2 对角线裁剪

创建对角线切割效果,常用于卡片和背景装饰。

dart 复制代码
/// 对角线裁剪器
class DiagonalClipper extends CustomClipper<Path> {
  final double clipHeight;
  final bool isTopLeft;

  DiagonalClipper({this.clipHeight = 50, this.isTopLeft = true});

  @override
  Path getClip(Size size) {
    final path = Path();

    if (isTopLeft) {
      path.moveTo(0, clipHeight);
      path.lineTo(size.width, 0);
      path.lineTo(size.width, size.height);
      path.lineTo(0, size.height);
    } else {
      path.moveTo(0, 0);
      path.lineTo(size.width, clipHeight);
      path.lineTo(size.width, size.height);
      path.lineTo(0, size.height);
    }

    path.close();
    return path;
  }

  @override
  bool shouldReclip(DiagonalClipper oldClipper) =>
      clipHeight != oldClipper.clipHeight || isTopLeft != oldClipper.isTopLeft;
}

/// 对角线裁剪示例
class DiagonalClipDemo extends StatelessWidget {
  const DiagonalClipDemo({super.key});

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('对角线裁剪')),
      body: Column(
        children: [
          ClipPath(
            clipper: DiagonalClipper(clipHeight: 80, isTopLeft: true),
            child: Container(
              height: 200,
              decoration: const BoxDecoration(
                gradient: LinearGradient(
                  colors: [Colors.indigo, Colors.purple],
                  begin: Alignment.topLeft,
                  end: Alignment.bottomRight,
                ),
              ),
              child: const Center(
                child: Padding(
                  padding: EdgeInsets.only(top: 50),
                  child: Text(
                    '对角线裁剪效果',
                    style: TextStyle(color: Colors.white, fontSize: 24, fontWeight: FontWeight.bold),
                  ),
                ),
              ),
            ),
          ),
          Expanded(
            child: Center(
              child: Row(
                mainAxisAlignment: MainAxisAlignment.spaceEvenly,
                children: [
                  ClipPath(
                    clipper: DiagonalClipper(clipHeight: 40, isTopLeft: true),
                    child: Container(
                      width: 150,
                      height: 100,
                      color: Colors.teal,
                      child: const Center(
                        child: Padding(
                          padding: EdgeInsets.only(top: 20),
                          child: Text('卡片1', style: TextStyle(color: Colors.white, fontWeight: FontWeight.bold)),
                        ),
                      ),
                    ),
                  ),
                  ClipPath(
                    clipper: DiagonalClipper(clipHeight: 40, isTopLeft: false),
                    child: Container(
                      width: 150,
                      height: 100,
                      color: Colors.orange,
                      child: const Center(
                        child: Text('卡片2', style: TextStyle(color: Colors.white, fontWeight: FontWeight.bold)),
                      ),
                    ),
                  ),
                ],
              ),
            ),
          ),
        ],
      ),
    );
  }
}

五、动画裁剪效果

🎬 5.1 揭开动画裁剪

通过动画控制裁剪区域,创建揭开效果。

dart 复制代码
/// 揭开动画裁剪器
class RevealClipper extends CustomClipper<Path> {
  final double revealFactor;
  final Axis direction;

  RevealClipper({required this.revealFactor, this.direction = Axis.horizontal});

  @override
  Path getClip(Size size) {
    final path = Path();

    if (direction == Axis.horizontal) {
      final revealWidth = size.width * revealFactor;
      path.addRect(Rect.fromLTWH(0, 0, revealWidth, size.height));
    } else {
      final revealHeight = size.height * revealFactor;
      path.addRect(Rect.fromLTWH(0, 0, size.width, revealHeight));
    }

    return path;
  }

  @override
  bool shouldReclip(RevealClipper oldClipper) =>
      revealFactor != oldClipper.revealFactor || direction != oldClipper.direction;
}

/// 揭开动画示例
class RevealClipDemo extends StatefulWidget {
  const RevealClipDemo({super.key});

  @override
  State<RevealClipDemo> createState() => _RevealClipDemoState();
}

class _RevealClipDemoState extends State<RevealClipDemo>
    with SingleTickerProviderStateMixin {
  late AnimationController _controller;
  late Animation<double> _animation;

  @override
  void initState() {
    super.initState();
    _controller = AnimationController(
      duration: const Duration(seconds: 2),
      vsync: this,
    );
    _animation = Tween<double>(begin: 0, end: 1).animate(
      CurvedAnimation(parent: _controller, curve: Curves.easeInOut),
    );
  }

  @override
  void dispose() {
    _controller.dispose();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('揭开动画裁剪')),
      body: Center(
        child: Column(
          mainAxisAlignment: MainAxisAlignment.center,
          children: [
            AnimatedBuilder(
              animation: _animation,
              builder: (context, child) {
                return ClipPath(
                  clipper: RevealClipper(revealFactor: _animation.value),
                  child: Container(
                    width: 300,
                    height: 200,
                    decoration: const BoxDecoration(
                      gradient: LinearGradient(
                        colors: [Colors.blue, Colors.purple],
                        begin: Alignment.centerLeft,
                        end: Alignment.centerRight,
                      ),
                    ),
                    child: const Center(
                      child: Text(
                        '揭开效果',
                        style: TextStyle(color: Colors.white, fontSize: 24, fontWeight: FontWeight.bold),
                      ),
                    ),
                  ),
                );
              },
            ),
            const SizedBox(height: 40),
            Row(
              mainAxisAlignment: MainAxisAlignment.center,
              children: [
                ElevatedButton(
                  onPressed: () => _controller.forward(),
                  child: const Text('播放'),
                ),
                const SizedBox(width: 16),
                ElevatedButton(
                  onPressed: () => _controller.reverse(),
                  child: const Text('反向'),
                ),
                const SizedBox(width: 16),
                ElevatedButton(
                  onPressed: () => _controller.reset(),
                  child: const Text('重置'),
                ),
              ],
            ),
          ],
        ),
      ),
    );
  }
}

🎭 5.2 圆形扩散裁剪

从中心点向外扩散的圆形裁剪效果。

dart 复制代码
/// 圆形扩散裁剪器
class CircleRevealClipper extends CustomClipper<Path> {
  final double radiusFactor;
  final Offset center;

  CircleRevealClipper({required this.radiusFactor, required this.center});

  @override
  Path getClip(Size size) {
    final maxRadius = sqrt(pow(size.width, 2) + pow(size.height, 2));
    final radius = maxRadius * radiusFactor;

    return Path()
      ..addOval(Rect.fromCircle(center: center, radius: radius));
  }

  @override
  bool shouldReclip(CircleRevealClipper oldClipper) =>
      radiusFactor != oldClipper.radiusFactor || center != oldClipper.center;
}

/// 圆形扩散示例
class CircleRevealDemo extends StatefulWidget {
  const CircleRevealDemo({super.key});

  @override
  State<CircleRevealDemo> createState() => _CircleRevealDemoState();
}

class _CircleRevealDemoState extends State<CircleRevealDemo>
    with SingleTickerProviderStateMixin {
  late AnimationController _controller;
  late Animation<double> _animation;
  Offset _center = Offset.zero;

  @override
  void initState() {
    super.initState();
    _controller = AnimationController(
      duration: const Duration(milliseconds: 800),
      vsync: this,
    );
    _animation = Tween<double>(begin: 0, end: 1).animate(
      CurvedAnimation(parent: _controller, curve: Curves.easeInOut),
    );
  }

  @override
  void dispose() {
    _controller.dispose();
    super.dispose();
  }

  void _startAnimation(Offset position) {
    setState(() => _center = position);
    _controller.forward(from: 0);
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('圆形扩散裁剪')),
      body: GestureDetector(
        onTapDown: (details) => _startAnimation(details.localPosition),
        child: AnimatedBuilder(
          animation: _animation,
          builder: (context, child) {
            return ClipPath(
              clipper: CircleRevealClipper(
                radiusFactor: _animation.value,
                center: _center,
              ),
              child: Container(
                width: double.infinity,
                height: double.infinity,
                decoration: const BoxDecoration(
                  gradient: LinearGradient(
                    colors: [Colors.teal, Colors.cyan],
                    begin: Alignment.topLeft,
                    end: Alignment.bottomRight,
                  ),
                ),
                child: Center(
                  child: Column(
                    mainAxisAlignment: MainAxisAlignment.center,
                    children: [
                      const Icon(Icons.touch_app, color: Colors.white, size: 48),
                      const SizedBox(height: 16),
                      Text(
                        '点击任意位置',
                        style: TextStyle(
                          color: Colors.white.withOpacity(0.9),
                          fontSize: 20,
                          fontWeight: FontWeight.bold,
                        ),
                      ),
                    ],
                  ),
                ),
              ),
            );
          },
        ),
      ),
    );
  }
}

六、完整代码示例

以下是本文所有示例的完整代码,可以直接运行体验:

dart 复制代码
import 'dart:math';
import 'package:flutter/material.dart';

void main() {
  runApp(const MyApp());
}

class MyApp extends StatelessWidget {
  const MyApp({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      debugShowCheckedModeBanner: false,
      theme: ThemeData(
        colorScheme: ColorScheme.fromSeed(seedColor: Colors.teal),
        useMaterial3: true,
      ),
      home: const ClipPathHomePage(),
    );
  }
}

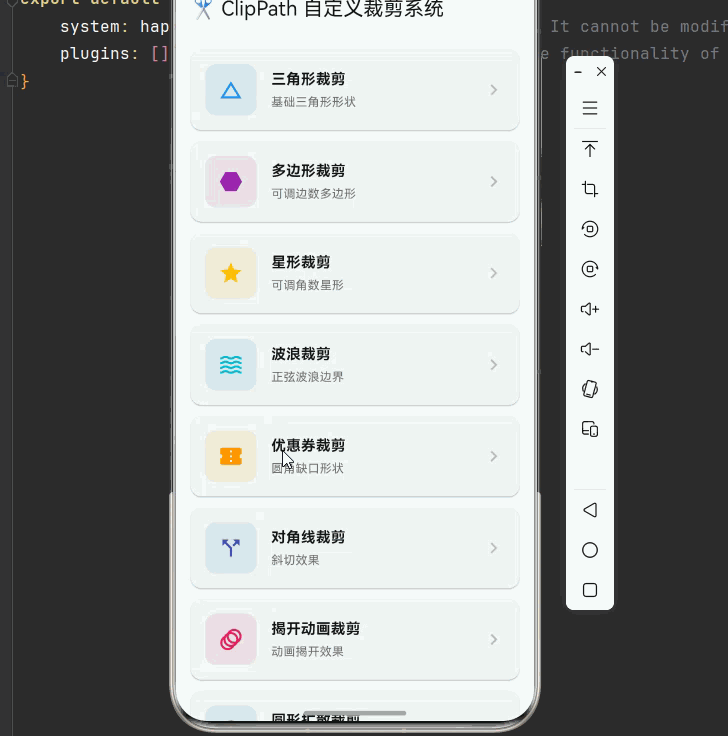

class ClipPathHomePage extends StatelessWidget {
  const ClipPathHomePage({super.key});

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('✂️ ClipPath 自定义裁剪系统')),
      body: ListView(
        padding: const EdgeInsets.all(16),
        children: [
          _buildSectionCard(context, title: '三角形裁剪', description: '基础三角形形状', icon: Icons.change_history, color: Colors.blue, onTap: () => Navigator.push(context, MaterialPageRoute(builder: (_) => const TriangleClipDemo()))),
          _buildSectionCard(context, title: '多边形裁剪', description: '可调边数多边形', icon: Icons.hexagon, color: Colors.purple, onTap: () => Navigator.push(context, MaterialPageRoute(builder: (_) => const PolygonClipDemo()))),
          _buildSectionCard(context, title: '星形裁剪', description: '可调角数星形', icon: Icons.star, color: Colors.amber, onTap: () => Navigator.push(context, MaterialPageRoute(builder: (_) => const StarClipDemo()))),
          _buildSectionCard(context, title: '波浪裁剪', description: '正弦波浪边界', icon: Icons.waves, color: Colors.cyan, onTap: () => Navigator.push(context, MaterialPageRoute(builder: (_) => const WaveClipDemo()))),
          _buildSectionCard(context, title: '优惠券裁剪', description: '圆角缺口形状', icon: Icons.confirmation_number, color: Colors.orange, onTap: () => Navigator.push(context, MaterialPageRoute(builder: (_) => const CouponClipDemo()))),
          _buildSectionCard(context, title: '对角线裁剪', description: '斜切效果', icon: Icons.call_split, color: Colors.indigo, onTap: () => Navigator.push(context, MaterialPageRoute(builder: (_) => const DiagonalClipDemo()))),
          _buildSectionCard(context, title: '揭开动画裁剪', description: '动画揭开效果', icon: Icons.animation, color: Colors.pink, onTap: () => Navigator.push(context, MaterialPageRoute(builder: (_) => const RevealClipDemo()))),
          _buildSectionCard(context, title: '圆形扩散裁剪', description: '点击扩散效果', icon: Icons.circle, color: Colors.teal, onTap: () => Navigator.push(context, MaterialPageRoute(builder: (_) => const CircleRevealDemo()))),
        ],
      ),
    );
  }

  Widget _buildSectionCard(BuildContext context, {required String title, required String description, required IconData icon, required Color color, required VoidCallback onTap}) {
    return Card(
      margin: const EdgeInsets.only(bottom: 12),
      child: InkWell(
        onTap: onTap,
        borderRadius: BorderRadius.circular(12),
        child: Padding(
          padding: const EdgeInsets.all(16),
          child: Row(
            children: [
              Container(width: 56, height: 56, decoration: BoxDecoration(color: color.withOpacity(0.1), borderRadius: BorderRadius.circular(12)), child: Icon(icon, color: color, size: 28)),
              const SizedBox(width: 16),
              Expanded(child: Column(crossAxisAlignment: CrossAxisAlignment.start, children: [Text(title, style: const TextStyle(fontSize: 16, fontWeight: FontWeight.bold)), const SizedBox(height: 4), Text(description, style: TextStyle(fontSize: 13, color: Colors.grey[600]))])),
              Icon(Icons.chevron_right, color: Colors.grey[400]),
            ],
          ),
        ),
      ),
    );
  }
}

class TriangleClipper extends CustomClipper<Path> {
  final bool isUpward;
  TriangleClipper({this.isUpward = true});

  @override
  Path getClip(Size size) {
    final path = Path();
    if (isUpward) {
      path.moveTo(size.width / 2, 0);
      path.lineTo(size.width, size.height);
      path.lineTo(0, size.height);
    } else {
      path.moveTo(0, 0);
      path.lineTo(size.width, 0);
      path.lineTo(size.width / 2, size.height);
    }
    path.close();
    return path;
  }

  @override
  bool shouldReclip(TriangleClipper oldClipper) => isUpward != oldClipper.isUpward;
}

class TriangleClipDemo extends StatelessWidget {
  const TriangleClipDemo({super.key});

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('三角形裁剪')),
      body: Center(
        child: Column(
          mainAxisAlignment: MainAxisAlignment.center,
          children: [
            ClipPath(
              clipper: TriangleClipper(isUpward: true),
              child: Container(
                width: 200, height: 200,
                decoration: const BoxDecoration(gradient: LinearGradient(colors: [Colors.blue, Colors.cyan], begin: Alignment.topCenter, end: Alignment.bottomCenter)),
                child: const Center(child: Text('向上三角形', style: TextStyle(color: Colors.white, fontSize: 18, fontWeight: FontWeight.bold))),
              ),
            ),
            const SizedBox(height: 40),
            ClipPath(
              clipper: TriangleClipper(isUpward: false),
              child: Container(
                width: 200, height: 200,
                decoration: const BoxDecoration(gradient: LinearGradient(colors: [Colors.purple, Colors.pink], begin: Alignment.topCenter, end: Alignment.bottomCenter)),
                child: const Center(child: Padding(padding: EdgeInsets.only(top: 80), child: Text('向下三角形', style: TextStyle(color: Colors.white, fontSize: 18, fontWeight: FontWeight.bold)))),
              ),
            ),
          ],
        ),
      ),
    );
  }
}

class PolygonClipper extends CustomClipper<Path> {
  final int sides;
  PolygonClipper({required this.sides});

  @override
  Path getClip(Size size) {
    final path = Path();
    final center = Offset(size.width / 2, size.height / 2);
    final radius = min(size.width, size.height) / 2;
    for (int i = 0; i < sides; i++) {
      final angle = (2 * pi * i / sides) - pi / 2;
      final x = center.dx + radius * cos(angle);
      final y = center.dy + radius * sin(angle);
      if (i == 0) { path.moveTo(x, y); } else { path.lineTo(x, y); }
    }
    path.close();
    return path;
  }

  @override
  bool shouldReclip(PolygonClipper oldClipper) => sides != oldClipper.sides;
}

class PolygonClipDemo extends StatefulWidget {
  const PolygonClipDemo({super.key});
  @override
  State<PolygonClipDemo> createState() => _PolygonClipDemoState();
}

class _PolygonClipDemoState extends State<PolygonClipDemo> {
  int _sides = 6;

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('多边形裁剪')),
      body: Column(
        children: [
          Expanded(
            child: Center(
              child: ClipPath(
                clipper: PolygonClipper(sides: _sides),
                child: Container(
                  width: 200, height: 200,
                  decoration: BoxDecoration(gradient: LinearGradient(colors: [Colors.primaries[_sides % Colors.primaries.length], Colors.primaries[(_sides + 1) % Colors.primaries.length]], begin: Alignment.topLeft, end: Alignment.bottomRight)),
                  child: Center(child: Text('$_sides边形', style: const TextStyle(color: Colors.white, fontSize: 24, fontWeight: FontWeight.bold))),
                ),
              ),
            ),
          ),
          Container(
            padding: const EdgeInsets.all(16),
            decoration: BoxDecoration(color: Colors.grey[100], borderRadius: const BorderRadius.vertical(top: Radius.circular(20))),
            child: Row(children: [const SizedBox(width: 80, child: Text('边数:')), Expanded(child: Slider(value: _sides.toDouble(), min: 3, max: 12, divisions: 9, activeColor: Colors.teal, onChanged: (value) => setState(() => _sides = value.round()))), SizedBox(width: 60, child: Text('$_sides边形'))]),
          ),
        ],
      ),
    );
  }
}

class StarClipper extends CustomClipper<Path> {
  final int points;
  final double innerRadiusRatio;
  StarClipper({required this.points, this.innerRadiusRatio = 0.5});

  @override
  Path getClip(Size size) {
    final path = Path();
    final center = Offset(size.width / 2, size.height / 2);
    final outerRadius = min(size.width, size.height) / 2;
    final innerRadius = outerRadius * innerRadiusRatio;
    for (int i = 0; i < points * 2; i++) {
      final radius = i.isEven ? outerRadius : innerRadius;
      final angle = (pi * i / points) - pi / 2;
      final x = center.dx + radius * cos(angle);
      final y = center.dy + radius * sin(angle);
      if (i == 0) { path.moveTo(x, y); } else { path.lineTo(x, y); }
    }
    path.close();
    return path;
  }

  @override
  bool shouldReclip(StarClipper oldClipper) => points != oldClipper.points || innerRadiusRatio != oldClipper.innerRadiusRatio;
}

class StarClipDemo extends StatefulWidget {
  const StarClipDemo({super.key});
  @override
  State<StarClipDemo> createState() => _StarClipDemoState();
}

class _StarClipDemoState extends State<StarClipDemo> {
  int _points = 5;
  double _innerRadius = 0.5;

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('星形裁剪')),
      body: Column(
        children: [
          Expanded(
            child: Center(
              child: ClipPath(
                clipper: StarClipper(points: _points, innerRadiusRatio: _innerRadius),
                child: Container(
                  width: 200, height: 200,
                  decoration: const BoxDecoration(gradient: LinearGradient(colors: [Colors.amber, Colors.orange], begin: Alignment.topLeft, end: Alignment.bottomRight)),
                  child: Center(child: Text('$_points角星', style: const TextStyle(color: Colors.white, fontSize: 24, fontWeight: FontWeight.bold))),
                ),
              ),
            ),
          ),
          Container(
            padding: const EdgeInsets.all(16),
            decoration: BoxDecoration(color: Colors.grey[100], borderRadius: const BorderRadius.vertical(top: Radius.circular(20))),
            child: Column(
              children: [
                Row(children: [const SizedBox(width: 80, child: Text('角数:')), Expanded(child: Slider(value: _points.toDouble(), min: 3, max: 12, divisions: 9, activeColor: Colors.amber, onChanged: (value) => setState(() => _points = value.round()))), SizedBox(width: 60, child: Text('$_points角'))]),
                Row(children: [const SizedBox(width: 80, child: Text('内径比:')), Expanded(child: Slider(value: _innerRadius, min: 0.1, max: 0.9, divisions: 16, activeColor: Colors.orange, onChanged: (value) => setState(() => _innerRadius = value))), SizedBox(width: 60, child: Text(_innerRadius.toStringAsFixed(2)))]),
              ],
            ),
          ),
        ],
      ),
    );
  }
}

class WaveClipper extends CustomClipper<Path> {
  final double waveHeight;
  final double waveFrequency;
  final bool isTop;
  WaveClipper({this.waveHeight = 20, this.waveFrequency = 2, this.isTop = true});

  @override
  Path getClip(Size size) {
    final path = Path();
    if (isTop) {
      path.moveTo(0, waveHeight);
      for (double i = 0; i <= size.width; i++) {
        final y = waveHeight + sin(i * waveFrequency * 2 * pi / size.width) * waveHeight;
        path.lineTo(i, y);
      }
      path.lineTo(size.width, size.height);
      path.lineTo(0, size.height);
    } else {
      path.moveTo(0, 0);
      path.lineTo(size.width, 0);
      for (double i = size.width; i >= 0; i--) {
        final y = size.height - waveHeight - sin(i * waveFrequency * 2 * pi / size.width) * waveHeight;
        path.lineTo(i, y);
      }
    }
    path.close();
    return path;
  }

  @override
  bool shouldReclip(WaveClipper oldClipper) => waveHeight != oldClipper.waveHeight || waveFrequency != oldClipper.waveFrequency || isTop != oldClipper.isTop;
}

class WaveClipDemo extends StatefulWidget {
  const WaveClipDemo({super.key});
  @override
  State<WaveClipDemo> createState() => _WaveClipDemoState();
}

class _WaveClipDemoState extends State<WaveClipDemo> {
  double _waveHeight = 20;
  double _waveFrequency = 2;

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('波浪裁剪')),
      body: Column(
        children: [
          ClipPath(
            clipper: WaveClipper(waveHeight: _waveHeight, waveFrequency: _waveFrequency, isTop: true),
            child: Container(
              height: 200,
              decoration: const BoxDecoration(gradient: LinearGradient(colors: [Colors.blue, Colors.cyan], begin: Alignment.topLeft, end: Alignment.bottomRight)),
              child: const Center(child: Text('顶部波浪', style: TextStyle(color: Colors.white, fontSize: 24, fontWeight: FontWeight.bold))),
            ),
          ),
          Expanded(
            child: Container(
              color: Colors.grey[100],
              child: Center(
                child: Column(
                  mainAxisAlignment: MainAxisAlignment.center,
                  children: [
                    const Text('内容区域', style: TextStyle(fontSize: 18, color: Colors.grey)),
                    const SizedBox(height: 20),
                    Container(padding: const EdgeInsets.symmetric(horizontal: 20, vertical: 10), decoration: BoxDecoration(color: Colors.blue.withOpacity(0.1), borderRadius: BorderRadius.circular(20)), child: const Text('波浪高度和频率可通过下方滑块调整')),
                  ],
                ),
              ),
            ),
          ),
          ClipPath(
            clipper: WaveClipper(waveHeight: _waveHeight, waveFrequency: _waveFrequency, isTop: false),
            child: Container(height: 100, decoration: const BoxDecoration(gradient: LinearGradient(colors: [Colors.teal, Colors.green], begin: Alignment.topLeft, end: Alignment.bottomRight))),
          ),
          Container(
            padding: const EdgeInsets.all(16),
            decoration: BoxDecoration(color: Colors.grey[100], borderRadius: const BorderRadius.vertical(top: Radius.circular(20))),
            child: Column(
              children: [
                Row(children: [const SizedBox(width: 80, child: Text('波浪高度:')), Expanded(child: Slider(value: _waveHeight, min: 5, max: 50, divisions: 18, activeColor: Colors.blue, onChanged: (value) => setState(() => _waveHeight = value))), SizedBox(width: 60, child: Text('${_waveHeight.toStringAsFixed(0)}px'))]),
                Row(children: [const SizedBox(width: 80, child: Text('波浪频率:')), Expanded(child: Slider(value: _waveFrequency, min: 1, max: 5, divisions: 8, activeColor: Colors.teal, onChanged: (value) => setState(() => _waveFrequency = value))), SizedBox(width: 60, child: Text('${_waveFrequency.toStringAsFixed(1)}'))]),
              ],
            ),
          ),
        ],
      ),
    );
  }
}

class NotchedClipper extends CustomClipper<Path> {
  final double notchRadius;
  final double notchPosition;
  final bool isLeft;
  NotchedClipper({this.notchRadius = 20, this.notchPosition = 0.5, this.isLeft = true});

  @override
  Path getClip(Size size) {
    final path = Path();
    final notchY = size.height * notchPosition;
    if (isLeft) {
      path.moveTo(0, 0);
      path.lineTo(0, notchY - notchRadius);
      path.arcToPoint(Offset(0, notchY + notchRadius), radius: Radius.circular(notchRadius), clockwise: false);
      path.lineTo(0, size.height);
      path.lineTo(size.width, size.height);
      path.lineTo(size.width, 0);
    } else {
      path.moveTo(0, 0);
      path.lineTo(size.width, 0);
      path.lineTo(size.width, notchY - notchRadius);
      path.arcToPoint(Offset(size.width, notchY + notchRadius), radius: Radius.circular(notchRadius), clockwise: true);
      path.lineTo(size.width, size.height);
      path.lineTo(0, size.height);
    }
    path.close();
    return path;
  }

  @override
  bool shouldReclip(NotchedClipper oldClipper) => notchRadius != oldClipper.notchRadius || notchPosition != oldClipper.notchPosition || isLeft != oldClipper.isLeft;
}

class DoubleNotchedClipper extends CustomClipper<Path> {
  final double notchRadius;
  DoubleNotchedClipper({this.notchRadius = 20});

  @override
  Path getClip(Size size) {
    final path = Path();
    final centerY = size.height / 2;
    path.moveTo(0, 0);
    path.lineTo(0, centerY - notchRadius);
    path.arcToPoint(Offset(0, centerY + notchRadius), radius: Radius.circular(notchRadius), clockwise: false);
    path.lineTo(0, size.height);
    path.lineTo(size.width, size.height);
    path.lineTo(size.width, centerY + notchRadius);
    path.arcToPoint(Offset(size.width, centerY - notchRadius), radius: Radius.circular(notchRadius), clockwise: false);
    path.lineTo(size.width, 0);
    path.close();
    return path;
  }

  @override
  bool shouldReclip(DoubleNotchedClipper oldClipper) => notchRadius != oldClipper.notchRadius;
}

class CouponClipDemo extends StatelessWidget {
  const CouponClipDemo({super.key});

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('优惠券裁剪')),
      body: Center(
        child: Column(
          mainAxisAlignment: MainAxisAlignment.center,
          children: [
            ClipPath(
              clipper: NotchedClipper(isLeft: true, notchRadius: 25),
              child: Container(
                width: 320, height: 120,
                decoration: const BoxDecoration(gradient: LinearGradient(colors: [Colors.orange, Colors.deepOrange], begin: Alignment.centerLeft, end: Alignment.centerRight)),
                child: Row(
                  children: [
                    Container(width: 100, alignment: Alignment.center, child: const Column(mainAxisAlignment: MainAxisAlignment.center, children: [Text('¥50', style: TextStyle(color: Colors.white, fontSize: 28, fontWeight: FontWeight.bold)), Text('优惠券', style: TextStyle(color: Colors.white70, fontSize: 12))])),
                    Container(width: 1, height: 60, color: Colors.white.withOpacity(0.3)),
                    Expanded(child: Padding(padding: const EdgeInsets.all(16), child: Column(mainAxisAlignment: MainAxisAlignment.center, crossAxisAlignment: CrossAxisAlignment.start, children: [const Text('满100元可用', style: TextStyle(color: Colors.white, fontSize: 16, fontWeight: FontWeight.bold)), const SizedBox(height: 4), Text('有效期至 2024-12-31', style: TextStyle(color: Colors.white.withOpacity(0.8), fontSize: 12))]))),
                  ],
                ),
              ),
            ),
            const SizedBox(height: 30),
            ClipPath(
              clipper: DoubleNotchedClipper(notchRadius: 20),
              child: Container(
                width: 320, height: 120,
                decoration: const BoxDecoration(gradient: LinearGradient(colors: [Colors.purple, Colors.pink], begin: Alignment.centerLeft, end: Alignment.centerRight)),
                child: Row(
                  children: [
                    Container(width: 100, alignment: Alignment.center, child: const Column(mainAxisAlignment: MainAxisAlignment.center, children: [Text('¥100', style: TextStyle(color: Colors.white, fontSize: 28, fontWeight: FontWeight.bold)), Text('折扣券', style: TextStyle(color: Colors.white70, fontSize: 12))])),
                    Container(width: 1, height: 60, color: Colors.white.withOpacity(0.3)),
                    Expanded(child: Padding(padding: const EdgeInsets.all(16), child: Column(mainAxisAlignment: MainAxisAlignment.center, crossAxisAlignment: CrossAxisAlignment.start, children: [const Text('全场通用', style: TextStyle(color: Colors.white, fontSize: 16, fontWeight: FontWeight.bold)), const SizedBox(height: 4), Text('有效期至 2024-12-31', style: TextStyle(color: Colors.white.withOpacity(0.8), fontSize: 12))]))),
                  ],
                ),
              ),
            ),
          ],
        ),
      ),
    );
  }
}

class DiagonalClipper extends CustomClipper<Path> {
  final double clipHeight;
  final bool isTopLeft;
  DiagonalClipper({this.clipHeight = 50, this.isTopLeft = true});

  @override
  Path getClip(Size size) {
    final path = Path();
    if (isTopLeft) {
      path.moveTo(0, clipHeight);
      path.lineTo(size.width, 0);
      path.lineTo(size.width, size.height);
      path.lineTo(0, size.height);
    } else {
      path.moveTo(0, 0);
      path.lineTo(size.width, clipHeight);
      path.lineTo(size.width, size.height);
      path.lineTo(0, size.height);
    }
    path.close();
    return path;
  }

  @override
  bool shouldReclip(DiagonalClipper oldClipper) => clipHeight != oldClipper.clipHeight || isTopLeft != oldClipper.isTopLeft;
}

class DiagonalClipDemo extends StatelessWidget {
  const DiagonalClipDemo({super.key});

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('对角线裁剪')),
      body: Column(
        children: [
          ClipPath(
            clipper: DiagonalClipper(clipHeight: 80, isTopLeft: true),
            child: Container(
              height: 200,
              decoration: const BoxDecoration(gradient: LinearGradient(colors: [Colors.indigo, Colors.purple], begin: Alignment.topLeft, end: Alignment.bottomRight)),
              child: const Center(child: Padding(padding: EdgeInsets.only(top: 50), child: Text('对角线裁剪效果', style: TextStyle(color: Colors.white, fontSize: 24, fontWeight: FontWeight.bold)))),
            ),
          ),
          Expanded(
            child: Center(
              child: Row(
                mainAxisAlignment: MainAxisAlignment.spaceEvenly,
                children: [
                  ClipPath(
                    clipper: DiagonalClipper(clipHeight: 40, isTopLeft: true),
                    child: Container(width: 150, height: 100, color: Colors.teal, child: const Center(child: Padding(padding: EdgeInsets.only(top: 20), child: Text('卡片1', style: TextStyle(color: Colors.white, fontWeight: FontWeight.bold))))),
                  ),
                  ClipPath(
                    clipper: DiagonalClipper(clipHeight: 40, isTopLeft: false),
                    child: Container(width: 150, height: 100, color: Colors.orange, child: const Center(child: Text('卡片2', style: TextStyle(color: Colors.white, fontWeight: FontWeight.bold)))),
                  ),
                ],
              ),
            ),
          ),
        ],
      ),
    );
  }
}

class RevealClipper extends CustomClipper<Path> {
  final double revealFactor;
  final Axis direction;
  RevealClipper({required this.revealFactor, this.direction = Axis.horizontal});

  @override
  Path getClip(Size size) {
    final path = Path();
    if (direction == Axis.horizontal) {
      final revealWidth = size.width * revealFactor;
      path.addRect(Rect.fromLTWH(0, 0, revealWidth, size.height));
    } else {
      final revealHeight = size.height * revealFactor;
      path.addRect(Rect.fromLTWH(0, 0, size.width, revealHeight));
    }
    return path;
  }

  @override
  bool shouldReclip(RevealClipper oldClipper) => revealFactor != oldClipper.revealFactor || direction != oldClipper.direction;
}

class RevealClipDemo extends StatefulWidget {
  const RevealClipDemo({super.key});
  @override
  State<RevealClipDemo> createState() => _RevealClipDemoState();
}

class _RevealClipDemoState extends State<RevealClipDemo> with SingleTickerProviderStateMixin {
  late AnimationController _controller;
  late Animation<double> _animation;

  @override
  void initState() {
    super.initState();
    _controller = AnimationController(duration: const Duration(seconds: 2), vsync: this);
    _animation = Tween<double>(begin: 0, end: 1).animate(CurvedAnimation(parent: _controller, curve: Curves.easeInOut));
  }

  @override
  void dispose() { _controller.dispose(); super.dispose(); }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('揭开动画裁剪')),
      body: Center(
        child: Column(
          mainAxisAlignment: MainAxisAlignment.center,
          children: [
            AnimatedBuilder(
              animation: _animation,
              builder: (context, child) {
                return ClipPath(
                  clipper: RevealClipper(revealFactor: _animation.value),
                  child: Container(
                    width: 300, height: 200,
                    decoration: const BoxDecoration(gradient: LinearGradient(colors: [Colors.blue, Colors.purple], begin: Alignment.centerLeft, end: Alignment.centerRight)),
                    child: const Center(child: Text('揭开效果', style: TextStyle(color: Colors.white, fontSize: 24, fontWeight: FontWeight.bold))),
                  ),
                );
              },
            ),
            const SizedBox(height: 40),
            Row(
              mainAxisAlignment: MainAxisAlignment.center,
              children: [
                ElevatedButton(onPressed: () => _controller.forward(), child: const Text('播放')),
                const SizedBox(width: 16),
                ElevatedButton(onPressed: () => _controller.reverse(), child: const Text('反向')),
                const SizedBox(width: 16),
                ElevatedButton(onPressed: () => _controller.reset(), child: const Text('重置')),
              ],
            ),
          ],
        ),
      ),
    );
  }
}

class CircleRevealClipper extends CustomClipper<Path> {
  final double radiusFactor;
  final Offset center;
  CircleRevealClipper({required this.radiusFactor, required this.center});

  @override
  Path getClip(Size size) {
    final maxRadius = sqrt(pow(size.width, 2) + pow(size.height, 2));
    final radius = maxRadius * radiusFactor;
    return Path()..addOval(Rect.fromCircle(center: center, radius: radius));
  }

  @override
  bool shouldReclip(CircleRevealClipper oldClipper) => radiusFactor != oldClipper.radiusFactor || center != oldClipper.center;
}

class CircleRevealDemo extends StatefulWidget {
  const CircleRevealDemo({super.key});
  @override
  State<CircleRevealDemo> createState() => _CircleRevealDemoState();
}

class _CircleRevealDemoState extends State<CircleRevealDemo> with SingleTickerProviderStateMixin {
  late AnimationController _controller;
  late Animation<double> _animation;
  Offset _center = Offset.zero;

  @override
  void initState() {
    super.initState();
    _controller = AnimationController(duration: const Duration(milliseconds: 800), vsync: this);
    _animation = Tween<double>(begin: 0, end: 1).animate(CurvedAnimation(parent: _controller, curve: Curves.easeInOut));
  }

  @override
  void dispose() { _controller.dispose(); super.dispose(); }

  void _startAnimation(Offset position) {
    setState(() => _center = position);
    _controller.forward(from: 0);
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('圆形扩散裁剪')),
      body: GestureDetector(
        onTapDown: (details) => _startAnimation(details.localPosition),
        child: AnimatedBuilder(
          animation: _animation,
          builder: (context, child) {
            return ClipPath(
              clipper: CircleRevealClipper(radiusFactor: _animation.value, center: _center),
              child: Container(
                width: double.infinity, height: double.infinity,
                decoration: const BoxDecoration(gradient: LinearGradient(colors: [Colors.teal, Colors.cyan], begin: Alignment.topLeft, end: Alignment.bottomRight)),
                child: Center(
                  child: Column(
                    mainAxisAlignment: MainAxisAlignment.center,
                    children: [
                      const Icon(Icons.touch_app, color: Colors.white, size: 48),
                      const SizedBox(height: 16),
                      Text('点击任意位置', style: TextStyle(color: Colors.white.withOpacity(0.9), fontSize: 20, fontWeight: FontWeight.bold)),
                    ],
                  ),
                ),
              ),
            );
          },
        ),
      ),
    );
  }
}

七、最佳实践与注意事项

⚡ 7.1 性能优化建议

ClipPath 是一个强大的裁剪工具,但在使用时需注意以下几点:

1. 避免频繁重建

当裁剪器参数变化时,会触发 shouldReclip 判断是否重新裁剪。确保正确实现此方法,避免不必要的重绘。

2. 简化路径计算

在 getClip 方法中避免复杂的计算,可以将计算结果缓存起来复用。

3. 合理使用 clipBehavior

根据实际需求选择合适的裁剪行为:

  • Clip.none:不裁剪(最快)
  • Clip.hardEdge:硬边裁剪
  • Clip.antiAlias:抗锯齿裁剪
  • Clip.antiAliasWithSaveLayer:带保存层的抗锯齿裁剪(最慢但效果最好)

🔧 7.2 常见问题与解决方案

问题1:裁剪后内容显示不完整

解决方案:

  • 检查路径是否正确闭合
  • 确保路径坐标在组件尺寸范围内
  • 使用 path.addRect 添加背景区域

问题2:动画裁剪卡顿

解决方案:

  • 使用 AnimatedBuilder 而非 setState
  • 简化路径计算逻辑
  • 考虑使用 RepaintBoundary 隔离重绘区域

问题3:裁剪边缘有锯齿

解决方案:

  • 设置 clipBehavior: Clip.antiAlias
  • 使用更高分辨率的设备
  • 考虑使用 Clip.antiAliasWithSaveLayer

八、总结

本文详细介绍了 Flutter 中 ClipPath 自定义裁剪系统的使用方法,从基础的三角形、多边形裁剪到高级的波浪、优惠券、动画裁剪效果,涵盖了以下核心内容:

  1. ClipPath 核心概念:理解路径裁剪的工作原理和 CustomClipper 的使用
  2. 基础裁剪形状:三角形、多边形、星形等基础形状的实现
  3. 波浪形裁剪:正弦波浪、贝塞尔波浪等曲线裁剪效果
  4. 复杂裁剪效果:优惠券缺口、对角线切割等实用形状
  5. 动画裁剪效果:揭开动画、圆形扩散等动态裁剪效果
  6. 性能优化:合理使用 ClipPath,避免性能问题

ClipPath 是 Flutter 中实现独特视觉形状的核心工具,掌握其使用技巧能够帮助开发者创建更加精美、个性化的用户界面。在实际开发中,需要根据具体场景选择合适的裁剪方式,并注意性能优化。


参考资料

相关推荐
好的佩奇1 小时前
蓝牙之设备角色与连接
android·flutter·蓝牙
SoaringHeart1 天前
Flutter最佳实践:用 flutter_html 渲染富文本
前端·flutter
恋猫de小郭2 天前
Flutter 3.50.0 Release 的第一个崩溃,修好了,还没 hotfix
android·前端·flutter
程序员老刘2 天前
跨平台开发地图 | 2026年11月
flutter·ai编程·客户端
传奇开心果编程3 天前
【Flutter踩坑排雷】第30课:异常未捕获坑|未捕获异常直接闪退,全局兜底故障处理
android·flutter·ios·移动开发·dart·ui框架·声明式ui
恋猫de小郭3 天前
Flutter Native Interop 稳定了,Platform Channel 要退场了
android·前端·flutter
好的佩奇3 天前
Dart 之可迭代对象与生成器
android·flutter·dart
恋猫de小郭4 天前
Flutter Analyzer 系列坑推进,必看,AI 时代这玩意最吃你内存
android·前端·flutter
LinXunFeng4 天前
拿竞品 App 一扫,技术栈全暴露了
android·flutter·开源
传奇开心果编程5 天前
【Flutter踩坑排雷】第28课:平台目录缺失与修复坑|`flutter create` 的“重建”与“覆盖”边界
android·flutter·ios·移动开发·跨平台·dart·声明式ui
