Babylon.js WebGPU Ocean Demo — 完整踩坑记录

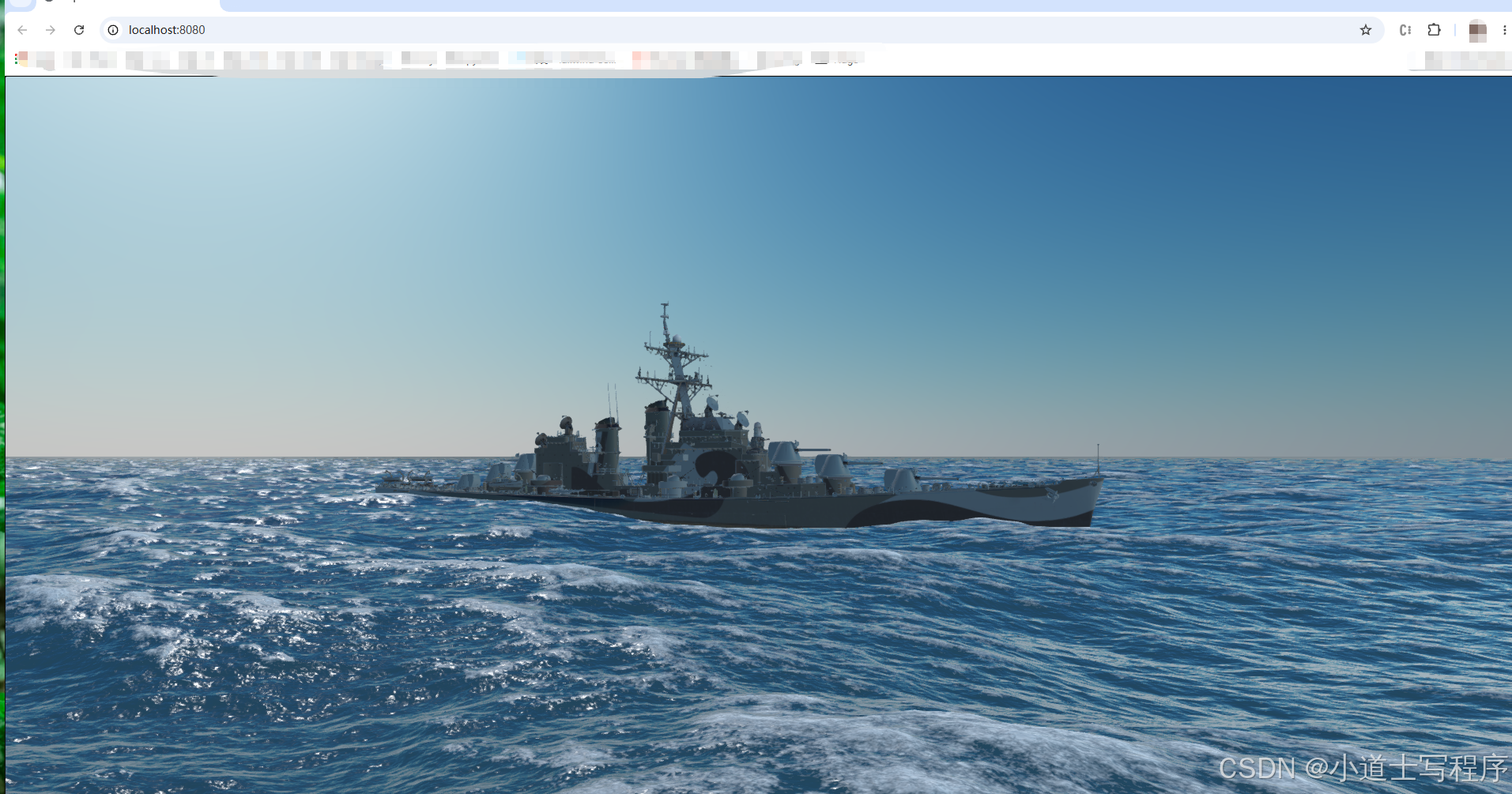

换成军舰后的图片

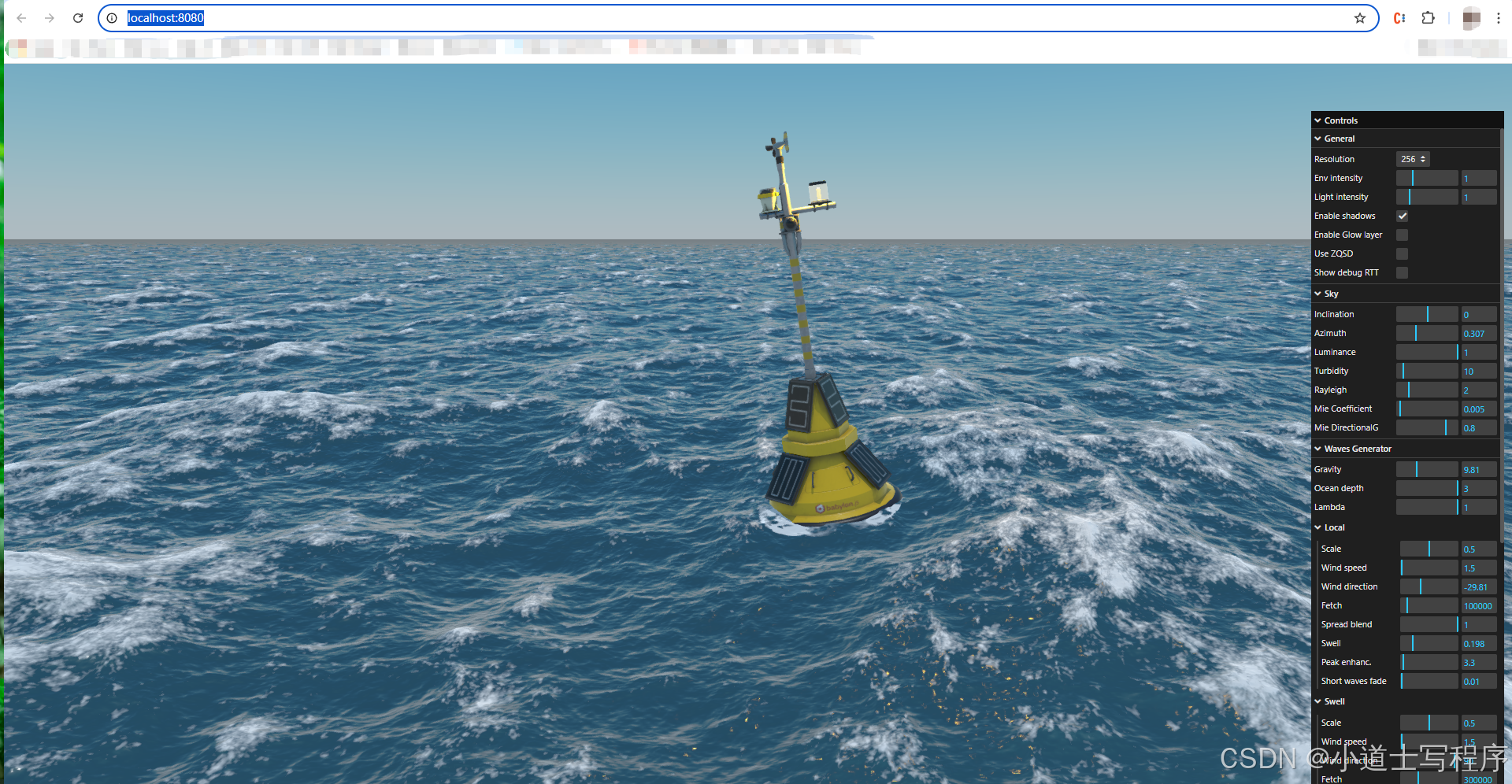

源码运行后效果

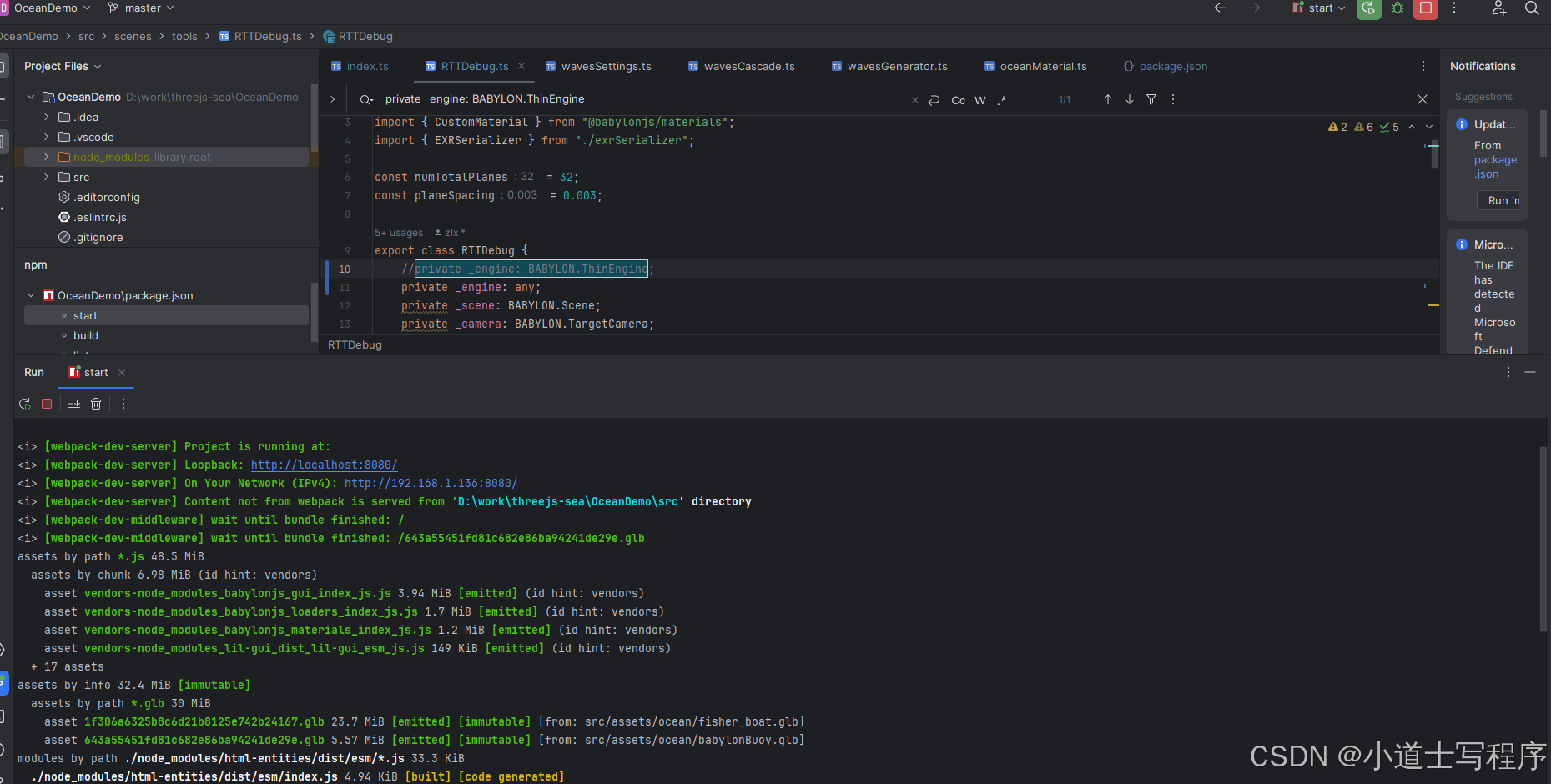

最后代码正常启动

Babylon.js WebGPU Ocean Demo 本地运行踩坑全记录

环境

• Chrome 145
• Babylon.js 6.26.0
• Windows 10

问题一：depth24unorm-stencil8 类型错误

报错：

TS2322: Type '"depth24unorm-stencil8"' is not assignable to type 'GPUFeatureName'

原因： 该特性已从 WebGPU 规范移除。

修复： 直接删除这一行。

---

问题二：requestAdapterInfo is not a function

报错：

TypeError: this._adapter.requestAdapterInfo is not a function

原因： Chrome 新版将 requestAdapterInfo() 改为 adapter.info 属性，Babylon.js 6.x 内部还在调用旧 API。

修复： 在 index.ts 最顶部加 polyfill：

typescript

if (typeof navigator !== "undefined" && navigator.gpu) {
    const origRequestAdapter = navigator.gpu.requestAdapter.bind(navigator.gpu);
    (navigator.gpu as any).requestAdapter = async (options?: GPURequestAdapterOptions) => {
        const adapter = await origRequestAdapter(options);
        if (adapter && typeof (adapter as any).requestAdapterInfo !== "function") {
            (adapter as any).requestAdapterInfo = async () => {
                return (adapter as any).info ?? {};
            };
        }
        return adapter;
    };
}
```

---

### 问题三：`onResizeObservable` 类型错误

**报错：**
```
TS2339: Property 'onResizeObservable' does not exist on type 'ThinEngine'

原因： onResizeObservable 在 Engine 上，不在 ThinEngine 上。

修复： RTTDebug.ts 两处修改：

typescript

// 1. 私有变量类型改为 any
private _engine: any;

// 2. 第178行加可选链
(this._engine as any).onResizeObservable?.add(this._resize.bind(this));
```

---

### 问题四：`WebGPUEngine` 与 `Engine` 类型不兼容

**报错：**
```
TS2740: Type 'WebGPUEngine' is missing the following properties from type 'Engine'

修复： index.ts 里 engine 类型直接用 any：

typescript

let engine: any;

---

最终完整 index.ts

typescript

import * as BABYLON from "@babylonjs/core";
import { WebGPUEngine } from "@babylonjs/core/Engines/webgpuEngine";
import { Engine } from "@babylonjs/core/Engines/engine";
import { getSceneModuleWithName } from "./createScene";

// 修复 Chrome 新版移除了 requestAdapterInfo
if (typeof navigator !== "undefined" && navigator.gpu) {
    const origRequestAdapter = navigator.gpu.requestAdapter.bind(navigator.gpu);
    (navigator.gpu as any).requestAdapter = async (options?: GPURequestAdapterOptions) => {
        const adapter = await origRequestAdapter(options);
        if (adapter && typeof (adapter as any).requestAdapterInfo !== "function") {
            (adapter as any).requestAdapterInfo = async () => {
                return (adapter as any).info ?? {};
            };
        }
        return adapter;
    };
}

const getModuleToLoad = (): string | undefined => location.search.split("scene=")[1];

export const babylonInit = async (): Promise<void> => {
    const moduleName = getModuleToLoad();
    const createSceneModule = await getSceneModuleWithName(moduleName);

    (window as any).BABYLON = BABYLON;

    await Promise.all(createSceneModule.preTasks || []);
    const canvas = document.getElementById("renderCanvas") as HTMLCanvasElement;

    let engine: any;
    const webgpuSupported = await WebGPUEngine.IsSupportedAsync;

    if (webgpuSupported) {
        const webgpuEngine = new WebGPUEngine(canvas, {
            deviceDescriptor: {
                requiredFeatures: [
                    "depth-clip-control",
                    "depth32float-stencil8",
                    "texture-compression-bc",
                    "texture-compression-etc2",
                    "texture-compression-astc",
                    "indirect-first-instance",
                ],
            },
        });
        await webgpuEngine.initAsync();
        engine = webgpuEngine;
    } else {
        engine = new Engine(canvas, true);
    }

    (window as any).engine = engine;

    const scene = await createSceneModule.createScene(engine, canvas);
    (window as any).scene = scene;

    engine.runRenderLoop(function () {
        scene.render();
    });

    window.addEventListener("resize", function () {
        engine.resize();
    });
};

babylonInit().then(() => {});

---

package.json 依赖版本

json

"dependencies": {
    "@babylonjs/core": "6.26.0",
    "@babylonjs/gui": "6.26.0",
    "@babylonjs/inspector": "6.26.0",
    "@babylonjs/loaders": "6.26.0",
    "@babylonjs/materials": "6.26.0",
    "lil-gui": "0.16.0"
}

注意去掉 ^，防止自动升级到不兼容版本。

修正后源码：https://download.csdn.net/download/zhanglixin999/92736547
