Spring Cloud

LES000LIE2026-03-18 11:42
复制代码
<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>com.kh.springCloud</groupId>
  <artifactId>cloud</artifactId>
  <version>1.0-SNAPSHOT</version>
  <packaging>pom</packaging>  <!-- packaging默认类型jar类型，如果不做配置，maven会将该项目打成jar包 -->

  <!--统一管理jar包版本-->
  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <maven.compiler.source>12</maven.compiler.source>
    <maven.compiler.target>12</maven.compiler.target>
    <junit.version>4.12</junit.version>
    <lombok.version>1.18.10</lombok.version>
    <log4j.version>1.2.17</log4j.version>
    <mysql.version>5.1.47</mysql.version>
    <druid.version>1.1.16</druid.version>
    <mybatis.spring.boot.version>2.1.1</mybatis.spring.boot.version>
  </properties>

  <!-- 子模块使用之后，提供作用：锁定版本+module不用写groupId和version  -->
  <!-- dependencyManagement声明依赖，并不实现引用 -->
  <dependencyManagement>
    <dependencies>

      <dependency>
        <groupId>org.apache.maven.plugins</groupId>
        <artifactId>maven-project-info-reports-plugin</artifactId>
        <version>3.0.0</version>
      </dependency>

      <!--spring boot 2.2.2-->
      <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-dependencies</artifactId>
        <version>2.2.2.RELEASE</version>
        <type>pom</type>
        <scope>import</scope>
      </dependency>

      <!--spring cloud Hoxton.SR1-->
      <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-dependencies</artifactId>
        <version>Hoxton.SR1</version>
        <type>pom</type>
        <scope>import</scope>
      </dependency>

      <!--spring cloud 阿里巴巴-->
      <dependency>
        <groupId>com.alibaba.cloud</groupId>
        <artifactId>spring-cloud-alibaba-dependencies</artifactId>
        <version>2.1.0.RELEASE</version>
        <type>pom</type>
        <scope>import</scope>
      </dependency>

      <!--mysql-->
      <dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-java</artifactId>
        <version>${mysql.version}</version>
        <scope>runtime</scope>
      </dependency>

      <!-- druid-->
      <dependency>
        <groupId>com.alibaba</groupId>
        <artifactId>druid</artifactId>
        <version>${druid.version}</version>
      </dependency>

      <!--mybatis-->
      <dependency>
        <groupId>org.mybatis.spring.boot</groupId>
        <artifactId>mybatis-spring-boot-starter</artifactId>
        <version>${mybatis.spring.boot.version}</version>
      </dependency>

      <!--junit-->
      <dependency>
        <groupId>junit</groupId>
        <artifactId>junit</artifactId>
        <version>${junit.version}</version>
      </dependency>

      <!--log4j-->
      <dependency>
        <groupId>log4j</groupId>
        <artifactId>log4j</artifactId>
        <version>${log4j.version}</version>
      </dependency>

    </dependencies>
  </dependencyManagement>

</project>

五小句话

1、建Module

File -> New -> Module -> Module SDK选择Project SDK(1.8) -> Next -> Add as module to (cloud) -> Parent(cloud) -> ArtifactId (cloud-provider-payment8001) -> Next -> Module name (cloud-provider-payment8001)

2、改POM

复制代码
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>cloud</artifactId>
        <groupId>com.kh.springCloud</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>cloud-provider-payment8001</artifactId>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <!--监控-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid-spring-boot-starter</artifactId>
            <version>1.1.10</version>
            <!--这里最好不去掉版本，避免出现 Cannot resolve com.alibaba:druid-spring-boot-starter:unknown   父POM中没有druid-->
            <!--如果没写版本,从父层面找,找到了就直接用,全局统一-->
        </dependency>
        <!--mysql-connector-java-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <!--jdbc-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>
        <!--热部署-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>


</project>

POM文件引入之后爆红，报错原因是该包not found，右键选择Maven ，点击Reimport，错误消失。

3、写YML

复制代码
spring:
  application:
    name: cloud-payment-service
  datasource:
    type: com.alibaba.druid.pool.DruidDataSource   # 当前数据源操作类型
    driver-class-name: com.mysql.jdbc.Driver    # mysql驱动包
    url: jdbc:mysql://localhost:3306/db2019?useUnicode=true&characterEncoding=UTF-8&useSSL=false
    username: ${username}
    password: ${password}

mybatis:
    mapper-locations: classpath*:mapper/*.xml
    type-aliases-package: com.kh.springcloud.entities

4、主启动

创建Spring Boot启动类：

复制代码
package com.kh.springcloud;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class PaymentMain8001 {
    public static void main(String[] args) {
        SpringApplication.run(PaymentMain8001.class, args);
    }
}

5、业务类

a、建表SQL

复制代码
-- ----------------------------
-- Table structure for payment
-- ----------------------------
DROP TABLE IF EXISTS `payment`;
CREATE TABLE `payment` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT 'ID',
  `serial` varchar(200) DEFAULT '',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8;

b、entities

实体类Payment

复制代码
package com.kh.springcloud.entities;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

import java.io.Serializable;

@Data                 //get set
@AllArgsConstructor   //全参构造
@NoArgsConstructor    //无参构造
public class Payment implements Serializable {
    private long id;
    private String serial;
}

JSON封装体CommonResult

复制代码
package com.kh.springcloud.entities;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

@Data                 //get set
@AllArgsConstructor   //全参构造
@NoArgsConstructor    //无参构造
public class CommonResult<T> {
    // 404
    private Integer code; //错误编码
    private String message; //错误提示
    private T data;  //数据

    public CommonResult(Integer code,String message) {
        this(code,message,null);
    }
}

坑：如没有安装Lombok插件，编写函数时会报错

解决：https://www.cnblogs.com/gaogaoyanjiu/p/9823241.html

c、dao

接口PaymentDao

复制代码
package com.kh.springcloud.dao;

import com.kh.springcloud.entities.Payment;
import org.apache.ibatis.annotations.Mapper;
import org.apache.ibatis.annotations.Param;

@Mapper
public interface PaymentDao {

    public int create(Payment payment);       //新增

    public Payment getPaymentById(@Param("id") Long id);  //读取
}

mybatis映射文件PaymentMapper.xml

复制代码
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.kh.springcloud.dao.PaymentDao">

    <insert id="create" parameterType="Payment" useGeneratedKeys="true" keyProperty="id">
        insert into payment(serial) values (#{serial});
    </insert>

    <select id="getPaymentById" parameterType="Long" resultType="Payment" resultMap="BaseResultMap">
        select * from payment where id=#{id};
    </select>

    <resultMap id="BaseResultMap" type="com.kh.springcloud.entities.Payment">
        <id column="id" javaType="BIGINT"/>
        <result column="serial" property="serial" javaType="VARCHAR"/>
    </resultMap>
</mapper>

4、service

Service接口

复制代码
package com.kh.springcloud.service;

import com.kh.springcloud.entities.Payment;
import org.apache.ibatis.annotations.Param;

public interface PaymentService {

    public int create(Payment payment);       //新增

    public Payment getPaymentById(@Param("id") Long id);  //读取

}

Service实现类

复制代码
package com.kh.springcloud.service.impl;

import com.kh.springcloud.dao.PaymentDao;
import com.kh.springcloud.entities.Payment;
import com.kh.springcloud.service.PaymentService;
import org.springframework.stereotype.Service;

import javax.annotation.Resource;

@Service
public class PaymentServiceImpl implements PaymentService {

    @Resource
    private PaymentDao paymentDao;


    @Override
    public int create(Payment payment) {
        return paymentDao.create(payment);
    }

    @Override
    public Payment getPaymentById(Long id) {
        return paymentDao.getPaymentById(id);
    }
}

5、controller

复制代码
package com.kh.springcloud.controller;

import com.kh.springcloud.entities.CommonResult;
import com.kh.springcloud.entities.Payment;
import com.kh.springcloud.service.PaymentService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RestController;

import javax.annotation.Resource;

@RestController
@Slf4j
public class PaymentController {

    @Resource
    private PaymentService paymentService;

    @PostMapping(value = "/payment/create")
    public CommonResult create(Payment payment){
        int result = paymentService.create(payment);
        log.info("****************插入结果：" + result);

        if (result>0){
            return new CommonResult(200,"插入数据成功",result);
        }else{
            return new CommonResult(444,"插入数据库失败",null);
        }
    }

    @GetMapping(value = "/payment/get/{id}")    //读操作
    public CommonResult getPaymentById(@PathVariable("id") Long id){
        System.out.println("开始查询");
        Payment payment = paymentService.getPaymentById(id);
        log.info("****************查询结果：" + payment);

        if (payment != null){
            return new CommonResult(200,"查询数据成功",payment);
        }else{
            return new CommonResult(444,"没有对应记录，查询ID:"+id,null);
        }
    }

}

e、测试

访问http://localhost:8001/payment/get/1，出现该ID的JSON数据格式。

课堂中出现的是DashBoard，新版本中是Service。

启动OrderMain80报错

复制代码
Description:

Failed to configure a DataSource: 'url' attribute is not specified and no embedded datasource could be configured.

Reason: Failed to determine a suitable driver class


Action:

Consider the following:
	If you want an embedded database (H2, HSQL or Derby), please put it on the classpath.
	If you have database settings to be loaded from a particular profile you may need to activate it (no profiles are currently active).


Process finished with exit code 0

解决：

方法一：

在yml文件中添加数据源的配置：

复制代码
spring:
  application:
    name: cloud-order-service
  datasource:
    type: com.alibaba.druid.pool.DruidDataSource   # 当前数据源操作类型
    driver-class-name: com.mysql.jdbc.Driver    # mysql驱动包
    url: jdbc:mysql://localhost:3306/cloud?useUnicode=true&characterEncoding=UTF-8&useSSL=false
    username: root
    password: a

方法二：

pom.xml中不添加数据库相关依赖：

复制代码
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>cloud</artifactId>
        <groupId>com.kh.springCloud</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>cloud-comsumer-order80</artifactId>
    <packaging>pom</packaging>

  <!--  <build>
        <resources>
            <resource>
                <directory>src/main/java</directory>
                <includes>
                    <include>**/*.yml</include>
                    <include>**/*.properties</include>
                    <include>**/*.xml</include>
                </includes>
                <filtering>false</filtering>
            </resource>
            <resource>
                <directory>src/main/resources</directory>
                <includes>
                    <include>**/*.yml</include>
                    <include>**/*.properties</include>
                    <include>**/*.xml</include>
                </includes>
                <filtering>false</filtering>
            </resource>
        </resources>
    </build>-->

    <dependencies>
        <!-- 自己定义的api通用包， 提供Payment实体类以及CommonResult通用类-->
        <dependency>
            <groupId>com.kh.springCloud</groupId>
            <artifactId>cloud-api-common</artifactId>
            <version>${project.version}</version>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <!--监控-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>

        <!--热部署-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>

        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

    </dependencies>
</project>

application.yml中配置如下：

复制代码
server:
  port: 80

spring:
  application:
    name: cloud-order-service

消费者订单模块

1.建module

File -> New -> Module -> Module SDK选择Project SDK(1.8) -> Next -> Add as module to (cloud) -> Parent(cloud) -> ArtifactId (cloud-consumer-order80) -> Next -> Module name (cloud-consumer-order80)

2.改pom

复制代码
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>cloud</artifactId>
        <groupId>com.kh.springCloud</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>cloud-comsumer-order80</artifactId>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <!--监控-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid-spring-boot-starter</artifactId>
            <version>1.1.10</version>
            <!--这里最好不去掉版本，避免出现 Cannot resolve com.alibaba:druid-spring-boot-starter:unknown   父POM中没有druid-->
            <!--如果没写版本,从父层面找,找到了就直接用,全局统一-->
        </dependency>
        <!--mysql-connector-java-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <!--jdbc-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>
        <!--热部署-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>
</project>

3.写YML

复制代码
server:
  port: 80

# 避免出现
#  Failed to configure a DataSource: 'url' attribute is not specified and no embedded
# datasource could be configured.

# Reason: Failed to determine a suitable driver class

spring:
                application:
                  name: cloud-order-service
                datasource:
                  type: com.alibaba.druid.pool.DruidDataSource   # 当前数据源操作类型
                  driver-class-name: com.mysql.jdbc.Driver    # mysql驱动包
                  url: jdbc:mysql://localhost:3306/cloud?useUnicode=true&characterEncoding=UTF-8&useSSL=false
                  username: root
                  password: a

4.启动类

复制代码
package com.kh.springcloud;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class OrderMain80 {
    public static void main(String[] args) {
        SpringApplication.run(OrderMain80.class, args);
    }
}

5.业务类

entities同上

RestTemplate

复制代码
package com.kh.springcloud.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.client.RestTemplate;

@Configuration
public class ApplicationContextConfig {

    @Bean
    public RestTemplate getRestTemplate() {
        return new RestTemplate();
    }

}

package com.kh.springcloud.controller;

import com.kh.springcloud.entities.CommonResult;
import com.kh.springcloud.entities.Payment;
import lombok.extern.slf4j.Slf4j;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.client.RestTemplate;

import javax.annotation.Resource;

@Slf4j
@RestController
public class OrderController {

    public static final String PAYMENT_URL = "http://localhost:8001";

    @Resource
    private RestTemplate restTemplate;

    @GetMapping("/consumer/payment/create")
    public CommonResult<Payment> create(Payment payment) {
        return restTemplate.postForObject(PAYMENT_URL + "payment/create",payment,CommonResult.class);
    }

    @GetMapping("/consumer/payment/get/{id}")
    public CommonResult<Payment> getPayment(@PathVariable("id") Long id) {
        return restTemplate.getForObject(PAYMENT_URL + "payment/get/" + id,CommonResult.class);
    }

}

6.测试

http://localhost/consumer/payment/get/1

复制代码
{"code":200,"message":"查询数据成功","data":{"id":1,"serial":"111"}}

http://localhost/consumer/payment/create?serial=132

复制代码
{"code":200,"message":"插入数据成功","data":1}

插入操作有主键，却没有内容：在8001中

html 复制代码
PaymentController类中加入@RequestBody注解
复制代码
   @PostMapping(value = "/payment/create")
    public CommonResult create(@RequestBody Payment payment){
        int result = paymentService.create(payment);
        log.info("****************插入结果：" + result);

        if (result>0){
            return new CommonResult(200,"插入数据成功",result);
        }else{
            return new CommonResult(444,"插入数据库失败",null);
        }
    }

因为restTemplate发送的请求是JSON格式的，json格式在接收时要用@RequestBody注解，需要对请求实体进行属性映射

工程重构

原因：多个项目中需要使用到实体类，可抽象出来，降低代码耦合度

1.建Module

cloud项目下新建名为cloud-api-common的maven子项目

2.改pom

复制代码
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>cloud</artifactId>
        <groupId>com.kh.springCloud</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>cloud-api-common</artifactId>

    <dependencies>
        <!--热部署-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>

        <!-- lombok -->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>

        <dependency>
            <groupId>cn.hutool</groupId>
            <artifactId>hutool-all</artifactId>
            <version>5.1.0</version>
        </dependency>
    </dependencies>

</project>

3.将实体类进行复制

新建package，名为com.kh.springcloud，然后将Payment实体以及CommonResult通用封装类复制到包下。

4.maven命令下clean install

5依赖的项目进行修改

a.在cloud-consumer-order80以及cloud-provider-payment8001项目中删除entities包,

b.分别在以上两个项目中添加pom依赖:

复制代码
<!-- 自己定义的api通用包， 提供Payment实体类以及CommonResult通用类-->
        <dependency>
            <groupId>com.kh.springCloud</groupId>
            <artifactId>cloud-api-common</artifactId>
            <version>${project.version}</version>
        </dependency>

Eureka

作用：服务注册与发现

Eureka Server端服务注册中心

1.建module

在cloud项目下建一个名为cloud-eureka-server7001的项目

2.改pom

复制代码
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>cloud</artifactId>
        <groupId>com.kh.springCloud</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>cloud-eureka-server7001</artifactId>
    <dependencies>

        <!-- eureka-server -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
        </dependency>

        <!-- 引用自己定义的api通用包，可以使用Payment支付Entity -->
        <dependency>
            <groupId>com.kh.springCloud</groupId>
            <artifactId>cloud-api-common</artifactId>
            <version>${project.version}</version>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <!--监控-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>

        <!--热部署-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>

        <!-- lombok -->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

</project>

3.写yml

复制代码
server:
  port: 7001

eureka:
  instance:
    hostname: localhost    #eureka服务端的实例名称
  client:
    # false 表示不向注册中心注册自己
    register-with-eureka: false
    # 表示自己就是注册中心， 职责是维护服务实例，  不需要检索服务
    fetch-registry: false
    service-url:
      defaultZone: http://${eureka.instance.hostname}:${server.port}/eureka/

4.主启动

复制代码
package com.kh.springcloud;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.server.EnableEurekaServer;

@SpringBootApplication
@EnableEurekaServer
public class EurekaMain7001 {

    public static void main(String[] args) {
        SpringApplication.run(EurekaMain7001.class, args);
    }

}

5.测试

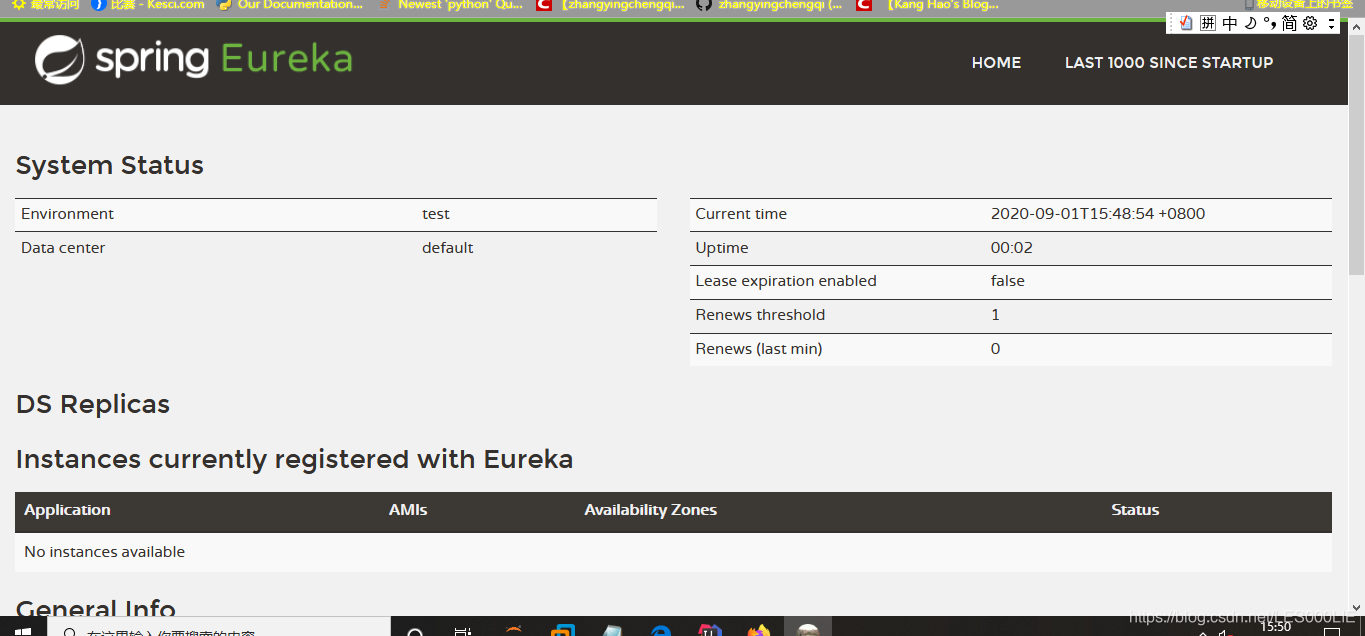

访问http://localhost:7001/，页面出现

Eureka Client端

1.建module，在cloud-provider-payment8001基础上进行修改

2.改pom

加入eureka client依赖

复制代码
   <!-- eureka-client -->
   <dependency>
       <groupId>org.springframework.cloud</groupId>
       <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
   </dependency>

3.写yml

添加eureka client配置

复制代码
eureka:
  client:
    # 是否将自己注册进eureka Server  ， 默认为true
    register-with-eureka: true
    # 是否将EurekaServer抓取已有的注册信息，默认为true，单节点无所谓，集群环境必须设置为true才能使用ribbon进行负载均衡
    fetch-registry: true
    service-url:
      defaultZone: http://localhost:7001/eureka  #注册地址

4.主启动

添加@EnableEurekaClient注解

5.测试

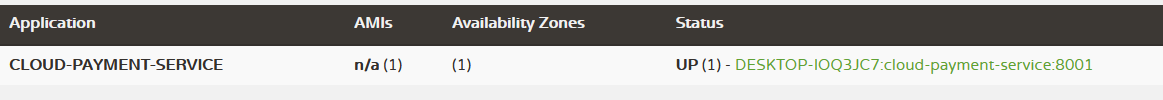

运行cloud-provider-payment8001，访问http://localhost:7001/，出现该应用。

将订单80模块注册进Eureka Client端

1.建module

2.改pom

3.写yml

4.主启动

5.业务类

相关推荐
没有bug.的程序员2 小时前
撕裂微服务网关的认证风暴：Spring Security 6.1 与 JWT 物理级免登架构大重构
java·spring·微服务·架构·security·jwt
mldlds2 小时前
Spring Boot应用关闭分析
java·spring boot·后端
zjjsctcdl2 小时前
Spring Boot与MyBatis
spring boot·后端·mybatis
tuyanfei2 小时前
Spring 简介
java·后端·spring
代码探秘者2 小时前
【大模型应用】2.RAG详细流程
java·开发语言·人工智能·后端·python
神奇小汤圆2 小时前
网易一面：KAFKA写入数据时是先写Leader还是先写Follower?
后端
baizhigangqw3 小时前
Spring Boot spring.factories文件详细说明
spring boot·后端·spring
xuboyok23 小时前
Spring Boot管理用户数据
java·spring boot·后端
热门推荐
01GitHub 镜像站点02Qwen3.5 开源全解析：从 0.8B 到 397B，代际升级 + 全场景选型指南03OpenClaw 使用和管理 MCP 完全指南04UV安装并设置国内源05OpenClaw Control UI安全上下文访问配置06OpenClaw macOS 完整安装与本地模型配置教程（实战版）07本地部署 OpenClaw + DeepSeek-R1 完全指南08Claude Code + GLM4.7 避坑指南：解决 Unable to connect to Anthropic services09小黑课堂计算机二级WPSoffice题库软件下载安装教程（2026年3月最新版）10让 Trae IDE 智能体 “读懂”文档 Excel+PDF+DOCX ：mcp-documents-reader 工具使用指南
