OSPF协议综合实验

黄金大师傅2026-03-18 17:02

实验任务

需要完成的任务如下。

（1）在总部和分公司相应交换机上完成 VLAN 相关配置，包括 VLAN 创建和端口划分、Trunk 配置、以太网通道配置和 MSTP 配置等。

（2）在总部和分公司的网络中完成 IP 地址配置，包括配置路由器接口的 IP 地址，为三层交换机创建 VLANIF 并配置 IP 地址，配置计算机和服务器的 IP 地址、子网掩码和网关。

（3）为总部核心交换机配置 VRRP，为主机提供冗余网关。

（4）配置 NAT，使总部和分公司的主机可以通过 SZ 路由器访问 Internet。

（5）测试以上所有直连链路的连通性。

（6）OSPF 区域划分：广州分公司和深圳总部网络划分到 OSPF Area 1 中，深圳总部和北京分公司网络划分到 OSPF Area 2 中，深圳总部网络划分到 OSPF Area 0 中，修改 OSPF 计算度量值参考带宽为 1000Mbit/s。路由器 SZ 的 Router ID 为 1.1.1.1，路由器 GZ 的 Router ID 为 2.2.2.2，路由器 BJ 的 Router ID 为 3.3.3.3，交换机 S1 的 Router ID 为 4.4.4.4，交换机 S2 的 Router ID 为 5.5.5.5，交换机 S5 的 Router ID 为 6.6.6.6，交换机 S6 的 Router ID 为 7.7.7.7。

（7）在深圳总部路由器上分别配置 OSPF Area 0、1 和 2 的 ABR 路由聚合，以便减少路由表大小，提高路由查找效率。

（8）为了减少向局域网发送不必要的 OSPF 更新，将分公司交换机适当接口配置为静默接口。

（9）为了提高网络安全性，在深圳总部到分公司的两条链路上配置 OSPF MD5 验证，在深圳总部的 OSPF Area 0 设备上配置 MD5 验证。

（10）在深圳总部和北京分公司的链路上，将接口发送 Hello 报文间隔改为 5s，Dead 时间改为 20s。

（11）将 Area 2 配置为完全末节区域。

（12）控制 DR 选举，使深圳总部路由器成为连接三层交换机 S1 和 S2 的相应网段的 DR。

（13）在深圳总部路由器上配置指向 ISP 的静态默认路由，并向 OSPF 网络注入默认路由。

（14）查看各路由器的 OSPF 邻居表、链路状态数据库和路由表，并进行网络连通性测试。

（15）保存配置文件，完成项目测试报告。

  1. 项目目的

通过本项目可以掌握如下知识点和技能点，同时积累项目经验。

（1）启动 OSPF 路由进程和启用参与 OSPF 协议接口的方法。

（2）配置 OSPF 计时器参数的方法。

（3）OSPF 计算度量值参考带宽的修改方法。

（4）修改 OSPF 接口优先级控制 DR 选举的方法。

（5）广播多路访问链路上 OSPF 的特征。

（6）基于链路和基于区域的 OSPF 验证的配置方法。

（7）区域间路由汇聚和向 OSPF 网络注入默认路由的方法。

（8）OSPF 不同路由器类型的功能和 OSPF LSA 的类型及特征。

（9）OSPF 链路状态数据库的特征和含义，以及 OSPF 第一类外部路由和第二类外部路由的区别。

（10）查看和调试 OSPF 协议相关信息的方法。

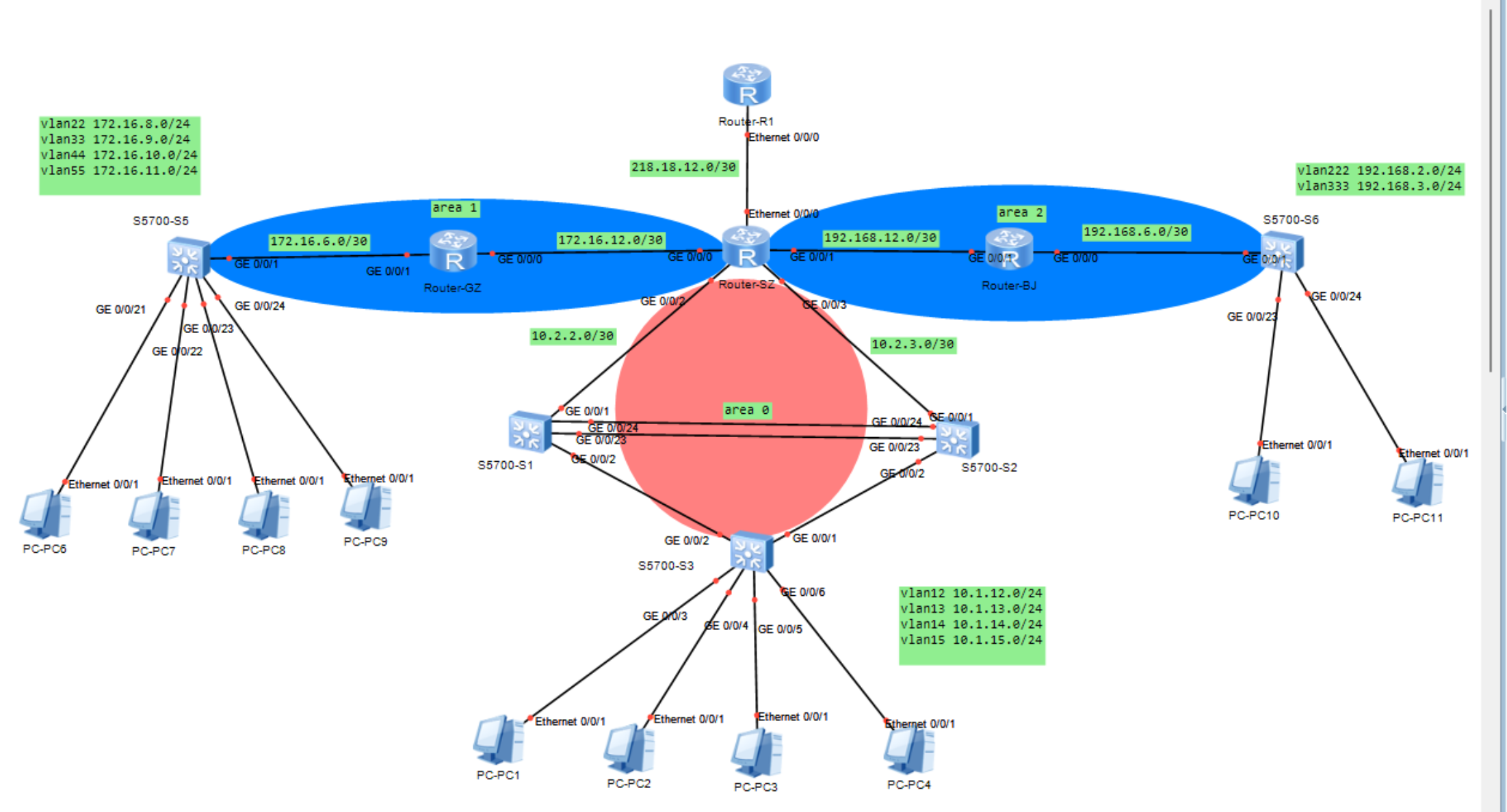

实验拓扑

SZ路由器配置

bash 复制代码
#
sysname SZ
#
aaa
 authentication-scheme default
 authorization-scheme default
 accounting-scheme default
 domain default
 domain default_admin
 local-user admin password cipher OOCM4m($F4ajUn1vMEIBNUw#
 local-user admin service-type http
#
firewall zone Local
 priority 16
#
interface Ethernet0/0/0
#
interface Ethernet0/0/1
#
interface Serial0/0/0
 link-protocol ppp
#
interface Serial0/0/1
 link-protocol ppp
#
interface Serial0/0/2
 link-protocol ppp
#
interface Serial0/0/3
 link-protocol ppp
#
interface GigabitEthernet0/0/0
 ip address 172.16.12.1 255.255.255.252
 ospf authentication-mode hmac-md5 1 cipher pFgcIB7-wIECB7Ie7'/)9\3#
#
interface GigabitEthernet0/0/1
 ip address 192.168.12.1 255.255.255.252
 ospf authentication-mode hmac-md5 1 cipher t-j(=lln<93@9_G-B0Y2H\b#
#
interface GigabitEthernet0/0/2
 ip address 10.2.2.1 255.255.255.252
 ospf dr-priority 2
#
interface GigabitEthernet0/0/3
 ip address 10.2.3.1 255.255.255.252
 ospf dr-priority 2
#
wlan
#
interface NULL0
#
ospf 1 router-id 1.1.1.1
 default-route-advertise
 bandwidth-reference 1000
 area 0.0.0.0
  abr-summary 10.1.12.0 255.255.252.0
  authentication-mode hmac-md5 1 cipher :ZeeDxthRS939O4.`(ZG/\g#
  network 10.2.3.1 0.0.0.0
  network 10.2.2.1 0.0.0.0
 area 0.0.0.1
  abr-summary 172.16.8.0 255.255.252.0
  network 172.16.12.1 0.0.0.0
 area 0.0.0.2
  abr-summary 192.168.2.0 255.255.254.0
  network 192.168.12.1 0.0.0.0
  stub no-summary
#
ip route-static 0.0.0.0 0.0.0.0 218.18.12.2
#
user-interface con 0
user-interface vty 0 4
user-interface vty 16 20
#
return

GZ路由器配置

bash 复制代码
#
sysname GZ
#
aaa
 authentication-scheme default
 authorization-scheme default
 accounting-scheme default
 domain default
 domain default_admin
 local-user admin password cipher +*X%D|%Wg7=H)H2[EInBTQO#
 local-user admin service-type http
#
firewall zone Local
 priority 16
#
interface Ethernet0/0/0
#
interface Ethernet0/0/1
#
interface Serial0/0/0
 link-protocol ppp
#
interface Serial0/0/1
 link-protocol ppp
#
interface Serial0/0/2
 link-protocol ppp
#
interface Serial0/0/3
 link-protocol ppp
#
interface GigabitEthernet0/0/0
 ip address 172.16.12.2 255.255.255.252
 ospf authentication-mode hmac-md5 1 cipher ;bXQ8>blpC3IF$':[285ua1#
#
interface GigabitEthernet0/0/1
 ip address 172.16.6.1 255.255.255.252
#
interface GigabitEthernet0/0/2
#
interface GigabitEthernet0/0/3
#
wlan
#
interface NULL0
#
ospf 1 router-id 2.2.2.2
 bandwidth-reference 1000
 area 0.0.0.1
  network 172.16.12.2 0.0.0.0
  network 172.16.6.1 0.0.0.0
#
user-interface con 0
user-interface vty 0 4
user-interface vty 16 20
#
return

BJ路由器配置

bash 复制代码
#
sysname BJ
#
aaa
 authentication-scheme default
 authorization-scheme default
 accounting-scheme default
 domain default
 domain default_admin
 local-user admin password cipher B3wPB^]SX$=H)H2[EInB3QO#
 local-user admin service-type http
#
firewall zone Local
 priority 16
#
interface Ethernet0/0/0
#
interface Ethernet0/0/1
#
interface Serial0/0/0
 link-protocol ppp
#
interface Serial0/0/1
 link-protocol ppp
#
interface Serial0/0/2
 link-protocol ppp
#
interface Serial0/0/3
 link-protocol ppp
#
interface GigabitEthernet0/0/0
 ip address 192.168.6.1 255.255.255.252
#
interface GigabitEthernet0/0/1
 ip address 192.168.12.2 255.255.255.252
 ospf authentication-mode hmac-md5 1 cipher t-j(=lln<9ECB7Ie7'/)2`W#
#
interface GigabitEthernet0/0/2
#
interface GigabitEthernet0/0/3
#
wlan
#
interface NULL0
#
ospf 1 router-id 3.3.3.3
 bandwidth-reference 1000
 area 0.0.0.2
  network 192.168.12.2 0.0.0.0
  network 192.168.6.1 0.0.0.0
  stub
#
user-interface con 0
user-interface vty 0 4
user-interface vty 16 20
#
return

交换机S1配置

bash 复制代码
#
sysname S1
#
vlan batch 12 to 15 100
#
stp instance 0 root primary
stp instance 1 root primary
stp instance 2 root secondary
stp bpdu-protection
#
cluster enable
ntdp enable
ndp enable
#
drop illegal-mac alarm
#
diffserv domain default
#
stp region-configuration
 region-name RG1
 instance 1 vlan 12 to 13
 instance 2 vlan 14 to 15
 active region-configuration
#
drop-profile default
#
aaa
 authentication-scheme default
 authorization-scheme default
 accounting-scheme default
 domain default
 domain default_admin
 local-user admin password simple admin
 local-user admin service-type http
#
interface Vlanif1
#
interface Vlanif12
 ip address 10.1.12.252 255.255.255.0
 vrrp vrid 1 virtual-ip 10.1.12.254
 vrrp vrid 1 priority 120
 vrrp vrid 1 preempt-mode timer delay 20
#
interface Vlanif13
 ip address 10.1.13.252 255.255.255.0
 vrrp vrid 2 virtual-ip 10.1.13.254
 vrrp vrid 2 priority 120
 vrrp vrid 2 preempt-mode timer delay 20
#
interface Vlanif14
 ip address 10.1.14.252 255.255.255.0
 vrrp vrid 3 virtual-ip 10.1.14.254
#
interface Vlanif15
 ip address 10.1.15.252 255.255.255.0
 vrrp vrid 4 virtual-ip 10.1.15.254
#
interface Vlanif100
 ip address 10.2.2.2 255.255.255.252
#
interface MEth0/0/1
#
interface Eth-Trunk1
 port link-type trunk
 undo port trunk allow-pass vlan 1
 port trunk allow-pass vlan 2 to 4094
#
interface GigabitEthernet0/0/1
 port link-type access
 port default vlan 100
 stp edged-port enable
#
interface GigabitEthernet0/0/2
 port link-type trunk
 undo port trunk allow-pass vlan 1
 port trunk allow-pass vlan 2 to 4094
#
interface GigabitEthernet0/0/3
#
interface GigabitEthernet0/0/4
#
interface GigabitEthernet0/0/5
#
interface GigabitEthernet0/0/6
#
interface GigabitEthernet0/0/7
#
interface GigabitEthernet0/0/8
#
interface GigabitEthernet0/0/9
#
interface GigabitEthernet0/0/10
#
interface GigabitEthernet0/0/11
#
interface GigabitEthernet0/0/12
#
interface GigabitEthernet0/0/13
#
interface GigabitEthernet0/0/14
#
interface GigabitEthernet0/0/15
#
interface GigabitEthernet0/0/16
#
interface GigabitEthernet0/0/17
#
interface GigabitEthernet0/0/18
#
interface GigabitEthernet0/0/19
#
interface GigabitEthernet0/0/20
#
interface GigabitEthernet0/0/21
#
interface GigabitEthernet0/0/22
#
interface GigabitEthernet0/0/23
 eth-trunk 1
#
interface GigabitEthernet0/0/24
 eth-trunk 1
#
interface NULL0
#
ospf 1 router-id 4.4.4.4
 bandwidth-reference 1000
 area 0.0.0.0
  authentication-mode hmac-md5 1 cipher {\Z8/"Rs$@sPddVIN=17BbZ#
  network 10.2.2.2 0.0.0.0
  network 10.1.12.252 0.0.0.0
  network 10.1.13.252 0.0.0.0
  network 10.1.14.252 0.0.0.0
  network 10.1.15.252 0.0.0.0
#
user-interface con 0
user-interface vty 0 4
#
return

交换机S2配置

bash 复制代码
#
sysname S2
#
vlan batch 12 to 15 200
#
stp instance 0 root secondary
stp instance 1 root secondary
stp instance 2 root primary
stp bpdu-protection
#
cluster enable
ntdp enable
ndp enable
#
drop illegal-mac alarm
#
diffserv domain default
#
stp region-configuration
 region-name RG1
 instance 1 vlan 12 to 13
 instance 2 vlan 14 to 15
 active region-configuration
#
drop-profile default
#
aaa
 authentication-scheme default
 authorization-scheme default
 accounting-scheme default
 domain default
 domain default_admin
 local-user admin password simple admin
 local-user admin service-type http
#
interface Vlanif1
#
interface Vlanif12
 ip address 10.1.12.253 255.255.255.0
 vrrp vrid 1 virtual-ip 10.1.12.254
#
interface Vlanif13
 ip address 10.1.13.253 255.255.255.0
 vrrp vrid 2 virtual-ip 10.1.13.254
#
interface Vlanif14
 ip address 10.1.14.253 255.255.255.0
 vrrp vrid 3 virtual-ip 10.1.14.254
 vrrp vrid 3 priority 120
 vrrp vrid 3 preempt-mode timer delay 20
#
interface Vlanif15
 ip address 10.1.15.253 255.255.255.0
 vrrp vrid 4 virtual-ip 10.1.15.254
 vrrp vrid 4 priority 120
 vrrp vrid 4 preempt-mode timer delay 20
#
interface Vlanif200
 ip address 10.2.3.2 255.255.255.252
#
interface MEth0/0/1
#
interface Eth-Trunk1
 port link-type trunk
 undo port trunk allow-pass vlan 1
 port trunk allow-pass vlan 2 to 4094
#
interface GigabitEthernet0/0/1
 port link-type access
 port default vlan 200
 stp edged-port enable
#
interface GigabitEthernet0/0/2
 port link-type trunk
 undo port trunk allow-pass vlan 1
 port trunk allow-pass vlan 2 to 4094
#
interface GigabitEthernet0/0/3
#
interface GigabitEthernet0/0/4
#
interface GigabitEthernet0/0/5
#
interface GigabitEthernet0/0/6
#
interface GigabitEthernet0/0/7
#
interface GigabitEthernet0/0/8
#
interface GigabitEthernet0/0/9
#
interface GigabitEthernet0/0/10
#
interface GigabitEthernet0/0/11
#
interface GigabitEthernet0/0/12
#
interface GigabitEthernet0/0/13
#
interface GigabitEthernet0/0/14
#
interface GigabitEthernet0/0/15
#
interface GigabitEthernet0/0/16
#
interface GigabitEthernet0/0/17
#
interface GigabitEthernet0/0/18
#
interface GigabitEthernet0/0/19
#
interface GigabitEthernet0/0/20
#
interface GigabitEthernet0/0/21
#
interface GigabitEthernet0/0/22
#
interface GigabitEthernet0/0/23
 eth-trunk 1
#
interface GigabitEthernet0/0/24
 eth-trunk 1
#
interface NULL0
#
ospf 1 router-id 5.5.5.5
 bandwidth-reference 1000
 area 0.0.0.0
  authentication-mode hmac-md5 1 cipher <`XfQyVFm)uqcXT}k'OI7bK#
  network 10.2.3.2 0.0.0.0
  network 10.1.12.253 0.0.0.0
  network 10.1.13.253 0.0.0.0
  network 10.1.14.253 0.0.0.0
  network 10.1.15.253 0.0.0.0
#
user-interface con 0
user-interface vty 0 4
#
return

交换机S3配置

bash 复制代码
#
sysname S3
#
vlan batch 12 to 15
#
stp bpdu-protection
#
cluster enable
ntdp enable
ndp enable
#
drop illegal-mac alarm
#
diffserv domain default
#
stp region-configuration
 region-name RG1
 instance 1 vlan 12 to 13
 instance 2 vlan 14 to 15
 active region-configuration
#
drop-profile default
#
aaa
 authentication-scheme default
 authorization-scheme default
 accounting-scheme default
 domain default
 domain default_admin
 local-user admin password simple admin
 local-user admin service-type http
#
interface Vlanif1
#
interface Vlanif12
#
interface Vlanif13
#
interface Vlanif14
#
interface Vlanif15
#
interface MEth0/0/1
#
interface GigabitEthernet0/0/1
 port link-type trunk
 undo port trunk allow-pass vlan 1
 port trunk allow-pass vlan 2 to 4094
#
interface GigabitEthernet0/0/2
 port link-type trunk
 undo port trunk allow-pass vlan 1
 port trunk allow-pass vlan 2 to 4094
#
interface GigabitEthernet0/0/3
 port link-type access
 port default vlan 12
 stp edged-port enable
#
interface GigabitEthernet0/0/4
 port link-type access
 port default vlan 13
 stp edged-port enable
#
interface GigabitEthernet0/0/5
 port link-type access
 port default vlan 14
 stp edged-port enable
#
interface GigabitEthernet0/0/6
 port link-type access
 port default vlan 15
 stp edged-port enable
#
interface GigabitEthernet0/0/7
#
interface GigabitEthernet0/0/8
#
interface GigabitEthernet0/0/9
#
interface GigabitEthernet0/0/10
#
interface GigabitEthernet0/0/11
#
interface GigabitEthernet0/0/12
#
interface GigabitEthernet0/0/13
#
interface GigabitEthernet0/0/14
#
interface GigabitEthernet0/0/15
#
interface GigabitEthernet0/0/16
#
interface GigabitEthernet0/0/17
#
interface GigabitEthernet0/0/18
#
interface GigabitEthernet0/0/19
#
interface GigabitEthernet0/0/20
#
interface GigabitEthernet0/0/21
#
interface GigabitEthernet0/0/22
#
interface GigabitEthernet0/0/23
#
interface GigabitEthernet0/0/24
#
interface NULL0
#
user-interface con 0
user-interface vty 0 4
#
return

交换机S5配置

bash 复制代码
#
sysname S5
#
vlan batch 22 33 44 55 100
#
cluster enable
ntdp enable
ndp enable
#
drop illegal-mac alarm
#
diffserv domain default
#
drop-profile default
#
aaa
 authentication-scheme default
 authorization-scheme default
 accounting-scheme default
 domain default
 domain default_admin
 local-user admin password simple admin
 local-user admin service-type http
#
interface Vlanif1
#
interface Vlanif22
 ip address 172.16.8.254 255.255.255.0
#
interface Vlanif33
 ip address 172.16.9.254 255.255.255.0
#
interface Vlanif44
 ip address 172.16.10.254 255.255.255.0
#
interface Vlanif55
 ip address 172.16.11.254 255.255.255.0
#
interface Vlanif100
 ip address 172.16.6.2 255.255.255.252
#
interface MEth0/0/1
#
interface GigabitEthernet0/0/1
 port link-type access
 port default vlan 100
#
interface GigabitEthernet0/0/2
#
interface GigabitEthernet0/0/3
#
interface GigabitEthernet0/0/4
#
interface GigabitEthernet0/0/5
#
interface GigabitEthernet0/0/6
#
interface GigabitEthernet0/0/7
#
interface GigabitEthernet0/0/8
#
interface GigabitEthernet0/0/9
#
interface GigabitEthernet0/0/10
#
interface GigabitEthernet0/0/11
#
interface GigabitEthernet0/0/12
#
interface GigabitEthernet0/0/13
#
interface GigabitEthernet0/0/14
#
interface GigabitEthernet0/0/15
#
interface GigabitEthernet0/0/16
#
interface GigabitEthernet0/0/17
#
interface GigabitEthernet0/0/18
#
interface GigabitEthernet0/0/19
#
interface GigabitEthernet0/0/20
#
interface GigabitEthernet0/0/21
 port link-type access
 port default vlan 22
#
interface GigabitEthernet0/0/22
 port link-type access
 port default vlan 33
#
interface GigabitEthernet0/0/23
 port link-type access
 port default vlan 44
#
interface GigabitEthernet0/0/24
 port link-type access
 port default vlan 55
#
interface NULL0
#
ospf 1 router-id 6.6.6.6
 silent-interface Vlanif22
 silent-interface Vlanif33
 silent-interface Vlanif44
 silent-interface Vlanif55
 bandwidth-reference 1000
 area 0.0.0.1
  network 172.16.6.2 0.0.0.0
  network 172.16.8.254 0.0.0.0
  network 172.16.9.254 0.0.0.0
  network 172.16.10.254 0.0.0.0
  network 172.16.11.254 0.0.0.0
#
user-interface con 0
user-interface vty 0 4
#
return

交换机S6配置

bash 复制代码
#
sysname S6
#
vlan batch 100 222 333
#
cluster enable
ntdp enable
ndp enable
#
drop illegal-mac alarm
#
diffserv domain default
#
drop-profile default
#
aaa
 authentication-scheme default
 authorization-scheme default
 accounting-scheme default
 domain default
 domain default_admin
 local-user admin password simple admin
 local-user admin service-type http
#
interface Vlanif1
#
interface Vlanif100
 ip address 192.168.6.2 255.255.255.252
#
interface Vlanif222
 ip address 192.168.2.254 255.255.255.0
#
interface Vlanif333
 ip address 192.168.3.254 255.255.255.0
#
interface MEth0/0/1
#
interface GigabitEthernet0/0/1
 port link-type access
 port default vlan 100
#
interface GigabitEthernet0/0/2
#
interface GigabitEthernet0/0/3
#
interface GigabitEthernet0/0/4
#
interface GigabitEthernet0/0/5
#
interface GigabitEthernet0/0/6
#
interface GigabitEthernet0/0/7
#
interface GigabitEthernet0/0/8
#
interface GigabitEthernet0/0/9
#
interface GigabitEthernet0/0/10
#
interface GigabitEthernet0/0/11
#
interface GigabitEthernet0/0/12
#
interface GigabitEthernet0/0/13
#
interface GigabitEthernet0/0/14
#
interface GigabitEthernet0/0/15
#
interface GigabitEthernet0/0/16
#
interface GigabitEthernet0/0/17
#
interface GigabitEthernet0/0/18
#
interface GigabitEthernet0/0/19
#
interface GigabitEthernet0/0/20
#
interface GigabitEthernet0/0/21
#
interface GigabitEthernet0/0/22
#
interface GigabitEthernet0/0/23
 port link-type access
 port default vlan 222
#
interface GigabitEthernet0/0/24
 port link-type access
 port default vlan 333
#
interface NULL0
#
ospf 1 router-id 7.7.7.7
 silent-interface Vlanif222
 silent-interface Vlanif333
 bandwidth-reference 1000
 area 0.0.0.2
  network 192.168.6.2 0.0.0.0
  network 192.168.2.254 0.0.0.0
  network 192.168.3.254 0.0.0.0
  stub
#
user-interface con 0
user-interface vty 0 4
#
return

路由器R1配置

bash 复制代码
#
sysname Huawei
#
aaa
 authentication-scheme default
 authorization-scheme default
 accounting-scheme default
 domain default
 domain default_admin
 local-user admin password cipher cy9C$[HHtR=H)H2[EInB=QO#
 local-user admin service-type http
#
firewall zone Local
 priority 16
#
interface Ethernet0/0/0
 ip address 218.18.12.2 255.255.255.252
#
interface Ethernet0/0/1
#
interface Serial0/0/0
 link-protocol ppp
#
interface Serial0/0/1
 link-protocol ppp
#
interface Serial0/0/2
 link-protocol ppp
#
interface Serial0/0/3
 link-protocol ppp
#
interface GigabitEthernet0/0/0
#
interface GigabitEthernet0/0/1
#
interface GigabitEthernet0/0/2
#
interface GigabitEthernet0/0/3
#
wlan
#
interface NULL0
#
ip route-static 0.0.0.0 0.0.0.0 218.18.12.1
#
user-interface con 0
user-interface vty 0 4
user-interface vty 16 20
#
return
相关推荐
4A广告文案43 分钟前
名创优品在成都开了家“乐园”，顺便造了个新IP
网络·网络协议·tcp/ip
Fnetlink12 小时前
Fnet 云网安 260904
网络·人工智能·安全·web安全·网络安全
天远数科2 小时前
风险治理实战：基于天远车信盟出险构建自动化理赔核保流水线
java·网络·人工智能·自动化
志栋智能3 小时前
安全超自动化如何支持大规模安全运营？
网络·安全·自动化
星恒讯工业路由器3 小时前
农村宽带覆盖难？无线专网方案正在改写“最后一公里”规则
网络·物联网·网桥·无线网桥·农村宽带覆盖·无线专网·户外网络
tang777894 小时前
反爬虫场景下代理IP池的动态扩容与失效IP自动清理方案实现
linux·服务器·网络·爬虫代理·住宅代理ip
yuewell_ai4 小时前
机器人调度通讯怎么设计才不会被网络抖动瘫痪
网络·机器人·php
TechWayfarer4 小时前
Cloudflare 9·15新政倒计时：用IP风险画像识别AI爬虫，防止误伤Googlebot
网络·人工智能·爬虫·python·tcp/ip·网络安全
嵌入式学习菌4 小时前
ESP32 智能插座调试软件功能测试
网络·物联网
醇氧4 小时前
OSI 七层网络模型总结
网络
热门推荐
01国内可直接用、免费额度/永久免费的大模型API清单（含 SiliconFlow、火山、阿里、智谱、百度、Kimi、DeepSeek、DMXAPI 等）02ZCode 周末送额度活动开启：3 亿 Token 免费领取03GitHub 镜像站点04蜘蛛磁力 搜索引擎大全，如何使用蜘蛛磁力查找磁力链接05历年考研数学一、数学二、数学三真题试卷及答案PDF062026 国产 AI 大模型横评：DeepSeek、通义千问、Kimi、文心一言、星火、豆包谁更能打？07微信历史版本含下载地址（ Windows PC | 安卓 | MAC ）及设置微信不更新08AI 编程 IDE 全景解析 2026：Agent 全面接管开发链路09Agnes AI 免费 API 接入指南：文本、生图、生视频，一套接口全免费10VSCode SSH 连接远程服务器后，Codex 插件登录失败
