云原生(docker网络)

匀泪2026-03-22 9:26

实验简介

一、实验目的

  1. 掌握 Docker 安装后默认的三种网络（bridge、host、none）的工作原理与使用方式。
  2. 理解默认 bridge 网络的局限，学会创建自定义 bridge 网络，实现容器名 DNS 解析与稳定互联。
  3. 掌握容器加入多个网络、joined（container）共享网络栈模式的使用。
  4. 理解容器访问外网、外部访问容器的端口映射（-p）与 NAT 转发机制。
  5. 了解 Docker CNM 模型，初步掌握 macvlan 跨主机容器网络配置。

二、实验环境

  • 操作系统：CentOS/RHEL 7/9
  • 软件：Docker 社区版
  • 节点：单节点演示默认 / 自定义网络，双节点演示 macvlan 跨主机网络

三、核心实验内容

1. 原生默认网络

  • bridge（docker0）：容器默认网络，独立网络 Namespace，需端口映射对外提供服务，容器间仅 IP 互通。
  • host：共享宿主机网络栈，性能高、无隔离，端口与宿主机冲突。
  • none：仅本地回环 lo，无网络功能，适用于高安全隔离场景。

2. 自定义 bridge 网络

  • 创建自定义子网、网关的桥接网络。
  • 解决默认网络 IP 动态变化问题，支持容器名 DNS 自动解析。
  • 实现不同网络隔离，通过 docker network connect 实现容器多网卡跨网通信。

3. 特殊网络模式

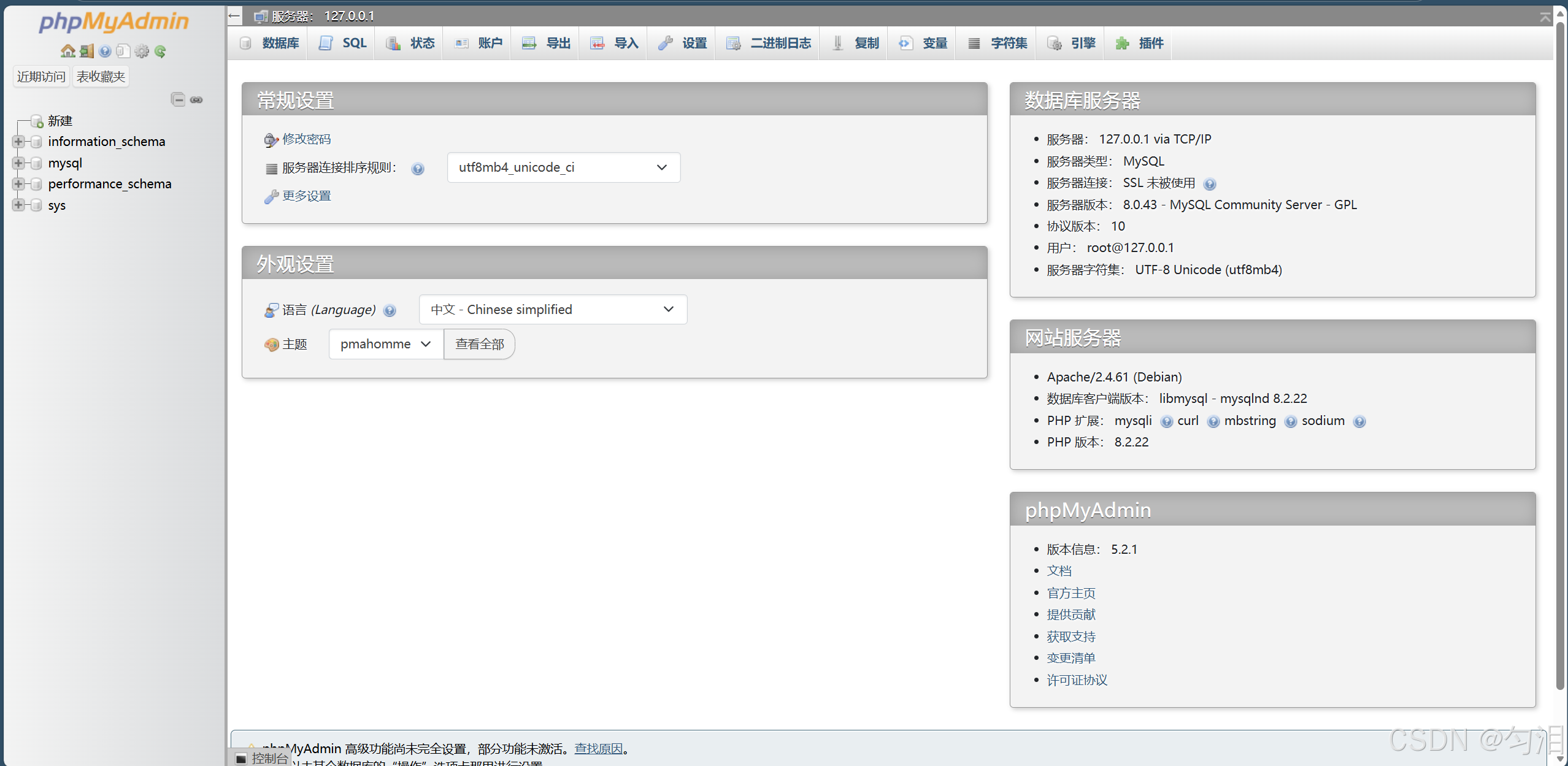

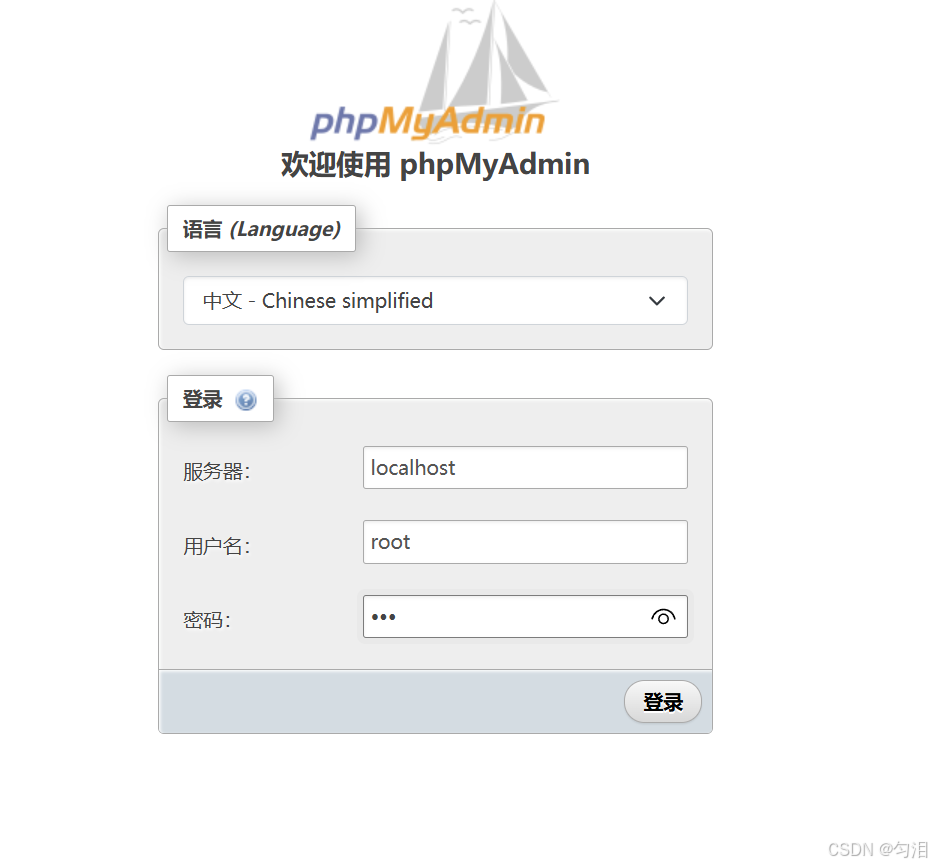

  • joined（container）模式：容器共享同一网络栈，本地回环直接通信，示例：phpMyAdmin 与 MySQL 共用网络。

4. 容器内外网访问

  • 容器访问外网：iptables/nftables 地址伪装（MASQUERADE）。
  • 外网访问容器：-p 端口映射，DNAT 转发 + docker-proxy 代理。

5. 跨主机网络

  • 基于 Linux macvlan 技术，容器直接挂载物理网卡，二层互通，无 NAT 损耗。
  • 配置网卡混杂模式，创建 macvlan 网络，实现不同宿主机容器直接通信。

四、实验结论

  1. 默认 bridge 网络简单但缺少 DNS 解析，IP 不稳定，生产推荐自定义 bridge。
  2. host 网络性能最优但隔离性差，none 网络隔离最强但无网络能力。
  3. 容器间互联优先使用自定义网络 + 容器名访问，joined 模式适合紧密耦合应用。
  4. 端口映射与 NAT 实现内外网访问，macvlan/overlay 满足跨主机容器通信需求。

docker网络类型

复制代码
[root@docker-node1 ~]# docker network ls
NETWORK ID     NAME            DRIVER    SCOPE
58d00c7c60c5   bridge          bridge    local
3b745dc3cdb8   host            host      local
26501e37f962   none            null      local

docker原生bridge网络

复制代码
[root@docker-node1 ~]# ip link show type bridge
3: docker0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN mode DEFAULT group default
    link/ether 56:d7:18:67:8d:03 brd ff:ff:ff:ff:ff:ff
4: br-d1a82367264d: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP mode DEFAULT group default
    link/ether 3a:3d:93:51:fa:35 brd ff:ff:ff:ff:ff:ff

[root@docker-node1 ~]#  docker run -d --name web -p 80:80 nginx:1.26
323db76f4aafe438599dbe3dcc3fd6a273ec839d5e27ef5972cc9a607c446679
[root@docker-node1 ~]# ifconfig
br-d1a82367264d: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 172.18.0.1  netmask 255.255.0.0  broadcast 172.18.255.255
        inet6 fe80::383d:93ff:fe51:fa35  prefixlen 64  scopeid 0x20<link>
        ether 3a:3d:93:51:fa:35  txqueuelen 0  (Ethernet)
        RX packets 3  bytes 84 (84.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 21  bytes 3326 (3.2 KiB)
        TX errors 0  dropped 15 overruns 0  carrier 0  collisions 0

docker0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 172.17.0.1  netmask 255.255.0.0  broadcast 172.17.255.255
        inet6 fe80::54d7:18ff:fe67:8d03  prefixlen 64  scopeid 0x20<link>
        ether 56:d7:18:67:8d:03  txqueuelen 0  (Ethernet)
        RX packets 3  bytes 84 (84.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 21  bytes 3326 (3.2 KiB)
        TX errors 0  dropped 15 overruns 0  carrier 0  collisions 0

eth0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 172.25.254.10  netmask 255.255.255.0  broadcast 172.25.254.255
        inet6 fe80::a040:c605:cb54:9f20  prefixlen 64  scopeid 0x20<link>
        ether 00:0c:29:4b:b9:fd  txqueuelen 1000  (Ethernet)
        RX packets 338  bytes 29610 (28.9 KiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 420  bytes 47069 (45.9 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

lo: flags=73<UP,LOOPBACK,RUNNING>  mtu 65536
        inet 127.0.0.1  netmask 255.0.0.0
        inet6 ::1  prefixlen 128  scopeid 0x10<host>
        loop  txqueuelen 1000  (Local Loopback)
        RX packets 53  bytes 4241 (4.1 KiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 53  bytes 4241 (4.1 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

veth15980f4: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500     #容器使用的网卡
        inet6 fe80::10bc:bbff:fe61:48e4  prefixlen 64  scopeid 0x20<link>
        ether 12:bc:bb:61:48:e4  txqueuelen 0  (Ethernet)
        RX packets 3  bytes 126 (126.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 37  bytes 5454 (5.3 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

vethd7830b0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500     #容器使用的网卡
        inet6 fe80::d4fc:6ff:fec4:fa37  prefixlen 64  scopeid 0x20<link>
        ether d6:fc:06:c4:fa:37  txqueuelen 0  (Ethernet)
        RX packets 3  bytes 126 (126.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 59  bytes 7504 (7.3 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0
[root@docker-node1 mnt]# bridge link
5: vethd7830b0@eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 master br-d1a82367264d state forwarding priority 32 cost 2
6: veth15980f4@eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 master docker0 state forwarding priority 32 cost 2
[root@docker-node1 mnt]# ip link show type bridge
3: docker0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP mode DEFAULT group default
    link/ether 56:d7:18:67:8d:03 brd ff:ff:ff:ff:ff:ff
4: br-d1a82367264d: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP mode DEFAULT group default
    link/ether 3a:3d:93:51:fa:35 brd ff:ff:ff:ff:ff:ff

docker原生host网络

复制代码
[root@docker-node1 mnt]# docker run -it --rm --name test --network host busybox
/ # ifconfig
br-d1a82367264d Link encap:Ethernet  HWaddr 3A:3D:93:51:FA:35
          inet addr:172.18.0.1  Bcast:172.18.255.255  Mask:255.255.0.0
          inet6 addr: fe80::383d:93ff:fe51:fa35/64 Scope:Link
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:3 errors:0 dropped:0 overruns:0 frame:0
          TX packets:33 errors:0 dropped:9 overruns:0 carrier:0
          collisions:0 txqueuelen:0
          RX bytes:84 (84.0 B)  TX bytes:4490 (4.3 KiB)

docker0   Link encap:Ethernet  HWaddr 56:D7:18:67:8D:03
          inet addr:172.17.0.1  Bcast:172.17.255.255  Mask:255.255.0.0
          inet6 addr: fe80::54d7:18ff:fe67:8d03/64 Scope:Link
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:3 errors:0 dropped:0 overruns:0 frame:0
          TX packets:21 errors:0 dropped:15 overruns:0 carrier:0
          collisions:0 txqueuelen:0
          RX bytes:84 (84.0 B)  TX bytes:3326 (3.2 KiB)

eth0      Link encap:Ethernet  HWaddr 00:0C:29:4B:B9:FD
          inet addr:172.25.254.10  Bcast:172.25.254.255  Mask:255.255.255.0
          inet6 addr: fe80::a040:c605:cb54:9f20/64 Scope:Link
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:1172 errors:0 dropped:0 overruns:0 frame:0
          TX packets:1346 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:96462 (94.2 KiB)  TX bytes:125113 (122.1 KiB)

lo        Link encap:Local Loopback
          inet addr:127.0.0.1  Mask:255.0.0.0
          inet6 addr: ::1/128 Scope:Host
          UP LOOPBACK RUNNING  MTU:65536  Metric:1
          RX packets:53 errors:0 dropped:0 overruns:0 frame:0
          TX packets:53 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:4241 (4.1 KiB)  TX bytes:4241 (4.1 KiB)

veth15980f4 Link encap:Ethernet  HWaddr 12:BC:BB:61:48:E4
          inet6 addr: fe80::10bc:bbff:fe61:48e4/64 Scope:Link
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:3 errors:0 dropped:0 overruns:0 frame:0
          TX packets:42 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:0
          RX bytes:126 (126.0 B)  TX bytes:5804 (5.6 KiB)

vethd7830b0 Link encap:Ethernet  HWaddr D6:FC:06:C4:FA:37
          inet6 addr: fe80::d4fc:6ff:fec4:fa37/64 Scope:Link
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:3 errors:0 dropped:0 overruns:0 frame:0
          TX packets:60 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:0
          RX bytes:126 (126.0 B)  TX bytes:7574 (7.3 KiB)

/ #

docker 原生none网络

复制代码
[root@docker-node1 ~]# docker run -it --name test --rm --network none  busybox
/ # ifconfig
lo        Link encap:Local Loopback
          inet addr:127.0.0.1  Mask:255.0.0.0
          inet6 addr: ::1/128 Scope:Host
          UP LOOPBACK RUNNING  MTU:65536  Metric:1
          RX packets:0 errors:0 dropped:0 overruns:0 frame:0
          TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:0 (0.0 B)  TX bytes:0 (0.0 B)

docker的自定义网络

自定义桥接网络

复制代码
#在建立自定以网络时，默认使用桥接模式
[root@docker-node1 ~]#  docker network create my_net1
90255a65568c4383d4f8b6aa3371567d4ac771f38b757dd821fe03a4f9729cac
[root@docker-node1 ~]# docker network ls
NETWORK ID     NAME            DRIVER    SCOPE
58d00c7c60c5   bridge          bridge    local
d1a82367264d   harbor_harbor   bridge    local
3b745dc3cdb8   host            host      local
90255a65568c   my_net1         bridge    local
26501e37f962   none            null      local

#桥接默认是单调递增
[root@docker-node1 ~]# ifconfig
br-90255a65568c: flags=4099<UP,BROADCAST,MULTICAST>  mtu 1500
        inet 172.19.0.1  netmask 255.255.0.0  broadcast 172.19.255.255
        ether e6:bf:7f:86:cb:d9  txqueuelen 0  (Ethernet)
        RX packets 3  bytes 126 (126.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 42  bytes 5804 (5.6 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

br-d1a82367264d: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 172.18.0.1  netmask 255.255.0.0  broadcast 172.18.255.255
        inet6 fe80::383d:93ff:fe51:fa35  prefixlen 64  scopeid 0x20<link>
        ether 3a:3d:93:51:fa:35  txqueuelen 0  (Ethernet)
        RX packets 3  bytes 84 (84.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 21  bytes 3326 (3.2 KiB)
        TX errors 0  dropped 15 overruns 0  carrier 0  collisions 0

docker0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 172.17.0.1  netmask 255.255.0.0  broadcast 172.17.255.255
        inet6 fe80::54d7:18ff:fe67:8d03  prefixlen 64  scopeid 0x20<link>
        ether 56:d7:18:67:8d:03  txqueuelen 0  (Ethernet)
        RX packets 3  bytes 84 (84.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 21  bytes 3326 (3.2 KiB)
        TX errors 0  dropped 15 overruns 0  carrier 0  collisions 0

#桥接也支持自定义子网和网关
[root@docker-node1 ~]# docker network create my_net2 --subnet 172.25.0.0/24 --gateway 172.25.0.100
5b0d1590f3472f6b104fbefa365e8a096ab8c06c519eee34a9e0ce897ca1edb8
[root@docker-node1 ~]# docker network  inspect my_net2
[
    {
        "Name": "my_net2",
        "Id": "5b0d1590f3472f6b104fbefa365e8a096ab8c06c519eee34a9e0ce897ca1edb8",
        "Created": "2026-03-21T15:01:15.647657182+08:00",
        "Scope": "local",
        "Driver": "bridge",
        "EnableIPv4": true,
        "EnableIPv6": false,
        "IPAM": {
            "Driver": "default",
            "Options": {},
            "Config": [
                {
                    "Subnet": "172.25.0.0/24",
                    "Gateway": "172.25.0.100"
                }
            ]
        },
        "Internal": false,
        "Attachable": false,
        "Ingress": false,
        "ConfigFrom": {
            "Network": ""
        },
        "ConfigOnly": false,
        "Options": {},
        "Labels": {},
        "Containers": {},
        "Status": {
            "IPAM": {
                "Subnets": {
                    "172.25.0.0/24": {
                        "IPsInUse": 3,
                        "DynamicIPsAvailable": 253
                    }
                }
            }
        }
    }
]

为什么要自定义桥接

复制代码
[root@docker-node1 ~]# docker run  -d --name web1 nginx
c0c5c86d905db2385e49761255268dbd72898fe44901127a05ae39a348a0cb14
[root@docker-node1 ~]# docker run  -d --name web2 nginx
a8bb836f307354cba589802f7a906ce6712483ab95929c915ace5fbedb3b323c
[root@docker-node1 ~]# docker inspect  web1
[
    {
        "Id": "c0c5c86d905db2385e49761255268dbd72898fe44901127a05ae39a348a0cb14",
        "Created": "2026-03-21T07:02:29.93863216Z",
        "Path": "/docker-entrypoint.sh",
        "Args": [
            "nginx",
            "-g",
            "daemon off;"
        ],
        "State": {
            "Status": "running",
            "Running": true,
            "Paused": false,
            "Restarting": false,
            "OOMKilled": false,
            "Dead": false,
            "Pid": 4834,
            "ExitCode": 0,
            "Error": "",
            "StartedAt": "2026-03-21T07:02:29.972603461Z",
            "FinishedAt": "0001-01-01T00:00:00Z"
        },
        "Image": "sha256:bc45d248c4e1d1709321de61566eb2b64d4f0e32765239d66573666be7f13349",
        "ResolvConfPath": "/var/lib/docker/containers/c0c5c86d905db2385e49761255268dbd72898fe44901127a05ae39a348a0cb14/resolv.conf",
        "HostnamePath": "/var/lib/docker/containers/c0c5c86d905db2385e49761255268dbd72898fe44901127a05ae39a348a0cb14/hostname",
        "HostsPath": "/var/lib/docker/containers/c0c5c86d905db2385e49761255268dbd72898fe44901127a05ae39a348a0cb14/hosts",
        "LogPath": "/var/lib/docker/containers/c0c5c86d905db2385e49761255268dbd72898fe44901127a05ae39a348a0cb14/c0c5c86d905db2385e49761255268dbd72898fe44901127a05ae39a348a0cb14-json.log",
        "Name": "/web1",
        "RestartCount": 0,
        "Driver": "overlayfs",
        "Platform": "linux",
        "MountLabel": "",
        "ProcessLabel": "",
        "AppArmorProfile": "",
        "ExecIDs": null,
        "HostConfig": {
            "Binds": null,
            "ContainerIDFile": "",
            "LogConfig": {
                "Type": "json-file",
                "Config": {}
            },
            "NetworkMode": "bridge",
            "PortBindings": {},
            "RestartPolicy": {
                "Name": "no",
                "MaximumRetryCount": 0
            },
            "AutoRemove": false,
            "VolumeDriver": "",
            "VolumesFrom": null,
            "ConsoleSize": [
                50,
                89
            ],
            "CapAdd": null,
            "CapDrop": null,
            "CgroupnsMode": "private",
            "Dns": null,
            "DnsOptions": [],
            "DnsSearch": [],
            "ExtraHosts": null,
            "GroupAdd": null,
            "IpcMode": "private",
            "Cgroup": "",
            "Links": null,
            "OomScoreAdj": 0,
            "PidMode": "",
            "Privileged": false,
            "PublishAllPorts": false,
            "ReadonlyRootfs": false,
            "SecurityOpt": null,
            "UTSMode": "",
            "UsernsMode": "",
            "ShmSize": 67108864,
            "Runtime": "runc",
            "Isolation": "",
            "CpuShares": 0,
            "Memory": 0,
            "NanoCpus": 0,
            "CgroupParent": "",
            "BlkioWeight": 0,
            "BlkioWeightDevice": [],
            "BlkioDeviceReadBps": [],
            "BlkioDeviceWriteBps": [],
            "BlkioDeviceReadIOps": [],
            "BlkioDeviceWriteIOps": [],
            "CpuPeriod": 0,
            "CpuQuota": 0,
            "CpuRealtimePeriod": 0,
            "CpuRealtimeRuntime": 0,
            "CpusetCpus": "",
            "CpusetMems": "",
            "Devices": [],
            "DeviceCgroupRules": null,
            "DeviceRequests": null,
            "MemoryReservation": 0,
            "MemorySwap": 0,
            "MemorySwappiness": null,
            "OomKillDisable": null,
            "PidsLimit": null,
            "Ulimits": [],
            "CpuCount": 0,
            "CpuPercent": 0,
            "IOMaximumIOps": 0,
            "IOMaximumBandwidth": 0,
            "MaskedPaths": [
                "/proc/acpi",
                "/proc/asound",
                "/proc/interrupts",
                "/proc/kcore",
                "/proc/keys",
                "/proc/latency_stats",
                "/proc/sched_debug",
                "/proc/scsi",
                "/proc/timer_list",
                "/proc/timer_stats",
                "/sys/devices/virtual/powercap",
                "/sys/firmware"
            ],
            "ReadonlyPaths": [
                "/proc/bus",
                "/proc/fs",
                "/proc/irq",
                "/proc/sys",
                "/proc/sysrq-trigger"
            ]
        },
        "Storage": {
            "RootFS": {
                "Snapshot": {
                    "Name": "overlayfs"
                }
            }
        },
        "Mounts": [],
        "Config": {
            "Hostname": "c0c5c86d905d",
            "Domainname": "",
            "User": "",
            "AttachStdin": false,
            "AttachStdout": false,
            "AttachStderr": false,
            "ExposedPorts": {
                "80/tcp": {}
            },
            "Tty": false,
            "OpenStdin": false,
            "StdinOnce": false,
            "Env": [
                "PATH=/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin",
                "NGINX_VERSION=1.29.6",
                "NJS_VERSION=0.9.6",
                "NJS_RELEASE=1~trixie",
                "ACME_VERSION=0.3.1",
                "PKG_RELEASE=1~trixie",
                "DYNPKG_RELEASE=1~trixie"
            ],
            "Cmd": [
                "nginx",
                "-g",
                "daemon off;"
            ],
            "Image": "nginx",
            "Volumes": null,
            "WorkingDir": "",
            "Entrypoint": [
                "/docker-entrypoint.sh"
            ],
            "Labels": {
                "maintainer": "NGINX Docker Maintainers <docker-maint@nginx.com>"
            },
            "StopSignal": "SIGQUIT"
        },
        "NetworkSettings": {
            "SandboxID": "f710cd482bc21dac0b287e20e6467d6b1717082d398390529f1440d01e296ee2",
            "SandboxKey": "/var/run/docker/netns/f710cd482bc2",
            "Ports": {
                "80/tcp": null
            },
            "Networks": {
                "bridge": {
                    "IPAMConfig": null,
                    "Links": null,
                    "Aliases": null,
                    "DriverOpts": null,
                    "GwPriority": 0,
                    "NetworkID": "58d00c7c60c54c9366051b55909b06cf01d4d6fedb14e5c0a278ceec7f44b93c",
                    "EndpointID": "dcfe9a11f002172ed60952e50ab12b07f0fe3626bcaad969a9e1a7b506d1e716",
                    "Gateway": "172.17.0.1",
                    "IPAddress": "172.17.0.3",
                    "MacAddress": "42:d0:ac:fb:d9:db",
                    "IPPrefixLen": 16,
                    "IPv6Gateway": "",
                    "GlobalIPv6Address": "",
                    "GlobalIPv6PrefixLen": 0,
                    "DNSNames": null
                }
            }
        },
        "ImageManifestDescriptor": {
            "mediaType": "application/vnd.oci.image.manifest.v1+json",
            "digest": "sha256:a6bead2c897e9e39ca1a2dbd241f96dc181c8d32adcb6201258624fb37d2c7fe",
            "size": 2290,
            "annotations": {
                "com.docker.official-images.bashbrew.arch": "amd64",
                "org.opencontainers.image.base.digest": "sha256:b29a157cc8540addda9836c23750e389693bf3b6d9a932a55504899e5601a66b",
                "org.opencontainers.image.base.name": "debian:trixie-slim",
                "org.opencontainers.image.created": "2026-03-10T22:31:22Z",
                "org.opencontainers.image.revision": "4b41a5f5e05939905d98a540a269046e862d8d03",
                "org.opencontainers.image.source": "https://github.com/nginx/docker-nginx.git#4b41a5f5e05939905d98a540a269046e862d8d03:mainline/debian",
                "org.opencontainers.image.url": "https://hub.docker.com/_/nginx",
                "org.opencontainers.image.version": "1.29.6"
            },
            "platform": {
                "architecture": "amd64",
                "os": "linux"
            }
        }
    }
]
[root@docker-node1 ~]# docker inspect  web2
[
    {
        "Id": "a8bb836f307354cba589802f7a906ce6712483ab95929c915ace5fbedb3b323c",
        "Created": "2026-03-21T07:02:36.828729736Z",
        "Path": "/docker-entrypoint.sh",
        "Args": [
            "nginx",
            "-g",
            "daemon off;"
        ],
        "State": {
            "Status": "running",
            "Running": true,
            "Paused": false,
            "Restarting": false,
            "OOMKilled": false,
            "Dead": false,
            "Pid": 4922,
            "ExitCode": 0,
            "Error": "",
            "StartedAt": "2026-03-21T07:02:36.863011417Z",
            "FinishedAt": "0001-01-01T00:00:00Z"
        },
        "Image": "sha256:bc45d248c4e1d1709321de61566eb2b64d4f0e32765239d66573666be7f13349",
        "ResolvConfPath": "/var/lib/docker/containers/a8bb836f307354cba589802f7a906ce6712483ab95929c915ace5fbedb3b323c/resolv.conf",
        "HostnamePath": "/var/lib/docker/containers/a8bb836f307354cba589802f7a906ce6712483ab95929c915ace5fbedb3b323c/hostname",
        "HostsPath": "/var/lib/docker/containers/a8bb836f307354cba589802f7a906ce6712483ab95929c915ace5fbedb3b323c/hosts",
        "LogPath": "/var/lib/docker/containers/a8bb836f307354cba589802f7a906ce6712483ab95929c915ace5fbedb3b323c/a8bb836f307354cba589802f7a906ce6712483ab95929c915ace5fbedb3b323c-json.log",
        "Name": "/web2",
        "RestartCount": 0,
        "Driver": "overlayfs",
        "Platform": "linux",
        "MountLabel": "",
        "ProcessLabel": "",
        "AppArmorProfile": "",
        "ExecIDs": null,
        "HostConfig": {
            "Binds": null,
            "ContainerIDFile": "",
            "LogConfig": {
                "Type": "json-file",
                "Config": {}
            },
            "NetworkMode": "bridge",
            "PortBindings": {},
            "RestartPolicy": {
                "Name": "no",
                "MaximumRetryCount": 0
            },
            "AutoRemove": false,
            "VolumeDriver": "",
            "VolumesFrom": null,
            "ConsoleSize": [
                50,
                89
            ],
            "CapAdd": null,
            "CapDrop": null,
            "CgroupnsMode": "private",
            "Dns": null,
            "DnsOptions": [],
            "DnsSearch": [],
            "ExtraHosts": null,
            "GroupAdd": null,
            "IpcMode": "private",
            "Cgroup": "",
            "Links": null,
            "OomScoreAdj": 0,
            "PidMode": "",
            "Privileged": false,
            "PublishAllPorts": false,
            "ReadonlyRootfs": false,
            "SecurityOpt": null,
            "UTSMode": "",
            "UsernsMode": "",
            "ShmSize": 67108864,
            "Runtime": "runc",
            "Isolation": "",
            "CpuShares": 0,
            "Memory": 0,
            "NanoCpus": 0,
            "CgroupParent": "",
            "BlkioWeight": 0,
            "BlkioWeightDevice": [],
            "BlkioDeviceReadBps": [],
            "BlkioDeviceWriteBps": [],
            "BlkioDeviceReadIOps": [],
            "BlkioDeviceWriteIOps": [],
            "CpuPeriod": 0,
            "CpuQuota": 0,
            "CpuRealtimePeriod": 0,
            "CpuRealtimeRuntime": 0,
            "CpusetCpus": "",
            "CpusetMems": "",
            "Devices": [],
            "DeviceCgroupRules": null,
            "DeviceRequests": null,
            "MemoryReservation": 0,
            "MemorySwap": 0,
            "MemorySwappiness": null,
            "OomKillDisable": null,
            "PidsLimit": null,
            "Ulimits": [],
            "CpuCount": 0,
            "CpuPercent": 0,
            "IOMaximumIOps": 0,
            "IOMaximumBandwidth": 0,
            "MaskedPaths": [
                "/proc/acpi",
                "/proc/asound",
                "/proc/interrupts",
                "/proc/kcore",
                "/proc/keys",
                "/proc/latency_stats",
                "/proc/sched_debug",
                "/proc/scsi",
                "/proc/timer_list",
                "/proc/timer_stats",
                "/sys/devices/virtual/powercap",
                "/sys/firmware"
            ],
            "ReadonlyPaths": [
                "/proc/bus",
                "/proc/fs",
                "/proc/irq",
                "/proc/sys",
                "/proc/sysrq-trigger"
            ]
        },
        "Storage": {
            "RootFS": {
                "Snapshot": {
                    "Name": "overlayfs"
                }
            }
        },
        "Mounts": [],
        "Config": {
            "Hostname": "a8bb836f3073",
            "Domainname": "",
            "User": "",
            "AttachStdin": false,
            "AttachStdout": false,
            "AttachStderr": false,
            "ExposedPorts": {
                "80/tcp": {}
            },
            "Tty": false,
            "OpenStdin": false,
            "StdinOnce": false,
            "Env": [
                "PATH=/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin",
                "NGINX_VERSION=1.29.6",
                "NJS_VERSION=0.9.6",
                "NJS_RELEASE=1~trixie",
                "ACME_VERSION=0.3.1",
                "PKG_RELEASE=1~trixie",
                "DYNPKG_RELEASE=1~trixie"
            ],
            "Cmd": [
                "nginx",
                "-g",
                "daemon off;"
            ],
            "Image": "nginx",
            "Volumes": null,
            "WorkingDir": "",
            "Entrypoint": [
                "/docker-entrypoint.sh"
            ],
            "Labels": {
                "maintainer": "NGINX Docker Maintainers <docker-maint@nginx.com>"
            },
            "StopSignal": "SIGQUIT"
        },
        "NetworkSettings": {
            "SandboxID": "a3bc7b3444c500fd1560db92814ec70ab43b6a902aa3bb15c7c1516fcda6cdf8",
            "SandboxKey": "/var/run/docker/netns/a3bc7b3444c5",
            "Ports": {
                "80/tcp": null
            },
            "Networks": {
                "bridge": {
                    "IPAMConfig": null,
                    "Links": null,
                    "Aliases": null,
                    "DriverOpts": null,
                    "GwPriority": 0,
                    "NetworkID": "58d00c7c60c54c9366051b55909b06cf01d4d6fedb14e5c0a278ceec7f44b93c",
                    "EndpointID": "9e786c22fa4d2221283f047d5329db334a6b2f2356cd48f451d844172a8d764e",
                    "Gateway": "172.17.0.1",
                    "IPAddress": "172.17.0.4",
                    "MacAddress": "16:9a:4e:de:19:44",
                    "IPPrefixLen": 16,
                    "IPv6Gateway": "",
                    "GlobalIPv6Address": "",
                    "GlobalIPv6PrefixLen": 0,
                    "DNSNames": null
                }
            }
        },
        "ImageManifestDescriptor": {
            "mediaType": "application/vnd.oci.image.manifest.v1+json",
            "digest": "sha256:a6bead2c897e9e39ca1a2dbd241f96dc181c8d32adcb6201258624fb37d2c7fe",
            "size": 2290,
            "annotations": {
                "com.docker.official-images.bashbrew.arch": "amd64",
                "org.opencontainers.image.base.digest": "sha256:b29a157cc8540addda9836c23750e389693bf3b6d9a932a55504899e5601a66b",
                "org.opencontainers.image.base.name": "debian:trixie-slim",
                "org.opencontainers.image.created": "2026-03-10T22:31:22Z",
                "org.opencontainers.image.revision": "4b41a5f5e05939905d98a540a269046e862d8d03",
                "org.opencontainers.image.source": "https://github.com/nginx/docker-nginx.git#4b41a5f5e05939905d98a540a269046e862d8d03:mainline/debian",
                "org.opencontainers.image.url": "https://hub.docker.com/_/nginx",
                "org.opencontainers.image.version": "1.29.6"
            },
            "platform": {
                "architecture": "amd64",
                "os": "linux"
            }
        }
    }
]

#关闭容器后重启容器，启动顺序调换
[root@docker-node1 ~]#  docker stop web1 web2
web1
web2
[root@docker-node1 ~]# docker start web2
web2
[root@docker-node1 ~]# docker start web1
web1

#我们会发现容器ip颠倒

#docker原生网络是不支持dns解析的，自定义网络中内嵌了dns
[root@docker-node1 ~]# docker run -d --network my_net1 --name web nginx
a016c6f835fd054e571af78bc790253f0a0110df7b11485df6e4f6cd73f740b9
[root@docker-node1 ~]# docker run  -it --network my_net1  --name  test busybox
/ # ping web
PING web (172.19.0.2): 56 data bytes
64 bytes from 172.19.0.2: seq=0 ttl=64 time=0.124 ms
64 bytes from 172.19.0.2: seq=1 ttl=64 time=0.100 ms
64 bytes from 172.19.0.2: seq=2 ttl=64 time=0.086 ms

#不同的自定义网络是不能通讯的
#在rhel7中使用的是iptables进行网络隔离，在rhel9中使用nftpables
[root@docker-node1 ~]# nft list ruleset
# Warning: table ip nat is managed by iptables-nft, do not touch!
table ip nat {
        chain DOCKER {
                ip daddr 127.0.0.1 iifname != "br-d1a82367264d" tcp dport 1514 counter packets 0 bytes 0 dnat to 172.18.0.2:10514
        }

        chain PREROUTING {
                type nat hook prerouting priority dstnat; policy accept;
                fib daddr type local counter packets 1 bytes 52 jump DOCKER
        }

        chain OUTPUT {
                type nat hook output priority dstnat; policy accept;
                ip daddr != 127.0.0.0/8 fib daddr type local counter packets 0 bytes 0 jump DOCKER
        }

        chain POSTROUTING {
                type nat hook postrouting priority srcnat; policy accept;
                ip saddr 172.25.0.0/24 oifname != "br-5b0d1590f347" counter packets 0 bytes 0 masquerade
                ip saddr 172.19.0.0/16 oifname != "br-90255a65568c" counter packets 0 bytes 0 masquerade
                ip saddr 172.17.0.0/16 oifname != "docker0" counter packets 0 bytes 0 masquerade
                ip saddr 172.18.0.0/16 oifname != "br-d1a82367264d" counter packets 0 bytes 0 masquerade
        }
}
# Warning: table ip filter is managed by iptables-nft, do not touch!
table ip filter {
        chain DOCKER {
                ip daddr 172.18.0.2 iifname != "br-d1a82367264d" oifname "br-d1a82367264d" tcp dport 10514 counter packets 0 bytes 0 accept
                iifname != "br-d1a82367264d" oifname "br-d1a82367264d" counter packets 0 bytes 0 drop
                iifname != "docker0" oifname "docker0" counter packets 0 bytes 0 drop
                iifname != "br-90255a65568c" oifname "br-90255a65568c" counter packets 0 bytes 0 drop
                iifname != "br-5b0d1590f347" oifname "br-5b0d1590f347" counter packets 0 bytes 0 drop
        }

        chain DOCKER-FORWARD {
                counter packets 6 bytes 504 jump DOCKER-CT
                counter packets 1 bytes 84 jump DOCKER-INTERNAL
                counter packets 1 bytes 84 jump DOCKER-BRIDGE
                iifname "br-d1a82367264d" counter packets 0 bytes 0 accept
                iifname "docker0" counter packets 0 bytes 0 accept
                iifname "br-90255a65568c" counter packets 1 bytes 84 accept
                iifname "br-5b0d1590f347" counter packets 0 bytes 0 accept
        }

        chain DOCKER-BRIDGE {
                oifname "br-d1a82367264d" counter packets 0 bytes 0 jump DOCKER
                oifname "docker0" counter packets 0 bytes 0 jump DOCKER
                oifname "br-90255a65568c" counter packets 1 bytes 84 jump DOCKER
                oifname "br-5b0d1590f347" counter packets 0 bytes 0 jump DOCKER
        }

        chain DOCKER-CT {
                oifname "br-d1a82367264d" ct state related,established counter packets 0 bytes 0 accept
                oifname "docker0" ct state related,established counter packets 0 bytes 0 accept
                oifname "br-90255a65568c" ct state related,established counter packets 5 bytes 420 accept
                oifname "br-5b0d1590f347" ct state related,established counter packets 0 bytes 0 accept
        }

        chain DOCKER-INTERNAL {
        }

        chain FORWARD {
                type filter hook forward priority filter; policy accept;
                counter packets 6 bytes 504 jump DOCKER-USER
                counter packets 6 bytes 504 jump DOCKER-FORWARD
        }

        chain DOCKER-USER {
        }
}
# Warning: table ip6 nat is managed by iptables-nft, do not touch!
table ip6 nat {
        chain DOCKER {
        }

        chain PREROUTING {
                type nat hook prerouting priority dstnat; policy accept;
                fib daddr type local counter packets 0 bytes 0 jump DOCKER
        }

        chain OUTPUT {
                type nat hook output priority dstnat; policy accept;
                ip6 daddr != ::1 fib daddr type local counter packets 0 bytes 0 jump DOCKER
        }
}
table ip6 filter {
        chain DOCKER {
        }

        chain DOCKER-FORWARD {
                counter packets 0 bytes 0 jump DOCKER-CT
                counter packets 0 bytes 0 jump DOCKER-INTERNAL
                counter packets 0 bytes 0 jump DOCKER-BRIDGE
        }

        chain DOCKER-BRIDGE {
        }

        chain DOCKER-CT {
        }

        chain DOCKER-INTERNAL {
        }

        chain FORWARD {
                type filter hook forward priority filter; policy accept;
                counter packets 0 bytes 0 jump DOCKER-USER
                counter packets 0 bytes 0 jump DOCKER-FORWARD
        }

        chain DOCKER-USER {
        }
}
table ip raw {
        chain PREROUTING {
                type filter hook prerouting priority raw; policy accept;
                ip daddr 172.18.0.2 iifname != "br-d1a82367264d" counter packets 0 bytes 0 drop
                ip daddr 127.0.0.1 iifname != "lo" tcp dport 1514 counter packets 0 bytes 0 drop
                ip daddr 172.17.0.3 iifname != "docker0" counter packets 0 bytes 0 drop
                ip daddr 172.17.0.4 iifname != "docker0" counter packets 0 bytes 0 drop
                ip daddr 172.19.0.2 iifname != "br-90255a65568c" counter packets 0 bytes 0 drop
        }
}

如何让不同的自定义网络互通？

复制代码
[root@docker-node1 ~]# docker run -d  --name web1 --network my_net1 nginx
758e16fa7bd8aa0e842b58313db0646c61ed96ac373095e351a7c6b571b1352f
[root@docker-node1 ~]# docker run  -it --name test --network my_net2 busybox
/ # ifconfig
eth0      Link encap:Ethernet  HWaddr 6E:CA:91:1D:91:C5
          inet addr:172.25.0.1  Bcast:172.25.0.255  Mask:255.255.255.0
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:36 errors:0 dropped:0 overruns:0 frame:0
          TX packets:3 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:0
          RX bytes:5384 (5.2 KiB)  TX bytes:126 (126.0 B)

lo        Link encap:Local Loopback
          inet addr:127.0.0.1  Mask:255.0.0.0
          inet6 addr: ::1/128 Scope:Host
          UP LOOPBACK RUNNING  MTU:65536  Metric:1
          RX packets:0 errors:0 dropped:0 overruns:0 frame:0
          TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:0 (0.0 B)  TX bytes:0 (0.0 B)
/ # ping 172.17.0.1
PING 172.17.0.1 (172.17.0.1): 56 data bytes
64 bytes from 172.17.0.1: seq=0 ttl=64 time=0.062 ms
64 bytes from 172.17.0.1: seq=1 ttl=64 time=0.077 ms
64 bytes from 172.17.0.1: seq=2 ttl=64 time=0.096 ms
[root@docker-node1 ~]# docker start test
test
[root@docker-node1 ~]# docker exec -it test ifconfig
eth0      Link encap:Ethernet  HWaddr D2:BB:F8:94:D5:F7
          inet addr:172.25.0.1  Bcast:172.25.0.255  Mask:255.255.255.0
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:15 errors:0 dropped:0 overruns:0 frame:0
          TX packets:3 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:0
          RX bytes:2042 (1.9 KiB)  TX bytes:126 (126.0 B)

eth1      Link encap:Ethernet  HWaddr 46:81:BE:83:01:04
          inet addr:172.19.0.4  Bcast:172.19.255.255  Mask:255.255.0.0
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:13 errors:0 dropped:0 overruns:0 frame:0
          TX packets:3 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:0
          RX bytes:1782 (1.7 KiB)  TX bytes:126 (126.0 B)

lo        Link encap:Local Loopback
          inet addr:127.0.0.1  Mask:255.0.0.0
          inet6 addr: ::1/128 Scope:Host
          UP LOOPBACK RUNNING  MTU:65536  Metric:1
          RX packets:0 errors:0 dropped:0 overruns:0 frame:0
          TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:0 (0.0 B)  TX bytes:0 (0.0 B)

joined容器网络

复制代码
[root@docker-node1 ~]# docker run  -it --rm  --network container:web1 busybox
/ # ifconfig
eth0      Link encap:Ethernet  HWaddr 7A:CB:6E:E0:94:5C
          inet addr:172.19.0.3  Bcast:172.19.255.255  Mask:255.255.0.0
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:23 errors:0 dropped:0 overruns:0 frame:0
          TX packets:3 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:0
          RX bytes:2534 (2.4 KiB)  TX bytes:126 (126.0 B)

lo        Link encap:Local Loopback
          inet addr:127.0.0.1  Mask:255.0.0.0
          inet6 addr: ::1/128 Scope:Host
          UP LOOPBACK RUNNING  MTU:65536  Metric:1
          RX packets:0 errors:0 dropped:0 overruns:0 frame:0
          TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:0 (0.0 B)  TX bytes:0 (0.0 B)
[root@docker-node1 ~]# docker load -i centos7.tar
Loaded image: centos:7
[root@docker-node1 ~]# docker images
                                                                    i Info →   U  In Use
IMAGE                                   ID             DISK USAGE   CONTENT SIZE   EXTRA
172.25.254.100:5000/busybox:latest      b3255e7dfbcd        6.7MB         2.22MB    U
172.25.254.10:443/busybox:latest        b3255e7dfbcd        6.7MB         2.22MB    U
172.25.254.10:5000/busybox:latest       b3255e7dfbcd        6.7MB         2.22MB    U
busybox-file:latest                     429465e1ba22       6.71MB         2.21MB
busybox:latest                          b3255e7dfbcd        6.7MB         2.22MB    U
centos:7                                be65f488b776        299MB         76.1MB
goharbor/harbor-core:v2.14.0            32fb1bea30a8        412MB          204MB    U
goharbor/harbor-db:v2.14.0              257d051f27d7        563MB          278MB    U
goharbor/harbor-exporter:v2.14.0        7d050a6cbf58        270MB          134MB
goharbor/harbor-jobservice:v2.14.0      317294a42a01        363MB          180MB    U
goharbor/harbor-log:v2.14.0             b208a659155f        335MB          166MB    U
goharbor/harbor-portal:v2.14.0          f7edc122f9f3        327MB          162MB    U
goharbor/harbor-registryctl:v2.14.0     3e4111e0aca6        334MB          166MB    U
goharbor/nginx-photon:v2.14.0           a1287393aaa1        309MB          153MB    U
goharbor/prepare:v2.14.0                941297444ea3        411MB          202MB
goharbor/redis-photon:v2.14.0           a35163ff2720        339MB          168MB    U
goharbor/registry-photon:v2.14.0        ba892b6ec307        177MB         88.2MB    U
goharbor/trivy-adapter-photon:v2.14.0   c2f4dbf5cad3        790MB          394MB    U
lee:v5                                  ba189de866ec       6.71MB         2.22MB
lee:v6                                  e8bec3643fff        6.7MB         2.22MB
lee:v7                                  3298d4471757       6.71MB         2.22MB
nginx:1.26                              41b194461e4b        279MB         75.2MB
nginx:latest                            bc45d248c4e1        237MB         65.8MB    U
reg.timinglee.org/busybox:latest        b3255e7dfbcd        6.7MB         2.22MB    U
registry:latest                         6c5666b861f3       77.3MB         18.8MB
timinglee.org/library/busybox:latest    b3255e7dfbcd        6.7MB         2.22MB    U
timinglee/game2048:latest               8a34fb9cb168       77.2MB         17.8MB
timinglee/mario:latest                  7758988210df        298MB         73.7MB    U
timinglee:v1                            c42a715ffdf9       6.71MB         2.21MB
timinglee:v7                            907c4cfd4c9f       6.71MB         2.22MB
[root@docker-node1 ~]# docker run -it --rm --network container:web1 centos:7
[root@758e16fa7bd8 /]#  curl localhost
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
html { color-scheme: light dark; }
body { width: 35em; margin: 0 auto;
font-family: Tahoma, Verdana, Arial, sans-serif; }
</style>
</head>
<body>
<h1>Welcome to nginx!</h1>
<p>If you see this page, nginx is successfully installed and working.
Further configuration is required for the web server, reverse proxy,
API gateway, load balancer, content cache, or other features.</p>

<p>For online documentation and support please refer to
<a href="https://nginx.org/">nginx.org</a>.<br/>
To engage with the community please visit
<a href="https://community.nginx.org/">community.nginx.org</a>.<br/>
For enterprise grade support, professional services, additional
security features and capabilities please refer to
<a href="https://f5.com/nginx">f5.com/nginx</a>.</p>

<p><em>Thank you for using nginx.</em></p>
</body>
</html>

利用容器部署phpmyadmin管理mysql

复制代码
#运行phpmysqladmin
[root@docker-node1 ~]# docker load -i mysql-8.0.tar
Loaded image: mysql:8.0
[root@docker-node1 ~]# docker load -i phpmyadmin-latest.tar.gz
Loaded image: phpmyadmin:latest
[root@docker-node1 ~]# docker run -d --name mysqladmin --network my_net1 \
-e PMA_ARBITRARY=1 \
-p 80:80 phpmyadmin:latest
6fd4eccad2e4bb230a6996cf45ac9c7aac2adceeb09b4531fec4f1ef7cfa55b3
[root@docker-node1 ~]# docker run -d --name mysql --network container:mysqladmin -e MYSQL_ROOT_PASSWORD='lee' mysql:8.0
4d08580d84eaea667042c45200f1538a954ee5906d98d8d59edf9df8f4cc2b44

容器内外网的访问

容器访问外网

复制代码
[root@docker-node1 ~]# iptables -t nat -nL
Chain PREROUTING (policy ACCEPT)
target     prot opt source               destination
DOCKER     all  --  0.0.0.0/0            0.0.0.0/0            ADDRTYPE match dst-type LOCAL

Chain INPUT (policy ACCEPT)
target     prot opt source               destination

Chain OUTPUT (policy ACCEPT)
target     prot opt source               destination
DOCKER     all  --  0.0.0.0/0           !127.0.0.0/8          ADDRTYPE match dst-type LOCAL

Chain POSTROUTING (policy ACCEPT)
target     prot opt source               destination
MASQUERADE  all  --  172.25.0.0/24        0.0.0.0/0
MASQUERADE  all  --  172.19.0.0/16        0.0.0.0/0
MASQUERADE  all  --  172.17.0.0/16        0.0.0.0/0
MASQUERADE  all  --  172.18.0.0/16        0.0.0.0/0          #内网访问外网策略

Chain DOCKER (2 references)
target     prot opt source               destination
DNAT       tcp  --  0.0.0.0/0            127.0.0.1            tcp dpt:1514 to:172.18.0.2:10514
DNAT       tcp  --  0.0.0.0/0            0.0.0.0/0            tcp dpt:80 to:172.19.0.5:80

外网访问docker容器

复制代码
#通过docker-proxy对数据包进行内转
[root@docker-node1 ~]# docker run -d --name webserver -p 8080:80 nginx
00dfc27971b56d7b377714b4456478cb9d209462adff8588b27e5befbacc2247
[root@docker-node1 ~]# ps ax
5662 ?        Ss     0:00 nginx: master process nginx -g daemon off;
   5721 ?        S      0:00 nginx: worker process
   5722 ?        S      0:00 nginx: worker process
   6057 ?        Sl     0:00 /usr/bin/containerd-shim-runc-v2 -namespace moby -id 758e16f
   6080 ?        Ss     0:00 nginx: master process nginx -g daemon off;
   6140 ?        S      0:00 nginx: worker process
   6141 ?        S      0:00 nginx: worker process
#通过dnat策略来完成浏览内转
[root@docker-node1 ~]# iptables -t nat -nL
Chain PREROUTING (policy ACCEPT)
target     prot opt source               destination
DOCKER     all  --  0.0.0.0/0            0.0.0.0/0            ADDRTYPE match dst-type LOCAL

Chain INPUT (policy ACCEPT)
target     prot opt source               destination

Chain OUTPUT (policy ACCEPT)
target     prot opt source               destination
DOCKER     all  --  0.0.0.0/0           !127.0.0.0/8          ADDRTYPE match dst-type LOCAL

Chain POSTROUTING (policy ACCEPT)
target     prot opt source               destination
MASQUERADE  all  --  172.25.0.0/24        0.0.0.0/0
MASQUERADE  all  --  172.19.0.0/16        0.0.0.0/0
MASQUERADE  all  --  172.17.0.0/16        0.0.0.0/0
MASQUERADE  all  --  172.18.0.0/16        0.0.0.0/0

Chain DOCKER (2 references)
target     prot opt source               destination
DNAT       tcp  --  0.0.0.0/0            127.0.0.1            tcp dpt:1514 to:172.18.0.2:10514
DNAT       tcp  --  0.0.0.0/0            0.0.0.0/0            tcp dpt:80 to:172.19.0.5:80
DNAT       tcp  --  0.0.0.0/0            0.0.0.0/0            tcp dpt:8080 to:172.17.0.2:80

docker跨主机网络

复制代码
#在两台docker主机上各添加一块网卡，打开网卡混杂模式
[root@docker ~]# ip link set eth1 promisc on
[root@docker ~]# ip link set up eth1
[root@docker ~]# ifconfig  eth1
eth1: flags=4419<UP,BROADCAST,RUNNING,PROMISC,MULTICAST>  mtu 1500
ether 00:0c:29:ec:fc:dd  txqueuelen 1000  (Ethernet)
RX packets 83  bytes 8696 (8.4 KiB)
RX errors 0  dropped 0  overruns 0  frame 0
TX packets 0  bytes 0 (0.0 B)
TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

#添加macvlan网络
[root@docker ~]# docker network create  \-d macvlan \--subnet 1.1.1.0/24 \--gateway 1.1.1.1 \-o parent=eth1 macvlan1

#测试
#在docker-node1中
[root@docker ~]# docker run  -it --name busybox --network macvlan1 --ip 1.1.1.100 --rm busybox
/ # ping 1.1.1.200
#在docker-node2中
[root@docker-node2 ~]# docker run  -it --name busybox --network macvlan1 --ip
1.1.1.200 --rm busybox
/ #
相关推荐
飞火流星020272 小时前
常见的k8s平台功能对比、界面一览及KubeSphere安装、Rancher‌安装
云原生·容器·kubernetes·主流k8s平台·主流k8s平台功能对比·k8s在线安装·k8s离线安装
changhong19862 小时前
Docker部署Spring Boot + Vue项目
vue.js·spring boot·docker
糟糕喔2 小时前
k8s运维-RBAC（6）
运维·容器·kubernetes
Bonnie3732 小时前
云边端一体化架构：三大组件（云、边、端）的分工与协同逻辑
人工智能·程序人生·云原生·架构·个人开发
Uncertainty!!2 小时前
docker打包本地conda虚拟环境并远程部署
docker·容器·conda
一点事2 小时前
windows：安装docker
windows·docker·容器
moxiaoran57533 小时前
使用docker创建flowable容器
运维·docker·容器
tianyagukechat3 小时前
terraform部署阿里云ECS实例演示
云原生·terraform
艾莉丝努力练剑3 小时前
【Linux信号】Linux进程信号（上）：信号产生方式和闹钟
linux·运维·服务器·c++·人工智能·ubuntu·云原生
热门推荐
01GitHub 镜像站点02Qwen3.5 开源全解析：从 0.8B 到 397B，代际升级 + 全场景选型指南03班级宠物园部署指南04OpenClaw 使用和管理 MCP 完全指南05小黑课堂计算机二级WPSoffice题库软件下载安装教程（2026年3月最新版）06UV安装并设置国内源07Labelme从安装到标注：零基础完整指南08“wsl --install -d Ubuntu-22.04”下载慢，中国地区离线安装 Ubuntu 22.04 WSL方法（亲测2025年5月6日）09OpenClaw Control UI安全上下文访问配置10AI 编程三剑客：Spec-Kit、OpenSpec、Superpowers 深度对比与实战指南
