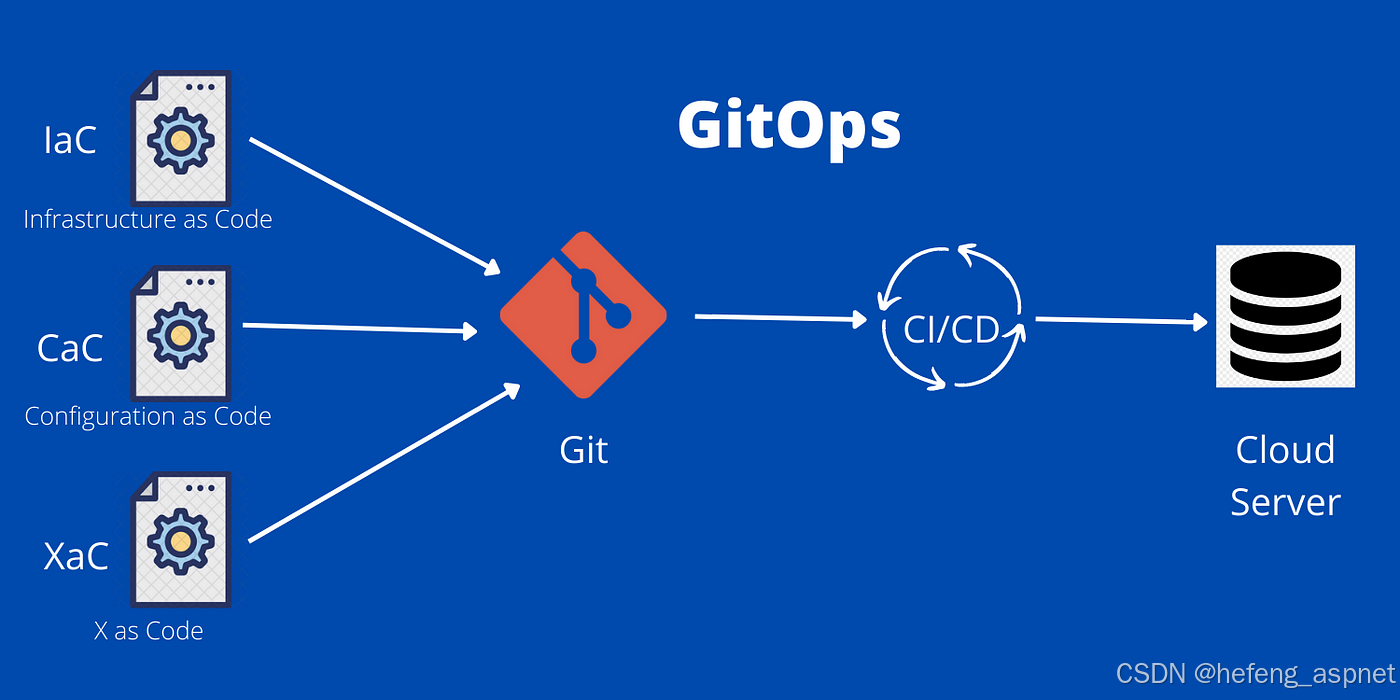

一、Git作为唯一真相源的架构哲学

GitOps元配置文件 - 定义基础设施的DNA

apiVersion: gitops.meta/v1

kind: GitOpsDeclaration

metadata:

spec:

Git作为唯一入口点

sourceOfTruth:

repository: https://github.com/org/k8s-manifests

branch: main

commitPolicy: "Every change must be committed"

四层配置架构

configurationLayers:

layer: "Global Policies"

path: "manifests/global/"

scope: "cluster-wide"

updateStrategy: "immutable"

layer: "Namespace Blueprints"

path: "manifests/namespaces/"

scope: "namespace"

updateStrategy: "template-driven"

layer: "Application Manifests"

path: "manifests/apps/"

scope: "application"

updateStrategy: "versioned"

layer: "Environment Overrides"

path: "manifests/envs/"

scope: "environment"

updateStrategy: "patch-based"

GitOps核心原则

principles:

"Everything is versioned in Git"
"Git history is the audit log"
"No manual kubectl commands"
"Automated synchronization"
"Declarative over imperative"

二、多层级Git仓库结构设计

基础设施Git仓库标准结构

k8s-manifests/

├── .gitops/ # GitOps配置元数据

│ ├── policies.yaml # 全局策略

│ ├── sync-rules.yaml # 同步规则

│ └── drift-detection.yaml # 漂移检测配置

├── manifests/

│ ├── global/ # 第1层：全局配置

│ │ ├── cluster/

│ │ │ ├── rbac/

│ │ │ │ ├── ClusterRole.yaml

│ │ │ │ ├── ClusterRoleBinding.yaml

│ │ │ │ └── versions/

│ │ │ │ ├── v1.0.0/

│ │ │ │ └── v1.1.0/

│ │ │ ├── network/

│ │ │ │ ├── NetworkPolicy.yaml

│ │ │ │ └── CalicoConfig.yaml

│ │ │ └── storage/

│ │ │ ├── StorageClass.yaml

│ │ │ └── versions/

│ │ │ ├── v1/

│ │ │ └── v2/

│ │ ├── crds/ # 自定义资源定义

│ │ │ ├── cert-manager/

│ │ │ ├── prometheus/

│ │ │ └── sealed-secrets/

│ │ └── operators/ # 集群Operator

│ │ ├── flux/

│ │ ├── argocd/

│ │ └── versions/

│ │ ├── deployment/

│ │ └── upgrades/

│ ├── namespaces/ # 第2层：命名空间蓝图

│ │ ├── _template/ # 命名空间模板

│ │ │ ├── namespace.yaml

│ │ │ ├── quotas.yaml

│ │ │ ├── network-policies.yaml

│ │ │ └── README.md

│ │ ├── production/

│ │ │ ├── namespace.yaml

│ │ │ ├── rbac.yaml

│ │ │ └── limits.yaml

│ │ ├── staging/

│ │ ├── development/

│ │ └── monitoring/

│ ├── apps/ # 第3层：应用配置

│ │ ├── frontend/

│ │ │ ├── deployment/

│ │ │ │ ├── base/

│ │ │ │ │ ├── deployment.yaml

│ │ │ │ │ ├── service.yaml

│ │ │ │ │ └── config.yaml

│ │ │ │ ├── versions/

│ │ │ │ │ ├── v1.0.0/

│ │ │ │ │ ├── v1.1.0/

│ │ │ │ │ └── v2.0.0/

│ │ │ │ └── patches/

│ │ │ │ ├── scaling-patch.yaml

│ │ │ │ └── resource-patch.yaml

│ │ │ ├── config/

│ │ │ │ ├── ConfigMap.yaml

│ │ │ │ ├── Secret.yaml

│ │ │ │ └── versions/

│ │ │ └── canary/

│ │ │ ├── analysis.yaml

│ │ │ ├── routing.yaml

│ │ │ └── metrics.yaml

│ │ ├── backend/

│ │ │ ├── api/

│ │ │ ├── database/

│ │ │ └── cache/

│ │ └── infrastructure/

│ │ ├── redis/

│ │ ├── postgres/

│ │ └── elasticsearch/

│ ├── envs/ # 第4层：环境差异化

│ │ ├── overlays/

│ │ │ ├── production/

│ │ │ │ ├── frontend/

│ │ │ │ │ ├── replica-patch.yaml

│ │ │ │ │ ├── resource-patch.yaml

│ │ │ │ │ └── ingress-patch.yaml

│ │ │ │ ├── backend/

│ │ │ │ └── monitoring/

│ │ │ ├── staging/

│ │ │ ├── development/

│ │ │ └── canary/

│ │ └── kustomization.yaml # Kustomize配置

│ └── releases/ # 发布管理

│ ├── v1.0.0/

│ ├── v1.1.0/

│ └── release.yaml

├── hooks/ # Git hooks

│ ├── pre-commit/

│ ├── post-commit/

│ └── pre-push/

├── scripts/ # 自动化脚本

│ ├── validation/

│ ├── synchronization/

│ └── drift-recovery/

├── tests/ # 配置测试

│ ├── unit/

│ ├── integration/

│ └── e2e/

└── docs/ # 文档

├── architecture/

├── workflows/

└── troubleshooting/

三、GitOps同步引擎设计

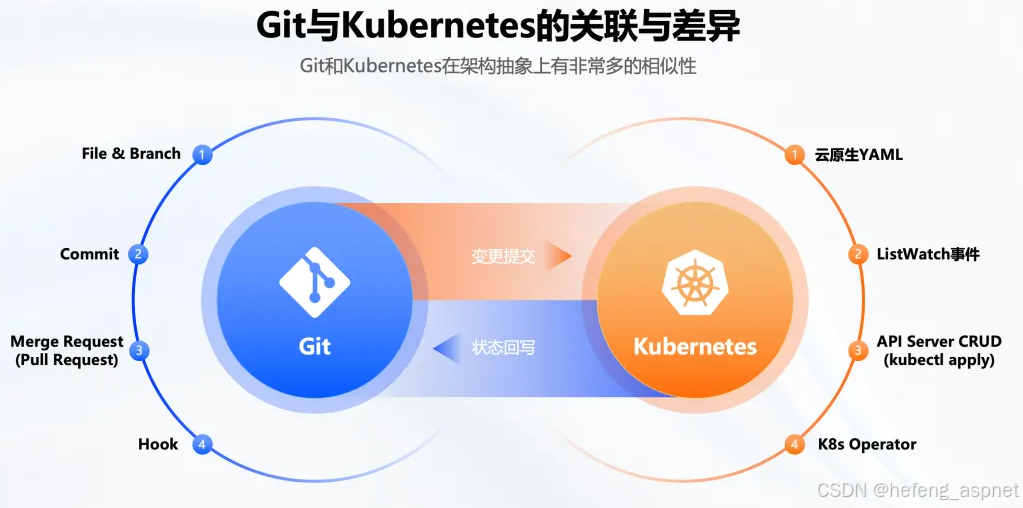

GitOps同步核心引擎

class GitOpsSyncEngine:

"""声明式同步引擎 - Git到K8s的桥梁"""

def init(self):

self.git_client = GitClient()

self.k8s_client = KubernetesClient()

self.state_manager = StateManager()

self.drift_detector = DriftDetector()

def sync_from_git(self):

"""从Git同步到Kubernetes"""

1. 拉取最新配置

manifests = self.git_client.pull_manifests()

2. 分层验证

validation_results = self.validate_layers(manifests)

3. 计算差异

diff = self.calculate_diff_with_cluster()

4. 智能应用策略

if diff.has_changes():

self.apply_with_strategy(diff)

5. 状态同步

self.sync_state_to_git()

def validate_layers(self, manifests):

"""分层验证配置"""

validation_rules = {

"global": [

self.validate_cluster_scoped,

self.validate_immutable_policies,

self.validate_crd_compatibility

"namespaces": [

self.validate_namespace_quotas,

self.validate_rbac_bindings,

self.validate_network_policies

"apps": [

self.validate_app_dependencies,

self.validate_resource_limits,

self.validate_security_context

"envs": [

self.validate_env_overrides,

self.validate_patch_compatibility,

self.validate_canary_rules

]

}

results = {}

for layer, rules in validation_rules.items():

layer_manifests = manifests.get(layer, [])

for rule in rules:

results[f"{layer}_{rule.name}"] = rule(layer_manifests)

return results

def calculate_diff_with_cluster(self):

"""计算Git与集群的差异"""

class ConfigurationDiff:

def init(self):

self.additions = [] # Git中有，集群中无

self.deletions = [] # 集群中有，Git中无

self.modifications = [] # 两者都有但不同

self.drift = [] # 集群状态偏离Git声明

def has_changes(self):

return any([

self.additions,

self.deletions,

self.modifications,

self.drift

])

diff = ConfigurationDiff()

获取集群当前状态

cluster_state = self.k8s_client.get_cluster_state()

获取Git期望状态

git_state = self.git_client.get_desired_state()

深度比较

for resource_type in git_state.keys():

git_resources = git_state[resource_type]

cluster_resources = cluster_state.get(resource_type, [])

比较每个资源

for git_resource in git_resources:

match = self.find_matching_cluster_resource(

git_resource, cluster_resources

)

if not match:

diff.additions.append(git_resource)

elif not self.resources_equal(git_resource, match):

diff.modifications.append({

"git": git_resource,

"cluster": match

})

查找集群中多余资源

for cluster_resource in cluster_resources:

if not self.find_matching_git_resource(

cluster_resource, git_resources

diff.deletions.append(cluster_resource)

return diff

def apply_with_strategy(self, diff):

"""智能应用策略"""

strategies = {

"additions": self.apply_create,

"deletions": self.apply_delete,

"modifications": self.apply_update,

"drift": self.apply_reconcile

}

顺序很重要：先删除，再更新，最后创建

if diff.deletions:

self.apply_safe_deletion(diff.deletions)

if diff.modifications:

self.apply_gradual_update(diff.modifications)

if diff.additions:

self.apply_with_rollout(diff.additions)

if diff.drift:

self.reconcile_drift(diff.drift)

def apply_safe_deletion(self, deletions):

"""安全删除策略"""

1. 检查依赖关系

dependencies = self.check_resource_dependencies(deletions)

2. 分级删除

deletion_order = self.get_deletion_order(deletions)

3. 带健康检查的删除

for resource in deletion_order:

self.delete_with_health_check(resource)

def apply_gradual_update(self, modifications):

"""渐进式更新策略"""

for modification in modifications:

git_resource = modification["git"]

cluster_resource = modification["cluster"]

判断更新类型

update_type = self.classify_update_type(

git_resource, cluster_resource

)

if update_type == "immutable":

不可变资源：删除后重建

self.k8s_client.delete(cluster_resource)

self.k8s_client.create(git_resource)

elif update_type == "rolling":

滚动更新

self.apply_rolling_update(git_resource)

elif update_type == "canary":

金丝雀发布

self.apply_canary_update(git_resource)

def reconcile_drift(self, drift_resources):

"""漂移恢复"""

for resource in drift_resources:

记录漂移详情

drift_details = self.drift_detector.analyze(resource)

根据漂移类型处理

drift_type = drift_details["type"]

if drift_type == "manual_modification":

人工修改：警告并恢复

self.log_drift_warning(resource)

self.restore_from_git(resource)

elif drift_type == "auto_scaling":

自动伸缩：评估是否接受

if self.accept_auto_scaling(resource):

self.update_git_with_new_state(resource)

else:

self.restore_from_git(resource)

elif drift_type == "failure_recovery":

故障恢复：保留状态

self.merge_state_with_git(resource)

四、GitOps工作流与自动化

GitOps工作流定义

apiVersion: workflow.gitops/v1

kind: GitOpsWorkflow

metadata:

spec:

triggers:

type: "git-push"

branches: ["main"]

paths: ["manifests/apps/**"]

type: "schedule"

interval: "5m" # 定期同步

type: "webhook"

events: ["deployment_request"]

stages:

stage: "validation"

steps:

name: "manifest-validation"

action: "validate-yaml"

tools: ["kubeval", "conftest"]

name: "policy-check"

action: "check-policies"

policies: ["security", "resources", "networking"]

name: "dependency-validation"

action: "check-dependencies"

stage: "diff-analysis"

steps:

name: "state-comparison"

action: "compare-git-cluster"

name: "impact-analysis"

action: "analyze-impact"

outputs: ["risk-level", "affected-services"]

stage: "pre-sync"

steps:

name: "notify-stakeholders"

action: "send-notifications"

name: "create-backup"

action: "backup-cluster-state"

stage: "sync-execution"

steps:

name: "apply-changes"

action: "sync-to-cluster"

strategy: "gradual-rollout"

name: "health-check"

action: "verify-health"

timeout: "10m"

stage: "post-sync"

steps:

name: "update-status"

action: "update-git-status"

name: "generate-report"

action: "create-sync-report"

name: "cleanup"

action: "cleanup-temporary"

rollback:

automatic: true

conditions:

"health-check-failed"
"error-rate > 5%"
"latency > threshold"

strategy: "git-revert"

steps:

"revert-to-previous-commit"
"force-sync"
"verify-rollback"

五、高级GitOps功能

GitOps高级功能模块

class AdvancedGitOpsFeatures:

"""GitOps进阶功能"""

def config_versioning(self):

"""配置版本化系统"""

1. 语义化版本

class ConfigVersion:

def init(self, major, minor, patch):

self.major = major # 架构变更

self.minor = minor # 功能变更

self.patch = patch # 修复变更

def to_tag(self):

return f"v{self.major}.{self.minor}.{self.patch}"

2. 版本标签策略

version_tags = {

"stable": "v1.0.0", # 生产稳定版

"canary": "v1.1.0-beta", # 测试版

"development": "v2.0.0-dev" # 开发版

}

3. 版本升级路径

upgrade_paths = {

"v1.0.0": ["v1.1.0", "v1.2.0"],

"v1.1.0": ["v1.2.0", "v2.0.0"],

"v2.0.0": ["v2.1.0"]

}

def drift_detection_system(self):

"""漂移检测与报警"""

class DriftDetection:

def detect_drift(self):

实时监控集群状态

cluster_state = self.get_real_time_state()

对比Git声明

git_state = self.get_git_state()

计算漂移度

drift_score = self.calculate_drift_score(

cluster_state, git_state

)

分级报警

if drift_score > 0.8:

self.alert_critical_drift()

elif drift_score > 0.5:

self.alert_warning_drift()

elif drift_score > 0.2:

self.log_minor_drift()

def calculate_drift_score(self, cluster, git):

多维漂移计算

dimensions = {

"configuration": self.compare_config(cluster, git),

"resources": self.compare_resources(cluster, git),

"replicas": self.compare_replicas(cluster, git),

"environment": self.compare_env(cluster, git)

}

加权总分

weights = {

"configuration": 0.4,

"resources": 0.3,

"replicas": 0.2,

"environment": 0.1

}

total_score = sum(

dimensions[d] * weights[d] for d in dimensions

)

return total_score

def git_based_rollback(self):

"""基于Git历史的回滚系统"""

def rollback_to_commit(self, target_commit):

1. 获取目标状态

target_state = self.git_client.get_state_at_commit(target_commit)

2. 计算当前到目标的差异

current_state = self.k8s_client.get_current_state()

reverse_diff = self.calculate_reverse_diff(

current_state, target_state

)

3. 安全回滚

self.apply_rollback(reverse_diff)

4. 验证回滚

self.verify_rollback_success(target_state)

def multi_cluster_sync(self):

"""多集群同步策略"""

class MultiClusterSync:

def sync_to_all_clusters(self, manifests):

clusters = [

"production-us",

"production-eu",

"staging",

"development"

]

并行同步

for cluster in clusters:

self.sync_to_cluster(cluster, manifests)

def sync_with_topology(self):

拓扑感知同步

topology = {

"primary": "production-us",

"secondary": "production-eu",

"test": "staging",

"dev": "development"

}

顺序同步：先测试，再次要，最后主要

self.sync_to_cluster(topology["test"])

if self.verify_sync_success(topology["test"]):

self.sync_to_cluster(topology["secondary"])

if self.verify_sync_success(topology["secondary"]):

self.sync_to_cluster(topology["primary"])

六、GitOps安全与审计

GitOps安全策略

apiVersion: security.gitops/v1

kind: GitOpsSecurityPolicy

metadata:

spec:

authentication:

git:

method: "ssh-key"

rotation: "weekly"

audit: "all-commits"

kubernetes:

method: "service-account"

namespace: "gitops-system"

permissions: "least-privilege"

authorization:

gitAccess:

read: "all-engineers"

write: "gitops-team"

merge: "senior-engineers"

k8sAccess:

apply: "gitops-bot"

delete: "gitops-bot"

modify: "none" # 禁止人工修改

encryption:

secrets:

method: "sealed-secrets"

rotation: "monthly"

configs:

sensitiveFields: ["env", "credentials"]

encryption: "base64+obfuscation"

audit:

gitHistory:

immutable: true

retention: "forever"

syncLogs:

storage: "elasticsearch"

retention: "1year"

driftLogs:

alerting: "slack+pagerduty"

reporting: "daily"

compliance:

changeControl:

approval: "two-person"

review: "mandatory"

backup:

frequency: "daily"

retention: "30days"

recovery:

procedure: "documented"

testing: "monthly"

如果您喜欢此文章，请收藏、点赞、评论，谢谢，祝您快乐每一天。

GitOps宣言：Kubernetes配置的版本化革命

一、Git作为唯一真相源的架构哲学

GitOps元配置文件 - 定义基础设施的DNA

Git作为唯一入口点

四层配置架构

GitOps核心原则

二、多层级Git仓库结构设计

基础设施Git仓库标准结构

三、GitOps同步引擎设计

GitOps同步核心引擎

1. 拉取最新配置

2. 分层验证

3. 计算差异

4. 智能应用策略

5. 状态同步

获取集群当前状态

获取Git期望状态

深度比较

比较每个资源

查找集群中多余资源

顺序很重要：先删除，再更新，最后创建

1. 检查依赖关系

2. 分级删除

3. 带健康检查的删除

判断更新类型

不可变资源：删除后重建

滚动更新

金丝雀发布

记录漂移详情

根据漂移类型处理

人工修改：警告并恢复

自动伸缩：评估是否接受

故障恢复：保留状态

四、GitOps工作流与自动化

GitOps工作流定义

五、高级GitOps功能

GitOps高级功能模块

1. 语义化版本

2. 版本标签策略

3. 版本升级路径

实时监控集群状态

对比Git声明

计算漂移度

分级报警

多维漂移计算

加权总分

1. 获取目标状态

2. 计算当前到目标的差异

3. 安全回滚

4. 验证回滚

并行同步

拓扑感知同步

顺序同步：先测试，再次要，最后主要

六、GitOps安全与审计

GitOps安全策略
