Qt5.15+VTK9.3.0实现点云点选功能

之前实现了，直接使用pcl的PCLVisualizer进行的点选，这是pcl对vtk进行了封装，能够实现点选功能。

但是现在有个问题就是，我把上面的代码嵌入qt中，就实现不了点选功能，我尝试了好久，还是一直卡住了。

分析原因：

PCLVisualizer 内部管理了自己的交互器

在 Qt VTK 集成环境中，交互器被重新配置

回调函数的调用链被破坏

可能由于笔者笨拙，就是实现不了。

所以改用 VTK 原生的 vtkPointPicker，直接与底层的渲染器和交互器交互，不依赖 PCLVisualizer 的封装。

此外，再加上我的版本是VTK9.3.0，网上的更多的是低版本的，内容不太一样。

点选功能实现详解

1. 核心组件

在 VTK 中实现点选功能主要依赖以下几个组件：

复制代码

┌─────────────────────────────────────────────────────────────┐
│                    VTK 点选机制                               │
├─────────────────────────────────────────────────────────────┤
│                                                             │
│  vtkRenderWindowInteractor     ← 鼠标事件的处理者           │
│           ↓                                                 │
│  vtkPointPicker                ← 负责在屏幕上点击位置拾取点   │
│           ↓                                                 │
│  vtkRenderer                   ← 渲染器，包含所有可拾取对象   │
│                                                             │
└─────────────────────────────────────────────────────────────┘

2. 实现步骤

第一步：创建点选器 (setupPointPicking)

cpp 复制代码

void pointpicking::setupPointPicking() {
    // 1. 创建 vtkPointPicker 实例
    pointPicker = vtkSmartPointer<vtkPointPicker>::New();

    // 2. 获取交互器
    vtkRenderWindowInteractor* interactor = ui.openGLWidget->interactor();

    // 3. 将点选器设置到交互器
    interactor->SetPicker(pointPicker);

    // 4. 添加鼠标左键事件观察者
    //    当左键按下时，调用 onPointPicked 回调
    interactor->AddObserver(vtkCommand::LeftButtonPressEvent,
                           this,
                           &pointpicking::onPointPicked);
}

关键点解释：

vtkPointPicker 是专门用于拾取点的选择器
AddObserver 是 VTK 的观察者模式，监听鼠标事件
vtkCommand::LeftButtonPressEvent 是左键按下的事件类型

第二步：处理点击事件 (onPointPicked)

cpp 复制代码

void pointpicking::onPointPicked(vtkObject* caller,
                                 unsigned long eventId,
                                 void* callData) {
    // 1. 获取触发事件的交互器
    vtkRenderWindowInteractor* interactor =
        reinterpret_cast<vtkRenderWindowInteractor*>(caller);

    // 2. 获取鼠标点击的屏幕坐标
    int* pos = interactor->GetEventPosition();

    // 3. 执行拾取操作
    //    在 (pos[0], pos[1]) 位置，拾取 renderer 中的对象
    pointPicker->Pick(pos[0], pos[1], 0, renderer);

    // 4. 获取拾取结果
    if (pointPicker->GetPointId() != -1) {
        // 拾取成功，获取世界坐标
        double* pickedPos = pointPicker->GetPickPosition();

        // 显示结果
        QString info = QString("Picked point - Coords: (%1, %2, %3)")
                           .arg(pickedPos[0])
                           .arg(pickedPos[1])
                           .arg(pickedPos[2]);
        logMessage(info);
    }
}

关键点解释：

GetEventPosition() 返回鼠标在窗口中的像素坐标 (x, y)
Pick(x, y, 0, renderer) 在指定位置拾取对象，第三个参数是 z 平面（设为 0）
GetPointId() 返回拾取到的点 ID，-1 表示没有拾取到任何点
GetPickPosition() 返回拾取点的世界坐标 (x, y, z)

3. 工作流程图

复制代码

用户点击屏幕
     ↓
VTK 捕获鼠标事件 (LeftButtonPressEvent)
     ↓
触发 onPointPicked 回调
     ↓
获取鼠标屏幕坐标 (pos[0], pos[1])
     ↓
调用 pointPicker->Pick() 执行拾取
     ↓
遍历 renderer 中所有 actor
     ↓
找到点击位置最近的几何图元
     ↓
返回拾取结果 (PointId 和 坐标)
     ↓
在日志面板显示结果

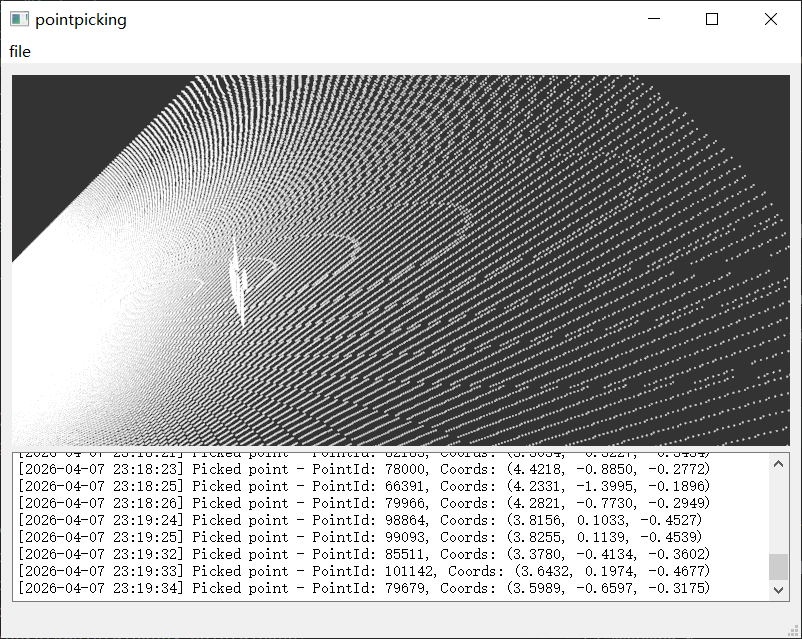

运行结果

完整代码

pointpicking.h

cpp 复制代码

#pragma once

#include <QtWidgets/QMainWindow>
#include "ui_pointpicking.h"
#include <pcl/io/pcd_io.h>
#include <pcl/visualization/pcl_visualizer.h>
#include <pcl/visualization/point_picking_event.h>
#include <vtkGenericOpenGLRenderWindow.h>
#include <vtkRenderWindow.h>
#include <vtkRenderWindowInteractor.h>
#include <vtkCommand.h>
#include <vtkCellPicker.h>
#include <vtkPointPicker.h>
#include <vtkActor.h>
#include <vtkRenderer.h>
#include <QVTKRenderWidget.h>
#include <QVTKOpenGLNativeWidget.h>

class pointpicking : public QMainWindow
{
    Q_OBJECT

public:
    pointpicking(QWidget* parent = nullptr);
    ~pointpicking();

private:
    Ui::pointpicking ui;
    pcl::PointCloud<pcl::PointXYZ>::Ptr cloud;
    boost::shared_ptr<pcl::visualization::PCLVisualizer> view;
    vtkSmartPointer<vtkRenderer> renderer;
    vtkSmartPointer<vtkPointPicker> pointPicker;

    void initialVtkWidget();
    void logMessage(const QString& message);
    void setupPointPicking();
    void onPointPicked(vtkObject* caller, unsigned long eventId, void* callData);

private slots:
    void onOpen();

};

pointpicking.cpp

cpp 复制代码

#include "pointpicking.h"
#include <QFileDialog>
#include <QDebug>
#include <QDateTime>

pointpicking::pointpicking(QWidget* parent) : QMainWindow(parent) {
    ui.setupUi(this);

    initialVtkWidget();

    connect(ui.actionopen, SIGNAL(triggered()), this, SLOT(onOpen()));

    logMessage("Application started");
    logMessage("Tip: Hold Shift + Left click to pick points");
}

pointpicking::~pointpicking() {}

void pointpicking::setupPointPicking() {
    if (!view || !ui.openGLWidget->interactor())
        return;

    pointPicker = vtkSmartPointer<vtkPointPicker>::New();

    vtkRenderWindowInteractor* interactor = ui.openGLWidget->interactor();

    interactor->SetPicker(pointPicker);

    interactor->AddObserver(vtkCommand::LeftButtonPressEvent, this, &pointpicking::onPointPicked);

    logMessage("Point picking enabled");
}

void pointpicking::onPointPicked(vtkObject* caller, unsigned long eventId, void* callData) {
    vtkRenderWindowInteractor* interactor = reinterpret_cast<vtkRenderWindowInteractor*>(caller);
    if (!interactor)
        return;

    int* pos = interactor->GetEventPosition();
    pointPicker->Pick(pos[0], pos[1], 0, renderer);

    if (pointPicker->GetPointId() != -1) {
        double* pickedPos = pointPicker->GetPickPosition();

        QString info = QString("Picked point - PointId: %1, Coords: (%2, %3, %4)")
                           .arg(pointPicker->GetPointId())
                           .arg(pickedPos[0], 0, 'f', 4)
                           .arg(pickedPos[1], 0, 'f', 4)
                           .arg(pickedPos[2], 0, 'f', 4);
        logMessage(info);
    }
}

void pointpicking::onOpen() {

    pcl::PointCloud<pcl::PointXYZ>::Ptr cloud(
        new pcl::PointCloud<pcl::PointXYZ>());
    QString fileName = QFileDialog::getOpenFileName(this, "Open PointCloud", ".",
        "Open PCD files(*.pcd)");
    if (fileName == "") return;

    logMessage("Loading: " + fileName);

    if (pcl::io::loadPCDFile(fileName.toStdString(), *cloud) == -1) {
        logMessage("Error: Failed to load PCD file");
        return;
    }

    QString info = QString("Loaded %1 points").arg(cloud->size());
    logMessage(info);

    this->cloud = cloud;

    view->removeAllPointClouds();
    view->addPointCloud(cloud, "cloud");
    view->resetCamera();
    ui.openGLWidget->update();

    setupPointPicking();

    logMessage("Point cloud displayed");
}

void pointpicking::initialVtkWidget() {
    renderer = vtkSmartPointer<vtkRenderer>::New();
    vtkSmartPointer<vtkGenericOpenGLRenderWindow> renderWindow =
        vtkSmartPointer<vtkGenericOpenGLRenderWindow>::New();
    renderWindow->AddRenderer(renderer);
    view.reset(new pcl::visualization::PCLVisualizer(renderer, renderWindow,
        "viewer", false));
    view->setBackgroundColor(0.2, 0.2, 0.2);
    view->setupInteractor(ui.openGLWidget->interactor(),
        ui.openGLWidget->renderWindow());
    ui.openGLWidget->setRenderWindow(view->getRenderWindow());

    logMessage("VTK widget initialized");
}

void pointpicking::logMessage(const QString& message) {
    QString timestamp = QDateTime::currentDateTime().toString("yyyy-MM-dd hh:mm:ss");
    ui.logTextEdit->append(QString("[%1] %2").arg(timestamp, message));
}
