一、应用概述
本方案基于鸿蒙ArkTS开发一款功能完备的电子书阅读应用,实现"一次开发,多端部署",支持手机、平板、PC等多设备无缝接续阅读。应用包含阅读、书架、书城、分类、我的五大核心模块,并创新性集成文字朗读、应用接续、网络加速等功能,满足现代用户多样化的阅读需求。
二、系统架构设计

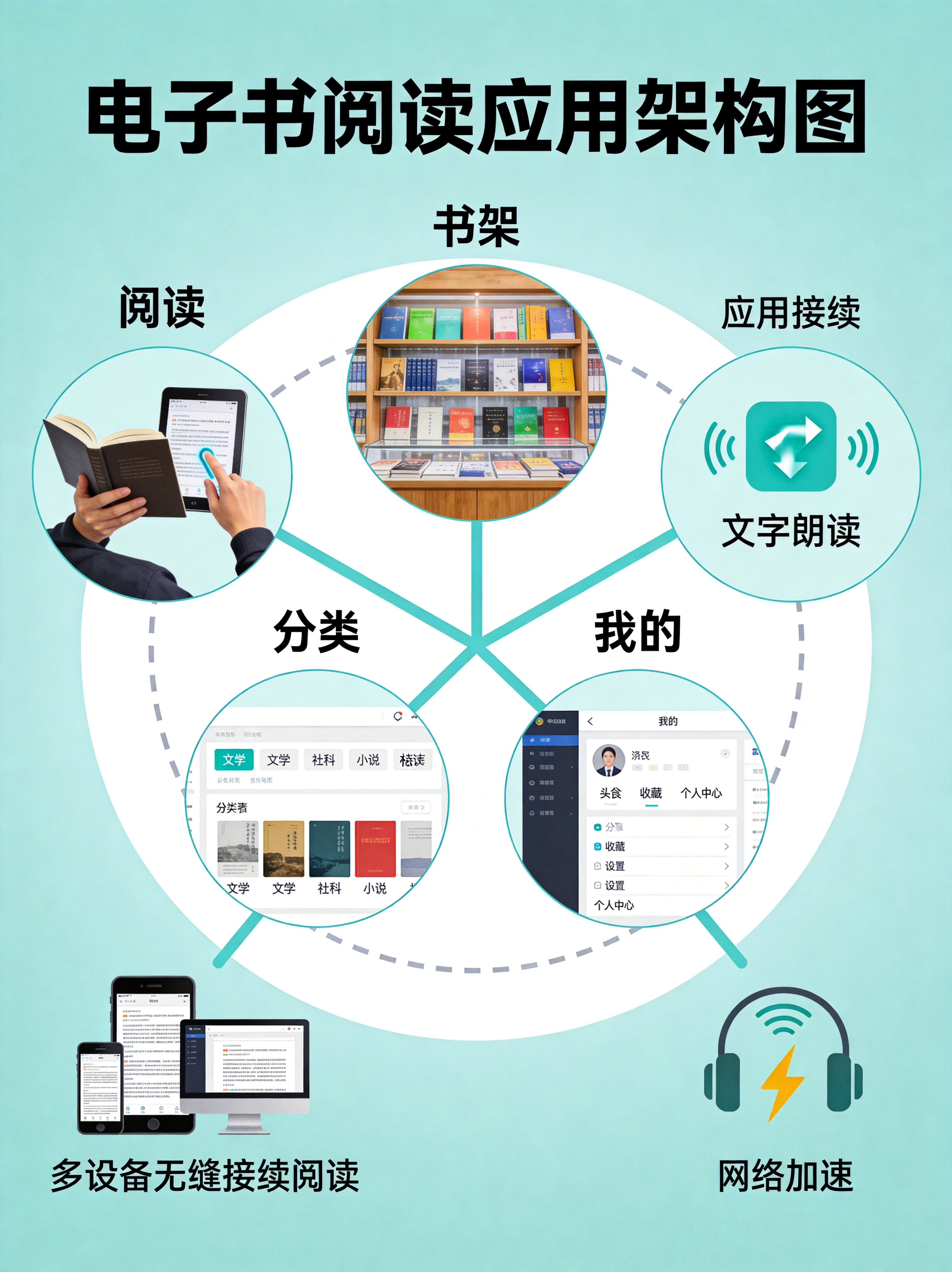

2.1 整体架构
应用采用分层架构设计,确保功能解耦和多端适配能力:

- 表现层:基于ArkUI实现跨设备UI,根据屏幕尺寸自动适配
- 业务层:核心业务逻辑模块,包括五大核心功能模块
- 数据层:本地存储与分布式数据同步
- 基础服务层:提供朗读、网络加速等基础服务
2.2 技术选型
- 开发语言:ArkTS
- UI框架:ArkUI
- 状态管理:@State、@Link、@Provide/@Consume
- 分布式能力:DistributedDataManager、DeviceManager
- 本地存储:Preferences、RelationalStore
- 网络请求:@ohos.net.http
- 多媒体:@ohos.multimedia.audio
三、核心功能实现
3.1 应用工程结构
entry/src/main/ets/
├── common/ # 公共资源和工具类
│ ├── constants/ # 常量定义
│ ├── utils/ # 工具函数
│ └── model/ # 数据模型
├── pages/ # 页面组件
│ ├── reader/ # 阅读模块
│ ├── bookshelf/ # 书架模块
│ ├── bookstore/ # 书城模块
│ ├── category/ # 分类模块
│ └── profile/ # 我的模块
├── services/ # 服务类
│ ├── bookService.ets # 书籍数据服务
│ ├── syncService.ets # 分布式同步服务
│ ├── audioService.ets # 朗读服务
│ └── networkService.ets # 网络服务
└── entryability/ # 应用入口
3.2 数据模型设计
typescript
// common/model/Book.ts
export interface Book {
id: string;
title: string;
author: string;
cover: string;
progress: number; // 阅读进度(0-100)
lastReadPosition: number; // 上次阅读位置
lastReadTime: number; // 上次阅读时间戳
chapters: Chapter[];
category: string[];
isLocal: boolean; // 是否本地书籍
downloadStatus: 'none' | 'downloading' | 'complete' | 'failed';
}
export interface Chapter {
id: string;
bookId: string;
title: string;
content: string;
pageCount: number;
}
export interface ReadingProgress {
bookId: string;
position: number;
timestamp: number;
deviceId: string;
}
3.3 分布式数据同步实现
实现多设备间阅读进度无缝接续:
typescript
// services/syncService.ets
import distributedData from '@ohos.data.distributedData';
import deviceManager from '@ohos.distributedDeviceManager';
import { ReadingProgress } from '../common/model/Book';
export class SyncService {
private kvManager: distributedData.KVManager | null = null;
private kvStore: distributedData.KVStore | null = null;
private deviceId: string = '';
async init() {
// 初始化分布式KV存储
try {
this.kvManager = await distributedData.createKVManager({
context: getContext(),
bundleName: 'com.example.ebookreader'
});
this.kvStore = await this.kvManager.getKVStore('reading_progress');
// 获取当前设备ID
const dm = await deviceManager.createDeviceManager('com.example.ebookreader');
this.deviceId = dm.localDeviceInfo.deviceId;
// 订阅数据变化
this.subscribeProgressChanges();
} catch (err) {
console.error(`SyncService init failed: ${JSON.stringify(err)}`);
}
}
// 保存阅读进度
async saveReadingProgress(progress: ReadingProgress) {
if (!this.kvStore) return;
try {
progress.deviceId = this.deviceId;
await this.kvStore.put(`progress_${progress.bookId}`, JSON.stringify(progress));
} catch (err) {
console.error(`Save reading progress failed: ${JSON.stringify(err)}`);
}
}
// 获取最新阅读进度
async getLatestProgress(bookId: string): Promise<ReadingProgress | null> {
if (!this.kvStore) return null;
try {
const value = await this.kvStore.get(`progress_${bookId}`);
if (value) {
return JSON.parse(value as string) as ReadingProgress;
}
return null;
} catch (err) {
console.error(`Get reading progress failed: ${JSON.stringify(err)}`);
return null;
}
}
// 订阅进度变化
private subscribeProgressChanges() {
if (!this.kvStore) return;
this.kvStore.on('dataChange', (data) => {
if (data.type === distributedData.DataChangeType.CHANGED) {
// 通知阅读页面更新进度
const progress = JSON.parse(data.value as string) as ReadingProgress;
if (progress.deviceId !== this.deviceId) {
// 发送事件通知
eventHub.emit('progress_updated', progress);
}
}
});
}
}
// 全局实例
export const syncService = new SyncService();
3.4 阅读模块实现
typescript
// pages/reader/ReaderPage.ets
import { Component, Prop, State, LazyForEach, ForEach, onPageShow } from '@ohos:arkui';
import { Book, Chapter } from '../../common/model/Book';
import { syncService } from '../../services/syncService';
import { audioService } from '../../services/audioService';
import router from '@ohos.router';
@Entry
@Component
struct ReaderPage {
@Prop book: Book;
@State currentChapter: Chapter = {} as Chapter;
@State currentPage: number = 0;
@State isReading: boolean = true;
@State isPlaying: boolean = false;
@State fontSize: number = 16;
@State theme: 'light' | 'dark' | 'sepia' = 'light';
private chapters: Chapter[] = [];
private totalPages: number = 0;
private pageSize: number = 0;
private contentHeight: number = 0;
async aboutToAppear() {
// 初始化同步服务
await syncService.init();
// 获取最新阅读进度
const progress = await syncService.getLatestProgress(this.book.id);
if (progress) {
this.currentPage = progress.position;
} else {
this.currentPage = this.book.lastReadPosition;
}
// 获取章节内容
this.chapters = this.book.chapters;
if (this.chapters.length > 0) {
this.currentChapter = this.chapters[0];
this.calculatePageCount();
}
// 订阅进度更新事件
eventHub.on('progress_updated', (progress: ReadingProgress) => {
if (progress.bookId === this.book.id) {
this.currentPage = progress.position;
}
});
}
onPageShow() {
// 页面显示时保存阅读进度
this.saveProgress();
}
aboutToDisappear() {
// 页面消失时保存阅读进度
this.saveProgress();
audioService.stop();
}
// 计算页数
private calculatePageCount() {
// 实际应用中应根据字体大小、屏幕尺寸计算页数
this.pageSize = 500; // 假设每页500字
this.totalPages = Math.ceil(this.currentChapter.content.length / this.pageSize);
}
// 获取当前页内容
private getCurrentPageContent(): string {
const start = this.currentPage * this.pageSize;
const end = start + this.pageSize;
return this.currentChapter.content.substring(start, end);
}
// 翻页
private nextPage() {
if (this.currentPage < this.totalPages - 1) {
this.currentPage++;
this.saveProgress();
} else if (this.chapters.indexOf(this.currentChapter) < this.chapters.length - 1) {
// 下一章
const index = this.chapters.indexOf(this.currentChapter);
this.currentChapter = this.chapters[index + 1];
this.currentPage = 0;
this.calculatePageCount();
this.saveProgress();
}
}
private prevPage() {
if (this.currentPage > 0) {
this.currentPage--;
this.saveProgress();
} else if (this.chapters.indexOf(this.currentChapter) > 0) {
// 上一章
const index = this.chapters.indexOf(this.currentChapter);
this.currentChapter = this.chapters[index - 1];
this.currentPage = Math.ceil(this.currentChapter.content.length / this.pageSize) - 1;
this.calculatePageCount();
this.saveProgress();
}
}
// 保存阅读进度
private saveProgress() {
const progress: ReadingProgress = {
bookId: this.book.id,
position: this.currentPage,
timestamp: new Date().getTime(),
deviceId: ''
};
syncService.saveReadingProgress(progress);
// 更新书籍对象
this.book.lastReadPosition = this.currentPage;
this.book.lastReadTime = new Date().getTime();
this.book.progress = Math.floor((this.currentPage / this.totalPages) * 100);
}
// 切换朗读状态
private toggleReadAloud() {
if (this.isPlaying) {
audioService.stop();
this.isPlaying = false;
} else {
audioService.start(this.getCurrentPageContent());
this.isPlaying = true;
}
}
// 切换主题
private changeTheme(theme: 'light' | 'dark' | 'sepia') {
this.theme = theme;
}
build() {
Column() {
// 顶部导航栏
Row() {
Button('返回')
.onClick(() => {
router.back();
})
Text(this.currentChapter.title)
.fontSize(18)
.fontWeight(FontWeight.Bold)
.layoutWeight(1)
Button(this.isPlaying ? '暂停朗读' : '开始朗读')
.onClick(() => this.toggleReadAloud())
}
.padding(10)
.width('100%')
// 阅读区域
Scroll() {
Text(this.getCurrentPageContent())
.fontSize(this.fontSize)
.lineHeight(this.fontSize * 1.5)
.padding(20)
.textAlign(TextAlign.Start)
.backgroundColor(this.theme === 'dark' ? '#222' : this.theme === 'sepia' ? '#f4ecd8' : '#fff')
.fontColor(this.theme === 'dark' ? '#fff' : '#333')
.width('100%')
.onAreaChange((oldValue, newValue) => {
this.contentHeight = newValue.height;
})
}
.layoutWeight(1)
.backgroundColor(this.theme === 'dark' ? '#222' : this.theme === 'sepia' ? '#f4ecd8' : '#fff')
// 底部控制栏
Row() {
Button('上一页')
.onClick(() => this.prevPage())
.layoutWeight(1)
Text(`${this.currentPage + 1}/${this.totalPages}`)
.fontSize(14)
Button('下一页')
.onClick(() => this.nextPage())
.layoutWeight(1)
}
.padding(10)
.width('100%')
// 底部工具栏
Row() {
Button('字体')
.onClick(() => {
this.fontSize = this.fontSize === 16 ? 18 : this.fontSize === 18 ? 20 : 16;
})
Button('白天')
.onClick(() => this.changeTheme('light'))
.backgroundColor(this.theme === 'light' ? '#007DFF' : '#eee')
.fontColor(this.theme === 'light' ? '#fff' : '#333')
Button('夜间')
.onClick(() => this.changeTheme('dark'))
.backgroundColor(this.theme === 'dark' ? '#007DFF' : '#eee')
.fontColor(this.theme === 'dark' ? '#fff' : '#333')
Button('护眼')
.onClick(() => this.changeTheme('sepia'))
.backgroundColor(this.theme === 'sepia' ? '#007DFF' : '#eee')
.fontColor(this.theme === 'sepia' ? '#fff' : '#333')
}
.padding(10)
.width('100%')
}
.height('100%')
.backgroundColor(this.theme === 'dark' ? '#222' : this.theme === 'sepia' ? '#f4ecd8' : '#fff')
}
}
3.5 书架模块实现
typescript
// pages/bookshelf/BookshelfPage.ets
import { Component, State, LazyForEach, onPageShow } from '@ohos:arkui';
import { Book } from '../../common/model/Book';
import { bookService } from '../../services/bookService';
import router from '@ohos.router';
import { syncService } from '../../services/syncService';
@Entry
@Component
struct BookshelfPage {
@State books: Book[] = [];
@State isLoading: boolean = true;
async onPageShow() {
// 初始化同步服务
await syncService.init();
// 加载书架数据
this.loadBooks();
}
async loadBooks() {
this.isLoading = true;
try {
this.books = await bookService.getBookshelf();
// 按最后阅读时间排序
this.books.sort((a, b) => b.lastReadTime - a.lastReadTime);
} catch (err) {
console.error(`Failed to load books: ${JSON.stringify(err)}`);
} finally {
this.isLoading = false;
}
}
navigateToReader(book: Book) {
router.pushUrl({
url: 'pages/reader/ReaderPage',
params: { book: book }
});
}
navigateToBookstore() {
router.pushUrl({ url: 'pages/bookstore/BookstorePage' });
}
build() {
Column() {
Text('我的书架')
.fontSize(24)
.fontWeight(FontWeight.Bold)
.margin(15)
.alignSelf(ItemAlign.Start)
if (this.isLoading) {
Progress({ value: 50, type: ProgressType.Linear })
.width('90%')
.height(5)
} else if (this.books.length === 0) {
Column() {
Image($r('app.media.empty_bookshelf'))
.width(200)
.height(200)
Text('书架还是空的,去书城看看吧')
.fontSize(16)
.margin(10)
Button('去书城')
.onClick(() => this.navigateToBookstore())
}
.layoutWeight(1)
.justifyContent(FlexAlign.Center)
} else {
Grid() {
LazyForEach(this.books, (book: Book) => {
GridItem() {
Column() {
Stack() {
Image(book.cover)
.width('100%')
.height(180)
.objectFit(ImageFit.Cover)
if (book.progress > 0) {
Row() {
Progress({ value: book.progress, type: ProgressType.Linear })
.width('100%')
.height(3)
}
.alignSelf(ItemAlign.End)
}
if (book.downloadStatus === 'downloading') {
Stack() {
Circle()
.width(40)
.height(40)
.fill(Color.Black)
.opacity(0.7)
Progress({ value: 30, type: ProgressType.Ring })
.width(30)
.height(30)
.color(Color.White)
}
.alignSelf(ItemAlign.Center)
}
}
.borderRadius(8)
.overflow(Overflow.Hidden)
Text(book.title)
.fontSize(14)
.margin(5)
.maxLines(1)
.textOverflow({ overflow: TextOverflow.Ellipsis })
Text(book.author)
.fontSize(12)
.fontColor('#888')
.maxLines(1)
.textOverflow({ overflow: TextOverflow.Ellipsis })
}
.padding(10)
.onClick(() => this.navigateToReader(book))
}
}, (item) => item.id)
}
.columnsTemplate('1fr 1fr 1fr')
.columnsGap(10)
.rowsGap(15)
.padding(10)
.layoutWeight(1)
}
BottomTabBar()
}
.height('100%')
.backgroundColor('#f5f5f5')
}
}
3.6 文字朗读功能实现
typescript
// services/audioService.ets
import audio from '@ohos.multimedia.audio';
import tts from '@ohos.tts';
export class AudioService {
private player: audio.Player | null = null;
private ttsEngine: tts.TtsEngine | null = null;
private isPlaying: boolean = false;
private currentText: string = '';
async init() {
try {
// 初始化TTS引擎
this.ttsEngine = await tts.createTtsEngine();
await this.ttsEngine.setParams({
volume: 1.0,
pitch: 1.0,
speed: 1.0
});
// 初始化音频播放器
this.player = await audio.createPlayer();
} catch (err) {
console.error(`AudioService init failed: ${JSON.stringify(err)}`);
}
}
async start(text: string) {
if (!this.ttsEngine) {
await this.init();
}
if (!this.ttsEngine) return;
try {
this.currentText = text;
this.isPlaying = true;
// 注册TTS事件回调
this.ttsEngine.on('mark', (mark) => {
console.log(`TTS mark reached: ${mark}`);
});
this.ttsEngine.on('complete', () => {
this.isPlaying = false;
});
this.ttsEngine.on('error', (err) => {
console.error(`TTS error: ${JSON.stringify(err)}`);
this.isPlaying = false;
});
// 开始朗读
await this.ttsEngine.speak(text);
} catch (err) {
console.error(`Failed to start TTS: ${JSON.stringify(err)}`);
this.isPlaying = false;
}
}
async stop() {
if (this.ttsEngine && this.isPlaying) {
try {
await this.ttsEngine.stop();
this.isPlaying = false;
} catch (err) {
console.error(`Failed to stop TTS: ${JSON.stringify(err)}`);
}
}
}
async pause() {
if (this.ttsEngine && this.isPlaying) {
try {
await this.ttsEngine.pause();
this.isPlaying = false;
} catch (err) {
console.error(`Failed to pause TTS: ${JSON.stringify(err)}`);
}
}
}
async resume() {
if (this.ttsEngine && !this.isPlaying && this.currentText) {
try {
await this.ttsEngine.resume();
this.isPlaying = true;
} catch (err) {
console.error(`Failed to resume TTS: ${JSON.stringify(err)}`);
}
}
}
setSpeed(speed: number) {
if (this.ttsEngine) {
this.ttsEngine.setParams({ speed });
}
}
setVolume(volume: number) {
if (this.ttsEngine) {
this.ttsEngine.setParams({ volume });
}
}
}
// 全局实例
export const audioService = new AudioService();
3.7 网络加速实现
typescript
// services/networkService.ets
import http from '@ohos.net.http';
import cache from '@ohos.data.cache';
export class NetworkService {
private httpClient: http.HttpClient | null = null;
private cacheManager: cache.Cache | null = null;
private cacheSize: number = 10 * 1024 * 1024; // 10MB缓存
private cacheExpireTime: number = 24 * 60 * 60 * 1000; // 24小时过期
async init() {
// 创建HTTP客户端
this.httpClient = http.createHttpClient();
// 配置HTTP客户端
this.httpClient.on('headersReceive', (header) => {
console.log(`Response header: ${JSON.stringify(header)}`);
});
// 初始化缓存
this.cacheManager = await cache.createCache('ebook_cache', this.cacheSize);
}
async request(url: string, options?: http.HttpRequestOptions): Promise<any> {
if (!this.httpClient || !this.cacheManager) {
await this.init();
}
// 尝试从缓存获取
const cacheKey = this.generateCacheKey(url, options);
const cachedData = await this.cacheManager?.get(cacheKey);
if (cachedData) {
const data = JSON.parse(cachedData as string);
// 检查缓存是否过期
if (Date.now() - data.timestamp < this.cacheExpireTime) {
console.log(`Using cached data for ${url}`);
return data.response;
}
}
// 缓存未命中,发起网络请求
try {
const response = await this.httpClient?.request(url, options);
if (response?.responseCode === 200) {
// 缓存响应数据
await this.cacheManager?.put(cacheKey, JSON.stringify({
timestamp: Date.now(),
response: response.result
}));
}
return response?.result;
} catch (err) {
console.error(`Network request failed: ${JSON.stringify(err)}`);
// 如果有缓存但已过期,仍然返回过期缓存
if (cachedData) {
console.log(`Using expired cache for ${url}`);
return JSON.parse(cachedData as string).response;
}
throw err;
}
}
private generateCacheKey(url: string, options?: http.HttpRequestOptions): string {
// 根据URL和请求参数生成唯一缓存键
let key = url;
if (options?.method) key += `_${options.method}`;
if (options?.extraData) key += `_${JSON.stringify(options.extraData)}`;
return key;
}
// 清除缓存
async clearCache() {
if (this.cacheManager) {
await this.cacheManager.clear();
}
}
// 取消所有请求
cancelAllRequests() {
if (this.httpClient) {
this.httpClient.cancelAllRequests();
}
}
}
// 全局实例
export const networkService = new NetworkService();
四、应用接续功能实现
应用接续功能允许用户在一个设备上暂停阅读,然后在另一个设备上继续阅读,实现无缝切换体验。
typescript
// services/continuationService.ets
import abilityManager from '@ohos.app.ability.abilityManager';
import { Want } from '@ohos.app.ability.Want';
import { Book } from '../common/model/Book';
import { syncService } from './syncService';
export class ContinuationService {
async continueOnOtherDevice(book: Book) {
try {
// 获取可用设备列表
const deviceList = await abilityManager.getConnectedDevices('phone', 'tablet', 'pc');
if (deviceList.length === 0) {
console.log('No other devices available');
return false;
}
// 选择第一个可用设备
const targetDevice = deviceList[0];
// 构建接续请求
const want: Want = {
bundleName: 'com.example.ebookreader',
abilityName: 'ReaderAbility',
parameters: {
bookId: book.id,
fromContinuation: true
}
};
// 发起应用接续
const result = await abilityManager.startAbilityOnDevice(targetDevice.deviceId, want);
return result;
} catch (err) {
console.error(`Continuation failed: ${JSON.stringify(err)}`);
return false;
}
}
// 在应用启动时检查是否有接续请求
async checkContinuationRequest(want: Want): Promise<string | null> {
if (want.parameters?.fromContinuation && want.parameters?.bookId) {
// 获取最新阅读进度
const progress = await syncService.getLatestProgress(want.parameters.bookId as string);
if (progress) {
return want.parameters.bookId as string;
}
}
return null;
}
}
// 全局实例
export const continuationService = new ContinuationService();
五、多端适配实现
利用ArkTS的响应式布局和设备能力检测,实现应用在不同设备上的自适应显示:
typescript
// common/utils/deviceUtil.ets
import device from '@ohos.device';
import display from '@ohos.display';
export class DeviceUtil {
// 获取设备类型
static getDeviceType(): 'phone' | 'tablet' | 'pc' | 'watch' | 'unknown' {
const deviceType = device.deviceType;
if (deviceType === 'phone') return 'phone';
if (deviceType === 'tablet') return 'tablet';
if (deviceType === 'pc') return 'pc';
if (deviceType === 'watch') return 'watch';
return 'unknown';
}
// 判断是否为大屏幕设备
static isLargeScreen(): boolean {
const defaultDisplay = display.getDefaultDisplaySync();
const width = defaultDisplay.width;
const height = defaultDisplay.height;
const diagonal = Math.sqrt(width * width + height * height) / defaultDisplay.densityDpi * 25.4;
return diagonal >= 10; // 10英寸以上视为大屏幕
}
// 获取合适的网格列数
static getGridColumns(): number {
if (this.getDeviceType() === 'phone') return 3;
if (this.getDeviceType() === 'tablet') return 4;
if (this.getDeviceType() === 'pc') return 6;
return 2;
}
// 获取合适的字体大小
static getFontSize(baseSize: number): number {
if (this.isLargeScreen()) {
return baseSize * 1.2;
}
return baseSize;
}
}
六、总结
本方案基于鸿蒙ArkTS开发了一款功能完备的电子书阅读应用,实现了五大核心模块和三大创新功能:
- 核心功能:阅读、书架、书城、分类、我的
- 创新功能:多设备无缝接续阅读、文字朗读、网络加速
- 技术亮点:分布式数据同步、响应式布局、状态管理、缓存策略
应用充分利用鸿蒙系统的分布式能力,实现了跨设备数据同步和应用接续,为用户提供了无缝的阅读体验。同时,通过网络加速和缓存策略提升了内容加载速度,文字朗读功能满足了用户多样化的阅读需求。
