使用Vue3+Elementplus+Threejs实现智能黑板，实现基础的几何图形、三维图形、手写板的元素动态绘制效果，并实现数学、物理、化学、地理、生物等课程常见的图形元素及函数图形等。
源码下载地址： 点击下载

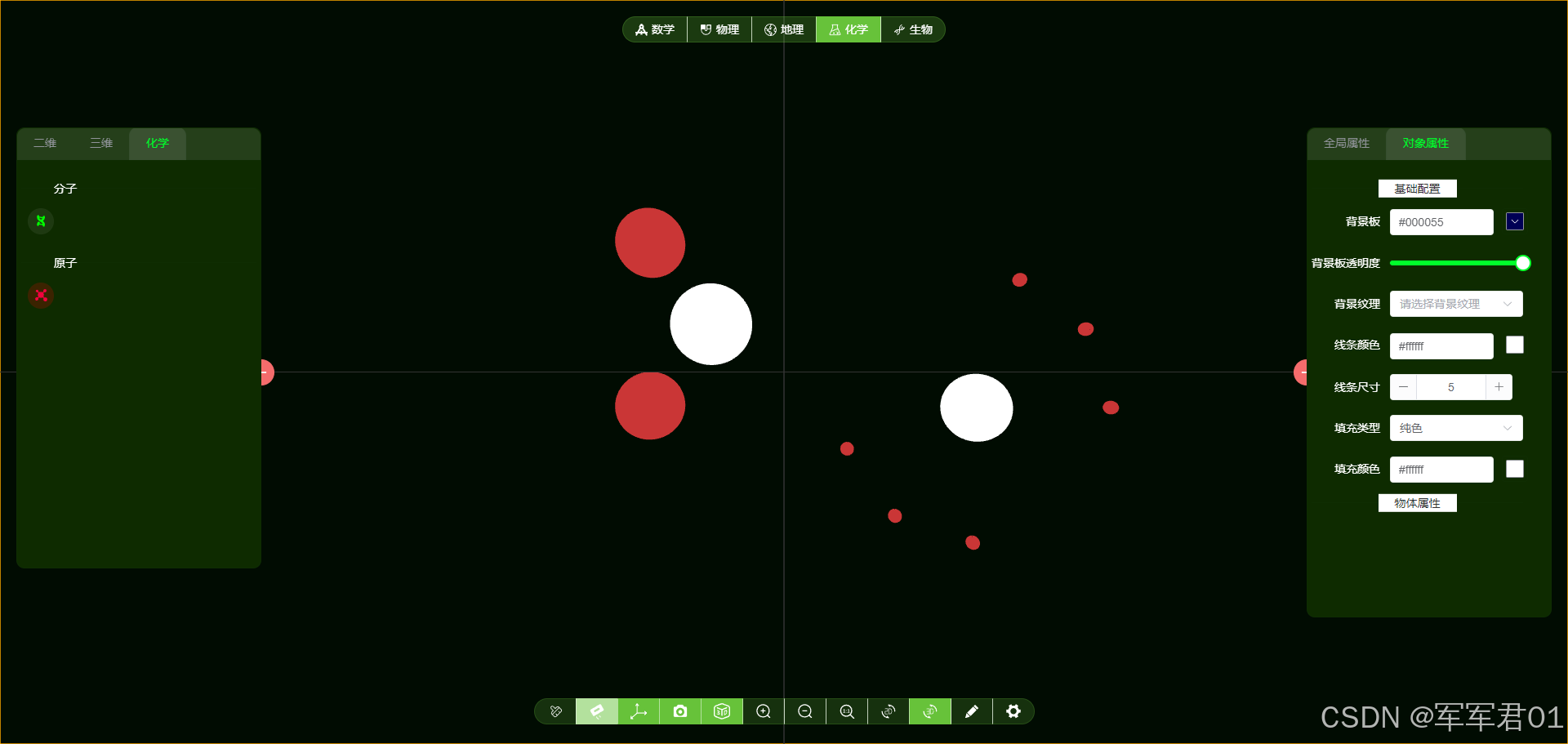

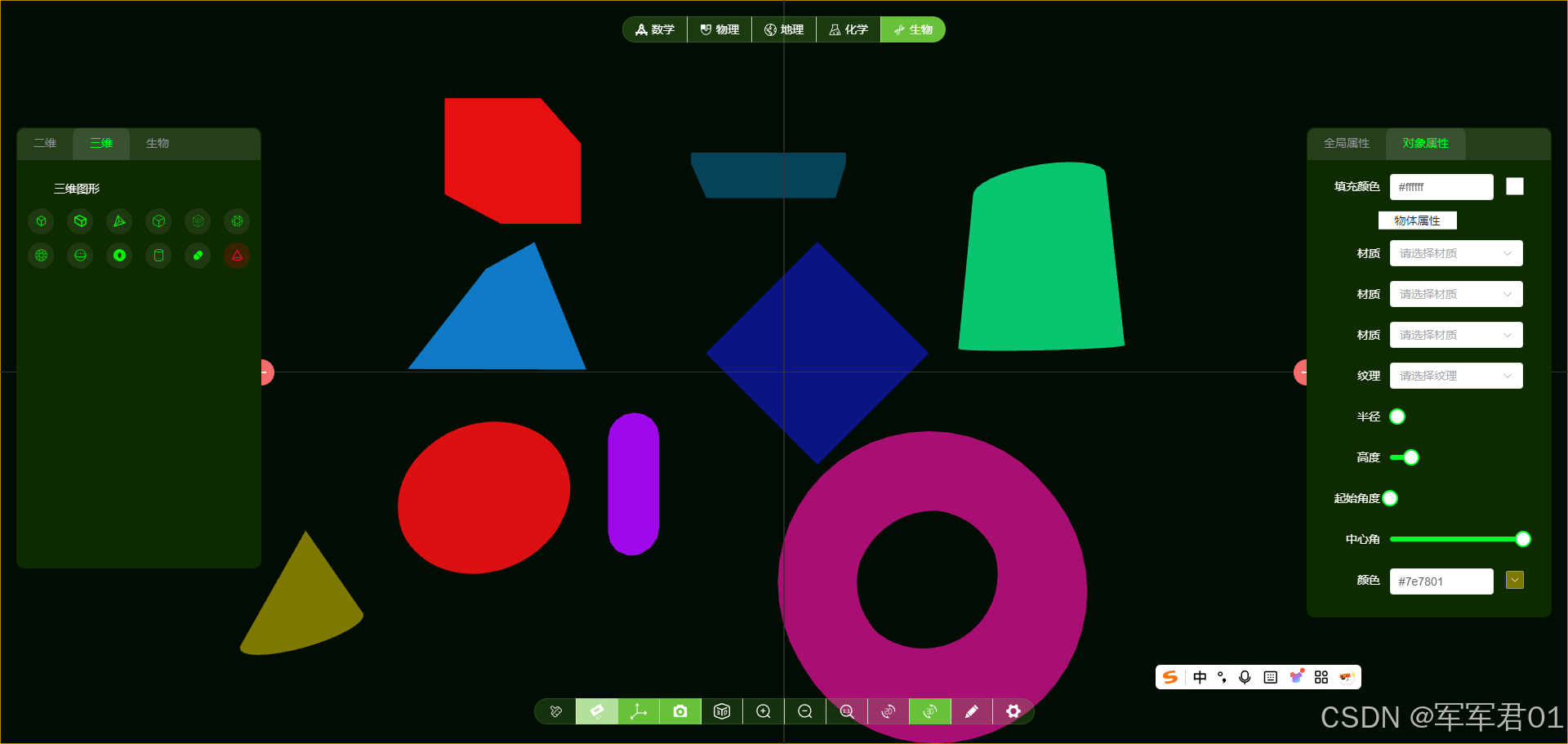

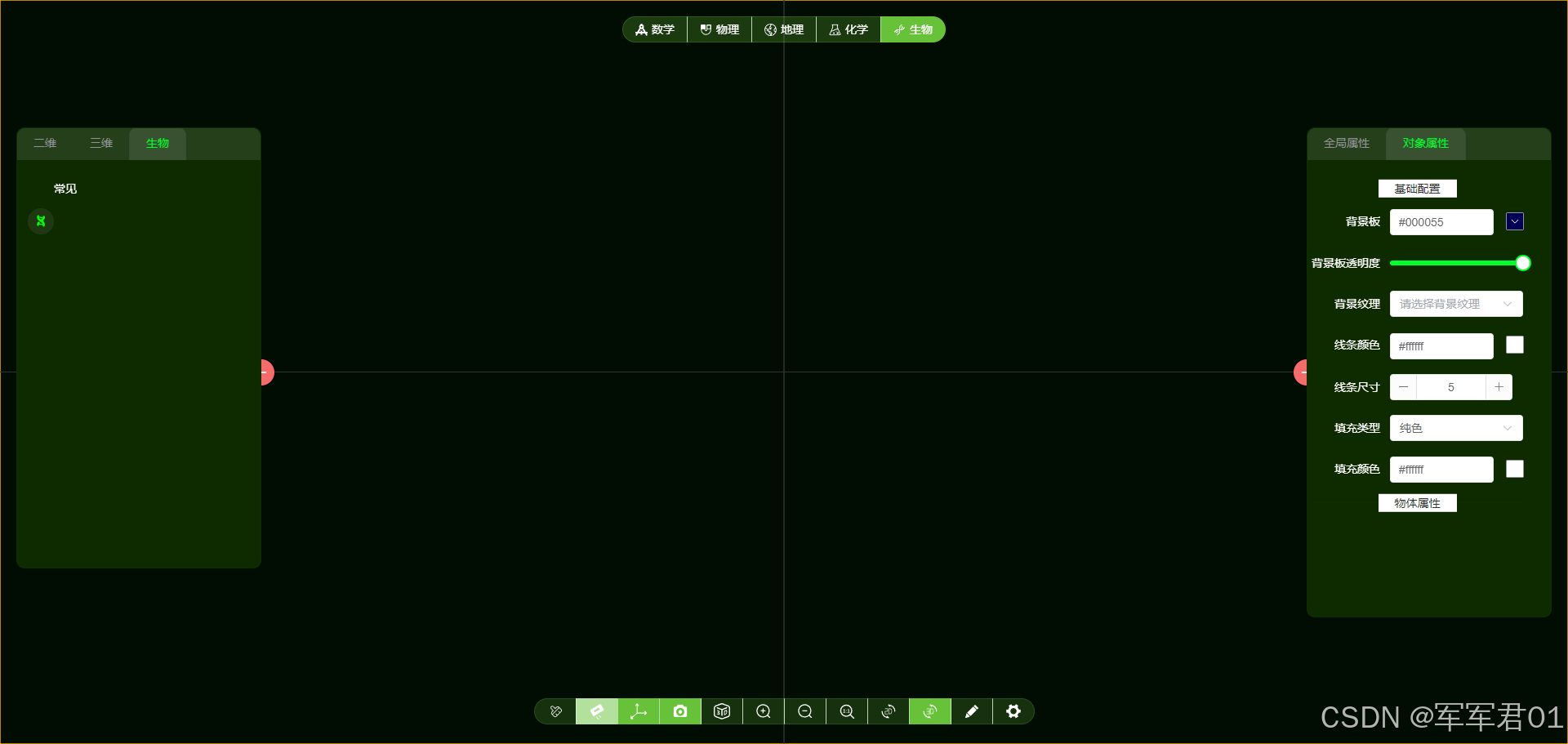

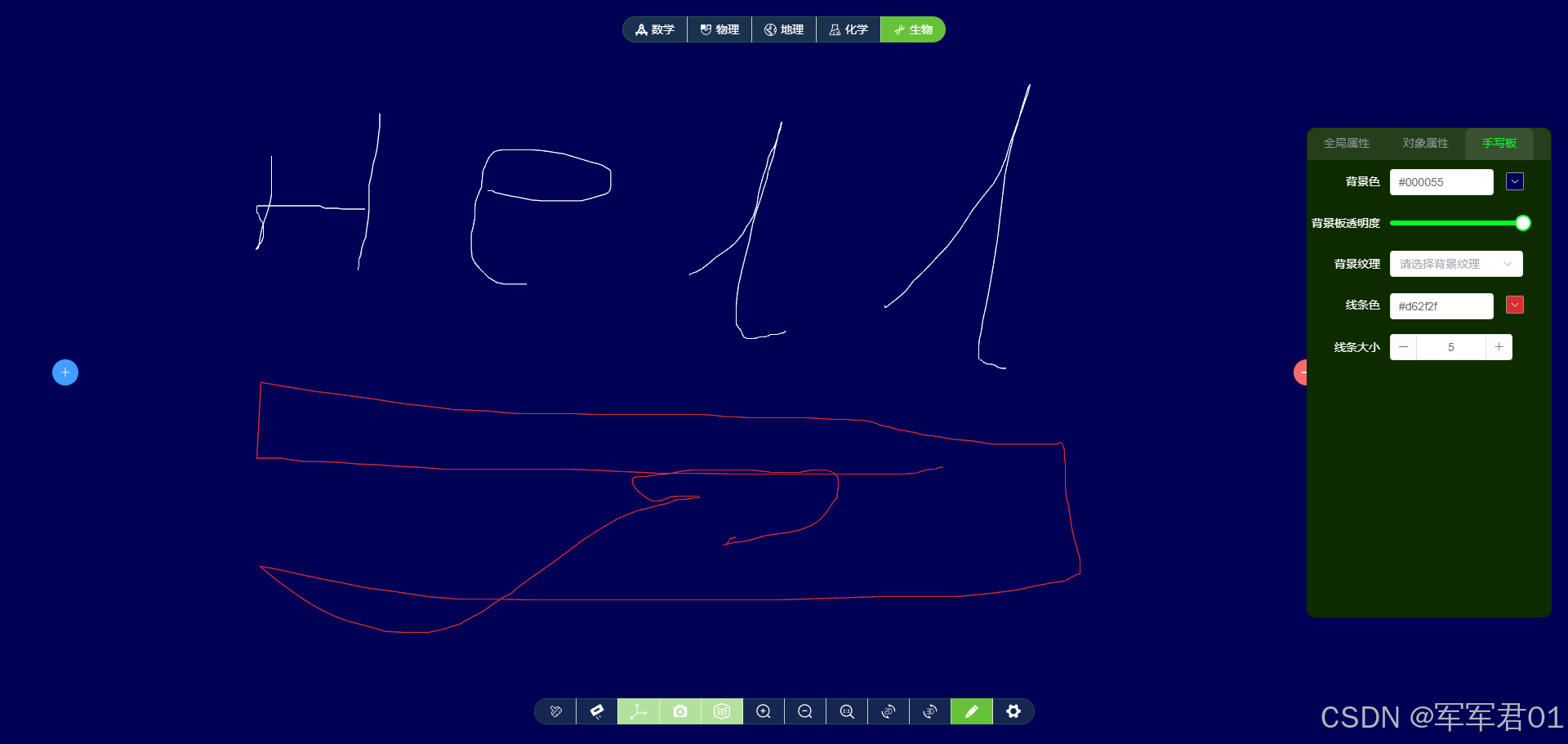

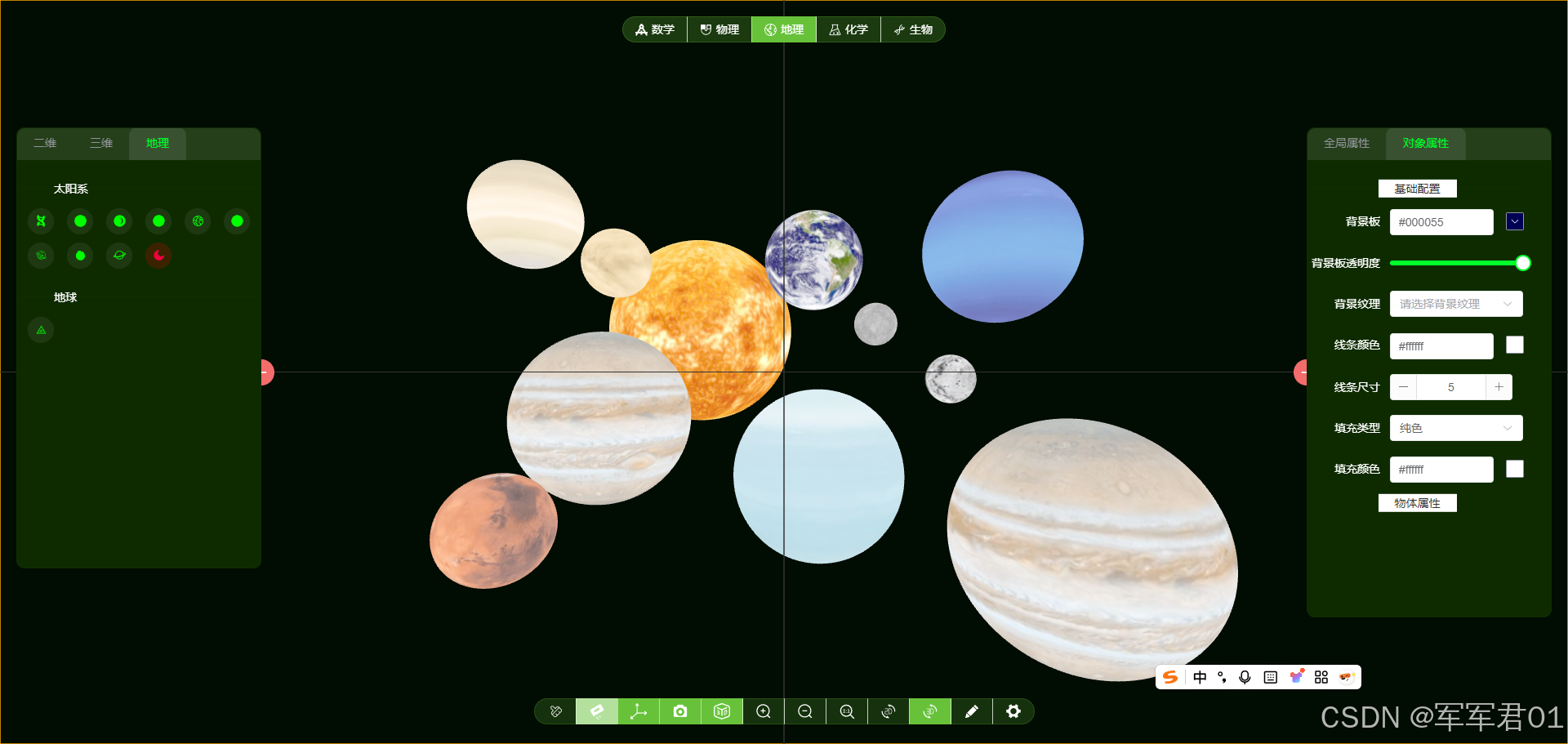

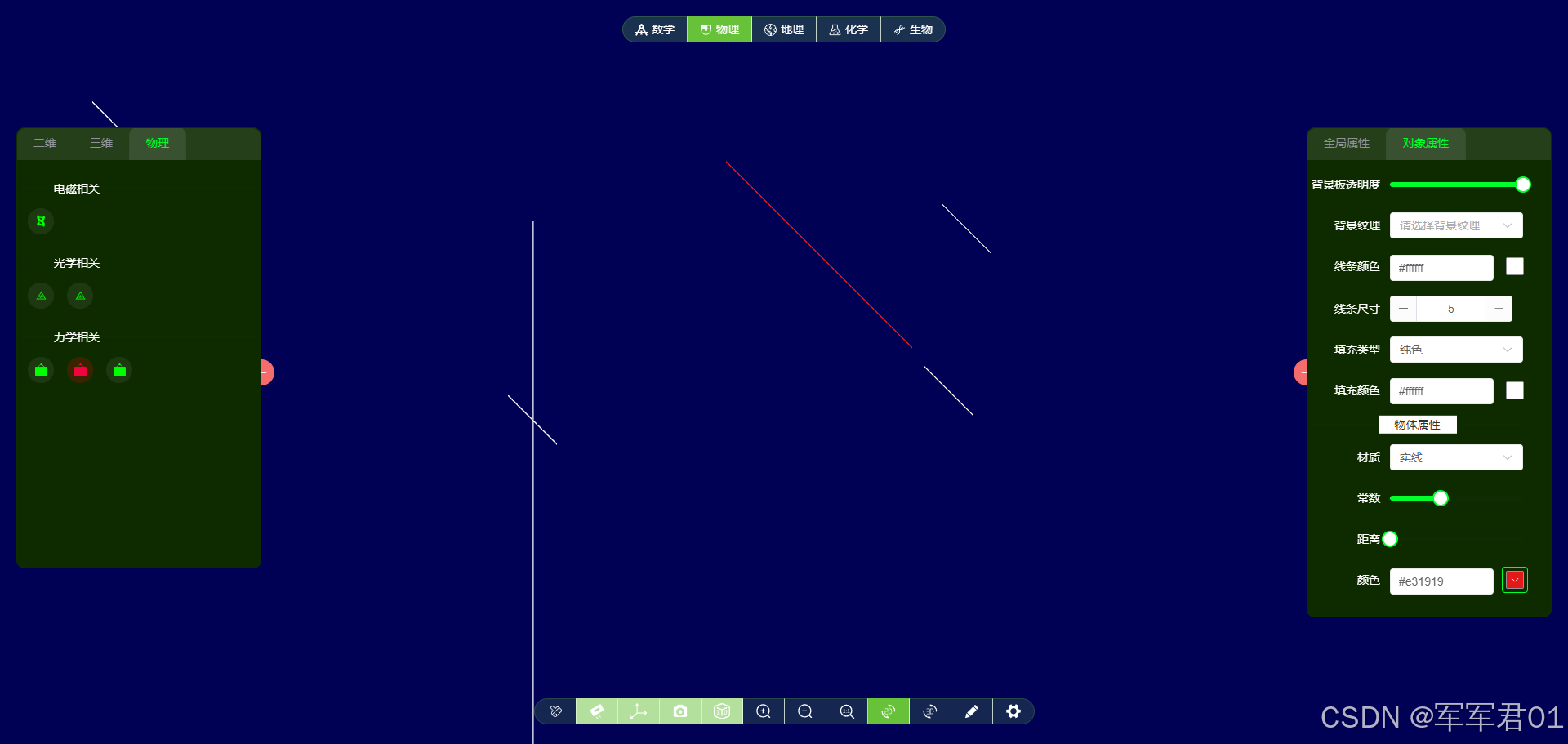

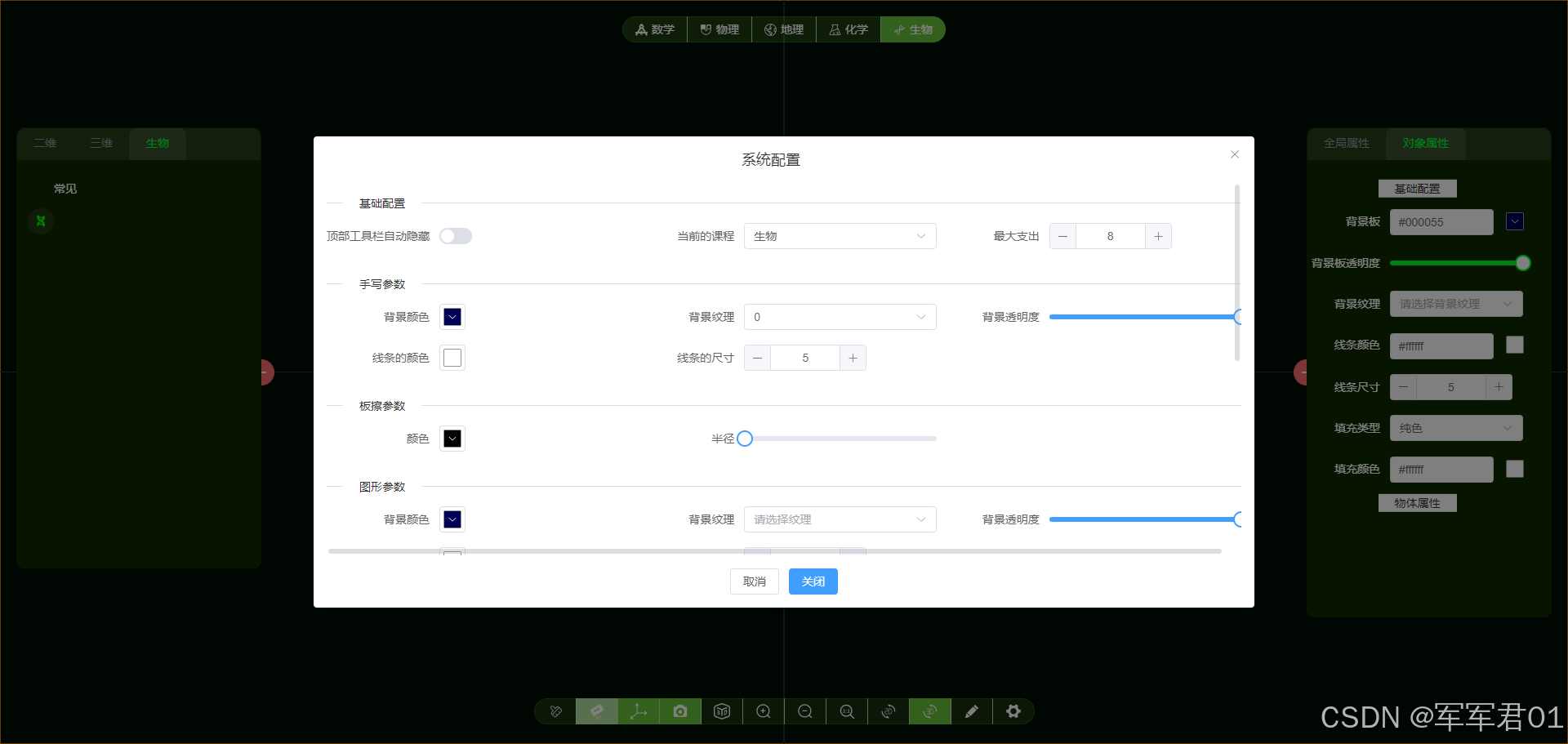

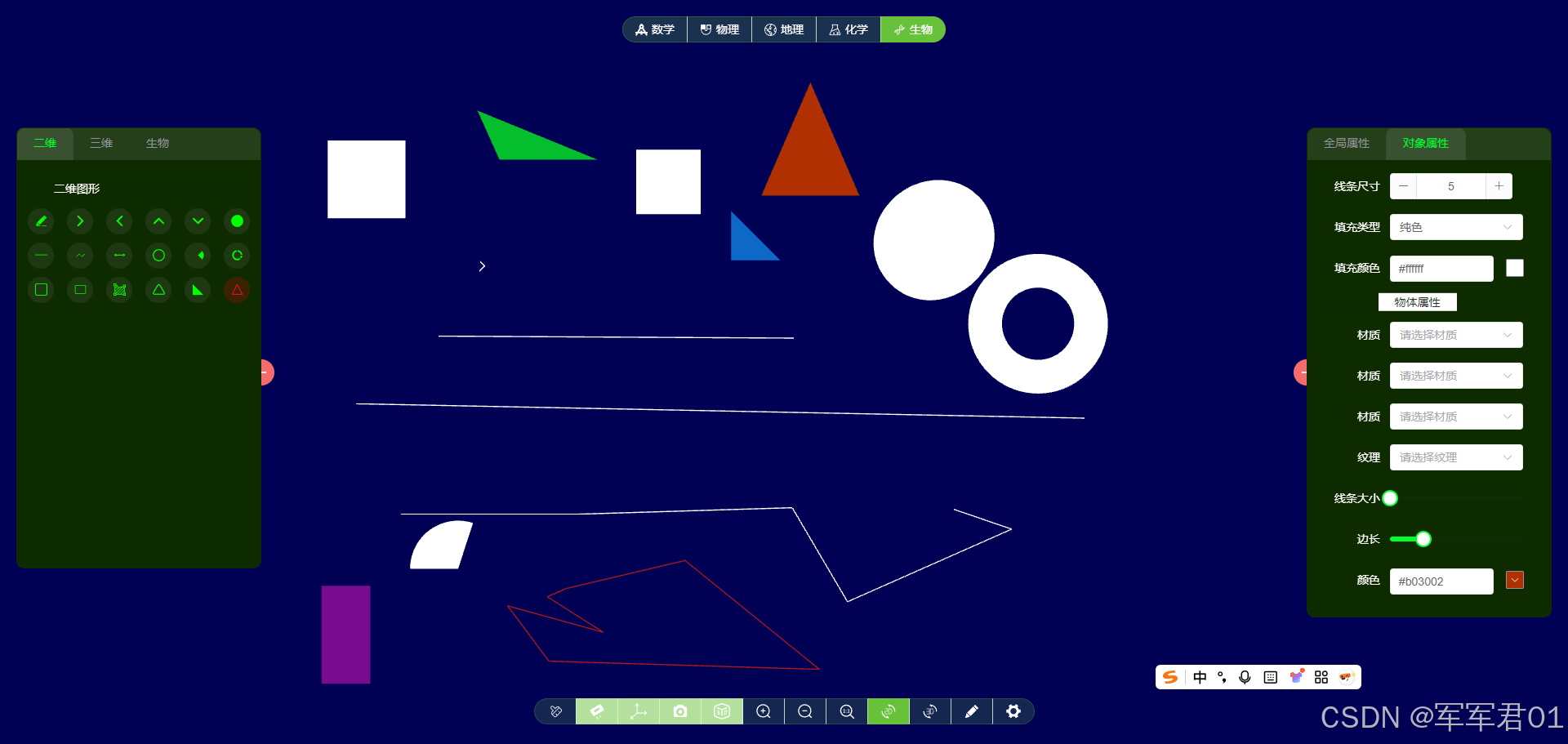

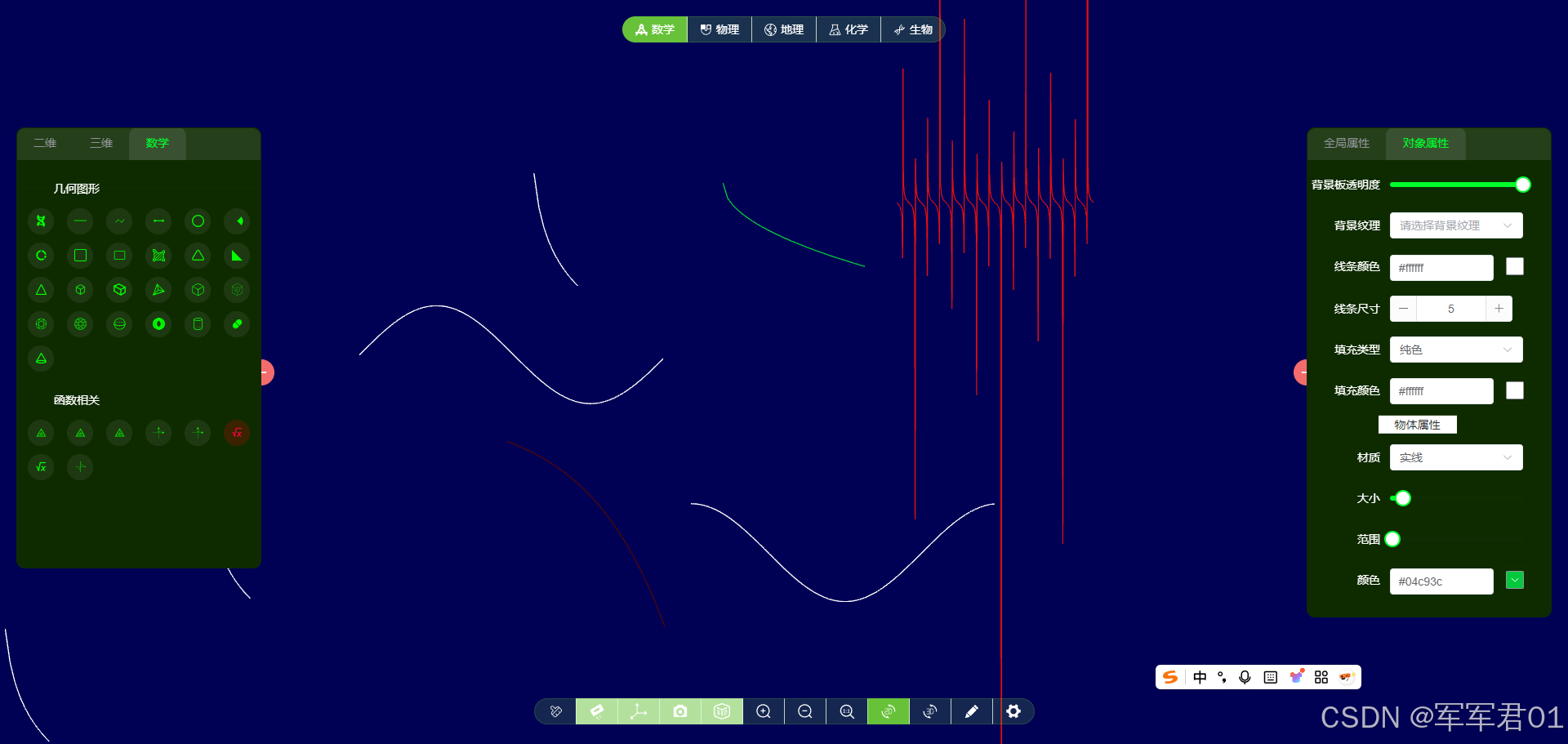

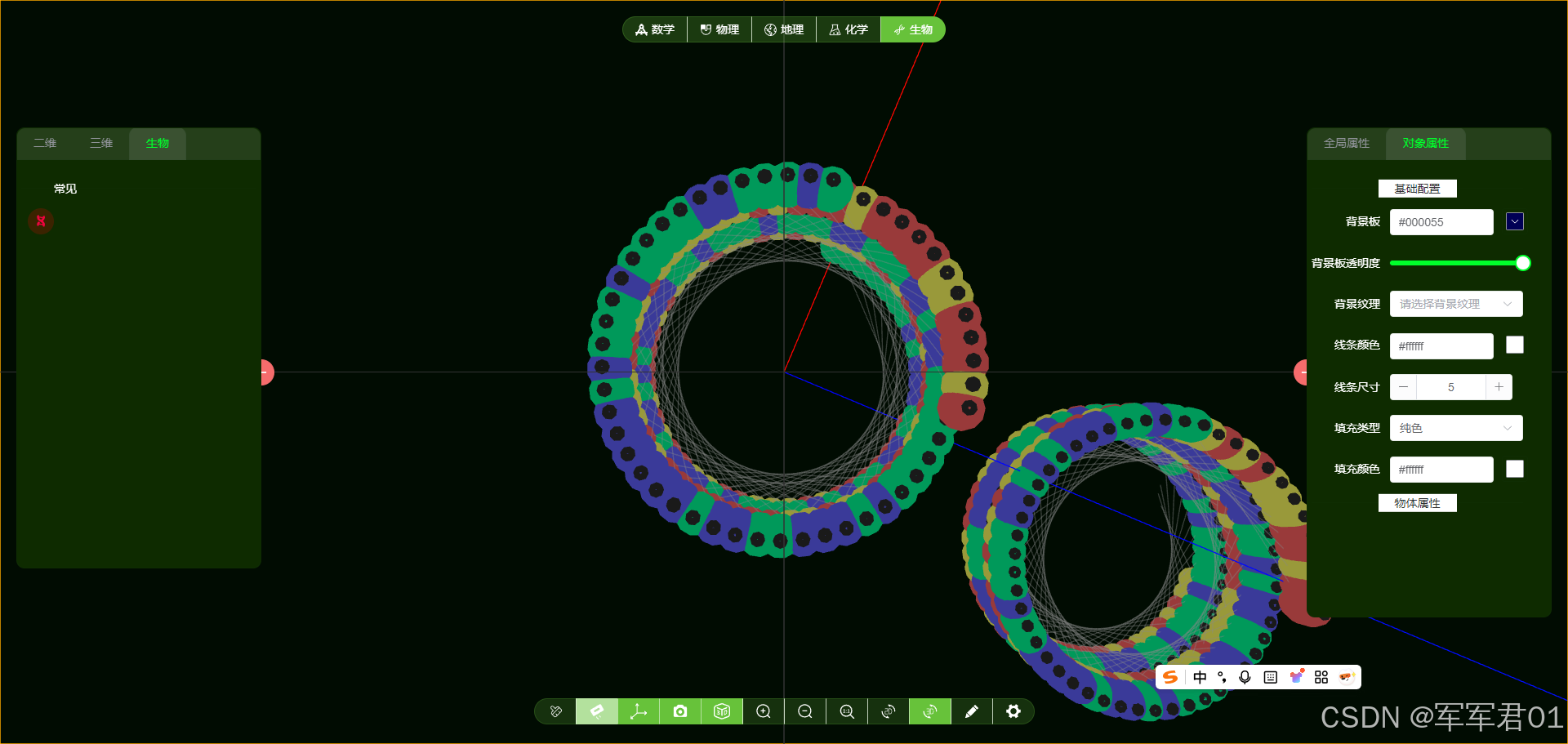

效果演示：
一、学习视频
https://www.bilibili.com/video/BV1JT69BUEdD/
二、项目创建
使用vue3搭建项目框架，引入three.js实现三维效果。
2.1 项目创建
官网： https://cn.vuejs.org/guide/introduction
命令： npm create vue@latest
2.2 三维引入
官网： https://threejs.org/
命令： npm install three
三、项目结构

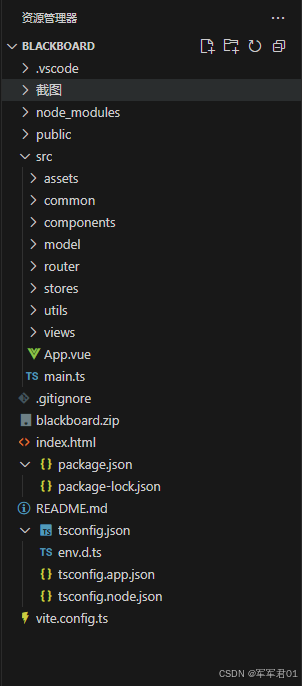

项目结构如下：
四、项目基础框架
4.1 基础框架
- main.ts
javascript
import { createApp } from 'vue'
import { createPinia } from 'pinia'
import App from './App.vue'
import router from './router'
import ElementPlus from 'element-plus'
import 'element-plus/dist/index.css'
// if you just want to import css
import 'element-plus/theme-chalk/dark/css-vars.css'
import zhCn from 'element-plus/es/locale/lang/zh-cn'
// 如果您正在使用CDN引入，请删除下面一行。
import * as ElementPlusIconsVue from '@element-plus/icons-vue'
import SvgIcon from './components/SvgIcon.vue'
const app = createApp(App)
app.use(createPinia())
app.use(router)
app.use(ElementPlus,{
locale: zhCn,
})
for (const [key, component] of Object.entries(ElementPlusIconsVue)) {
app.component(key, component)
}
app.component("SvgIcon", SvgIcon)
app.mount('#app')- App.vue
javascript
<script setup lang="ts"></script>
<template>
<RouterView></RouterView>
</template>
<style >
@import './assets/main.css';
</style>- HomeView.vue
javascript
<script setup lang="ts">
import { onBeforeUnmount, onMounted, ref, watch } from 'vue';
import D3 from "./d3"
import TopToolBar from "./components/toolbar/top.vue"
import RightToolBar from "./components/toolbar/right.vue"
import BottomToolBar from "./components/toolbar/bottom.vue"
import LeftToolBar from "./components/toolbar/left.vue"
import FreeToolBar from "./components/toolbar/free.vue"
import { useConfigStore } from '@/stores/config';
import { useStateStore } from '@/stores/state';
import { OprationModes } from '@/model/OprationModes';
import { useToolStore } from '@/stores/tool';
//三维容器的dom元素
const d3 = ref();
//鼠标状态
const cursor = ref(useStateStore().cursor);
const tools = useToolStore();
//右侧
const rightToolBar = ref();
/**
* 监听场景的参数
*/
watch(()=>useConfigStore().d3Config.scene.background,(newVal,oldVal)=>{
D3.setBackground(newVal);
})
watch(()=>useConfigStore().d3Config.scene.texture,(newVal,oldVal)=>{
if(newVal){
D3.setSceneTexture(newVal);
}else{
D3.setBackground(useConfigStore().d3Config.scene.background);
}
})
watch(()=>useConfigStore().d3Config.scene.environment,(newVal,oldVal)=>{
D3.setSceneEnvironment(newVal);
})
watch(()=>useConfigStore().d3Config.scene.backgroundBlurriness,(newVal,oldVal)=>{
D3.setBackgroundBlurriness(newVal);
})
/**
* 灯光配置
*/
watch(()=>useConfigStore().d3Config.light.color,(newVal,oldVal)=>{
D3.setLightColor(newVal);
})
watch(()=>useConfigStore().d3Config.light.intensity,(newVal,oldVal)=>{
D3.setLightIntensity(newVal);
})
/**
* 监听摄像头的参数
*/
watch(()=>useConfigStore().d3Config.camera.fov,(newVal,oldVal)=>{
D3.setCameraFov(newVal);
})
watch(()=>useConfigStore().d3Config.camera.far,(newVal,oldVal)=>{
D3.setCameraFar(newVal);
})
watch(()=>useConfigStore().d3Config.camera.near,(newVal,oldVal)=>{
D3.setCameraNear(newVal);
})
watch(()=>useConfigStore().d3Config.camera.zoom,(newVal,oldVal)=>{
D3.setCameraZoom(newVal);
})
watch(()=>useConfigStore().d3Config.camera.position,(newVal,oldVal)=>{
// D3.setCameraPosition(newVal);
},{deep:true})
/**
* 手写相关参数的监听
*/
watch(()=>useConfigStore().d3Config.handWriting.planeColor,(newVal,oldVal)=>{
D3.setHandWritingPlaneColor(newVal);
})
watch(()=>useConfigStore().d3Config.handWriting.planeOpacity,(newVal,oldVal)=>{
D3.setHandWritingPlaneOpacity(newVal);
})
watch(()=>useConfigStore().d3Config.handWriting.planeTexture,(newVal,oldVal)=>{
if(newVal){
D3.setHandWritingPlaneTexture(newVal);
}else{
D3.setHandWritingPlaneColor(useConfigStore().d3Config.handWriting.planeColor);
}
})
watch(()=>useConfigStore().d3Config.handWriting.line.color,(newVal,oldVal)=>{
D3.setHandWritingLineColor(newVal);
})
watch(()=>useConfigStore().d3Config.handWriting.line.width,(newVal,oldVal)=>{
D3.setHandWritingLineWidth(newVal);
})
watch(()=>useStateStore().cursor,(newVal,oldVal)=>{
cursor.value = newVal;
})
/**
* 板擦的变动事件
*/
watch(()=>useConfigStore().d3Config.eraser.color,(newVal,oldVal)=>{
D3.setEraserColor(newVal);
})
watch(()=>useConfigStore().d3Config.eraser.radius,(newVal,oldVal)=>{
D3.setEraserRadius(newVal);
})
/**
* 物体配置属性的变动事件
*/
watch(()=>useConfigStore().d3Config.mesh.d2PlaneColor,(newVal,oldVal)=>{
D3.setMeshD2PlanColor(newVal);
})
watch(()=>useConfigStore().d3Config.mesh.d2PlaneOpacity,(newVal,oldVal)=>{
D3.setMeshD2PlanOpacity(newVal);
})
watch(()=>useConfigStore().d3Config.mesh.d2PlaneTexture,(newVal,oldVal)=>{
if(newVal){
D3.setMeshD2PlanTexture(newVal);
}else{
D3.setMeshD2PlanColor(useConfigStore().d3Config.mesh.d2PlaneColor);
}
})
watch(()=>useConfigStore().d3Config.mesh.line.color,(newVal,oldVal)=>{
D3.setMeshLineColor(newVal);
})
watch(()=>useConfigStore().d3Config.mesh.line.width,(newVal,oldVal)=>{
D3.setMeshLineWidth(newVal);
})
watch(()=>useConfigStore().d3Config.mesh.fill.type,(newVal,oldVal)=>{
D3.setMeshFillType(newVal);
})
watch(()=>useConfigStore().d3Config.mesh.fill.color,(newVal,oldVal)=>{
D3.setMeshFillColor(newVal);
})
watch(()=>useConfigStore().d3Config.mesh.fill.texture,(newVal,oldVal)=>{
// TODO 待处理
})
watch(()=>useConfigStore().d3Config.mesh.fill.customer,(newVal,oldVal)=>{
// TODO 待处理
})
//模式监听
watch(()=>useStateStore().currentMode,(newVal,oldVal)=>{
if(OprationModes.D2 == newVal){
let item = tools.getItemByKey("write");
if(item){
item.selected = false;
}
item = tools.getItemByKey("d3");
if(item){
item.selected = false;
}
item = tools.getItemByKey("d2");
if(item){
item.selected = true;
}
rightToolBar.value.removeTab("黑板擦");
rightToolBar.value.removeTab("手写板");
}else if(OprationModes.D3 == newVal){
let item = tools.getItemByKey("d2");
if(item){
item.selected = false;
}
item = tools.getItemByKey("write");
if(item){
item.selected = false;
}
item = tools.getItemByKey("d3");
if(item){
item.selected = true;
}
rightToolBar.value.removeTab("黑板擦");
rightToolBar.value.removeTab("手写板");
}else if(OprationModes.HandWriting == newVal){
let item = tools.getItemByKey("d2");
if(item){
item.selected = false;
}
item = tools.getItemByKey("d3");
if(item){
item.selected = false;
}
item = tools.getItemByKey("write");
if(item){
item.selected = true;
}
item = tools.getItemByKey("OrbitControls");
if(item){
item.selected = false;
}
}
})
onMounted(()=>{
D3.init(d3.value,useConfigStore().d3Config);
})
onBeforeUnmount(()=>{
D3.dispose();
})
</script>
<template>
<div class="container" >
<div class="d3" ref="d3"></div>
<TopToolBar ></TopToolBar>
<RightToolBar ref="rightToolBar"></RightToolBar>
<BottomToolBar ></BottomToolBar>
<LeftToolBar ></LeftToolBar>
<FreeToolBar ></FreeToolBar>
</div>
</template>
<style lang="less" scoped>
.container{
width:100vw;
height: 100vh;
cursor: v-bind(cursor);
user-select: none;
.d3{
width:100vw;
height: 100vh;
}
}
</style>- 路由：router/index.ts
javascript
import { createRouter, createWebHistory } from 'vue-router'
import HomeView from '@/views/HomeView.vue'
const router = createRouter({
history: createWebHistory(import.meta.env.BASE_URL),
routes: [{
name:"home",
path:'/',
component:HomeView
}],
})
export default router- 状态存储
config.ts
javascript
import { ref, computed, reactive } from 'vue'
import { defineStore } from 'pinia'
import { FillType, type D3Config } from '@/model/D3Config';
import * as THREE from "three"
/**
* 系统的全局配置
*/
export const useConfigStore = defineStore('config', () => {
//三维相关的配置信息
const d3Config = reactive<D3Config>({
maxSize:8,
camera:{
fov:75,
near:0.001,
far:1000,
zoom:1,
position:new THREE.Vector3(0,0,10)
},
scene:{
background:new THREE.Color("#010c02"),
texture:null,
environment:null,
backgroundBlurriness:0
},
light:{
intensity:1,
color:new THREE.Color("#ffffff")
},
handWriting:{
planeColor:new THREE.Color(0x000055),
planeOpacity:1,
planeTexture:null,
line:{
width:5,
color:new THREE.Color(0xffffff)
}
},
eraser:{
color:new THREE.Color(0xffff00),
radius:1
},
mesh:{
//二维时候的背景板的颜色
d2PlaneColor:new THREE.Color(0x000055),
d2PlaneOpacity:1,
d2PlaneTexture:null,
//物体的线条颜色
line:{
width:5,
color:new THREE.Color(0xffffff)
},
//物体的填充颜色
fill:{
type:FillType.Color,
color:new THREE.Color(0xffffff),
texture:null,
customer:null
}
}
})
//顶部按钮是否自动隐藏
const topBarVisabled = ref(false);
return { d3Config,topBarVisabled }
})state.ts
javascript
import { ref, computed } from 'vue'
import { defineStore } from 'pinia'
import {MouseStatus} from '@/model/MouseStatus';
import type D2Mesh from '@/views/d3/mesh/D2Mesh';
import {OprationModes} from '@/model/OprationModes';
/**
* 当前的展示状态
*/
export const useStateStore = defineStore('state', () => {
//当前选中的顶部分类math physics geography chemistry biology
const currentTop = ref("biology");
//鼠标的状态
const cursor = ref("url(/images/cricle.png), auto;");
//当前选中的对象
const currentMesh = ref<D2Mesh|null>(null);
//当前三维操作状态
const currentStatus = ref<MouseStatus>(MouseStatus.None);
//当前的操作模式
const currentMode = ref<OprationModes>(OprationModes.D3);
return { currentTop,cursor,currentMesh ,currentStatus,currentMode}
})texture.ts
javascript
import { ref, computed, reactive } from 'vue'
import { defineStore } from 'pinia'
import {MouseStatus} from '@/model/MouseStatus';
import type D2Mesh from '@/views/d3/mesh/D2Mesh';
import type { OptionData } from '@/model/OptionData';
/**
* 当前的展示状态
*/
export const useTextureStore = defineStore('texture', () => {
//当前选中的顶部分类
const textures = reactive<OptionData[]>([{
value:'',
label:'无纹理'
},{
value:new URL("@/assets/texture/texture-1.png", import.meta.url).href,
label:'纹理一'
},{
value:new URL("@/assets/texture/texture-2.png", import.meta.url).href,
label:'纹理二'
},{
value:new URL("@/assets/texture/texture-3.png", import.meta.url).href,
label:'纹理三'
},{
value:new URL("@/assets/texture/texture-4.png", import.meta.url).href,
label:'纹理四'
},{
value:new URL("@/assets/texture/texture-5.png", import.meta.url).href,
label:'纹理五'
},{
value:new URL("@/assets/texture/texture-6.png", import.meta.url).href,
label:'纹理六'
},{
value:new URL("@/assets/texture/texture-7.png", import.meta.url).href,
label:'纹理七'
},{
value:new URL("@/assets/texture/texture-8.png", import.meta.url).href,
label:'纹理八'
},{
value:new URL("@/assets/texture/texture-9.png", import.meta.url).href,
label:'纹理九'
},{
value:new URL("@/assets/texture/texture-10.png", import.meta.url).href,
label:'纹理十'
},{
value:new URL("@/assets/texture/texture-bg.png", import.meta.url).href,
label:'纹理十二'
}]);
return { textures}
})tool.ts
javascript
import { reactive } from 'vue'
import { defineStore } from 'pinia'
import curriculums from '@/common/tools/curriculums'
import commonTools from '@/common/tools/commonTools'
import mathTools,{initTools as MathInitTools} from '@/common/tools/mathTools'
import routineTools from '@/common/tools/routineTools'
import biologyTools,{initTools as BiologyInitTools} from '@/common/tools/biologyTools'
import geographyTools,{initTools as GeographyInitTools} from '@/common/tools/geographyTools'
import chemistryTools,{initTools as ChemistryInitTools} from '@/common/tools/chemistryTools'
import physicsTools,{initTools as PhysicsInitTools} from '@/common/tools/physicsTools'
import type { Tool } from '@/model/ToolItem/Tool'
/**
* 系统的工具按钮
*/
export const useToolStore = defineStore('tool', () => {
//工具按钮信息
const tools = reactive<Tool>({
top: [...curriculums],
left: [...mathTools,...biologyTools,...chemistryTools,...geographyTools,...physicsTools],
right: [],
bottom: [...commonTools],
free: [...routineTools()],
})
/**
* 根据标识以及命令获取对应的工具按钮
* @param key
*/
const getItemByKey = (key: string) => {
let result = tools.top.find(item => item.key === key);
if (!result) {
result = tools.right.find(item => item.key === key);
}
if (!result) {
result = tools.bottom.find(item => item.key === key);
}
if (!result) {
result = tools.left.find(item => item.key === key);
}
return result;
}
/**
* 根据标识以及命令获取对应的工具按钮
* @param key
* @param commond
*/
const getItemByKeyAndCommond = (key: string, commond: string) => {
let result = tools.top.find(item => item.key === key && item.commond === commond);
if (!result) {
result = tools.right.find(item => item.key === key && item.commond === commond);
}
if (!result) {
result = tools.bottom.find(item => item.key === key && item.commond === commond);
}
if (!result) {
result = tools.left.find(item => item.key === key && item.commond === commond);
}
return result;
}
const initItemByKey = (key:String)=>{
switch(key){
case 'math':
MathInitTools();
case 'physics':
PhysicsInitTools();
case 'geography':
GeographyInitTools();
case 'chemistry':
ChemistryInitTools();
case 'biology':
BiologyInitTools();
}
}
return { tools, getItemByKey, getItemByKeyAndCommond ,initItemByKey}
})- 工具方法
CommondHandle.ts
javascript
import { COMMOND_TYPE_2D_MESH, COMMOND_TYPE_3D_MESH, COMMOND_TYPE_CHANGE_MODEL, COMMOND_TYPE_D2_MODEL, COMMOND_TYPE_D3_HELP, COMMOND_TYPE_D3_MODEL, COMMOND_TYPE_D3_OP, COMMOND_TYPE_OPEN_CONFIG_DIALOG, COMMOND_TYPE_SELF_WRITE } from "@/common/Constant";
import { OprationModes } from "@/model/OprationModes";
import type { ToolBarItem } from "@/model/ToolBartem";
import { useStateStore } from "@/stores/state";
import EventBus from "@/utils/EventBus"
/**
* 点击工具栏的处理方法
* @param item
*/
export const commond = (item:ToolBarItem)=>{
if(!item || !item.commond){
return;
}
switch (item.commond){
case COMMOND_TYPE_CHANGE_MODEL://切换课程
useStateStore().currentTop = item.key;//更新当前的顶部工具按钮
EventBus.emit(COMMOND_TYPE_CHANGE_MODEL,item);
break;
case COMMOND_TYPE_OPEN_CONFIG_DIALOG://打开配置弹框
EventBus.emit(COMMOND_TYPE_OPEN_CONFIG_DIALOG,item);
break;
case COMMOND_TYPE_SELF_WRITE://是否开启手写
EventBus.emit(COMMOND_TYPE_SELF_WRITE,item);
break;
case COMMOND_TYPE_D3_HELP://三维辅助对象的启听
EventBus.emit(COMMOND_TYPE_D3_HELP,item);
break;
case COMMOND_TYPE_D3_OP://三维的操作
EventBus.emit(COMMOND_TYPE_D3_OP,item);
break;
case COMMOND_TYPE_2D_MESH://二维物体
EventBus.emit(COMMOND_TYPE_2D_MESH,item);
break;
case COMMOND_TYPE_3D_MESH://三维物体的绘制
EventBus.emit(COMMOND_TYPE_3D_MESH,item);
break;
case COMMOND_TYPE_D2_MODEL://二维模式
EventBus.emit(COMMOND_TYPE_D2_MODEL,item);
break;
case COMMOND_TYPE_D3_MODEL://三维模式
EventBus.emit(COMMOND_TYPE_D3_MODEL,item);
break;
default :
break;
}
}EventBus.ts
javascript
// event-bus.js
import mitt from 'mitt';
// 创建一个 mitt 实例并导出
const emitter = mitt();
export default emitter;Utils.ts
javascript
import type { ToolBarItem } from "@/model/ToolBartem";
/**
* 切换工具栏的选中状态
* @param tools 工具栏
* @param item_ 要变动的工具栏
* @param commond 指令
*/
export const changeToolItemSelected = (tools:ToolBarItem[],item_:ToolBarItem,commond:String)=>{
let toolItem = tools.find(item=>item.commond === commond && (item_ as ToolBarItem).key === item.key);
if(toolItem){
toolItem.selected = !toolItem.selected;
}
}- 公共组件
SvgIcon.vue
javascript
<template>
<i v-html="svgContent" :style="{ width:width, height:height }"></i>
</template>
<script setup lang="ts">
import { onMounted, ref } from 'vue';
interface PropData{
src: string,
width: string|number,
height: string|number
}
const {src='',width='12px',height='12px'} = defineProps<PropData>();
const svgContent = ref("");
const baseUrl = new URL('@/assets/icons/', import.meta.url).href
onMounted(async ()=>{
const response = await fetch(baseUrl+'/'+src);
const svgText = await response.text();
// 转换成 Element Plus 风格
const updatedSvgText = svgText
.replace(/fill="[^"]*"/g, 'fill="currentColor"')
.replace(/(width|height)="[^"]*"/g, (match) => {
if (match.startsWith('width')) {
return `width="${width}"`;
}
return match.startsWith('height') ? `height="${height}"` : match;
});
svgContent.value = updatedSvgText;
})
</script>
<style scoped>
svg {
display: inline-block;
vertical-align: middle;
}
</style>4.2 系统配置
javascript
<template>
<el-dialog class="config-dialog"
v-model="dialogVisible" title="系统配置" width="60vw" draggable center destroy-on-close :transition="transitionConfig" align-center append-to-body
@closed="emits('closed')">
<el-scrollbar height="50vh">
<el-form ref="configFormRef" :model="configForm" :rules="rules" label-width="auto" class="config-form">
<el-divider content-position="left">基础配置</el-divider>
<div class="basic-form">
<el-row>
<el-col :span="8">
<el-form-item label="顶部工具栏自动隐藏" prop="topBarVisabled">
<el-switch v-model="configForm.topBarVisabled" @change="topBarVisabledChange" />
</el-form-item>
</el-col>
<el-col :span="8">
<el-form-item label="当前的课程" prop="currentTop">
<el-select v-model="configForm.currentTop" placeholder="请选择当前的课程" @change="currentTopChange">
<el-option
v-for="item in topTools"
:key="item.key"
:label="item.name"
:value="item.key"
/>
</el-select>
</el-form-item>
</el-col>
<el-col :span="8">
<el-form-item label="最大支出" prop="d3Config.maxSize">
<el-input-number v-model="configForm.d3Config.maxSize" :step="1" @change="maxSizeChange" />
</el-form-item>
</el-col>
</el-row>
</div>
<el-divider content-position="left">手写参数</el-divider>
<div class="basic-form">
<el-row>
<el-col :span="8">
<el-form-item label="背景颜色" prop="d3Config.handWriting.planeColor">
<el-color-picker color-format="hex" v-model="configForm.d3Config.handWriting.planeColor" @active-change="planeColorChange" @change="planeColorChange"/>
</el-form-item>
</el-col>
<el-col :span="8">
<el-form-item label="背景纹理" prop="d3Config.handWriting.planeTexture">
<el-select v-model="configForm.d3Config.mesh.fill.type" placeholder="请选择纹理" @change="planeTextureChange">
<el-option v-for="item in textures" :key="item.value" :label="item.label" :value="item.value" />
</el-select>
</el-form-item>
</el-col>
<el-col :span="8">
<el-form-item label="背景透明度" prop="d3Config.handWriting.planeOpacity">
<el-slider v-model="configForm.d3Config.handWriting.planeOpacity" step="0.1" :min="0" :max="1"
@input="planeOpacityChange" @change="planeOpacityChange"/>
</el-form-item>
</el-col>
<el-col :span="8">
<el-form-item label="线条的颜色" prop="d3Config.handWriting.line.color">
<el-color-picker color-format="hex" v-model="configForm.d3Config.handWriting.line.color" @active-change="lineColorChange" @change="lineColorChange"/>
</el-form-item>
</el-col>
<el-col :span="8">
<el-form-item label="线条的尺寸" prop="d3Config.handWriting.line.width">
<el-input-number v-model="configForm.d3Config.handWriting.line.width" :step="1" @change="lineWidthChange" />
</el-form-item>
</el-col>
</el-row>
</div>
<el-divider content-position="left">板擦参数</el-divider>
<div class="basic-form">
<el-row>
<el-col :span="8">
<el-form-item label="颜色" prop="d3Config.eraser.color">
<el-color-picker color-format="hex" v-model="configForm.d3Config.eraser.color" @active-change="eraserColorChange" @change="eraserColorChange"/>
</el-form-item>
</el-col>
<el-col :span="8">
<el-form-item label="半径" prop="d3Config.eraser.radius">
<el-slider v-model="configForm.d3Config.eraser.radius" step="0.001" :min="configForm.d3Config.camera.near" :max="eraserMaxRadius"
@input="eraserRadiusChange" @change="eraserRadiusChange"/>
</el-form-item>
</el-col>
<el-col :span="8">
</el-col>
</el-row>
</div>
<el-divider content-position="left">图形参数</el-divider>
<div class="basic-form">
<el-row>
<el-col :span="8">
<el-form-item label="背景颜色" prop="d3Config.mesh.d2PlaneColor">
<el-color-picker color-format="hex" v-model="configForm.d3Config.mesh.d2PlaneColor" @active-change="d2PlaneColorChange" @change="d2PlaneColorChange"/>
</el-form-item>
</el-col>
<el-col :span="8">
<el-form-item label="背景纹理" prop="d3Config.mesh.d2PlaneTexture">
<el-select v-model="configForm.d3Config.mesh.d2PlaneTexture" placeholder="请选择纹理" @change="d2PlaneTextureChange">
<el-option v-for="item in textures" :key="item.value" :label="item.label" :value="item.value" />
</el-select>
</el-form-item>
</el-col>
<el-col :span="8">
<el-form-item label="背景透明度" prop="d3Config.mesh.d2PlaneOpacity">
<el-slider v-model="configForm.d3Config.mesh.d2PlaneOpacity" step="0.1" :min="0" :max="1"
@input="d2PlaneOpacityChange" @change="d2PlaneOpacityChange"/>
</el-form-item>
</el-col>
<el-col :span="8">
<el-form-item label="线条的颜色" prop="d3Config.mesh.line.color">
<el-color-picker color-format="hex" v-model="configForm.d3Config.mesh.line.color" @active-change="meshLineColorChange" @change="meshLineColorChange"/>
</el-form-item>
</el-col>
<el-col :span="8">
<el-form-item label="线条的尺寸" prop="d3Config.mesh.line.width">
<el-input-number v-model="configForm.d3Config.mesh.line.width" :step="1" @change="meshLineWidthChange" />
</el-form-item>
</el-col>
</el-row>
<el-row>
<el-col :span="8">
<el-form-item label="填充类型" prop="d3Config.mesh.fill.type">
<el-select v-model="configForm.d3Config.mesh.fill.type" placeholder="请选择纹理类型" @change="meshFillTypeChange">
<el-option label="纯色" :value="FillType.Color"/>
<el-option label="纹理" :value="FillType.Texture"/>
<el-option label="渐变色" :value="FillType.GradientColor"/>
<el-option label="自定义" :value="FillType.Customer"/>
</el-select>
</el-form-item>
</el-col>
<template v-if="configForm.d3Config.mesh.fill.type === FillType.Color">
<el-col :span="8">
<el-form-item label="填充颜色" prop="d3Config.mesh.fill.color">
<el-color-picker color-format="hex" v-model="configForm.d3Config.mesh.fill.color" @active-change="meshFillColorChange" @change="meshFillColorChange"/>
</el-form-item>
</el-col>
<el-col :span="8">
</el-col>
</template>
<template v-if="configForm.d3Config.mesh.fill.type === FillType.Texture">
<el-col :span="16">
<el-form-item label="纹理" prop="d3Config.handWriting.line.width">
</el-form-item>
</el-col>
</template>
<template v-if="configForm.d3Config.mesh.fill.type === FillType.GradientColor">
<el-col :span="16">
<el-form-item label="纹理" prop="d3Config.handWriting.line.width">
</el-form-item>
</el-col>
</template>
<template v-if="configForm.d3Config.mesh.fill.type === FillType.Customer">
<el-col :span="16">
<el-form-item label="纹理" prop="d3Config.handWriting.line.width">
</el-form-item>
</el-col>
</template>
</el-row>
</div>
<el-divider content-position="left">灯光配置</el-divider>
<div class="basic-form">
<el-row>
<el-col :span="8">
<el-form-item label="颜色" prop="d3Config.light.color">
<el-color-picker color-format="hex" v-model="configForm.d3Config.light.color" @active-change="lightColorChange" @change="lightColorChange"/>
</el-form-item>
</el-col>
<el-col :span="8">
<el-form-item label="亮度" prop="d3Config.light.intensity">
<el-slider v-model="configForm.d3Config.light.intensity" step="0.1" :min="0" :max="1"
@input="lightIntensityChange" @change="lightIntensityChange"/>
</el-form-item>
</el-col>
<el-col :span="8">
</el-col>
</el-row>
</div>
<el-divider content-position="left">场景配置</el-divider>
<div class="basic-form">
<el-row>
<el-col :span="8">
<el-form-item label="背景颜色" prop="d3Config.scene.background">
<el-color-picker color-format="hex" v-model="configForm.d3Config.scene.background" @active-change="backgroundChange" @change="backgroundChange"/>
</el-form-item>
</el-col>
<el-col :span="8">
<el-form-item label="纹理" prop="d3Config.scene.texture">
<el-select v-model="configForm.d3Config.scene.background" :placeholder="'请选择纹理信息'" @change="sceneTextureChange">
<el-option
v-for="item in textures"
:key="item.value"
:label="item.label"
:value="item.value"
>
<el-image v-if="item.value" :src="item.value" style="width:100%;height:30px;margin-bottom: 5px;"></el-image>
<el-text v-else>无纹理</el-text>
</el-option>
</el-select>
</el-form-item>
</el-col>
<el-col :span="8">
<el-form-item label="环境纹理" prop="d3Config.scene.environment">
<el-select v-model="configForm.d3Config.scene.environment" :placeholder="'请选择纹理信息'" @change="sceneEnvironmentChange">
<el-option
v-for="item in textures"
:key="item.value"
:label="item.label"
:value="item.value"
>
<el-image v-if="item.value" :src="item.value" style="width:100%;height:30px;margin-bottom: 5px;"></el-image>
<el-text v-else>无纹理</el-text>
</el-option>
</el-select>
</el-form-item>
</el-col>
</el-row>
<el-row>
<el-col :span="8">
<el-form-item label="背景模糊度" prop="d3Config.scene.backgroundBlurriness">
<el-slider v-model="configForm.d3Config.scene.backgroundBlurriness" step="0.1" :min="0" :max="1"
@input="sceneBackgroundBlurrinessChange" @change="sceneBackgroundBlurrinessChange"/>
</el-form-item>
</el-col>
</el-row>
</div>
<el-divider content-position="left">摄像机的配置</el-divider>
<div class="basic-form">
<el-row>
<el-col :span="8">
<el-form-item label="摄像机的视角" prop="d3Config.camera.fov">
<el-input-number v-model="configForm.d3Config.camera.fov" :step="1" :max="360" @change="handleFovChange" />
</el-form-item>
</el-col>
<el-col :span="8">
<el-form-item label="摄像机的近端面" prop="d3Config.camera.near">
<el-input-number v-model="configForm.d3Config.camera.near" :step="0.001" @change="handleNearChange" />
</el-form-item>
</el-col>
<el-col :span="8">
<el-form-item label="摄像机的远端面" prop="d3Config.camera.far">
<el-input-number v-model="configForm.d3Config.camera.far" :step="0.001" @change="handleFarChange" />
</el-form-item>
</el-col>
</el-row>
<el-row>
<el-col :span="8">
<el-form-item label="摄像机的缩放倍数" prop="d3Config.camera.zoom">
<el-input-number v-model="configForm.d3Config.camera.zoom" :min="0" :step="0.1" @change="handleZoomChange" />
</el-form-item>
</el-col>
<el-col :span="16">
<el-form-item label="摄像机的位置" prop="d3Config.camera.position" class="">
<el-row :gutter="20">
<el-col :span="8">
<el-input-number v-model="configForm.d3Config.camera.position.x" :step="0.001" @change="handleCameraPostionXChange" />
</el-col>
<el-col :span="8">
<el-input-number v-model="configForm.d3Config.camera.position.y" :step="0.001" @change="handleCameraPostionYChange" />
</el-col>
<el-col :span="8">
<el-input-number v-model="configForm.d3Config.camera.position.z" :step="0.001" @change="handleCameraPostionZChange" />
</el-col>
</el-row>
</el-form-item>
</el-col>
</el-row>
</div>
</el-form>
</el-scrollbar>
<template #footer>
<div class="dialog-footer">
<el-button @click="dialogVisible = false">取消</el-button>
<el-button type="primary" @click="dialogVisible = false">
关闭
</el-button>
</div>
</template>
</el-dialog>
</template>
<script setup lang="ts">
import { computed, ref,reactive } from "vue";
import type { DialogTransition } from 'element-plus'
import * as THREE from "three"
import D3 from "@/views/d3"
import type { FormInstance, FormRules } from 'element-plus'
import { useConfigStore } from "@/stores/config";
import { useStateStore } from "@/stores/state";
import { useToolStore } from "@/stores/tool";
import { FillType, type D3Config } from "@/model/D3Config";
import { useTextureStore } from '@/stores/textures';
//内置的纹理选项
const textures = useTextureStore().textures;
//课程切换选项
const topTools = computed(()=>useToolStore().tools.top);
//自定义事件
const emits = defineEmits(['closed'])
//系统配置弹出框
const dialogVisible = ref(true);
//弹出框的动画效果
const transitionConfig = computed<DialogTransition>(() => {
return {
name: 'dialog-custom-object',
appear: true,
mode: 'out-in',
duration: 500,
}
})
interface ConfigForm {
topBarVisabled:boolean,
currentTop:string,
d3Config:D3Config
}
const configFormRef = ref<FormInstance>()
const configForm = reactive<ConfigForm>({
topBarVisabled:useConfigStore().topBarVisabled,
currentTop:useStateStore().currentTop,
d3Config:{
maxSize:useConfigStore().d3Config.maxSize,
camera:{
fov:useConfigStore().d3Config.camera.fov,
near:useConfigStore().d3Config.camera.near,
far:useConfigStore().d3Config.camera.far,
zoom:useConfigStore().d3Config.camera.zoom,
position:useConfigStore().d3Config.camera.position
},
scene:{
background:useConfigStore().d3Config.scene.background,
texture:useConfigStore().d3Config.scene.texture,
environment:useConfigStore().d3Config.scene.environment,
backgroundBlurriness:useConfigStore().d3Config.scene.backgroundBlurriness
},
light:{
intensity:useConfigStore().d3Config.light.intensity,
color:useConfigStore().d3Config.light.color
},
handWriting:{
planeColor:useConfigStore().d3Config.handWriting.planeColor.getHexString(),
planeOpacity:useConfigStore().d3Config.handWriting.planeOpacity,
planeTexture:useConfigStore().d3Config.handWriting.planeTexture,
line:{
color:useConfigStore().d3Config.handWriting.line.color.getHexString(),
width:useConfigStore().d3Config.handWriting.line.width
}
},
eraser:{
color:useConfigStore().d3Config.eraser.color,
radius:useConfigStore().d3Config.eraser.radius
},
mesh:{
//二维时候的背景板的颜色
d2PlaneColor:useConfigStore().d3Config.mesh.d2PlaneColor.getHexString(),
d2PlaneOpacity:useConfigStore().d3Config.mesh.d2PlaneOpacity,
d2PlaneTexture:useConfigStore().d3Config.mesh.d2PlaneTexture,
//物体的线条颜色
line:{
width:useConfigStore().d3Config.mesh.line.width,
color:useConfigStore().d3Config.mesh.line.color.getHexString()
},
//物体的填充颜色
fill:{
type:useConfigStore().d3Config.mesh.fill.type,
color:useConfigStore().d3Config.mesh.fill.color.getHexString(),
texture:useConfigStore().d3Config.mesh.fill.texture,
customer:useConfigStore().d3Config.mesh.fill.customer
}
}
}
})
const rules = reactive<FormRules<ConfigForm>>({
[configForm.d3Config.scene.background]: [
{ required: true, message: '请选择背景颜色', trigger: 'blur' },
],
});
//橡皮擦的最大值
const eraserMaxRadius = computed(()=>{
if(!D3.camera){
return useConfigStore().d3Config.camera.far;
}
let minSize = D3.camera.getFilmHeight();
if(minSize>D3.camera.getFilmWidth()){
minSize = D3.camera.getFilmWidth();
}
return minSize/2;
})
//摄像机的视野
const handleFovChange = (value:number)=>{
useConfigStore().d3Config.camera.fov = value;
}
//摄像机的近断面
const handleNearChange = (value:number)=>{
useConfigStore().d3Config.camera.near = value;
}
//摄像机的远端面
const handleFarChange = (value:number)=>{
useConfigStore().d3Config.camera.far = value;
}
//摄像机的缩放信息
const handleZoomChange = (value:number)=>{
useConfigStore().d3Config.camera.zoom = value;
}
//摄像机的位置X变动
const handleCameraPostionXChange = (value:number)=>{
useConfigStore().d3Config.camera.position.x = value;
}
//摄像机的位置Y变动
const handleCameraPostionYChange = (value:number)=>{
useConfigStore().d3Config.camera.position.y = value;
}
//摄像机的位置Z变动
const handleCameraPostionZChange = (value:number)=>{
useConfigStore().d3Config.camera.position.z = value;
}
//顶部工具栏自动隐藏状态变动
const topBarVisabledChange = (value:boolean)=>{
useConfigStore().topBarVisabled = value;
}
//当前课程变动事件
const currentTopChange = (value:string)=>{
useStateStore().currentTop = value;
}
//最大尺寸的变动
const maxSizeChange = (value:number)=>{
useConfigStore().d3Config.maxSize = value;
}
//手写背景颜色的变动
const planeColorChange = (value:string)=>{
useConfigStore().d3Config.handWriting.planeColor = new THREE.Color(value);
}
//背景板纹理的变动
const planeTextureChange = (value:THREE.Texture)=>{
useConfigStore().d3Config.handWriting.planeTexture = value;
}
//背景透明度的变动
const planeOpacityChange = (value:number)=>{
useConfigStore().d3Config.handWriting.planeOpacity = value;
}
//手写线条的颜色
const lineColorChange = (value:string)=>{
useConfigStore().d3Config.handWriting.line.color = new THREE.Color(value);
}
//手写线条的尺寸
const lineWidthChange = (value:number)=>{
useConfigStore().d3Config.handWriting.line.width = value;
}
//板擦的颜色变动
const eraserColorChange = (value:string)=>{
useConfigStore().d3Config.eraser.color = new THREE.Color(value);
}
//板擦的半径变动
const eraserRadiusChange = (value:number)=>{
useConfigStore().d3Config.eraser.radius = value;
}
//二维或三五物体的配置
const d2PlaneColorChange = (value:string)=>{
useConfigStore().d3Config.mesh.d2PlaneColor = new THREE.Color(value);
}
//二维或三五物体背景板纹理的变动
const d2PlaneTextureChange = (value:THREE.Texture)=>{
useConfigStore().d3Config.mesh.d2PlaneTexture = value;
}
//二维或三五物体背景透明度的变动
const d2PlaneOpacityChange = (value:number)=>{
useConfigStore().d3Config.mesh.d2PlaneOpacity = value;
}
const meshLineColorChange = (value:string)=>{
useConfigStore().d3Config.mesh.line.color = new THREE.Color(value);
}
const meshLineWidthChange = (value:number)=>{
useConfigStore().d3Config.mesh.line.width = value;
}
const meshFillTypeChange = (value:FillType)=>{
useConfigStore().d3Config.mesh.fill.type = value;
}
const meshFillColorChange = (value:string)=>{
useConfigStore().d3Config.mesh.fill.color = new THREE.Color(value);
}
//场景
//背景颜色变动
const backgroundChange = (value:string)=>{
useConfigStore().d3Config.scene.background = value;
}
const sceneBackgroundBlurrinessChange = (value:number)=>{
useConfigStore().d3Config.scene.backgroundBlurriness = value;
}
const sceneTextureChange = (value:string)=>{
useConfigStore().d3Config.scene.texture = value;
}
const sceneEnvironmentChange = (value:string)=>{
useConfigStore().d3Config.scene.environment = value;
}
//灯光
const lightColorChange = (value:string)=>{
useConfigStore().d3Config.light.color =new THREE.Color(value);
}
const lightIntensityChange = (value:number)=>{
useConfigStore().d3Config.light.intensity = value;
}
</script>
<style lang="less" scoped>
// .config-dialog{
// --el-dialog-bg-color:#000000;
// --el-text-color-primary:#ffffff
// }
.config-form{
width: 100%;
.el-select{
width:100%;
}
}
</style>4.3 工具栏按钮
- bottom.vue
javascript
<template>
<div class="bottom-btns">
<div class="inner">
<el-button-group>
<el-tooltip
v-for="(item, index) in tools"
v-if="!loading"
effect="dark"
:content="item.name"
placement="top"
>
<el-button
:round="index == 0 || index === tools.length - 1"
:class="[toolItemSelected(item.key) ? 'selected' : '']"
type="success"
:disabled="((useStateStore().currentMode != OprationModes.D3 && (item.key == 'AxesHelper' || item.key == 'CameraHelper' || item.key == 'OrbitControls')) || (useStateStore().currentMode != OprationModes.HandWriting && item.key == 'eraser'))"
@click="commond(item)"
>
<SvgIcon :src="item.icon" width="20px" height="20px" style="color:#fff"></SvgIcon>
</el-button>
</el-tooltip>
</el-button-group>
</div>
</div>
<!-- 系统配置弹出框 -->
<ConfigDilaog
ref="configRef"
v-if="configDialog"
@closed="configDialog = false"
></ConfigDilaog>
</template>
<script setup lang="ts">
import { useToolStore } from "@/stores/tool";
import { commond } from "@/utils/CommondHandle";
import ConfigDilaog from "../dialog/ConfigDilaog.vue";
import { onBeforeUnmount, onMounted, ref } from "vue";
import EventBus from "@/utils/EventBus";
import {
COMMOND_TYPE_D2_MODEL,
COMMOND_TYPE_D3_HELP,
COMMOND_TYPE_D3_MODEL,
COMMOND_TYPE_D3_OP,
COMMOND_TYPE_OPEN_CONFIG_DIALOG,
COMMOND_TYPE_SELF_WRITE,
COMMOND_TYPE_SELF_WRITE_STATUS_CHANGE,
} from "@/common/Constant";
import type { ToolBarItem } from "@/model/ToolItem/ToolBartem";
import { changeToolItemSelected } from "@/utils/Utils";
import D3 from "../../d3";
import { ElMessage } from "element-plus";
import { useStateStore } from "@/stores/state";
import { OprationModes } from "@/model/OprationModes";
//全局状态的监听
const state = useStateStore();
//当前的工具按钮
const tools = useToolStore().tools.bottom;
//配置项的弹框是否展示
const configDialog = ref(false);
//当前工具按钮是否被选中
const toolItemSelected = (item_: string) => {
if (!item_) {
return false;
}
let toolItem = tools.find((item:ToolBarItem) => item.key === item_);
return toolItem && toolItem.selected;
};
//是否正在同步数据
const loading = ref(true);
onMounted(() => {
loading.value = false;
//订阅事件
EventBus.on(COMMOND_TYPE_OPEN_CONFIG_DIALOG, (item) => {
configDialog.value = true;
});
EventBus.on(COMMOND_TYPE_SELF_WRITE, (item_) => {
changeToolItemSelected(
tools,
item_ as ToolBarItem,
COMMOND_TYPE_SELF_WRITE
);
if ((item_ as ToolBarItem).selected) {
state.currentMode = OprationModes.HandWriting;
D3.stopMesh2D();
D3.stopMesh3D();
D3.starThandWriting();
} else {
state.currentMode = OprationModes.D3;
D3.stopThandWriting();
}
});
EventBus.on(COMMOND_TYPE_D2_MODEL, (item_) => {
changeToolItemSelected(
tools,
item_ as ToolBarItem,
COMMOND_TYPE_D2_MODEL
);
if ((item_ as ToolBarItem).selected) {
state.currentMode = OprationModes.D2;
D3.stopThandWriting();
D3.stopMesh3D();
D3.startMesh2D(null);
} else {
state.currentMode = OprationModes.D3;
D3.stopMesh2D();
}
});
EventBus.on(COMMOND_TYPE_D3_MODEL, (item_) => {
changeToolItemSelected(
tools,
item_ as ToolBarItem,
COMMOND_TYPE_D3_MODEL
);
if ((item_ as ToolBarItem).selected) {
state.currentMode = OprationModes.D3;
D3.stopThandWriting();
D3.stopMesh2D();
D3.startMesh3D(null);
} else {
state.currentMode = OprationModes.D3;
D3.stopMesh3D();
}
});
EventBus.on(COMMOND_TYPE_D3_HELP, (item_) => {
changeToolItemSelected(tools, item_ as ToolBarItem, COMMOND_TYPE_D3_HELP);
switch ((item_ as ToolBarItem).key) {
case "OrbitControls": //轨道控制器（OrbitControls）
D3.setControlEnabled((item_ as ToolBarItem).selected ? true : false);
break;
case "CameraHelper": //模拟相机视锥体的辅助对象
D3.setCameraHelper((item_ as ToolBarItem).selected ? true : false);
break;
case "AxesHelper": //坐标轴
D3.setAxesHelper((item_ as ToolBarItem).selected ? true : false);
break;
default:
break;
}
});
EventBus.on(COMMOND_TYPE_D3_OP, (item_) => {
switch ((item_ as ToolBarItem).key) {
case "clear": //清空
D3.clear();
break;
case "add": //放大
D3.add();
break;
case "sub": //缩小
D3.sun();
break;
case "reset": //复位
D3.reset();
break;
case "eraser": //橡皮擦
if (!(item_ as ToolBarItem).selected) {
let handWritingItem = useToolStore().getItemByKeyAndCommond(
"write",
COMMOND_TYPE_SELF_WRITE
);
if (!handWritingItem || !handWritingItem.selected) {
ElMessage.warning("请先开启手写模式~");
return;
}
}
changeToolItemSelected(tools, item_ as ToolBarItem, COMMOND_TYPE_D3_OP);
if ((item_ as ToolBarItem).selected) {
D3.startEraser();
} else {
D3.stopEraser();
}
break;
default:
break;
}
});
//手写状态变动的事件
EventBus.on(COMMOND_TYPE_SELF_WRITE_STATUS_CHANGE, (item_) => {
useToolStore().tools.bottom.forEach((item:ToolBarItem) => {
if (item.status?.includes(COMMOND_TYPE_SELF_WRITE)) {
//关联了手写状态
item.selected = item_ ? true : false;
switch ((item as ToolBarItem).key) {
case "OrbitControls": //轨道控制器（OrbitControls）
D3.setControlEnabled(item.selected ? true : false);
if(state.currentMode == OprationModes.D3){
D3.setControlEnabled(false);
item.selected = false;
}
break;
case "CameraHelper": //模拟相机视锥体的辅助对象
D3.setCameraHelper(item.selected ? true : false);
break;
case "AxesHelper": //坐标轴
D3.setAxesHelper(item.selected ? true : false);
break;
default:
break;
}
}
});
});
});
onBeforeUnmount(() => {
EventBus.off(COMMOND_TYPE_OPEN_CONFIG_DIALOG);
EventBus.off(COMMOND_TYPE_SELF_WRITE);
EventBus.off(COMMOND_TYPE_D3_HELP);
EventBus.off(COMMOND_TYPE_D3_OP);
EventBus.off(COMMOND_TYPE_SELF_WRITE_STATUS_CHANGE);
EventBus.off(COMMOND_TYPE_D2_MODEL);
EventBus.off(COMMOND_TYPE_D3_MODEL);
});
</script>
<style lang="less" scoped>
.bottom-btns {
position: fixed;
right: 0px;
bottom: 10px;
height: 60px;
width: 100%;
display: flex;
justify-items: center;
justify-content: center;
align-items: center;
align-content: center;
.inner {
min-width: 300px;
.el-button-group {
width: 100%;
}
.el-button {
--el-button-bg-color: #67c23a33;
--el-button-border-color: #67c23a33;
flex: 1;
}
.selected {
--el-button-bg-color: var(--el-color-success);
}
}
}
</style>- free.vue
javascript
<template>
<div class="tool-btns">
<div class="inner">
<!-- <el-button type="danger" circle :icon="Setting"></el-button> -->
</div>
</div>
</template>
<script setup lang="ts">
import {Setting} from '@element-plus/icons-vue'
</script>
<style lang="less" scoped>
.tool-btns{
position: fixed;
right: 5%;
bottom: 10%;
}
</style>- left.vue
javascript
<template>
<div class="left-btns">
<Transition>
<div class="inner" v-show="open">
<el-tabs class="left-tabs" type="border-card" v-model="currentTab">
<el-tab-pane :label="item.name" :name="item.name" v-for="item in tabs">
<el-scrollbar height="calc(600px - 40px - 20px)">
<template v-for="groupItem in item.contents">
<el-divider content-position="left">{{groupItem.name}}</el-divider>
<el-row>
<el-col :span="4" v-for="toolItem in groupItem.children" class="btn-item">
<el-tooltip
effect="dark"
:content="toolItem.name"
placement="top"
>
<el-button class="tool-btn"
:type="(toolItem as ToolBarMeshItem).selected ? 'danger' :'default'" @click="commond(toolItem)"
circle plain
>
<SvgIcon :src="toolItem.icon" width="15px" height="15px" ></SvgIcon>
<!-- {{ toolItem.name }} -->
</el-button>
</el-tooltip>
</el-col>
</el-row>
</template>
</el-scrollbar>
</el-tab-pane>
</el-tabs>
</div>
</Transition>
<div class="collspan-btns" :class="[open?'open':'close']">
<el-button :type="open?'danger':'primary'" :icon="open?SemiSelect:Plus" circle @click="open = !open"/>
</div>
</div>
</template>
<script setup lang="ts">
import {
COMMOND_TYPE_2D_MESH,
COMMOND_TYPE_3D_MESH,
COMMOND_TYPE_CHANGE_MODEL,
COMMOND_TYPE_D2_MODEL,
COMMOND_TYPE_D3_MODEL,
COMMOND_TYPE_SELF_WRITE_STATUS_CHANGE,
} from "@/common/Constant";
import type { ToolBarItem } from "@/model/ToolItem/ToolBartem";
import { useStateStore } from "@/stores/state";
import { useToolStore } from "@/stores/tool";
import { commond } from "@/utils/CommondHandle";
import EventBus from "@/utils/EventBus";
import { nextTick, onBeforeUnmount, onMounted, reactive, ref } from "vue";
import { Plus,SemiSelect } from "@element-plus/icons-vue";
import D3 from "../../d3";
import type { ToolBarMeshItem } from "@/model/ToolItem/ToolBarMeshItem";
import { OprationModes } from "@/model/OprationModes";
import type { TabItem } from "@/model/ToolItem/TabItem";
//tab标签
const tabs = reactive<TabItem[]>([
{
name: "二维",
contents: [...useToolStore().tools.free.filter((item:ToolBarItem)=>item.fkey === '2d')],
},
{
name: "三维",
contents: [...useToolStore().tools.free.filter((item:ToolBarItem)=>item.fkey === '3d')],
},
]);
//全局状态的监听
const state = useStateStore();
//是否开启工具栏
const open = ref(true);
//当前激活的tab页
const currentTab = ref("二维");
//工具栏
const toolStore = useToolStore();
/**
* 切换顶部的分组
* @param key
*/
const switchTopTool = (key:String)=>{
let name = useToolStore().tools.top.find((item:ToolBarItem)=>item.key === key);
if(!name){
return;
}
useToolStore().initItemByKey(key);
let tools = useToolStore().tools.left.filter(
(item:ToolBarItem) => item.fkey === key
);
useToolStore().tools.top.forEach((item:ToolBarItem)=>{
let index = tabs.findIndex(itme=>itme.name === item.name);
if(index>0){
tabs.splice(index,1);
}
})
if(tabs.find(itme=>itme.name === name.name)){
let index = tabs.findIndex(itme=>itme.name === name.name);
tabs.splice(index,1);
}else{
tabs.push({
name:name?.name as string,
contents:[...tools]
});
}
currentTab.value = name?.name as string;
}
onMounted(() => {
//订阅事件
EventBus.on(COMMOND_TYPE_CHANGE_MODEL, (item) => {
switchTopTool(useStateStore().currentTop)
});
EventBus.on(COMMOND_TYPE_SELF_WRITE_STATUS_CHANGE, (item) => {
let item_ = toolStore.getItemByKey("write");
if(item_ && item_.selected){
open.value = false;
}else{
open.value = true;
// EventBus.emit(COMMOND_TYPE_SELF_WRITE, toolStore.getItemByKey("write"));
// EventBus.emit(COMMOND_TYPE_D3_OP, toolStore.getItemByKey("eraser"));
}
});
EventBus.on(COMMOND_TYPE_D2_MODEL, (item) => {
let item_ = toolStore.getItemByKey("d2");
if(item_ && item_.selected){
open.value = true;
currentTab.value = '二维';
useStateStore().cursor = "default";
// EventBus.emit(COMMOND_TYPE_SELF_WRITE, toolStore.getItemByKey("write"));
// EventBus.emit(COMMOND_TYPE_D3_OP, toolStore.getItemByKey("eraser"));
}
});
EventBus.on(COMMOND_TYPE_D3_MODEL, (item) => {
let item_ = toolStore.getItemByKey("d3");
if(item_ && item_.selected){
open.value = true;
currentTab.value = '三维';
useStateStore().cursor = "default";
// EventBus.emit(COMMOND_TYPE_SELF_WRITE, toolStore.getItemByKey("write"));
// EventBus.emit(COMMOND_TYPE_D3_OP, toolStore.getItemByKey("eraser"));
}
});
EventBus.on(COMMOND_TYPE_2D_MESH,(item)=>{
if((item as ToolBarMeshItem).selected){//已选中，点击之后变未选中的状态
D3.pauseMesh2D();
}else{
tabs.forEach(item=>{//将其他的选中状态清除
if(item.contents){
item.contents.forEach((item_:ToolBarItem)=>{
item_.selected = false;
if(item_.children){
item_.children.forEach((item__:ToolBarItem)=>{
item__.selected = false;
});
}
})
}
})
D3.stopThandWriting();
D3.stopMesh3D();
D3.startMesh2D(item as ToolBarMeshItem);
state.currentMode = OprationModes.D2;
}
(item as ToolBarMeshItem).selected = !(item as ToolBarMeshItem).selected;
open.value = true;
});
EventBus.on(COMMOND_TYPE_3D_MESH,(item)=>{
if((item as ToolBarMeshItem).selected){//已选中，点击之后变未选中的状态
D3.pauseMesh3D();
}else{
tabs.forEach(item=>{//将其他的选中状态清除
if(item.contents){
item.contents.forEach((item_:ToolBarItem)=>{
item_.selected = false;
if(item_.children){
item_.children.forEach((item__:ToolBarItem)=>{
item__.selected = false;
});
}
})
}
})
D3.stopThandWriting();
D3.stopMesh2D();
D3.startMesh3D(item as ToolBarMeshItem);
state.currentMode = OprationModes.D3;
}
(item as ToolBarMeshItem).selected = !(item as ToolBarMeshItem).selected;
open.value = true;
});
//给一个默认的toptab
nextTick(()=>{
switchTopTool(useStateStore().currentTop)
})
});
onBeforeUnmount(() => {
EventBus.off(COMMOND_TYPE_CHANGE_MODEL);
EventBus.off(COMMOND_TYPE_SELF_WRITE_STATUS_CHANGE);
EventBus.off(COMMOND_TYPE_2D_MESH);
EventBus.off(COMMOND_TYPE_3D_MESH);
EventBus.off(COMMOND_TYPE_D2_MODEL);
EventBus.off(COMMOND_TYPE_D3_MODEL);
});
</script>
<style lang="less" scoped>
.v-enter-active,
.v-leave-active {
transition: opacity 0.5s ease;
}
.v-enter-from,
.v-leave-to {
opacity: 0;
}
.left-btns {
position: fixed;
left: 20px;
top: 0;
height: 100%;
width: 300px;
display: flex;
justify-items: center;
justify-content: center;
align-items: center;
align-content: center;
.collspan-btns{
position: absolute;
top:0;
right:-30px;
width:60px;
height: 100%;
display: flex;
justify-items: center;
justify-content: center;
align-items: center;
align-content: center;
}
.open{
left:calc(100% - 30px)
}
.close{
left:30px;
}
.inner {
height: 600px;
width: 300px;
z-index: 1;
.left-tabs {
height: calc(600px - 60px);
border-radius: var(--el-card-border-radius);
--el-bg-color-overlay: #e4e7ed1c;
--el-border-color: var(--tool-panel-border-color);
--el-fill-color-light: #e4e7ed1c;
--el-border-color-light: var(--el-border-color);
--el-color-primary: #00ff2b;
--el-card-border-radius: 10px;
background: var(--tool-panel-bg-color);
:deep(.el-tabs__header){
border-top-left-radius: var(--el-card-border-radius);
border-top-right-radius: var(--el-card-border-radius);
}
:deep(.el-tabs__item, .el-tabs__header) {
border-top-left-radius: var(--el-card-border-radius);
border-top-right-radius: var(--el-card-border-radius);
}
:deep(.el-tabs__content) {
border-radius: var(--el-card-border-radius);
padding: 5px;
padding-top: 10px;
.el-form-item__label {
--el-text-color-regular: #fff;
}
}
:deep(.el-divider__text){
--el-bg-color: #ffffff00;
--el-text-color-primary:#fff;
}
.tool-btn{
--el-button-hover-text-color:#00ff00;
--el-button-hover-bg-color:#00ff0044;
--el-button-hover-border-color:#00ff0022;
--el-button-text-color:#00ff00;
--el-button-bg-color:#ffffff11;
--el-button-border-color:#ffffff01;
}
:deep(.el-button--danger){
--el-button-hover-text-color:#f0033e;
--el-button-hover-bg-color:#ff000044;
--el-button-hover-border-color:#ff000022;
--el-button-text-color:#f0033e;
--el-button-bg-color:#ff000030;
--el-button-border-color:#ff000001;
}
.config-form {
width: 90%;
}
}
.btn-item{
text-align: center;
margin-bottom: 10px;
}
}
}
</style>- right.vue
javascript
<template>
<div class="right-btns">
<div class="collspan-btns" :class="[open ? 'open' : 'close']">
<el-button :type="open ? 'danger' : 'primary'" :icon="open ? SemiSelect : Plus" circle @click="open = !open" />
</div>
<Transition>
<div class="inner" v-show="open">
<el-tabs type="border-card" class="tabs-panel" v-model="currentTab">
<el-tab-pane v-for="item in tabs" :label="item.name" :name="item.name">
<el-scrollbar height="calc(600px - 40px - 20px)">
<el-form ref="configFormRef" :model="configForm" label-width="auto" class="config-form">
<template v-for="contentItem in item.contents">
<template v-if="contentItem.type === 'divider'">
<el-divider content-position="center">{{
contentItem.name
}}</el-divider>
</template>
<el-form-item v-else :label="contentItem.name">
<template v-if="contentItem.type === 'slider'">
<el-slider v-model="configForm[contentItem.modelPath.join('_')]"
:step="contentItem.step ? contentItem.step : 1" :min="contentItem.min !== undefined
? contentItem.min
: Number.MIN_SAFE_INTEGER
" :max="contentItem.max !== undefined
? contentItem.max
: Number.MAX_SAFE_INTEGER
" @input="valueChange(contentItem, $event)" @change="valueChange(contentItem, $event)" />
</template>
<template v-if="contentItem.type === 'number'">
<el-input-number v-model="configForm[contentItem.modelPath.join('_')]"
:step="contentItem.step ? contentItem.step : 1" :min="contentItem.min !== undefined
? contentItem.min
: Number.MIN_SAFE_INTEGER
" :max="contentItem.max !== undefined
? contentItem.max
: Number.MAX_SAFE_INTEGER
" @change="valueChange(contentItem, $event)" />
</template>
<template v-else-if="contentItem.type === 'color'">
<el-row :gutter="10">
<el-col :span="19">
<el-input v-model="configForm[contentItem.modelPath.join('_')]
" readonly></el-input>
</el-col>
<el-col :span="4">
<el-color-picker color-format="hex" v-model="configForm[contentItem.modelPath.join('_')]
" @active-change="valueChange(contentItem, $event)"
@change="valueChange(contentItem, $event)" />
</el-col>
</el-row>
</template>
<template v-else-if="contentItem.type === 'select'">
<el-select v-model="configForm[contentItem.modelPath.join('_')]"
:placeholder="'请选择' + contentItem.name" @change="valueChange(contentItem, $event)">
<el-option v-for="item in contentItem.options" :key="item.value" :label="item.label"
:value="item.value" />
</el-select>
</template>
<template v-else-if="contentItem.type === 'texture'">
<el-select v-model="configForm[contentItem.modelPath.join('_')]"
:placeholder="'请选择' + contentItem.name" @change="valueChange(contentItem, $event)">
<el-option v-for="item in textures" :key="item.value" :label="item.label" :value="item.value">
<el-image v-if="item.value" :src="item.value" style="
width: 100%;
height: 30px;
margin-bottom: 5px;
"></el-image>
<el-text v-else>无纹理</el-text>
</el-option>
</el-select>
</template>
</el-form-item>
</template>
</el-form>
</el-scrollbar>
</el-tab-pane>
</el-tabs>
</div>
</Transition>
</div>
</template>
<script setup lang="ts">
import { useConfigStore } from "@/stores/config";
import { onMounted, reactive, ref, watch } from "vue";
import * as THREE from "three";
import { useStateStore } from "@/stores/state";
import EventBus from "@/utils/EventBus";
import {
COMMOND_TYPE_2D_MESH,
COMMOND_TYPE_3D_MESH,
COMMOND_TYPE_D3_OP,
COMMOND_TYPE_MESH_CANCEL_SELECTED,
COMMOND_TYPE_MESH_SELECTED,
COMMOND_TYPE_SELF_WRITE,
FILL_TYPE,
} from "@/common/Constant";
import { onUnmounted } from "vue";
import { useToolStore } from "@/stores/tool";
import type { ToolBarItem } from "@/model/ToolItem/ToolBartem";
import { SemiSelect, Plus } from "@element-plus/icons-vue";
import { ToolBarMeshItemConfigItem, type ToolBarMeshItem } from "@/model/ToolItem/ToolBarMeshItem";
import TabItemContentItem from "@/model/ToolItem/TabItemContentItem";
import { useTextureStore } from "@/stores/textures";
//内置的纹理选项
const textures = useTextureStore().textures;
//全局配置信息
const configStore = useConfigStore();
//实时数据
const stateStore = useStateStore();
//工具栏
const toolStore = useToolStore();
interface TabItem {
name: string;
contents: TabItemContentItem[];
}
interface FormData {
[key: string]: object | null | FormData | string|number;
}
//是否打开
const open = ref(true);
//标签页内容
const tabs = reactive<TabItem[]>([]);
//当前激活的tab
const currentTab = ref("对象属性");
//表单的内容
const configForm = reactive<FormData>({});
//当前的物体信息
const currentMeshItem = ref<ToolBarMeshItem>();
/**
* 添加标签
* @param item
*/
const addTab = (item: any, rootValue: FormData = configStore.d3Config) => {
let tab = tabs.findIndex((item_) => item_.name === item.name);
if (tab > 0) {
currentTab.value = tabs[tabs.length - 1]?.name as string;
return;
}
tabs.push(item);
setValue(item?.contents as TabItemContentItem[], rootValue);
};
/**
* 移除标签
*/
const removeTab = (name: String) => {
let tab = tabs.findIndex((item) => item.name === name);
if (tab > 0) {
tabs.splice(tab, 1);
currentTab.value = tabs[tabs.length - 1]?.name as string;
}
};
/**
* 值变动的事件
* @param contentItem
* @param event
*/
const valueChange = (contentItem: TabItemContentItem, event: Object) => {
let value: any = configStore.d3Config;
if (
contentItem.auto &&
currentMeshItem &&
currentMeshItem.value &&
(currentMeshItem.value as ToolBarMeshItem).config
) {
value = (currentMeshItem.value as ToolBarMeshItem).config;
}
for (let i = 0; i < contentItem.modelPath.length - 1; i++) {
if (value) {
value = value[contentItem.modelPath[i] as string];
}
}
// value[item.modelPath.join('_')] = value;
// console.log(value,event);
if (contentItem.type === "color") {
value[contentItem.modelPath[contentItem.modelPath.length - 1] as string] =
new THREE.Color(event);
} else {
value[contentItem.modelPath[contentItem.modelPath.length - 1] as string] =
event;
}
if (contentItem.auto && stateStore.currentMesh && contentItem instanceof ToolBarMeshItemConfigItem && contentItem.updateConfig) {
//物体自定义的配置
contentItem.updateConfig(
stateStore.currentMesh,
value[contentItem.modelPath[contentItem.modelPath.length - 1] as string],
);
}
};
//设置初始化的数据
const setValue = (contents: TabItemContentItem[], rootValue: FormData) => {
contents.forEach((item) => {
let value: any = rootValue;
for (let i = 0; i < item.modelPath.length; i++) {
if (value) {
value = value[item.modelPath[i] as string];
}
}
if (item.type === "color" && value) {
value = "#" + value.getHexString();
}
configForm[item.modelPath.join("_")] = value;
});
};
//初始的
const init = () => {
{
//全局属性的配置
let contents: TabItemContentItem[] = [];
let tab = {
name: "全局属性",
contents: contents,
};
//获取三维配置，初始化tab属性栏
contents.push(new TabItemContentItem("divider", "场景", []));
contents.push(
new TabItemContentItem("color", "背景色", ["scene", "background"]),
);
contents.push(
new TabItemContentItem("texture", "纹理", ["scene", "texture"]),
);
contents.push(
new TabItemContentItem("texture", "环境图", ["scene", "environment"]),
);
contents.push(
new TabItemContentItem(
"slider",
"模糊度",
["scene", "backgroundBlurriness"],
0,
1,
0.1,
),
);
contents.push(
new TabItemContentItem(
"number",
"最大尺寸",
["maxSize"],
0,
configStore.d3Config.camera.far,
0.1,
),
);
contents.push(new TabItemContentItem("divider", "灯光", []));
contents.push(
new TabItemContentItem("color", "环境光", ["light", "color"]),
);
contents.push(
new TabItemContentItem(
"slider",
"光照强度",
["light", "intensity"],
0,
1,
0.1,
),
);
contents.push(new TabItemContentItem("divider", "摄像机", []));
contents.push(
new TabItemContentItem("slider", "视角", ["camera", "fov"], 0, 360, 1),
);
contents.push(
new TabItemContentItem(
"number",
"近端面",
["camera", "near"],
undefined,
undefined,
configStore.d3Config.camera.near,
),
);
contents.push(
new TabItemContentItem(
"number",
"远端面",
["camera", "far"],
undefined,
undefined,
configStore.d3Config.camera.near,
),
);
contents.push(
new TabItemContentItem(
"number",
"缩放倍数",
["camera", "zoom"],
0,
undefined,
0.1,
),
);
contents.push(
new TabItemContentItem(
"number",
"位置X",
["camera", "position", "x"],
undefined,
undefined,
0.1,
),
);
contents.push(
new TabItemContentItem(
"number",
"位置Y",
["camera", "position", "y"],
undefined,
undefined,
0.1,
),
);
contents.push(
new TabItemContentItem(
"number",
"位置Z",
["camera", "position", "z"],
undefined,
undefined,
0.1,
),
);
addTab(tab);
}
//基础信息配置，主要绘制的物体相关属性
{
let contents: TabItemContentItem[] = [];
let tab = {
name: "对象属性",
contents: contents,
};
contents.push(new TabItemContentItem("divider", "基础配置", []));
contents.push(
new TabItemContentItem("color", "背景板", ["mesh", "d2PlaneColor"]),
);
contents.push(
new TabItemContentItem("slider", "背景板透明度", ["mesh", "d2PlaneOpacity"],0,1,0.1),
);
contents.push(
new TabItemContentItem("texture", "背景纹理", ["mesh", "d2PlaneTexture"],undefined,undefined,undefined,textures),
);
contents.push(
new TabItemContentItem("color", "线条颜色", ["mesh", "line", "color"]),
);
contents.push(
new TabItemContentItem(
"number",
"线条尺寸",
["mesh", "line", "width"],
0,
undefined,
configStore.d3Config.camera.near,
),
);
contents.push(
new TabItemContentItem(
"select",
"填充类型",
["mesh", "fill", "type"],
undefined,
undefined,
undefined,
FILL_TYPE,
),
);
contents.push(
new TabItemContentItem("color", "填充颜色", ["mesh", "fill", "color"]),
);
contents.push(new TabItemContentItem("divider", "物体属性", []));
addTab(tab);
}
};
/**
* 初始化物体自定义的配置项
* @param item
*/
const initAutoMeshConfig = (item: ToolBarMeshItem) => {
//移除前一个对象的
let objectFiledItems = tabs[1] as TabItem;
objectFiledItems.contents.forEach((item) => {
if (item.auto) {
delete configForm[item.modelPath.join("_")];
}
});
objectFiledItems.contents = objectFiledItems.contents.filter(
(item_) => !item_.auto,
);
if (item && item.config) {
for (const key in item.config) {
let configItem: ToolBarMeshItemConfigItem<any> = item.config[key];
if (!configItem.form) {
continue;
}
objectFiledItems.contents.push(configItem);
// objectFiledItems.contents.push(new TabItemContentItem(
// configItem.type,
// configItem.name,
// [...configItem.modelPath],
// configItem.min,
// configItem.max,
// configItem.step,
// configItem.options ? [...configItem.options] : [],
// true
// ));
configForm[configItem.modelPath.join("_")] = configItem.value;
if (configItem.type === "color" && configItem.value) {
configForm[configItem.modelPath.join("_")] =
"#" + configItem.value.getHexString();
}
}
}
currentMeshItem.value = item as ToolBarMeshItem;
};
//监听当前视角位置变动
watch(
() => configStore.d3Config.camera.position,
(newVal, oldVal) => {
configForm["camera_position_x"] = newVal.x;
configForm["camera_position_y"] = newVal.y;
configForm["camera_position_z"] = newVal.z;
},
{
deep: true,
},
);
onMounted(() => {
init();
//手写
EventBus.on(COMMOND_TYPE_SELF_WRITE, (item_) => {
let item = toolStore.getItemByKey("write");
if (item && !item.selected) {
let tab = {
name: "手写板",
contents: [
new TabItemContentItem("color", "背景色", ["handWriting", "planeColor"]),
new TabItemContentItem("slider", "背景板透明度", ["handWriting", "planeOpacity"],0,1,0.1),
new TabItemContentItem("texture", "背景纹理", ["handWriting", "planeTexture"],undefined,undefined,undefined,textures),
new TabItemContentItem("color", "线条色", ["handWriting", "line", "color"]),
new TabItemContentItem("number", "线条大小", ["handWriting", "line", "width"], 0, undefined, configStore.d3Config.camera.near)
],
};
addTab(tab);
currentTab.value = "手写板";
} else {
removeTab("手写板");
}
});
//黑板擦
EventBus.on(COMMOND_TYPE_D3_OP, (item_) => {
switch ((item_ as ToolBarItem).key) {
case "eraser": //橡皮擦
{
if (!(item_ as ToolBarItem).selected) {
let handWritingItem = useToolStore().getItemByKeyAndCommond(
"write",
COMMOND_TYPE_SELF_WRITE,
);
if (!handWritingItem || !handWritingItem.selected) {
removeTab("黑板擦");
return;
}
}
let item = toolStore.getItemByKey("eraser");
if (item && !item.selected) {
let tab = {
name: "黑板擦",
contents: [
new TabItemContentItem("color", "背景色", ["eraser", "color"]),
new TabItemContentItem("number", "线条大小", ["eraser", "radius"], 0, undefined, configStore.d3Config.camera.near),
],
};
addTab(tab);
currentTab.value = "黑板擦";
} else {
removeTab("黑板擦");
}
}
break;
default:
break;
}
});
EventBus.on(COMMOND_TYPE_2D_MESH, (item) => {
initAutoMeshConfig(item as ToolBarMeshItem);
});
EventBus.on(COMMOND_TYPE_3D_MESH, (item) => {
initAutoMeshConfig(item as ToolBarMeshItem);
});
EventBus.on(COMMOND_TYPE_MESH_SELECTED, (item) => {
initAutoMeshConfig(item as ToolBarMeshItem);
});
EventBus.on(COMMOND_TYPE_MESH_CANCEL_SELECTED, (item) => {
let objectFiledItems = tabs[1] as TabItem;
objectFiledItems.contents.forEach((item) => {
if (item.auto) {
delete configForm[item.modelPath.join("_")];
}
});
objectFiledItems.contents = objectFiledItems.contents.filter(
(item_) => !item_.auto,
);
});
});
//暴露方法
defineExpose({
removeTab,
});
onUnmounted(() => {
EventBus.off(COMMOND_TYPE_SELF_WRITE);
EventBus.off(COMMOND_TYPE_D3_OP);
EventBus.off(COMMOND_TYPE_2D_MESH);
EventBus.off(COMMOND_TYPE_3D_MESH);
EventBus.off(COMMOND_TYPE_MESH_SELECTED);
EventBus.off(COMMOND_TYPE_MESH_CANCEL_SELECTED);
});
</script>
<style lang="less" scoped>
.v-enter-active,
.v-leave-active {
transition: opacity 0.5s ease;
}
.v-enter-from,
.v-leave-to {
opacity: 0;
}
.right-btns {
position: fixed;
right: 20px;
top: 0;
height: 100%;
width: 300px;
display: flex;
justify-items: center;
justify-content: center;
align-items: center;
align-content: center;
.collspan-btns {
position: absolute;
top: 0;
left: -30px;
width: 60px;
height: 100%;
display: flex;
justify-items: center;
justify-content: center;
align-items: center;
align-content: center;
}
.open {
left: -30px;
}
.close {
left: calc(100% - 60px);
}
.inner {
height: 600px;
z-index: 1;
.tabs-panel {
width: 300px;
height: 600px;
border-radius: var(--el-card-border-radius);
--el-bg-color-overlay: #e4e7ed1c;
--el-border-color: var(--tool-panel-border-color);
--el-fill-color-light: #e4e7ed1c;
--el-border-color-light: var(--el-border-color);
--el-color-primary: #00ff2b;
--el-card-border-radius: 10px;
background: var(--tool-panel-bg-color);
:deep(.el-tabs__header) {
border-top-left-radius: var(--el-card-border-radius);
border-top-right-radius: var(--el-card-border-radius);
}
:deep(.el-tabs__item, .el-tabs__header) {
border-top-left-radius: var(--el-card-border-radius);
border-top-right-radius: var(--el-card-border-radius);
}
:deep(.el-tabs__content) {
border-radius: var(--el-card-border-radius);
padding: 5px;
padding-top: 10px;
.el-form-item__label {
--el-text-color-regular: #fff;
}
}
.config-form {
width: 90%;
}
}
}
}
</style>- top.vue
javascript
<template>
<div class="top-btns">
<div class="inner">
<el-button-group>
<el-button :round="index==0||index===tools.length-1" v-for="(item,index) in tools" type="success" :class="[item.key ==currentTop? 'selected':'']"
@click="commond(item)">
<SvgIcon :src="item.icon" width="15px" height="15px" style="color:#fff;margin-right: 5px;"></SvgIcon>
{{item.name}}
</el-button>
</el-button-group>
</div>
</div>
</template>
<script setup lang="ts">
import { useConfigStore } from '@/stores/config';
import { useStateStore } from '@/stores/state';
import { useToolStore } from '@/stores/tool';
import { commond } from '@/utils/CommondHandle';
import { computed } from 'vue';
//顶部的工具按钮信息
const tools = useToolStore().tools.top;
//顶部按钮是否自动隐藏
const topBarVisabled= computed(()=>{
return useConfigStore().topBarVisabled?'none':'block'
});
/**
* 当前选中的顶部按钮
*/
const currentTop = computed(()=>{
return useStateStore().currentTop;
})
</script>
<style lang="less" scoped>
.top-btns{
position: fixed;
top: 0px;
left: 0;
height: 60px;
width:100%;
padding-top: 20px;
.inner{
margin: 0 auto;
width: 396px;
display: v-bind(topBarVisabled);
.el-button{
--el-button-bg-color:#67c23a40;
--el-button-border-color:#67c23a40;
}
.selected{
--el-button-bg-color:var(--el-color-success)
}
}
}
.top-btns:hover{
.inner{
display: block;
}
}
</style>未完待续~~~~~
