Elasticsearch 9.0.1 集群部署（Docker Compose + k8s 部署方式）

本文提供的基于 docker-compose.yml +k8s 配置文件，实现 Elasticsearch 9.0.1 集群（含master、data、协调节点）及 Kibana 部署，步骤简洁可直接执行。若是多master需要修改cluster.initial_master_nodes参数为所有master地址以及修改该所有ES的discovery.seed_hosts 参数的值为所有ES的master地址。可以便捷的伸缩ES数据(data)节点。可将docker-compose部署文件按照kubernetes格式转换然后在k8s上部署。本文主要以单master+单data+单协调节点为例（本文最后还附上了k8s部署方式）。

一、部署环境要求

Docker ≥ 20.10，Docker Compose ≥ 3.3
Linux 系统（CentOS 7+/Ubuntu 18.04+），root/sudo 权限
开放端口：9200/9201/9202、9300/9301/9302、5601

二、集群节点说明

节点名称	角色	核心功能	端口
es9-master	master节点	集群管理，不存数据	9200、9300
es9-data	data节点	存储数据，处理读写	9201、9301
es9-coordinate	协调节点	请求路由，不存数据	9202、9302
kibana	可视化节点	连接ES，提供可视化	5601

三、部署步骤

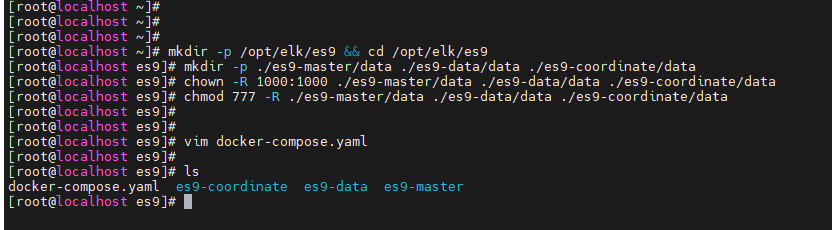

步骤1：创建部署目录

bash 复制代码

mkdir -p /opt/elk/es9 && cd /opt/elk/es9
mkdir -p ./es9-master/data ./es9-data/data ./es9-coordinate/data
chown -R 1000:1000 ./es9-master/data ./es9-data/data ./es9-coordinate/data
chmod 777 -R ./es9-master/data ./es9-data/data ./es9-coordinate/data

步骤2：创建 docker-compose.yml

yaml 复制代码

version: '3.3'
services:
  es9-master:
    image: registry.cn-shenzhen.aliyuncs.com/abc_space/elasticsearch:9.0.1
    container_name: es9-master
    privileged: true
    environment:
      - cluster.name=es9-cluster
      - node.roles=master
      - node.name=es9-master
      - discovery.seed_hosts=es9-master
      - cluster.initial_master_nodes=es9-master
      - ES_JAVA_OPTS=-Xms512m -Xmx512m
      - xpack.security.enabled=false
      - xpack.security.transport.ssl.enabled=false
    volumes:
      - ./es9-master/data:/usr/share/elasticsearch/data
    ports:
      - 9200:9200
      - 9300:9300
    networks:
      - elk_network

  es9-data:
    image: registry.cn-shenzhen.aliyuncs.com/abc_space/elasticsearch:9.0.1
    container_name: es9-data
    privileged: true
    environment:
      - cluster.name=es9-cluster
      - node.roles=data
      - node.name=es9-data
      - discovery.seed_hosts=es9-master
      - cluster.initial_master_nodes=es9-master
      - ES_JAVA_OPTS=-Xms512m -Xmx512m
      - xpack.security.enabled=false
      - xpack.security.transport.ssl.enabled=false
    volumes:
      - ./es9-data/data:/usr/share/elasticsearch/data
    ports:
      - 9201:9200
      - 9301:9300
    networks:
      - elk_network
    depends_on:
      - es9-master

  es9-coordinate:
    image: registry.cn-shenzhen.aliyuncs.com/abc_space/elasticsearch:9.0.1
    container_name: es9-coordinate
    privileged: true
    environment:
      - cluster.name=es9-cluster
      - node.roles=[]
      - node.name=es9-coordinate
      - discovery.seed_hosts=es9-master
      - cluster.initial_master_nodes=es9-master
      - ES_JAVA_OPTS=-Xms512m -Xmx512m
      - xpack.security.enabled=false
      - xpack.security.transport.ssl.enabled=false
    volumes:
      - ./es9-coordinate/data:/usr/share/elasticsearch/data
    ports:
      - 9202:9200
      - 9302:9300
    networks:
      - elk_network
    depends_on:
      - es9-master

  kibana:
    image: docker.elastic.co/kibana/kibana:9.0.1
    container_name: kibana
    ports:
        - 5601:5601
    privileged: true
    environment:
      - I18N_LOCALE=zh-CN
      - ELASTICSEARCH_HOSTS=http://es9-coordinate:9200
      - xpack.security.enabled=false
    networks:
      - elk_network
    depends_on:
      - es9-coordinate

networks:
  elk_network:
    driver: bridge

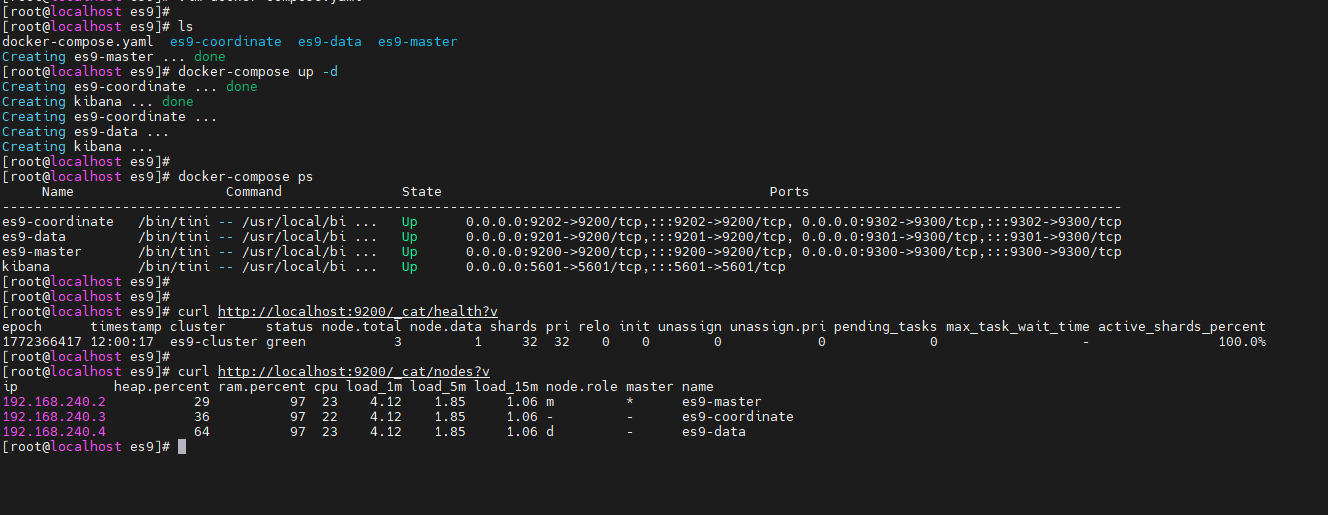

步骤3：启动集群

bash 复制代码

cd /opt/elk/es9
docker-compose up -d
# 查看启动状态
docker-compose ps

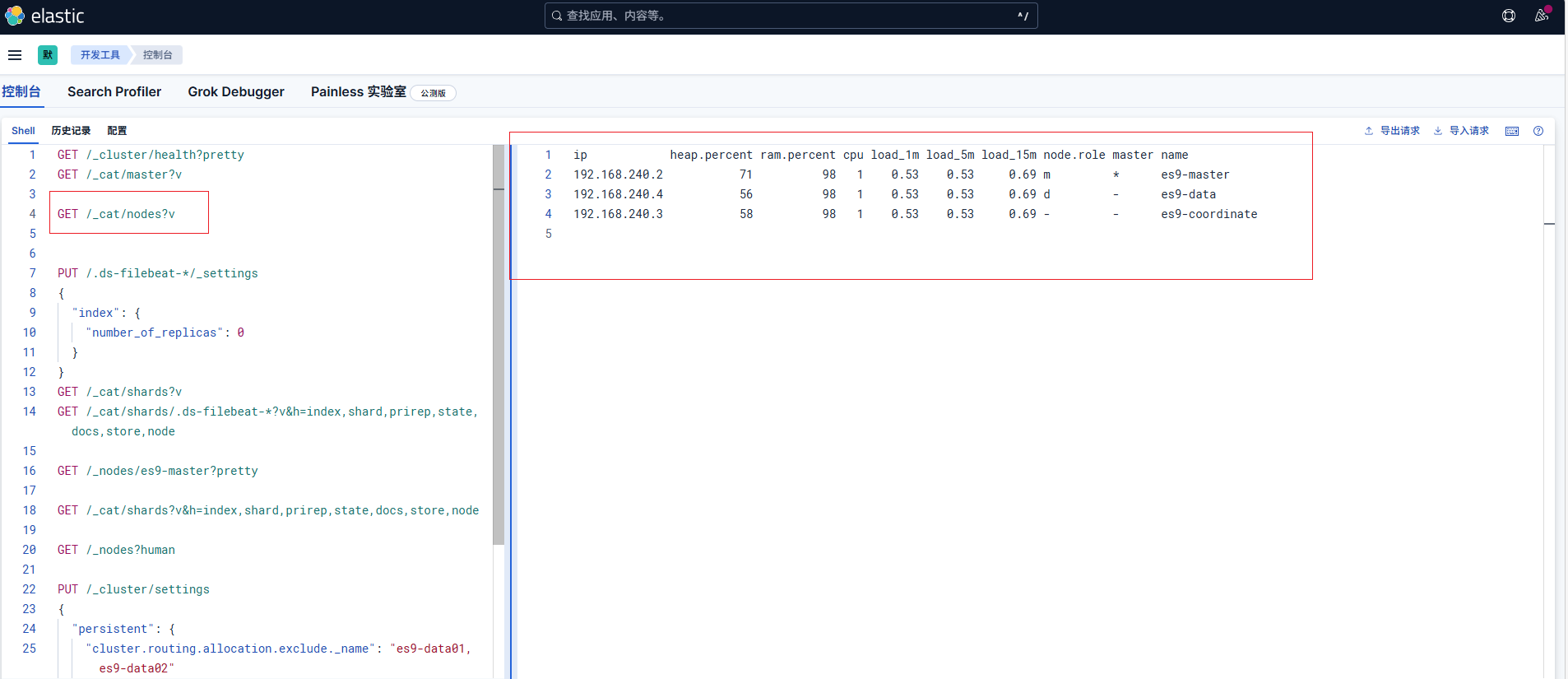

四、部署验证

bash 复制代码

# 查看ES集群健康状态（正常为green）
curl http://localhost:9200/_cat/health?v
# 查看节点列表
curl http://localhost:9200/_cat/nodes?v
# 访问Kibana（浏览器）
http://服务器IP:5601

五、补充内容

当 ES开启账号密码登录时候，默认的官方镜像会报错，要求必须开启ssl。因此根据官方镜像制动包含ssl证书的镜像。以下是dockerfile内容：

bash 复制代码

FROM registry.cn-shenzhen.aliyuncs.com/abc_space/elasticsearch:9.0.1
USER elasticsearch

RUN bin/elasticsearch-certutil ca \
    --pass "" \
    --out config/elastic-stack-ca.p12

RUN bin/elasticsearch-certutil cert \
    --pass "" \
    --days 36500 \
    --ca config/elastic-stack-ca.p12 \
    --ca-pass "" \
    --out config/elastic-certificates.p12

RUN cat > config/elasticsearch.yml <<EOF
cluster.name: "docker-cluster"
network.host: 0.0.0.0
xpack.security.enabled: true
xpack.security.http.ssl.enabled: false
xpack.security.transport.ssl.enabled: true
xpack.security.transport.ssl.verification_mode: certificate
xpack.security.transport.ssl.keystore.path: elastic-certificates.p12
xpack.security.transport.ssl.truststore.path: elastic-certificates.p12
EOF

USER elasticsearch

docker build -t registry.cn-shenzhen.aliyuncs.com/abc_space/elasticsearch:9.0.1-ssl . --no-cache

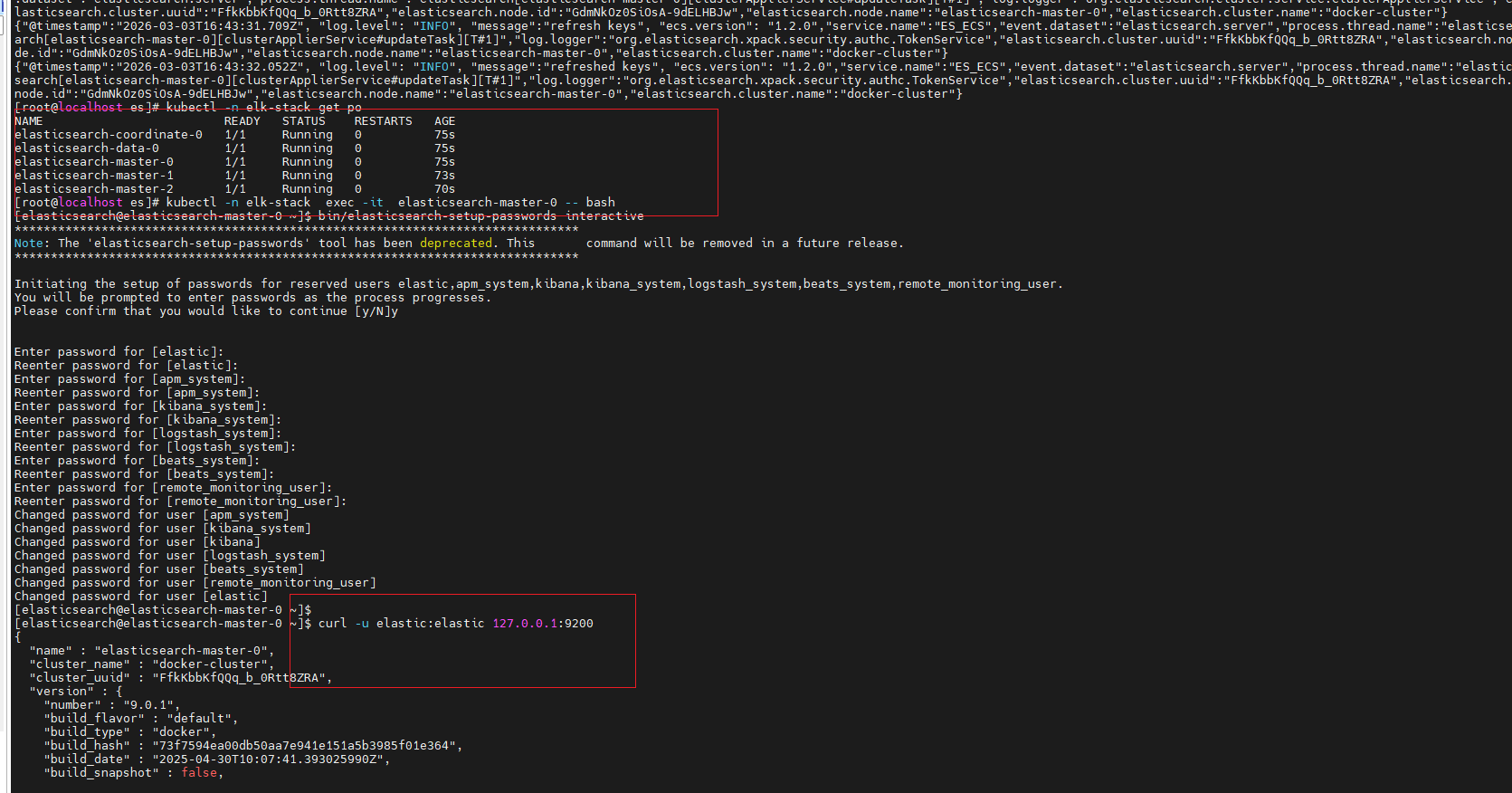

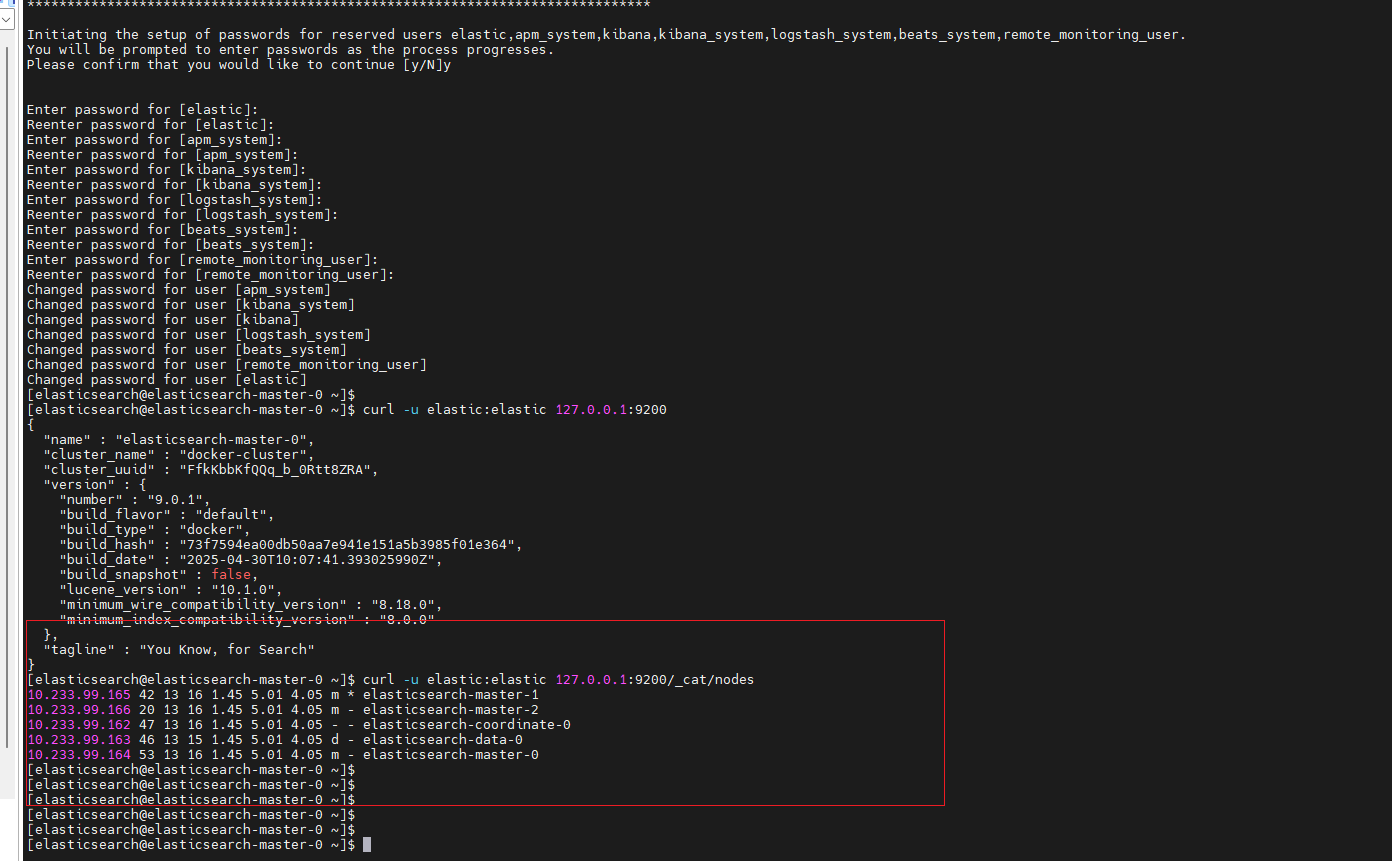

六、k8s环境部署ES集群

使用三master+ 若干 data节点+ 若干协调节点。 data以及协调节点副本数可自定义。协调节点一般两个即可。data节点按照数据量和设置副本数。（注意：若 ES 没有加入data节点是没法写入数据以及数据密码的，毕竟密码是要保存在data节点；生产务必改成数据持久化）

yaml 复制代码

---
# Namespace
apiVersion: v1
kind: Namespace
metadata:
  name: elk-stack
---
# Headless Service for Elasticsearch discovery
apiVersion: v1
kind: Service
metadata:
  name: elasticsearch-discovery
  namespace: elk-stack
spec:
  selector:
    app: elasticsearch  # 这个标签选择器会选中所有 ES 节点
  clusterIP: None
  ports:
    - name: transport
      port: 9300
---
# Master StatefulSet
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: elasticsearch-master
  namespace: elk-stack
spec:
  serviceName: elasticsearch-discovery
  replicas: 3
  selector:
    matchLabels:
      app: elasticsearch
      role: master
  template:
    metadata:
      labels:
        app: elasticsearch  # 必须加这个标签
        role: master
    spec:
      containers:
      - name: elasticsearch
        image: registry.cn-shenzhen.aliyuncs.com/abc_space/elasticsearch:9.0.1-ssl
        env:
        - name: node.roles
          value: "master"
        - name: node.name
          valueFrom:
            fieldRef:
              fieldPath: metadata.name
        - name: discovery.seed_hosts
          value: "elasticsearch-discovery"  # 只用这个！
        - name: cluster.initial_master_nodes
          value: "elasticsearch-master-0,elasticsearch-master-1,elasticsearch-master-2"
        - name: ES_JAVA_OPTS
          value: "-Xms512m -Xmx512m"
        ports:
        - containerPort: 9200
        - containerPort: 9300
---
# Data StatefulSet
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: elasticsearch-data
  namespace: elk-stack
spec:
  serviceName: elasticsearch-discovery
  replicas: 1
  selector:
    matchLabels:
      app: elasticsearch
      role: data
  template:
    metadata:
      labels:
        app: elasticsearch  # 必须加这个标签
        role: data
    spec:
      containers:
      - name: elasticsearch
        image: registry.cn-shenzhen.aliyuncs.com/abc_space/elasticsearch:9.0.1-ssl
        env:
        - name: node.roles
          value: "data"
        - name: node.name
          valueFrom:
            fieldRef:
              fieldPath: metadata.name
        - name: discovery.seed_hosts
          value: "elasticsearch-discovery"  # 只用这个！
        - name: ES_JAVA_OPTS
          value: "-Xms512m -Xmx512m"
        ports:
        - containerPort: 9200
        - containerPort: 9300
---
# Coordinate StatefulSet
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: elasticsearch-coordinate
  namespace: elk-stack
spec:
  serviceName: elasticsearch-discovery
  replicas: 1
  selector:
    matchLabels:
      app: elasticsearch
      role: coordinate
  template:
    metadata:
      labels:
        app: elasticsearch  # 必须加这个标签
        role: coordinate
    spec:
      containers:
      - name: elasticsearch
        image: registry.cn-shenzhen.aliyuncs.com/abc_space/elasticsearch:9.0.1-ssl
        env:
        - name: node.roles
          value: "[]"
        - name: node.name
          valueFrom:
            fieldRef:
              fieldPath: metadata.name
        - name: discovery.seed_hosts
          value: "elasticsearch-discovery"  # 只用这个！
        - name: ES_JAVA_OPTS
          value: "-Xms512m -Xmx512m"
        ports:
        - containerPort: 9200
        - containerPort: 9300
---
# Kibana Deployment
apiVersion: apps/v1
kind: Deployment
metadata:
  name: kibana
  namespace: elk-stack
  labels:
    app: kibana
spec:
  replicas: 1
  selector:
    matchLabels:
      app: kibana
  template:
    metadata:
      labels:
        app: kibana
    spec:
      containers:
      - name: kibana
        image: docker.elastic.co/kibana/kibana:9.0.1
        env:
        - name: ELASTICSEARCH_USERNAME
          value: "kibana_system"
        - name: ELASTICSEARCH_PASSWORD
          value: "elastic"
        - name: ELASTICSEARCH_HOSTS
          value: "http://elasticsearch-coordinate:9200"
        - name: I18N_LOCALE
          value: "zh-CN"
        ports:
        - containerPort: 5601
---
# Kibana Service
apiVersion: v1
kind: Service
metadata:
  name: kibana
  namespace: elk-stack
spec:
  selector:
    app: kibana
  ports:
    - port: 5601
  type: NodePort
---
