MCP服务器示例项目：MCP Inspector（测试工具）、hello-mcp-server（基础示例项目）和 REST API 转 MCP Tool

宋冠巡2026-04-29 10:20

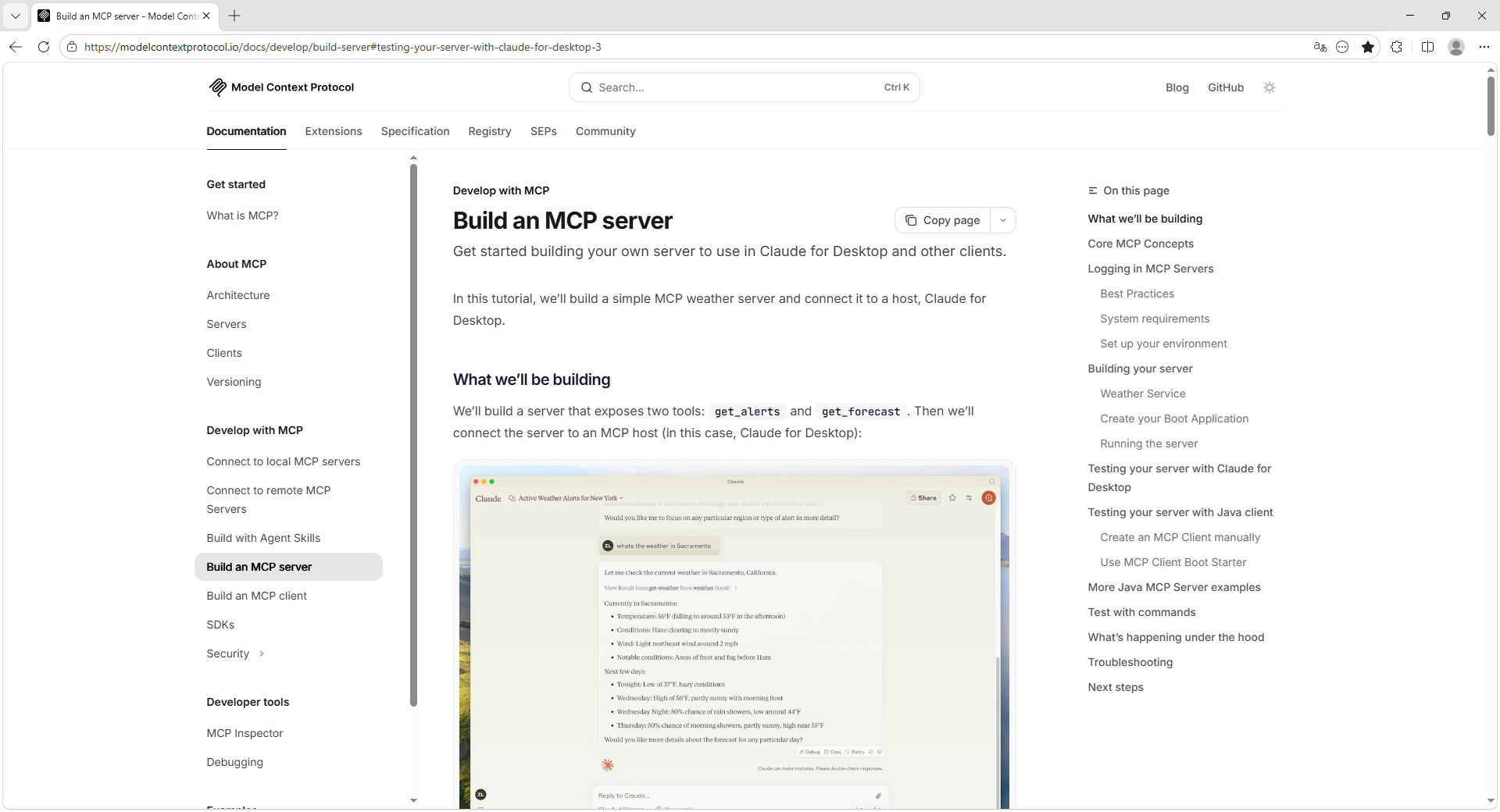

1. MCP 官网文档

本文参考官方文档，面向SpringBoot项目。

https://modelcontextprotocol.io/docs/develop/build-server#testing-your-server-with-claude-for-desktop-3

2. MCP Inspector（测试工具）

MCP Inspector：MCP服务器测试工具。

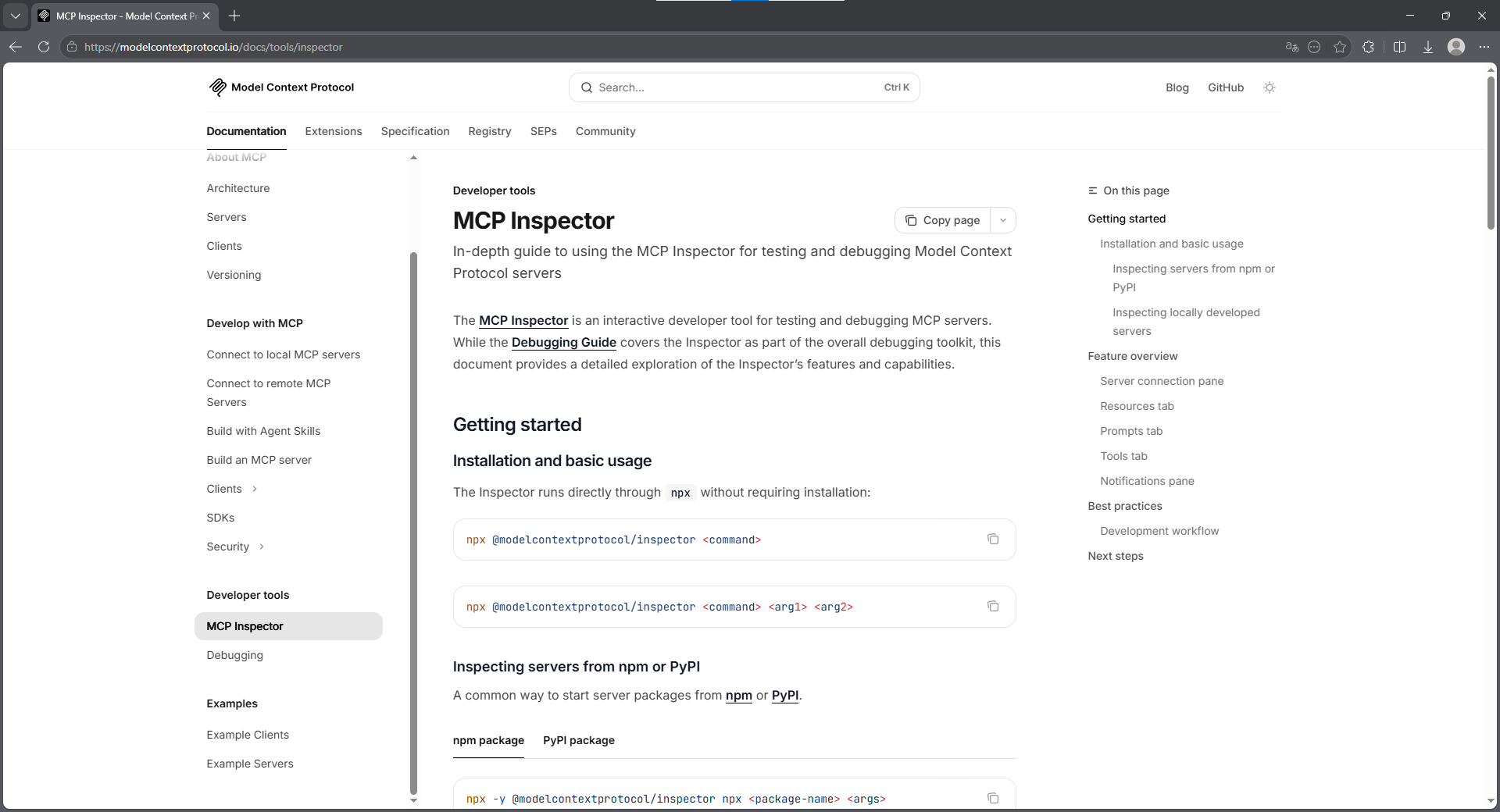

2.1. Inspector 官网

https://modelcontextprotocol.io/docs/tools/inspector

2.2. 核心命令

bash 复制代码
npx @modelcontextprotocol/inspector

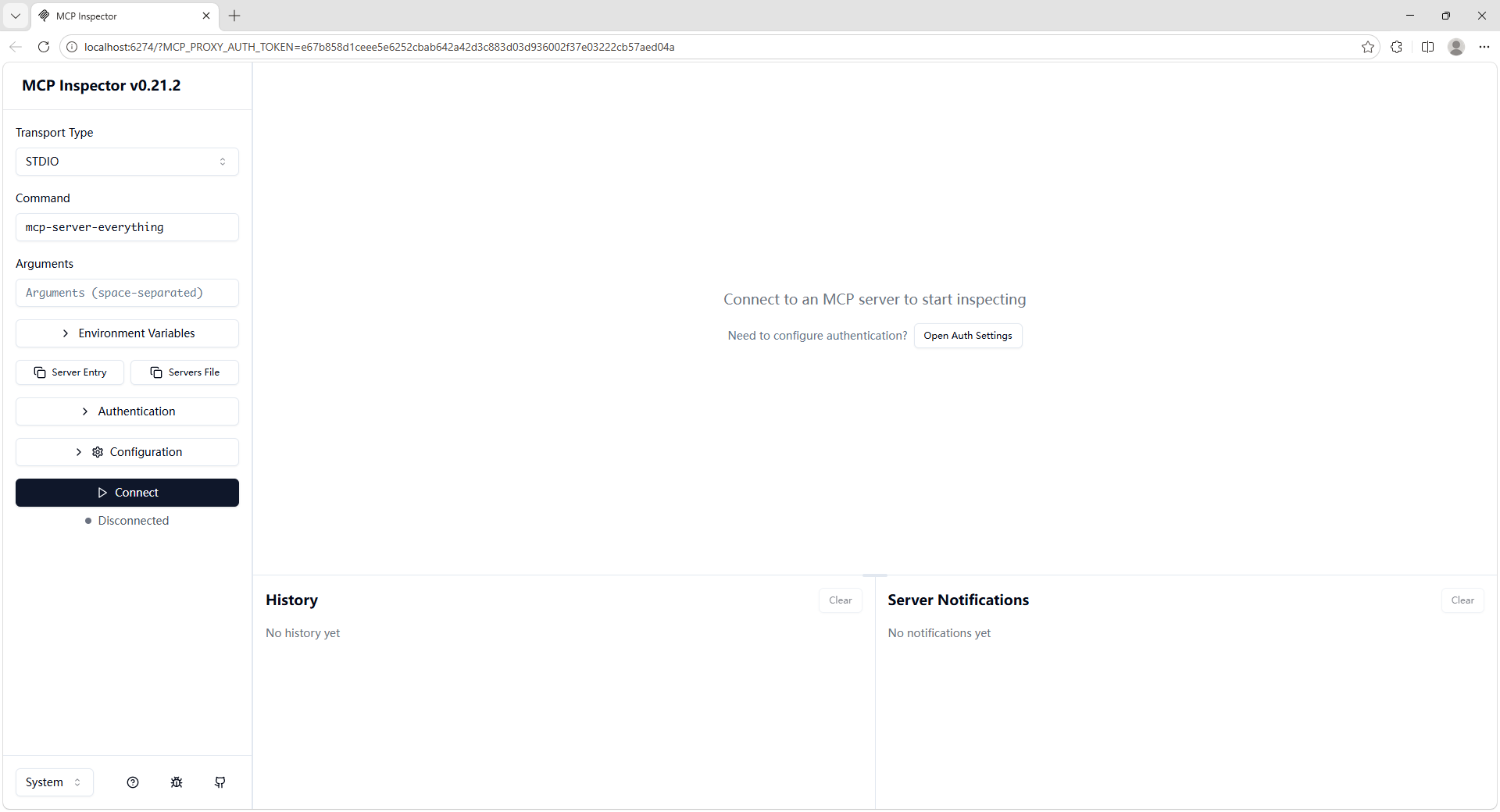

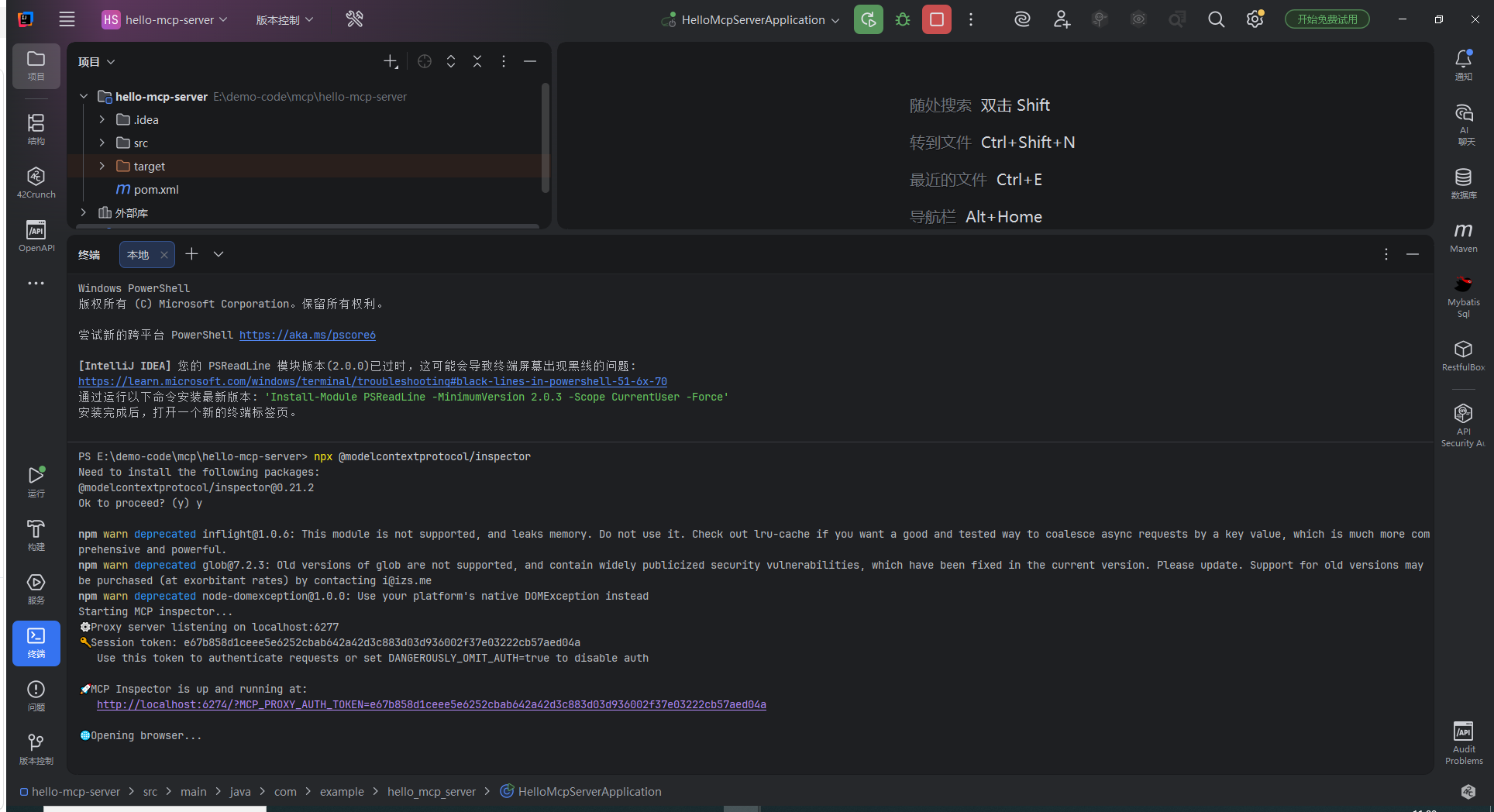

2.3. 初次运行效果

bash 复制代码
PS E:\demo-code\mcp\hello-mcp-server> npx @modelcontextprotocol/inspector
Need to install the following packages:
@modelcontextprotocol/inspector@0.21.2
Ok to proceed? (y) y

npm warn deprecated inflight@1.0.6: This module is not supported, and leaks memory. Do not use it. Check out lru-cache if you want a good and tested way to coalesce async requests by a key value, which is much more comprehensive and powerful.
npm warn deprecated glob@7.2.3: Old versions of glob are not supported, and contain widely publicized security vulnerabilities, which have been fixed in the current version. Please update. Support for old versions may be purchased (at exorbitant rates) by contacting i@izs.me
npm warn deprecated node-domexception@1.0.0: Use your platform's native DOMException instead
Starting MCP inspector...
⚙️ Proxy server listening on localhost:6277
🔑 Session token: e67b858d1ceee5e6252cbab642a42d3c883d03d936002f37e03222cb57aed04a
   Use this token to authenticate requests or set DANGEROUSLY_OMIT_AUTH=true to disable auth

🚀 MCP Inspector is up and running at:
   http://localhost:6274/?MCP_PROXY_AUTH_TOKEN=e67b858d1ceee5e6252cbab642a42d3c883d03d936002f37e03222cb57aed04a

🌐 Opening browser...

3. hello-mcp-server（示例项目）

  • SpringBoot版本：4.0.5
  • JDK版本：21

3.1. 依赖

xml 复制代码
        <dependency>
            <groupId>org.springframework.ai</groupId>
            <artifactId>spring-ai-starter-mcp-server-webmvc</artifactId>
        </dependency>
xml 复制代码
    <properties>
        <spring-ai.version>2.0.0-M4</spring-ai.version>
    </properties>
xml 复制代码
    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.ai</groupId>
                <artifactId>spring-ai-bom</artifactId>
                <version>${spring-ai.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

3.2. yml 配置

配置MCP服务器的协议为：STREAMABLE。

yml 复制代码
spring:
  ai:
    mcp:
      server:
        protocol: STREAMABLE

3.3. MCP服务接口（MCP Tool）

java 复制代码
package com.example.hello_mcp_server.mcp;

import org.springframework.ai.tool.annotation.Tool;
import org.springframework.ai.tool.annotation.ToolParam;
import org.springframework.stereotype.Service;

@Service
public class MathService {

    /**
     * 加法计算工具
     *
     * @param a 第一个加数
     * @param b 第二个加数
     * @return 两数之和
     */
    @Tool(description = "计算两个整数的和，支持正负数")
    public int add(
            @ToolParam(description = "第一个加数，必填，例如 5") int a,
            @ToolParam(description = "第二个加数，必填，例如 3") int b
    ) {
        return a + b;
    }

}

3.4. 注册MCP服务

java 复制代码
package com.example.hello_mcp_server;

import com.example.hello_mcp_server.mcp.MathService;
import org.springframework.ai.tool.ToolCallbackProvider;
import org.springframework.ai.tool.method.MethodToolCallbackProvider;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.annotation.Bean;

@SpringBootApplication
public class HelloMcpServerApplication {

    public static void main(String[] args) {
        SpringApplication.run(HelloMcpServerApplication.class, args);
    }

    @Bean
    public ToolCallbackProvider mathTools(MathService mathService) {
        return MethodToolCallbackProvider.builder()
                .toolObjects(mathService)
                .build();
    }

}

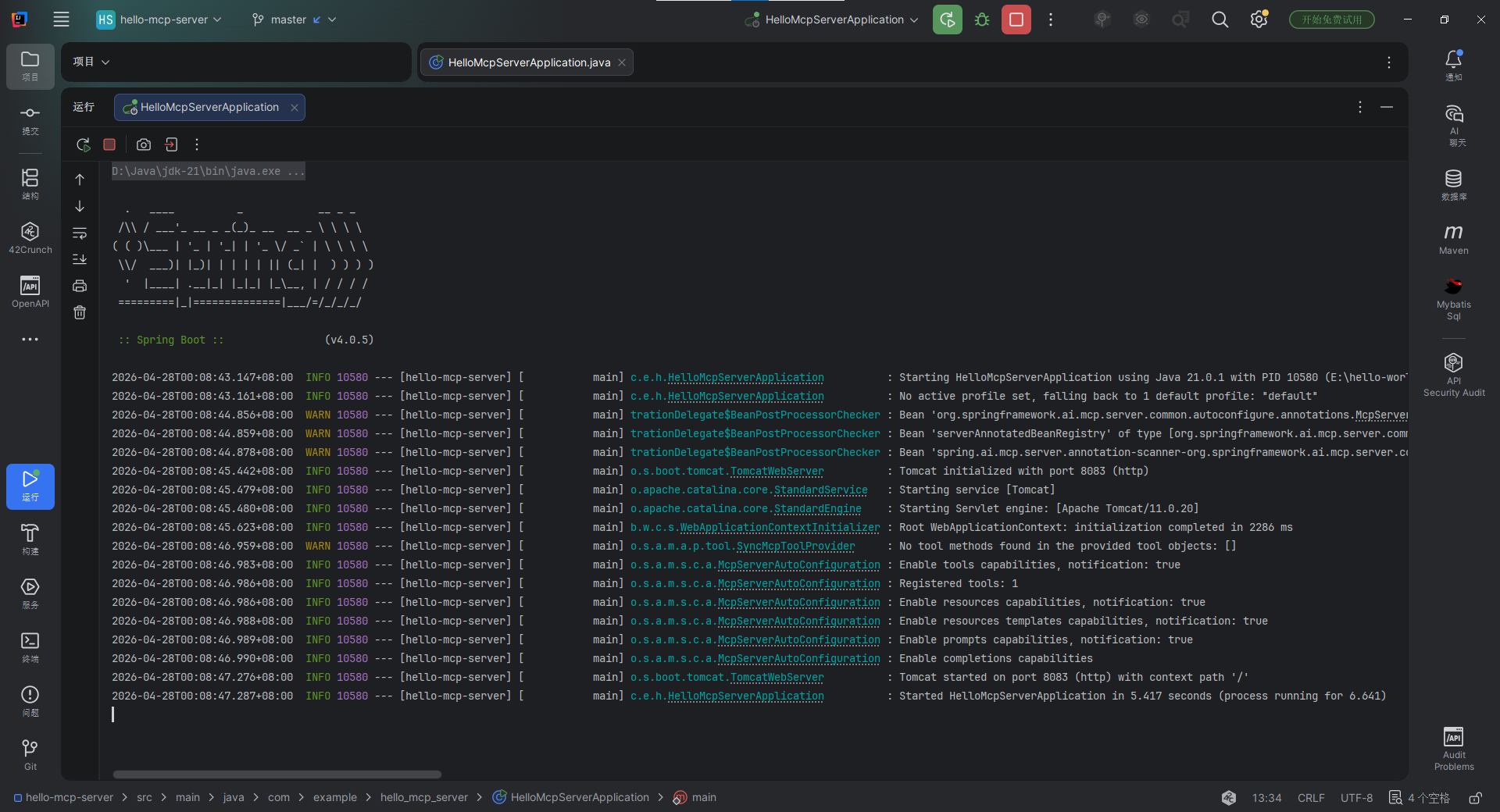

3.5. 启动运行

log 复制代码
  .   ____          _            __ _ _
 /\\ / ___'_ __ _ _(_)_ __  __ _ \ \ \ \
( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \
 \\/  ___)| |_)| | | | | || (_| |  ) ) ) )
  '  |____| .__|_| |_|_| |_\__, | / / / /
 =========|_|==============|___/=/_/_/_/

 :: Spring Boot ::                (v4.0.5)

2026-04-28T00:08:43.147+08:00  INFO 10580 --- [hello-mcp-server] [           main] c.e.h.HelloMcpServerApplication          : Starting HelloMcpServerApplication using Java 21.0.1 with PID 10580 (E:\hello-world\hello-mcp-server\target\classes started by SongGuanxun in E:\hello-world\hello-mcp-server)
2026-04-28T00:08:43.161+08:00  INFO 10580 --- [hello-mcp-server] [           main] c.e.h.HelloMcpServerApplication          : No active profile set, falling back to 1 default profile: "default"
2026-04-28T00:08:44.856+08:00  WARN 10580 --- [hello-mcp-server] [           main] trationDelegate$BeanPostProcessorChecker : Bean 'org.springframework.ai.mcp.server.common.autoconfigure.annotations.McpServerAnnotationScannerAutoConfiguration' of type [org.springframework.ai.mcp.server.common.autoconfigure.annotations.McpServerAnnotationScannerAutoConfiguration] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying). Is this bean getting eagerly injected/applied to a currently created BeanPostProcessor [serverAnnotatedMethodBeanPostProcessor]? Check the corresponding BeanPostProcessor declaration and its dependencies/advisors. If this bean does not have to be post-processed, declare it with ROLE_INFRASTRUCTURE.
2026-04-28T00:08:44.859+08:00  WARN 10580 --- [hello-mcp-server] [           main] trationDelegate$BeanPostProcessorChecker : Bean 'serverAnnotatedBeanRegistry' of type [org.springframework.ai.mcp.server.common.autoconfigure.annotations.McpServerAnnotationScannerAutoConfiguration$ServerMcpAnnotatedBeans] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying). Is this bean getting eagerly injected/applied to a currently created BeanPostProcessor [serverAnnotatedMethodBeanPostProcessor]? Check the corresponding BeanPostProcessor declaration and its dependencies/advisors. If this bean does not have to be post-processed, declare it with ROLE_INFRASTRUCTURE.
2026-04-28T00:08:44.878+08:00  WARN 10580 --- [hello-mcp-server] [           main] trationDelegate$BeanPostProcessorChecker : Bean 'spring.ai.mcp.server.annotation-scanner-org.springframework.ai.mcp.server.common.autoconfigure.annotations.McpServerAnnotationScannerProperties' of type [org.springframework.ai.mcp.server.common.autoconfigure.annotations.McpServerAnnotationScannerProperties] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying). Is this bean getting eagerly injected/applied to a currently created BeanPostProcessor [serverAnnotatedMethodBeanPostProcessor]? Check the corresponding BeanPostProcessor declaration and its dependencies/advisors. If this bean does not have to be post-processed, declare it with ROLE_INFRASTRUCTURE.
2026-04-28T00:08:45.442+08:00  INFO 10580 --- [hello-mcp-server] [           main] o.s.boot.tomcat.TomcatWebServer          : Tomcat initialized with port 8083 (http)
2026-04-28T00:08:45.479+08:00  INFO 10580 --- [hello-mcp-server] [           main] o.apache.catalina.core.StandardService   : Starting service [Tomcat]
2026-04-28T00:08:45.480+08:00  INFO 10580 --- [hello-mcp-server] [           main] o.apache.catalina.core.StandardEngine    : Starting Servlet engine: [Apache Tomcat/11.0.20]
2026-04-28T00:08:45.623+08:00  INFO 10580 --- [hello-mcp-server] [           main] b.w.c.s.WebApplicationContextInitializer : Root WebApplicationContext: initialization completed in 2286 ms
2026-04-28T00:08:46.959+08:00  WARN 10580 --- [hello-mcp-server] [           main] o.s.a.m.a.p.tool.SyncMcpToolProvider     : No tool methods found in the provided tool objects: []
2026-04-28T00:08:46.983+08:00  INFO 10580 --- [hello-mcp-server] [           main] o.s.a.m.s.c.a.McpServerAutoConfiguration : Enable tools capabilities, notification: true
2026-04-28T00:08:46.986+08:00  INFO 10580 --- [hello-mcp-server] [           main] o.s.a.m.s.c.a.McpServerAutoConfiguration : Registered tools: 1
2026-04-28T00:08:46.986+08:00  INFO 10580 --- [hello-mcp-server] [           main] o.s.a.m.s.c.a.McpServerAutoConfiguration : Enable resources capabilities, notification: true
2026-04-28T00:08:46.988+08:00  INFO 10580 --- [hello-mcp-server] [           main] o.s.a.m.s.c.a.McpServerAutoConfiguration : Enable resources templates capabilities, notification: true
2026-04-28T00:08:46.989+08:00  INFO 10580 --- [hello-mcp-server] [           main] o.s.a.m.s.c.a.McpServerAutoConfiguration : Enable prompts capabilities, notification: true
2026-04-28T00:08:46.990+08:00  INFO 10580 --- [hello-mcp-server] [           main] o.s.a.m.s.c.a.McpServerAutoConfiguration : Enable completions capabilities
2026-04-28T00:08:47.276+08:00  INFO 10580 --- [hello-mcp-server] [           main] o.s.boot.tomcat.TomcatWebServer          : Tomcat started on port 8083 (http) with context path '/'
2026-04-28T00:08:47.287+08:00  INFO 10580 --- [hello-mcp-server] [           main] c.e.h.HelloMcpServerApplication          : Started HelloMcpServerApplication in 5.417 seconds (process running for 6.641)

3.6. 效果测试（Inspector）

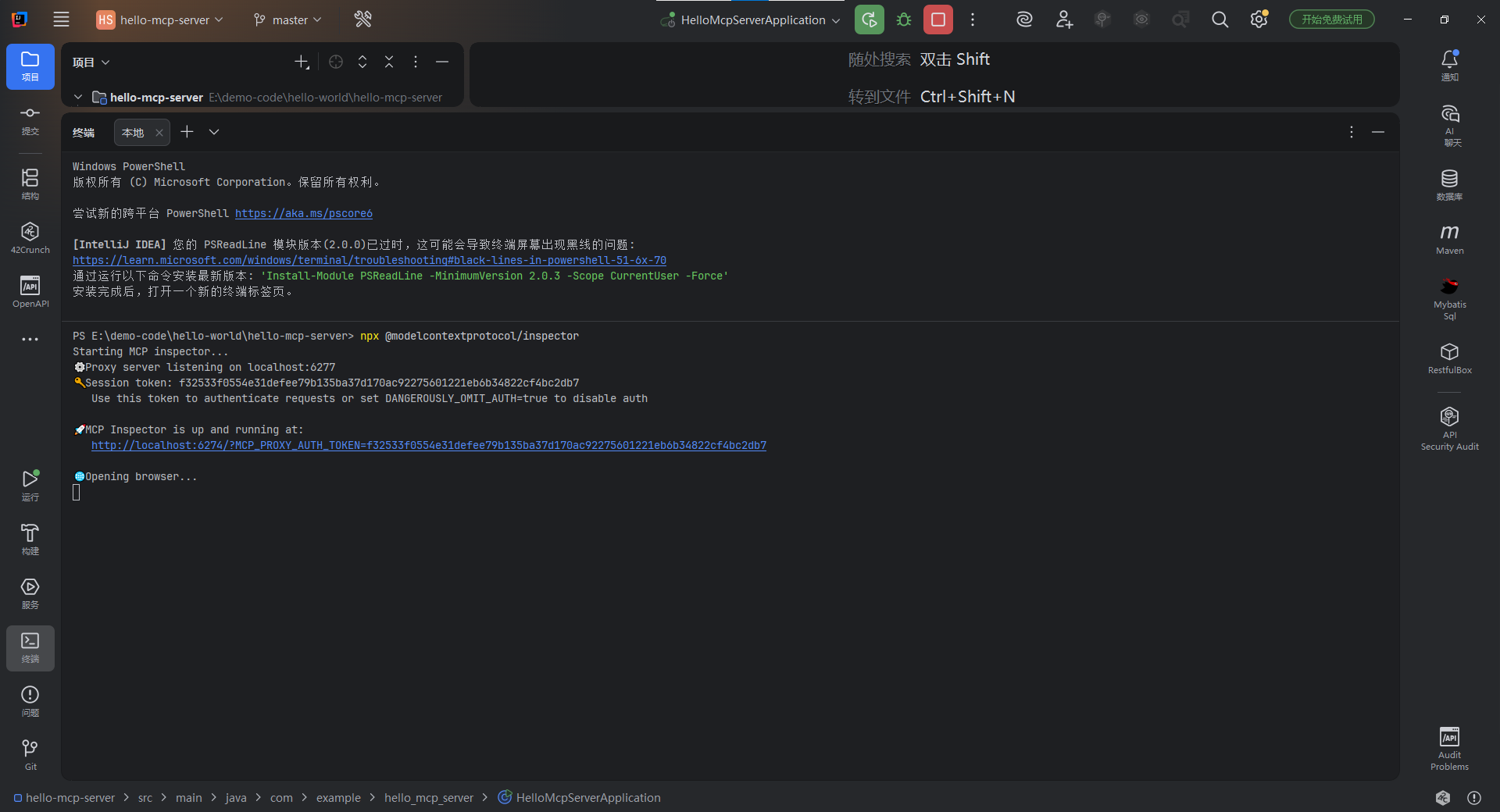

3.6.1. 启动 Inspector

bash 复制代码
PS E:\demo-code\hello-world\hello-mcp-server> npx @modelcontextprotocol/inspector
Starting MCP inspector...
⚙️ Proxy server listening on localhost:6277
🔑 Session token: f32533f0554e31defee79b135ba37d170ac92275601221eb6b34822cf4bc2db7
   Use this token to authenticate requests or set DANGEROUSLY_OMIT_AUTH=true to disable auth

🚀 MCP Inspector is up and running at:
   http://localhost:6274/?MCP_PROXY_AUTH_TOKEN=f32533f0554e31defee79b135ba37d170ac92275601221eb6b34822cf4bc2db7

🌐 Opening browser...
  • Inspector 启动成功，自动打开页面

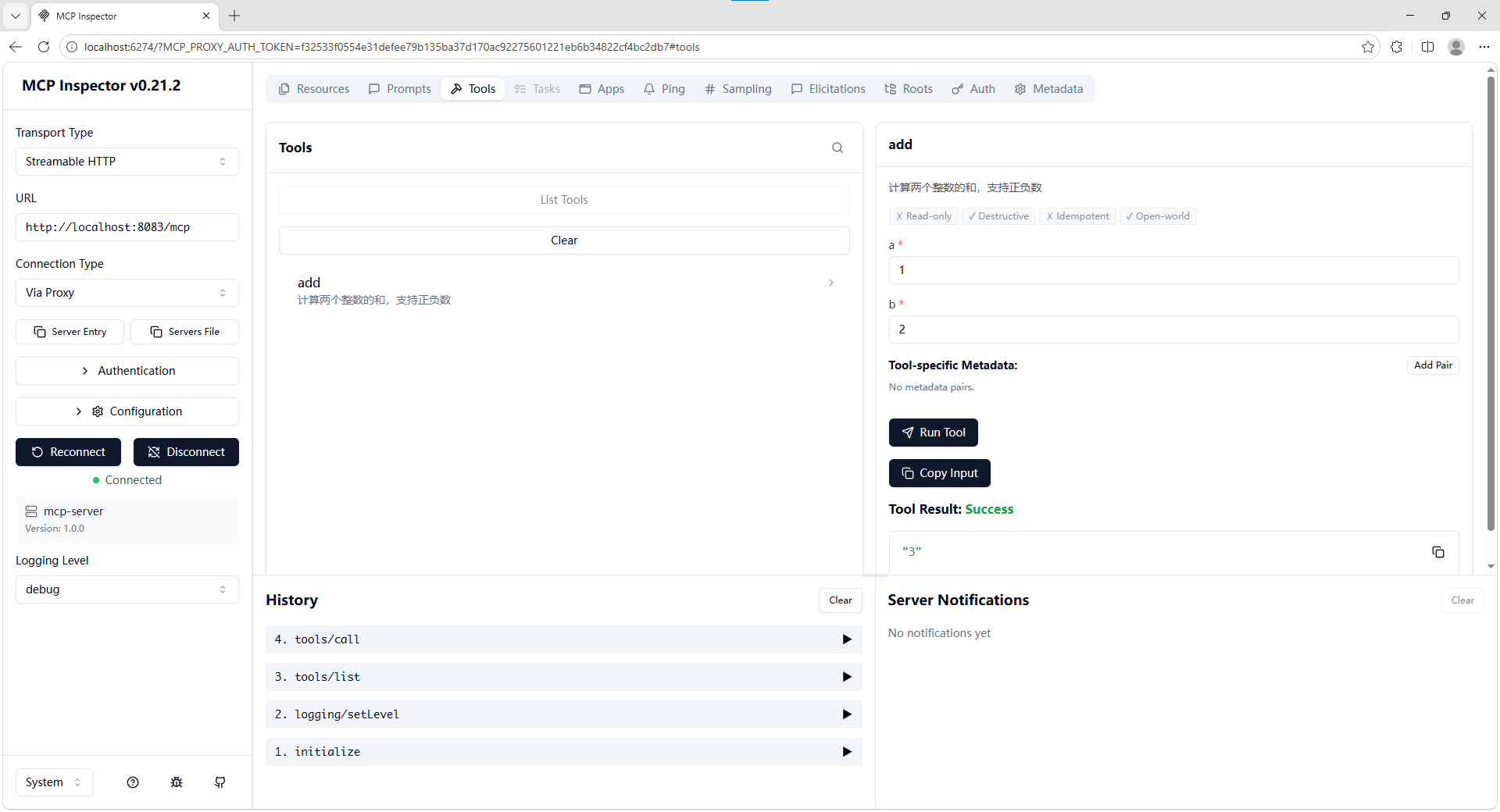

3.6.2. Inspector 使用方法和效果

  1. 配置 Transport Type 和 URL（MCP服务器地址）。
  2. 点击 连接（Connect/Reconnect） ，连接MCP服务器。
  3. 选择到 Tools 页面，查询MCP接口。
  4. 测试MCP接口。

配置示例：
Transport Type ：Streamable HTTP
URL ：http://localhost:8083/mcp

3.6.3. Inspector日志

bash 复制代码
New StreamableHttp connection request
Query parameters: {"url":"http://localhost:8083/mcp","transportType":"streamable-http"}
Created StreamableHttp client transport
Client <-> Proxy  sessionId: a20c7346-c43a-425c-a643-4eb4f18c2a76
Proxy  <-> Server sessionId: d03b312b-8f0e-4114-a498-8b8aacb32263
Received POST message for sessionId a20c7346-c43a-425c-a643-4eb4f18c2a76
Received GET message for sessionId a20c7346-c43a-425c-a643-4eb4f18c2a76
Received POST message for sessionId a20c7346-c43a-425c-a643-4eb4f18c2a76
Received POST message for sessionId a20c7346-c43a-425c-a643-4eb4f18c2a76
Received POST message for sessionId a20c7346-c43a-425c-a643-4eb4f18c2a76

4. REST API 转 MCP Tool

把面向人类开发者的 REST HTTP 接口，改造为面向大模型 / AI Agent 可理解、可标准化调用的 MCP 协议工具接口。

这个转换的核心本质，是将 REST API 的 HTTP 端点，映射封装为 MCP 协议定义的Tool（工具），通过 MCP Server 暴露给 MCP 兼容的 AI 客户端（如 Dify）调用，底层完成 REST HTTP 语义到 MCP 的 JSON-RPC 协议语义的双向转换与适配。

4.1. OpenFeign

本文中，MCP服务器使用 OpenFeign 访问 REST API 接口。

4.1.1. OpenFeign依赖

xml 复制代码
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-openfeign</artifactId>
        </dependency>
xml 复制代码
    <properties>
        <spring-cloud.version>2025.1.1</spring-cloud.version>
    </properties>
xml 复制代码
    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring-cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

4.1.2. 开启OpenFeign客户端：@EnableFeignClients

@EnableFeignClients 放在 Application 上，开启OpenFeign客户端。

java 复制代码
@EnableFeignClients
@SpringBootApplication
public class HelloMcpServerApplication {

    public static void main(String[] args) {
        SpringApplication.run(HelloMcpServerApplication.class, args);
    }

    // ...

}

4.1.3. OpenFeign客户端

java 复制代码
package com.example.hello_mcp_server.feign;

import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.web.bind.annotation.GetMapping;

import java.util.List;

@FeignClient(contextId = "UserFeignClient", name = "hello-user", url = "http://localhost:8080")
public interface UserFeignClient {

    @GetMapping("/users")
    List<User> getUsers();

}
java 复制代码
package com.example.hello_mcp_server.feign;

import lombok.Data;

import java.util.Date;

@Data
public class User {

    private Long id;
    private String username;
    private String realName;
    private String phone;
    private String email;
    private Integer age;
    private Integer gender; // 性别：0=未知；1=男；2=女
    private Integer status; // 状态：0=禁用；1=正常
    private Date createTime;
    private Date updateTime;

}

4.2. MCP服务调用 REST API 接口

java 复制代码
package com.example.hello_mcp_server.mcp;

import com.example.hello_mcp_server.feign.User;
import com.example.hello_mcp_server.feign.UserFeignClient;
import lombok.extern.slf4j.Slf4j;
import org.springframework.ai.tool.annotation.Tool;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;

@Slf4j
@Service
public class UserService {

    @Autowired
    private UserFeignClient userFeignClient;

    /**
     * 查询账号列表
     */
    @Tool(description = "查询账号列表")
    public List<User> getUsers() {
        log.info("收到请求");
        List<User> users = userFeignClient.getUsers();
        log.info("users={}", users);
        return users;
    }

}

4.3. 注册MCP服务

java 复制代码
package com.example.hello_mcp_server;

import com.example.hello_mcp_server.mcp.MathService;
import com.example.hello_mcp_server.mcp.UserService;
import org.springframework.ai.tool.ToolCallbackProvider;
import org.springframework.ai.tool.method.MethodToolCallbackProvider;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.openfeign.EnableFeignClients;
import org.springframework.context.annotation.Bean;

@EnableFeignClients
@SpringBootApplication
public class HelloMcpServerApplication {

    // ...

    @Bean
    public ToolCallbackProvider userTools(UserService service) {
        return MethodToolCallbackProvider.builder()
                .toolObjects(service)
                .build();
    }

}

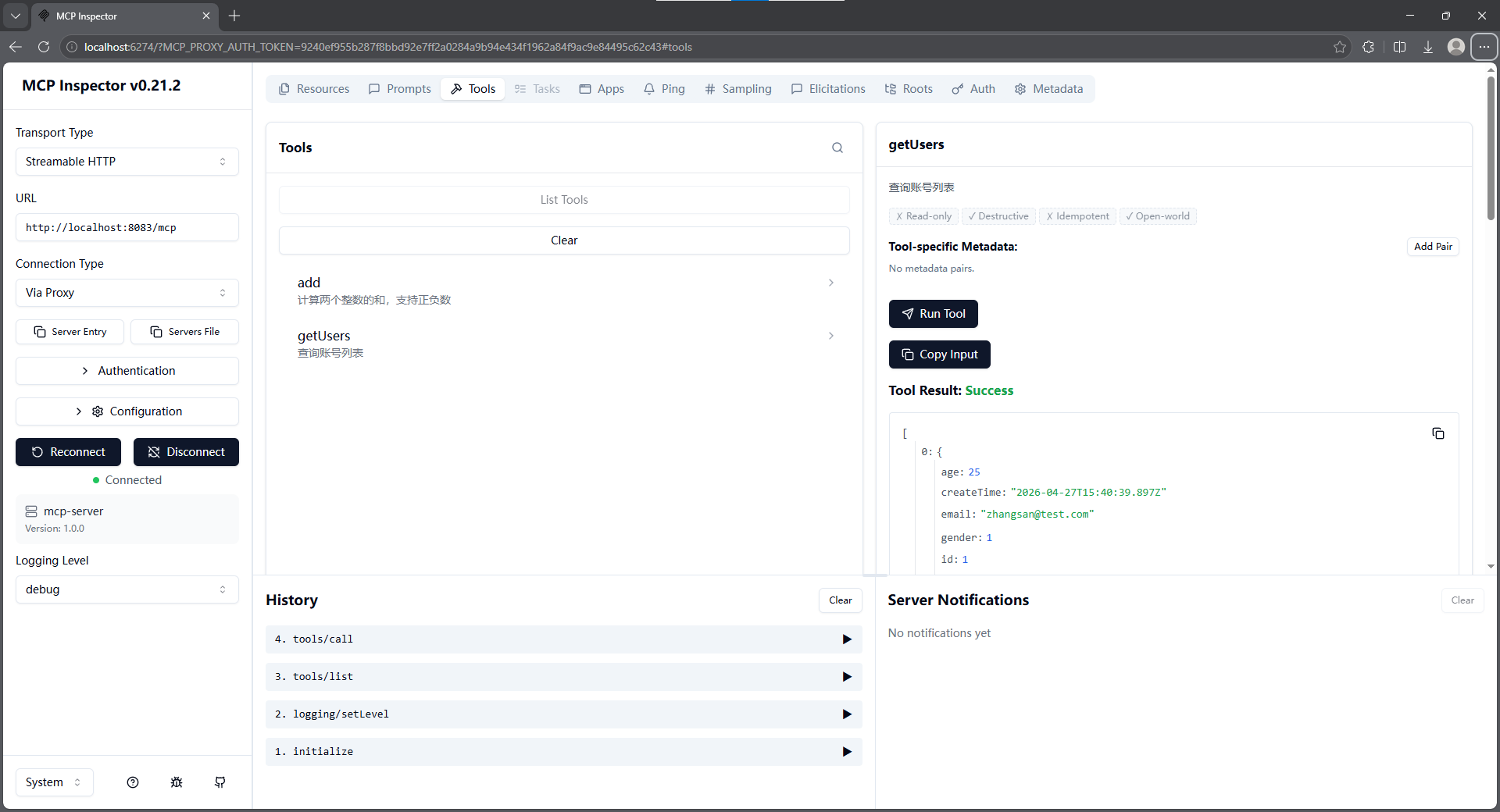

4.4. 效果测试（Inspector）

5. 附录

5.1. POM

xml 复制代码
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>4.0.5</version>
        <relativePath/>
    </parent>

    <groupId>com.example</groupId>
    <artifactId>hello-mcp-server</artifactId>
    <version>0.0.1-SNAPSHOT</version>

    <properties>
        <java.version>21</java.version>
        <spring-ai.version>2.0.0-M4</spring-ai.version>
        <spring-cloud.version>2025.1.1</spring-cloud.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.ai</groupId>
            <artifactId>spring-ai-starter-mcp-server-webmvc</artifactId>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-webmvc-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-openfeign</artifactId>
        </dependency>
    </dependencies>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring-cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <dependency>
                <groupId>org.springframework.ai</groupId>
                <artifactId>spring-ai-bom</artifactId>
                <version>${spring-ai.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <configuration>
                    <excludes>
                        <exclude>
                            <groupId>org.projectlombok</groupId>
                            <artifactId>lombok</artifactId>
                        </exclude>
                    </excludes>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <executions>
                    <execution>
                        <id>default-compile</id>
                        <phase>compile</phase>
                        <goals>
                            <goal>compile</goal>
                        </goals>
                        <configuration>
                            <annotationProcessorPaths>
                                <path>
                                    <groupId>org.projectlombok</groupId>
                                    <artifactId>lombok</artifactId>
                                </path>
                            </annotationProcessorPaths>
                        </configuration>
                    </execution>
                    <execution>
                        <id>default-testCompile</id>
                        <phase>test-compile</phase>
                        <goals>
                            <goal>testCompile</goal>
                        </goals>
                        <configuration>
                            <annotationProcessorPaths>
                                <path>
                                    <groupId>org.projectlombok</groupId>
                                    <artifactId>lombok</artifactId>
                                </path>
                            </annotationProcessorPaths>
                        </configuration>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>

</project>

5.2. application.yml

yml 复制代码
spring:
  application:
    name: hello-mcp-server
  ai:
    mcp:
      server:
        protocol: STREAMABLE
server:
  port: 8083

5.3. Application

java 复制代码
package com.example.hello_mcp_server;

import com.example.hello_mcp_server.mcp.MathService;
import com.example.hello_mcp_server.mcp.UserService;
import org.springframework.ai.tool.ToolCallbackProvider;
import org.springframework.ai.tool.method.MethodToolCallbackProvider;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.openfeign.EnableFeignClients;
import org.springframework.context.annotation.Bean;

@EnableFeignClients
@SpringBootApplication
public class HelloMcpServerApplication {

    public static void main(String[] args) {
        SpringApplication.run(HelloMcpServerApplication.class, args);
    }

    @Bean
    public ToolCallbackProvider mathTools(MathService mathService) {
        return MethodToolCallbackProvider.builder()
                .toolObjects(mathService)
                .build();
    }

    @Bean
    public ToolCallbackProvider userTools(UserService service) {
        return MethodToolCallbackProvider.builder()
                .toolObjects(service)
                .build();
    }

}
相关推荐
꧁꫞꯭零꯭点꯭꫞꧂1 小时前
OpenClaw 本地部署 QQ /飞书机器人接入手册
ai
optimistic_chen1 小时前
【AI Agent 全栈开发】提示词技巧（prompt）
java·人工智能·ai·prompt·agent
2601_949695592 小时前
开源AI智能体OpenClaw接入DeepSeek V4全流程：从配置到成本
人工智能·驱动开发·ai·电脑
abolbee2 小时前
概念梳理：openclaw、MCPorter、mcp服务器、mcp router、figma mcp这些之间是什么关系？
ai
AI 编程助手GPT2 小时前
GPT-5.5与Claude Opus 4.7编程能力深度对比：2026年4月主流AI编程模型选型指南
大数据·人工智能·gpt·ai·ai编程
TuCoder2 小时前
AI复刻5A景区智慧导览：从10万到千元的成本（六）真实商业化落地案例
人工智能·ai·智慧旅游·手绘地图·智慧导览·景区电子导览·景区地图
zs宝来了2 小时前
Ray 分布式计算：Actor 模型与任务调度
机器学习·ai·基础设施
程序员老邢2 小时前
【产品底稿 08】商助慧 AI 仿写实战复盘：RAG 知识库 + 大模型联动，一键生成技术底稿
人工智能·spring boot·后端·ai·语言模型·milvus
老王谈企服3 小时前
流程型制造业生产优化，未来将如何被大模型技术重构？2026智造深研：实在Agent驱动端到端生产闭环
大数据·网络·人工智能·ai·重构
热门推荐
01GitHub 镜像站点02近期有什么ai的新消息，新动态？ 2026.4月032026年4月AI大事件深度解读：大模型竞争进入“深水区“042026年AI编程工具终极横评：Cursor vs Claude Code vs Copilot05Codex 接入 DeepSeek API 完整配置文档06【AI】2026 年具身智能模型和世界模型总结07在Windows 11上安装Docker的踩坑记录08零基础教你claude code 接入 deepseek V4092026年AI前瞻：量子AI、具身智能与科学发现的新纪元10codex app每次打开重连5次Reconnecting问题解决
