Disruptor源码

**juc下的队列大部分采用加ReentrantLock锁方式保证线程安全. ****在稳定性要求特别高的系统中，为了防止生产者速度过快，导致内存溢出，只能选择有界队列.加锁的方式通常会严重影响性能。 **线程会因为竞争不到锁而被挂起，等待其他线程释放锁而唤醒，这个过程存在很大的开销，而且存在死锁的隐患。

分析demo:

public class DisruptorDemo {

    public static void main(String[] args) throws Exception {

        //创建disruptor
        Disruptor<OrderEvent> disruptor = new Disruptor<>(
                OrderEvent::new,
                //缓冲区大小,要为2的n次方.
                4,
                Executors.defaultThreadFactory(),
                //单生产者
                ProducerType.SINGLE,
                //等待策略
                new YieldingWaitStrategy()
        );

        //启动disruptor
        disruptor.start();

        //创建ringbuffer容器
        RingBuffer<OrderEvent> ringBuffer = disruptor.getRingBuffer();
        //创建生产者
        OrderEventProducer eventProducer = new OrderEventProducer(ringBuffer);
        // 发送消息
        for (int i = 0; i < 10; i++) {
            eventProducer.onData(i, "Disruptor" + i);
        }

        disruptor.shutdown();

    }
}

生产者对象:

public class OrderEventProducer {
    //事件队列
    private RingBuffer<OrderEvent> ringBuffer;

    public OrderEventProducer(RingBuffer<OrderEvent> ringBuffer) {
        this.ringBuffer = ringBuffer;
    }

    public void onData(long value,String name) {
        // 获取事件队列 的下一个槽
        long sequence = ringBuffer.next();
        try {
            //获取消息（事件）
            OrderEvent orderEvent = ringBuffer.get(sequence);
            // 写入消息数据
            orderEvent.setValue(value);
            orderEvent.setName(name);
        } catch (Exception e) {
            // TODO  异常处理
            e.printStackTrace();
        } finally {
            System.out.println("生产者"+ Thread.currentThread().getName()
                    +"发送数据value:"+value+",name:"+name);
            //发布事件
            ringBuffer.publish(sequence);
        }
    }
}

构造方法:

    /**
     * Create a new Disruptor.
     *
     * @param eventFactory   the factory to create events in the ring buffer.
     * @param ringBufferSize the size of the ring buffer, must be power of 2.
     * @param threadFactory  a {@link ThreadFactory} to create threads for processors.
     * @param producerType   the claim strategy to use for the ring buffer.
     * @param waitStrategy   the wait strategy to use for the ring buffer.
     */
    public Disruptor(
            final EventFactory<T> eventFactory,
            final int ringBufferSize,
            final ThreadFactory threadFactory,
            final ProducerType producerType,
            final WaitStrategy waitStrategy)
    {
        this(
            RingBuffer.create(producerType, eventFactory, ringBufferSize, waitStrategy),
            new BasicExecutor(threadFactory));
    }

BasicExecutor构造方法:

public BasicExecutor(ThreadFactory factory)
    {
        this.factory = factory;
    }

BasicExecutor属性:

 private final ThreadFactory factory;
    private final Queue<Thread> threads = new ConcurrentLinkedQueue<>();

BasicExecutor的execute方法:

 @Override
    public void execute(Runnable command)
    {
        final Thread thread = factory.newThread(command);
        if (null == thread)
        {
            throw new RuntimeException("Failed to create thread to run: " + command);
        }

        thread.start();

        threads.add(thread);
    }

执行任务的时候,会把新创建的线程存入一个队列中.

BasicExecutor的dumpThreadInfo方法:

private String dumpThreadInfo()
    {
        final StringBuilder sb = new StringBuilder();

        final ThreadMXBean threadMXBean = ManagementFactory.getThreadMXBean();

        for (Thread t : threads)
        {
            ThreadInfo threadInfo = threadMXBean.getThreadInfo(t.getId());
            sb.append("{");
            sb.append("name=").append(t.getName()).append(",");
            sb.append("id=").append(t.getId()).append(",");
            sb.append("state=").append(threadInfo.getThreadState()).append(",");
            sb.append("lockInfo=").append(threadInfo.getLockInfo());
            sb.append("}");
        }

        return sb.toString();
    }

会通过遍历来把执行任务的线程信息打印出来.

RingBuffer的create方法:

    /**
     * Create a new Ring Buffer with the specified producer type (SINGLE or MULTI)
     *
     * @param <E> Class of the event stored in the ring buffer.
     * @param producerType producer type to use {@link ProducerType}.
     * @param factory      used to create events within the ring buffer.
     * @param bufferSize   number of elements to create within the ring buffer.
     * @param waitStrategy used to determine how to wait for new elements to become available.
     * @return a constructed ring buffer.
     * @throws IllegalArgumentException if bufferSize is less than 1 or not a power of 2
     */
    public static <E> RingBuffer<E> create(
        ProducerType producerType,
        EventFactory<E> factory,
        int bufferSize,
        WaitStrategy waitStrategy)
    {
        switch (producerType)
        {
            case SINGLE:
                return createSingleProducer(factory, bufferSize, waitStrategy);
            case MULTI:
                return createMultiProducer(factory, bufferSize, waitStrategy);
            default:
                throw new IllegalStateException(producerType.toString());
        }
    }

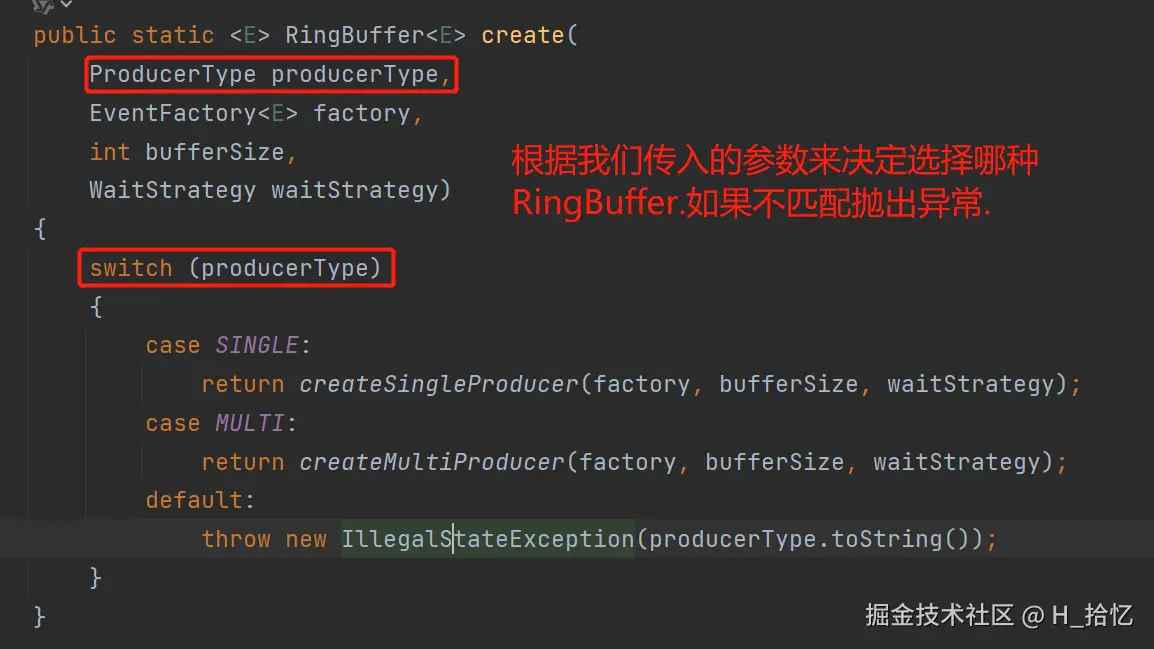

RingBuffer的create方法理解:

因为是一个抽象类,所以需要一个具体的实现,抽象类的目的只是为了把共性实现抽出来.

createSingleProducer方法:

    /**
     * Create a new single producer RingBuffer with the specified wait strategy.
     *
     * @param <E> Class of the event stored in the ring buffer.
     * @param factory      used to create the events within the ring buffer.
     * @param bufferSize   number of elements to create within the ring buffer.
     * @param waitStrategy used to determine how to wait for new elements to become available.
     * @return a constructed ring buffer.
     * @throws IllegalArgumentException if bufferSize is less than 1 or not a power of 2
     * @see SingleProducerSequencer
     */
    public static <E> RingBuffer<E> createSingleProducer(
        EventFactory<E> factory,
        int bufferSize,
        WaitStrategy waitStrategy)
    {
        SingleProducerSequencer sequencer = new SingleProducerSequencer(bufferSize, waitStrategy);

        return new RingBuffer<E>(factory, sequencer);
    }

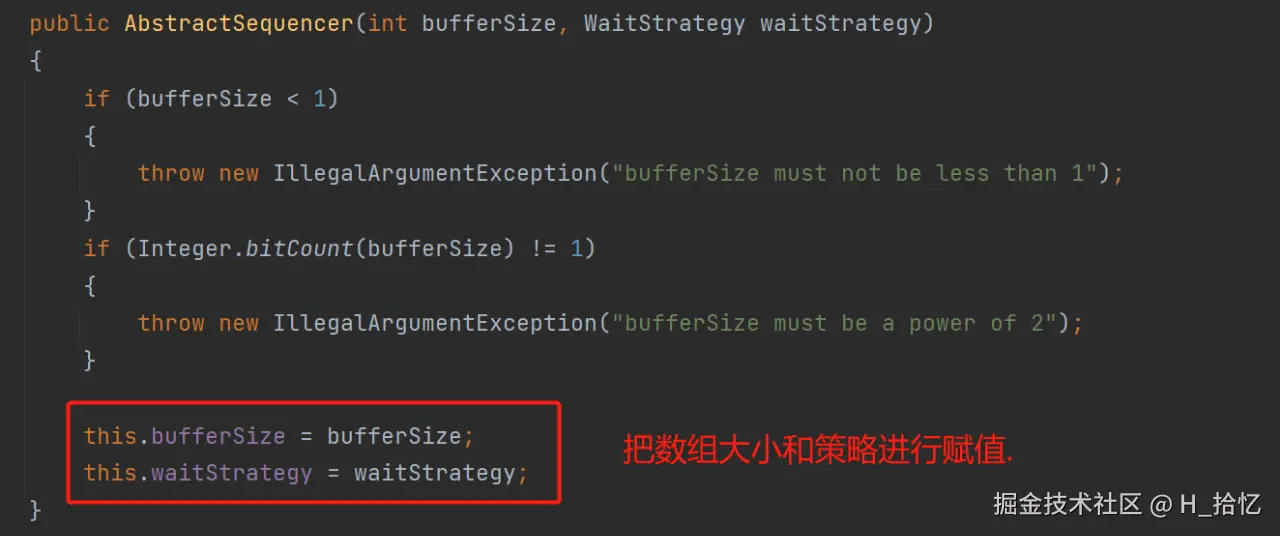

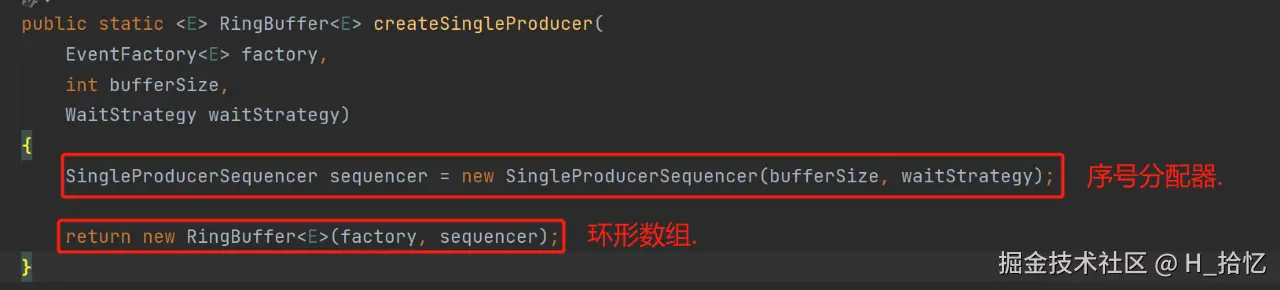

createSingleProducer方法理解:

​

父类构造方法的实现.

newRingBuffer方法:

    /**
     * Construct a RingBuffer with the full option set.
     *
     * @param eventFactory to newInstance entries for filling the RingBuffer
     * @param sequencer    sequencer to handle the ordering of events moving through the RingBuffer.
     * @throws IllegalArgumentException if bufferSize is less than 1 or not a power of 2
     */
    RingBuffer(
        EventFactory<E> eventFactory,
        Sequencer sequencer)
    {
        super(eventFactory, sequencer);
    }


      RingBufferFields(
        EventFactory<E> eventFactory,
        Sequencer sequencer)
    {
        this.sequencer = sequencer;
        this.bufferSize = sequencer.getBufferSize();

        if (bufferSize < 1)
        {
            throw new IllegalArgumentException("bufferSize must not be less than 1");
        }
        if (Integer.bitCount(bufferSize) != 1)
        {
            throw new IllegalArgumentException("bufferSize must be a power of 2");
        }

        this.indexMask = bufferSize - 1;
        this.entries = new Object[sequencer.getBufferSize() + 2 * BUFFER_PAD];
        fill(eventFactory);
    }

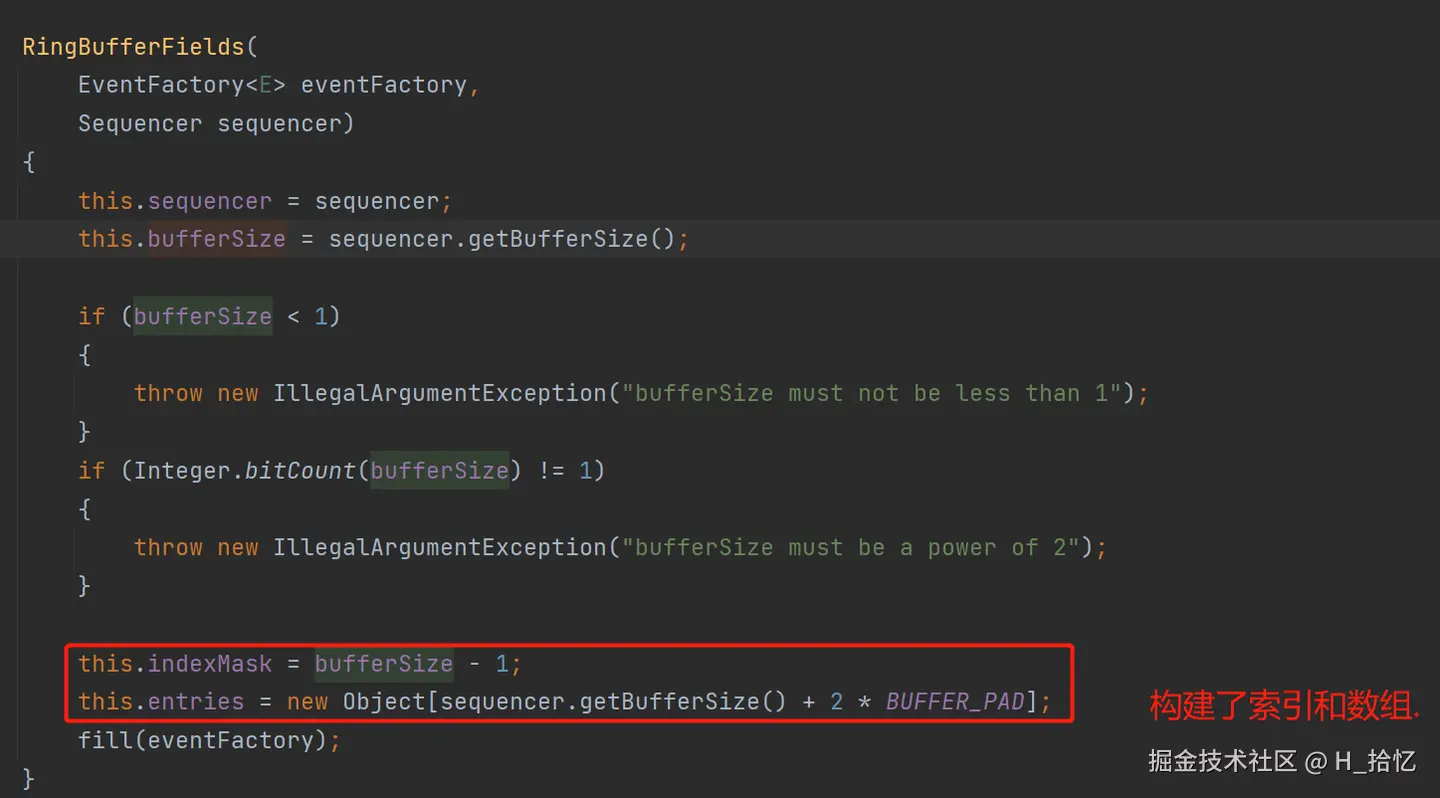

构造方法理解:

fill方法:

 private void fill(EventFactory<E> eventFactory)
    {
        for (int i = 0; i < bufferSize; i++)
        {
            entries[BUFFER_PAD + i] = eventFactory.newInstance();
        }
    }

把数组里都放入构造方法传入的生产者对象.

createMultiProducer方法:

    /**
     * Create a new multiple producer RingBuffer with the specified wait strategy.
     *
     * @param <E> Class of the event stored in the ring buffer.
     * @param factory      used to create the events within the ring buffer.
     * @param bufferSize   number of elements to create within the ring buffer.
     * @param waitStrategy used to determine how to wait for new elements to become available.
     * @return a constructed ring buffer.
     * @throws IllegalArgumentException if bufferSize is less than 1 or not a power of 2
     * @see MultiProducerSequencer
     */
    public static <E> RingBuffer<E> createMultiProducer(
        EventFactory<E> factory,
        int bufferSize,
        WaitStrategy waitStrategy)
    {
        MultiProducerSequencer sequencer = new MultiProducerSequencer(bufferSize, waitStrategy);

        return new RingBuffer<E>(factory, sequencer);
    }

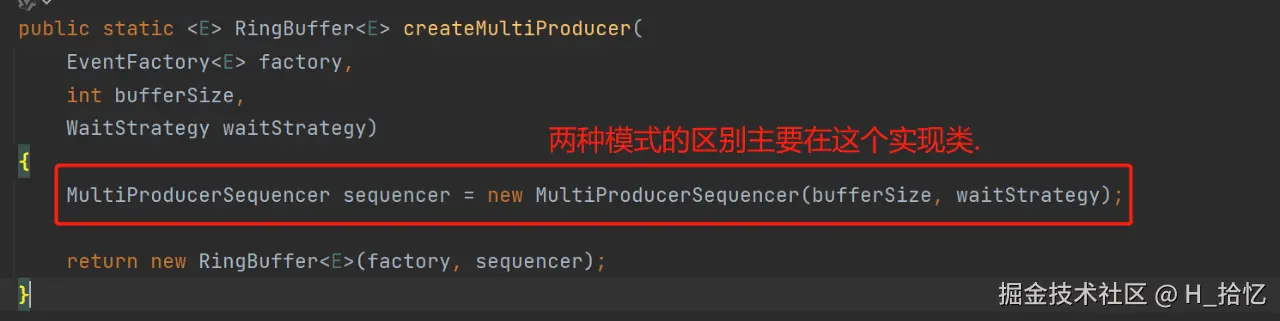

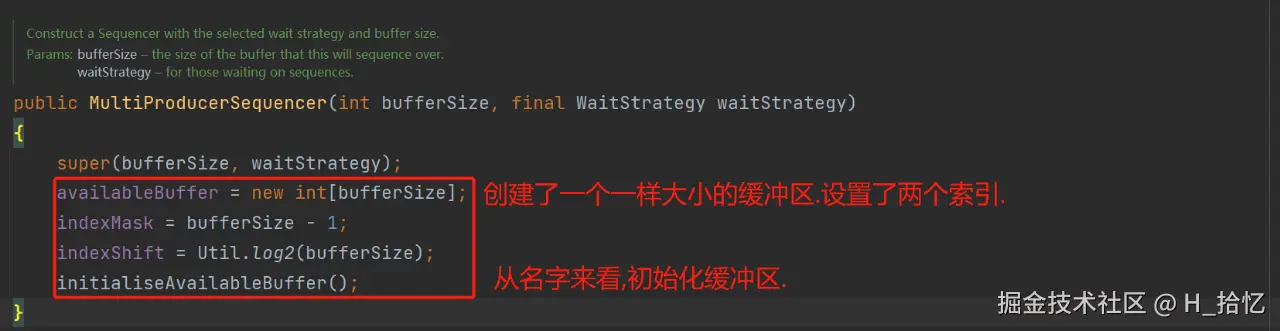

createMultiProducer方法理解:

缓冲区的值都设置为了-1.

启动方法start:

    /**
     * <p>Starts the event processors and returns the fully configured ring buffer.</p>
     *
     * <p>The ring buffer is set up to prevent overwriting any entry that is yet to
     * be processed by the slowest event processor.</p>
     *
     * <p>This method must only be called once after all event processors have been added.</p>
     *
     * @return the configured ring buffer.
     */
    public RingBuffer<T> start()
    {
        checkOnlyStartedOnce();
        for (final ConsumerInfo consumerInfo : consumerRepository)
        {
            consumerInfo.start(executor);
        }

        return ringBuffer;
    }

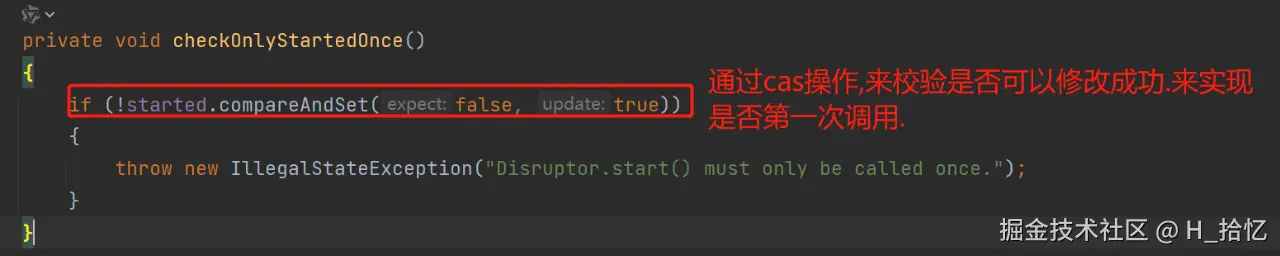

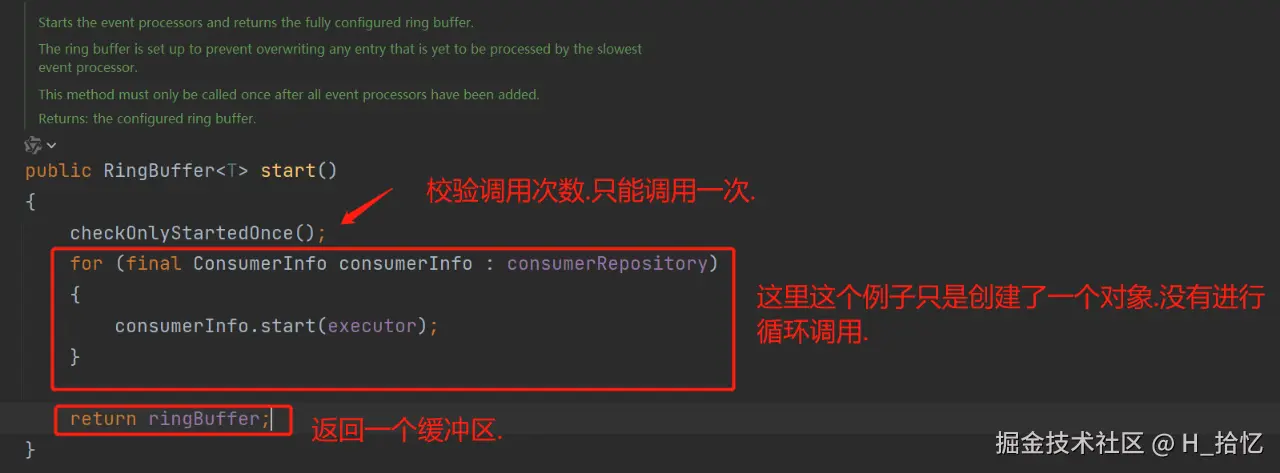

启动方法start理解:

生产者onData方法:

ringBuffer的next方法:

    /**
     * Increment and return the next sequence for the ring buffer.  Calls of this
     * method should ensure that they always publish the sequence afterward.  E.g.
     * <pre>
     * long sequence = ringBuffer.next();
     * try {
     *     Event e = ringBuffer.get(sequence);
     *     // Do some work with the event.
     * } finally {
     *     ringBuffer.publish(sequence);
     * }
     * </pre>
     *
     * @return The next sequence to publish to.
     * @see RingBuffer#publish(long)
     * @see RingBuffer#get(long)
     */
    @Override
    public long next()
    {
        return sequencer.next();
    }

sequencer的next方法:

因为是个接口,先看单生产者实现.

 @Override
    public long next()
    {
        return next(1);
    }


        /**
     * @see Sequencer#next(int)
     */
    @Override
    public long next(int n)
    {
        if (n < 1)
        {
            throw new IllegalArgumentException("n must be > 0");
        }

        long nextValue = this.nextValue;

        long nextSequence = nextValue + n;
        long wrapPoint = nextSequence - bufferSize;
        long cachedGatingSequence = this.cachedValue;

        if (wrapPoint > cachedGatingSequence || cachedGatingSequence > nextValue)
        {
            cursor.setVolatile(nextValue);  // StoreLoad fence

            long minSequence;
            while (wrapPoint > (minSequence = Util.getMinimumSequence(gatingSequences, nextValue)))
            {
                LockSupport.parkNanos(1L); // TODO: Use waitStrategy to spin?
            }

            this.cachedValue = minSequence;
        }

        this.nextValue = nextSequence;

        return nextSequence;
    }

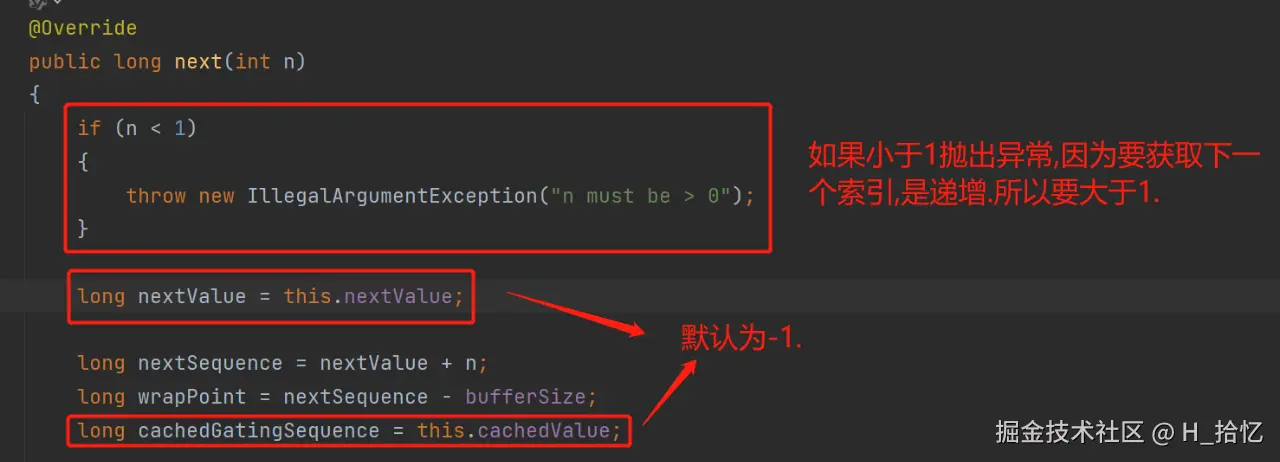

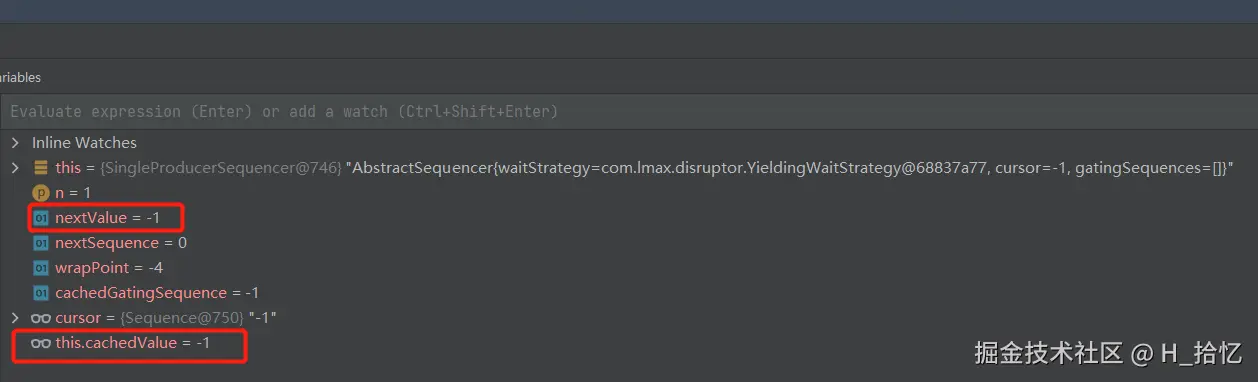

sequencer的next方法理解:

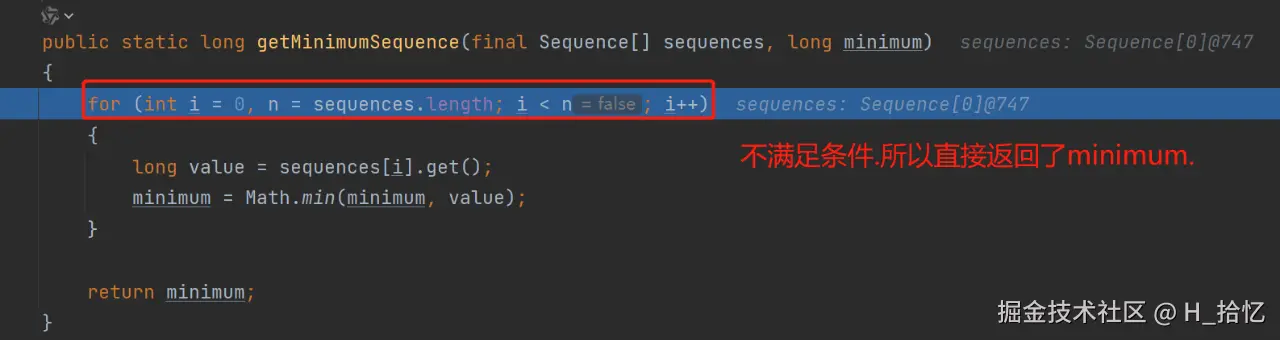

getMinimumSequence方法:

    /**
     * Get the minimum sequence from an array of {@link com.lmax.disruptor.Sequence}s.
     *
     * @param sequences to compare.
     * @param minimum   an initial default minimum.  If the array is empty this value will be
     *                  returned.
     * @return the smaller of minimum sequence value found in {@code sequences} and {@code minimum};
     * {@code minimum} if {@code sequences} is empty
     */
    public static long getMinimumSequence(final Sequence[] sequences, long minimum)
    {
        for (int i = 0, n = sequences.length; i < n; i++)
        {
            long value = sequences[i].get();
            minimum = Math.min(minimum, value);
        }

        return minimum;
    }

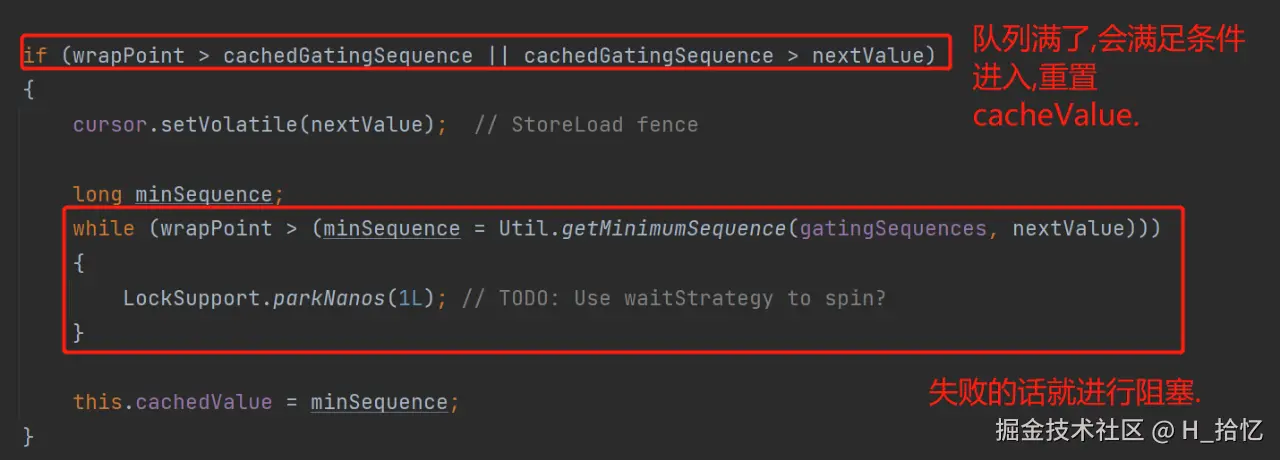

getMinimumSequence方法理解:

具体什么时候满足条件进入.我还没想明白.等后续看其他例子的分析是不是会找到答案.

ringBuffer的get方法:

    /**
     * <p>Get the event for a given sequence in the RingBuffer.</p>
     *
     * <p>This call has 2 uses.  Firstly use this call when publishing to a ring buffer.
     * After calling {@link RingBuffer#next()} use this call to get hold of the
     * preallocated event to fill with data before calling {@link RingBuffer#publish(long)}.</p>
     *
     * <p>Secondly use this call when consuming data from the ring buffer.  After calling
     * {@link SequenceBarrier#waitFor(long)} call this method with any value greater than
     * that your current consumer sequence and less than or equal to the value returned from
     * the {@link SequenceBarrier#waitFor(long)} method.</p>
     *
     * @param sequence for the event
     * @return the event for the given sequence
     */
    @Override
    public E get(long sequence)
    {
        return elementAt(sequence);
    }

     protected final E elementAt(long sequence)
    {
        return (E) UNSAFE.getObject(entries, REF_ARRAY_BASE + ((sequence & indexMask) << REF_ELEMENT_SHIFT));
    }

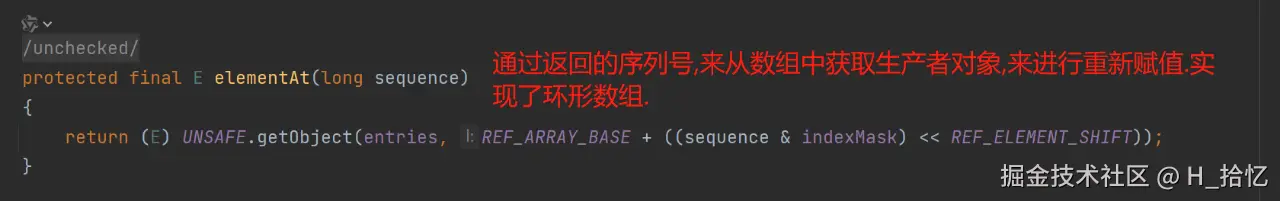

ringBuffer的get方法理解:

重要的不是源码本身,而是背后的思路.

publish方法:

    /**
     * Publish the specified sequence.  This action marks this particular
     * message as being available to be read.
     *
     * @param sequence the sequence to publish.
     */
    @Override
    public void publish(long sequence)
    {
        sequencer.publish(sequence);
    }

        /**
     * @see Sequencer#publish(long)
     */
    @Override
    public void publish(long sequence)
    {
        cursor.set(sequence);
        waitStrategy.signalAllWhenBlocking();
    }

这就是Disruptor生产者源码的一个思路.前面有一篇文章有一些简单的应用,依赖.

下面还会继续学习分析消费多消费策略等源码.
