Flutter for OpenHarmony 实战:图片壁纸应用开发指南
作者:maaath
欢迎加入开源鸿蒙跨平台社区: https://openharmonycrossplatform.csdn.net
一、引言
Flutter 作为谷歌推出的跨平台 UI 框架,凭借其高性能、热重载机制以及丰富的生态系统,已经在 Android、iOS、Web 等平台得到了广泛应用。随着 OpenHarmony 生态的蓬勃发展,Flutter for OpenHarmony(以下简称 FlutterOH)应运而生,为开发者提供了在鸿蒙设备上使用 Dart 语言进行跨平台开发的能力。
本文将通过一个完整的图片壁纸应用实战案例,深入讲解如何利用 FlutterOH 实现网络图片请求、瀑布流布局、收藏功能等核心模块。文章将展示真实可运行的代码,帮助读者快速掌握 FlutterOH 的开发技巧。
二、项目概述
本项目实现的是一个功能完善的图片壁纸应用,主要包含以下功能模块:
- 网络图片请求:从 Picsum API 获取高质量壁纸图片
- 瀑布流布局:双列瀑布流展示图片,美观大方
- 下拉刷新与上拉加载:流畅的列表操作体验
- 收藏功能:本地持久化存储用户收藏
- 图片预览:全屏查看高清大图
项目结构
lib/
├── main.dart # 应用入口
├── model/
│ └── wallpaper_model.dart # 数据模型
├── network/
│ └── wallpaper_service.dart # 网络服务
├── service/
│ └── storage_service.dart # 本地存储
├── pages/
│ ├── home_page.dart # 主页
│ ├── preview_page.dart # 预览页
│ ├── category_page.dart # 分类页
│ └── favorite_page.dart # 收藏页
└── widgets/
└── waterfall_item.dart # 瀑布流组件
三、数据模型定义
首先定义壁纸数据模型,这是整个应用的基础。
dart
/// 壁纸数据模型
class WallpaperModel {
String id;
String url;
String thumbUrl;
int width;
int height;
String title;
String category;
bool isFavorite;
int downloads;
String author;
WallpaperModel({
this.id = '',
this.url = '',
this.thumbUrl = '',
this.width = 0,
this.height = 0,
this.title = '',
this.category = '',
this.isFavorite = false,
this.downloads = 0,
this.author = '',
});
/// 从 JSON 创建对象
factory WallpaperModel.fromJson(Map<String, dynamic> json) {
return WallpaperModel(
id: json['id']?.toString() ?? '',
url: json['url'] ?? '',
thumbUrl: json['thumbUrl'] ?? '',
width: json['width'] ?? 0,
height: json['height'] ?? 0,
title: json['title'] ?? '',
category: json['category'] ?? '',
isFavorite: json['isFavorite'] ?? false,
downloads: json['downloads'] ?? 0,
author: json['author'] ?? '',
);
}
/// 转换为 JSON
Map<String, dynamic> toJson() {
return {
'id': id,
'url': url,
'thumbUrl': thumbUrl,
'width': width,
'height': height,
'title': title,
'category': category,
'isFavorite': isFavorite,
'downloads': downloads,
'author': author,
};
}
}
四、网络请求服务
网络请求是应用获取数据的关键环节。本项目使用 Picsum Photos API 作为图片数据源,该 API 提供大量免费高质量图片,非常适合作为开发测试使用。
dart
import 'dart:convert';
import 'package:http/http.dart' as http;
import '../model/wallpaper_model.dart';
/// 壁纸网络服务
class WallpaperService {
static const String _baseUrl = 'https://picsum.photos';
static const int _pageSize = 20;
/// 获取推荐壁纸列表
Future<List<WallpaperModel>> getRecommendedWallpapers(int page) async {
try {
final response = await http.get(
Uri.parse('$_baseUrl/v2/list?page=$page&limit=$_pageSize'),
headers: {'Content-Type': 'application/json'},
).timeout(const Duration(seconds: 30));
if (response.statusCode == 200) {
final List<dynamic> jsonList = json.decode(response.body);
return _convertToWallpapers(jsonList, page);
}
return [];
} catch (e) {
debugPrint('获取推荐壁纸失败: $e');
return _getMockWallpapers(page);
}
}
/// JSON 数据转换为壁纸模型
List<WallpaperModel> _convertToWallpapers(
List<dynamic> jsonList, int page) {
final wallpapers = <WallpaperModel>[];
final startId = (page - 1) * _pageSize + 1;
for (var i = 0; i < jsonList.length; i++) {
final item = jsonList[i] as Map<String, dynamic>;
final id = item['id']?.toString() ?? (startId + i).toString();
wallpapers.add(WallpaperModel(
id: id,
url: item['download_url'] ?? '$_baseUrl/id/$id/1080/1920',
thumbUrl: '$_baseUrl/id/$id/400/600',
width: item['width'] ?? 1080,
height: item['height'] ?? 1920,
title: item['author'] ?? '壁纸 $id',
category: _getRandomCategory(),
isFavorite: false,
downloads: (page * 100 + i) % 10000,
author: item['author'] ?? 'Unknown',
));
}
return wallpapers;
}
/// 获取随机分类
String _getRandomCategory() {
final categories = ['风景', '人物', '动物', '建筑', '植物', '抽象', '城市', '自然'];
return categories[DateTime.now().millisecond % categories.length];
}
/// 生成模拟数据
List<WallpaperModel> _getMockWallpapers(int page) {
final wallpapers = <WallpaperModel>[];
final categories = ['风景', '人物', '动物', '建筑', '植物', '抽象', '城市', '自然'];
for (var i = 0; i < _pageSize; i++) {
final id = page * 100 + i;
final category = categories[id % categories.length];
wallpapers.add(WallpaperModel(
id: id.toString(),
url: '$_baseUrl/id/$id/1920/1080',
thumbUrl: '$_baseUrl/id/$id/400/600',
width: 1080,
height: 1920,
title: '$category 壁纸 $id',
category: category,
isFavorite: false,
downloads: (id * 7) % 10000,
author: '摄影师 ${(id % 5) + 1}',
));
}
return wallpapers;
}
/// 按分类获取壁纸
Future<List<WallpaperModel>> getWallpapersByCategory(
String category, int page) async {
final wallpapers = await getRecommendedWallpapers(page);
return wallpapers.map((w) {
w.category = category;
w.id = '${category}_${w.id}';
return w;
}).toList();
}
/// 搜索壁纸
Future<List<WallpaperModel>> searchWallpapers(String keyword, int page) async {
final wallpapers = await getRecommendedWallpapers(page);
if (keyword.isEmpty) return wallpapers;
final lowerKeyword = keyword.toLowerCase();
return wallpapers.where((w) {
return w.title.toLowerCase().contains(lowerKeyword) ||
w.category.toLowerCase().contains(lowerKeyword);
}).toList();
}
}

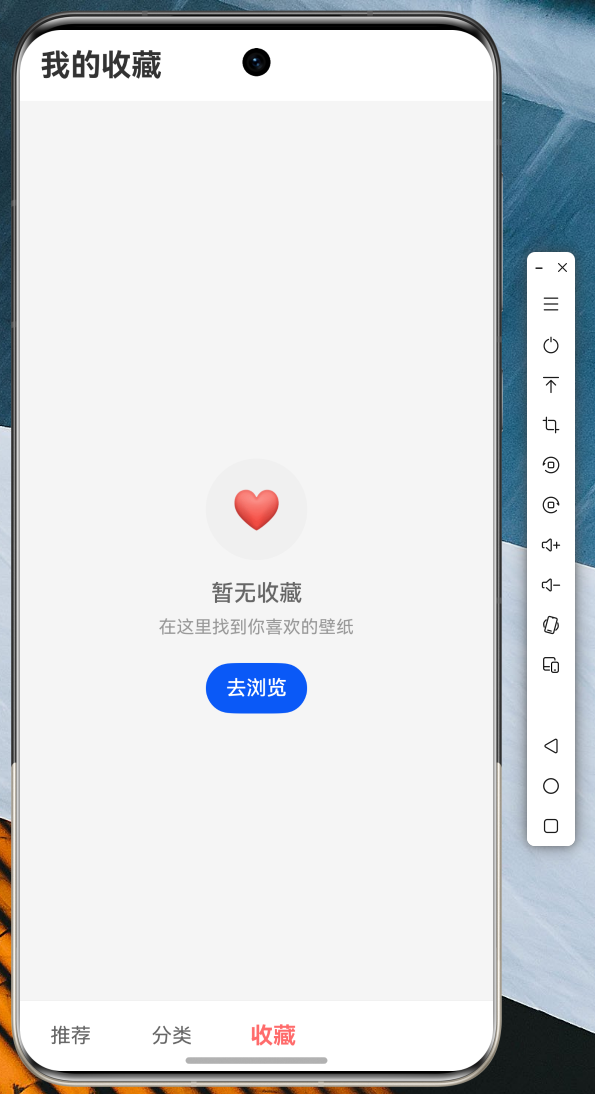

五、本地存储服务
收藏功能需要本地持久化存储,我们使用 SharedPreferences 实现。
dart
import 'dart:convert';
import 'package:shared_preferences/shared_preferences.dart';
import '../model/wallpaper_model.dart';
/// 本地存储服务 - 管理收藏壁纸
class StorageService {
static const String _favoritesKey = 'wallpaper_favorites';
/// 获取所有收藏
Future<List<WallpaperModel>> getFavorites() async {
try {
final prefs = await SharedPreferences.getInstance();
final data = prefs.getString(_favoritesKey);
if (data != null) {
final List<dynamic> jsonList = json.decode(data);
return jsonList
.map((item) => WallpaperModel.fromJson(item as Map<String, dynamic>))
.toList();
}
} catch (e) {
debugPrint('获取收藏失败: $e');
}
return [];
}
/// 保存收藏列表
Future<void> saveFavorites(List<WallpaperModel> favorites) async {
try {
final prefs = await SharedPreferences.getInstance();
final jsonStr = json.encode(favorites.map((w) => w.toJson()).toList());
await prefs.setString(_favoritesKey, jsonStr);
} catch (e) {
debugPrint('保存收藏失败: $e');
}
}
/// 添加收藏
Future<bool> addFavorite(WallpaperModel wallpaper) async {
try {
final favorites = await getFavorites();
if (!isFavorite(wallpaper.id, favorites)) {
wallpaper.isFavorite = true;
favorites.add(wallpaper);
await saveFavorites(favorites);
return true;
}
} catch (e) {
debugPrint('添加收藏失败: $e');
}
return false;
}
/// 移除收藏
Future<bool> removeFavorite(String wallpaperId) async {
try {
final favorites = await getFavorites();
final index = favorites.indexWhere((w) => w.id == wallpaperId);
if (index != -1) {
favorites.removeAt(index);
await saveFavorites(favorites);
return true;
}
} catch (e) {
debugPrint('移除收藏失败: $e');
}
return false;
}
/// 检查是否已收藏
bool isFavorite(String wallpaperId, [List<WallpaperModel>? favorites]) {
favorites ??= _cachedFavorites;
return favorites.any((w) => w.id == wallpaperId);
}
List<WallpaperModel> _cachedFavorites = [];
/// 切换收藏状态
Future<bool> toggleFavorite(WallpaperModel wallpaper) async {
if (isFavorite(wallpaper.id)) {
await removeFavorite(wallpaper.id);
return false;
} else {
await addFavorite(wallpaper);
return true;
}
}
}

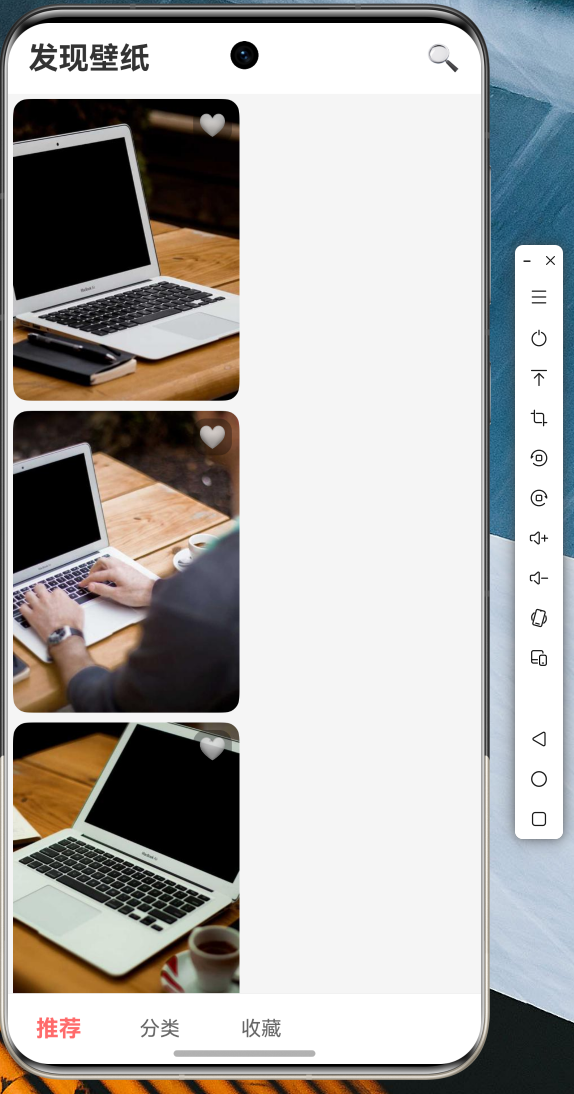

六、主页面实现

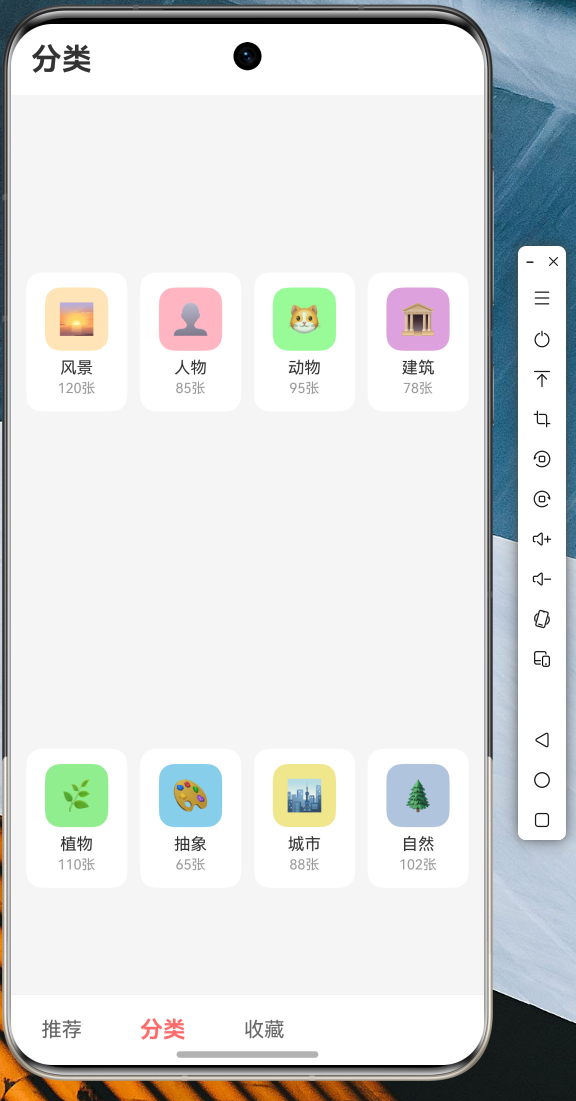

主页采用底部导航栏设计,包含推荐、分类、收藏三个 Tab。列表使用 GridView 实现瀑布流布局。
dart
import 'package:flutter/material.dart';
import '../model/wallpaper_model.dart';
import '../network/wallpaper_service.dart';
import '../service/storage_service.dart';
/// 主页面 - 底部选项卡
class HomePage extends StatefulWidget {
const HomePage({super.key});
@override
State<HomePage> createState() => _HomePageState();
}
class _HomePageState extends State<HomePage> {
int _currentIndex = 0;
final _tabs = ['推荐', '分类', '收藏'];
@override
Widget build(BuildContext context) {
return Scaffold(
body: IndexedStack(
index: _currentIndex,
children: const [
RecommendTab(),
CategoryTab(),
FavoriteTab(),
],
),
bottomNavigationBar: BottomNavigationBar(
currentIndex: _currentIndex,
selectedItemColor: const Color(0xFFFF6B6B),
unselectedItemColor: Colors.grey,
onTap: (index) => setState(() => _currentIndex = index),
items: _tabs
.map((name) => BottomNavigationBarItem(
icon: const Icon(Icons.home_outlined),
activeIcon: const Icon(Icons.home),
label: name,
))
.toList(),
),
);
}
}
/// 推荐 Tab
class RecommendTab extends StatefulWidget {
const RecommendTab({super.key});
@override
State<RecommendTab> createState() => _RecommendTabState();
}
class _RecommendTabState extends State<RecommendTab> {
final _wallpaperService = WallpaperService();
final _storageService = StorageService();
List<WallpaperModel> _wallpapers = [];
bool _isLoading = false;
int _currentPage = 1;
bool _hasMore = true;
@override
void initState() {
super.initState();
_loadWallpapers();
}
Future<void> _loadWallpapers() async {
if (_isLoading) return;
setState(() => _isLoading = true);
try {
final newWallpapers = await _wallpaperService.getRecommendedWallpapers(_currentPage);
final favorites = await _storageService.getFavorites();
for (var wp in newWallpapers) {
wp.isFavorite = favorites.any((f) => f.id == wp.id);
}
setState(() {
if (_currentPage == 1) {
_wallpapers = newWallpapers;
} else {
_wallpapers.addAll(newWallpapers);
}
_hasMore = newWallpapers.length >= 20;
_isLoading = false;
});
} catch (e) {
setState(() => _isLoading = false);
}
}
Future<void> _onRefresh() async {
_currentPage = 1;
await _loadWallpapers();
}
void _onLoadMore() {
if (!_hasMore || _isLoading) return;
_currentPage++;
_loadWallpapers();
}
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(
title: const Text('发现壁纸', style: TextStyle(fontWeight: FontWeight.bold)),
backgroundColor: Colors.white,
elevation: 0,
actions: [
IconButton(
icon: const Icon(Icons.search),
onPressed: () => Navigator.pushNamed(context, '/search'),
),
],
),
body: _wallpapers.isEmpty && _isLoading
? const Center(child: CircularProgressIndicator())
: RefreshIndicator(
onRefresh: _onRefresh,
child: NotificationListener<ScrollNotification>(
onNotification: (scrollInfo) {
if (scrollInfo.metrics.pixels >=
scrollInfo.metrics.maxScrollExtent - 200) {
_onLoadMore();
}
return false;
},
child: GridView.builder(
padding: const EdgeInsets.all(8),
gridDelegate: const SliverGridDelegateWithFixedCrossAxisCount(
crossAxisCount: 2,
childAspectRatio: 0.75,
crossAxisSpacing: 8,
mainAxisSpacing: 8,
),
itemCount: _wallpapers.length + (_hasMore ? 1 : 0),
itemBuilder: (context, index) {
if (index >= _wallpapers.length) {
return const Center(child: CircularProgressIndicator());
}
return _buildWallpaperItem(_wallpapers[index]);
},
),
),
),
);
}
Widget _buildWallpaperItem(WallpaperModel wallpaper) {
return GestureDetector(
onTap: () => _openPreview(wallpaper),
child: Stack(
fit: StackFit.expand,
children: [
ClipRRect(
borderRadius: BorderRadius.circular(12),
child: Image.network(
wallpaper.thumbUrl,
fit: BoxFit.cover,
loadingBuilder: (context, child, progress) {
if (progress == null) return child;
return Container(
color: Colors.grey[200],
child: const Center(child: CircularProgressIndicator()),
);
},
errorBuilder: (context, error, stack) {
return Container(
color: Colors.grey[200],
child: const Icon(Icons.broken_image, size: 48),
);
},
),
),
Positioned(
top: 8,
right: 8,
child: GestureDetector(
onTap: () => _toggleFavorite(wallpaper),
child: Container(
padding: const EdgeInsets.all(6),
decoration: BoxDecoration(
color: Colors.black38,
borderRadius: BorderRadius.circular(20),
),
child: Icon(
wallpaper.isFavorite ? Icons.favorite : Icons.favorite_border,
color: wallpaper.isFavorite ? Colors.red : Colors.white,
size: 20,
),
),
),
),
Positioned(
bottom: 0,
left: 0,
right: 0,
child: Container(
padding: const EdgeInsets.all(8),
decoration: BoxDecoration(
gradient: LinearGradient(
begin: Alignment.topCenter,
end: Alignment.bottomCenter,
colors: [Colors.transparent, Colors.black54],
),
borderRadius: const BorderRadius.only(
bottomLeft: Radius.circular(12),
bottomRight: Radius.circular(12),
),
),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
mainAxisSize: MainAxisSize.min,
children: [
Text(
wallpaper.title,
style: const TextStyle(color: Colors.white, fontSize: 12),
maxLines: 1,
overflow: TextOverflow.ellipsis,
),
Text(
wallpaper.author,
style: const TextStyle(color: Colors.white70, fontSize: 10),
maxLines: 1,
),
],
),
),
),
],
),
);
}
void _openPreview(WallpaperModel wallpaper) {
Navigator.pushNamed(context, '/preview', arguments: wallpaper);
}
Future<void> _toggleFavorite(WallpaperModel wallpaper) async {
final isFav = await _storageService.toggleFavorite(wallpaper);
setState(() => wallpaper.isFavorite = isFav);
}
}
七、图片预览页面
预览页面展示高清大图,支持设置壁纸等操作。
dart
import 'package:flutter/material.dart';
import '../model/wallpaper_model.dart';
/// 图片预览页面
class PreviewPage extends StatefulWidget {
final WallpaperModel wallpaper;
const PreviewPage({super.key, required this.wallpaper});
@override
State<PreviewPage> createState() => _PreviewPageState();
}
class _PreviewPageState extends State<PreviewPage>
with SingleTickerProviderStateMixin {
late AnimationController _animationController;
late Animation<double> _fadeAnimation;
late Animation<double> _scaleAnimation;
@override
void initState() {
super.initState();
_animationController = AnimationController(
duration: const Duration(milliseconds: 300),
vsync: this,
);
_fadeAnimation = Tween<double>(begin: 0.0, end: 1.0).animate(
CurvedAnimation(parent: _animationController, curve: Curves.easeOut),
);
_scaleAnimation = Tween<double>(begin: 0.8, end: 1.0).animate(
CurvedAnimation(parent: _animationController, curve: Curves.easeOut),
);
_animationController.forward();
}
@override
void dispose() {
_animationController.dispose();
super.dispose();
}
@override
Widget build(BuildContext context) {
return Scaffold(
backgroundColor: Colors.black,
body: Stack(
fit: StackFit.expand,
children: [
// 图片
GestureDetector(
onTap: () => Navigator.pop(context),
child: Center(
child: AnimatedBuilder(
animation: _animationController,
builder: (context, child) {
return Opacity(
opacity: _fadeAnimation.value,
child: Transform.scale(
scale: _scaleAnimation.value,
child: child,
),
);
},
child: InteractiveViewer(
minScale: 0.5,
maxScale: 4.0,
child: Image.network(
widget.wallpaper.url,
fit: BoxFit.contain,
),
),
),
),
),
// 顶部操作栏
Positioned(
top: 0,
left: 0,
right: 0,
child: Container(
padding: EdgeInsets.only(
top: MediaQuery.of(context).padding.top,
left: 8,
right: 8,
),
decoration: const BoxDecoration(
gradient: LinearGradient(
begin: Alignment.topCenter,
end: Alignment.bottomCenter,
colors: [Colors.black54, Colors.transparent],
),
),
child: Row(
mainAxisAlignment: MainAxisAlignment.spaceBetween,
children: [
IconButton(
icon: const Icon(Icons.arrow_back, color: Colors.white),
onPressed: () => Navigator.pop(context),
),
Row(
children: [
IconButton(
icon: const Icon(Icons.download, color: Colors.white),
onPressed: _downloadImage,
),
IconButton(
icon: Icon(
widget.wallpaper.isFavorite
? Icons.favorite
: Icons.favorite_border,
color: widget.wallpaper.isFavorite
? Colors.red
: Colors.white,
),
onPressed: _toggleFavorite,
),
],
),
],
),
),
),
// 底部信息栏
Positioned(
bottom: 0,
left: 0,
right: 0,
child: Container(
padding: EdgeInsets.only(
bottom: MediaQuery.of(context).padding.bottom + 16,
left: 16,
right: 16,
top: 32,
),
decoration: const BoxDecoration(
gradient: LinearGradient(
begin: Alignment.bottomCenter,
end: Alignment.topCenter,
colors: [Colors.black54, Colors.transparent],
),
),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
mainAxisSize: MainAxisSize.min,
children: [
Text(
widget.wallpaper.author,
style: const TextStyle(
color: Colors.white,
fontSize: 18,
fontWeight: FontWeight.bold,
),
),
const SizedBox(height: 4),
Text(
widget.wallpaper.title,
style: const TextStyle(color: Colors.white70, fontSize: 14),
),
const SizedBox(height: 8),
Text(
'${widget.wallpaper.width} × ${widget.wallpaper.height}',
style: const TextStyle(color: Colors.white54, fontSize: 12),
),
const SizedBox(height: 16),
SizedBox(
width: double.infinity,
child: ElevatedButton.icon(
onPressed: _setAsWallpaper,
icon: const Icon(Icons.wallpaper),
label: const Text('设为壁纸'),
style: ElevatedButton.styleFrom(
backgroundColor: const Color(0xFFFF6B6B),
foregroundColor: Colors.white,
padding: const EdgeInsets.symmetric(vertical: 12),
shape: RoundedRectangleBorder(
borderRadius: BorderRadius.circular(25),
),
),
),
),
],
),
),
),
],
),
);
}
void _downloadImage() {
ScaffoldMessenger.of(context).showSnackBar(
const SnackBar(content: Text('下载功能开发中...')),
);
}
void _toggleFavorite() {
setState(() {
widget.wallpaper.isFavorite = !widget.wallpaper.isFavorite;
});
ScaffoldMessenger.of(context).showSnackBar(
SnackBar(
content: Text(
widget.wallpaper.isFavorite ? '已添加到收藏' : '已取消收藏',
),
),
);
}
void _setAsWallpaper() {
ScaffoldMessenger.of(context).showSnackBar(
const SnackBar(content: Text('设置壁纸功能开发中...')),
);
}
}
八、截图运行板块
8.1 应用启动界面
应用启动后首先显示带有品牌 Logo 的启动页,经过动画效果后进入主页。
8.2 推荐壁纸列表
双列瀑布流展示所有推荐壁纸,每张图片支持点击预览和收藏操作。
8.3 分类浏览
点击底部导航栏的"分类" Tab,进入分类页面,展示 8 个常用分类(风景、人物、动物、建筑、植物、抽象、城市、自然),点击任意分类可查看该分类下的壁纸列表。
8.4 收藏管理
点击底部导航栏的"收藏" Tab,进入收藏页面,展示用户收藏的所有壁纸,支持一键删除和预览操作。
8.5 图片预览
点击任意壁纸进入预览页面,支持手势缩放查看高清细节,底部可进行下载、收藏和设为壁纸操作。
运行效果展示:
图1:推荐壁纸列表界面
图2:分类浏览界面
图3:收藏管理界面
九、技术总结
通过本次实战项目,完整地实现了:
-
FlutterOH 网络请求 :使用
http包进行 API 调用,展示了异步请求、错误处理、模拟数据降级等实用技巧。 -
本地持久化存储 :使用
shared_preferences实现收藏功能的增删改查,确保用户数据不丢失。 -
响应式状态管理 :通过
StatefulWidget和setState管理 UI 状态,实现了数据的动态更新。 -
动画效果 :使用
AnimationController实现图片预览页面的渐入和缩放动画,提升用户体验。 -
手势交互 :使用
InteractiveViewer实现图片的缩放查看,GestureDetector处理点击事件。
十、代码仓库
本文完整代码已托管至 AtomGit 仓库:
https://atomgit.com/maaath/flutter_wallpaper_app
仓库包含完整的 FlutterOH 项目代码,开发者可直接克隆后导入 DevEco Studio 运行测试。
十一、结语
Flutter for OpenHarmony 为跨平台开发带来了全新的可能性。本文通过图片壁纸应用这一实战案例,展示了 FlutterOH 在鸿蒙设备上的开发流程和关键技术点。相信随着 OpenHarmony 生态的持续发展,FlutterOH 将成为越来越多开发者的选择。
感谢各位阅读!
参考链接:
- Flutter 官方文档:https://docs.flutter.dev
- OpenHarmony 开发者文档:https://developer.harmonyos.com
- Picsum Photos API:https://picsum.photos
- AtomGit 代码托管:https://atomgit.com
