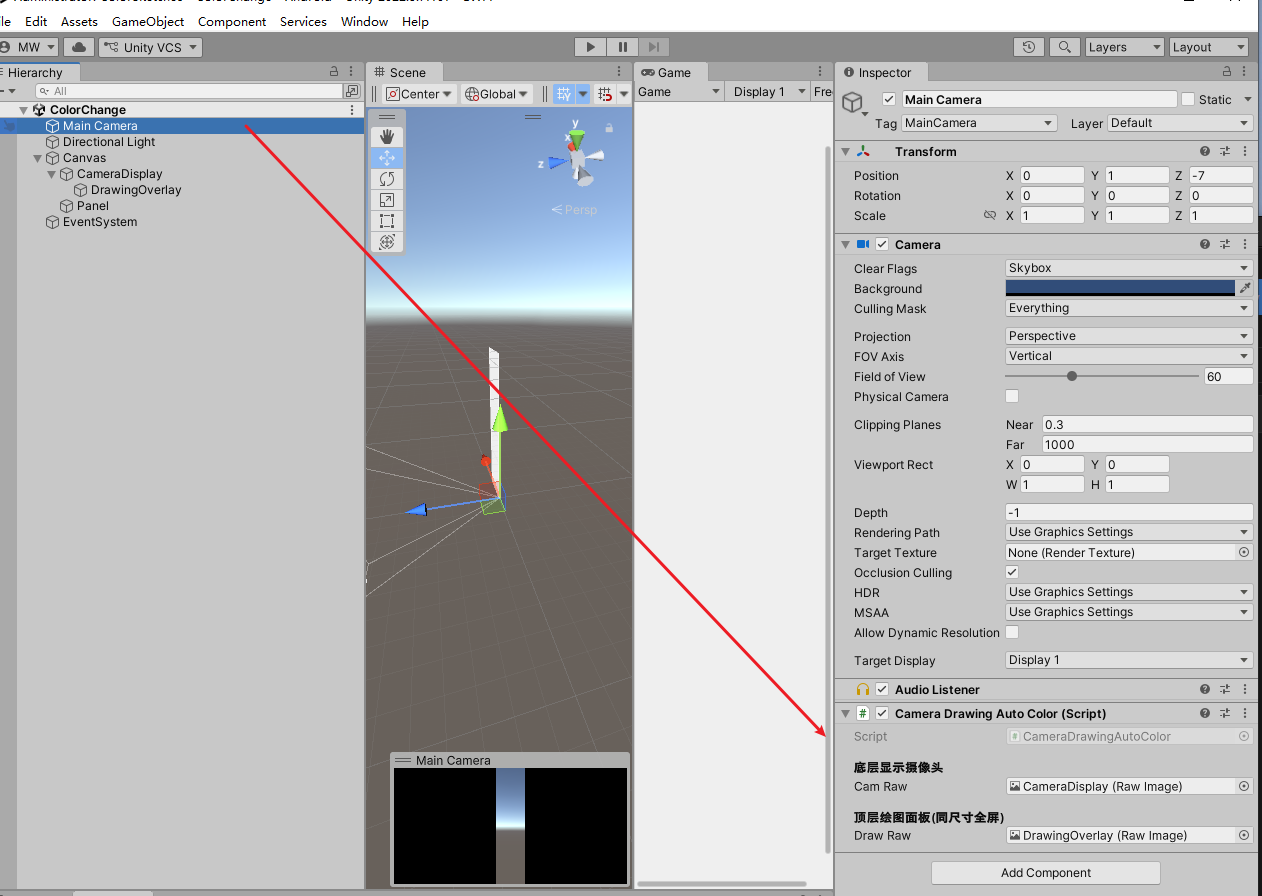

设置
两个是RawImage一个是显示相机，一个是显示标记
两个的层级关系不能错，不然相机显示的会挡住标记。
CameraDrawingAutoColor.cs
cs
using System;
using System.Collections.Generic;
using System.Linq;
using UnityEngine;
using UnityEngine.UI;
public class CameraDrawingAutoColor : MonoBehaviour
{
[Header("底层显示摄像头")]
public RawImage CamRaw;
[Header("顶层绘图面板(同尺寸全屏)")]
public RawImage DrawRaw;
private WebCamTexture _camTex;
private Texture2D _drawTex;
private int _w, _h;
private bool _isDraw;
private List<Vector2> _curPoints = new List<Vector2>();
private List<Stroke> _history = new List<Stroke>();
private readonly Color[] _candColors =
{
Color.black,Color.white,Color.red,Color.green,
Color.blue,Color.yellow,Color.cyan,Color.magenta
};
[Serializable]
class Stroke
{
public List<Vector2> pts = new List<Vector2>();
public Color col;
}
void Start()
{
// 初始化相机
var device = WebCamTexture.devices[0];
_camTex = new WebCamTexture(device.name, 1280, 720);
_camTex.Play();
CamRaw.texture = _camTex;
// 初始化顶层绘图纹理
Invoke(nameof(InitDrawTex), 0.5f);
}
void InitDrawTex()
{
_w = _camTex.width;
_h = _camTex.height;
_drawTex = new Texture2D(_w, _h, TextureFormat.RGBA32, false);
_drawTex.wrapMode = TextureWrapMode.Clamp;
ClearDrawTex();
DrawRaw.texture = _drawTex;
}
void Update()
{
if (_drawTex == null) return;
DealMouse();
RenderDraw();
// 快捷键
if (Input.GetKeyDown(KeyCode.C)) ClearAll();
if (Input.GetKeyDown(KeyCode.S)) SaveImg();
}
void DealMouse()
{
// 按下
if (Input.GetMouseButtonDown(0))
{
_isDraw = true;
_curPoints.Clear();
_curPoints.Add(GetMouseTexPos());
}
// 拖动
if (Input.GetMouseButton(0) && _isDraw)
{
var p = GetMouseTexPos();
if (Vector2.Distance(p, _curPoints.Last()) > 2f)
_curPoints.Add(p);
}
// 抬起
if (Input.GetMouseButtonUp(0) && _isDraw)
{
_isDraw = false;
if (_curPoints.Count < 2)
{
_curPoints.Clear();
return;
}
// 自动选对比色
Color bestCol = CalcStrokeColor(_curPoints);
_history.Add(new Stroke { pts = new List<Vector2>(_curPoints), col = bestCol });
_curPoints.Clear();
}
}
// 鼠标屏幕坐标 → 纹理像素坐标
Vector2 GetMouseTexPos()
{
RectTransform rect = DrawRaw.rectTransform;
RectTransformUtility.ScreenPointToLocalPointInRectangle(rect, Input.mousePosition, null, out Vector2 local);
float x = Mathf.Lerp(0, _w, (local.x / rect.rect.width) + 0.5f);
float y = Mathf.Lerp(0, _h, (local.y / rect.rect.height) + 0.5f);
x = Mathf.Clamp(x, 0, _w - 1);
y = Mathf.Clamp(y, 0, _h - 1);
return new Vector2(x, y);
}
// 渲染所有笔画
void RenderDraw()
{
ClearDrawTex();
// 历史正式线条
foreach (var s in _history)
DrawLineList(s.pts, s.col);
// 当前临时灰色线
if (_isDraw && _curPoints.Count > 1)
DrawLineList(_curPoints, Color.red);
_drawTex.Apply();
}
void DrawLineList(List<Vector2> pts, Color col)
{
for (int i = 0; i < pts.Count - 1; i++)
DrawBresenham(pts[i], pts[i + 1], col, 3);
}
// 画线
void DrawBresenham(Vector2 p1, Vector2 p2, Color col, int size)
{
int x0 = (int)p1.x, y0 = (int)p1.y;
int x1 = (int)p2.x, y1 = (int)p2.y;
int dx = Mathf.Abs(x1 - x0);
int dy = Mathf.Abs(y1 - y0);
int sx = x0 < x1 ? 1 : -1;
int sy = y0 < y1 ? 1 : -1;
int err = dx - dy;
while (true)
{
DrawPoint(x0, y0, col, size);
if (x0 == x1 && y0 == y1) break;
int e2 = 2 * err;
if (e2 > -dy) { err -= dy; x0 += sx; }
if (e2 < dx) { err += dx; y0 += sy; }
}
}
void DrawPoint(int x, int y, Color col, int r)
{
for (int dx = -r; dx <= r; dx++)
for (int dy = -r; dy <= r; dy++)
{
if (dx * dx + dy * dy <= r * r)
{
int px = x + dx;
int py = y + dy;
if (px >= 0 && px < _w && py >= 0 && py < _h)
_drawTex.SetPixel(px, py, col);
}
}
}
// 计算整条笔画最佳对比色
Color CalcStrokeColor(List<Vector2> pts)
{
Dictionary<Color, int> vote = new Dictionary<Color, int>();
foreach (var p in pts)
{
Color c = GetBestColor((int)p.x, (int)p.y);
if (vote.ContainsKey(c)) vote[c]++;
else vote[c] = 1;
}
return vote.OrderByDescending(k => k.Value).First().Key;
}
Color GetBestColor(int x, int y)
{
int win = 15;
int x1 = Mathf.Max(0, x - win);
int y1 = Mathf.Max(0, y - win);
int x2 = Mathf.Min(_w - 1, x + win);
int y2 = Mathf.Min(_h - 1, y + win);
Color avg = Color.black;
float r = 0, g = 0, b = 0;
int cnt = 0;
for (int yy = y1; yy <= y2; yy++)
for (int xx = x1; xx <= x2; xx++)
{
Color c = _camTex.GetPixel(xx, yy);
r += c.r; g += c.g; b += c.b; cnt++;
}
avg = new Color(r / cnt, g / cnt, b / cnt);
float maxDis = -999;
Color best = Color.red;
foreach (var cc in _candColors)
{
float d = Mathf.Pow(cc.r - avg.r, 2) + Mathf.Pow(cc.g - avg.g, 2) + Mathf.Pow(cc.b - avg.b, 2);
if (d > maxDis)
{
maxDis = d;
best = cc;
}
}
return best;
}
void ClearDrawTex()
{
if (_drawTex == null) return;
Color[] clear = new Color[_w * _h];
for (int i = 0; i < clear.Length; i++)
clear[i] = Color.clear;
_drawTex.SetPixels(clear);
}
void ClearAll()
{
_history.Clear();
_curPoints.Clear();
_isDraw = false;
ClearDrawTex();
}
void SaveImg()
{
RenderTexture rt = new RenderTexture(_w, _h, 24);
rt.Create();
CamRaw.texture = _camTex;
DrawRaw.texture = _drawTex;
Texture2D saveTex = new Texture2D(_w, _h);
saveTex.ReadPixels(new Rect(0, 0, _w, _h), 0, 0);
saveTex.Apply();
byte[] png = saveTex.EncodeToPNG();
string path = Application.persistentDataPath + "/cam_draw.png";
System.IO.File.WriteAllBytes(path, png);
Debug.Log("保存成功：" + path);
}
void OnDestroy()
{
if (_camTex != null) _camTex.Stop();
}
}
