using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.UI;
public class DrawManager : MonoBehaviour
{

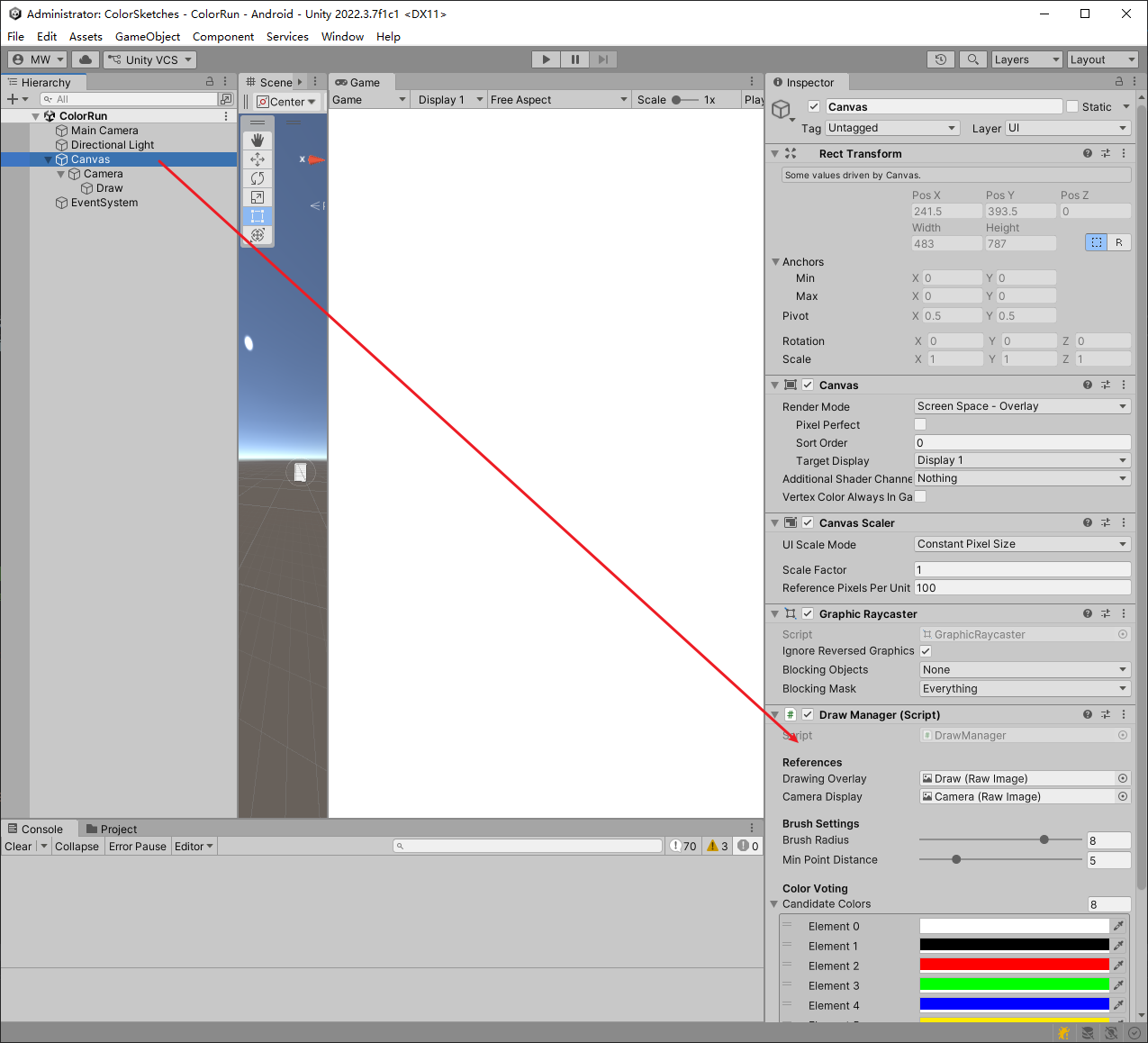

[Header("References")]
[SerializeField] private RawImage drawingOverlay; // 显示绘图的 RawImage
[SerializeField] private RawImage cameraDisplay; // 显示相机画面的 RawImage
[Header("Brush Settings")]
[SerializeField] [Range(1f, 10f)] private float brushRadius = 2f;
[SerializeField] [Range(1f, 20f)] private float minPointDistance = 5f;
[Header("Color Voting")]
[SerializeField]
private Color[] candidateColors = new Color[]
{
Color.white, Color.black, Color.red, Color.green, Color.blue,
Color.yellow, Color.cyan, Color.magenta
};
[SerializeField] private int sampleWindowSize = 31;
private Texture2D drawTexture; // 永久绘图纹理
private Texture2D combinedPreviewTexture; // 预览纹理缓存
private bool isReady = false;
private bool isDrawing = false;
private List<Vector2> currentStrokeUV = new List<Vector2>();
void Start()
{
if (drawingOverlay == null || cameraDisplay == null)
{
Debug.LogError("? 请将 drawingOverlay 和 cameraDisplay 拖拽到 DrawManager 组件上");
return;
}
StartCoroutine(Init());
}
IEnumerator Init()
{
while (CameraHandler.Instance == null || !CameraHandler.Instance.IsCameraReady)
yield return null;
Texture2D camTex = CameraHandler.Instance.CurrentFrame;
while (camTex == null || camTex.width <= 0)
yield return null;
int w = camTex.width;
int h = camTex.height;
drawTexture = new Texture2D(w, h, TextureFormat.RGBA32, false);
drawTexture.filterMode = FilterMode.Point;
ClearTexture(drawTexture, Color.clear);
drawingOverlay.texture = drawTexture;
//drawingOverlay.SetNativeSize(); //这会使显示区域的中心为相机显示区域的右下角坐标就不了
isReady = true;
Debug.Log($"绘图就绪，纹理尺寸：{w}x{h}");
}
void ClearTexture(Texture2D tex, Color color)
{
Color[] cols = new Color[tex.width * tex.height];
for (int i = 0; i < cols.Length; i++) cols[i] = color;
tex.SetPixels(cols);
tex.Apply();
}
void Update()
{
if (!isReady) return;
if (Input.GetKeyDown(KeyCode.C))
{
ClearTexture(drawTexture, Color.clear);
currentStrokeUV.Clear();
isDrawing = false;
Debug.Log("已清除所有标记");
return;
}
if (Input.GetMouseButtonDown(0))
{
isDrawing = true;
currentStrokeUV.Clear();
Vector2 uv = ScreenToUV(Input.mousePosition);
if (IsUVValid(uv))
currentStrokeUV.Add(uv);
}
else if (Input.GetMouseButton(0) && isDrawing)
{
Vector2 uv = ScreenToUV(Input.mousePosition);
if (!IsUVValid(uv)) return;
if (currentStrokeUV.Count == 0)
{
currentStrokeUV.Add(uv);
return;
}
Vector2 lastUV = currentStrokeUV[currentStrokeUV.Count - 1];
float dist = Vector2.Distance(uv, lastUV) * Mathf.Max(drawTexture.width, drawTexture.height);
if (dist > minPointDistance)
{
currentStrokeUV.Add(uv);
RedrawWithCurrentStroke(Color.red); // 实时预览
}
}
else if (Input.GetMouseButtonUp(0) && isDrawing)
{
if (currentStrokeUV.Count >= 2)
{
Color finalColor = GetAggregatedColor(currentStrokeUV);
DrawUVStrokeOnTexture(drawTexture, currentStrokeUV, finalColor);
Debug.Log($"笔画完成，投票颜色：{finalColor}");
}
currentStrokeUV.Clear();
isDrawing = false;
drawingOverlay.texture = drawTexture; // 恢复显示永久纹理
}
}
void RedrawWithCurrentStroke(Color previewColor)
{
if (drawTexture == null) return;
if (combinedPreviewTexture == null || combinedPreviewTexture.width != drawTexture.width)
{
combinedPreviewTexture = new Texture2D(drawTexture.width, drawTexture.height, TextureFormat.RGBA32, false);
}
Graphics.CopyTexture(drawTexture, combinedPreviewTexture);
DrawUVStrokeOnTexture(combinedPreviewTexture, currentStrokeUV, previewColor);
drawingOverlay.texture = combinedPreviewTexture;
}
void DrawUVStrokeOnTexture(Texture2D targetTex, List<Vector2> pointsUV, Color color)
{
if (targetTex == null || pointsUV.Count < 2) return;
int w = targetTex.width;
int h = targetTex.height;
List<Vector2Int> pixelPoints = new List<Vector2Int>();
foreach (Vector2 uv in pointsUV)
{
// 应用旋转校正：将 UV 映射到实际纹理像素时需要根据摄像头旋转角度调整
Vector2 correctedUV = ApplyRotationToUV(uv);
int x = Mathf.Clamp((int)(correctedUV.x * w), 0, w - 1);
int y = Mathf.Clamp((int)(correctedUV.y * h), 0, h - 1);
pixelPoints.Add(new Vector2Int(x, y));
}
for (int i = 0; i < pixelPoints.Count - 1; i++)
DrawLineOnTexture(targetTex, pixelPoints[i], pixelPoints[i + 1], color);
if (pixelPoints.Count > 0)
{
DrawCircleOnTexture(targetTex, pixelPoints[0], color);
DrawCircleOnTexture(targetTex, pixelPoints[pixelPoints.Count - 1], color);
}
targetTex.Apply();
}
Vector2 ApplyRotationToUV(Vector2 uv)
{
// 根据摄像头的旋转角度，将显示画面的 UV 映射到原始纹理的 UV
int angle = CameraHandler.Instance.TextureRotationAngle;
switch (angle)
{
case 90: return new Vector2(uv.y, 1 - uv.x);
case 180: return new Vector2(1 - uv.x, 1 - uv.y);
case 270: return new Vector2(1 - uv.y, uv.x);
default: return uv;
}
}
// 以下方法保持不变（绘图辅助、投票等）
void DrawLineOnTexture(Texture2D tex, Vector2Int p0, Vector2Int p1, Color color)
{
List<Vector2Int> points = GetLinePoints(p0, p1);
foreach (var pt in points)
DrawCircleOnTexture(tex, pt, color);
}
List<Vector2Int> GetLinePoints(Vector2Int p0, Vector2Int p1)
{
List<Vector2Int> points = new List<Vector2Int>();
int dx = Mathf.Abs(p1.x - p0.x);
int dy = Mathf.Abs(p1.y - p0.y);
int sx = p0.x < p1.x ? 1 : -1;
int sy = p0.y < p1.y ? 1 : -1;
int err = dx - dy;
int x = p0.x, y = p0.y;
while (true)
{
points.Add(new Vector2Int(x, y));
if (x == p1.x && y == p1.y) break;
int e2 = 2 * err;
if (e2 > -dy) { err -= dy; x += sx; }
if (e2 < dx) { err += dx; y += sy; }
}
return points;
}
void DrawCircleOnTexture(Texture2D tex, Vector2Int center, Color color)
{
int r = Mathf.CeilToInt(brushRadius);
for (int x = -r; x <= r; x++)
for (int y = -r; y <= r; y++)
if (x * x + y * y <= r * r)
{
int px = center.x + x;
int py = center.y + y;
if (px >= 0 && px < tex.width && py >= 0 && py < tex.height)
tex.SetPixel(px, py, color);
}
}
Color GetAggregatedColor(List<Vector2> pointsUV)
{
int[] votes = new int[candidateColors.Length];
foreach (Vector2 uv in pointsUV)
{
int idx = GetBestColorIndex(uv);
votes[idx]++;
}
int maxIdx = 0;
for (int i = 1; i < votes.Length; i++)
if (votes[i] > votes[maxIdx]) maxIdx = i;
return candidateColors[maxIdx];
}
int GetBestColorIndex(Vector2 uv)
{
Texture2D bg = CameraHandler.Instance.CurrentFrame;
if (bg == null) return 0;
// 同样需要旋转校正
Vector2 correctedUV = ApplyRotationToUV(uv);
int px = Mathf.Clamp((int)(correctedUV.x * bg.width), 0, bg.width - 1);
int py = Mathf.Clamp((int)(correctedUV.y * bg.height), 0, bg.height - 1);
int half = sampleWindowSize / 2;
int sx = Mathf.Max(0, px - half);
int sy = Mathf.Max(0, py - half);
int ww = Mathf.Min(bg.width - sx, sampleWindowSize);
int hh = Mathf.Min(bg.height - sy, sampleWindowSize);
Color[] samples = bg.GetPixels(sx, sy, ww, hh);
if (samples.Length == 0) return 0;
Color avg = Color.black;
foreach (Color c in samples) avg += c;
avg /= samples.Length;
float maxDist = -1f;
int best = 0;
for (int i = 0; i < candidateColors.Length; i++)
{
float dist = Vector3.Distance(new Vector3(avg.r, avg.g, avg.b),
new Vector3(candidateColors[i].r, candidateColors[i].g, candidateColors[i].b));
if (dist > maxDist) { maxDist = dist; best = i; }
}
return best;
}
Vector2 ScreenToUV(Vector2 screenPos)
{
// 获取 cameraDisplay 的屏幕空间矩形（不受 Canvas 缩放影响）
RectTransform rect = cameraDisplay.rectTransform;
Vector2 localPoint;
if (RectTransformUtility.ScreenPointToLocalPointInRectangle(rect, screenPos, null, out localPoint))
{
// 将局部坐标映射到 0~1 范围
Vector2 uv = new Vector2(
(localPoint.x / rect.rect.width) + 0.5f,
(localPoint.y / rect.rect.height) + 0.5f
);
return uv;
}
return new Vector2(-1, -1);
}
bool IsUVValid(Vector2 uv) => uv.x >= 0 && uv.x <= 1 && uv.y >= 0 && uv.y <= 1;
public void SaveScreenshot()
{
if (CameraHandler.Instance == null || CameraHandler.Instance.CurrentFrame == null || drawTexture == null)
return;
Texture2D background = CameraHandler.Instance.CurrentFrame;
Texture2D combined = new Texture2D(background.width, background.height, TextureFormat.RGBA32, false);
combined.SetPixels(background.GetPixels());
Color[] drawPixels = drawTexture.GetPixels();
Color[] bgPixels = combined.GetPixels();
for (int i = 0; i < bgPixels.Length; i++)
{
if (drawPixels[i].a > 0.1f)
bgPixels[i] = Color.Lerp(bgPixels[i], drawPixels[i], drawPixels[i].a);
}
combined.SetPixels(bgPixels);
combined.Apply();
byte[] bytes = combined.EncodeToPNG();
string path = Application.persistentDataPath + "/screenshot.png";
System.IO.File.WriteAllBytes(path, bytes);
Debug.Log("截图保存至：" + path);
Destroy(combined);
}
}
