单点登录
架构:springcloud2023.x+springboot3.x+mysql+nacos3.x+gateway
介绍:
mysql_sso是postman测试的功能分支。这个分支是正常的调转和回调地址。
加了gateways统一处理gateway的模块.一、整体架构图
┌─────────────────────────────────────────────────────────────────────────────┐
│ 前端/浏览器 │
└─────────────────────────────────────────────────────────────────────────────┘
│
▼
┌─────────────────────────────────────────────────────────────────────────────┐
│ Gateway (8082) - 统一入口 │
│ ┌─────────────────────────────────────────────────────────────────────┐ │
│ │ • OAuth2 客户端（接收回调） │ │
│ │ • TokenRelay 过滤器（转发 Token） │ │
│ │ • 路由转发（/api/** → resource） │ │
│ │ • Session 管理（存储认证信息） │ │
│ └─────────────────────────────────────────────────────────────────────┘ │
└─────────────────────────────────────────────────────────────────────────────┘
│ │
▼ ▼
┌─────────────────────────┐ ┌─────────────────────────────────────────────┐
│ Auth Server (9001) │ │ Resource Server (9002) │
│ ┌───────────────────┐ │ │ ┌───────────────────────────────────────┐ │
│ │ • 授权端点 │ │ │ │ • JWT 验证 │ │
│ │ • Token 端点 │ │ │ │ • 权限校验 (SCOPE_*) │ │
│ │ • JWK 端点 │ │ │ │ • 业务 API (/api/user/info) │ │
│ │ • 用户认证 │ │ │ └───────────────────────────────────────┘ │
│ │ • 客户端管理 │ │ └─────────────────────────────────────────────┘
│ │ • 授权码模式 │ │
│ └───────────────────┘ │
└─────────────────────────┘
│
▼
┌─────────────────────────────────────────────────────────────────────────────┐
│ Nacos (8848) - 服务发现 │
│ auth / resource / gateways │
└─────────────────────────────────────────────────────────────────────────────┘
│
▼
┌─────────────────────────────────────────────────────────────────────────────┐
│ MySQL - 数据持久化 │
│ • oauth2_registered_client（客户端注册） │
│ • oauth2_authorization（授权码/Token） │
│ • sys_user / sys_role（用户角色） │
└─────────────────────────────────────────────────────────────────────────────┘
二、技术栈清单
1. 核心框架
| 技术 | 版本 | 用途 |
|---|---|---|
| Spring Boot | 3.2.5 | 基础框架 |
| Spring Security | 6.2.4 | 安全框架 |
| Spring Authorization Server | 1.2.4 | OAuth2 授权服务器 |
| Spring Cloud | 2023.0.1 | 微服务框架 |
| Spring Cloud Gateway | 4.1.2 | API 网关 |
| Spring Cloud Alibaba | 2023.0.1.0 | 阿里云微服务组件 |
2. 服务发现与配置
| 技术 | 用途 |
|---|---|
| Nacos | 服务注册与发现 |
3. 数据层
| 技术 | 版本 | 用途 |
|---|---|---|
| MySQL | 8.0.33 | 关系型数据库 |
| MyBatis-Plus | 3.5.7 | ORM 框架 |
| HikariCP | 5.0.1 | 数据库连接池 |
4. 安全相关
| 技术 | 用途 |
|---|---|
| JWT (JJWT) | JSON Web Token 生成与验证 |
| BCrypt | 密码加密 |
| RSA | JWT 签名（非对称加密） |
| OAuth2 / OIDC | 授权协议 |
5. 开发工具
| 工具 | 用途 |
|---|---|
| Lombok | 简化 Java 代码 |
| Maven | 项目构建 |
| IntelliJ IDEA | 开发 IDE |
| Postman | API 测试 |

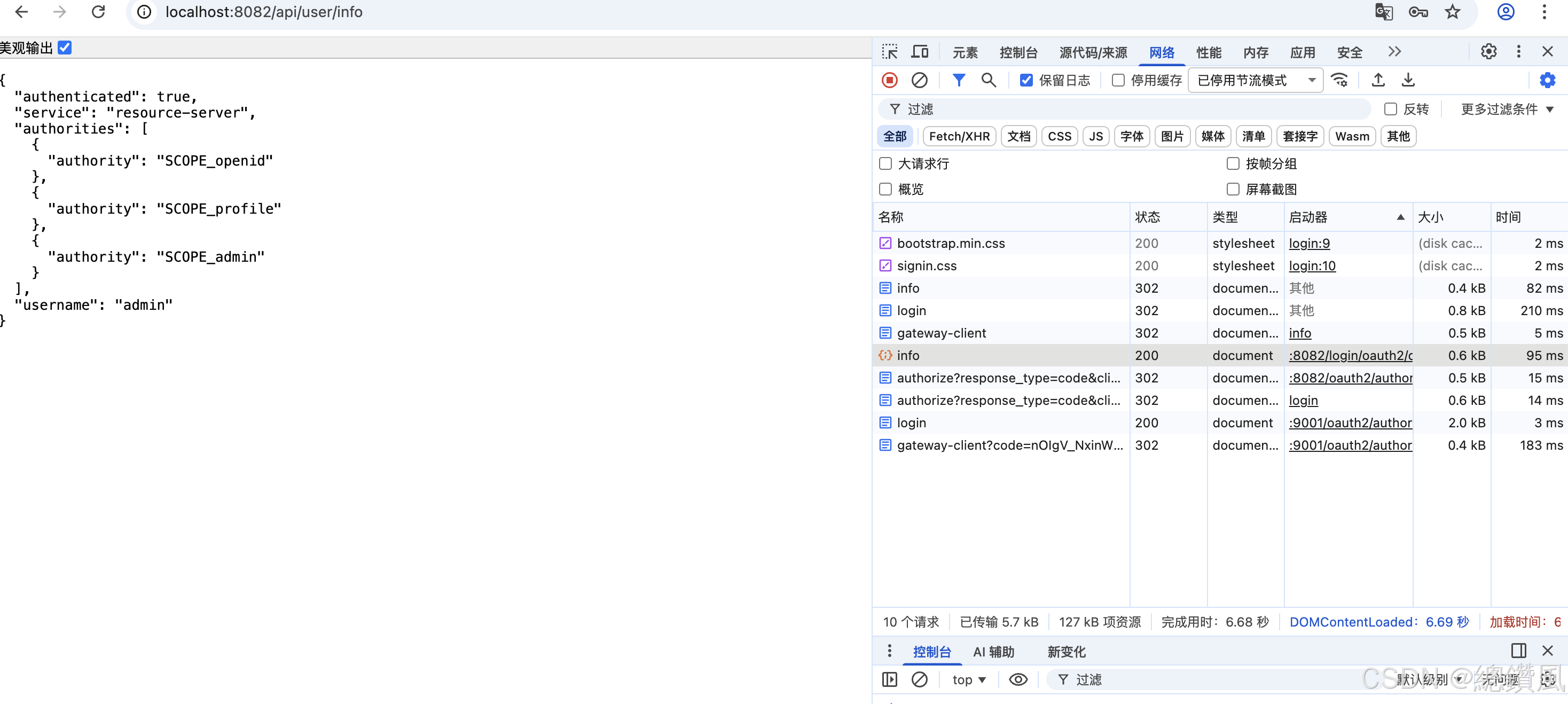

三、SSO 单点登录流程
核心流程
text
┌─────────────────────────────────────────────────────────────────────────────┐
│ SSO 登录流程 │
├─────────────────────────────────────────────────────────────────────────────┤
│ │
│ 用户 → Gateway (8082/api/user/info) │
│ │ │
│ │ 1. 未登录，302 重定向 │
│ ▼ │
│ Auth Server (9001/login) │
│ │ │
│ │ 2. 用户输入用户名/密码 │
│ ▼ │
│ 认证成功，生成授权码 │
│ │ │
│ │ 3. 302 重定向到 Gateway 回调 │
│ ▼ │
│ Gateway (8082/login/oauth2/code/...) │
│ │ │
│ │ 4. 用授权码换 Token │
│ ▼ │
│ 获取 Access Token，存入 Session │
│ │ │
│ │ 5. 302 重定向回 /api/user/info │
│ ▼ │
│ Gateway 带着 Token 转发请求到 Resource │
│ │ │
│ ▼ │
│ Resource 验证 JWT，返回用户信息 │
│ │ │
│ ▼ │
│ 用户看到登录成功页面 │
│ │
└─────────────────────────────────────────────────────────────────────────────┘SSO 关键点
| 特性 | 实现方式 |
|---|---|
| 一次登录，多系统访问 | Gateway Session 共享 |
| Token 无状态 | JWT 自包含，无需服务端存储 |
| 客户端注册 | oauth2_registered_client 表 |
| 授权码模式 | 最安全的 OAuth2 流程 |
| Token 转发 | Gateway TokenRelay 过滤器 |
四、模块职责
| 模块 | 端口 | 职责 |
|---|---|---|
| auth | 9001 | 授权服务器：认证、颁发 Token、管理客户端 |
| resource | 9002 | 资源服务器：提供业务 API，验证 JWT |
| gateways | 8082 | API 网关：统一入口、OAuth2 客户端、路由转发 |
| Nacos | 8848 | 服务注册与发现 |
五、关键技术点
1. OAuth2 授权码模式
http
# 1. 获取授权码
GET /oauth2/authorize?response_type=code&client_id=xxx&redirect_uri=xxx
# 2. 用授权码换 Token
POST /oauth2/token
grant_type=authorization_code&code=xxx
# 3. 用 Token 访问资源
GET /api/user/info
Authorization: Bearer {access_token}2. JWT 结构
json
{
"header": {"alg": "RS256", "kid": "xxx"},
"payload": {
"sub": "admin",
"scope": ["openid", "profile", "admin"],
"iss": "http://localhost:9001",
"exp": 1778585139
},
"signature": "RSA 签名"
}3. Gateway Token 转发
yaml
filters:
- TokenRelay # 自动将用户 Token 转发到下游服务4. Resource JWT 验证
yaml
spring:
security:
oauth2:
resourceserver:
jwt:

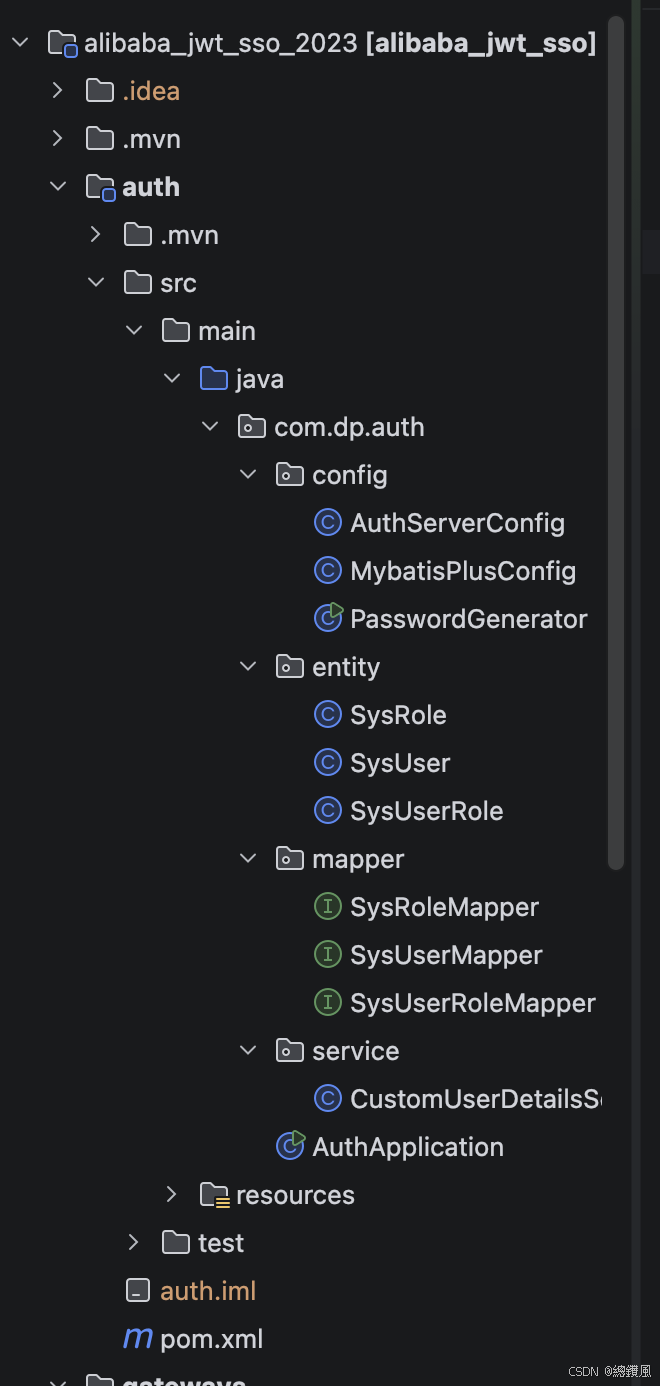

jwk-set-uri: http://localhost:9001/oauth2/jwks六、项目结构
text
alibaba_jwt_sso_2023/
├── auth/ # 授权服务器
│ ├── AuthServerConfig.java # OAuth2 授权服务器配置
│ ├── CustomUserDetailsService # 用户详情服务
│ └── 表: sys_user, sys_role, oauth2_*
│
├── resource/ # 资源服务器
│ ├── ResourceServerConfig.java # JWT 验证配置
│ └── UserController.java # 业务 API
│
├── gateways/ # API 网关
│ ├── GatewayApplication.java # 启动类
│ ├── GatewaySecurityConfig.java # OAuth2 登录配置
│ └── application.yml # 路由配置
│
├── pom.xml # 父依赖管理
└── .gitignore # Git 忽略配置七、代码
核心文件：
项目的pom
java
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>3.2.5</version>
<relativePath/>
</parent>
<groupId>com.dp</groupId>
<artifactId>alibaba_jwt_sso_2023</artifactId>
<version>1.0.0</version>
<name>alibaba_jwt_sso</name>
<description>alibaba_jwt_sso</description>
<packaging>pom</packaging>
<modules>
<module>auth</module>
<module>resource</module>
<module>gateways</module>
</modules>
<properties>
<java.version>17</java.version>
<spring-cloud.version>2023.0.1</spring-cloud.version>
<spring-cloud-alibaba.version>2023.0.1.0</spring-cloud-alibaba.version>
<spring-auth-server.version>1.2.4</spring-auth-server.version>
<jjwt.version>0.11.5</jjwt.version>
<!-- 新增 -->
<mybatis-plus.version>3.5.7</mybatis-plus.version>
<mysql.version>8.0.33</mysql.version>
</properties>
<dependencyManagement>
<dependencies>
<!-- Spring Cloud -->
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-dependencies</artifactId>
<version>${spring-cloud.version}</version>
<type>pom</type>
<scope>import</scope>
</dependency>
<!-- Spring Cloud Alibaba -->
<dependency>
<groupId>com.alibaba.cloud</groupId>
<artifactId>spring-cloud-alibaba-dependencies</artifactId>
<version>${spring-cloud-alibaba.version}</version>
<type>pom</type>
<scope>import</scope>
</dependency>
<dependency>
<groupId>org.springframework.security</groupId>
<artifactId>spring-security-oauth2-authorization-server</artifactId>
<version>${spring-auth-server.version}</version>
</dependency>
<!-- JJWT -->
<dependency>
<groupId>io.jsonwebtoken</groupId>
<artifactId>jjwt-api</artifactId>
<version>${jjwt.version}</version>
</dependency>
<dependency>
<groupId>io.jsonwebtoken</groupId>
<artifactId>jjwt-impl</artifactId>
<version>${jjwt.version}</version>
<scope>runtime</scope>
</dependency>
<dependency>
<groupId>io.jsonwebtoken</groupId>
<artifactId>jjwt-jackson</artifactId>
<version>${jjwt.version}</version>
<scope>runtime</scope>
</dependency>
<dependency>
<groupId>com.mysql</groupId>
<artifactId>mysql-connector-j</artifactId>
<version>${mysql.version}</version>
</dependency>
<dependency>
<groupId>com.baomidou</groupId>
<artifactId>mybatis-plus-spring-boot3-starter</artifactId>
<version>${mybatis-plus.version}</version>
</dependency>
<!-- <!– Spring Cloud Gateway –>-->
<!-- <dependency>-->
<!-- <groupId>org.springframework.cloud</groupId>-->
<!-- <artifactId>spring-cloud-starter-gateway</artifactId>-->
<!-- </dependency>-->
<!-- <!– Spring Cloud LoadBalancer –>-->
<!-- <dependency>-->
<!-- <groupId>org.springframework.cloud</groupId>-->
<!-- <artifactId>spring-cloud-starter-loadbalancer</artifactId>-->
<!-- <version>4.1.0</version>-->
<!-- </dependency>-->
</dependencies>
</dependencyManagement>
<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
</plugins>
</build>
</project>auth / AuthServerConfig.java
java
package com.dp.auth.config;
import com.dp.auth.service.CustomUserDetailsService;
import com.nimbusds.jose.jwk.JWKSet;
import com.nimbusds.jose.jwk.RSAKey;
import com.nimbusds.jose.jwk.source.ImmutableJWKSet;
import com.nimbusds.jose.jwk.source.JWKSource;
import com.nimbusds.jose.proc.SecurityContext;
import lombok.RequiredArgsConstructor;
import lombok.extern.slf4j.Slf4j;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.annotation.Order;
import org.springframework.jdbc.core.JdbcOperations;
import org.springframework.jdbc.core.JdbcTemplate;
import org.springframework.security.config.Customizer;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.core.userdetails.User;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.security.crypto.password.DelegatingPasswordEncoder;
import org.springframework.security.crypto.password.NoOpPasswordEncoder;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.security.oauth2.core.AuthorizationGrantType;
import org.springframework.security.oauth2.core.ClientAuthenticationMethod;
import org.springframework.security.oauth2.jwt.JwtDecoder;
import org.springframework.security.oauth2.server.authorization.JdbcOAuth2AuthorizationConsentService;
import org.springframework.security.oauth2.server.authorization.JdbcOAuth2AuthorizationService;
import org.springframework.security.oauth2.server.authorization.OAuth2AuthorizationConsentService;
import org.springframework.security.oauth2.server.authorization.OAuth2AuthorizationService;
import org.springframework.security.oauth2.server.authorization.client.InMemoryRegisteredClientRepository;
import org.springframework.security.oauth2.server.authorization.client.JdbcRegisteredClientRepository;
import org.springframework.security.oauth2.server.authorization.client.RegisteredClient;
import org.springframework.security.oauth2.server.authorization.client.RegisteredClientRepository;
import org.springframework.security.oauth2.server.authorization.config.annotation.web.configuration.OAuth2AuthorizationServerConfiguration;
import org.springframework.security.oauth2.server.authorization.config.annotation.web.configurers.OAuth2AuthorizationServerConfigurer;
import org.springframework.security.oauth2.server.authorization.settings.AuthorizationServerSettings;
import org.springframework.security.oauth2.server.authorization.settings.ClientSettings;
import org.springframework.security.oauth2.server.authorization.settings.TokenSettings;
import org.springframework.security.provisioning.InMemoryUserDetailsManager;
import org.springframework.security.web.SecurityFilterChain;
import org.springframework.security.web.savedrequest.HttpSessionRequestCache;
import org.springframework.security.web.savedrequest.RequestCache;
import org.springframework.security.web.savedrequest.SavedRequest;
import javax.sql.DataSource;
import java.security.KeyPair;
import java.security.KeyPairGenerator;
import java.security.interfaces.RSAPrivateKey;
import java.security.interfaces.RSAPublicKey;
import java.time.Duration;
import java.util.HashMap;
import java.util.Map;
import java.util.UUID;
/**
* 认证服务器配置（新版 Spring Authorization Server）
*/
@Slf4j
@Configuration
@EnableWebSecurity
@RequiredArgsConstructor
public class AuthServerConfig {
private final DataSource dataSource;
private final CustomUserDetailsService customUserDetailsService;
// ==================== 1. 用户认证配置（保持不变） ====================
/**
* 密码编码器. 使用 BCrypt 加密，存储时自动加盐
*/
@Bean
public PasswordEncoder passwordEncoder() {
log.info("【2.Bean初始化】passwordEncoder - 密码编码器创建（支持bcrypt和noop）");
// 创建支持多种编码方式的密码编码器
String defaultEncoding = "bcrypt";
Map<String, PasswordEncoder> encoders = new HashMap<>();
encoders.put("bcrypt", new BCryptPasswordEncoder());
encoders.put("noop", NoOpPasswordEncoder.getInstance());
DelegatingPasswordEncoder delegatingPasswordEncoder = new DelegatingPasswordEncoder(defaultEncoding, encoders);
delegatingPasswordEncoder.setDefaultPasswordEncoderForMatches(new BCryptPasswordEncoder());
log.info("密码编码器配置完成 - 默认使用BCrypt算法");
return delegatingPasswordEncoder;
}
@Bean
public UserDetailsService userDetailsService() {
log.info("【3.Bean初始化】userDetailsService - 用户详情服务创建（使用CustomUserDetailsService）");
return customUserDetailsService;
}
// ==================== 2. OAuth2 客户端配置（替代 AuthorizationServerConfig） ====================
/**
* 创建 JdbcTemplate 用于数据库操作
* ==================== 1. 数据基础设施 ====================
*/
@Bean
public JdbcOperations jdbcOperations() {
log.info("【1.Bean初始化】jdbcOperations - JDBC操作模板创建");
return new JdbcTemplate(dataSource);
}
/**
* 客户端注册信息仓库
*/
@Bean
public RegisteredClientRepository registeredClientRepository(JdbcOperations jdbcOperations) {
log.info("【Bean初始化】registeredClientRepository - 客户端仓库创建");
JdbcRegisteredClientRepository repository = new JdbcRegisteredClientRepository(jdbcOperations);
// 检查是否已存在客户端，如果不存在则初始化默认客户端
if (repository.findByClientId("gateway-client") == null) {
// 创建默认客户端（实际生产环境应该通过 SQL 初始化）
// 这里保留代码逻辑作为备选，但推荐使用 SQL 脚本初始化
}
return repository;
}
// ==================== 3. JWT 配置（替代 JwtAccessTokenConverter） ====================
/**
* OAuth2 授权记录服务（存储到 MySQL）
*/
@Bean
public OAuth2AuthorizationService authorizationService(JdbcOperations jdbcOperations,
RegisteredClientRepository registeredClientRepository) {
log.info("【Bean初始化】authorizationService - OAuth2授权记录服务创建（存储到MySQL）");
log.info(" 作用：存储授权码、Access Token、Refresh Token到数据库");
log.info(" 表名：oauth2_authorization");
return new JdbcOAuth2AuthorizationService(jdbcOperations, registeredClientRepository);
}
/**
* OAuth2 授权确认服务（存储到 MySQL）
*/
@Bean
public OAuth2AuthorizationConsentService authorizationConsentService(JdbcOperations jdbcOperations,
RegisteredClientRepository registeredClientRepository) {
log.info("【Bean初始化】authorizationConsentService - OAuth2授权确认服务创建（存储到MySQL）");
log.info(" 作用：记录用户同意授权的权限范围");
log.info(" 表名：oauth2_authorization_consent");
return new JdbcOAuth2AuthorizationConsentService(jdbcOperations, registeredClientRepository);
}
/**
* JWT 密钥源 - 生成 RSA 密钥对
* 替代旧版的 JwtAccessTokenConverter
*/
@Bean
public JWKSource<SecurityContext> jwkSource() {
log.info("【Bean初始化】jwkSource - JWT密钥源创建");
KeyPair keyPair = generateRsaKey();
RSAPublicKey publicKey = (RSAPublicKey) keyPair.getPublic();
RSAPrivateKey privateKey = (RSAPrivateKey) keyPair.getPrivate();
RSAKey rsaKey = new RSAKey.Builder(publicKey)
.privateKey(privateKey)
.keyID(UUID.randomUUID().toString())
.build();
log.info("【JWK配置】密钥: {}", rsaKey);
JWKSet jwkSet = new JWKSet(rsaKey);
return new ImmutableJWKSet<>(jwkSet);
}
/**
* 生成 RSA 密钥对
* 用于 JWT 签名和验证
*/
private static KeyPair generateRsaKey() {
try {
log.info("【RSA密钥生成】开始生成2048位RSA密钥对");
KeyPairGenerator generator = KeyPairGenerator.getInstance("RSA");
generator.initialize(2048);
return generator.generateKeyPair();
} catch (Exception ex) {
throw new IllegalStateException(ex);
}
}
/**
* JWT 解码器
* 用于验证 Token
*/
@Bean
public JwtDecoder jwtDecoder(JWKSource<SecurityContext> jwkSource) {
return OAuth2AuthorizationServerConfiguration.jwtDecoder(jwkSource);
}
/**
* Token 存储（新版使用 JwtDecoder，不需要单独的 TokenStore）
* 注意：新版不需要 TokenStore Bean，JwtDecoder 已经处理
*/
// ==================== 4. 安全过滤器链配置（替代 WebSecurityConfigurerAdapter） ====================
/**
* OAuth2 授权服务器安全配置（优先级最高）
* 替代旧版的 AuthorizationServerSecurityConfigurer
*/
@Bean
@Order(1)
public SecurityFilterChain authorizationServerSecurityFilterChain(HttpSecurity http) throws Exception {
log.info("【Bean初始化】authorizationServerSecurityFilterChain - OAuth2授权服务器安全配置（@Order(1)，最高优先级）");
log.info(" 保护的端点：/oauth2/authorize, /oauth2/token, /oauth2/jwks, /userinfo");
log.info(" 请求匹配：所有OAuth2相关的端点");
// 应用默认的 OAuth2 授权服务器配置
OAuth2AuthorizationServerConfiguration.applyDefaultSecurity(http);
// 启用 OIDC 协议
http.getConfigurer(OAuth2AuthorizationServerConfigurer.class)
.oidc(Customizer.withDefaults());
log.info(" ✅ OIDC协议已启用");
log.info(" ✅ 表单登录已启用");
// 启用表单登录（替代旧版的 allowFormAuthenticationForClients）
return http.formLogin(Customizer.withDefaults()).build();
}
/**
* 默认安全配置（优先级次之）
* 替代旧版的 SecurityConfig 内部类
* 对应旧版的 configure(HttpSecurity http) 方法
*/
@Bean
@Order(2)
public SecurityFilterChain defaultSecurityFilterChain(HttpSecurity http) throws Exception {
log.info("【Bean初始化】defaultSecurityFilterChain - 默认安全配置（@Order(2)，次优先级）");
log.info(" 保护的端点：/login, /logout, 所有其他端点（除了/.well-known/**）");
log.info(" 作用：提供登录页面、处理登录请求、会话管理");
RequestCache requestCache = new HttpSessionRequestCache();
http
.authorizeHttpRequests(authorize -> authorize
.requestMatchers("/.well-known/**", "/favicon.ico", "/error").permitAll()
.anyRequest().authenticated()
)
.userDetailsService(customUserDetailsService)
// 不指定 loginPage，使用 Spring Security 默认的登录页面
.formLogin(form -> form
.successHandler((request, response, authentication) -> {
SavedRequest savedRequest = (SavedRequest) request.getSession()
.getAttribute("SPRING_SECURITY_SAVED_REQUEST");
if (savedRequest != null) {
String targetUrl = savedRequest.getRedirectUrl();
response.sendRedirect(targetUrl);
} else {
response.sendRedirect("/");
}
})
.permitAll()
)
.logout(logout -> logout
.logoutSuccessUrl("/login?logout")
.permitAll()
)
.requestCache(cache -> cache.requestCache(requestCache));
return http.build();
}
/**
* 授权服务器设置
* 配置授权服务器的基础 URL 和端点
*/
@Bean
public AuthorizationServerSettings authorizationServerSettings() {
log.info("【Bean初始化】authorizationServerSettings - 授权服务器端点配置");
log.info(" Issuer URI: http://localhost:9001");
log.info(" 授权端点: /oauth2/authorize");
log.info(" Token端点: /oauth2/token");
log.info(" JWK端点: /oauth2/jwks");
log.info(" 用户信息端点: /userinfo");
return AuthorizationServerSettings.builder()
.issuer("http://localhost:9001") // 服务签发者
.authorizationEndpoint("/oauth2/authorize") // 授权端点（对应旧版的 /oauth/authorize）
.tokenEndpoint("/oauth2/token") // Token 端点（对应旧版的 /oauth/token）
.jwkSetEndpoint("/oauth2/jwks") // JWK 端点
.oidcUserInfoEndpoint("/userinfo") // 用户信息端点
.build();
}
}auth / pom.xml
java
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
<groupId>com.dp</groupId>
<artifactId>alibaba_jwt_sso_2023</artifactId>
<version>1.0.0</version>
</parent>
<artifactId>auth</artifactId>
<name>auth</name>
<description>auth</description>
<properties>
<java.version>17</java.version>
</properties>
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<!-- Spring Security -->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-security</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.security</groupId>
<artifactId>spring-security-oauth2-authorization-server</artifactId>
</dependency>
<!-- JJWT -->
<dependency>
<groupId>io.jsonwebtoken</groupId>
<artifactId>jjwt-api</artifactId>
</dependency>
<dependency>
<groupId>io.jsonwebtoken</groupId>
<artifactId>jjwt-impl</artifactId>
<scope>runtime</scope>
</dependency>
<dependency>
<groupId>io.jsonwebtoken</groupId>
<artifactId>jjwt-jackson</artifactId>
<scope>runtime</scope>
</dependency>
<!-- Nacos Discovery -->
<dependency>
<groupId>com.alibaba.cloud</groupId>
<artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
</dependency>
<!-- Lombok -->
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<optional>true</optional>
</dependency>
<dependency>
<groupId>com.mysql</groupId>
<artifactId>mysql-connector-j</artifactId>
</dependency>
<dependency>
<groupId>com.baomidou</groupId>
<artifactId>mybatis-plus-spring-boot3-starter</artifactId>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
</plugins>
</build>
</project>auth / application.yml
java
server:
port: 9001
spring:
application:
name: auth
datasource:
driver-class-name: com.mysql.cj.jdbc.Driver
url: jdbc:mysql://localhost:3306/oauth2_auth?useUnicode=true&characterEncoding=utf-8&useSSL=false&serverTimezone=Asia/Shanghai&allowPublicKeyRetrieval=true
username: root
password: xx
hikari:
maximum-pool-size: 10
minimum-idle: 5
connection-timeout: 30000
idle-timeout: 600000
max-lifetime: 1800000
cloud:
nacos:
discovery:
server-addr: localhost:8848
namespace: public
mybatis-plus:
mapper-locations: classpath*:mapper/**/*.xml
type-aliases-package: com.dp.auth.entity
configuration:
map-underscore-to-camel-case: true
log-impl: org.apache.ibatis.logging.stdout.StdOutImpl
global-config:
db-config:
id-type: auto
logic-delete-field: deleted
logic-delete-value: 1
logic-not-delete-value: 0
logging:
level:
org.springframework.security: DEBUG
org.springframework.security.oauth2: DEBUG
com.dp.auth.mapper: DEBUGgateways / GatewaySecurityConfig.java
java
package com.dp.gateways.config;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.web.reactive.EnableWebFluxSecurity;
import org.springframework.security.config.web.server.ServerHttpSecurity;
import org.springframework.security.web.server.SecurityWebFilterChain;
import org.springframework.security.web.server.authentication.RedirectServerAuthenticationSuccessHandler;
import org.springframework.security.web.server.authentication.logout.RedirectServerLogoutSuccessHandler;
import java.net.URI;
@Configuration
@EnableWebFluxSecurity
public class GatewaySecurityConfig {
@Bean
public SecurityWebFilterChain springSecurityFilterChain(ServerHttpSecurity http) {
// 登录成功处理器
RedirectServerAuthenticationSuccessHandler loginSuccessHandler =
new RedirectServerAuthenticationSuccessHandler("/");
// 退出成功处理器
RedirectServerLogoutSuccessHandler logoutSuccessHandler =
new RedirectServerLogoutSuccessHandler();
logoutSuccessHandler.setLogoutSuccessUrl(URI.create("/login?logout"));
return http
.csrf(csrf -> csrf.disable())
.authorizeExchange(exchange -> exchange
.pathMatchers("/", "/login", "/logout", "/favicon.ico").permitAll()
.anyExchange().authenticated()
)
.oauth2Login(oauth2 -> oauth2
.authenticationSuccessHandler(loginSuccessHandler)
)
.logout(logout -> logout
.logoutUrl("/logout")
.logoutSuccessHandler(logoutSuccessHandler)
)
.build();
}
}gateways / application.yml
java
server:
port: 8082
spring:
application:
name: gateways
cloud:
gateway:
discovery:
locator:
enabled: true
lower-case-service-id: true
routes:
- id: resource-module
uri: lb://resource # 通过 Nacos 发现，会自动找到 9002
predicates:
- Path=/api/**
filters:
- TokenRelay
nacos:
discovery:
server-addr: localhost:8848
security:
oauth2:
client:
registration:
gateway-client:
provider: auth-server
client-id: gateway-client
client-secret: gateway-secret
authorization-grant-type: authorization_code
redirect-uri: "http://localhost:8082/login/oauth2/code/gateway-client"
scope: openid,profile,admin
provider:
auth-server:
issuer-uri: http://localhost:9001
logging:
level:
com.dp.gateways: DEBUG
org.springframework.security: DEBUGgateways / pom.xml
java
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
<groupId>com.dp</groupId>
<artifactId>alibaba_jwt_sso_2023</artifactId>
<version>1.0.0</version>
</parent>
<artifactId>gateways</artifactId>
<name>gateways</name>
<description>gateways</description>
<properties>
<java.version>17</java.version>
</properties>
<dependencies>
<!-- Gateway（已包含 webflux，不需要单独加） -->
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-gateway</artifactId>
</dependency>
<!-- Nacos 服务发现 -->
<dependency>
<groupId>com.alibaba.cloud</groupId>
<artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
</dependency>
<!-- OAuth2 Client -->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-oauth2-client</artifactId>
</dependency>
<!-- Spring Security（Gateway 需要响应式版本） -->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-security</artifactId>
</dependency>
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<optional>true</optional>
</dependency>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-loadbalancer</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
</plugins>
</build>
</project>resource / pom.xml
java
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
<groupId>com.dp</groupId>
<artifactId>alibaba_jwt_sso_2023</artifactId>
<version>1.0.0</version>
</parent>
<artifactId>resource</artifactId>
<name>resource</name>
<description>resource</description>
<properties>
<java.version>17</java.version>
</properties>
<dependencies>
<!-- Spring Boot Web -->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<!-- Spring Security OAuth2 Resource Server -->
<dependency>
<groupId>org.springframework.security</groupId>
<artifactId>spring-security-oauth2-authorization-server</artifactId>
</dependency>
<!-- JJWT -->
<dependency>
<groupId>io.jsonwebtoken</groupId>
<artifactId>jjwt-api</artifactId>
</dependency>
<dependency>
<groupId>io.jsonwebtoken</groupId>
<artifactId>jjwt-impl</artifactId>
<scope>runtime</scope>
</dependency>
<dependency>
<groupId>io.jsonwebtoken</groupId>
<artifactId>jjwt-jackson</artifactId>
<scope>runtime</scope>
</dependency>
<!-- Nacos Discovery -->
<dependency>
<groupId>com.alibaba.cloud</groupId>
<artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
</dependency>
<!-- Lombok -->
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<optional>true</optional>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
</plugins>
</build>
</project>resource / ResourceServerConfig.java
java
//package com.dp.resource.config;
//
//import org.springframework.context.annotation.Bean;
//import org.springframework.context.annotation.Configuration;
//import org.springframework.security.config.annotation.method.configuration.EnableMethodSecurity;
//import org.springframework.security.config.annotation.web.builders.HttpSecurity;
//import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
//import org.springframework.security.oauth2.jwt.JwtDecoder;
//import org.springframework.security.oauth2.jwt.NimbusJwtDecoder;
//import org.springframework.security.web.SecurityFilterChain;
//
/// **
// * 资源服务器配置（新版）
// * 使用 RSA 公钥验证 JWT 签名
// */
//@Configuration
//@EnableWebSecurity
//@EnableMethodSecurity
//public class ResourceServerConfig {
//
// /**
// * 授权服务器的 JWK 端点地址
// * 资源服务器从这里获取公钥来验证 JWT
// */
// private static final String JWK_SET_URI = "http://localhost:9001/oauth2/jwks";
//
// @Bean
// public JwtDecoder jwtDecoder() {
// // 从授权服务器的 JWK 端点获取公钥
// return NimbusJwtDecoder.withJwkSetUri(JWK_SET_URI).build();
// }
//
// @Bean
// public SecurityFilterChain securityFilterChain(HttpSecurity http) throws Exception {
// http
// .authorizeHttpRequests(authorize -> authorize
// .requestMatchers("/api/public/**").permitAll()
// .requestMatchers("/api/user/**").hasAnyAuthority("SCOPE_profile", "SCOPE_openid")
// .requestMatchers("/api/admin/**").hasAnyAuthority("SCOPE_admin", "ROLE_ADMIN")
// .anyRequest().authenticated()
// )
// .oauth2ResourceServer(oauth2 -> oauth2
// .jwt(jwt -> jwt.decoder(jwtDecoder()))
// )
// .csrf(csrf -> csrf.disable());
//
// return http.build();
// }
//
//}
package com.dp.resource.config;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.method.configuration.EnableMethodSecurity;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.oauth2.jwt.JwtDecoder;
import org.springframework.security.oauth2.jwt.NimbusJwtDecoder;
import org.springframework.security.web.SecurityFilterChain;
@Configuration
@EnableWebSecurity
@EnableMethodSecurity
public class ResourceServerConfig {
private static final String JWK_SET_URI = "http://localhost:9001/oauth2/jwks";
@Bean
public JwtDecoder jwtDecoder() {
return NimbusJwtDecoder.withJwkSetUri(JWK_SET_URI).build();
}
@Bean
public SecurityFilterChain securityFilterChain(HttpSecurity http) throws Exception {
http
.authorizeHttpRequests(authorize -> authorize
// 公开接口 - 不需要认证
.requestMatchers("/api/public/**").permitAll()
// 用户接口 - 需要 profile 或 openid scope
// SCOPE_ 前缀是 OAuth2 scope 的标准写法
.requestMatchers("/api/user/**").hasAnyAuthority("SCOPE_profile", "SCOPE_openid")
// 管理员接口 - 需要 admin scope 或 ADMIN 角色
.requestMatchers("/api/admin/**").hasAnyAuthority("SCOPE_admin", "ROLE_ADMIN")
// 其他接口需要认证
.anyRequest().authenticated()
)
.oauth2ResourceServer(oauth2 -> oauth2
.jwt(jwt -> jwt.decoder(jwtDecoder()))
)
.csrf(csrf -> csrf.disable());
return http.build();
}
}resources / yml
java
server:
port: 9002
spring:
application:
name: resource
cloud:
nacos:
discovery:
server-addr: localhost:8848
namespace: public
security:
oauth2:
resourceserver:
jwt:
# 从 auth 模块获取公钥来验证 JWT
jwk-set-uri: http://localhost:9001/oauth2/jwks
# JWT 签名密钥（必须与认证服务器一致）
jwt:
secret: sso-secret-key-2024
logging:
level:
org.springframework.security: DEBUGresource / pom
java
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
<groupId>com.dp</groupId>
<artifactId>alibaba_jwt_sso_2023</artifactId>
<version>1.0.0</version>
</parent>
<artifactId>resource</artifactId>
<name>resource</name>
<description>resource</description>
<properties>
<java.version>17</java.version>
</properties>
<dependencies>
<!-- Spring Boot Web -->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<!-- Spring Security OAuth2 Resource Server -->
<dependency>
<groupId>org.springframework.security</groupId>
<artifactId>spring-security-oauth2-authorization-server</artifactId>
</dependency>
<!-- JJWT -->
<dependency>
<groupId>io.jsonwebtoken</groupId>
<artifactId>jjwt-api</artifactId>
</dependency>
<dependency>
<groupId>io.jsonwebtoken</groupId>
<artifactId>jjwt-impl</artifactId>
<scope>runtime</scope>
</dependency>
<dependency>
<groupId>io.jsonwebtoken</groupId>
<artifactId>jjwt-jackson</artifactId>
<scope>runtime</scope>
</dependency>
<!-- Nacos Discovery -->
<dependency>
<groupId>com.alibaba.cloud</groupId>
<artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
</dependency>
<!-- Lombok -->
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<optional>true</optional>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
</plugins>
</build>
</project>八、测试
启动nacos -> auth -> resource -> gateways
http://localhost:8082/api/user/info
返回如图即成功。
九、总结
| 层级 | 技术 | 作用 |
|---|---|---|
| 接入层 | Spring Cloud Gateway | 统一入口，SSO 认证 |
| 认证层 | Spring Authorization Server | OAuth2 授权服务器 |
| 业务层 | Spring Boot + Security | 资源服务器，JWT 验证 |
| 服务发现 | Nacos | 服务注册与发现 |
| 数据层 | MySQL + MyBatis-Plus | 数据持久化 |
| 安全 | JWT + RSA + BCrypt | 令牌加密传输 |
这是一个企业级的 OAuth2 + JWT + SSO 微服务架构，支持多系统单点登录，可水平扩展。
