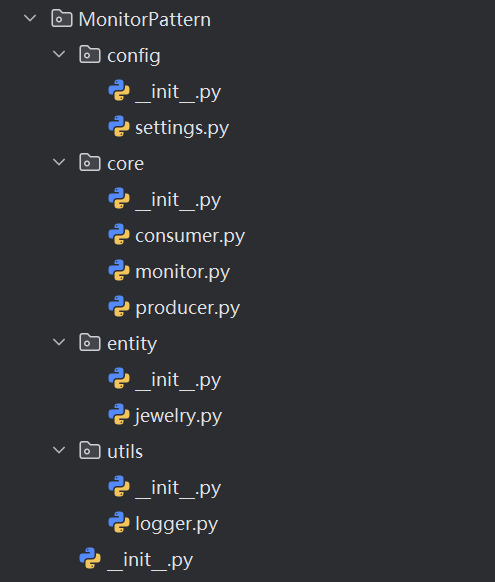

项目结构：
python
# encoding: utf-8
# 版权所有 2026 ©涂聚文有限公司™ ®
# 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎
# 描述：监控模式 Monitor Pattern
# Author : geovindu,Geovin Du 涂聚文.
# IDE : PyCharm 2024.3.6 python 3.11
# os : windows 10
# database : mysql 9.0 sql server 2019, postgreSQL 17.0 Oracle 21c Neo4j
# Datetime : 2026/5/17 20:30
# User : geovindu
# Product : PyCharm
# Project : pydesginpattern
# File : settings.py
# 系统全局配置
class SystemConfig(object):
"""
生产任务配置
"""
TOTAL_PRODUCTION_TASKS = 10 # 总生产数量
WORKER1_TASKS = 5 # 工匠1 生产数量
WORKER2_TASKS = 5 # 工匠2 生产数量
# 珠宝类型配置
WORKER1_JEWELRY = "钻戒"
WORKER1_MATERIAL = "钻石+铂金"
WORKER2_JEWELRY = "黄金项链"
WORKER2_MATERIAL = "足金999"
# 模拟耗时配置（秒）
PRODUCE_MIN_DELAY = 0
PRODUCE_MAX_DELAY = 0.5
CHECK_MIN_DELAY = 0.3
CHECK_MAX_DELAY = 0.8
# encoding: utf-8
# 版权所有 2026 ©涂聚文有限公司™ ®
# 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎
# 描述：监控模式 Monitor Pattern
# Author : geovindu,Geovin Du 涂聚文.
# IDE : PyCharm 2024.3.6 python 3.11
# os : windows 10
# database : mysql 9.0 sql server 2019, postgreSQL 17.0 Oracle 21c Neo4j
# Datetime : 2026/5/17 20:31
# User : geovindu
# Product : PyCharm
# Project : pydesginpattern
# File : logger.py
from datetime import datetime
class SystemLogger:
"""
统一日志工具类
"""
@staticmethod
def log(message: str) -> None:
"""
带时间戳的标准日志输出
:param message:
:return:
"""
timestamp = datetime.now().strftime("%Y/%m/%d %H:%M:%S")
print(f"{timestamp} {message}")
python
# encoding: utf-8
# 版权所有 2026 ©涂聚文有限公司™ ®
# 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎
# 描述：监控模式 Monitor Pattern
# Author : geovindu,Geovin Du 涂聚文.
# IDE : PyCharm 2024.3.6 python 3.11
# os : windows 10
# database : mysql 9.0 sql server 2019, postgreSQL 17.0 Oracle 21c Neo4j
# Datetime : 2026/5/17 20:30
# User : geovindu
# Product : PyCharm
# Project : pydesginpattern
# File : jewelry.py
class Jewelry:
"""
珠宝实体类
"""
def __init__(self, jewelry_id: int, name: str, material: str):
"""
:param jewelry_id:
:param name:
:param material:
"""
self.id = jewelry_id # 珠宝ID
self.name = name # 名称
self.material = material # 材质
def __repr__(self):
"""
:return:
"""
return f"ID={self.id} | {self.name} | {self.material}"
python
# encoding: utf-8
# 版权所有 2026 ©涂聚文有限公司™ ®
# 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎
# 描述：监控模式 Monitor Pattern
# Author : geovindu,Geovin Du 涂聚文.
# IDE : PyCharm 2024.3.6 python 3.11
# os : windows 10
# database : mysql 9.0 sql server 2019, postgreSQL 17.0 Oracle 21c Neo4j
# Datetime : 2026/5/17 20:33
# User : geovindu
# Product : PyCharm
# Project : pydesginpattern
# File : monitor.py
import threading
from MonitorPattern.entity.jewelry import Jewelry
from MonitorPattern.utils.logger import SystemLogger
from MonitorPattern.config.settings import SystemConfig
class JewelryMonitor:
"""
监控器：线程安全的生产-消费缓冲区（Monitor 模式标准实现）
"""
_instance = None # 单例模式
_lock = threading.Lock()
def __new__(cls):
"""
单例：全局唯一监控器
"""
with cls._lock:
if cls._instance is None:
cls._instance = super().__new__(cls)
cls._instance.init()
return cls._instance
def init(self):
"""
线程同步
:return:
"""
self.mutex = threading.Lock()
self.cond = threading.Condition(self.mutex)
# 共享资源
self.jewelry_queue: list[Jewelry] = []
self.jewelry_id = 1
# 任务计数
self.produced_count = 0
self.checked_count = 0
self.total_tasks = SystemConfig.TOTAL_PRODUCTION_TASKS
def produce(self, worker_name: str, jewelry_name: str, material: str) -> bool:
"""
生产：原子操作，线程安全"
:param worker_name:
:param jewelry_name:
:param material:
:return:
"""
with self.mutex:
# 创建珠宝实体
jewelry = Jewelry(self.jewelry_id, jewelry_name, material)
self.jewelry_queue.append(jewelry)
# 日志
SystemLogger.log(f"[{worker_name}] 生产完成: {jewelry_name} | {material}")
# 计数
self.jewelry_id += 1
self.produced_count += 1
# 唤醒消费者
self.cond.notify()
# 返回是否生产完成
return self.produced_count == self.total_tasks
def consume(self, inspector_name: str) -> bool:
"""
消费：原子操作，线程安全
:param inspector_name:
:return:
"""
with self.mutex:
# 等待条件
while not self.jewelry_queue and self.produced_count < self.total_tasks:
self.cond.wait()
# 消费
if self.jewelry_queue:
jewelry = self.jewelry_queue.pop(0)
SystemLogger.log(f"[{inspector_name}] 质检完成: {jewelry}")
self.checked_count += 1
# 返回是否全部质检完成
return self.checked_count == self.total_tasks
# encoding: utf-8
# 版权所有 2026 ©涂聚文有限公司™ ®
# 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎
# 描述：监控模式 Monitor Pattern
# Author : geovindu,Geovin Du 涂聚文.
# IDE : PyCharm 2024.3.6 python 3.11
# os : windows 10
# database : mysql 9.0 sql server 2019, postgreSQL 17.0 Oracle 21c Neo4j
# Datetime : 2026/5/17 20:35
# User : geovindu
# Product : PyCharm
# Project : pydesginpattern
# File : producer.py
import time
import random
from MonitorPattern.core.monitor import JewelryMonitor
from MonitorPattern.utils.logger import SystemLogger
from MonitorPattern.config.settings import SystemConfig
class JewelryProducer:
"""
生产者
"""
def __init__(self, name: str, jewelry_name: str, material: str, task_num: int):
"""
:param name:
:param jewelry_name:
:param material:
:param task_num:
"""
self.name = name
self.jewelry_name = jewelry_name
self.material = material
self.task_num = task_num
self.monitor = JewelryMonitor()
def run(self):
"""
执行生产任务
:return:
"""
for _ in range(self.task_num):
# 模拟生产耗时
time.sleep(random.uniform(
SystemConfig.PRODUCE_MIN_DELAY,
SystemConfig.PRODUCE_MAX_DELAY
))
# 生产
finished = self.monitor.produce(
self.name,
self.jewelry_name,
self.material
)
# 完成标记
if finished:
SystemLogger.log(f"[{self.name}] ✅ 全部生产任务完成")
# encoding: utf-8
# 版权所有 2026 ©涂聚文有限公司™ ®
# 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎
# 描述：监控模式 Monitor Pattern
# Author : geovindu,Geovin Du 涂聚文.
# IDE : PyCharm 2024.3.6 python 3.11
# os : windows 10
# database : mysql 9.0 sql server 2019, postgreSQL 17.0 Oracle 21c Neo4j
# Datetime : 2026/5/17 20:36
# User : geovindu
# Product : PyCharm
# Project : pydesginpattern
# File : consumer.py
import time
import random
from MonitorPattern.core.monitor import JewelryMonitor
from MonitorPattern.utils.logger import SystemLogger
from MonitorPattern.config.settings import SystemConfig
class JewelryConsumer:
"""
消费者：
"""
def __init__(self, name: str):
"""
:param name:
"""
self.name = name
self.monitor = JewelryMonitor()
def run(self):
"""
执行质检任务
:return:
"""
while True:
# 模拟质检耗时
time.sleep(random.uniform(
SystemConfig.CHECK_MIN_DELAY,
SystemConfig.CHECK_MAX_DELAY
))
# 质检
finished = self.monitor.consume(self.name)
if finished:
SystemLogger.log(f"[{self.name}] ✅ 全部质检任务完成")
break调用：
python
# encoding: utf-8
# 版权所有 2026 ©涂聚文有限公司™ ®
# 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎
# 描述：监控模式 Monitor Pattern
# Author : geovindu,Geovin Du 涂聚文.
# IDE : PyCharm 2024.3.6 python 3.11
# os : windows 10
# database : mysql 9.0 sql server 2019, postgreSQL 17.0 Oracle 21c Neo4j
# Datetime : 2026/5/17 20:38
# User : geovindu
# Product : PyCharm
# Project : pydesginpattern
# File : MonitorBll.py
"""
Monitor/
├── config/ # 配置层
│ └── settings.py # 全局配置
├── core/ # 核心业务层
│ ├── monitor.py # Monitor 模式实现（线程安全监控器）
│ ├── producer.py # 生产者（工匠）
│ └── consumer.py # 消费者（质检员）
├── entity/ # 实体层
│ └── jewelry.py # 珠宝实体类
├── utils/ # 工具层
│ └── logger.py # 日志工具（统一时间戳）
└── main.py # 系统入口
"""
import threading
from MonitorPattern.utils.logger import SystemLogger
from MonitorPattern.core.producer import JewelryProducer
from MonitorPattern.core.consumer import JewelryConsumer
from MonitorPattern.config.settings import SystemConfig
class MonitorBll(object):
"""
"""
def demo(self):
"""
:return:
"""
# 日志：系统启动
SystemLogger.log("=== 珠宝生产-质检系统 启动 ===")
# ========== 初始化角色 ==========
# 工匠1
worker1 = JewelryProducer(
name="工匠1",
jewelry_name=SystemConfig.WORKER1_JEWELRY,
material=SystemConfig.WORKER1_MATERIAL,
task_num=SystemConfig.WORKER1_TASKS
)
# 工匠2
worker2 = JewelryProducer(
name="工匠2",
jewelry_name=SystemConfig.WORKER2_JEWELRY,
material=SystemConfig.WORKER2_MATERIAL,
task_num=SystemConfig.WORKER2_TASKS
)
# 质检员
inspector = JewelryConsumer(name="质检员")
# ========== 创建线程 ==========
t1 = threading.Thread(target=worker1.run, name="工匠1")
t2 = threading.Thread(target=worker2.run, name="工匠2")
t3 = threading.Thread(target=inspector.run, name="质检员")
# ========== 启动 ==========
t1.start()
t2.start()
t3.start()
# ========== 等待结束 ==========
t1.join()
t2.join()
t3.join()
# 系统完成

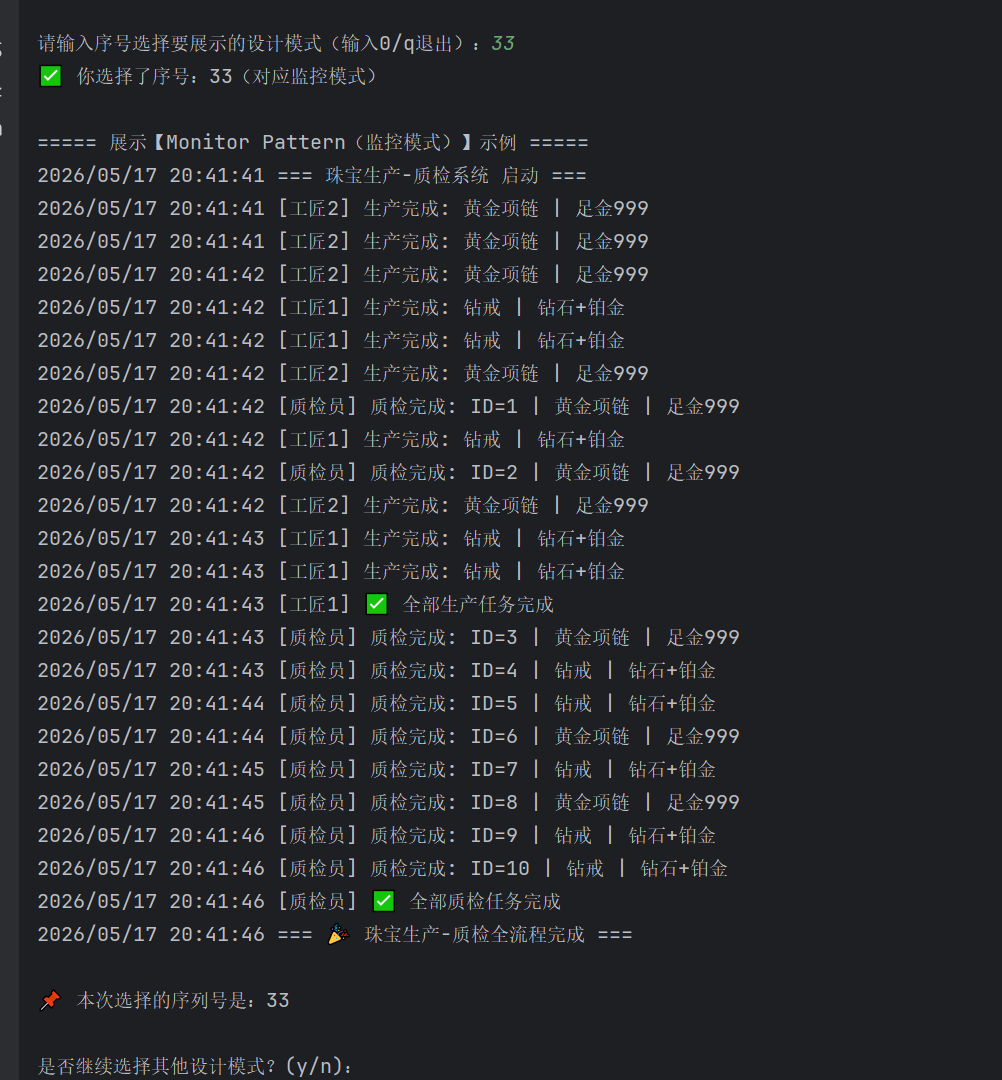

SystemLogger.log("=== 🎉 珠宝生产-质检全流程完成 ===")输出：
