Unity Job System笔记

用于代码多线程执行，配合专用于Job System的Burst compiler 性能更好；

unity通过其原生job system，在多个工作线程（worker threads）执行代码；

job system会自动根据cpu的核数来决定线程数量，派发任务时无须考虑cpu核数；

Work stealing：闲的工作线程会窃取忙碌线程的任务来执行；

Safety system：

job里的数据是主线程数据的拷贝，而不是直接传递引用，这样隔离数据避免冲突；

Job types:

IJob：执行单个任务；

IJobParallelFor：并行执行Job里的代码；

IJobParallelForTransform：用于并行处理Transform；

IJobFor:

线程安全类型：

Burst不支持托管对象；为了jobs执行性能，jobs里的数据类型需要非托管的 blittable 类型，或unity的NativeContainer；

NativeContainer是原生内存线程安全的c#包装，同时也允许job和主线程共享数据；

unity内置NativeContainer对象：

NativeArray；

NativeSlice：NativeArray内的一段内存；

Collections package包含额外的NativeContainer；

读写权限：

job里的NativeContainer默认有读写权限，但会影响性能；

job system不允许同时有两个job对NativeContainer有写的权限；

因此需要用[ReadOnly]属性声明：

[ReadOnly]
public NativeArray<int> input;

Memory allocators：

创建NativeContainer对象时，需要指定内存分配类型；

Allocator.Temp：

最快的，寿命在一帧内， 不能用于jobs里的成员；

Allocator.TempJob：

寿命在四帧内，必须在四帧内Dispose，否则告警，常用于jobs；

NativeArray<float> result = new NativeArray<float>(1, Allocator.TempJob);

Allocator.Persistent：

性能最慢，可存在任意时长；

NativeContainer safety system：

NativeContainer对象内置safety system，记录哪些job对其读写；

在schedule新的job时，如果有两个独立的job同时具体写的权限，则安全系统抛出异常；

同样适用于主线程，不能在job写完前读取，或在job使用时写入；

NativeContainers 没有实现ref return，不能直接更改NativeContainer的内容：

MyStruct temp = myNativeArray[i];
temp.memberVariable = 0;
myNativeArray[i] = temp;

实现一个自定义的 native container：

类添加 NativeContainer 属性；

与safety system集成；

Usage tracking：让unity记录已分配的jobs对NativeContainer的使用情况；

Leak tracking：内存泄露检查；

实现usage tracking：

包含一个类型为结构体 AtomicSafetyHandle ，名 m_Safety 的字段；

AtomicSafetyHandle持有一个引用，指向safety system中为该 native container存储的信息；

AtomicSafetyHandle还存储一些标记，用于指示当前环境可以执行的操作；

job包含一个NativeContainer时，job system自动配置相关标志；

两个job包含同一个NativeContainer，由于NativeContainer和AtomicSafetyHandle为结构体，两个job有不同的标志；

实现 leak tracking：

unity原生代码已经实现的内存泄露跟踪；

使用UnsafeUtility.MallocTracked来分配内存，使用UnsafeUtility.FreeTracked来Dispose；

为了识别NativeContainer创建，可设置NativeLeakDetection.Mode，或者编辑器

Preferences > Jobs > Leak Detection Level；

native containers不支持嵌套native containers；

AtomicSafetyHandle.SetNestedContainer；

AtomicSafetyHandle支持Safety IDs and error messages

ativeContainer structures复制原理：

NativeContainer为结构体，复制指向存储数据的指针；

AtomicSafetyHandle指向相同的safety data，但有不同的标记；

Version numbers：

NativeContainer释放后，对应存储数据的内存被释放，指针引用无效，其他复制的NativeContainer结构体应识别无效；

AtomicSafetyHandle 指向的central record不会被释放，而是被其他NativeContainer复用；

每个record包含一个version number，AtomicSafetyHandle中也包含一个，当释放NativeContainer时，unity增加central record中的version number，然后可被其他复用；

AtomicSafetyHandle通过比较自身和指向的record中的version number来判断是否有效，如CheckReadAndThrow和CheckWriteAndThrow；

Static views of dynamic native containers：

动态原生容器长度可变，如Collections package中的NativeList<T>；

通过叫为view的接口来直接访问数据，view不会复制数据或获取数据的所有权；

如NativeList<T>.AsArray；

在动态容器长度变更时，会重新分配内存，导致view持有的指针失效；

由于引入Secondary version numbers：

safety system在AtomicSafetyHandle中包含第二个version number，与第一个version numer相独立；

创建view前，首先使用AtomicSafetyHandle.CheckGetSecondaryDataPointerAndThrow复制指针安全；

然后复制当前容器的AtomicSafetyHandle，使用UseSecondaryVersion标记新复制的Handle；

变更长度时，使用CheckWriteAndBumpSecondaryVersion替换CheckWriteAndThrow；

AtomicSafetyHandle.SetBumpSecondaryVersionOnScheduleWrite在具有写权限的job派发时自动使view失效；

    public NativeArray<T> AsArray()
    {
#if ENABLE_UNITY_COLLECTIONS_CHECKS
        // Check that it's safe for you to use the buffer pointer to construct a view right now.
        AtomicSafetyHandle.CheckGetSecondaryDataPointerAndThrow(m_Safety);

        // Make a copy of the AtomicSafetyHandle, and mark the copy to use the secondary version instead of the primary
        AtomicSafetyHandle handleForArray = m_Safety;
        AtomicSafetyHandle.UseSecondaryVersion(ref handleForArray);
#endif

        // Create a new NativeArray which aliases the buffer, using the current size. This doesn't allocate or copy
        // any data, it just sets up a NativeArray<T> which points at the m_Buffer.
        var array = NativeArrayUnsafeUtility.ConvertExistingDataToNativeArray<T>(m_Buffer, m_Length, Allocator.None);

#if ENABLE_UNITY_COLLECTIONS_CHECKS
        // Set the AtomicSafetyHandle on the newly created NativeArray to be the one that you copied from your handle
        // and made to use the secondary version.
        NativeArrayUnsafeUtility.SetAtomicSafetyHandle(ref array, handleForArray);
#endif

        return array;
    }

特殊的handles：

GetTempMemoryHandle（IsTempMemoryHandle.）；

GetTempUnsafePtrSliceHandle；

using System;
using System.Runtime.InteropServices;
using Unity.Collections.LowLevel.Unsafe;
using Unity.Collections;

// Marks the struct as a NativeContainer. This tells the job system that it contains an AtomicSafetyHandle.
[NativeContainer]
public unsafe struct NativeAppendOnlyList<T> : IDisposable where T : unmanaged
{
    // Raw pointers aren't usually allowed inside structures that are passed to jobs, but because it's protected
    // with the safety system, you can disable that restriction for it
    [NativeDisableUnsafePtrRestriction]
    internal void* m_Buffer;
    internal int m_Length;
    internal Allocator m_AllocatorLabel;

    // You should only declare and use safety system members with the ENABLE_UNITY_COLLECTIONS_CHECKS define.
    // In final builds of projects, the safety system is disabled for performance reasons, so these APIs aren't
    // available in those builds.
#if ENABLE_UNITY_COLLECTIONS_CHECKS

    // The AtomicSafetyHandle field must be named exactly 'm_Safety'.
    internal AtomicSafetyHandle m_Safety;

    // Statically register this type with the safety system, using a name derived from the type itself
    internal static readonly int s_staticSafetyId = AtomicSafetyHandle.NewStaticSafetyId<NativeAppendOnlyList<T>>();
#endif

    public NativeAppendOnlyList(Allocator allocator, params T[] initialItems)
    {
        m_Length = initialItems.Length;
        m_AllocatorLabel = allocator;

        // Calculate the size of the initial buffer in bytes, and allocate it
        int totalSize = UnsafeUtility.SizeOf<T>() * m_Length;
        m_Buffer = UnsafeUtility.MallocTracked(totalSize, UnsafeUtility.AlignOf<T>(), m_AllocatorLabel, 1);

        // Copy the data from the array into the buffer
        var handle = GCHandle.Alloc(initialItems, GCHandleType.Pinned);
        try
        {
            UnsafeUtility.MemCpy(m_Buffer, handle.AddrOfPinnedObject().ToPointer(), totalSize);
        }
        finally
        {
            handle.Free();
        }

#if ENABLE_UNITY_COLLECTIONS_CHECKS
        // Create the AtomicSafetyHandle and DisposeSentinel
        m_Safety = AtomicSafetyHandle.Create();

        // Set the safety ID on the AtomicSafetyHandle so that error messages describe this container type properly.
        AtomicSafetyHandle.SetStaticSafetyId(ref m_Safety, s_staticSafetyId);

        // Automatically bump the secondary version any time this container is scheduled for writing in a job
        AtomicSafetyHandle.SetBumpSecondaryVersionOnScheduleWrite(m_Safety, true);

        // Check if this is a nested container, and if so, set the nested container flag
        if (UnsafeUtility.IsNativeContainerType<T>())
            AtomicSafetyHandle.SetNestedContainer(m_Safety, true);
#endif
    }

    public int Length
    {
        get
        {
#if ENABLE_UNITY_COLLECTIONS_CHECKS
            // Check that you are allowed to read information about the container
            // This throws InvalidOperationException if you aren't allowed to read from the native container,
            // or if the native container has been disposed
            AtomicSafetyHandle.CheckReadAndThrow(m_Safety);
#endif
            return m_Length;
        }
    }

    public T this[int index]
    {
        get
        {
#if ENABLE_UNITY_COLLECTIONS_CHECKS
            // Check that you can read from the native container right now.
            AtomicSafetyHandle.CheckReadAndThrow(m_Safety);
#endif

            // Read from the buffer and return the value
            return UnsafeUtility.ReadArrayElement<T>(m_Buffer, index);
        }

        set
        {
#if ENABLE_UNITY_COLLECTIONS_CHECKS
            // Check that you can write to the native container right now.
            AtomicSafetyHandle.CheckWriteAndThrow(m_Safety);
#endif
            // Write the value into the buffer
            UnsafeUtility.WriteArrayElement(m_Buffer, index, value);
        }
    }

    public void Add(T value)
    {
#if ENABLE_UNITY_COLLECTIONS_CHECKS
        // Check that you can modify (write to) the native container right now, and if so, bump the secondary version so that
        // any views are invalidated, because you are going to change the size and pointer to the buffer
        AtomicSafetyHandle.CheckWriteAndBumpSecondaryVersion(m_Safety);
#endif

        // Replace the current buffer with a new one that has space for an extra element
        int newTotalSize = (m_Length + 1) * UnsafeUtility.SizeOf<T>();
        void* newBuffer = UnsafeUtility.MallocTracked(newTotalSize, UnsafeUtility.AlignOf<T>(), m_AllocatorLabel, 1);
        UnsafeUtility.MemCpy(newBuffer, m_Buffer, m_Length * UnsafeUtility.SizeOf<T>());
        UnsafeUtility.FreeTracked(m_Buffer, m_AllocatorLabel);
        m_Buffer = newBuffer;

        // Put the new element at the end of the buffer and increase the length
        UnsafeUtility.WriteArrayElement(m_Buffer, m_Length++, value);
    }

    public NativeArray<T> AsArray()
    {
#if ENABLE_UNITY_COLLECTIONS_CHECKS
        // Check that it's safe for you to use the buffer pointer to construct a view right now.
        AtomicSafetyHandle.CheckGetSecondaryDataPointerAndThrow(m_Safety);

        // Make a copy of the AtomicSafetyHandle, and mark the copy to use the secondary version instead of the primary
        AtomicSafetyHandle handleForArray = m_Safety;
        AtomicSafetyHandle.UseSecondaryVersion(ref handleForArray);
#endif

        // Create a new NativeArray which aliases the buffer, using the current size. This doesn't allocate or copy
        // any data, it just sets up a NativeArray<T> which points at the m_Buffer.
        var array = NativeArrayUnsafeUtility.ConvertExistingDataToNativeArray<T>(m_Buffer, m_Length, Allocator.None);

#if ENABLE_UNITY_COLLECTIONS_CHECKS
        // Set the AtomicSafetyHandle on the newly created NativeArray to be the one that you copied from your handle
        // and made to use the secondary version.
        NativeArrayUnsafeUtility.SetAtomicSafetyHandle(ref array, handleForArray);
#endif

        return array;
    }

    public void Dispose()
    {
#if ENABLE_UNITY_COLLECTIONS_CHECKS
        AtomicSafetyHandle.CheckDeallocateAndThrow(m_Safety);
        AtomicSafetyHandle.Release(m_Safety);
#endif

        // Free the buffer
        UnsafeUtility.FreeTracked(m_Buffer, m_AllocatorLabel);
        m_Buffer = null;
        m_Length = 0;
    }
}

创建和运行一个 job：

创建job：实现IJob接口；

实现Execute方法，worker thread执行job时调用；

Schedule job：在job上调用Schedule方法；

只能在主线程调用；

还有个Run方法，在主线程同步执行；

等等job完成：在JobHandle上调用Complete方法，然后访问结果数据；

尽可能迟调用，尽量在job执行完成调用，否则会阻塞主线程；

从job中直接访问非readonly或可变静态数据没有保护措施；

主线程在空闲时也会执行job，因此要注意job需在一帧内完成；

public class TempTest : MonoBehaviour
{
    // Create a native array of a single float to store the result. Using a
    // NativeArray is the only way you can get the results of the job, whether
    // you're getting one value or an array of values.
    NativeArray<float> result;
    // Create a JobHandle for the job
    JobHandle handle;

    // Set up the job
    public struct MyJob : IJob
    {
        public float a;
        public float b;
        public NativeArray<float> result;

        public void Execute()
        {
            result[0] = a + b;
        }
    }

    // Update is called once per frame
    void Update()
    {
        // Set up the job data
        result = new NativeArray<float>(1, Allocator.TempJob);

        MyJob jobData = new MyJob
        {
            a = 10,
            b = 10,
            result = result
        };

        // Schedule the job
        handle = jobData.Schedule();
    }

    private void LateUpdate()
    {
        // Sometime later in the frame, wait for the job to complete before accessing the results.
        handle.Complete();

        // All copies of the NativeArray point to the same memory, you can access the result in "your" copy of the NativeArray
        float aPlusB = result[0];

        // Free the memory allocated by the result array
        result.Dispose();
    }
}

对于IJobParallelFor，注意增加 batch size来减少执行的线程数；

MyParallelJob jobData = new MyParallelJob();
jobData.result = result;
// Use half the available worker threads, clamped to a minimum of 1 worker thread
int numBatches = Math.Max(1, JobsUtility.JobWorkerCount / 2);
int totalItems = result.Length;
int batchSize = totalItems / numBatches;
// Schedule the job with one Execute per index in the results array and batchSize items per processing batch
JobHandle handle = jobData.Schedule(totalItems, batchSize);

Job 依赖：

一个job可依赖另一个job的执行结果，job system等依赖的job完成时才执行当前的job；

JobHandle firstJobHandle = firstJob.Schedule();
secondJob.Schedule(firstJobHandle);

多个依赖时：

NativeArray<JobHandle> handles = new NativeArray<JobHandle>(numJobs, Allocator.TempJob);

// Populate `handles` with `JobHandles` from multiple scheduled jobs...

JobHandle jh = JobHandle.CombineDependencies(handles);

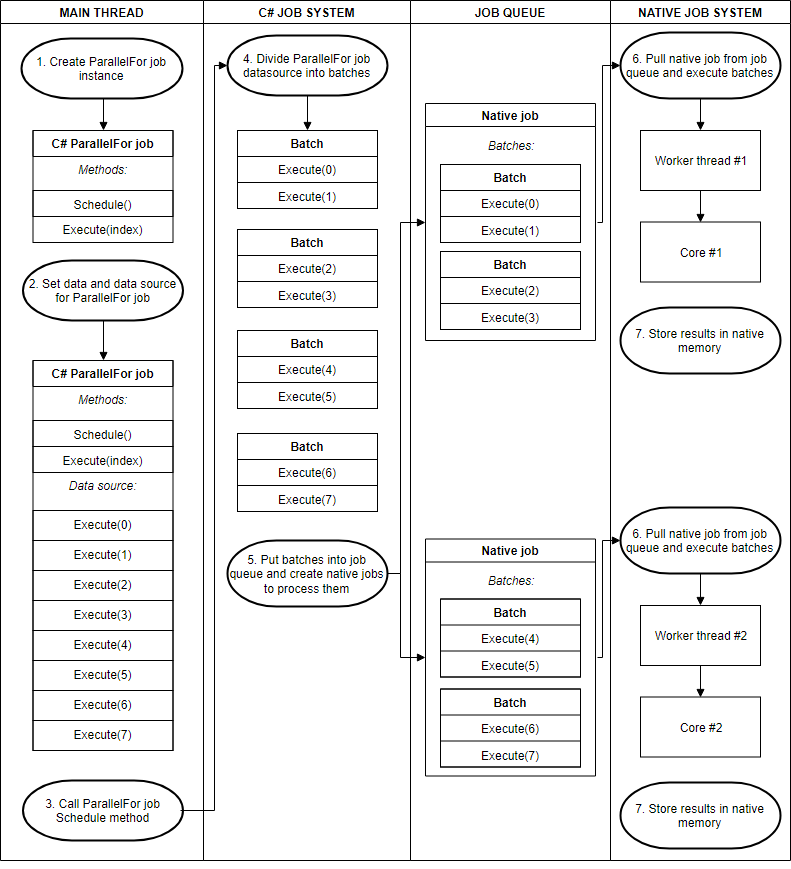

Parallel jobs：

同时对多个对象执行相同的操作，多核运行，每个核上一个job，处理若干batch；

public struct MyParallelJob : IJobParallelFor
{
    public NativeArray<float> result;

    public void Execute(int index)
    {
        result[index] = index;
    }
}

Schedule时需要指定数据长度和batch大小：

未执行的Batch也会被空闲的job窃取，每次窃取剩余的一半；

ParallelForTransform：

专门操作Transform的IJobParallelFor；
